4-01 — PROPELLER SHAFT (#66972) — 158 parça

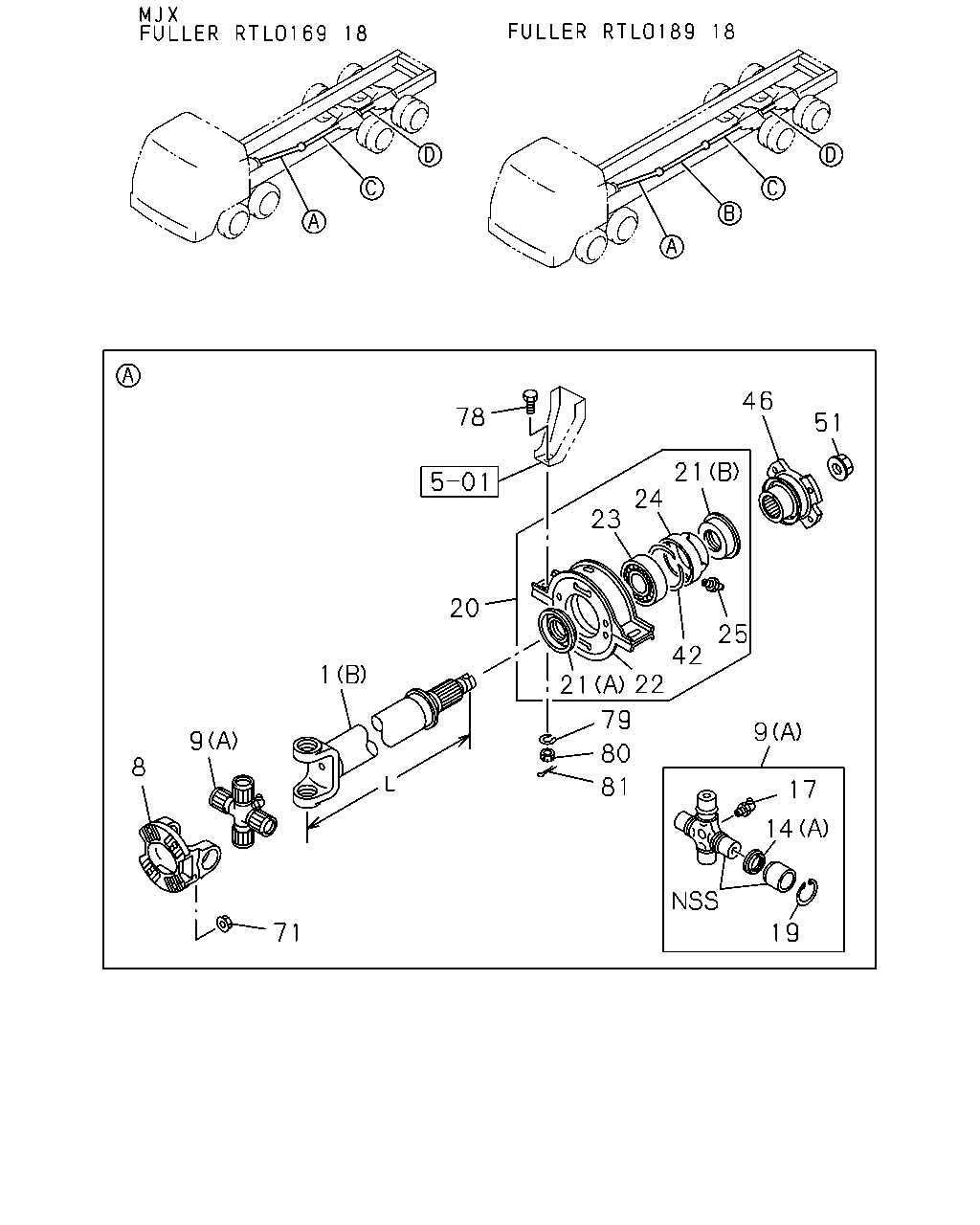

78 46 51 21 24 23 20 21 22 25 42 79 80 81 9 17 14 19 71 9 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP MJX16P M/T(Y3Z) (B) L=799	1-37153-640-0	01	1	0710-
1	SHAFT; PROP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=939	1-37153-673-0	01	1	0710-
1	SHAFT; PROP TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=762	8-98082-813-0	01	1	0710-
1	SHAFT; PROP 6WF1 TC-C(1B8),6WG1 TC-S(97L) (A) L=1795	1-37125-422-0	01	1	0710-
1	SHAFT; PROP 6WG1 TC-C(72L) (A) L=940	1-37125-337-0	01	1	0710-
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	0710-
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-37211-084-0	01	1	0710-
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	0710-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0710-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	0710-
9	JOURNAL ASM; PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-37300-112-0	01	1	0710-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	0710-
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	0710-
14	COVER; DUST,SPIDER TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-37249-133-0	04	1	0710-
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	0710-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0710-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-
17	NIPPLE; GREASE,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST TRANSMISSION-FULLER RTLO189 18(Y4W) T=2.2	1-09587-103-1	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST TRANSMISSION-FULLER RTLO189 18(Y4W) T=2.17	1-09587-107-0	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	0710-
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	0710-
20	BEARING ASM; CTR,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=65	1-37510-116-1	01	1	0710-
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	0710-
21	SEAL; OIL,CENTER BRG TRANSMISSION-FULLER RTLO189 18(Y4W) (A) OD=114	1-09625-222-1	01	1	0710-
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	0710-
21	SEAL; OIL,CENTER BRG TRANSMISSION-FULLER RTLO189 18(Y4W) (B) OD=106	1-09625-622-0	01	1	0710-
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0710-
22	RUBBER; CUSHION,CENTER BRG,1ST TRANSMISSION-FULLER RTLO189 18(Y4W)	1-37516-056-0	01	1	0710-
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0710-
23	BEARING; CENTER,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09800-210-0	01	1	0710-
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	0710-
24	RETAINER; CENTER BRG,1ST TRANSMISSION-FULLER RTLO189 18(Y4W)	1-37529-110-0	01	1	0710-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0710-
25	NIPPLE; GREASE,CENTER BRG TRANSMISSION-FULLER RTLO189 18(Y4W) MT6 STRAIGHT	1-09380-006-0	01	1	0710-
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	0710-
42	RING; SNAP,CTR BRG TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09587-085-1	01	1	0710-
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	0710-
46	FLANGE; SPLINED,PROP SHAFT,1ST TRANSMISSION-FULLER RTLO189 18(Y4W)	1-37245-349-0	01	1	0710-
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0710-
51	NUT; FLANGE,SPLINED TRANSMISSION-FULLER RTLO189 18(Y4W) M45 FLAMGE	1-09449-040-0	01	1	0710-
71	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0710-0805
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	0806-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0710-
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0710-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	0710-1204
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	0710-

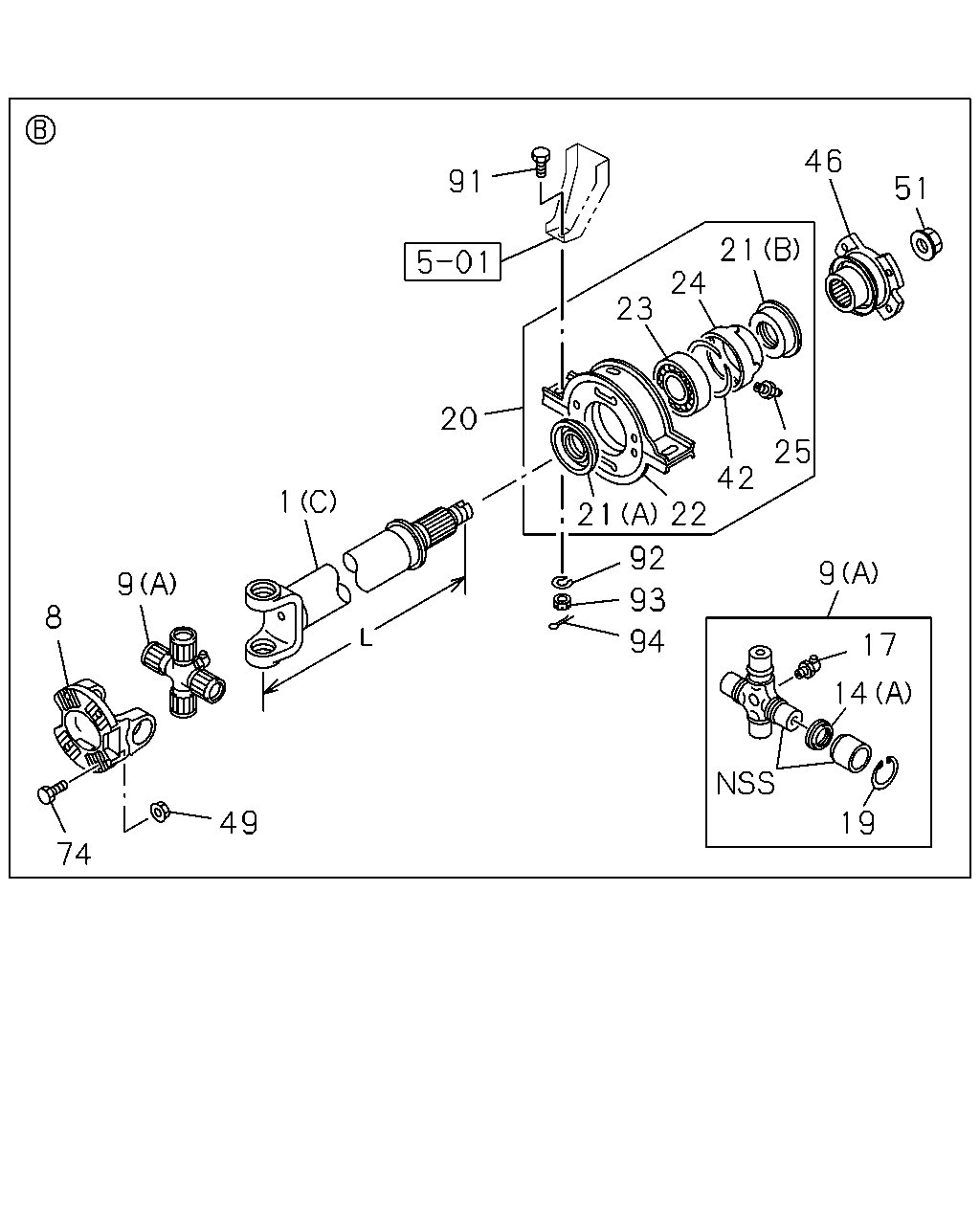

91 46 21 51 24 23 25 42 22 21 94 92 9 93 17 14 19 49 74 8 9 1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP MJX16P M/T(Y3Z) (B) L=799	1-37153-640-0	01	1	0710-
1	SHAFT; PROP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=939	1-37153-673-0	01	1	0710-
1	SHAFT; PROP TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=762	8-98082-813-0	01	1	0710-
1	SHAFT; PROP 6WF1 TC-C(1B8),6WG1 TC-S(97L) (A) L=1795	1-37125-422-0	01	1	0710-
1	SHAFT; PROP 6WG1 TC-C(72L) (A) L=940	1-37125-337-0	01	1	0710-
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	0710-
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-37211-084-0	01	1	0710-
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	0710-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0710-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	0710-
9	JOURNAL ASM; PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-37300-112-0	01	1	0710-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	0710-
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	0710-
14	COVER; DUST,SPIDER TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-37249-133-0	04	1	0710-
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	0710-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0710-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-
17	NIPPLE; GREASE,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST TRANSMISSION-FULLER RTLO189 18(Y4W) T=2.2	1-09587-103-1	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST TRANSMISSION-FULLER RTLO189 18(Y4W) T=2.17	1-09587-107-0	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	0710-
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	0710-
20	BEARING ASM; CTR,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W) ID=65	1-37510-116-1	01	1	0710-
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	0710-
21	SEAL; OIL,CENTER BRG TRANSMISSION-FULLER RTLO189 18(Y4W) (A) OD=114	1-09625-222-1	01	1	0710-
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	0710-
21	SEAL; OIL,CENTER BRG TRANSMISSION-FULLER RTLO189 18(Y4W) (B) OD=106	1-09625-622-0	01	1	0710-
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0710-
22	RUBBER; CUSHION,CENTER BRG,1ST TRANSMISSION-FULLER RTLO189 18(Y4W)	1-37516-056-0	01	1	0710-
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0710-
23	BEARING; CENTER,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09800-210-0	01	1	0710-
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	0710-
24	RETAINER; CENTER BRG,1ST TRANSMISSION-FULLER RTLO189 18(Y4W)	1-37529-110-0	01	1	0710-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0710-
25	NIPPLE; GREASE,CENTER BRG TRANSMISSION-FULLER RTLO189 18(Y4W) MT6 STRAIGHT	1-09380-006-0	01	1	0710-
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	0710-
42	RING; SNAP,CTR BRG TRANSMISSION-FULLER RTLO189 18(Y4W)	1-09587-085-1	01	1	0710-
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	0710-
46	FLANGE; SPLINED,PROP SHAFT,1ST TRANSMISSION-FULLER RTLO189 18(Y4W)	1-37245-349-0	01	1	0710-
49	NUT; YOKE TRANSMISSION-FULLER RTLO189 18(Y4W) M14 FLANGE	1-09440-048-0	04	1	0710-0805
49	NUT; YOKE TRANSMISSION-FULLER RTLO189 18(Y4W) M14 FLANGE	8-97365-444-0	04	1	0806-
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0710-
51	NUT; FLANGE,SPLINED TRANSMISSION-FULLER RTLO189 18(Y4W) M45 FLAMGE	1-09449-040-0	01	1	0710-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	0710-
74	BOLT; YOKE,TRANS TRANSMISSION-FULLER RTLO189 18(Y4W) M14X50	1-09000-645-0	04	1	0710-
91	BOLT; HOLDER SET,CTR BRG TRANSMISSION-FULLER RTLO189 18(Y4W) M16X45	1-09042-030-0	02	1	0710-
92	WASHER; LK,HOLDER SET,CTR BRG TRANSMISSION-FULLER RTLO189 18(Y4W) ID=17	1-09503-241-1	02	1	0710-
93	NUT; HOLDER SET,CTR BRG TRANSMISSION-FULLER RTLO189 18(Y4W) M16 SLOTTED	0-91116-516-0	02	1	0710-1204
93	NUT; HOLDER SET,CTR BRG TRANSMISSION-FULLER RTLO189 18(Y4W) M16 SLOTTED	8-98049-689-0	02	1	1205-
94	PIN; SPLIT,HOLDER SET CTR BRG TRANSMISSION-FULLER RTLO189 18(Y4W) OD=3.7 L=25	0-81124-025-0	02	1	0710-

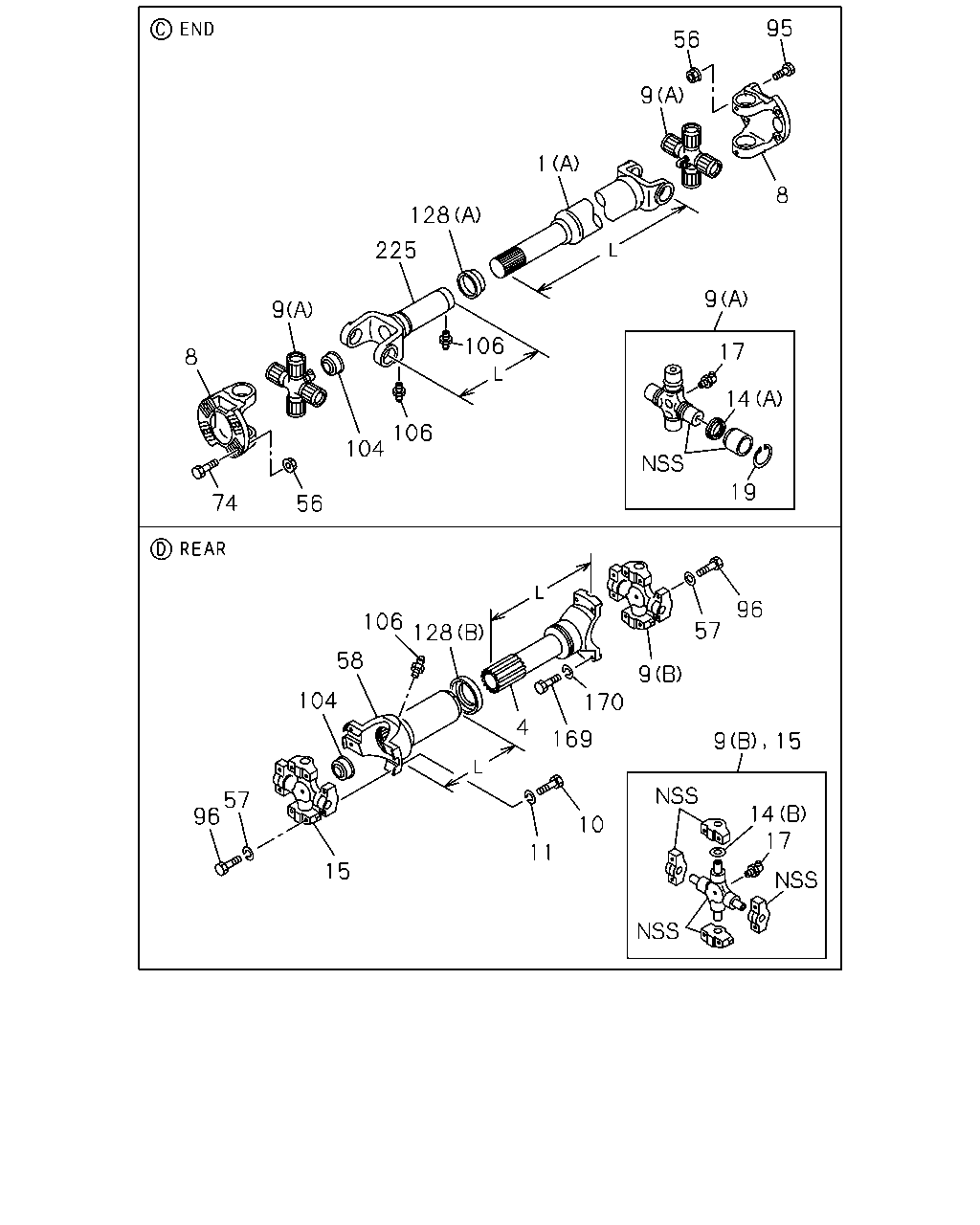

95 56 9 8 1 128 225 9 8 74 56 104 106 106 9 14 17 19 96 57 9 15 9 14 17 10 11 169 170 128 106 58 104 57 96 15 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP MJX16P M/T(Y3Z) (B) L=799	1-37153-640-0	01	1	0710-
1	SHAFT; PROP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=939	1-37153-673-0	01	1	0710-
1	SHAFT; PROP TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=762	8-98082-813-0	01	1	0710-
1	SHAFT; PROP 6WF1 TC-C(1B8),6WG1 TC-S(97L) (A) L=1795	1-37125-422-0	01	1	0710-
1	SHAFT; PROP 6WG1 TC-C(72L) (A) L=940	1-37125-337-0	01	1	0710-
4	SHAFT; PROP L=348	1-37171-127-2	01	1	0710-
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	0710-
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W)	1-37211-084-0	01	1	0710-
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	0710-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0710-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	0710-
9	JOURNAL ASM; PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-37300-112-0	01	1	0710-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	0710-
10	BOLT; UJT M12X45	9-91066-245-0	04	1	0710-0805
10	BOLT; UJT M12X45	8-98036-382-0	04	1	0806-
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	0-91510-612-0	04	1	0710-
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	0710-
14	COVER; DUST,SPIDER TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-37249-133-0	04	1	0710-
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	0710-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0710-
15	UNIVERSAL CENTER	1-37300-100-1	01	1	0710-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-
17	NIPPLE; GREASE,PROP SHAFT TRANSMISSION-FULLER RTLO189 18(Y4W) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST TRANSMISSION-FULLER RTLO189 18(Y4W) T=2.2	1-09587-103-1	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST TRANSMISSION-FULLER RTLO189 18(Y4W) T=2.17	1-09587-107-0	04	1	0710-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	0710-
56	NUT; YOKE M14 FLANGE	1-09440-048-0	08	1	0710-0805
56	NUT; YOKE M14 FLANGE	8-97365-444-0	08	1	0806-
57	WASHER; LK,YOKE ID=12.2	0-91510-612-0	08	1	0710-
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	0710-
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	0710-
74	BOLT; YOKE,TRANS TRANSMISSION-FULLER RTLO189 18(Y4W) M14X50	1-09000-645-0	04	1	0710-
95	BOLT; YOKE,FINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50	1-09000-645-0	04	1	0710-
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	0710-0805
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	0806-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0710-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0710-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	02	1	0710-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0710-
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	0710-
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	0710-
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	0710-0805
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	0806-
170	WASHER; LK,YOKE,SLEEVE ID=12.2	0-91510-612-0	04	1	0710-
225	YOKE; SLEEVE,PROP SHAFT L=339	1-37241-140-0	01	1	0710-
