◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#66969) — 340 parça

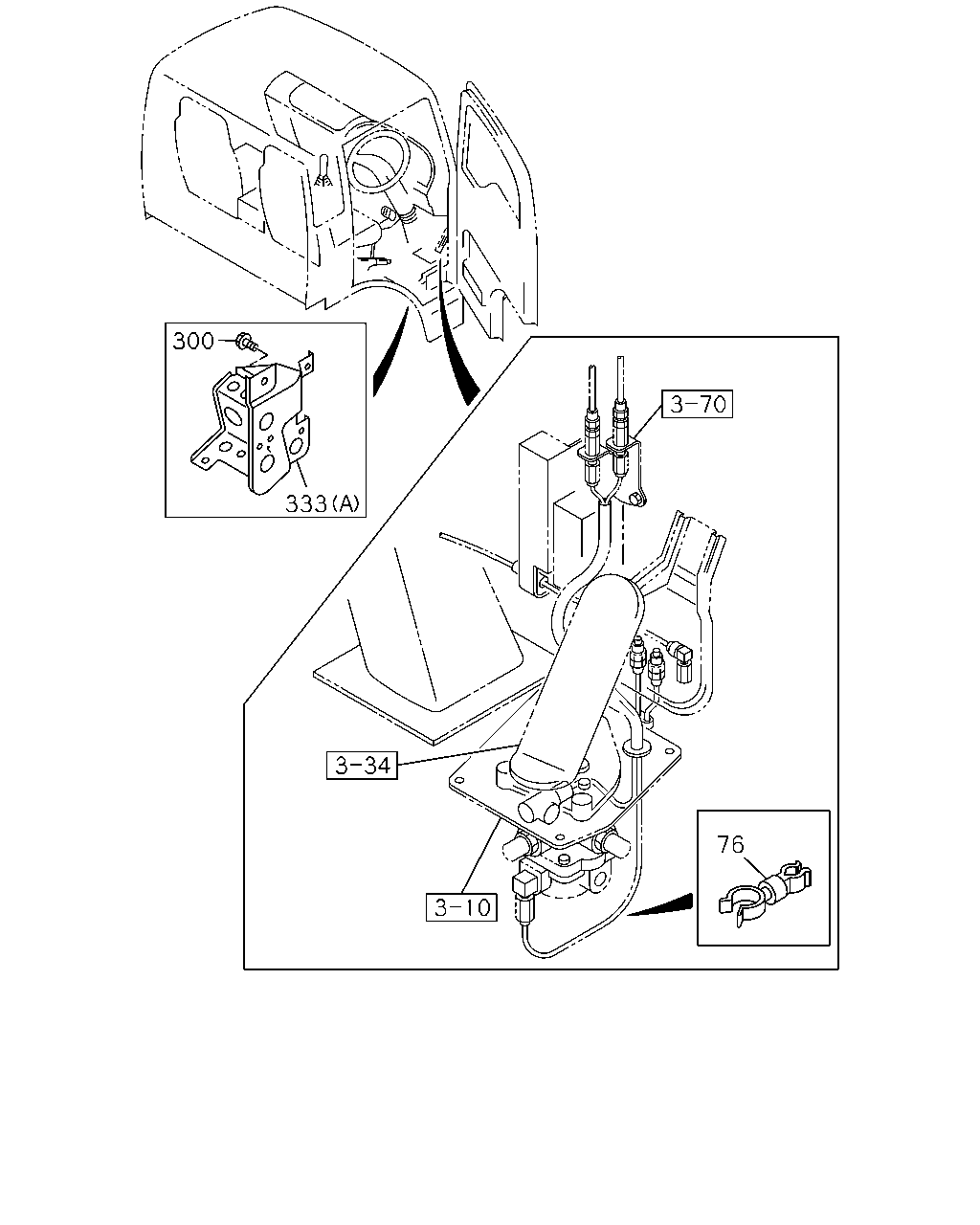

çizim 121742
300 333 76
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
6WF1 TC-C(1B8) ID=6 & 8.3 		8-94167-742-0 02 1 0710-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0710-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-

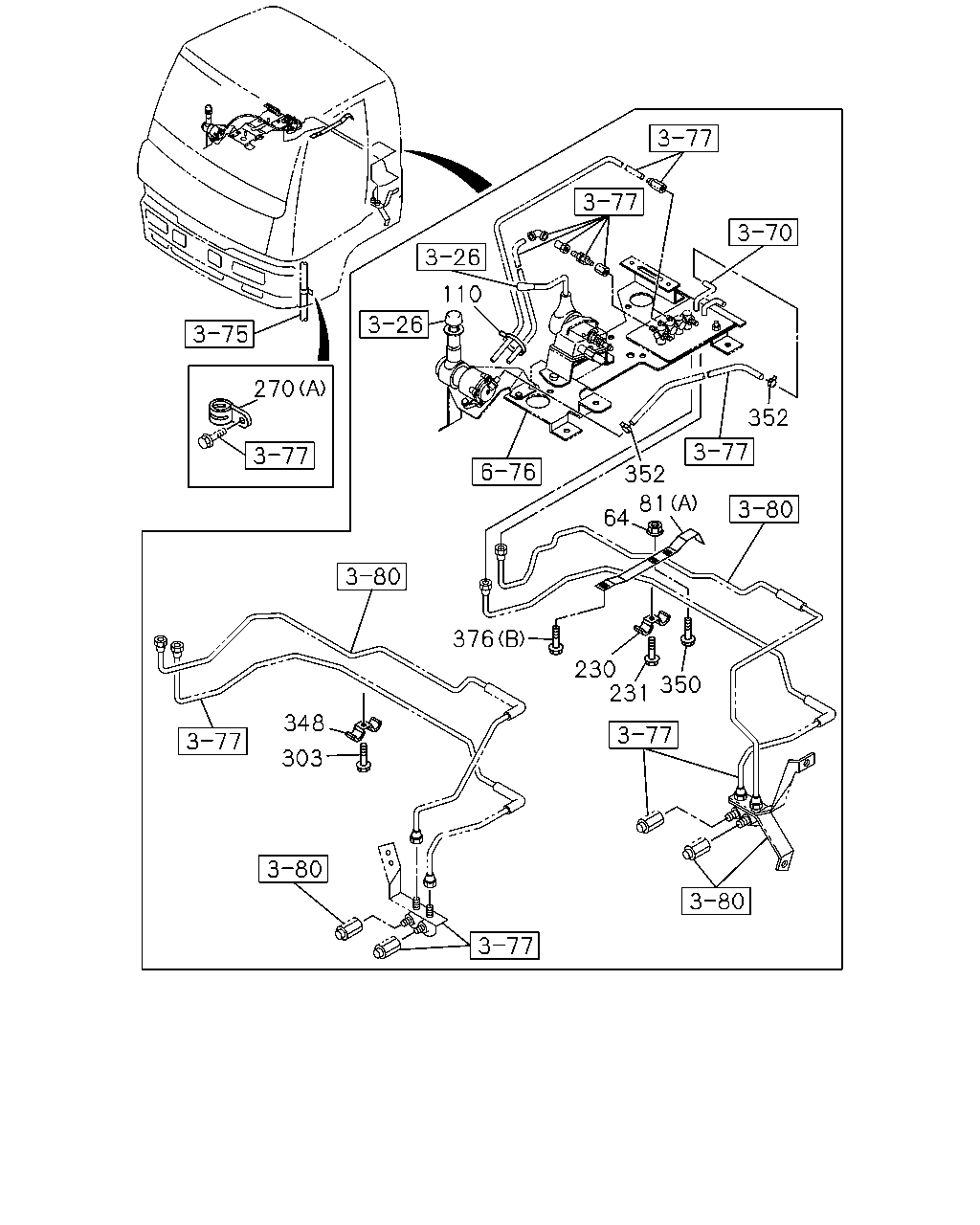

çizim 122192
110 270 376 230 231 350 64 81 352 352 348 303
BalonParca AdiParca NoAdetTipApplied Date
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (I) 		8-98052-414-0 01 1 0806-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (J) 		8-98052-415-0 01 1 0806-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (K) 		8-98043-314-0 01 1 0806-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		8-98046-950-0 01 1 0806-
81 BRACKET; CLIP
(E) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0806-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0710-0805
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806-
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0710-0805
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0806-
81 BRACKET; CLIP
MJX16P M/T(Y3Z) (F) 		1-47471-322-0 02 1 0710-0805
81 BRACKET; CLIP
6WF1 TC-C(1B8) (H) 		8-98052-413-0 01 1 0806-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (D) L=130 		1-47478-959-0 02 1 0710-0805
81 BRACKET; CLIP
6WF1 TC-C(1B8) (G) 		8-98052-412-0 01 1 0806-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0710-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0710-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0710-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0710-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0710-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0710-
350 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0710-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-

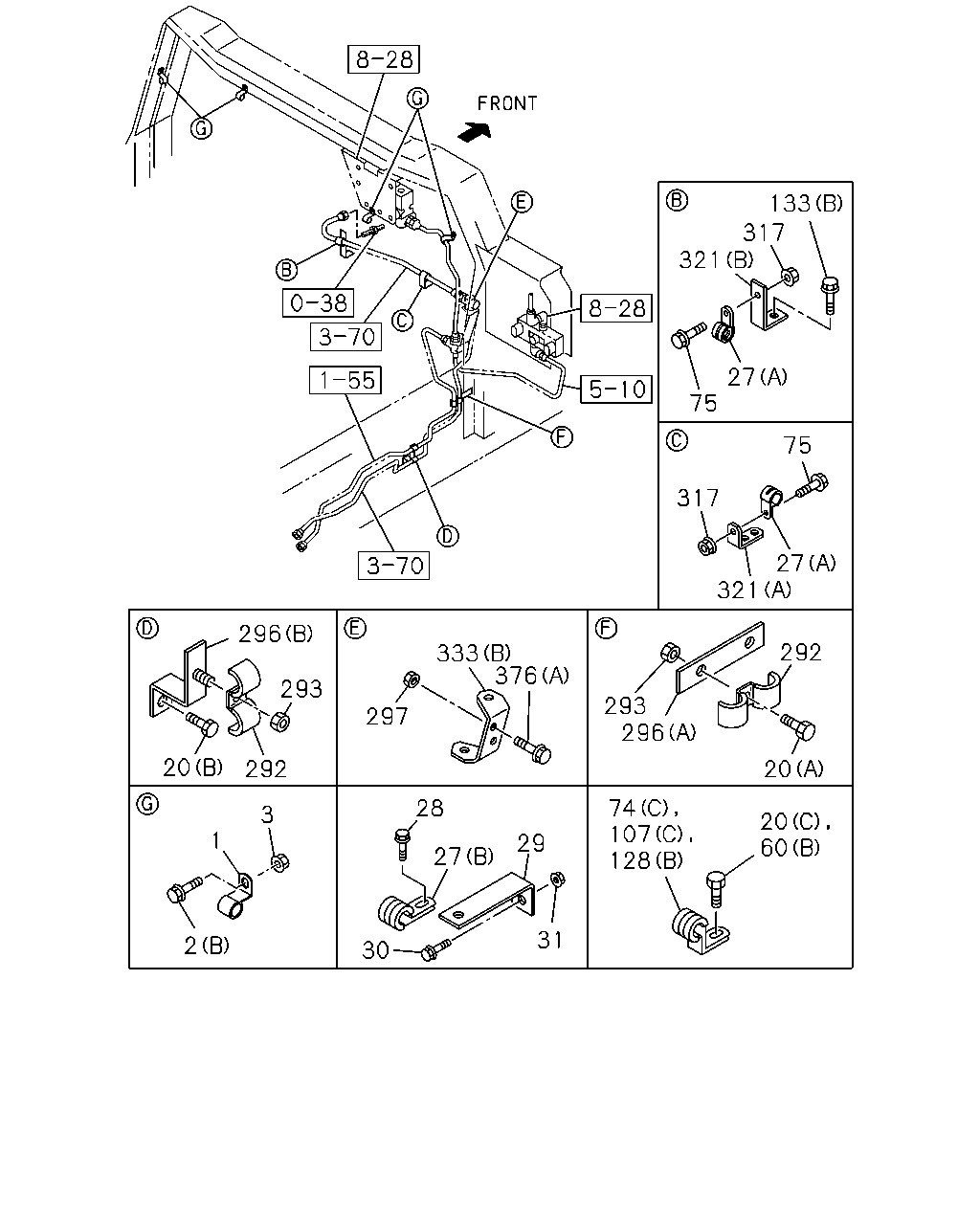

çizim 122478
321 317 133 27 75 317 75 27 321 296 293 297 292 20 2 1 3 333 376 28 29 27 30 31 128 60 107 20 74 20 292 296 293
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
6WF1 TC-C(1B8) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710-
2 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
2 BOLT; CLIP FIX
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
3 NUT; CLIP,AIR PIPE
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0710-
20 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
20 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
27 CLIP; FLEX HOSE
(B) ID=26 L=27 		1-09701-006-0 01 1 0710-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0710-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 0710-
29 BRACKET; CLIP,AIR PIPE
L=145 B=25 		1-47479-123-0 01 1 0710-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-
60 BOLT; CLIP FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
60 BOLT; CLIP FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0710-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0710-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 0710-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
107 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 0710-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0710-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0710-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 17 1 0710-
128 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0710-
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 0710-
133 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28650-820-0 04 1 0806-
133 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0806-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0806-
133 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0806-
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 09 1 0710-
133 BOLT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X30 FLANGE 		0-28650-830-0 10 1 0710-
133 BOLT; BRKT
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0710-
133 BOLT; BRKT
MJX16P M/T(Y3Z) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0710-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0710-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 0710-
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
297 NUT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 26 1 0710-
297 NUT; BRKT
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE 		0-91180-108-0 25 1 0710-
297 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 25 1 0710-
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0710-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0710-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-

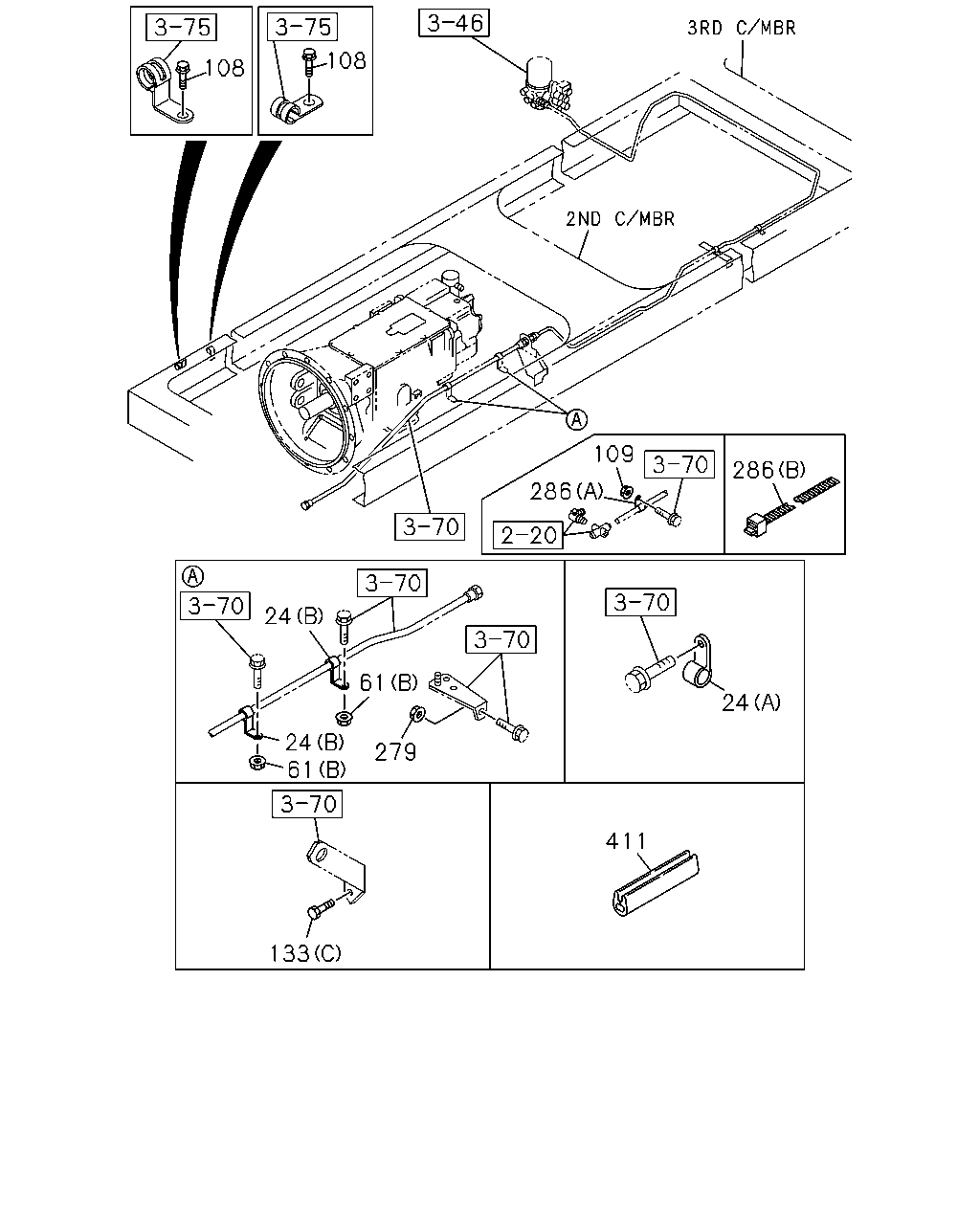

çizim 122688
108 108 286 109 286 24 61 24 61 279 24 411 133
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
(A) ID=19 L=20 		0-95235-836-0 01 1 0710-
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0710-
61 NUT; CLIP FIX
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-
61 NUT; CLIP FIX
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 10 1 0710-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710-
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 01 1 0710-1311
109 NUT; TUBE CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 02 1 1312-
133 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28650-820-0 04 1 0806-
133 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0806-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0806-
133 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0806-
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 09 1 0710-
133 BOLT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X30 FLANGE 		0-28650-830-0 10 1 0710-
133 BOLT; BRKT
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0710-
133 BOLT; BRKT
MJX16P M/T(Y3Z) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0710-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0710-0805
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0806-
279 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 02 1 0710-
286 CLIP; NYLON TUBE
FULLER M/T<X9B> (B) L=250 		1-09707-126-0 02 1 0710-
286 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=18 L=28 		1-09701-067-0 01 1 0710-1311
286 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=18 L=28 		1-09701-067-0 02 1 1312-
411 SLEEVE; RUBBER
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) L=60 		8-97865-346-0 01 1 0710-
411 SLEEVE; RUBBER
TRANSMISSION-FULLER RTLO189 18(Y4W) L=60 		8-97865-346-0 02 1 0710-

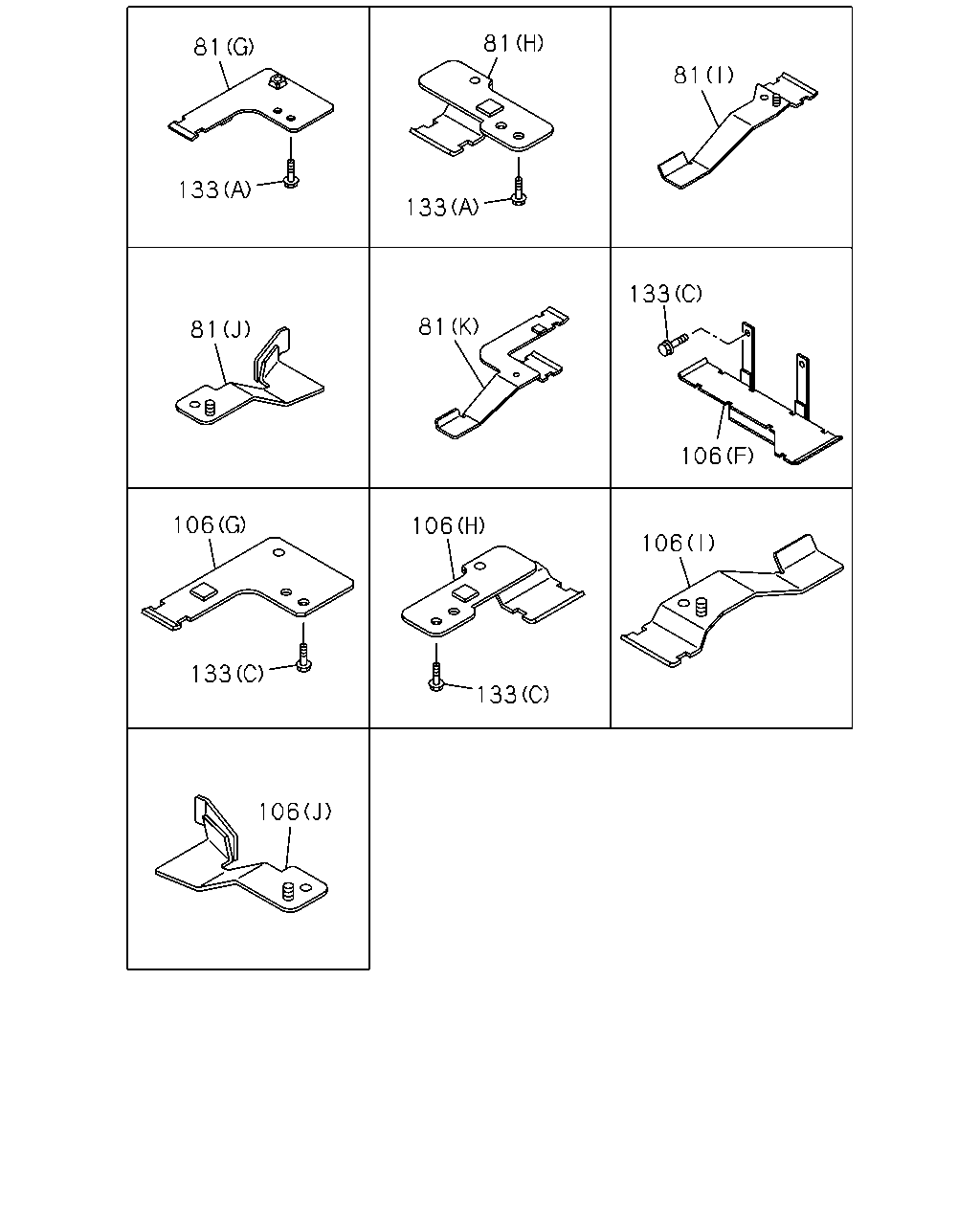

çizim 122756
81 81 81 133 133 133 81 81 106 106 106 106 133 133 106
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
6WF1 TC-C(1B8) (I) 		8-98052-414-0 01 1 0806-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (J) 		8-98052-415-0 01 1 0806-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (K) 		8-98043-314-0 01 1 0806-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		8-98046-950-0 01 1 0806-
81 BRACKET; CLIP
(E) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0806-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0710-0805
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806-
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0710-0805
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0806-
81 BRACKET; CLIP
MJX16P M/T(Y3Z) (F) 		1-47471-322-0 02 1 0710-0805
81 BRACKET; CLIP
6WF1 TC-C(1B8) (H) 		8-98052-413-0 01 1 0806-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (D) L=130 		1-47478-959-0 02 1 0710-0805
81 BRACKET; CLIP
6WF1 TC-C(1B8) (G) 		8-98052-412-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (H) 		8-98052-409-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (I) 		8-98052-410-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (J) 		8-98052-411-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		8-98043-312-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-98046-949-0 01 1 0806-
106 BRACKET; TUBE CLIP
(B) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (G) 		8-98052-408-0 01 1 0806-1412
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0710-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0710-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 01 1 0710-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0710-0905
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906-
133 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28650-820-0 04 1 0806-
133 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0806-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0806-
133 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0806-
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 09 1 0710-
133 BOLT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X30 FLANGE 		0-28650-830-0 10 1 0710-
133 BOLT; BRKT
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0710-
133 BOLT; BRKT
MJX16P M/T(Y3Z) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0710-

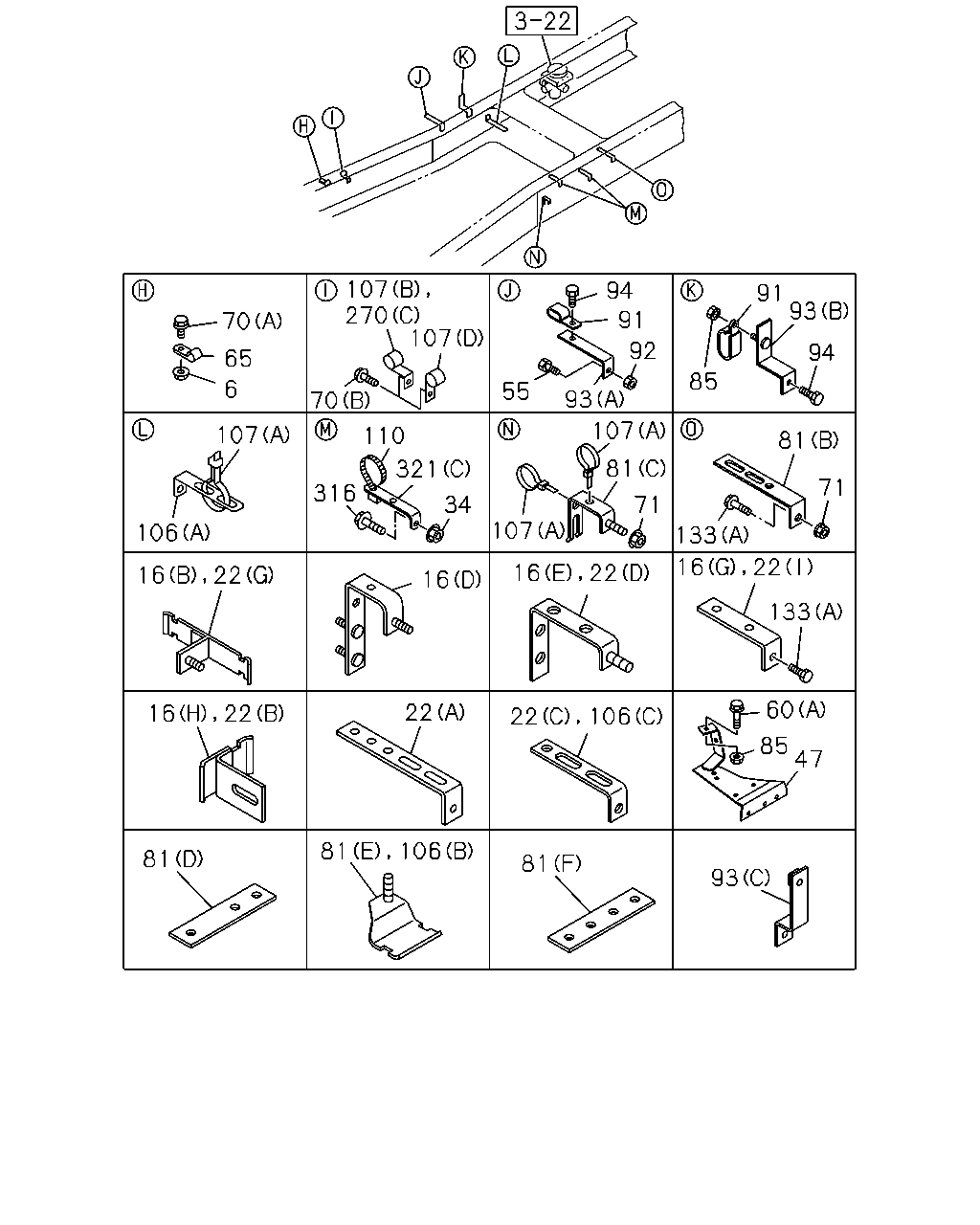

çizim 192567
91 85 93 94 81 133 71 133 22 16 22 16 107 71 81 107 93 55 92 91 94 107 270 107 70 70 6 65 107 106 316 321 110 34 16 16 22 16 22 81 81 106 22 22 106 81 93 85 47 60
BalonParca AdiParca NoAdetTipApplied Date
6 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 03 1 0710-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0710-
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0710-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 0710-
16 BRACKET; PIPE CLIP
(J) 		1-47479-721-0 01 1 0710-
16 BRACKET; PIPE CLIP
(K) 		1-47479-722-1 01 1 0710-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0710-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0710-
16 BRACKET; PIPE CLIP
(L) L=100 H=30 		1-47477-645-2 01 1 0710-1002
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 01 1 0710-
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0710-
16 BRACKET; PIPE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (I) 		1-47479-381-2 06 1 0710-
16 BRACKET; PIPE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (H) 		1-47479-693-0 03 1 0710-
16 BRACKET; PIPE CLIP
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (I) 		1-47479-381-2 07 1 0710-
16 BRACKET; PIPE CLIP
MJX16P M/T(Y3Z) (I) 		1-47479-381-2 07 1 0710-
16 BRACKET; PIPE CLIP
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (H) 		1-47479-693-0 02 1 0710-
16 BRACKET; PIPE CLIP
MJX16P M/T(Y3Z) (H) 		1-47479-693-0 02 1 0710-
22 BRACKET; CLIP
(I) L=60 H=30 		1-47477-716-1 01 1 0710-
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 0710-
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 0710-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 0710-
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 0710-
22 BRACKET; CLIP
(C) 		1-47479-754-0 01 1 0710-
22 BRACKET; CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) (B) 		1-47479-693-0 03 1 0710-
22 BRACKET; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (I) L=90 		1-47477-755-1 01 1 0710-
22 BRACKET; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (H) 		1-47479-381-2 11 1 0710-
22 BRACKET; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		1-47479-693-0 04 1 0710-
22 BRACKET; CLIP
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (H) 		1-47479-381-2 12 1 0710-
22 BRACKET; CLIP
MJX16P M/T(Y3Z) (H) 		1-47479-381-2 12 1 0710-
22 BRACKET; CLIP
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (D) 		1-47479-800-0 01 1 0710-
22 BRACKET; CLIP
MJX16P M/T(Y3Z) (D) 		1-47479-800-0 01 1 0710-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-
47 BRACKET; PIPE CLIP 1-47479-325-0 01 1 0710-
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
60 BOLT; CLIP FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
60 BOLT; CLIP FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
65 CLIP; AIR PIPE
ID=13 L=20 		0-95235-235-0 02 1 0710-
70 BOLT; CLIP,AIR PIPE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
70 BOLT; CLIP,AIR PIPE
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0710-0805
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0806-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (I) 		8-98052-414-0 01 1 0806-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (J) 		8-98052-415-0 01 1 0806-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (K) 		8-98043-314-0 01 1 0806-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		8-98046-950-0 01 1 0806-
81 BRACKET; CLIP
(E) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 0806-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0710-0805
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806-
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0710-0805
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0806-
81 BRACKET; CLIP
MJX16P M/T(Y3Z) (F) 		1-47471-322-0 02 1 0710-0805
81 BRACKET; CLIP
6WF1 TC-C(1B8) (H) 		8-98052-413-0 01 1 0806-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (D) L=130 		1-47478-959-0 02 1 0710-0805
81 BRACKET; CLIP
6WF1 TC-C(1B8) (G) 		8-98052-412-0 01 1 0806-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
91 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 0710-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
93 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0710-
93 BRACKET; PIPE CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 0710-
93 BRACKET; PIPE CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 0710-
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (H) 		8-98052-409-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (I) 		8-98052-410-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (J) 		8-98052-411-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		8-98043-312-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-98046-949-0 01 1 0806-
106 BRACKET; TUBE CLIP
(B) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (G) 		8-98052-408-0 01 1 0806-1412
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0710-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0710-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 01 1 0710-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0710-0905
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906-
107 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 0710-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0710-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0710-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 17 1 0710-
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0710-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 01 1 0710-
133 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28650-820-0 04 1 0806-
133 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0806-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0806-
133 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0806-
133 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 09 1 0710-
133 BOLT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X30 FLANGE 		0-28650-830-0 10 1 0710-
133 BOLT; BRKT
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0710-
133 BOLT; BRKT
MJX16P M/T(Y3Z) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0710-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0710-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0710-
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0710-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0710-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0710-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0710-

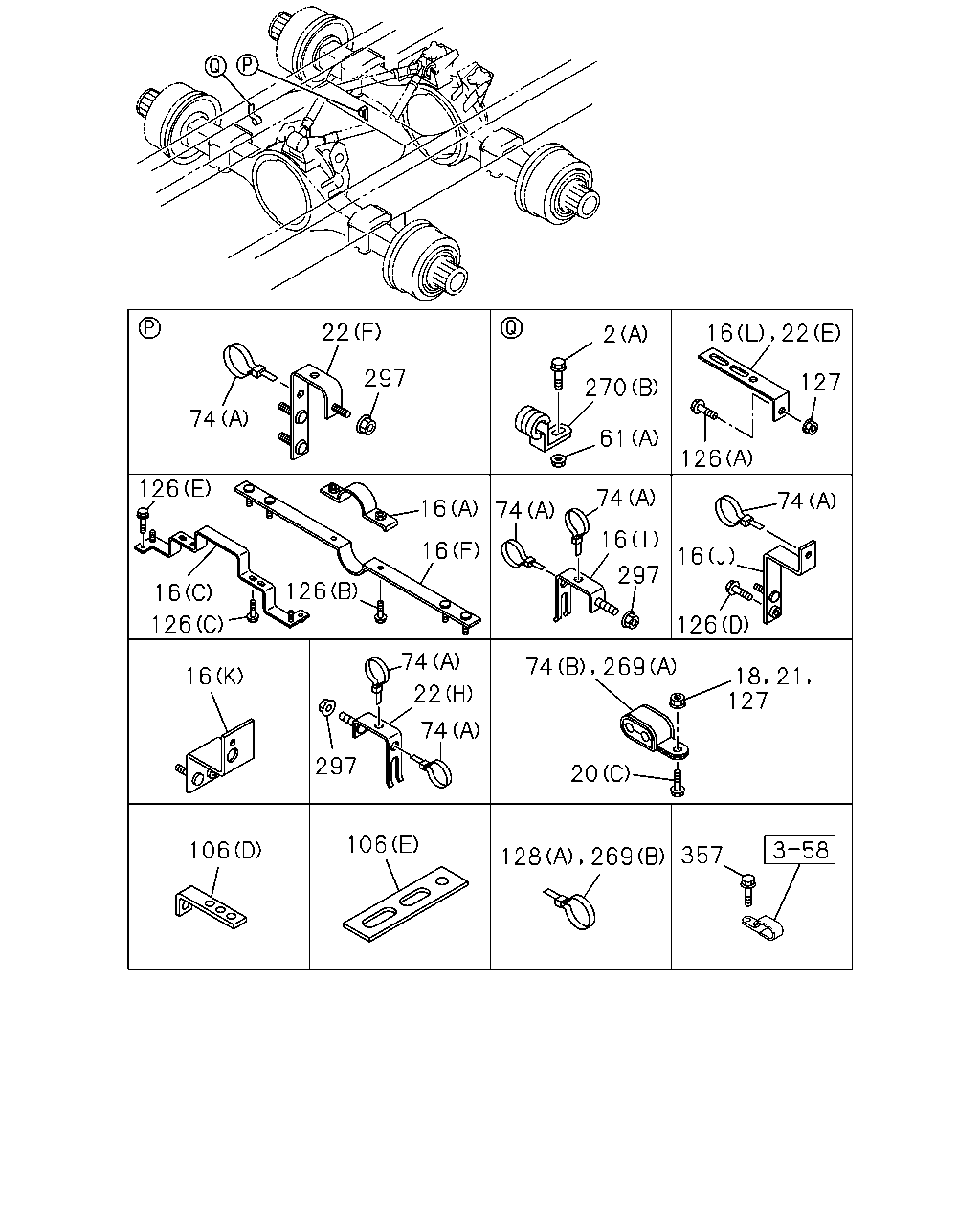

çizim 192694
357 269 128 20 106 106 16 297 22 74 74 74 269 18 21 127 126 16 74 126 127 22 16 2 270 61 74 297 16 74 16 16 126 126 16 126 74 22 297
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
2 BOLT; CLIP FIX
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
16 BRACKET; PIPE CLIP
(D) 		1-47479-329-0 03 1 0710-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0710-
16 BRACKET; PIPE CLIP
(B) 		1-47479-554-0 01 1 0710-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 02 1 0710-
16 BRACKET; PIPE CLIP
(J) 		1-47479-721-0 01 1 0710-
16 BRACKET; PIPE CLIP
(K) 		1-47479-722-1 01 1 0710-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0710-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0710-
16 BRACKET; PIPE CLIP
(L) L=100 H=30 		1-47477-645-2 01 1 0710-1002
16 BRACKET; PIPE CLIP
(G) L=30 		1-47479-481-0 01 1 0710-
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0710-
16 BRACKET; PIPE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (I) 		1-47479-381-2 06 1 0710-
16 BRACKET; PIPE CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (H) 		1-47479-693-0 03 1 0710-
16 BRACKET; PIPE CLIP
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (I) 		1-47479-381-2 07 1 0710-
16 BRACKET; PIPE CLIP
MJX16P M/T(Y3Z) (I) 		1-47479-381-2 07 1 0710-
16 BRACKET; PIPE CLIP
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (H) 		1-47479-693-0 02 1 0710-
16 BRACKET; PIPE CLIP
MJX16P M/T(Y3Z) (H) 		1-47479-693-0 02 1 0710-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710-
20 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
20 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
20 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0710-
22 BRACKET; CLIP
(I) L=60 H=30 		1-47477-716-1 01 1 0710-
22 BRACKET; CLIP
(F) 		1-47479-329-0 01 1 0710-
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 0710-
22 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 03 1 0710-
22 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 01 1 0710-
22 BRACKET; CLIP
(C) 		1-47479-754-0 01 1 0710-
22 BRACKET; CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) (B) 		1-47479-693-0 03 1 0710-
22 BRACKET; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (I) L=90 		1-47477-755-1 01 1 0710-
22 BRACKET; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (H) 		1-47479-381-2 11 1 0710-
22 BRACKET; CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		1-47479-693-0 04 1 0710-
22 BRACKET; CLIP
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (H) 		1-47479-381-2 12 1 0710-
22 BRACKET; CLIP
MJX16P M/T(Y3Z) (H) 		1-47479-381-2 12 1 0710-
22 BRACKET; CLIP
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (D) 		1-47479-800-0 01 1 0710-
22 BRACKET; CLIP
MJX16P M/T(Y3Z) (D) 		1-47479-800-0 01 1 0710-
61 NUT; CLIP FIX
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-
61 NUT; CLIP FIX
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0710-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0710-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 0710-
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (H) 		8-98052-409-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (I) 		8-98052-410-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (J) 		8-98052-411-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		8-98043-312-0 01 1 0806-
106 BRACKET; TUBE CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-98046-949-0 01 1 0806-
106 BRACKET; TUBE CLIP
(B) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (G) 		8-98052-408-0 01 1 0806-1412
106 BRACKET; TUBE CLIP
6WF1 TC-C(1B8) (G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0710-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 07 1 0710-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 01 1 0710-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0710-0905
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906-
126 BOLT; CLIP BRKT
(C) M8X12 FLANGE 		0-28050-812-0 04 1 0710-
126 BOLT; CLIP BRKT
(D) M8X25 FLANGE 		0-28050-825-0 01 1 0710-
126 BOLT; CLIP BRKT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
126 BOLT; CLIP BRKT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
126 BOLT; CLIP BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710-
126 BOLT; CLIP BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0710-
126 BOLT; CLIP BRKT
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0710-
126 BOLT; CLIP BRKT
MJX16P M/T(Y3Z) (A) M8X30 FLANGE 		0-28650-830-0 04 1 0710-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 16 1 0710-
128 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0710-
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 0710-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 03 1 0710-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0710-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0710-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0710-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
297 NUT; BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE 		0-91180-108-0 26 1 0710-
297 NUT; BRKT
6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE 		0-91180-108-0 25 1 0710-
297 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 25 1 0710-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
