◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#66967) — 96 parça

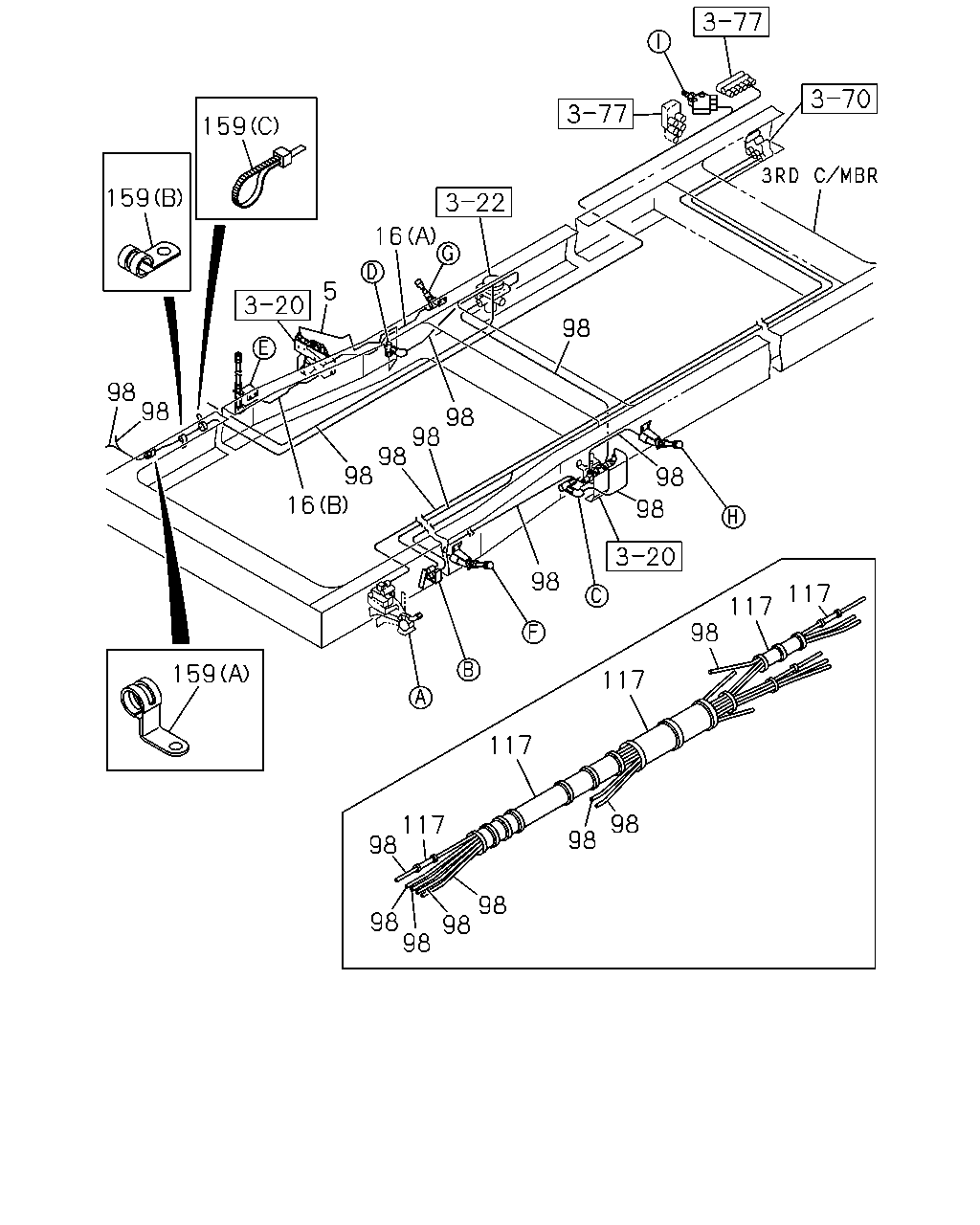

çizim 122270
98 16 5 98 16 98 98 98 98 98 98 98 98 117 117 98 117 117 117 98 98 98 98 98 98 98 159 159 159
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO UNION
L=1438 		8-98098-030-0 01 1 0710-
16 PIPE; AIR,UNION TO MODULATOR
(B) L=1205 SERVICED BY L=1300 		1-49115-465-0 01 1 0710-
16 PIPE; AIR,UNION TO MODULATOR
(A) L=1590 SERVICED BY L=1600 		1-49115-467-0 01 1 0710-1504
16 PIPE; AIR,UNION TO MODULATOR
(A) L=1592 SERVICED BY L=1600 		1-49115-490-0 01 1 1505-
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 0710-
159 CLIP; NYLON TUBE
CHEAPER CAB(WY1) (B) ID=25 L=50 		1-09700-976-0 02 1 1111-
159 CLIP; NYLON TUBE
CHEAPER CAB(WY1) (B) ID=24 L=24 		1-09701-001-1 01 1 1111-
159 CLIP; NYLON TUBE
CHEAPER CAB(WY1) (A) ID=24 H=40 L=24 		1-09701-243-1 02 1 1111-
159 CLIP; NYLON TUBE
EXC. CHEAPER CAB(WY1) (C) L=350 		1-09707-183-0 13 1 1111-
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0710-1110
159 CLIP; NYLON TUBE
EXC. CHEAPER CAB(WY1) (A) ID=28 H=45 L=30 		1-09700-948-0 02 1 1111-
159 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-1110
159 CLIP; NYLON TUBE
EXC. CHEAPER CAB(WY1) (B) ID=28 L=40 		1-09701-261-0 03 1 1111-
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 13 1 0710-1110
159 CLIP; NYLON TUBE
CHEAPER CAB(WY1) (C) L=350 		1-09707-183-0 12 1 1111-

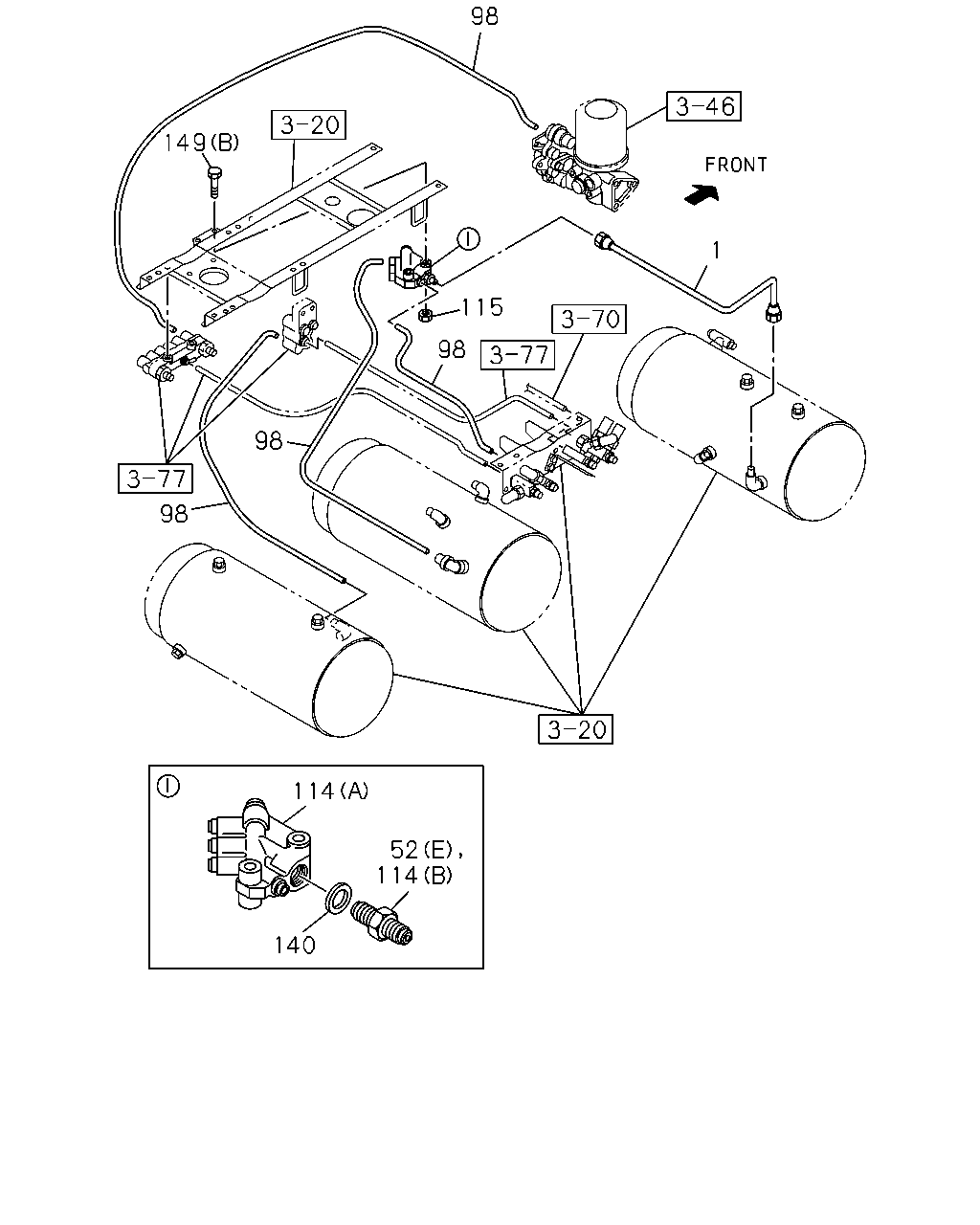

çizim 122314
98 149 1 115 98 98 98 114 52 114 140
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION 1-49123-983-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(C) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(D) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 0710-
52 CONNECTOR; NYLON TUBE
(E) 		8-97618-539-0 01 1 0710-0803
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710-
114 UNION; NYLON TUBE
(B) M22X2 STRAIGHT 		8-98107-103-0 01 1 0804-
114 UNION; NYLON TUBE
(A) 		1-09661-611-0 01 1 0710-
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 02 1 0710-
140 GASKET; CONNECTOR 9-09572-022-0 01 1 0710-0803
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0710-
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 0710-

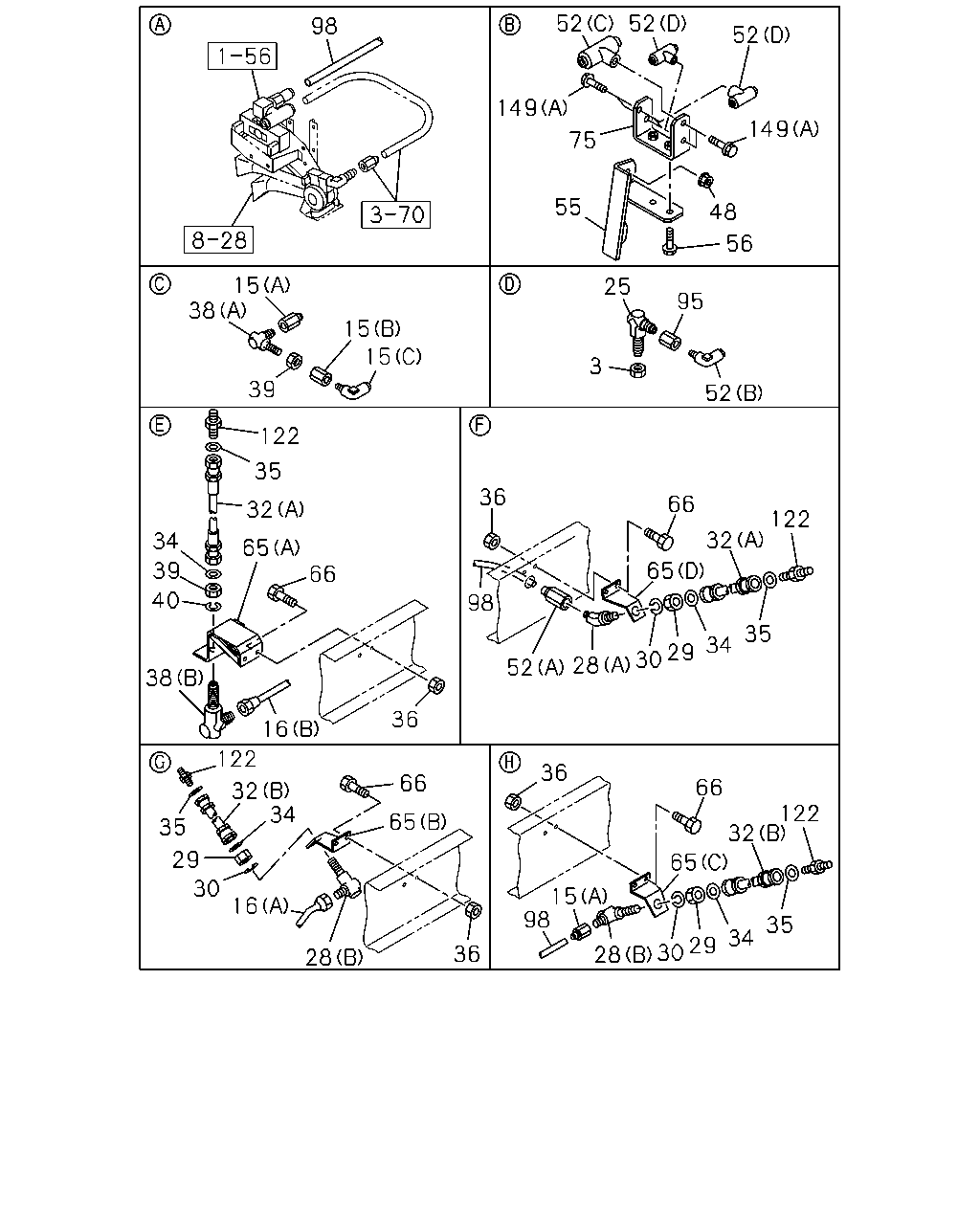

çizim 192691
52 52 52 149 149 75 55 48 25 56 95 3 52 15 15 38 39 15 122 34 35 32 39 65 40 66 36 66 122 32 65 98 52 28 30 29 34 35 36 16 38 122 32 35 29 30 15 34 28 65 36 66 36 66 122 32 65 15 98 28 30 29 34 35 98
BalonParca AdiParca NoAdetTipApplied Date
3 NUT; PIPE UNION
M20 		0-91111-520-0 01 1 0710-
15 CONNECTOR; AIR PIPE
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0710-
15 CONNECTOR; AIR PIPE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710-
15 CONNECTOR; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
16 PIPE; AIR,UNION TO MODULATOR
(B) L=1205 SERVICED BY L=1300 		1-49115-465-0 01 1 0710-
16 PIPE; AIR,UNION TO MODULATOR
(A) L=1590 SERVICED BY L=1600 		1-49115-467-0 01 1 0710-1504
16 PIPE; AIR,UNION TO MODULATOR
(A) L=1592 SERVICED BY L=1600 		1-49115-490-0 01 1 1505-
25 UNION; AIR PIPE
M20 		0-92135-212-0 01 1 0710-
28 NIPPLE; AIR PIPE
(B) M20 & M20 ELBOW 		1-09654-128-1 02 1 0710-
28 NIPPLE; AIR PIPE
(A) M20 		1-09654-199-2 01 1 0710-
29 NUT; NIPPLE
M20 		0-91111-520-0 03 1 0710-
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 03 1 0710-
32 HOSE; FLEX,FRT
(B) L=430 		0-57847-430-1 02 1 0710-1409
32 HOSE; FLEX,FRT
(B) L=450 W/SPRING 		0-57847-450-1 02 1 1410-
32 HOSE; FLEX,FRT
(A) L=500 		0-57847-500-1 02 1 0710-
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0710-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0710-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 08 1 0710-
38 UNION; AIR PIPE
(A) M20 		0-92135-212-0 01 1 0710-
38 UNION; AIR PIPE
(B) M20 & M20 ELBOW 		1-09654-128-1 01 1 0710-
39 NUT; PIPE UNION
M20 		0-91111-520-0 02 1 0710-
40 WASHER; LK,PIPE UNION
ID=20.2 		0-91510-520-0 01 1 0710-
48 NUT; UNION BRKT
M12 FLANGE 		0-91180-212-0 02 1 0710-
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(C) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(D) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 0710-
52 CONNECTOR; NYLON TUBE
(E) 		8-97618-539-0 01 1 0710-0803
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 0710-
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0710-
65 BRACKET; FLEX HOSE
(A) 		1-47471-247-1 01 1 0710-
65 BRACKET; FLEX HOSE
(B) 		1-47479-605-0 01 1 0710-
65 BRACKET; FLEX HOSE
(C) 		1-47479-676-0 01 1 0710-
65 BRACKET; FLEX HOSE
(D) 		1-47477-369-1 01 1 0710-
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0710-
75 BRACKET; UNION 1-47478-382-0 01 1 0710-
95 ADAPTER; BRKT
M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710-
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710-
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 0710-
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 0710-
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0710-
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
