3-70 — BRAKE PIPING; AIR,AIR MASTER (#66966) — 170 parça

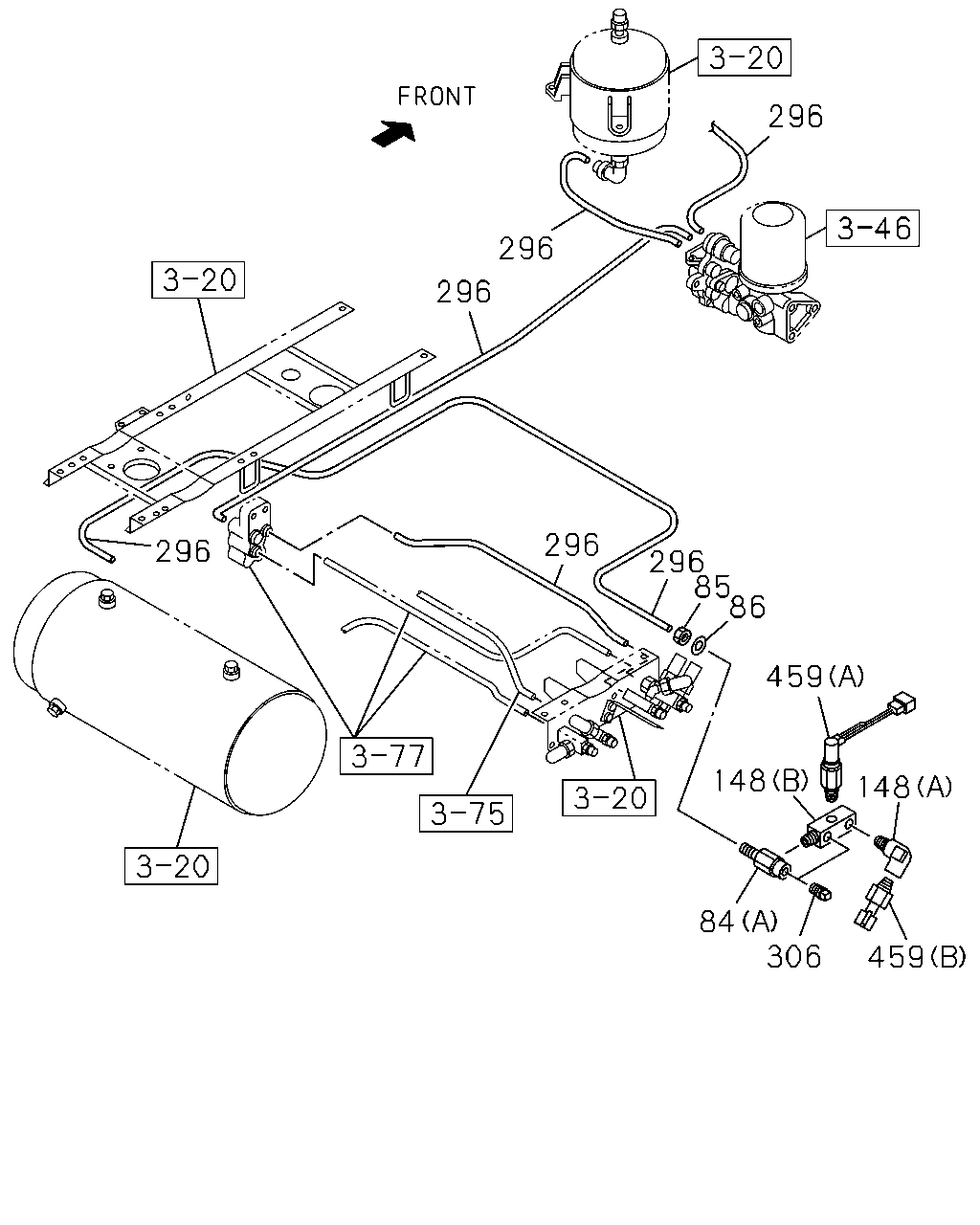

çizim 121218
296 296 296 296 296 296 85 86 459 148 148 84 306 459
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0710-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710-
85 NUT; UNION
M18 		0-91110-518-0 01 1 0710-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0710-
148 CONNECTOR; UNION
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1003-1112
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0710-1002
148 CONNECTOR; UNION
6WF1 TC-C(1B8) (B) PT1/4 4WAY 		1-09660-358-0 01 1 1003-1112
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 1201-
148 CONNECTOR; UNION
(A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0710-1002
148 CONNECTOR; UNION
6WF1 TC-C(1B8) (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1003-1112
148 CONNECTOR; UNION
(A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1201-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0710-
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) L=1200 OD=6 		1-09366-256-1 01 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-
306 PLUG; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) PT1/4 		9-99204-513-0 01 1 1003-1112
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0710-1002
306 PLUG; NYLON TUBE
6WF1 TC-C(1B8) PT1/4 		9-99204-513-0 02 1 1003-1112
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 1201-
459 SWITCH; PRESS
(A) 		1-48340-065-0 01 1 0710-
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0710-

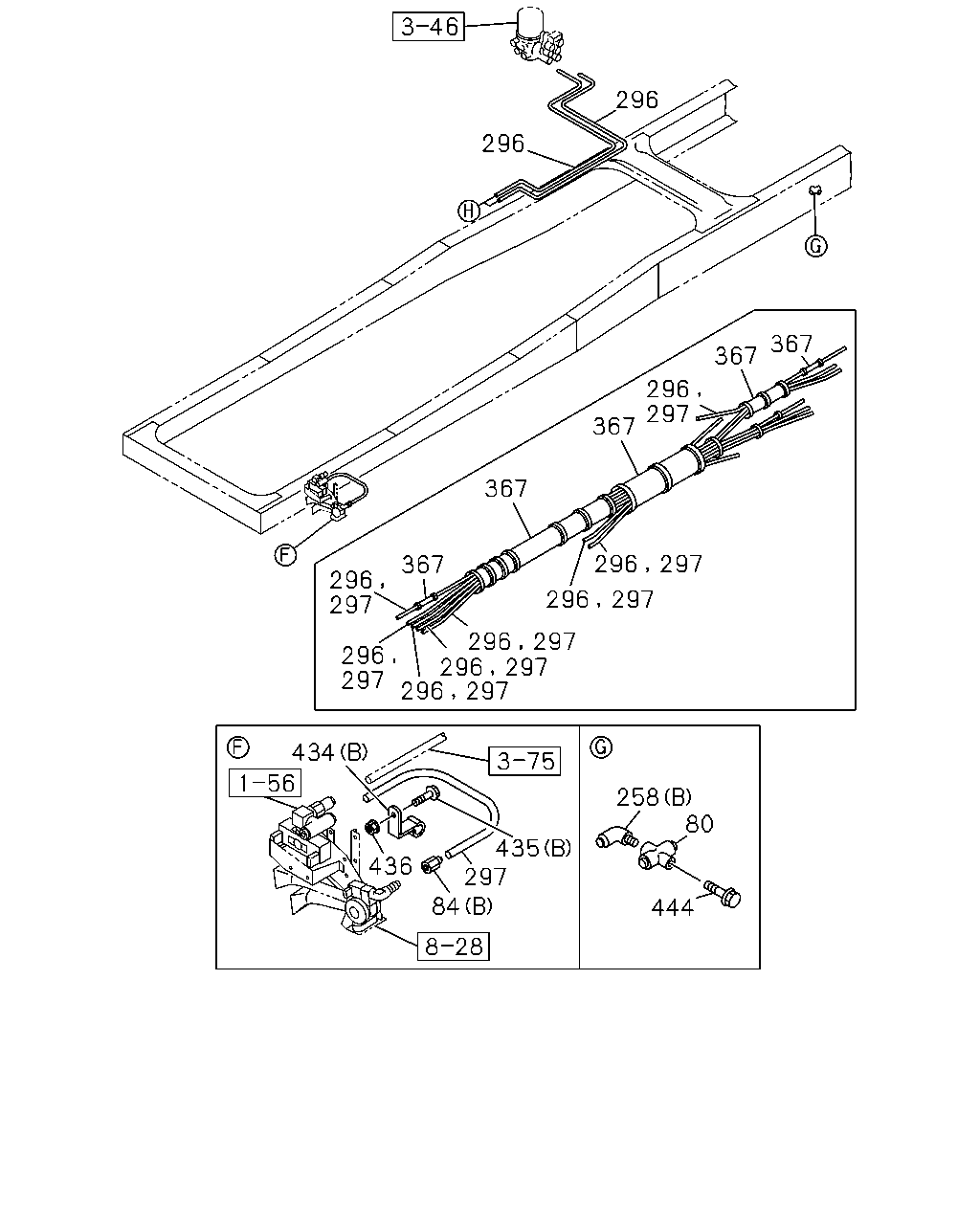

çizim 121285
296 296 367 367 296 367 297 367 367 296 297 296 297 297 296 296 297 297 297 296 296 297 296 434 436 84 435 297 258 80 444
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0710-
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0710-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0710-
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) L=1200 OD=6 		1-09366-256-1 01 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710-
434 CLIP
6WF1 TC-C(1B8) (A) ID=17 		8-94449-734-1 01 1 0710-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0710-

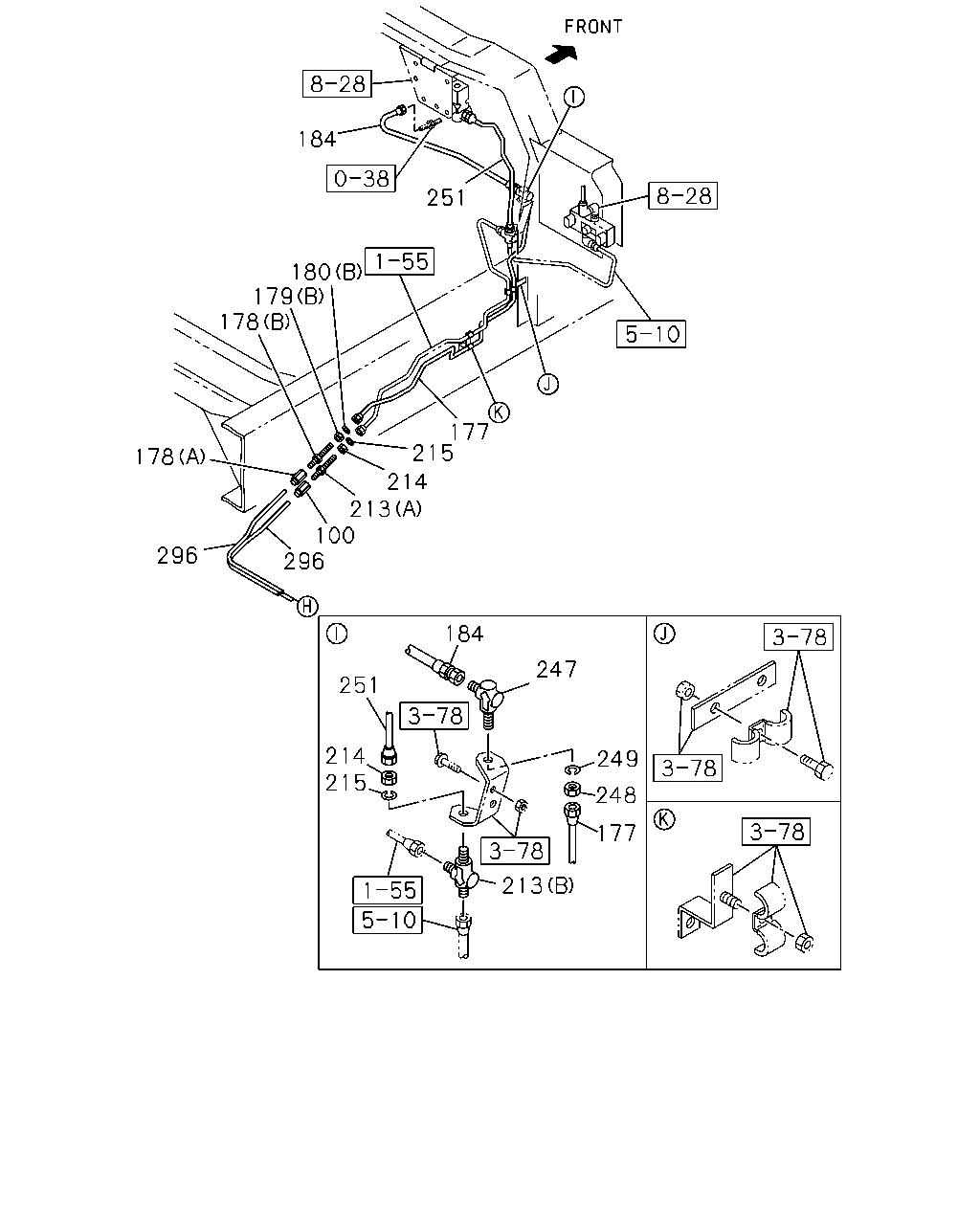

çizim 121430
184 251 180 179 178 178 296 296 100 213 214 215 177 251 184 247 249 248 177 213 214 215
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710-
177 PIPE; AIR,UNION TO UNION
L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0710-
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0710-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0710-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0710-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0710-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0710-
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0710-
213 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 0710-
213 UNION; AIR PIPE
(B) M12 3WAY 		0-92138-906-0 01 1 0710-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0710-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 0710-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0710-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0710-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0710-
251 PIPE; AIR,UNION TO MAG VLV
6WF1 TC-C(1B8) 		1-49121-779-0 01 1 0710-
251 PIPE; AIR,UNION TO MAG VLV
6WG1 TC-C(72L),6WG1 TC-S(97L) L=375 		1-49124-511-0 01 1 0710-
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) L=1200 OD=6 		1-09366-256-1 01 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-

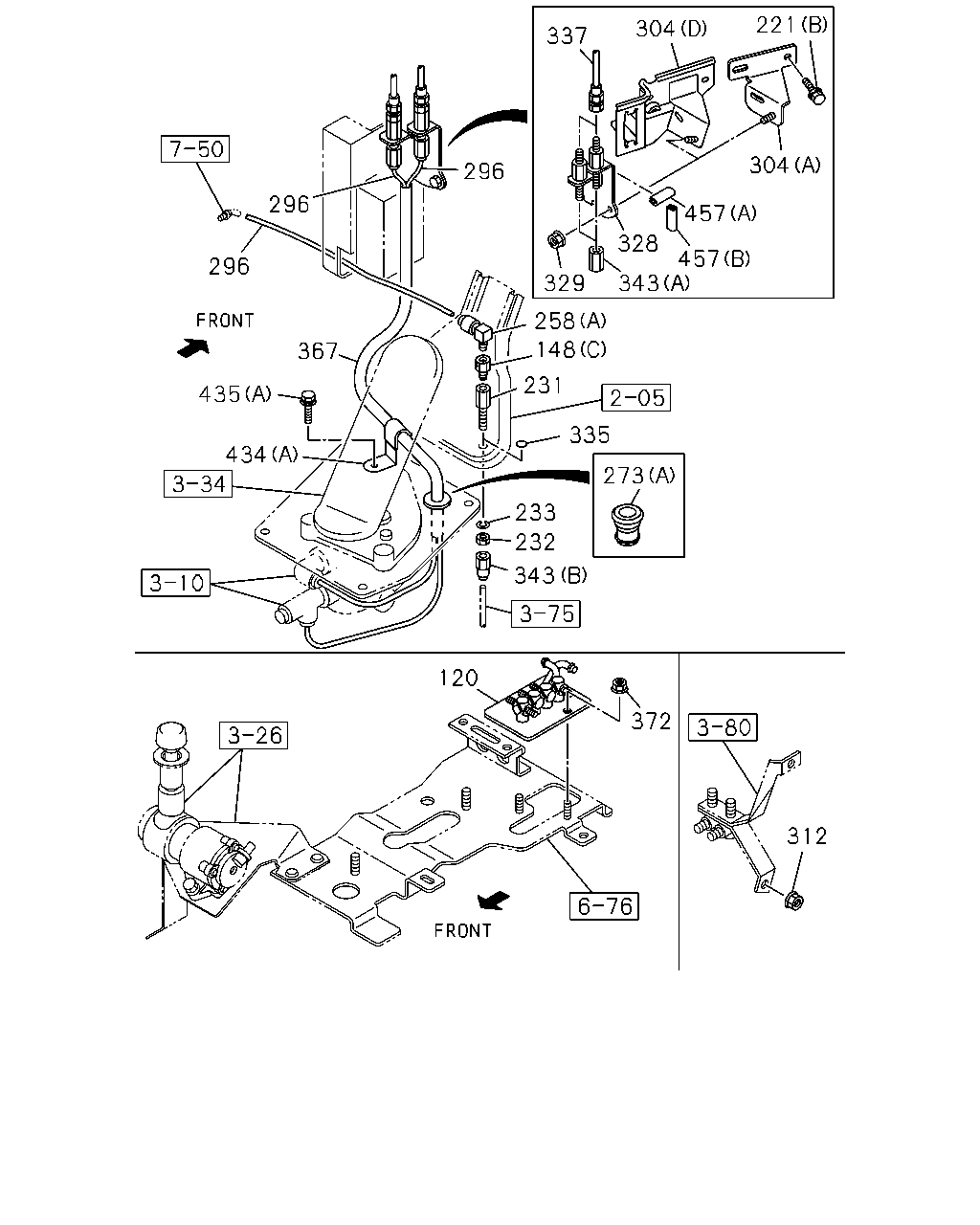

çizim 121455
221 304 337 304 296 296 457 328 457 343 296 329 258 148 367 231 435 335 434 273 233 232 343 120 372 312
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0710-
148 CONNECTOR; UNION
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1003-1112
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0710-1002
148 CONNECTOR; UNION
6WF1 TC-C(1B8) (B) PT1/4 4WAY 		1-09660-358-0 01 1 1003-1112
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 1201-
148 CONNECTOR; UNION
(A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0710-1002
148 CONNECTOR; UNION
6WF1 TC-C(1B8) (A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1003-1112
148 CONNECTOR; UNION
(A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1201-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		8-94338-417-0 01 1 0710-
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
221 BOLT; BRKT
6WF1 TC-C(1B8) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
231 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 0710-
232 NUT; UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA) M10 H=8 		1-09400-029-0 01 1 0710-
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA) ID=10.2 		0-91510-510-0 01 1 0710-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0710-
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-
273 GROMMET
6WF1 TC-C(1B8) (A) 		1-09332-135-0 01 1 0710-
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) L=1200 OD=6 		1-09366-256-1 01 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-
304 BRACKET; UNION
(B) 		1-47471-276-0 01 1 0710-
304 BRACKET; UNION
(C) 		1-47479-603-0 01 1 0710-
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0710-0711
304 BRACKET; UNION
6WF1 TC-C(1B8) (D) 		8-98106-470-0 01 1 0712-
312 NUT; UNION
M8 		0-91110-508-0 01 1 0710-
328 UNION; AIR PIPE
6WF1 TC-C(1B8) 		1-47470-442-0 01 1 0710-
329 NUT; UNION,AIR PIPE
6WF1 TC-C(1B8) M6 FLANGE 		0-91180-106-0 01 1 0710-
335 SEAL; UNION
CHEAPER CAB(WY1) OD=30 BLACK 		1-76798-035-0 01 1 1111-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
6WF1 TC-C(1B8) L=440 		0-57210-440-0 02 1 0710-
343 UNION; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (B) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 0710-
343 UNION; NYLON TUBE
6WF1 TC-C(1B8) (A) 		1-09660-796-1 02 1 0710-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0710-
434 CLIP
6WF1 TC-C(1B8) (A) ID=17 		8-94449-734-1 01 1 0710-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
457 FINISHER; UNION
6WF1 TC-C(1B8) (A) L=50 		8-94270-377-1 01 1 0710-
457 FINISHER; UNION
6WF1 TC-C(1B8) (B) L=50 		8-94270-377-1 01 1 0710-

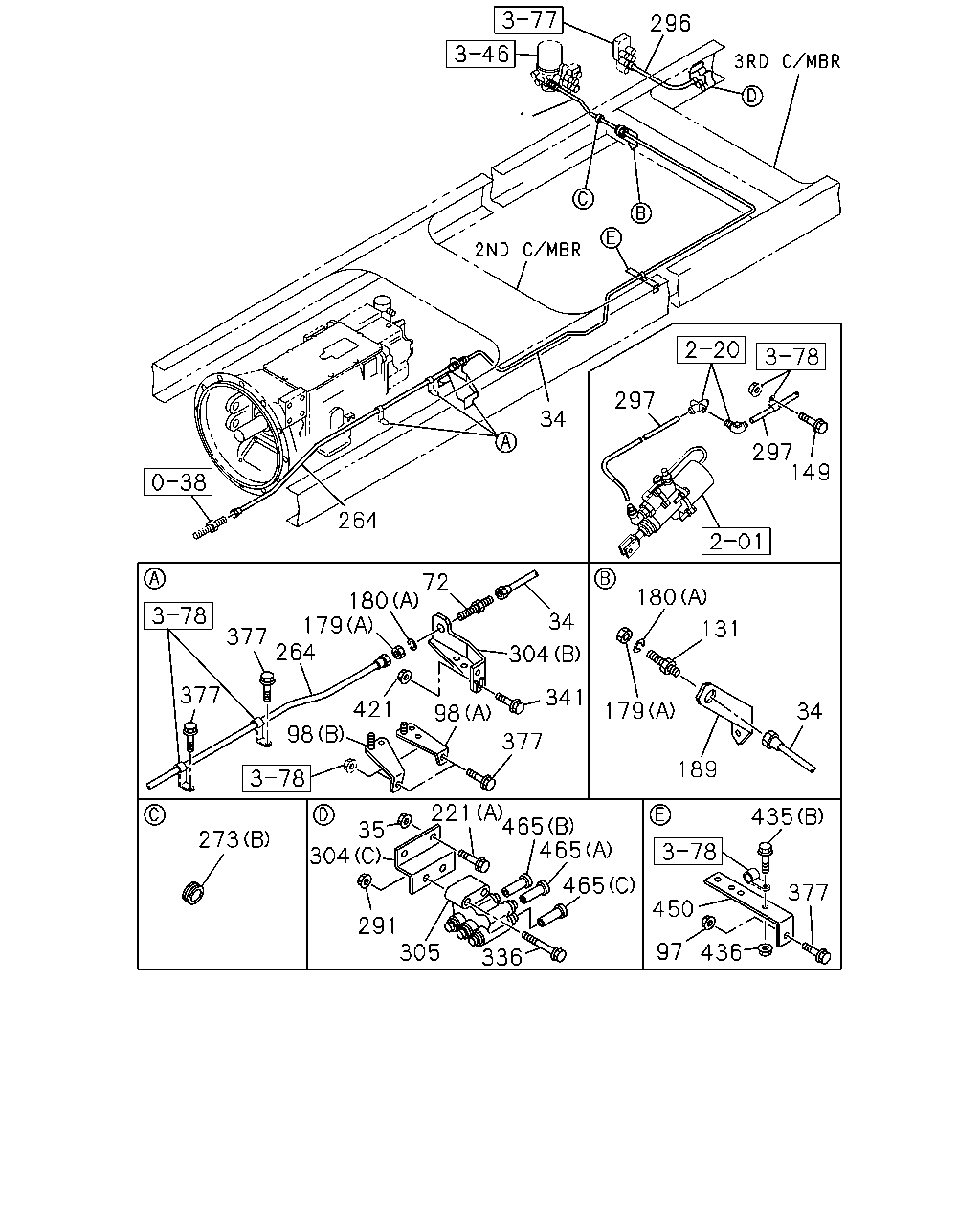

çizim 192695
296 1 34 264 297 297 149 131 180 179 34 189 435 377 450 97 436 465 465 465 336 305 291 304 221 35 273 98 377 377 264 421 98 377 304 341 34 72 180 179
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 0710-
34 PIPE; AIR
L=1408 		1-49124-905-0 01 1 0710-
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
72 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0710-
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-
98 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) (B) 		1-47479-639-0 01 1 0710-
98 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) (A) 		1-47479-723-0 01 1 0710-
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0710-
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE 		0-28650-825-0 01 1 0710-1311
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE 		0-28650-825-0 02 1 1312-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0710-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0710-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0710-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0710-
189 BRACKET; FLEX HOSE 1-47479-905-0 01 1 0710-
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
221 BOLT; BRKT
6WF1 TC-C(1B8) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
264 HOSE; FLEX
MJX16P M/T(Y3Z) L=1000 		1-09363-794-0 01 1 0710-
264 HOSE; FLEX
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) L=1050 		1-09363-789-0 01 1 0710-
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-
273 GROMMET
6WF1 TC-C(1B8) (A) 		1-09332-135-0 01 1 0710-
291 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0710-
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) L=1200 OD=6 		1-09366-256-1 01 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710-
304 BRACKET; UNION
(B) 		1-47471-276-0 01 1 0710-
304 BRACKET; UNION
(C) 		1-47479-603-0 01 1 0710-
304 BRACKET; UNION
6WF1 TC-C(1B8) (A) 		1-71117-247-0 01 1 0710-0711
304 BRACKET; UNION
6WF1 TC-C(1B8) (D) 		8-98106-470-0 01 1 0712-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0710-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0710-0906
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 0907-
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
435 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-
450 BRACKET; CLIP 1-82698-358-0 01 1 0710-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 02 1 0710-
465 PLUG
(C) OD=12 		1-09661-617-0 01 1 0710-
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) OD=6 L=27 		1-09661-615-0 01 1 0710-1110
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) OD=6 L=27 		1-09661-615-0 01 1 0710-1110
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) OD=6 L=27 		1-09661-615-0 01 1 1111-
465 PLUG
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) OD=6 L=27 		1-09661-615-0 01 1 1111-
465 PLUG
CHEAPER CAB(WY1) (A) OD=6 L=27 		1-09661-615-0 01 1 1111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
