Sayfa 3-26 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 3 - Brakes, Brake System ▶ 3-26 - TRAILER CONTROL ▶

3-26 — TRAILER CONTROL (#66959) — 172 parça

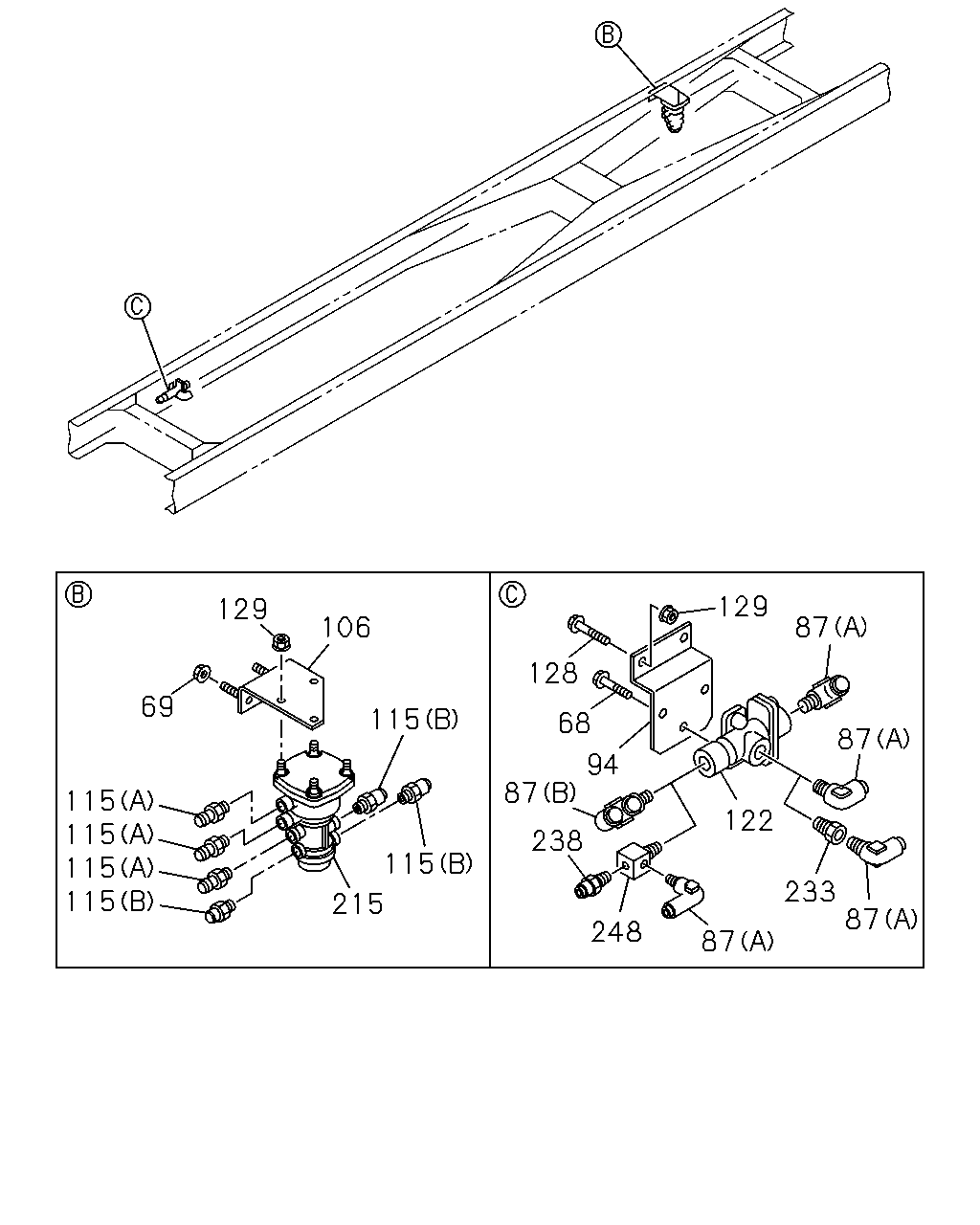

129 69 106 115 115 215 115 115 115 115 248 238 87 87 128 68 94 122 233 87 87 87 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BOLT; DOUBLE CHECK VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8X14 FLANGE	0-28080-814-0	02	1	0710-
68	BOLT; DOUBLE CHECK VLV MJX16P M/T(Y3Z) M8X14 FLANGE	0-28080-814-0	02	1	0710-
69	NUT; VLV BRKT M10 FLANGE	0-91180-210-0	02	1	0710-
87	CONNECTOR; DBL CHECK VLV TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0710-
87	CONNECTOR; DBL CHECK VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-
87	CONNECTOR; DBL CHECK VLV MJX16P M/T(Y3Z) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0710-
87	CONNECTOR; DBL CHECK VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
87	CONNECTOR; DBL CHECK VLV MJX16P M/T(Y3Z) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
94	BRACKET; CHECK VLV 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S)	1-47479-367-0	01	1	0710-
94	BRACKET; CHECK VLV MJX16P M/T(Y3Z)	1-47479-367-0	01	1	0710-
106	BRACKET; VLV	1-48495-282-1	01	1	0710-0907
106	BRACKET; VLV	8-98110-679-1	01	1	0908-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0710-
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0710-
122	VALVE ASM; DOUBLE CHECK 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W)	1-48410-531-1	01	1	0710-
122	VALVE ASM; DOUBLE CHECK 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S)	1-48410-531-1	01	1	0710-
122	VALVE ASM; DOUBLE CHECK MJX16P M/T(Y3Z)	1-48410-531-1	01	1	0710-
128	BOLT; VLV TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) M8X25 FLANGE	0-28650-825-0	02	1	0710-
128	BOLT; VLV TRANSMISSION-FULLER RTLO189 18(Y4W) M8X16 FLANGE	0-28050-816-0	02	1	0710-
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0710-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0710-
129	NUT; VLV TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0710-
215	VALVE; TRAILER CONT	8-98091-694-0	01	1	0710-
233	ADAPTER; VLV TRANSMISSION-FULLER RTLO189 18(Y4W) PT3/8	1-09664-210-0	01	1	0710-
238	CONNECTOR TRANSMISSION-FULLER RTLO189 18(Y4W) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0710-
248	UNION TRANSMISSION-FULLER RTLO189 18(Y4W) PT3/8 3WAY	1-09661-300-0	01	1	0710-

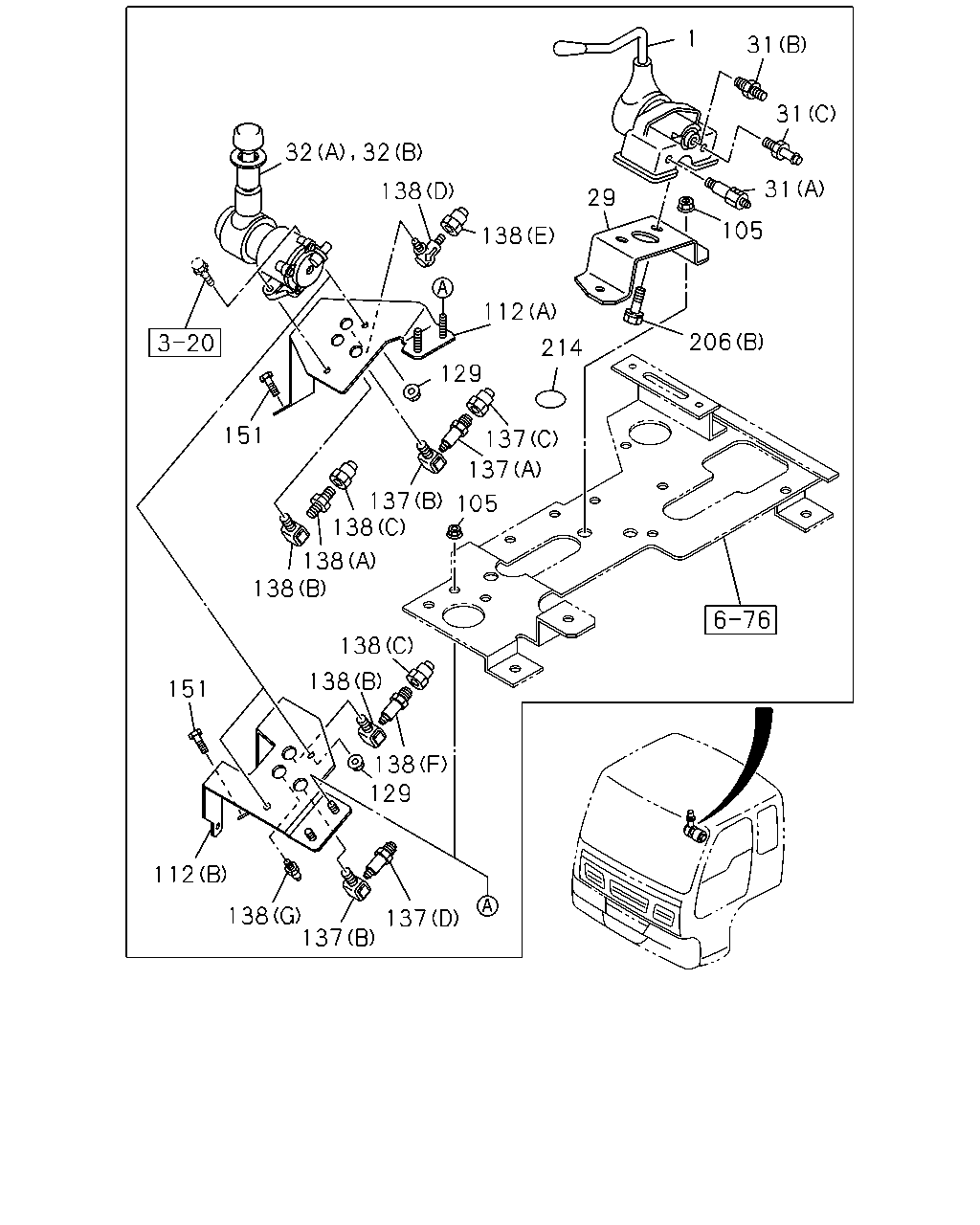

1 31 31 31 105 29 206 138 112 138 214 129 32 32 151 137 137 105 137 138 138 138 151 138 138 138 129 137 137 138 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0710-
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0710-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0710-
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0710-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0710-
32	VALVE; BRK,HAND CONT COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48460-316-0	01	1	0710-
32	VALVE; BRK,HAND CONT MJX M/T<Y9N> (A)	1-48460-339-1	01	1	0710-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-
112	BRACKET; CONT VLV FULLER M/T<X9B> (B)	1-79996-336-1	01	1	0710-
112	BRACKET; CONT VLV MJX M/T<Y9N> (A)	1-79996-387-0	01	1	0710-
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0710-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0710-
129	NUT; VLV TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0710-
137	CONNECTOR; SUPPLY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0710-
137	CONNECTOR; SUPPLY FULLER M/T<X9B> (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0710-
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	0710-
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0710-
138	CONNECTOR; DELIVERY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0710-
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0710-
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (F) M14	1-09656-391-2	01	1	0710-
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (D)	1-09650-263-2	01	1	0710-
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0710-
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0710-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0710-
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50541-020-0	02	1	0710-
206	BOLT; HAND BRK VALVE MJX M/T<Y9N> (A)	1-48469-160-0	01	1	0710-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0710-

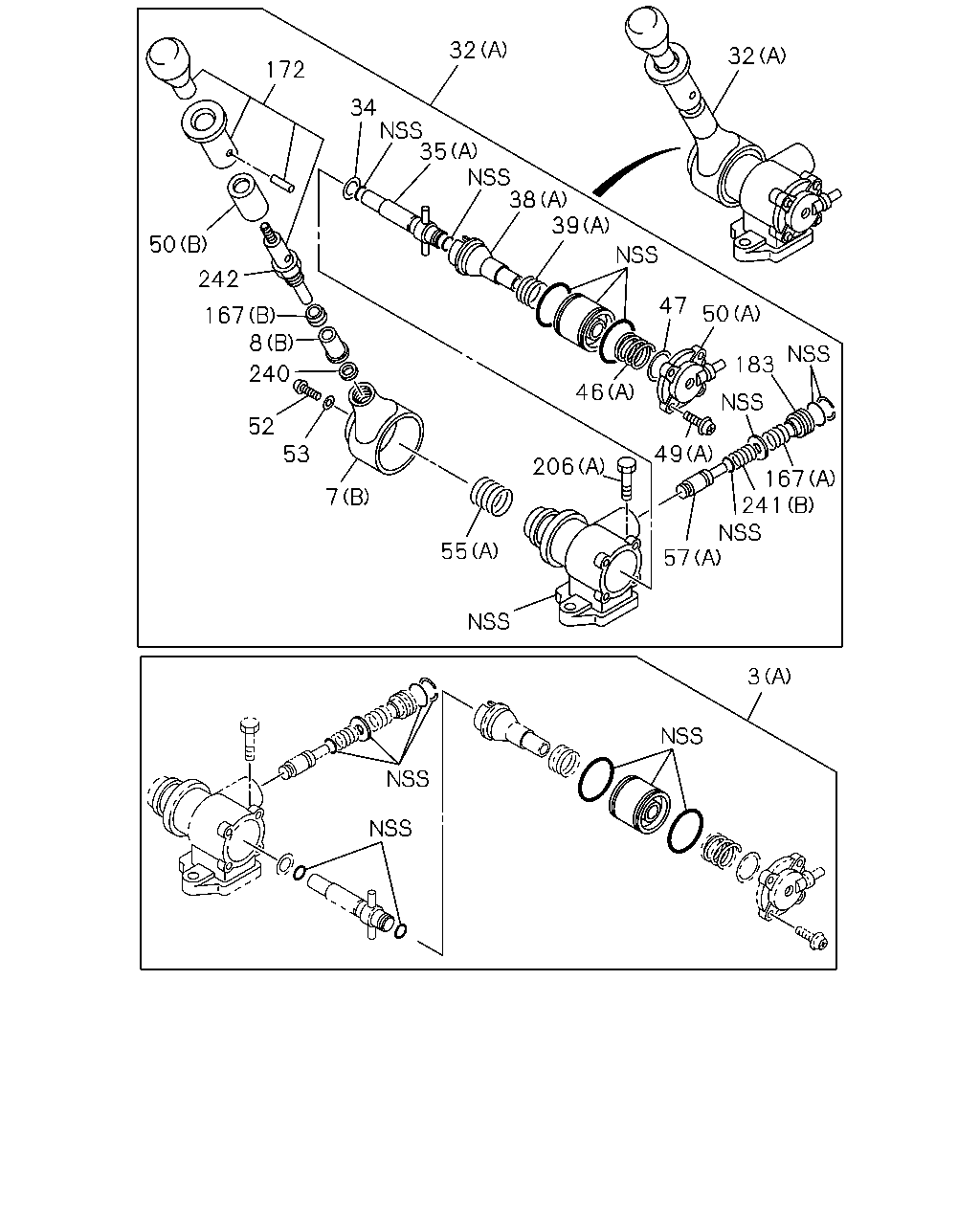

32 32 172 50 34 242 35 38 39 47 50 183 46 49 167 241 57 206 55 7 53 52 240 8 167 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) W/GREASE	1-48469-083-0	01	1	0710-
3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N> (A)	1-85576-376-0	01	1	0710-
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0710-
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0710-
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0710-
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0710-
32	VALVE; BRK,HAND CONT COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48460-316-0	01	1	0710-
32	VALVE; BRK,HAND CONT MJX M/T<Y9N> (A)	1-48460-339-1	01	1	0710-
34	SHIM; CAM HOLDER MJX M/T<Y9N>	1-48469-055-0	AR	1	0710-
34	SHIM; CAM HOLDER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-055-0	AR	1	0710-
35	HOLDER; CAM COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-054-0	01	1	0710-
35	HOLDER; CAM MJX M/T<Y9N> (A)	1-48469-171-0	01	1	0710-
38	SEAT; EXH VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-057-0	01	1	0710-
38	SEAT; EXH VLV MJX M/T<Y9N> (A)	1-48469-172-0	01	1	0710-
39	SPRING; RETURN,CAM RING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-063-0	01	1	0710-
39	SPRING; RETURN,CAM RING MJX M/T<Y9N> (A)	1-48469-150-0	01	1	0710-
46	SPRING; MAIN,PISTON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-119-0	01	1	0710-
46	SPRING; MAIN,PISTON MJX M/T<Y9N> (A)	1-48469-173-0	01	1	0710-
47	SHIM; MAIN SPRING MJX M/T<Y9N>	1-48469-072-0	AR	1	0710-
47	SHIM; MAIN SPRING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-072-0	AR	1	0710-
49	SCREW; COVER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-120-0	04	1	0710-
49	SCREW; COVER MJX M/T<Y9N> (A)	1-48469-169-0	04	1	0710-
50	COVER; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0710-
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0710-
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0710-
52	SCREW; HANDLE MJX M/T<Y9N>	1-48469-062-0	01	1	0710-
52	SCREW; HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-062-0	01	1	0710-
53	WASHER; HANDLE MJX M/T<Y9N>	1-48469-061-0	01	1	0710-
53	WASHER; HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-061-0	01	1	0710-
55	SPRING; RETURN,HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-059-0	01	1	0710-
55	SPRING; RETURN,HANDLE MJX M/T<Y9N> (A)	1-48469-155-0	01	1	0710-
57	PLUNGER; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-076-0	01	1	0710-
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-180-0	01	1	0710-
167	SPRING; VALVE MJX M/T<Y9N> (A)	1-48469-177-0	01	1	0710-
167	SPRING; VALVE MJX M/T<Y9N> (B)	1-48469-184-0	01	1	0710-
172	KNOB; VALVE MJX M/T<Y9N>	1-48469-203-0	01	1	0710-
183	RETAINER; VALVE MJX M/T<Y9N>	1-48469-185-0	01	1	0710-
206	BOLT; HAND BRK VALVE (B) M10X20 W/LK WASHER	0-50541-020-0	02	1	0710-
206	BOLT; HAND BRK VALVE MJX M/T<Y9N> (A)	1-48469-160-0	01	1	0710-
240	RING; STOPPER MJX M/T<Y9N>	1-48469-199-0	01	1	0710-
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0710-
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0710-
242	NUT; LK MJX M/T<Y9N>	1-48469-179-0	01	1	0710-

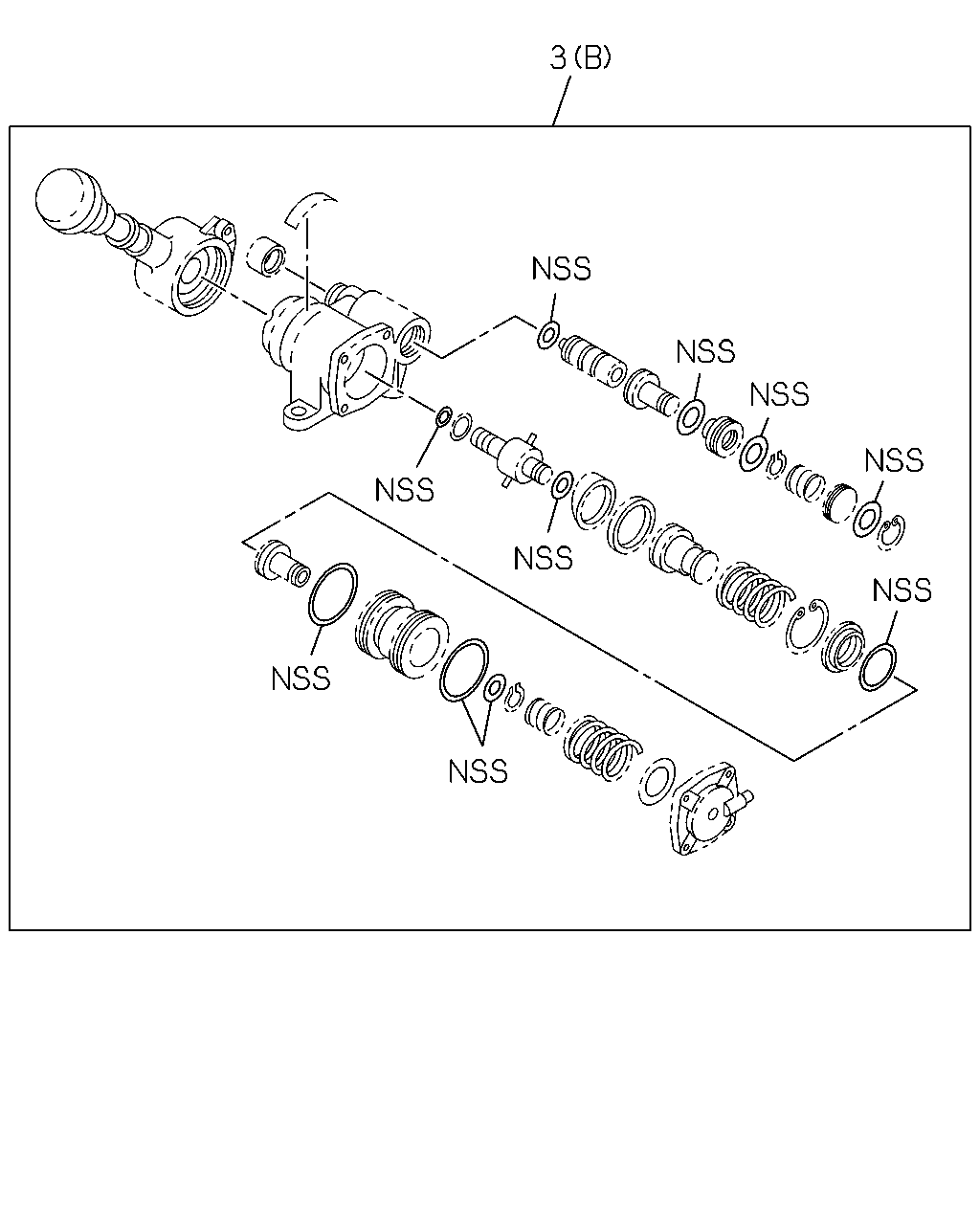

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) W/GREASE	1-48469-083-0	01	1	0710-
	3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N> (A)	1-85576-376-0	01	1	0710-

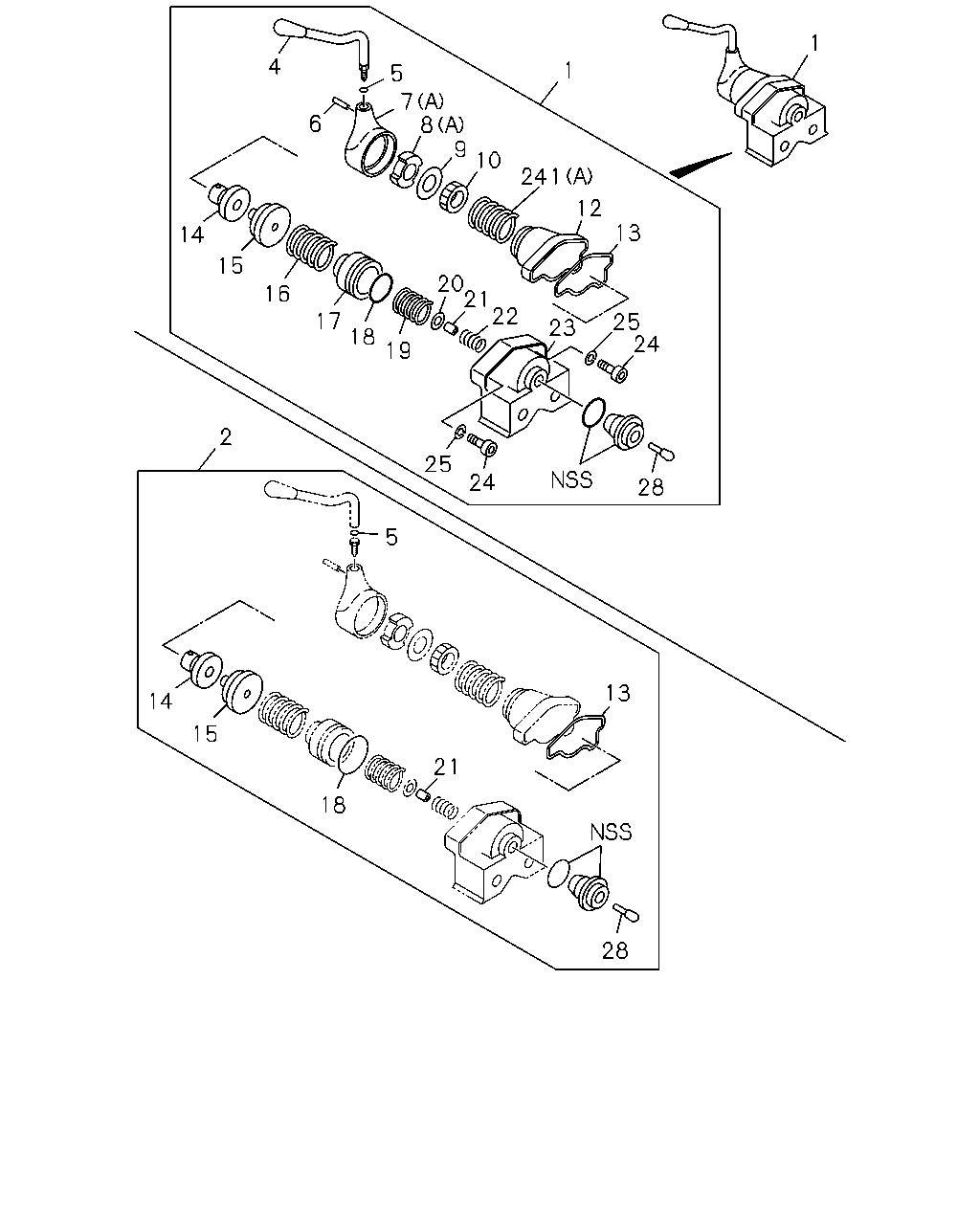

1 1 4 5 6 7 28 21 18 15 14 13 5 2 28 24 25 19 18 17 16 15 14 20 24 25 23 22 21 13 12 241 10 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0710-
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	0710-
4	HANDLE ASM; BRK VLV	1-48119-580-1	01	1	0710-
5	GASKET; HANDLE	1-48119-128-0	01	1	0710-
6	PIN; SPR	1-48119-143-0	01	1	0710-
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0710-
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0710-
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0710-
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0710-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0710-
10	RING; ADJ	1-48119-122-0	01	1	0710-
12	COVER; BRK VLV	1-48129-319-1	01	1	0710-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0710-
14	FOLLOWER; CAM	1-48129-135-0	01	1	0710-
15	CAM; FOLLOWER	1-48129-134-0	01	1	0710-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0710-
17	PISTON; SPR	1-48129-095-0	01	1	0710-
18	GASKET; BODY	1-48129-096-0	01	1	0710-
19	SPRING; PISTON	1-48129-094-0	01	1	0710-
20	GUIDE; VLV	1-48129-090-0	01	1	0710-
21	VALVE; IN & EXH	1-48121-017-0	01	1	0710-
22	SPRING; VLV	1-48123-024-0	01	1	0710-
23	BODY; BRK VLV	1-48111-060-1	01	1	0710-
24	BOLT; EXH VLV	1-48129-092-0	02	1	0710-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0710-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0710-
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0710-
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0710-

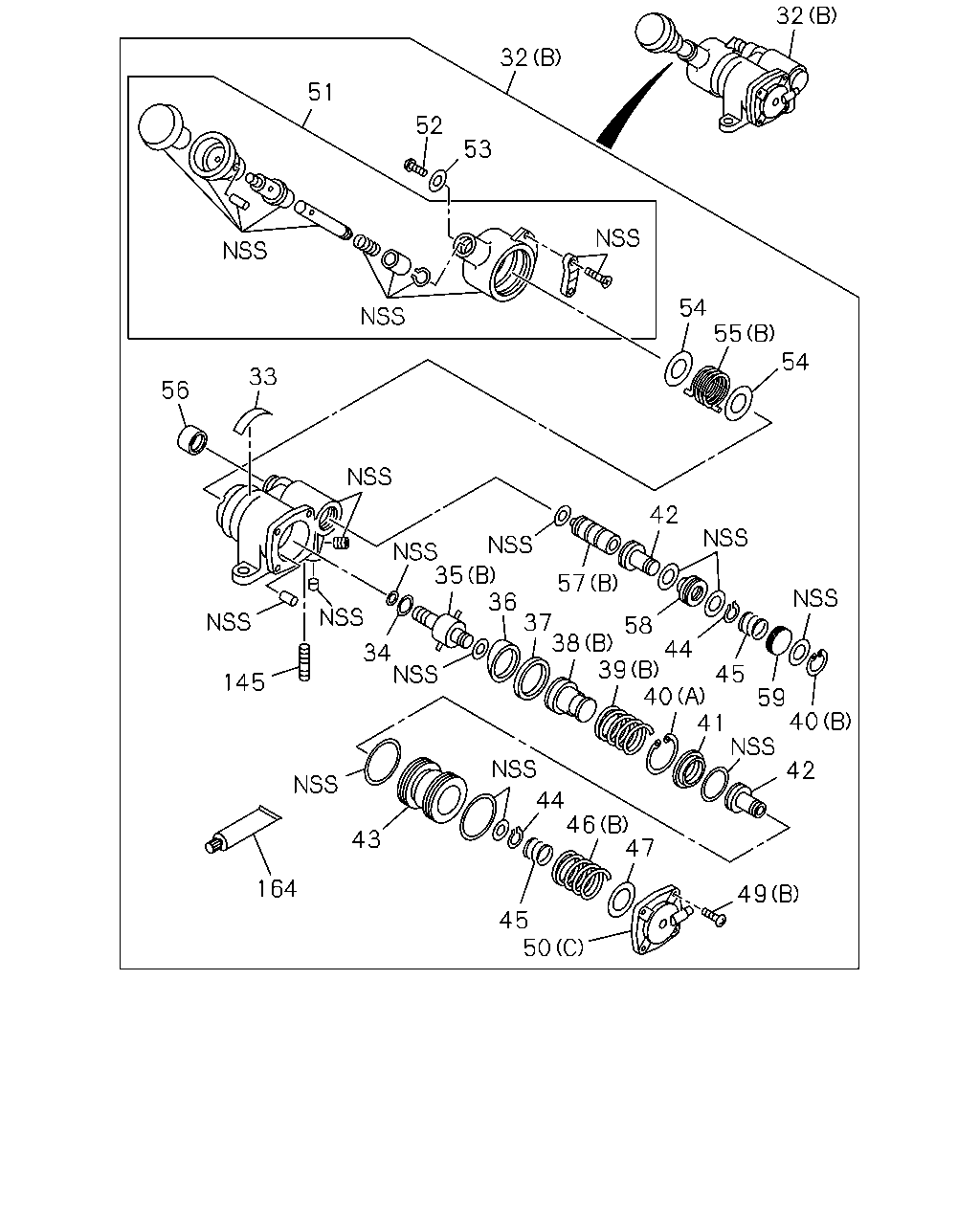

32 32 51 52 53 54 55 54 33 56 145 34 35 57 36 42 37 38 39 40 41 42 58 44 45 59 40 49 47 46 44 43 45 50 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48460-316-0	01	1	0710-
32	VALVE; BRK,HAND CONT MJX M/T<Y9N> (A)	1-48460-339-1	01	1	0710-
33	PLATE; CAUTION COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-121-0	01	1	0710-
34	SHIM; CAM HOLDER MJX M/T<Y9N>	1-48469-055-0	AR	1	0710-
34	SHIM; CAM HOLDER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-055-0	AR	1	0710-
35	HOLDER; CAM COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-054-0	01	1	0710-
35	HOLDER; CAM MJX M/T<Y9N> (A)	1-48469-171-0	01	1	0710-
36	RING; CAM COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-056-0	01	1	0710-
37	GUIDE; CAM RING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-058-0	01	1	0710-
38	SEAT; EXH VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-057-0	01	1	0710-
38	SEAT; EXH VLV MJX M/T<Y9N> (A)	1-48469-172-0	01	1	0710-
39	SPRING; RETURN,CAM RING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-063-0	01	1	0710-
39	SPRING; RETURN,CAM RING MJX M/T<Y9N> (A)	1-48469-150-0	01	1	0710-
40	RING; SNAP COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A)	1-48469-067-0	01	1	0710-
40	RING; SNAP COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-079-0	01	1	0710-
41	SEAT; FEED VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-066-0	01	1	0710-
42	VALVE; FEED COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-065-0	02	1	0710-
43	PISTON; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-064-0	01	1	0710-
44	RING; SNAP,FEED VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-068-0	02	1	0710-
45	SPRING; FEED VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-070-0	02	1	0710-
46	SPRING; MAIN,PISTON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-119-0	01	1	0710-
46	SPRING; MAIN,PISTON MJX M/T<Y9N> (A)	1-48469-173-0	01	1	0710-
47	SHIM; MAIN SPRING MJX M/T<Y9N>	1-48469-072-0	AR	1	0710-
47	SHIM; MAIN SPRING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-072-0	AR	1	0710-
49	SCREW; COVER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-120-0	04	1	0710-
49	SCREW; COVER MJX M/T<Y9N> (A)	1-48469-169-0	04	1	0710-
50	COVER; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0710-
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0710-
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0710-
51	HANDLE ASM; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-060-0	01	1	0710-
52	SCREW; HANDLE MJX M/T<Y9N>	1-48469-062-0	01	1	0710-
52	SCREW; HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-062-0	01	1	0710-
53	WASHER; HANDLE MJX M/T<Y9N>	1-48469-061-0	01	1	0710-
53	WASHER; HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-061-0	01	1	0710-
54	SEAT; SPRING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-082-0	02	1	0710-
55	SPRING; RETURN,HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-059-0	01	1	0710-
55	SPRING; RETURN,HANDLE MJX M/T<Y9N> (A)	1-48469-155-0	01	1	0710-
56	BOOT; PLUNGER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-080-0	01	1	0710-
57	PLUNGER; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-48469-076-0	01	1	0710-
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-180-0	01	1	0710-
58	HOLDER; FEED VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-077-0	01	1	0710-
59	HOLDER; SPRING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-078-0	01	1	0710-
145	STUD; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-069-0	01	1	0710-
164	GREASE; HAND BRK VLV COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-084-0	01	1	0710-

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
