3-08A — PARKING BRAKE (#66953) — 54 parça

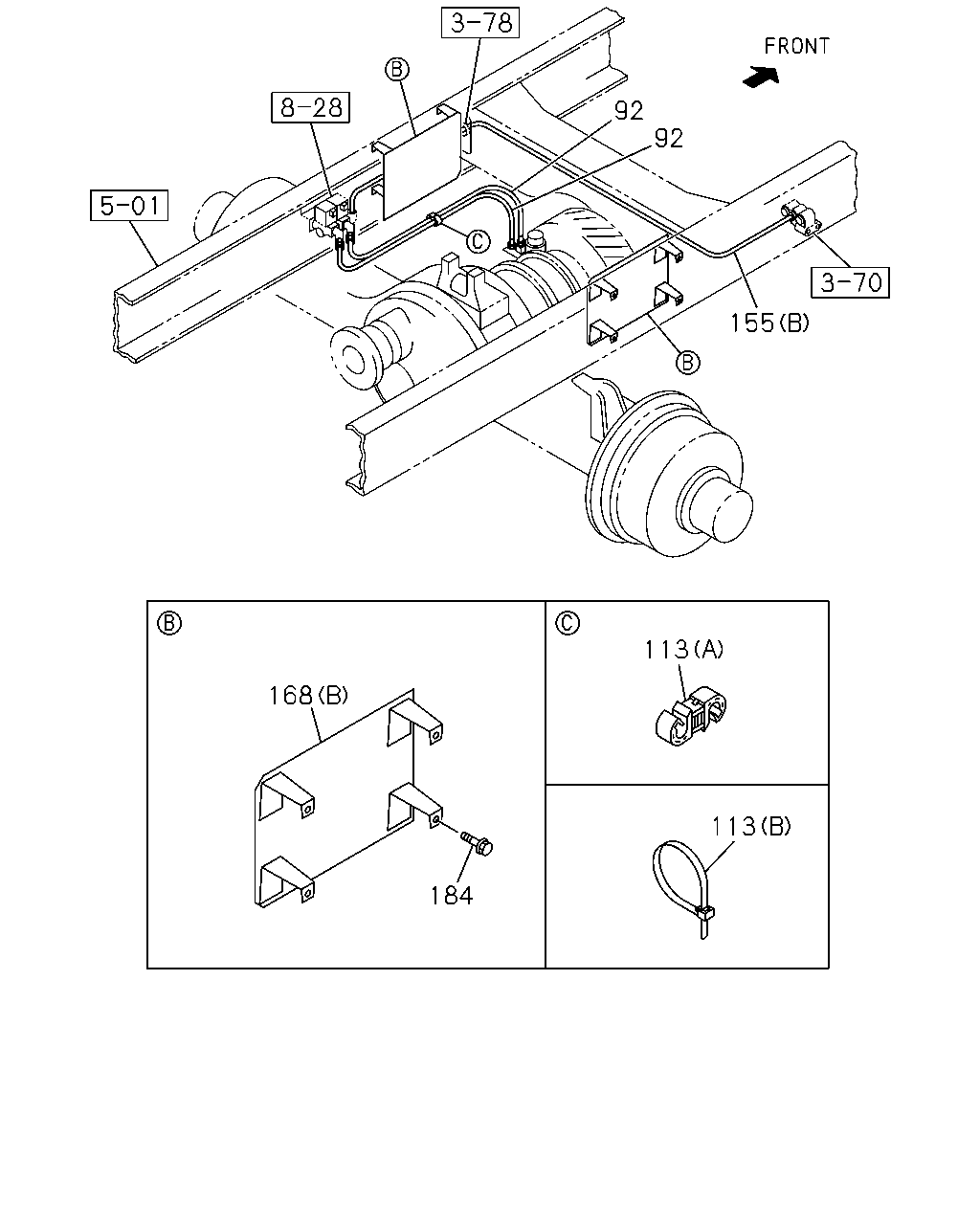

92 155 92 168 184 113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=400	1-09363-743-0	02	1	0710-
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=350	1-09707-183-0	01	1	0710-
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=10 & 10	1-09709-277-1	01	1	0710-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0710-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-597-0	02	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0710-
184	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28650-830-0	08	1	0710-

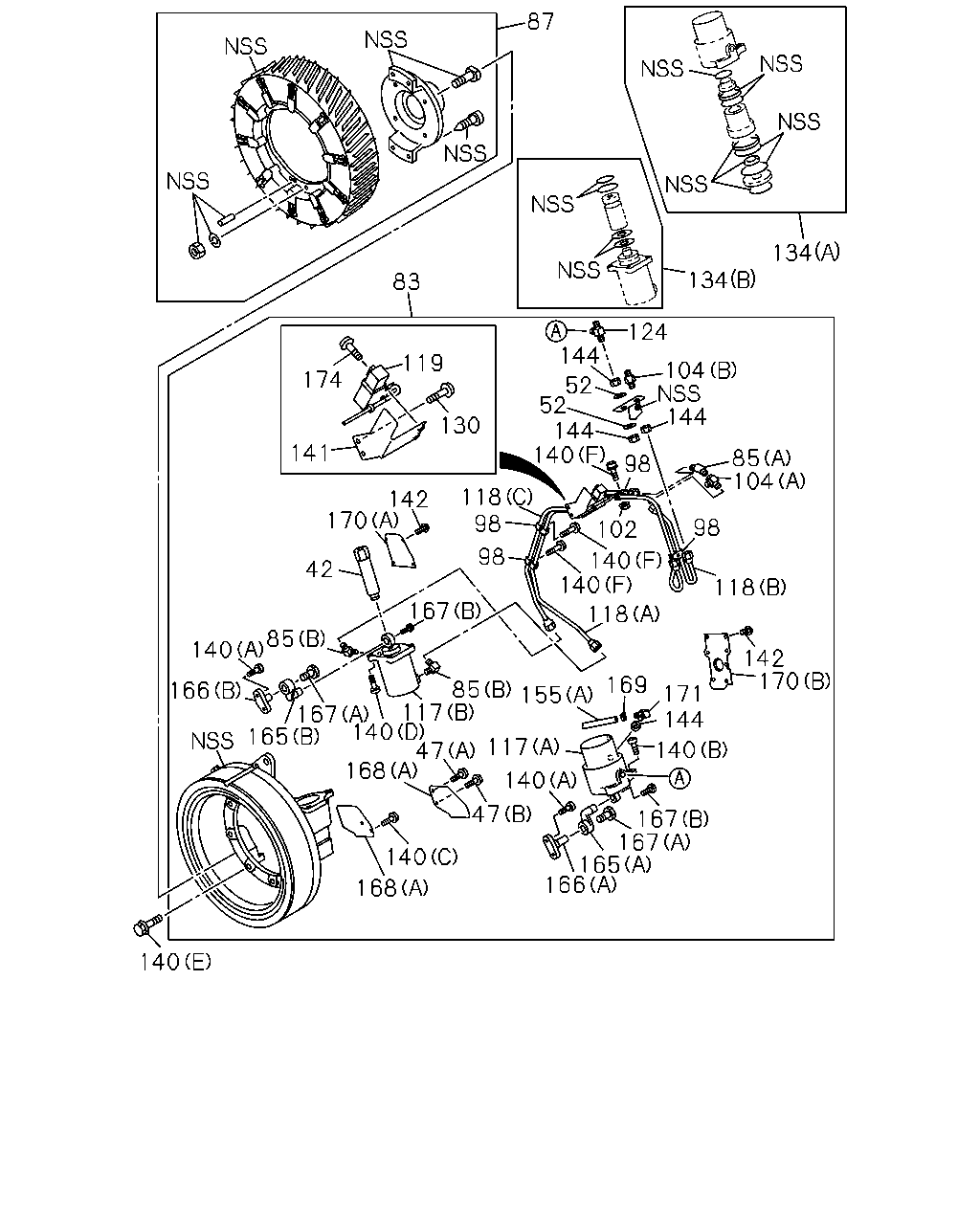

87 83 134 134 124 144 52 52 144 140 144 104 85 104 98 118 118 140 140 102 98 98 118 142 170 42 85 140 166 165 168 167 140 47 167 85 117 117 140 168 140 47 166 165 167 167 140 144 171 169 155 142 170 130 119 174 141 98 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	0710-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	0710-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0710-
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	0-91610-612-0	02	1	0710-
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-5	01	1	0710-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	0-92124-306-0	02	1	0710-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0710-
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0710-
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	0710-
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	0710-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0710-
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	0710-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0710-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0710-
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0710-
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	0710-
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0710-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0710-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) M12X35 FLANGE	0-28761-235-0	08	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M6X18	1-48629-134-0	03	1	0710-
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0710-
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0710-
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0710-
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0710-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0710-
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0710-
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0710-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0710-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0710-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0710-
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-597-0	02	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0710-
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0710-
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0710-
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0710-
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0710-
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	0710-
