3-70 — BRAKE PIPING; AIR,AIR MASTER (#6695) — 37 parça

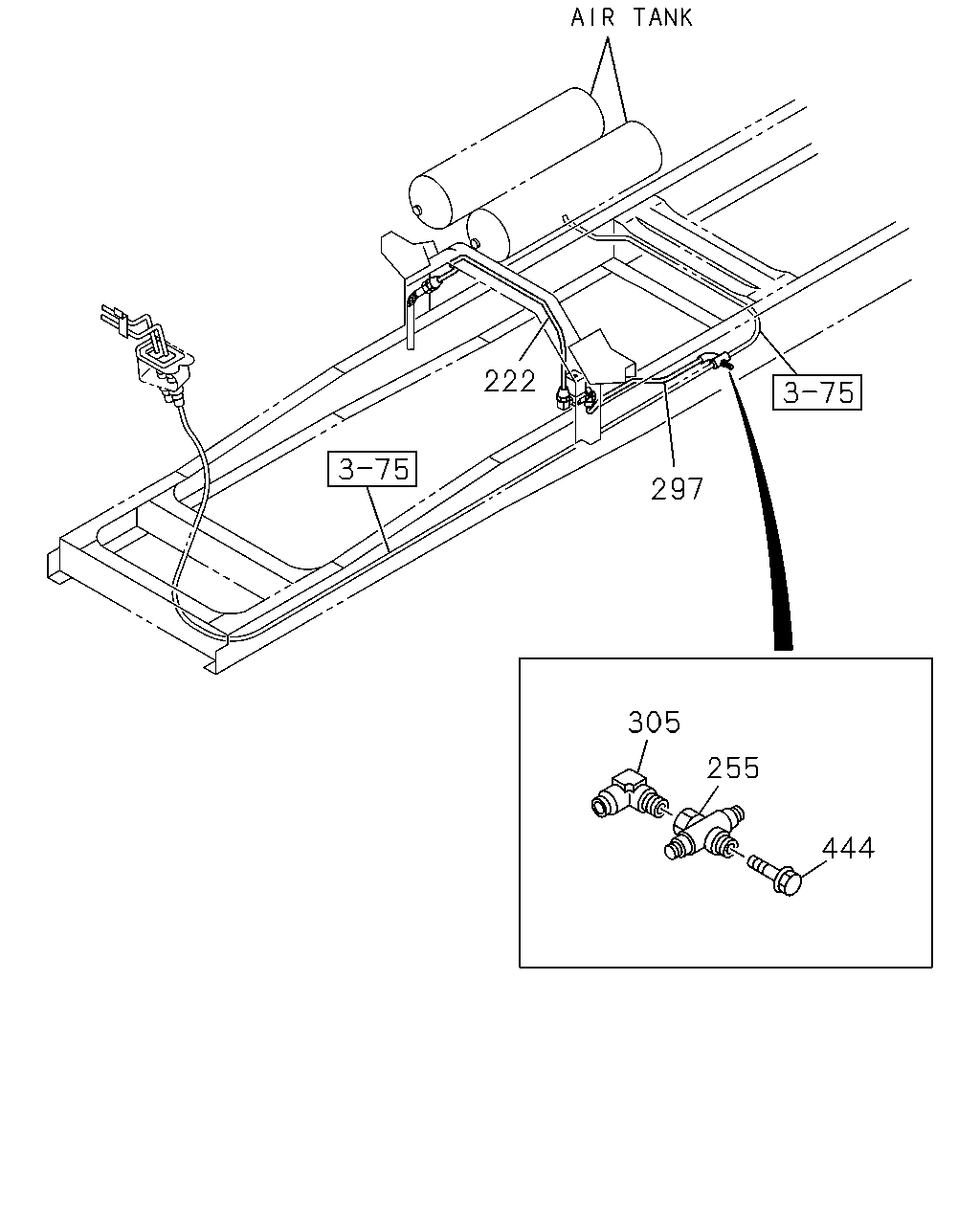

çizim 9099
222 297 305 255 444
BalonParca AdiParca NoAdetTipApplied Date A B
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 THA 		1-47434-387-0 01 1 0011- ● ●
255 UNION; NYLON TUBE
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0011- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
305 UNION ASM; NYLON TUBE
DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0011- ● ●
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0011- ● ●

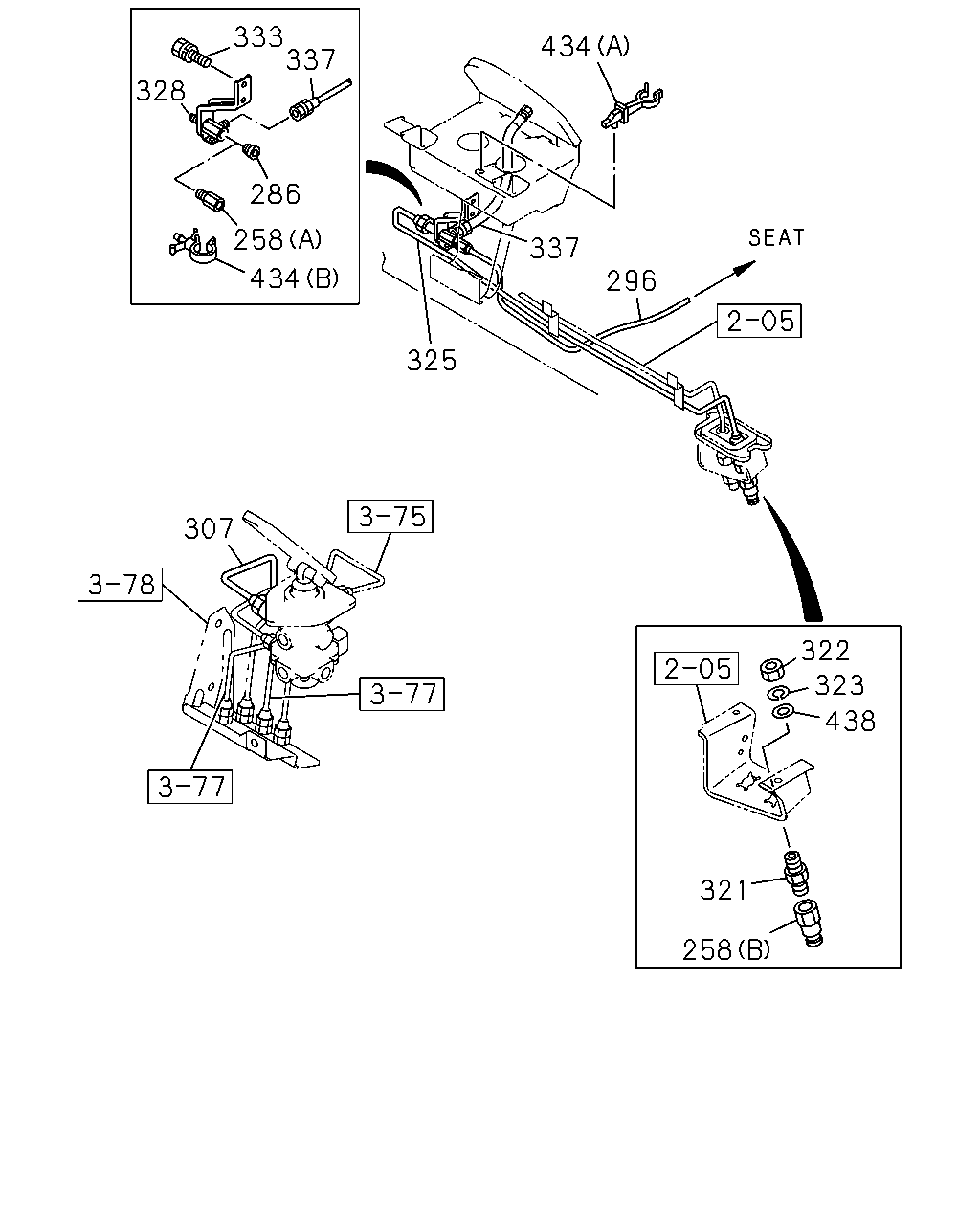

çizim 43829
333 337 434 328 286 258 337 434 296 325 307 322 323 438 321 258
BalonParca AdiParca NoAdetTipApplied Date A B
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> 		9-09204-510-0 01 1 0011- ● ●
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> L=1200 OD=6 		1-09366-256-1 01 1 0011- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0011- ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0011- ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0011- ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0011- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0011- ● ●
328 UNION; AIR PIPE 1-47470-362-2 01 1 0011- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0011- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0011- ● ●
434 CLIP
(A) ID=17 THA 		1-09987-105-1 01 1 0011- ● ●
434 CLIP
(B) THA 		8-94297-486-0 02 1 0011- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011- ● ●
çizim 44181
154 14 170 184 186 185 155 1 6 3 2 7 155
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0011- ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0011- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0011- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
THA 		1-47477-264-2 01 1 0011-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0011- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-877-0 01 1 0011- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49121-098-0 01 1 0011-0105 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49123-187-0 01 1 0106- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 01 1 0011- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 01 1 0011- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49121-099-0 01 1 0011- ● ●
184 HOSE; FLEX,AIR GOV
L=370 		1-09363-586-0 01 1 0011- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0011- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0011- ● ●
