2-53 — TRANSMISSION OIL COOLER SYSTEM (#66948) — 46 parça

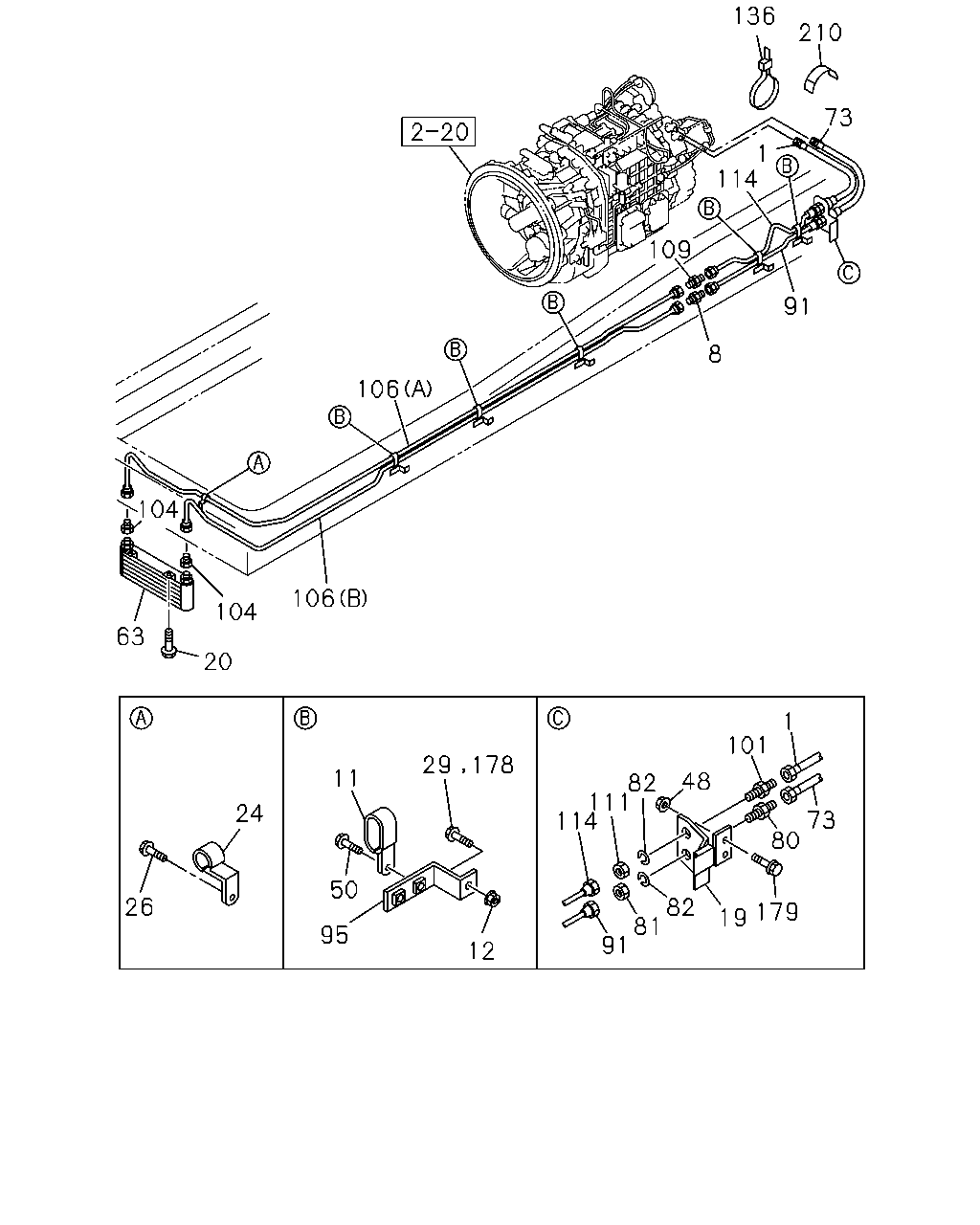

çizim 192672
136 73 210 1 114 109 91 8 106 104 63 20 104 106 26 24 95 11 50 29 178 12 114 91 111 81 82 82 48 19 179 80 101 73 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
MJX16P M/T(Y3Z) L=600 		1-09365-232-0 01 1 0710-
8 UNION
M22 L=51 		0-92123-015-0 01 1 0710-
11 CLIP; PIPE
ID=16X2 L=20 		0-95325-535-0 05 1 0710-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0710-
19 BRACKET; FLEX HOSE 1-47479-613-1 01 1 0710-
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0710-
24 CLIP; OIL PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0710-
26 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0710-
63 COOLER; OIL
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) 		1-21700-394-0 01 1 0710-1405
63 COOLER; OIL
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) 		8-98269-766-0 01 1 1406-
63 COOLER; OIL
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-21700-395-1 01 1 0710-
73 HOSE; FLEX,TRANS
MJX16P M/T(Y3Z) L=550 		1-09365-231-0 01 1 0710-
80 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710-
80 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09654-261-1 01 1 0710-
81 NUT; UNION
M22 		0-91111-522-0 01 1 0710-
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0710-
91 PIPE; OIL,FLEX HOSE TO UNION
MJX16P M/T(Y3Z) L=818 		1-49167-820-0 01 1 0710-0804
91 PIPE; OIL,FLEX HOSE TO UNION
MJX16P M/T(Y3Z) L=916 		8-98117-505-0 01 1 0805-
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) L=810 		8-98047-556-0 01 1 0710-0804
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) L=908 		8-98117-673-0 01 1 0805-
95 BRACKET; CLIP 1-47479-482-0 05 1 0710-
101 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710-
101 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09654-261-1 01 1 0710-
104 CONNECTOR; COOLER 1-09654-398-0 02 1 0710-0804
104 CONNECTOR; COOLER
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) 		1-09654-398-0 02 1 0805-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98117-602-0 01 1 0805-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98117-603-0 01 1 0805-
106 PIPE ASM; OIL,COOLER TO UNION
(B) 		1-49167-821-0 01 1 0710-0804
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) (B) 		8-98117-506-0 01 1 0805-
106 PIPE ASM; OIL,COOLER TO UNION
(A) 		1-49167-822-0 01 1 0710-0804
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION-FULLER RTLO169 18(Y3S),MJX16P M/T(Y3Z) (A) 		8-98117-507-0 01 1 0805-
109 UNION
M22 L=51 		0-92123-015-0 01 1 0710-
111 NUT; UNION
M22 		0-91111-522-0 01 1 0710-
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=877 		1-49167-823-0 01 1 0710-0804
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=835 		8-98117-508-0 01 1 0805-0805
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=835 		8-98123-941-0 01 1 0806-
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) L=869 		8-98047-557-0 01 1 0710-0804
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) L=828 		8-98117-674-0 01 1 0805-0805
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) L=827 		8-98123-938-0 01 1 0806-
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0710-
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0710-
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0710-
