◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#66946) — 63 parça

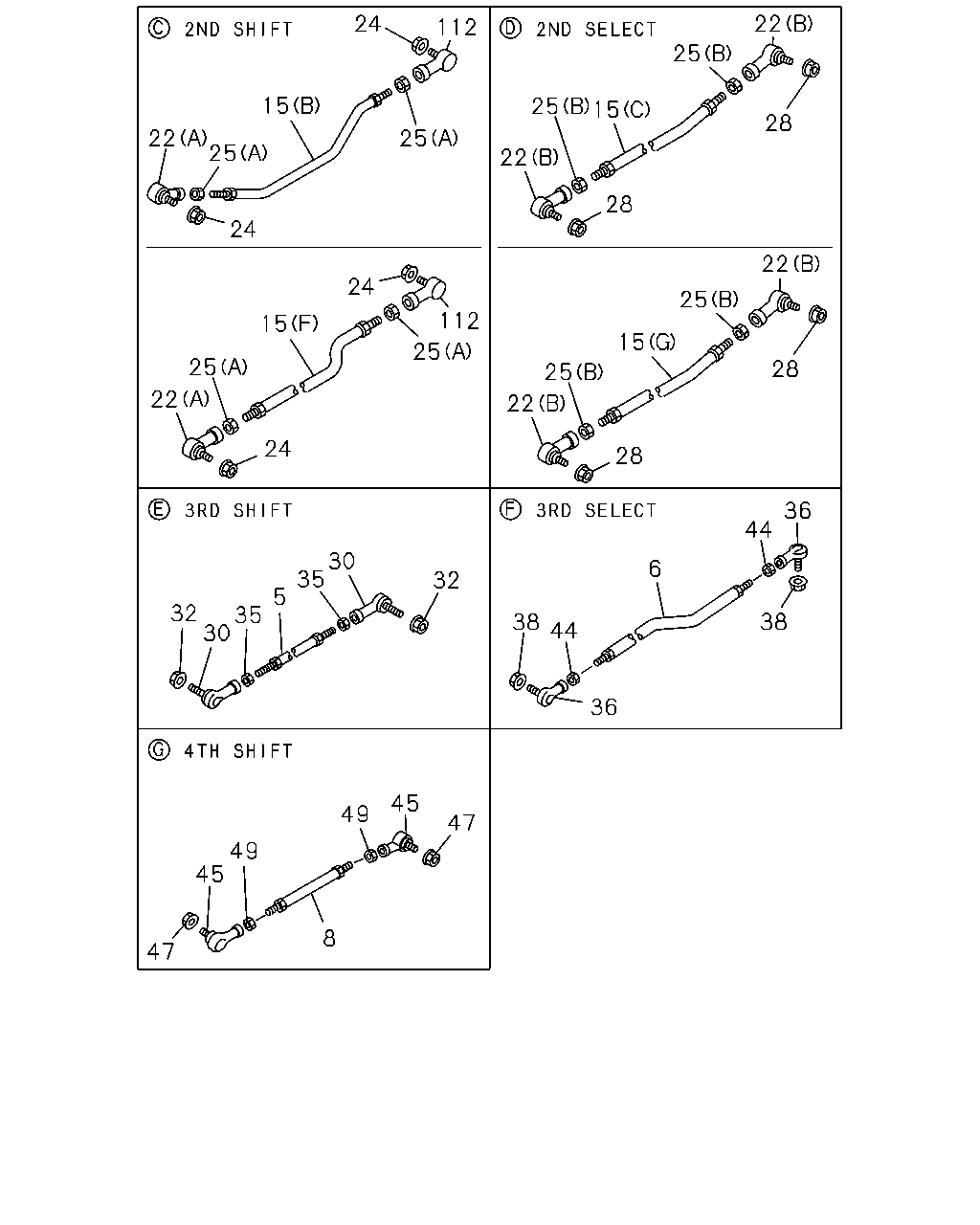

çizim 192668
22 24 25 15 24 112 25 25 22 15 28 25 22 28 22 28 25 15 25 22 28 112 25 24 15 25 22 24 32 32 30 30 35 5 35 38 36 44 6 38 44 36 47 45 49 8 49 45 47
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) L=1120 		1-33652-603-0 01 1 0710-
6 ROD; LINK,3RD SELECT
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> L=1638 		1-33652-997-1 01 1 0710-
8 ROD; LINK,4TH SHIFT
FULLER M/T<X9B> L=480 		1-33652-730-0 01 1 0710-
15 ROD; LINK 1ST SHIFT
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=435 		1-33652-696-0 01 1 0710-
15 ROD; LINK 1ST SHIFT
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=474 		1-33652-803-2 01 1 0710-
15 ROD; LINK 1ST SHIFT
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=446 		1-33652-998-2 01 1 0710-
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370 		1-33652-737-0 01 1 0710-1011
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (H) L=460 		1-33652-373-0 01 1 1012-
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88 		1-33652-740-0 01 1 0710-1011
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475 		1-33662-018-3 01 1 0710-
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460 		1-33662-019-4 01 1 0710-
22 JOINT; BALL,SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-09760-109-0 02 1 0710-
22 JOINT; BALL,SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-09760-125-0 01 1 0710-
24 NUT; 2ND LINK ROD,SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10 		0-91111-510-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12 		0-91111-512-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10 LH THREAD 		9-09840-167-0 02 1 0710-1011
28 NUT; 2ND LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		1-09440-062-1 02 1 0710-
30 JOINT; BALL,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-124-0 02 1 0710-
32 NUT; 3RD LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
35 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M10 		0-91111-510-0 02 1 0710-
36 JOINT; BALL,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> 		1-09760-124-0 02 1 0710-
38 NUT; 3RD LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
44 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) FULLER M/T<X9B> M10 		0-91111-510-0 02 1 0710-
45 JOINT; BALL,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> 		1-09760-125-0 02 1 0710-
47 NUT; 4TH LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
49 NUT; LK,RIGHT SCREW,LINK ROD
FULLER M/T<X9B> M12 		0-91111-512-0 02 1 0710-
112 JOINT; RUBBER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33670-413-1 01 1 0710-
112 JOINT; RUBBER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33670-413-1 01 1 0710-
112 JOINT; RUBBER
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33670-413-1 02 1 0710-

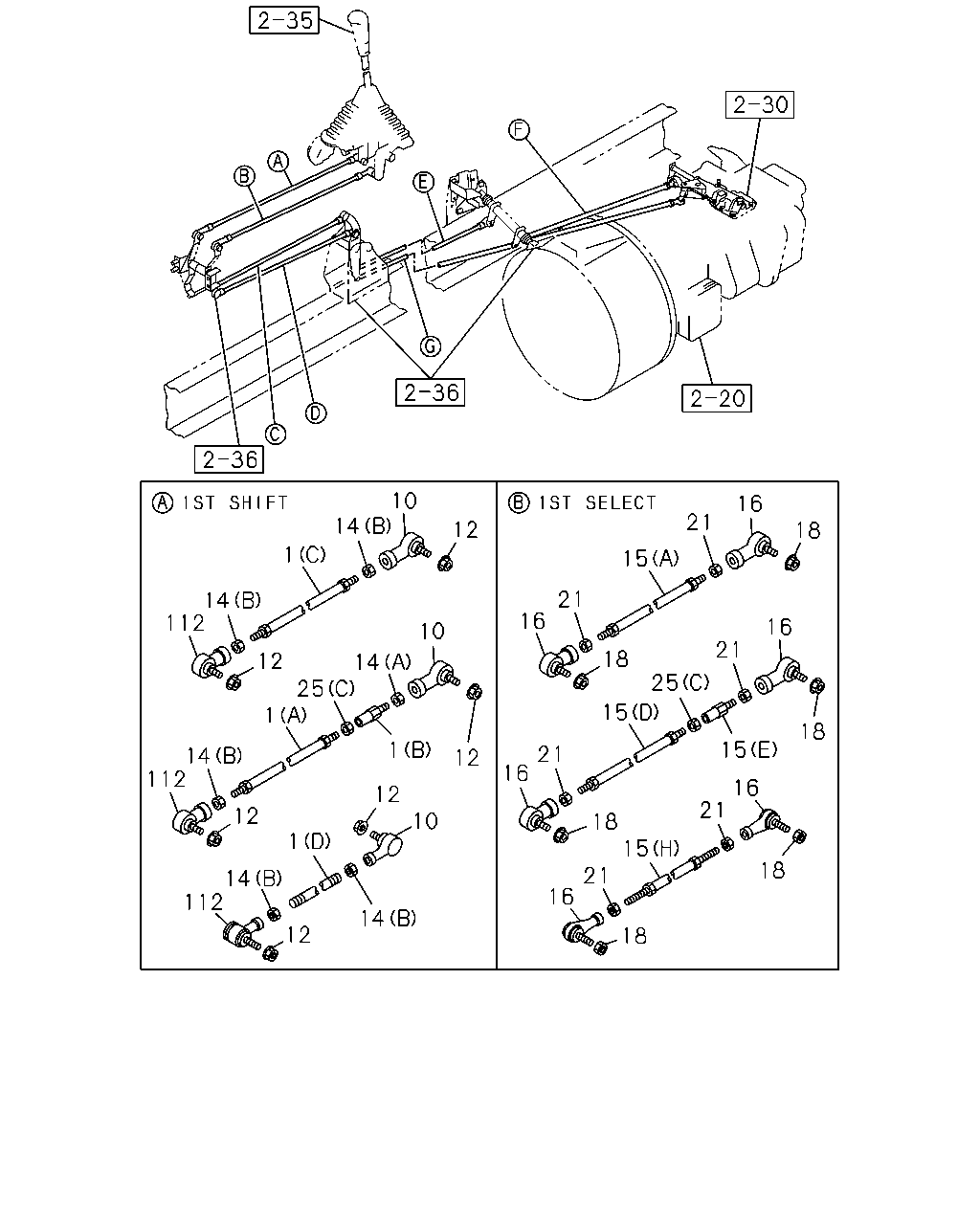

çizim 192671
10 14 16 21 12 18 1 15 21 14 112 16 16 10 21 18 12 14 25 25 15 1 18 15 1 21 16 14 112 12 16 12 21 12 10 18 15 1 18 21 16 14 112 14 12 18
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=480 		9-08401-248-0 01 1 0710-
1 ROD; LINK,1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=430 		1-33652-739-0 01 1 0710-1011
1 ROD; LINK,1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=490 		0-84001-249-0 01 1 1012-
1 ROD; LINK,1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=88 		1-33652-740-0 01 1 0710-1011
10 JOINT ASM; BALL,SELECT ROD
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-125-0 01 1 0710-1011
10 JOINT ASM; BALL,SELECT ROD
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-125-0 01 1 1012-
10 JOINT ASM; BALL,SELECT ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-124-0 01 1 0710-1011
12 NUT; 1ST LINK ROD,SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE 		1-09440-061-0 02 1 0710-
14 NUT; LK,RIGHT SCREW,LINK ROD
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12 		0-91111-512-0 02 1 0710-1011
14 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12 		0-91111-512-0 02 1 1012-
14 NUT; LK,RIGHT SCREW,LINK ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 		0-91111-510-0 01 1 0710-1011
14 NUT; LK,RIGHT SCREW,LINK ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12 		0-91111-512-0 01 1 0710-1011
15 ROD; LINK 1ST SHIFT
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=435 		1-33652-696-0 01 1 0710-
15 ROD; LINK 1ST SHIFT
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=474 		1-33652-803-2 01 1 0710-
15 ROD; LINK 1ST SHIFT
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=446 		1-33652-998-2 01 1 0710-
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370 		1-33652-737-0 01 1 0710-1011
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (H) L=460 		1-33652-373-0 01 1 1012-
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88 		1-33652-740-0 01 1 0710-1011
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475 		1-33662-018-3 01 1 0710-
15 ROD; LINK 1ST SHIFT
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460 		1-33662-019-4 01 1 0710-
16 JOINT ASM; BALL,CONT ROD
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-108-0 02 1 0710-1011
16 JOINT ASM; BALL,CONT ROD
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-108-0 02 1 1012-
16 JOINT ASM; BALL,CONT ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-109-0 02 1 0710-1011
18 NUT; 1ST LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		1-09440-062-1 02 1 0710-
21 NUT; LK,RIGHT SCREW,LINK ROD
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) M8 		0-91111-508-0 02 1 0710-
21 NUT; LK,RIGHT SCREW,LINK ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M10 		0-91111-510-0 02 1 0710-1011
21 NUT; LK,RIGHT SCREW,LINK ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M8 		9-09111-408-0 02 1 1012-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10 		0-91111-510-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12 		0-91111-512-0 02 1 0710-
25 NUT; LK,RIGHT SCREW,LINK ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10 LH THREAD 		9-09840-167-0 02 1 0710-1011
112 JOINT; RUBBER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33670-413-1 01 1 0710-
112 JOINT; RUBBER
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33670-413-1 01 1 0710-
112 JOINT; RUBBER
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33670-413-1 02 1 0710-
