Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#66945) — 429 parça

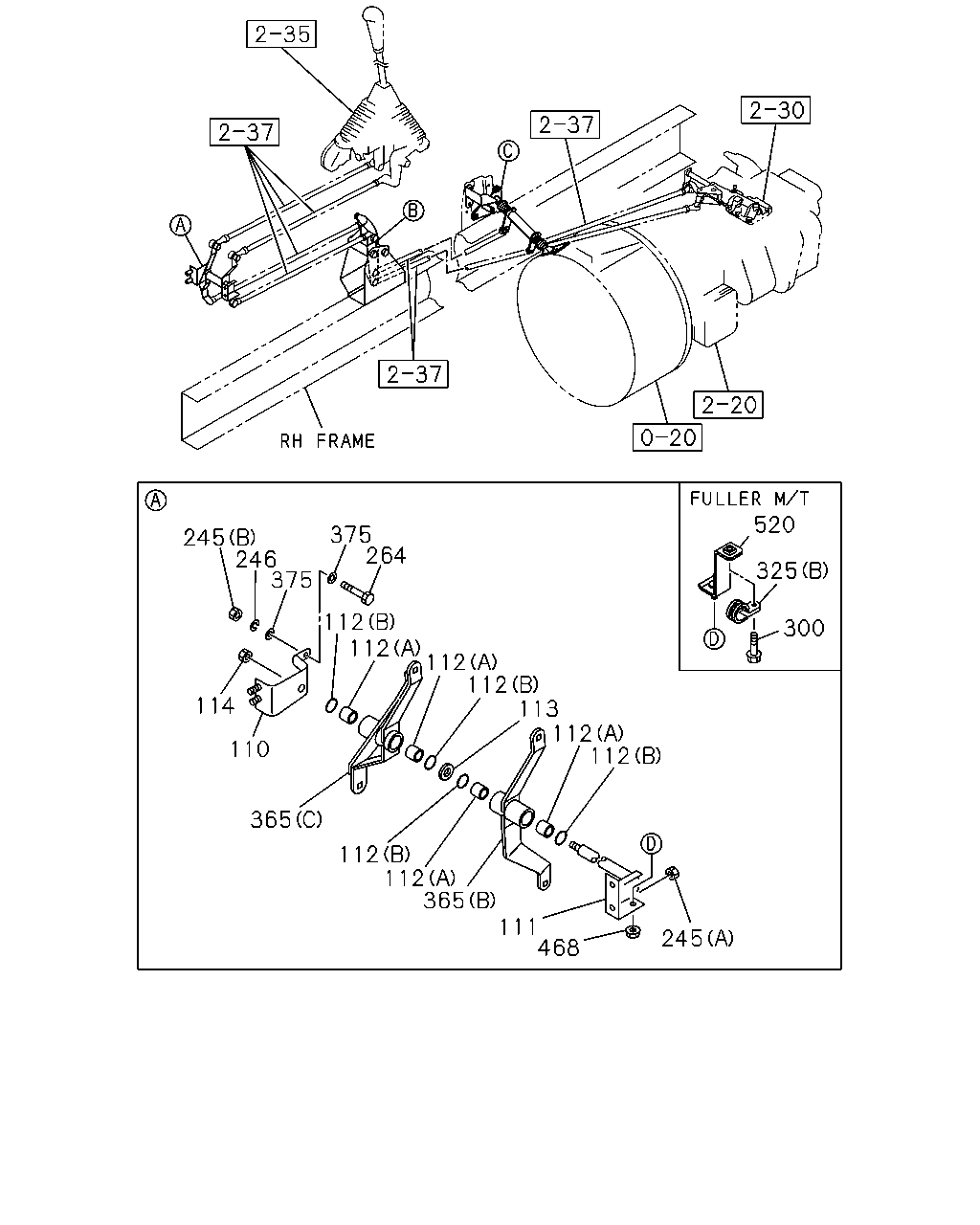

245 375 246 264 375 114 110 112 112 112 112 113 112 112 300 325 520 245 468 111 365 112 112 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	BRACKET; RELAY LEVER,1ST 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-598-0	01	1	0710-
110	BRACKET; RELAY LEVER,1ST 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-839-1	01	1	0710-
111	SHAFT; RELAY LEVER,1ST 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-468-1	01	1	0710-
111	SHAFT; RELAY LEVER,1ST 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-777-2	01	1	0710-
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09330-119-0	04	1	0710-
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09623-594-0	04	1	0710-
113	WASHER; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=17 OD=30	0-91610-516-0	01	1	0710-
114	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	01	1	0710-
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-210-0	02	1	0710-1304
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-110-0	02	1	1305-
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	1-09984-142-0	01	1	0710-
246	WASHER; LK,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10	1-09985-185-0	01	1	0710-
264	BOLT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X105	1-79198-008-1	01	1	0710-
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0802-0805
300	BOLT; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0806-
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
300	BOLT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	01	1	0710-
300	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0710-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0806-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0806-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-

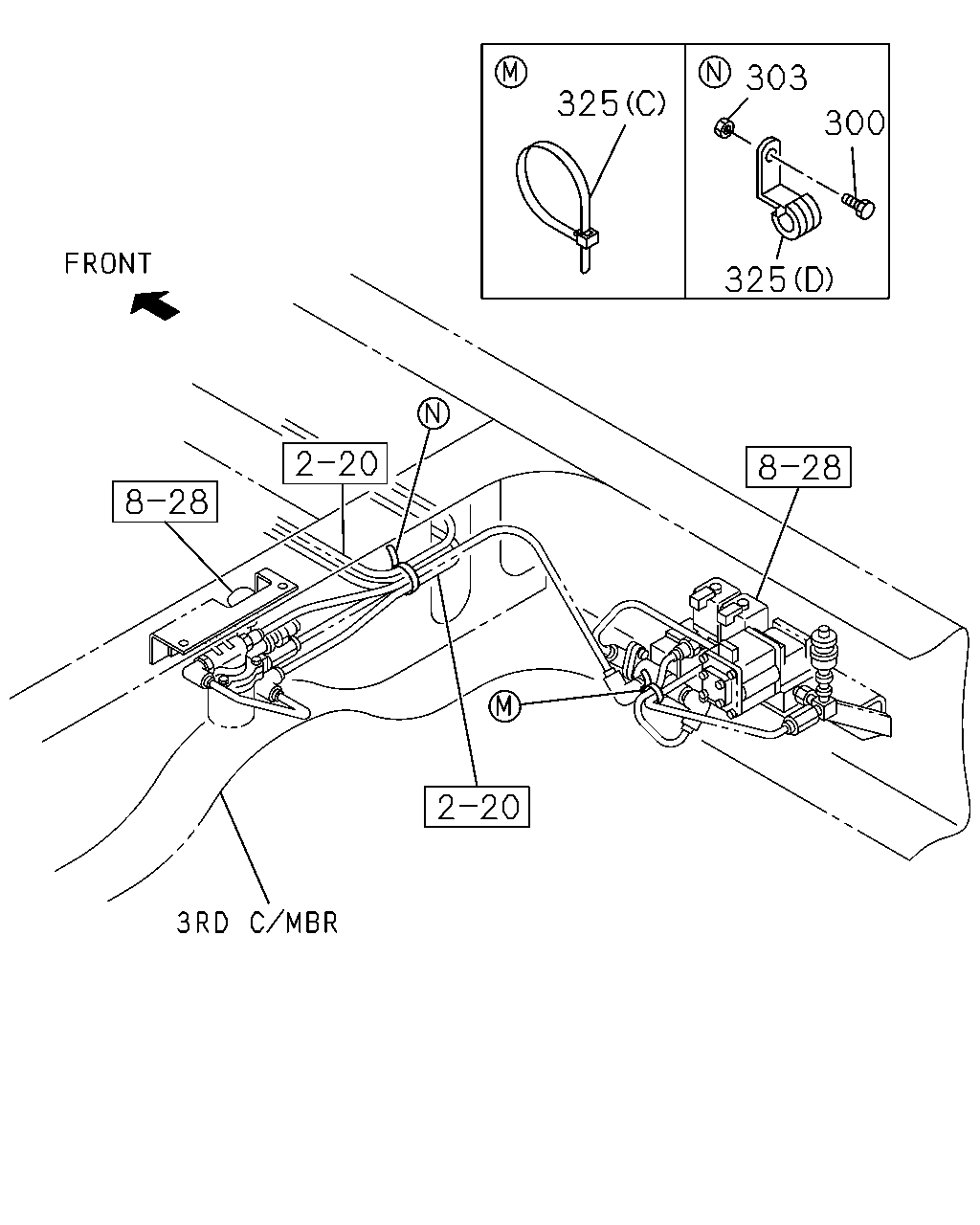

325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (C) L=350	1-09707-183-0	02	1	0710-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=16 H=45 L=20	1-09701-161-0	01	1	0710-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	06	1	0710-0801
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=9.5	5-09709-020-0	06	1	0802-0805

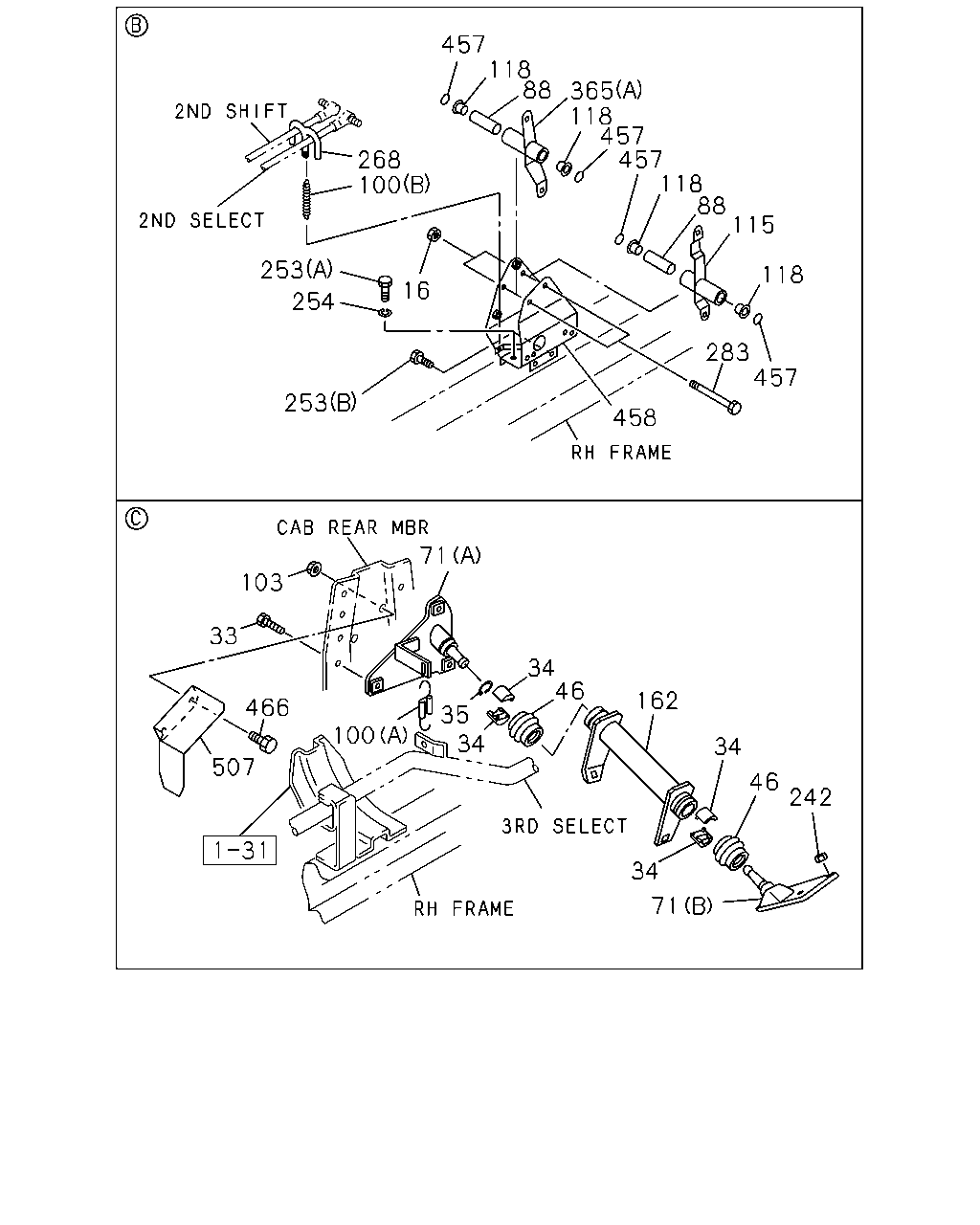

365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0710-
365	LEVER; RELAY,SELECT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-790-1	01	1	0710-
365	LEVER; RELAY,SELECT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-805-1	01	1	0710-
365	LEVER; RELAY,SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0710-
365	LEVER; RELAY,SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0710-
375	WASHER; PL,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0710-
468	NUT; BRKT FULLER M/T<X9B> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0710-
520	BRACKET; NYLON TUBE FULLER M/T<X9B>	1-79996-628-0	01	1	0710-

385 385 385 385 385 385 460 387 501 460 460 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

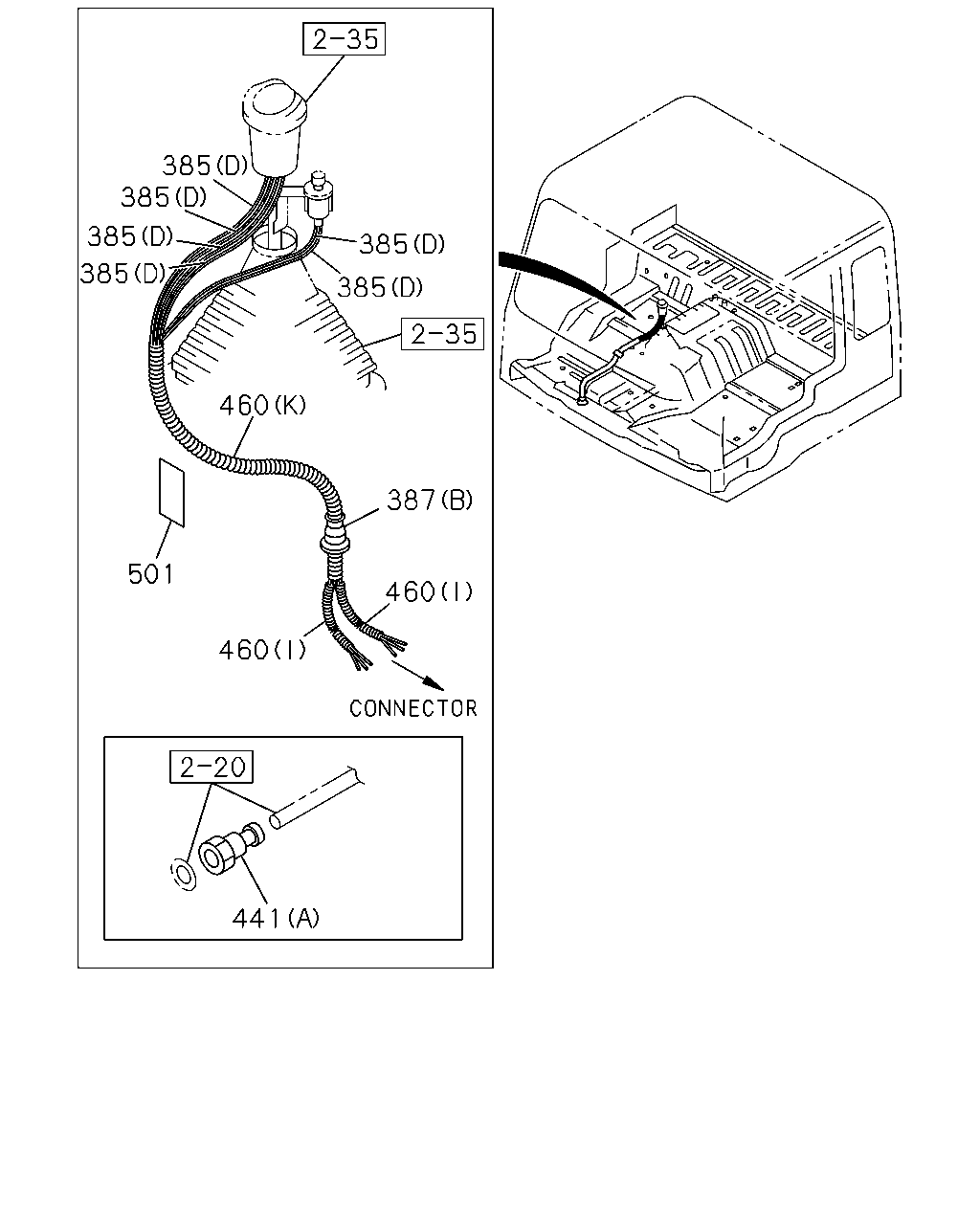

385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-

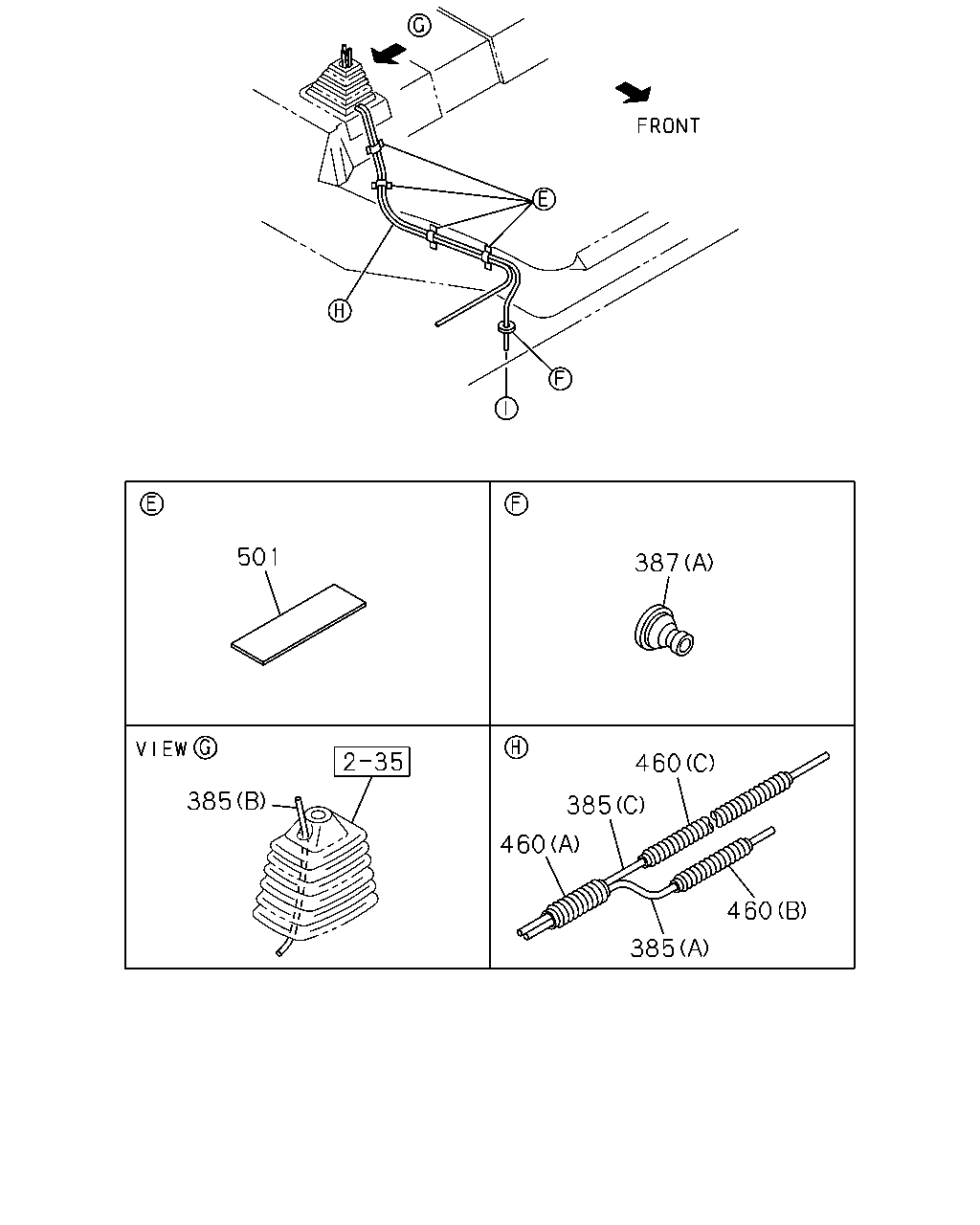

385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-0805
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-0806
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B> (B)	1-09332-135-0	01	1	0710-
387	GROMMET; CONT TUBE,FULLER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09332-102-0	01	1	0710-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0710-1112
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1201-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-09660-975-0	06	1	0710-0804
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	06	1	0805-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0710-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0710-0805
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	0806-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0710-
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-1	04	1	0710-
501	SEAL; HARNESS PROTECTOR MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 100X40	1-72498-022-1	04	1	0710-

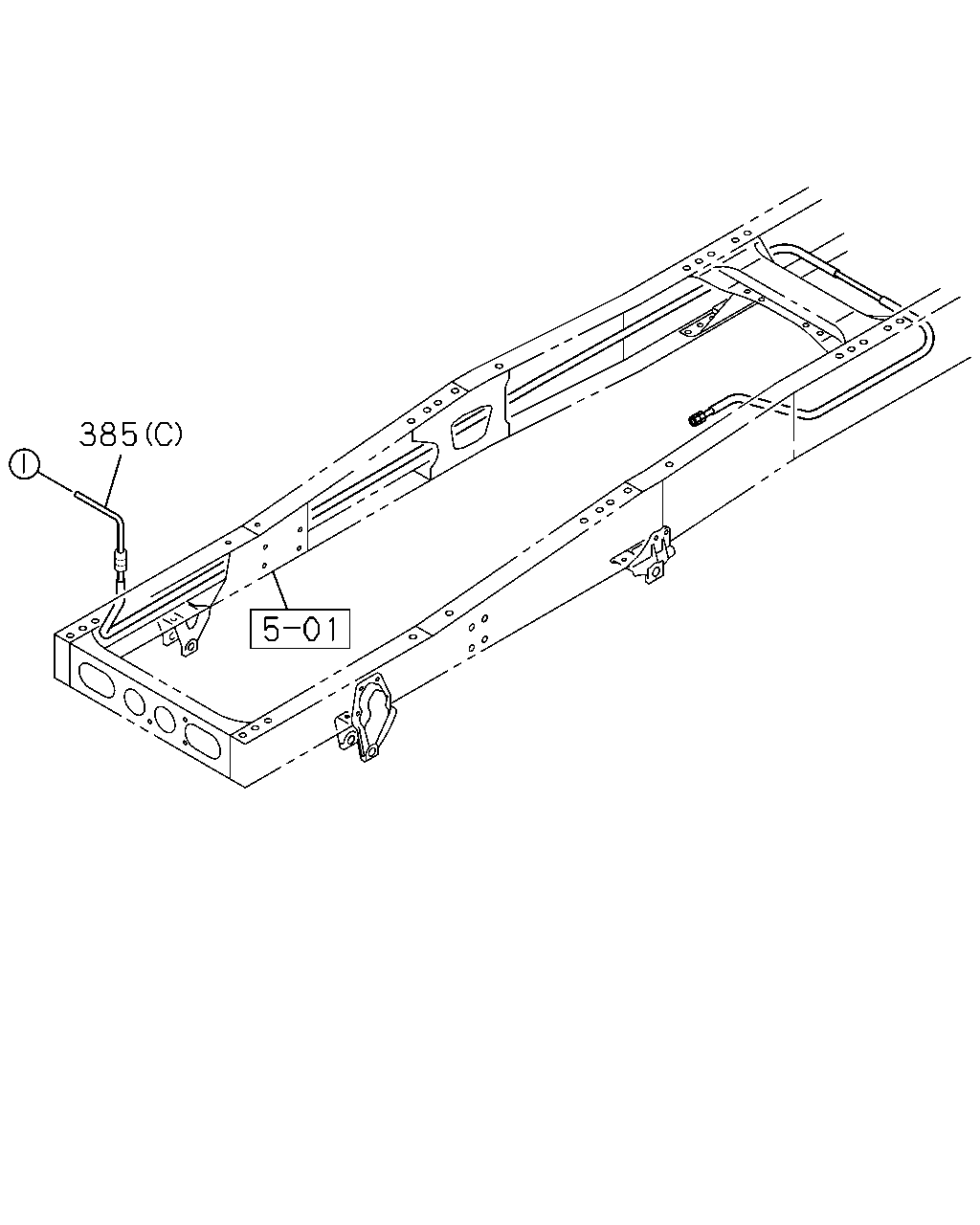

308 315 441 325 445 385 298 445 312 444 325 441 385 460 460 460 385 460 385 386 385 460 460 460 308 385 385 313 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

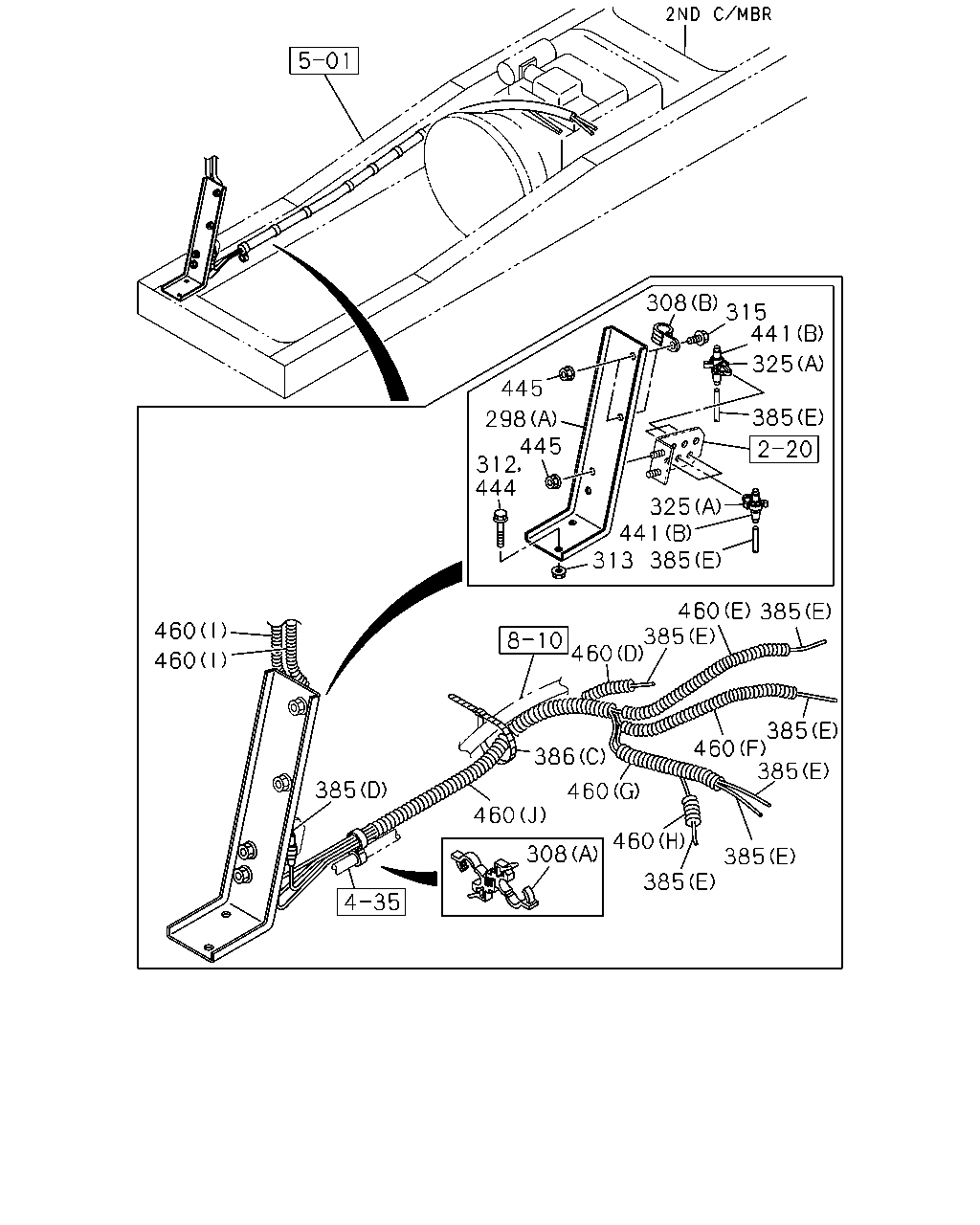

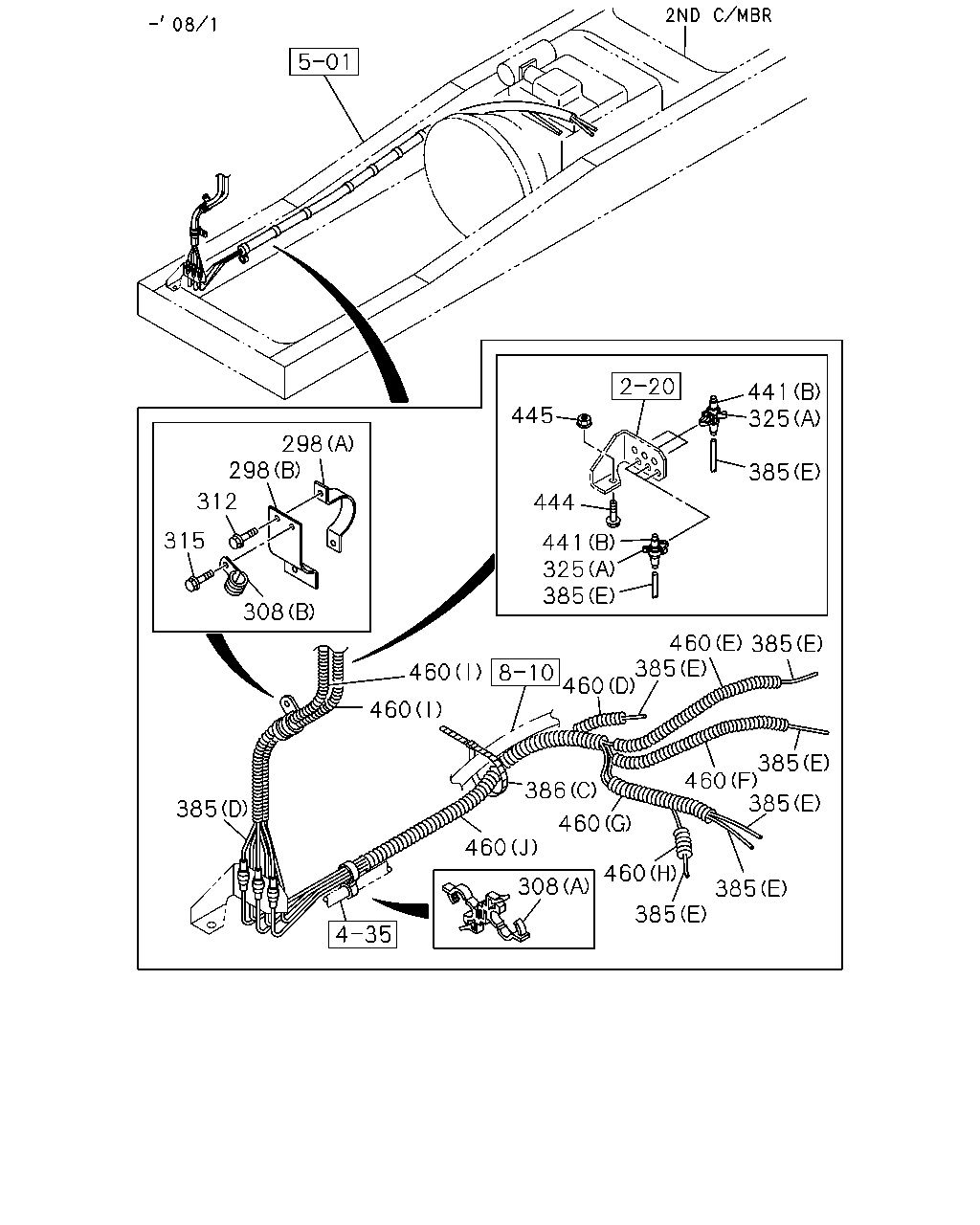

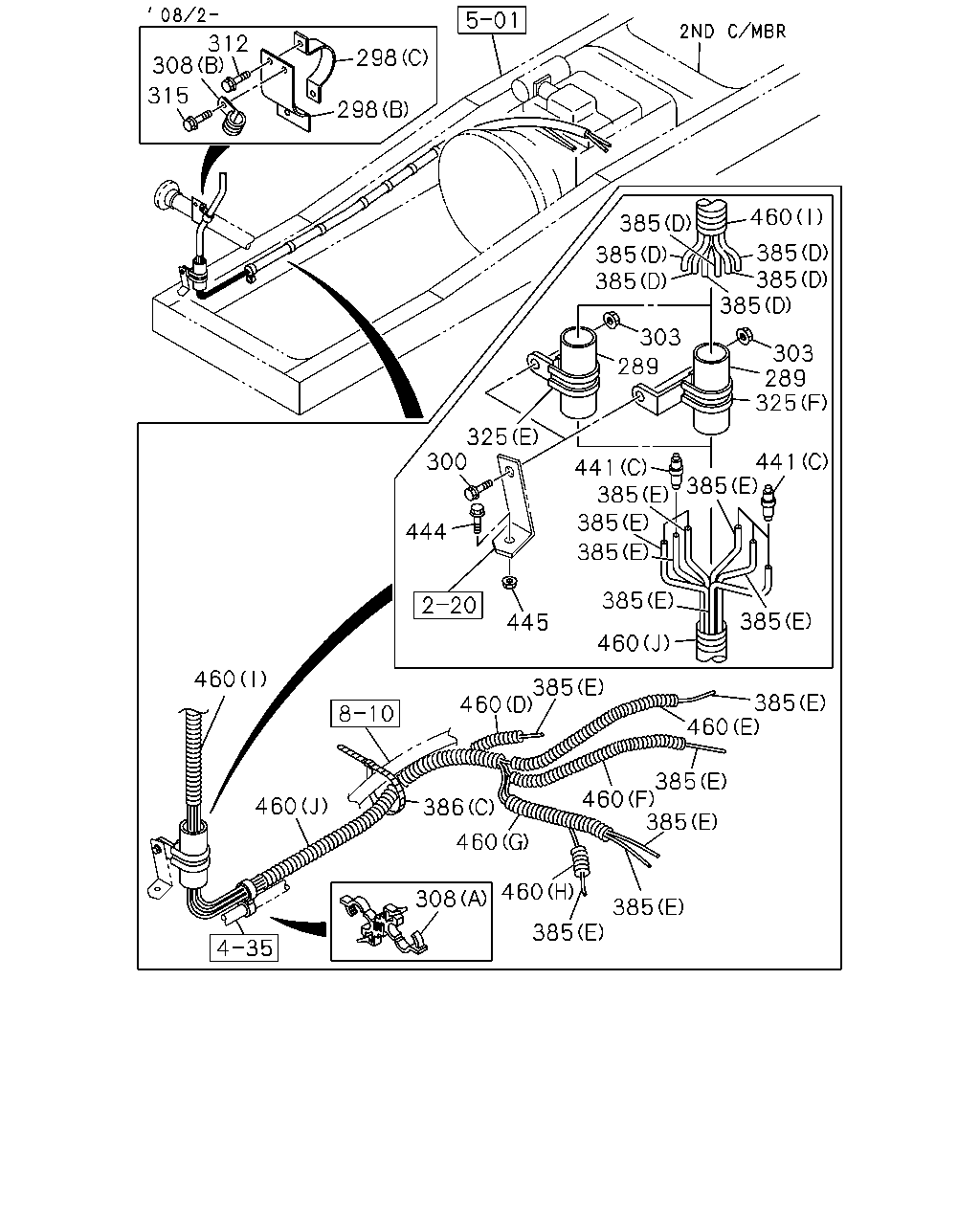

298	BRACKET TRANSMISSION-FULLER RTLO169 18(Y3S) (A)	1-47471-383-0	01	1	0710-0805
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-478-0	01	1	0710-0805
298	BRACKET TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-478-0	01	1	0806-
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-479-0	01	1	0710-0805
298	BRACKET TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-479-0	01	1	0806-
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	01	1	0710-0805
308	CLIP; PIPE 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	02	1	0710-0805
308	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	01	1	0806-
308	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=12-16 & 12-16	1-09709-191-0	01	1	0710-
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	02	1	0710-
313	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	02	1	0710-0805
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0710-0805
315	BOLT; PIPE CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	02	1	0710-0805
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0806-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0806-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0806-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (C) L=350	1-09707-183-0	02	1	0710-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=16 H=45 L=20	1-09701-161-0	01	1	0710-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	06	1	0710-0801
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=9.5	5-09709-020-0	06	1	0802-0805
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-0805
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-0806
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-

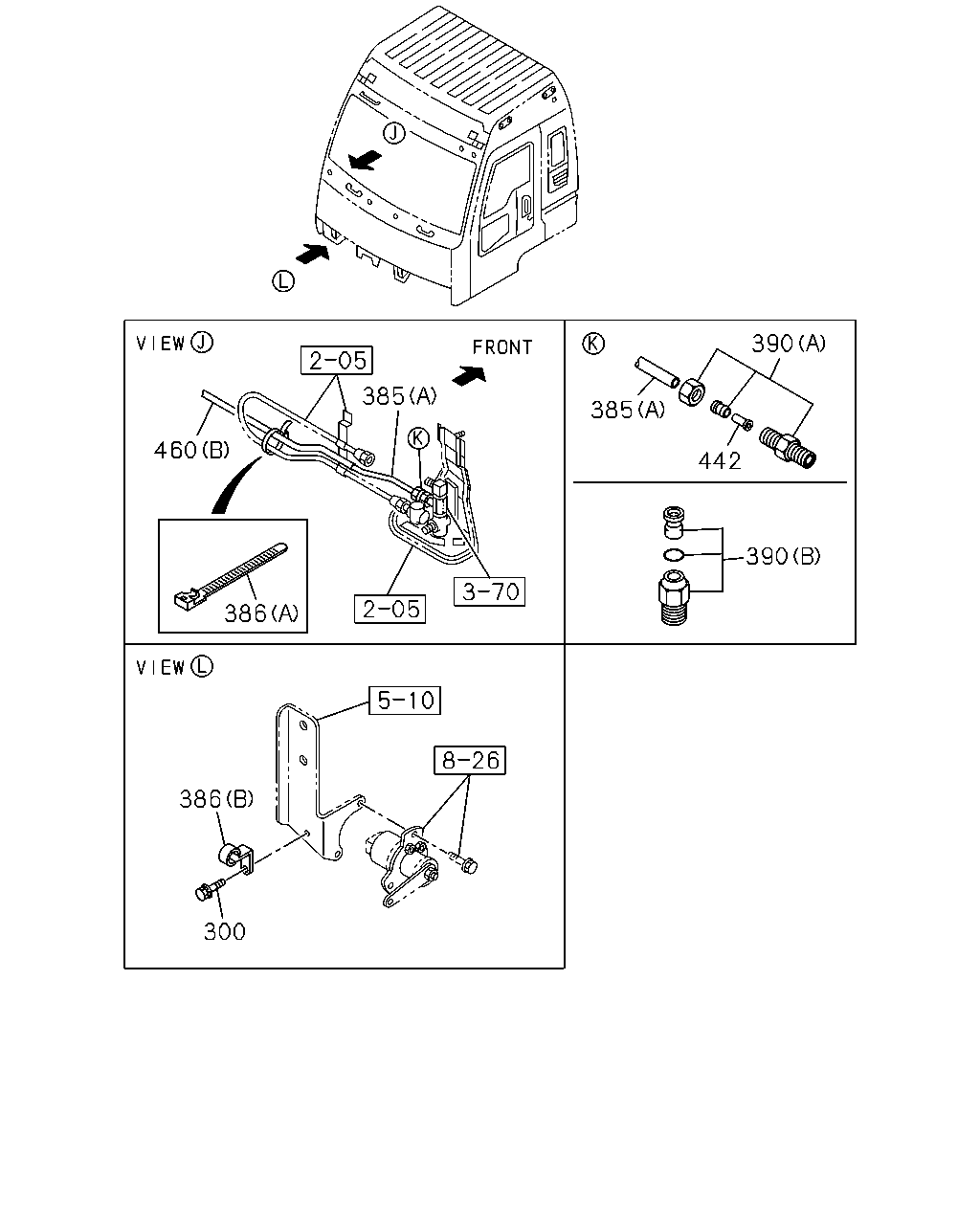

386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	01	1	0710-
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=350	1-09707-183-0	08	1	0710-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0710-1112
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1201-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-09660-975-0	06	1	0710-0804
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	06	1	0805-
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0710-0805
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0806-
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	02	1	0710-0805
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0710-0805
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0806-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0710-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0710-0805
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	0806-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0710-

441 325 445 298 298 385 312 444 315 441 325 385 308 385 460 460 460 385 460 385 386 385 460 460 460 308 385 385 460 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
298	BRACKET TRANSMISSION-FULLER RTLO169 18(Y3S) (A)	1-47471-383-0	01	1	0710-0805
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-478-0	01	1	0710-0805
298	BRACKET TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-478-0	01	1	0806-
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-479-0	01	1	0710-0805
298	BRACKET TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-479-0	01	1	0806-
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	01	1	0710-0805
308	CLIP; PIPE 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	02	1	0710-0805
308	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	01	1	0806-
308	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=12-16 & 12-16	1-09709-191-0	01	1	0710-
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	02	1	0710-
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0710-0805
315	BOLT; PIPE CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	02	1	0710-0805
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0806-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0806-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0806-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (C) L=350	1-09707-183-0	02	1	0710-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=16 H=45 L=20	1-09701-161-0	01	1	0710-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	06	1	0710-0801
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=9.5	5-09709-020-0	06	1	0802-0805
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-0805
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-0806
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	01	1	0710-
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=350	1-09707-183-0	08	1	0710-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0710-1112
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1201-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-09660-975-0	06	1	0710-0804
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	06	1	0805-
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0710-0805
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0806-
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	02	1	0710-0805
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0710-0805
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0806-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0710-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0710-0805
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	0806-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0710-

501 387 460 385 460 460 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-0805
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-0806
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B> (B)	1-09332-135-0	01	1	0710-
387	GROMMET; CONT TUBE,FULLER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09332-102-0	01	1	0710-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0710-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0710-0805
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	0806-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0710-
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-1	04	1	0710-
501	SEAL; HARNESS PROTECTOR MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 100X40	1-72498-022-1	04	1	0710-

390 385 385 460 442 390 386 386 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0802-0805
300	BOLT; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0806-
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
300	BOLT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	01	1	0710-
300	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-0805
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-0806
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	01	1	0710-
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=350	1-09707-183-0	08	1	0710-
390	CONNECTOR; STRAIGHT,TRANS SIDE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0710-0909
390	CONNECTOR; STRAIGHT,TRANS SIDE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09661-174-0	01	1	0910-
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0710-0909
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0710-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0710-0805
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	0806-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0710-

385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-0805
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-0806
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-

457 365 118 88 118 457 457 118 88 115 118 283 457 458 253 254 16 253 268 100 103 33 71 34 46 162 34 46 242 71 34 507 35 34 100 466

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	02	1	0710-
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28651-030-0	03	1	0710-1003
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X35 FLANGE	0-28651-035-0	03	1	1004-
34	SEAT; BALL,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-165-0	04	1	0710-
35	RING; SNAP,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) OD=34.4	9-09180-132-0	01	1	0710-
46	SEAL; DUST,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-248-0	02	1	0710-
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33657-481-0	01	1	0710-
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33657-706-0	01	1	0710-
88	COLLAR; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-191-1	02	1	0710-
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09583-319-0	01	1	0710-
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09583-351-0	01	1	0710-
103	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0710-
115	LEVER; RELAY,2ND SHIFT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-769-1	01	1	0710-
118	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-09330-119-0	04	1	0710-
162	LEVER; RELAY TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-625-1	01	1	0710-
242	NUT; FLANGE 3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M12 FLANGE	0-91180-212-0	03	1	0710-
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M14X45	0-20801-445-0	02	1	0710-
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X25 FLANGE	0-28051-025-0	02	1	0710-
254	WASHER; LK,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.2	0-91510-614-0	02	1	0710-
268	BRACKET; LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-216-0	01	1	0710-
283	BOLT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X110	9-09801-316-1	02	1	0710-
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0710-
365	LEVER; RELAY,SELECT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-790-1	01	1	0710-
365	LEVER; RELAY,SELECT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-805-1	01	1	0710-
365	LEVER; RELAY,SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0710-
365	LEVER; RELAY,SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0710-
457	GASKET TRANSMISSION CONTROL LINK TYPE(B2A)	1-09623-594-0	04	1	0710-
458	BRACKET; 2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-664-1	01	1	0710-
466	BOLT; FIX TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
507	PROTECTOR; HEAT TRANSMISSION CONTROL LINK TYPE(B2A)	1-14181-287-1	01	1	0710-

303 325 300 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0802-0805
300	BOLT; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0806-
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
300	BOLT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	01	1	0710-
300	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0710-
303	NUT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0710-0801
303	NUT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0802-0805
303	NUT; CLIP 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0802-0805
303	NUT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0806-
303	NUT; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0806-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0806-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0806-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (C) L=350	1-09707-183-0	02	1	0710-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=16 H=45 L=20	1-09701-161-0	01	1	0710-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	06	1	0710-0801
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=9.5	5-09709-020-0	06	1	0802-0805

312 308 298 315 298 460 385 385 385 385 385 385 303 303 289 325 289 325 300 441 385 441 385 385 444 385 385 385 445 460 460 385 460 385 460 385 460 385 460 386 460 460 308 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	SLEEVE; RUBBER TRANSMISSION-FULLER RTLO189 18(Y4W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0802-0805
289	SLEEVE; RUBBER TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0806-
298	BRACKET TRANSMISSION-FULLER RTLO169 18(Y3S) (A)	1-47471-383-0	01	1	0710-0805
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-478-0	01	1	0710-0805
298	BRACKET TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-478-0	01	1	0806-
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-479-0	01	1	0710-0805
298	BRACKET TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-479-0	01	1	0806-
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0802-0805
300	BOLT; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0806-
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
300	BOLT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	01	1	0710-
300	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0710-
303	NUT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0710-0801
303	NUT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0802-0805
303	NUT; CLIP 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0802-0805
303	NUT; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0806-
303	NUT; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0806-
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	01	1	0710-0805
308	CLIP; PIPE 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	02	1	0710-0805
308	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	01	1	0806-
308	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=12-16 & 12-16	1-09709-191-0	01	1	0710-
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	02	1	0710-
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0710-0805
315	BOLT; PIPE CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	02	1	0710-0805
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0806-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=35 L=33	1-09700-945-0	01	1	0806-
325	CLIP; NYLON TUBE 6WG1 TC-C(72L) TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0802-0805
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0806-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0710-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (C) L=350	1-09707-183-0	02	1	0710-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=16 H=45 L=20	1-09701-161-0	01	1	0710-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=9.5	5-09709-020-0	06	1	0710-0801
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=9.5	5-09709-020-0	06	1	0802-0805
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0710-
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0710-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0710-0805
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-0806
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0806-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0710-
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	01	1	0710-
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0710-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=350	1-09707-183-0	08	1	0710-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0710-1112
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	1201-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-09660-975-0	06	1	0710-0804
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	8-98120-561-0	06	1	0805-
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0710-0805
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0806-
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	02	1	0710-0805
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0710-0805
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0806-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0710-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0710-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0710-0805
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	0806-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0710-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
