2-30B — GEAR SHIFTER AND QUADRANT BOX (#66942) — 43 parça

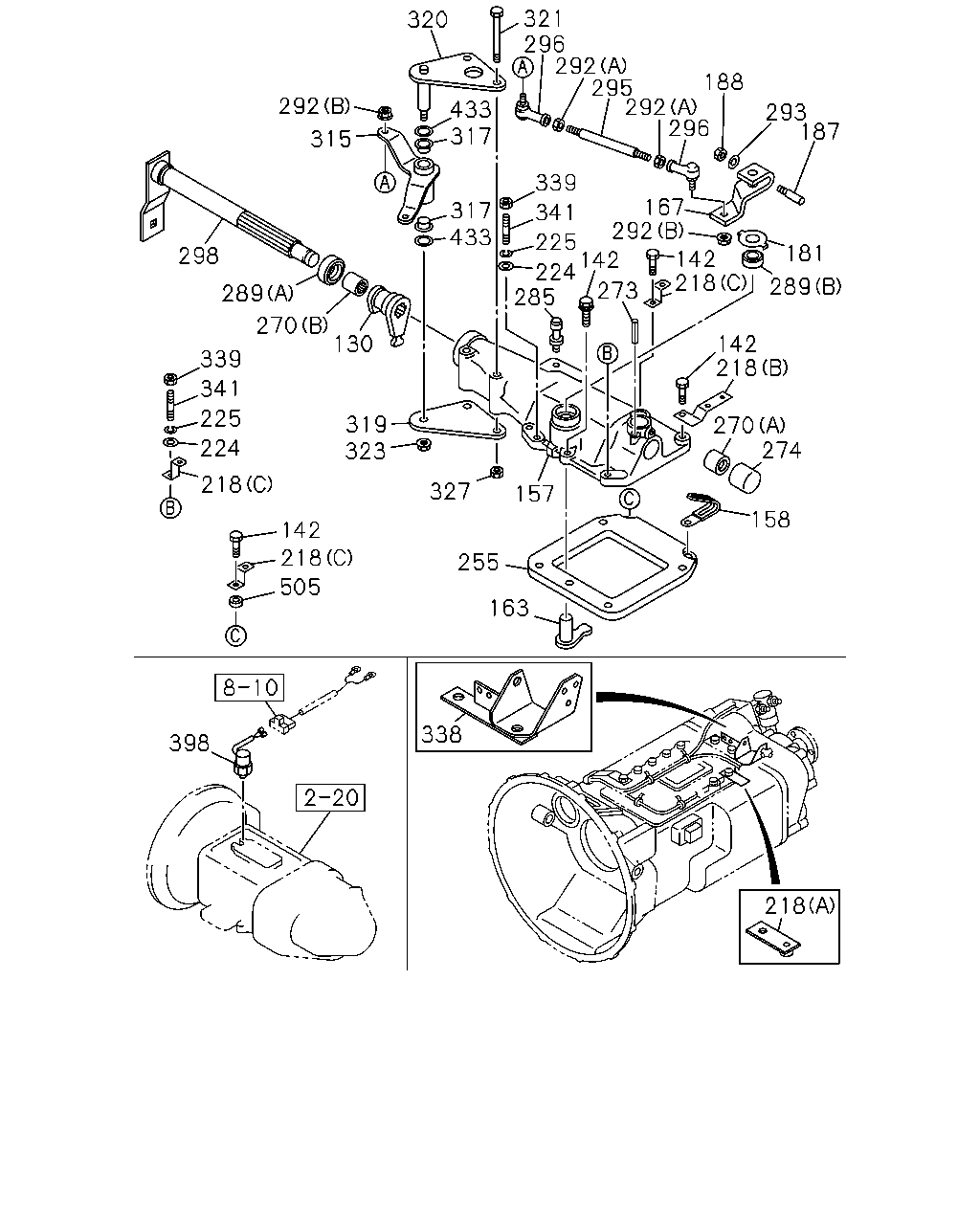

çizim 192666
398 338 218 163 255 158 274 270 157 327 505 218 142 218 224 225 341 339 323 319 130 270 289 298 315 292 320 321 295 292 296 292 188 296 293 181 187 289 142 142 218 218 292 167 273 142 285 224 225 341 339 433 433 317 317
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 0710- ● ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 0710-0906 ● ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907- ● ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 0710- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0710- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0710- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0710- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0710- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0710- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0710- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) L=65 		1-47476-513-0 01 1 0710- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82569-341-0 01 1 0710- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-425-0 03 1 0710- ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0710- ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0710- ● ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 0710- ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 0710- ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 0710- ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 0710- ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 0710- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0710- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0710- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0710- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0710- ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0710- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0710- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0710- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0710- ● ●
296 ROD END 1-09760-108-0 02 1 0710- ● ●
298 SHAFT; SHIFT LEVER 1-33522-141-0 01 1 0710- ● ●
315 LEVER; SELECT 1-33651-980-0 01 1 0710- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0710- ● ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 0710- ● ●
320 SHAFT; LEVER 1-33619-629-0 01 1 0710- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0710- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0710- ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
338 BRACKET; FLEX TUBE 1-47478-877-0 01 1 0710- ● ●
339 NUT; QUAD BOX
M10 		0-91110-510-0 02 1 0710- ● ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 0710- ● ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 0710- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0710- ● ●
505 SPACER; BRKT 1-53459-587-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
