◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26A - MANUAL TRANSMISSION GEAR ▶
2-26A — MANUAL TRANSMISSION GEAR (#66939) — 135 parça

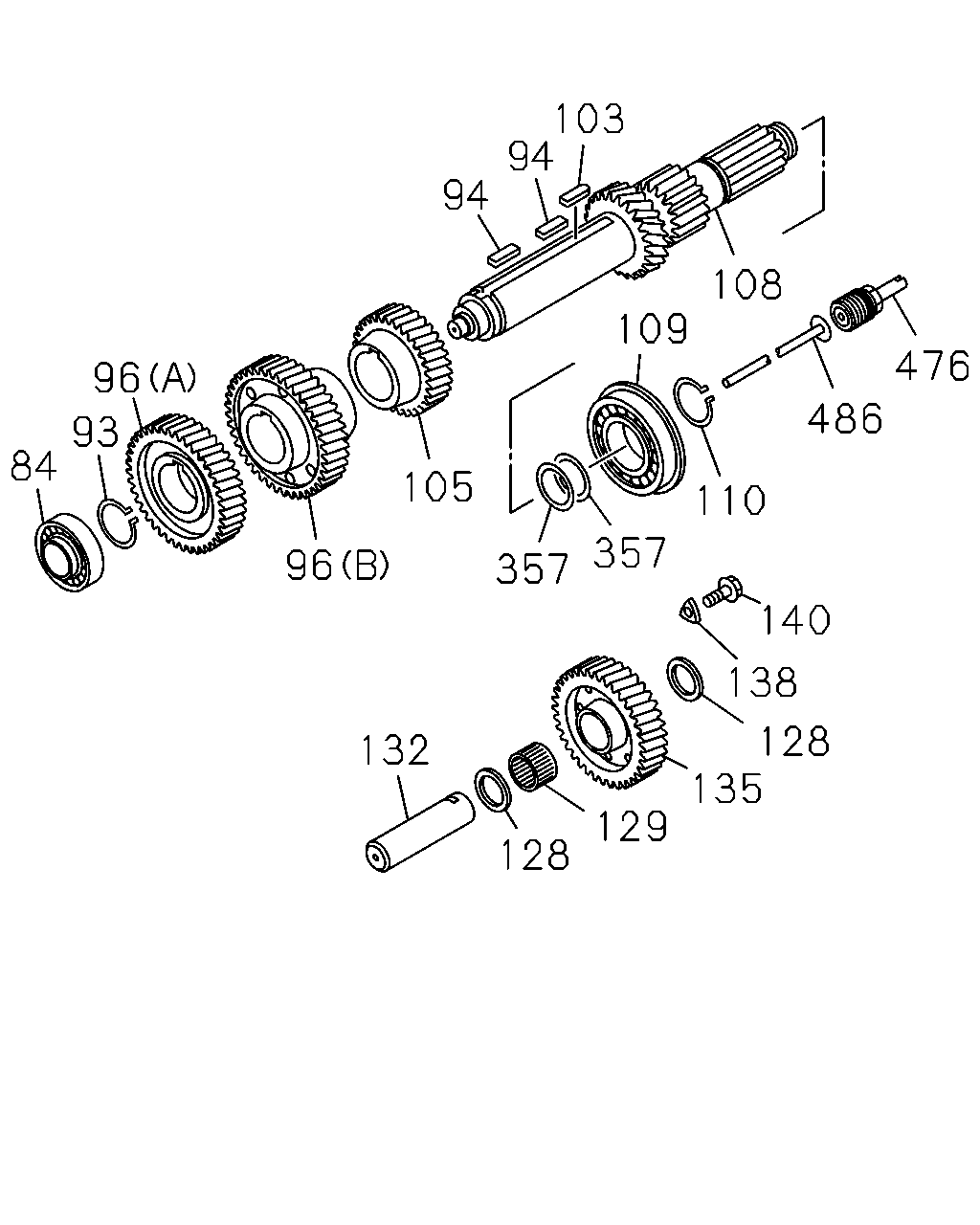

çizim 109681
103 94 94 108 109 486 476 110 357 357 105 96 84 93 96 132 128 129 128 135 138 140
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-221-0 01 1 0710-
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-222-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 0710-
94 KEY; FEATHER,COUNTER SHAFT
L=70 		1-09735-046-0 02 1 0710-
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 0710-
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 0710-
103 KEY; COUNTER GEAR
L=75.3 		1-09735-042-0 01 1 0710-
105 GEAR; 3RD,COUNTER
Z=36 		1-33338-373-1 01 1 0710-
108 SHAFT; COUNTER
Z=26-21 		1-33311-325-1 01 1 0710-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-186-0 01 1 0710-
109 BEARING; COUNTER SHAFT,RR
NTN 		1-09810-207-0 01 1 0710-
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 0710-
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 0710-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 0710-
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 0710-
132 SHAFT; REV 1-33351-035-1 01 1 0710-
135 GEAR; REV IDLER
Z=30 		1-33361-081-1 01 1 0710-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 0710-
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 0710-
357 RING 1-31349-044-0 04 1 0710-
476 ADAPTER; PUMP DRIVE 1-33339-091-1 01 1 0710-
486 NOZZLE; CONT SHAFT 1-33219-254-1 01 1 0710-

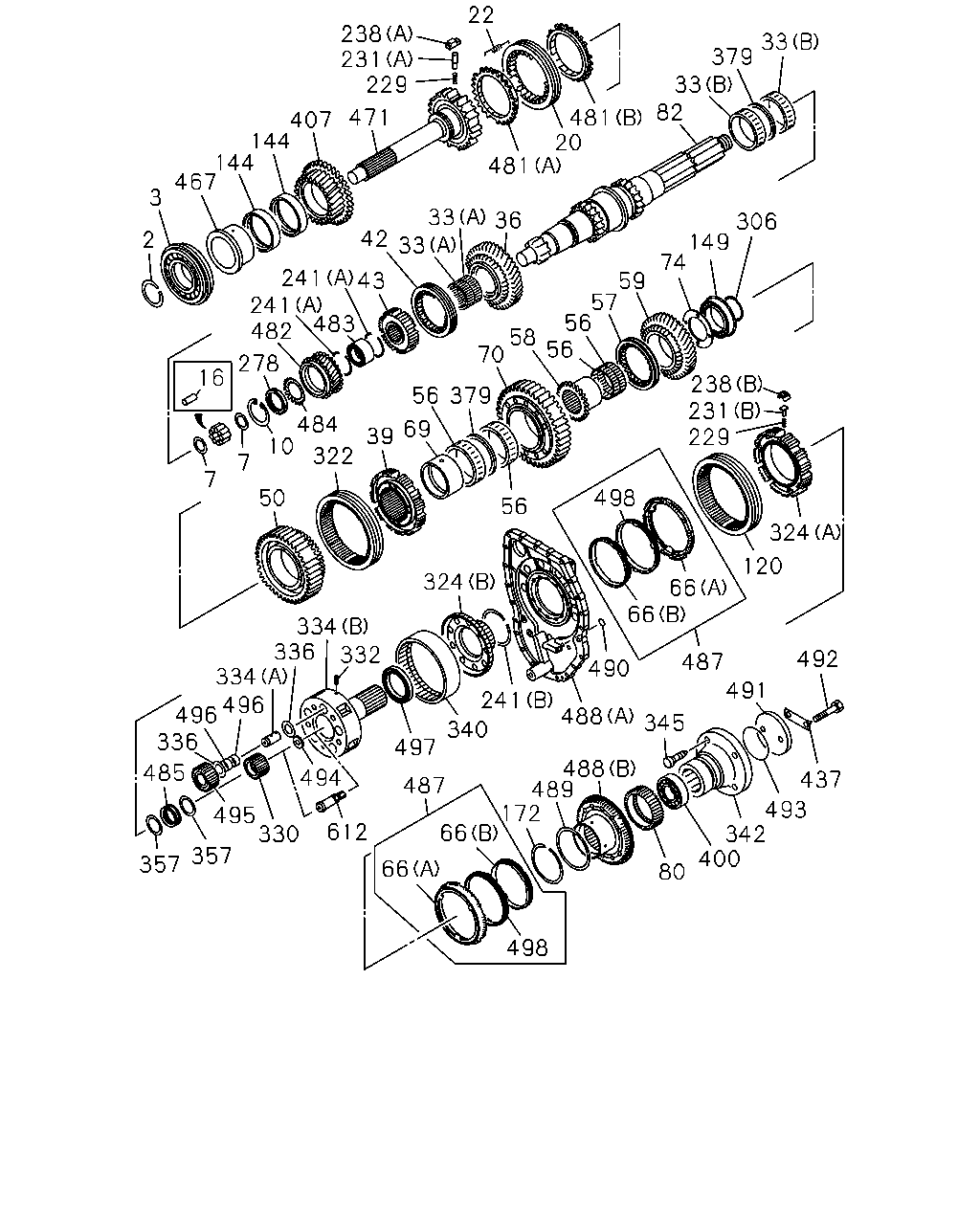

çizim 192665
3 2 467 144 144 407 471 229 231 238 22 33 379 33 82 481 481 20 33 36 33 42 43 241 241 278 482 16 7 10 484 7 322 50 39 69 56 379 70 58 56 56 57 59 74 149 306 238 231 229 498 66 324 120 66 487 491 437 492 345 488 241 324 56 340 497 487 494 612 330 495 357 490 488 489 172 66 66 485 336 496 496 334 336 332 334 498 80 400 342 493 357 483
BalonParca AdiParca NoAdetTipApplied Date
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 0710-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 0710-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 0710-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 0710-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-278-0 01 1 0710-
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 0710-
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 0710-
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09810-260-0 16 1 0710-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09810-261-0 16 1 0710-
20 SLEEVE 1-33262-216-1 01 1 0710-
22 SPRING; BLOCK,INSERT 1-09583-363-0 03 1 0710-
33 BEARING; NEEDLE,3RD GEAR
(A) NSK 		1-09811-378-0 02 1 0710-1308
33 BEARING; NEEDLE,3RD GEAR
(A) NTN 		1-09811-379-0 02 1 0710-
33 BEARING; NEEDLE,3RD GEAR
(B) NSK 		1-09811-422-0 02 1 0710-1311
33 BEARING; NEEDLE,3RD GEAR
(B) NTN 		1-09811-423-0 02 1 0710-
36 GEAR; 3RD,MAINSHAFT
Z=41 		1-33253-680-1 01 1 0710-
39 HUB; CLU,LOW & 2ND 1-33261-279-1 01 1 0710-
42 SLEEVE 1-33262-222-0 01 1 0710-
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-278-1 01 1 0710-
50 GEAR; 2ND,MAINSHAFT
Z=43 		1-33251-393-1 01 1 0710-
56 BEARING; NEEDLE,1ST,REV
NSK 		1-09811-422-0 04 1 0710-1311
56 BEARING; NEEDLE,1ST,REV
NTN 		1-09811-423-0 04 1 0710-
57 SLEEVE; REV 1-33262-209-1 01 1 0710-
58 HUB; CLU,REV 1-33261-286-1 01 1 0710-
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-081-2 01 1 0710-
66 RING; BLOCK,SYN
(A) 		1-33265-588-0 02 1 0710-1312
66 RING; BLOCK,SYN
(A) 		8-98239-909-1 02 1 1401-
66 RING; BLOCK,SYN
(B) 		1-33265-590-0 02 1 0710-1307
66 RING; BLOCK,SYN
(B) 		8-98239-294-0 02 1 1308-1312
66 RING; BLOCK,SYN
(B) 		8-98239-911-1 02 1 1401-
69 COLLAR; 1ST GEAR MAIN 1-33234-099-0 01 1 0710-
70 GEAR; 1ST,MAINSHAFT
Z=49 		1-33255-071-1 01 1 0710-
74 WASHER; THRUST,REV GEAR 1-33239-308-0 01 1 0710-
80 GEAR; SPD DRIVE
Z=11 		1-33371-069-0 01 1 0710-
82 SHAFT; MAIN,TRANS
Z=37-40-28-19 		1-33231-327-2 01 1 0710-
120 SLEEVE 1-33262-229-0 01 1 0710-
144 BEARING; NEEDLE,INPUT GEAR
NSK 		1-09811-422-0 02 1 0710-1311
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-423-0 02 1 0710-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK 		1-09810-256-0 01 1 0710-
149 BEARING; NEEDLE,MAINSHAFT,RR
NTN 		1-09810-257-0 01 1 0710-
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 0710-
229 SPRING; PLUNGER
D=3.8 		1-09580-395-0 06 1 1404-
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 15 1 0710-1403
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 09 1 1404-
231 PLUNGER
(A) 		1-33263-033-0 06 1 0710-1403
231 PLUNGER
(A) 		8-98273-831-0 06 1 1404-
231 PLUNGER
(B) 		1-33263-038-1 09 1 0710-
238 INSERT
(A) 		1-33263-036-0 06 1 0710-
238 INSERT
(B) 		1-33263-039-0 09 1 0710-
241 RING; SNAP
(A) 		1-09587-023-0 02 1 0710-
241 RING; SNAP
(B) 		1-09587-104-0 01 1 0710-
278 NUT; BRG 1-09449-080-0 01 1 0710-
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 0710-
322 SLEEVE; SYN,LOW & 2ND 1-33262-222-0 01 1 0710-
324 HUB; CLU
(A) 		1-34231-015-0 01 1 0710-
324 HUB; CLU
(B) 		1-34371-017-0 01 1 0710-1307
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1308-
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 0710-
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 0710-
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 0710-
334 SHAFT; PLANETARY GEAR
(B) 		1-34372-034-0 01 1 0710-1307
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1308-
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 0710-
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 0710-
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 0710-
340 GEAR; RING
Z=86 ISUZU 		1-34371-019-0 01 1 0710-
342 FLANGE; OUTPUT 1-37243-370-0 01 1 0710-
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 0710-
357 RING 1-31349-044-0 04 1 0710-
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 02 1 0710-
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		1-09810-254-0 01 1 0710-0910
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 0911-
400 BEARING; OUTPUT SHAFT RR
NTN W/SNAP RING 		1-09810-255-0 01 1 0710-0910
407 GEAR; PRIMARY MAIN
Z=33 		1-33253-717-0 01 1 0710-
437 PLATE; LOCK 1-34252-032-0 01 1 0710-
467 COLLAR; SHAFT 1-33234-091-1 01 1 0710-
471 SHAFT; INPUT 1-33215-020-0 01 1 0710-1102
471 SHAFT; INPUT 8-98174-781-0 01 1 1103-
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 0710-1407
481 RING; BLOCK
(A) HIGH 		8-98239-518-1 01 1 1408-1410
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1411-
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 0710-1407
481 RING; BLOCK
(B) LOW 		8-98239-519-1 01 1 1408-1410
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1411-
482 GEAR; PRIMARY
Z=29 		1-33253-720-0 01 1 0710-
483 BEARING; TAPER
NTN 		1-09810-281-0 01 1 0710-1007
483 BEARING; TAPER
NTN 		8-98174-410-0 01 1 1008-1504
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1505-
484 PLATE; SETTING 1-33313-023-0 01 1 0710-
485 PIECE; GUIDE 1-33363-040-1 01 1 0710-
487 SYNCHRONIZER; RANGE CHANGE 1-33265-616-0 02 1 0710-1307
487 SYNCHRONIZER; RANGE CHANGE 8-98239-293-0 02 1 1308-1312
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1401-
488 CLUTCH; DOG,RANGE
(B) 		1-34254-006-1 01 1 0710-1211
488 CLUTCH; DOG,RANGE
(B) 		8-98218-291-0 01 1 1212-1307
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1308-
488 CLUTCH; DOG,RANGE
(A) 		8-98060-771-1 01 1 0710-1307
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1308-
489 WASHER; THRUST 1-09503-308-0 01 1 0710-
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 0710-
491 PLATE; OUTPUT SHAFT 1-34252-026-0 01 1 0710-
492 BOLT; PLATE 1-09000-740-0 02 1 0710-
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 0710-
494 PLATE; OUTPUT SHAFT 1-34379-020-0 01 1 0710-1307
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 0710-
496 BEARING; PLANETARY
NSK 		1-09811-424-0 10 1 0710-
496 BEARING; PLANETARY
NTN 		1-09811-425-0 10 1 0710-
497 BEARING; RING GEAR
NSK 		1-09810-276-0 01 1 0710-1307
497 BEARING; RING GEAR
NTN 		1-09810-277-0 01 1 0710-1307
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1308-
498 CONE; SYN 1-33265-617-0 02 1 0710-1312
498 CONE; SYN 8-98239-910-0 02 1 1401-
612 GALLERY; OIL 8-98239-463-0 01 1 1308-
