◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07B - CLUTCH BOOSTER; MINIPACK ▶
2-07B — CLUTCH BOOSTER; MINIPACK (#66932) — 53 parça

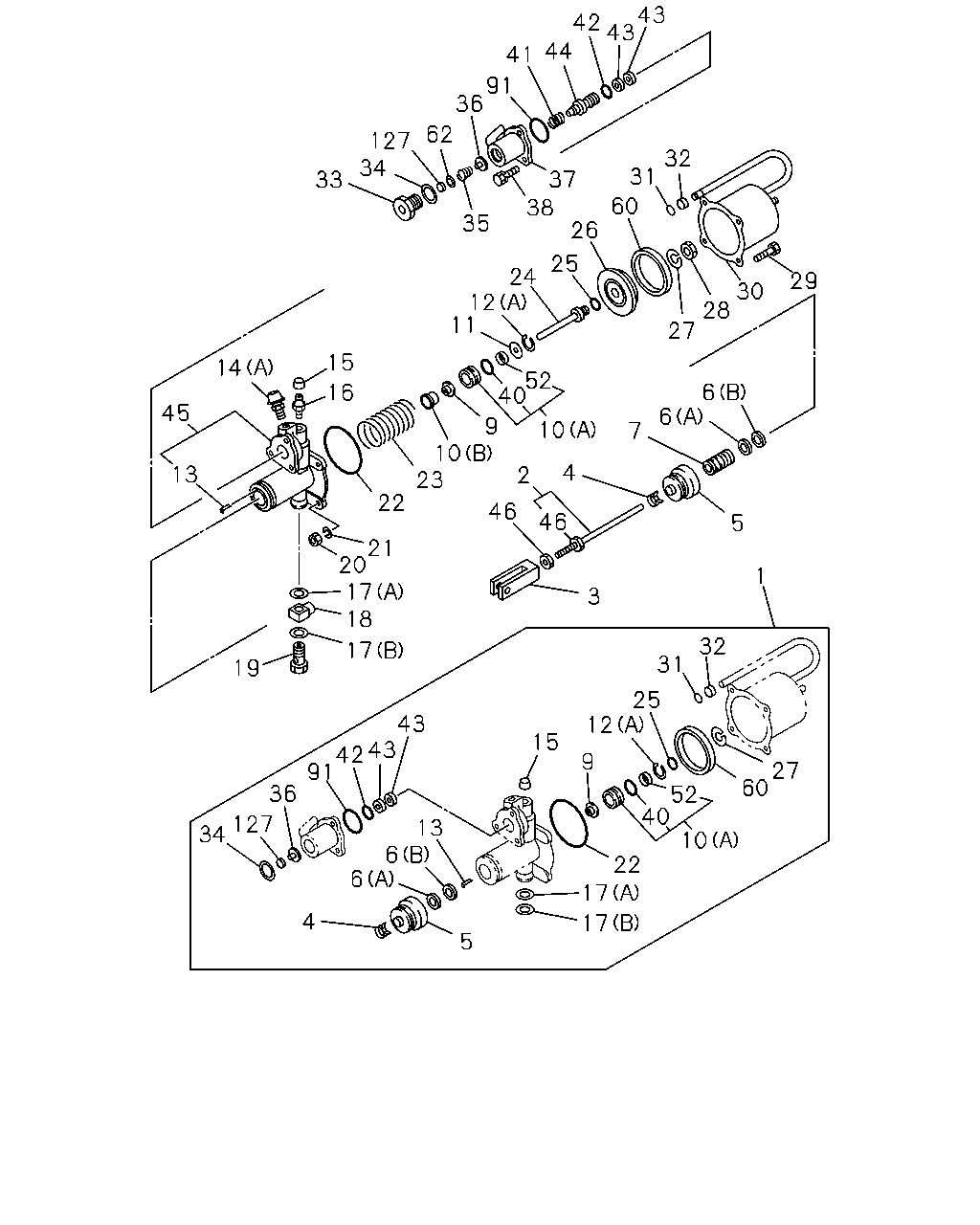

çizim 192659
6 6 7 29 30 28 27 32 31 60 26 25 24 12 11 37 38 35 43 43 42 44 41 91 36 62 127 34 33 15 52 40 10 4 2 46 46 10 5 1 3 21 16 14 45 13 20 17 18 17 19 9 23 22 32 31 25 12 9 15 27 60 10 52 40 22 17 17 5 4 13 6 6 43 43 42 91 36 127 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 0710- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 0710- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 0710- ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0710- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0710- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0710- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0710- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0710- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0710- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0710- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0710- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0710- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0710- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0710- ● ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 0710- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0710- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0710- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0710- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0710- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0710- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0710- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0710- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0710- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0710- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0710- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 0710- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0710- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0710- ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0710- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0710- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0710- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0710- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0710- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0710- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0710- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0710- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0710- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0710- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 0710- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0710- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0710- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0710- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0710- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 0710- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 0710- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 0710- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0710-1105 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1106- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0710- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0710- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0710- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0710- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
