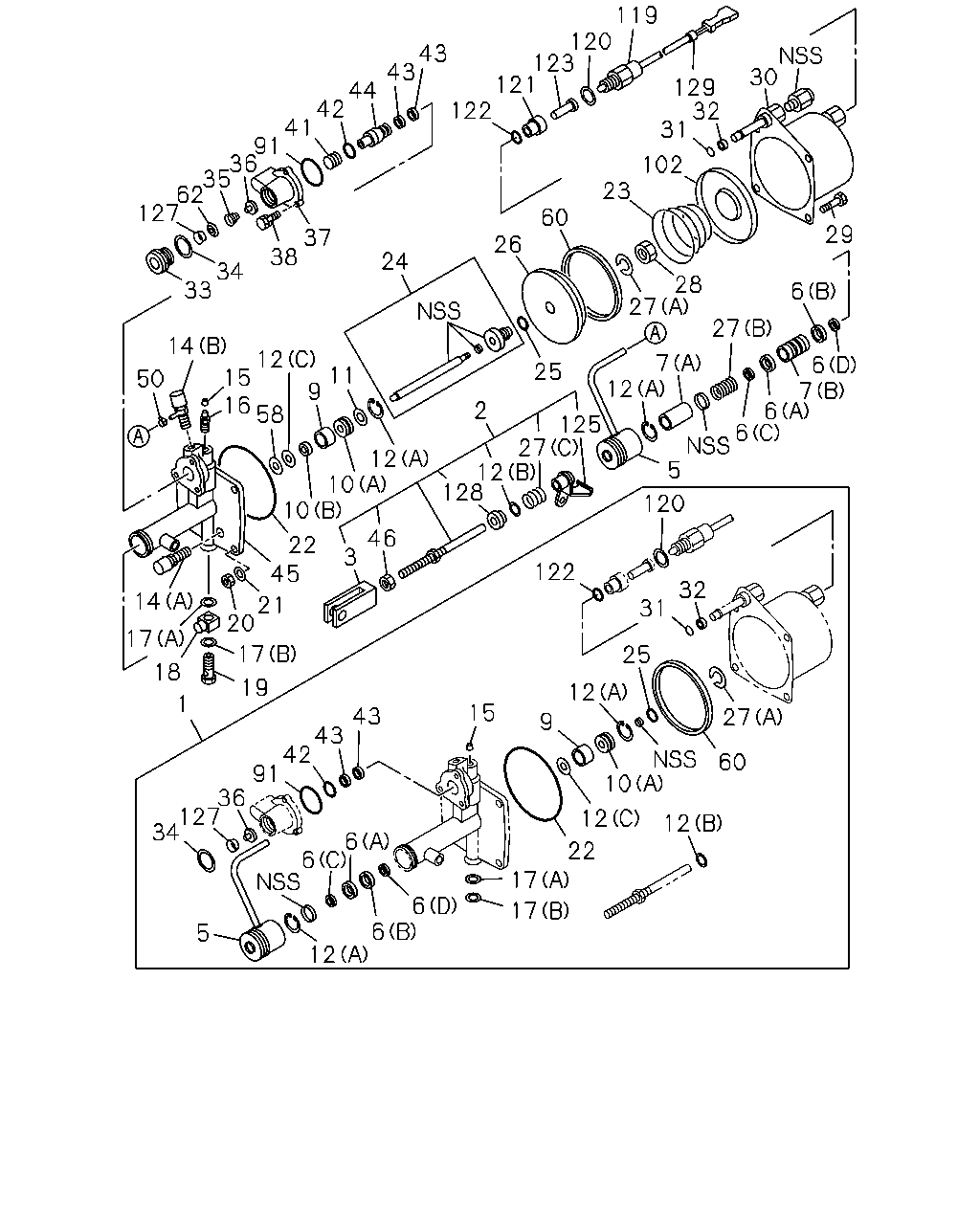

1 |
REPAIR KIT; CLU BOOSTER
|
1-31829-507-0 |
01 |
1 |
0710-1105 |
| |
1 |
REPAIR KIT; CLU BOOSTER
|
1-31829-620-0 |
01 |
1 |
1106- |
| |
2 |
ROD; PUSH,CLU BOOSTER
|
1-31824-213-0 |
01 |
1 |
0710-1105 |
| |
2 |
ROD; PUSH,CLU BOOSTER
|
1-31824-256-0 |
01 |
1 |
1106- |
| |
3 |
CLEVIS; PUSH ROD,CLU BOOSTER
|
1-31829-287-0 |
01 |
1 |
0710-1105 |
| |
3 |
CLEVIS; PUSH ROD,CLU BOOSTER
|
1-31829-619-0 |
01 |
1 |
1106- |
| |
5 |
GUARD; PISTON,CLU BOOSTER
|
1-31829-486-0 |
01 |
1 |
0710-1105 |
| |
5 |
GUARD; PISTON,CLU BOOSTER
|
1-31829-626-0 |
01 |
1 |
1106- |
| |
6 |
GASKET; PISTON CUP,CLU BOOSTER
(C)
|
1-31829-441-0 |
01 |
1 |
0710- |
| |
6 |
GASKET; PISTON CUP,CLU BOOSTER
(D)
|
1-31829-442-0 |
01 |
1 |
0710- |
| |
6 |
GASKET; PISTON CUP,CLU BOOSTER
(A)
|
1-31829-443-0 |
01 |
1 |
0710- |
| |
6 |
GASKET; PISTON CUP,CLU BOOSTER
(B)
|
1-31829-444-0 |
01 |
1 |
0710- |
| |
7 |
PISTON; CLU BOOSTER
(B)
|
1-31821-068-0 |
01 |
1 |
0710- |
| |
7 |
PISTON; CLU BOOSTER
(A)
|
1-31821-081-0 |
01 |
1 |
0710- |
| |
9 |
GASKET; PISTON CUP,CLU BOOSTER
|
1-31829-251-0 |
01 |
1 |
0710- |
| |
10 |
RETAINER; PISTON,CLU BOOSTER
(A)
|
1-31829-285-0 |
01 |
1 |
0710- |
| |
10 |
RETAINER; PISTON,CLU BOOSTER
(B)
|
1-31829-428-0 |
01 |
1 |
0710- |
| |
11 |
WASHER; PISTON,CLU BOOSTER
|
1-31829-105-0 |
01 |
1 |
0710- |
| |
12 |
RING; RET,CLU BOOSTER
(C)
|
1-31829-446-0 |
01 |
1 |
0710- |
| |
12 |
RING; RET,CLU BOOSTER
(B)
|
1-31829-511-0 |
01 |
1 |
0710-1105 |
| |
12 |
RING; RET,CLU BOOSTER
(B)
|
1-31829-621-0 |
01 |
1 |
1106- |
| |
12 |
RING; RET,CLU BOOSTER
(A)
|
1-31829-142-0 |
02 |
1 |
0710- |
| |
14 |
COVER; EXH,CLU BOOSTER
(A)
|
1-31829-365-0 |
01 |
1 |
0710- |
| |
14 |
COVER; EXH,CLU BOOSTER
(B)
|
1-31829-366-0 |
01 |
1 |
0710- |
| |
15 |
PROTECTOR; END PLATE,CLU BOOSTER
|
9-83335-044-0 |
01 |
1 |
0710- |
| |
16 |
PLUG; END PLATE,CLU BOOSTER
|
9-83331-704-0 |
01 |
1 |
0710- |
| |
17 |
GASKET; CONN,CLU BOOSTER
(A)
|
9-09920-267-0 |
01 |
1 |
0710- |
| |
17 |
GASKET; CONN,CLU BOOSTER
(B)
|
9-09920-268-0 |
01 |
1 |
0710- |
| |
18 |
CONNECTOR; END PLATE,CLU BOOSTER
|
1-31829-248-0 |
01 |
1 |
0710- |
| |
19 |
BOLT; EYE,END PLATE,CLU BOOSTER
|
9-83315-047-0 |
01 |
1 |
0710- |
| |
20 |
NUT; END PLATE TO SHELL,CLU BOOSTER
M10
|
9-09111-410-0 |
04 |
1 |
0710-1105 |
| |
20 |
NUT; END PLATE TO SHELL,CLU BOOSTER
|
1-31829-624-0 |
04 |
1 |
1106- |
| |
21 |
WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2
|
9-09150-510-0 |
04 |
1 |
0710- |
| |
22 |
GASKET; END PLATE TO SHELL,CLU BOOSTER
|
1-31829-281-0 |
01 |
1 |
0710- |
| |
23 |
SPRING; SHELL,CLU BOOSTER
|
1-31829-506-0 |
01 |
1 |
0710- |
| |
24 |
ROD; PUSH,CLU BOOSTER
|
1-31824-211-0 |
01 |
1 |
0710- |
| |
25 |
GASKET; PUSH ROD,CLU BOOSTER
|
1-31829-277-0 |
01 |
1 |
0710- |
| |
26 |
PISTON; SHELL,CLU BOOSTER
|
1-31821-080-0 |
01 |
1 |
0710- |
| |
27 |
SPRING; CLU BOOSTER
(A)
|
1-31829-291-0 |
01 |
1 |
0710- |
| |
27 |
SPRING; CLU BOOSTER
(B)
|
1-31829-505-0 |
01 |
1 |
0710- |
| |
27 |
SPRING; CLU BOOSTER
(C)
|
1-31829-510-0 |
01 |
1 |
0710- |
| |
28 |
NUT; PUSH ROD,CLU BOOSTER
|
1-31829-290-0 |
01 |
1 |
0710- |
| |
29 |
BOLT; END PLATE TO SHELL,CLU BOOSTER
|
9-02041-045-0 |
04 |
1 |
0710-1105 |
| |
29 |
BOLT; END PLATE TO SHELL,CLU BOOSTER
|
9-83315-078-0 |
04 |
1 |
1106- |
| |
30 |
SHELL; CYL,CLU BOOSTER
|
1-31811-120-0 |
01 |
1 |
0710- |
| |
31 |
GASKET; SHELL,CLU BOOSTER
|
1-31829-279-0 |
01 |
1 |
0710- |
| |
32 |
BUSHING; SHELL,CLU BOOSTER
|
1-31829-280-0 |
01 |
1 |
0710- |
| |
33 |
CONNECTOR; UPR,VLV,CLU BOOSTER
|
1-31829-448-0 |
01 |
1 |
0710- |
| |
34 |
GASKET; CONN,CLU BOOSTER
|
1-31829-053-0 |
01 |
1 |
0710- |
| |
35 |
SPRING; POPPET VLV,CLU BOOSTER
|
1-31829-451-0 |
01 |
1 |
0710- |
| |
36 |
VALVE; POPPET,CLU BOOSTER
|
1-31829-452-0 |
01 |
1 |
0710- |
| |
37 |
BODY; UPR,VLV,CLU BOOSTER
|
1-31811-085-0 |
01 |
1 |
0710- |
| |
38 |
SCREW; UPR VLV TO END PLATE,CLU BOOSTE
|
9-83315-113-0 |
03 |
1 |
0710- |
| |
41 |
SPRING; DIAPH,CLU BOOSTER
|
1-31829-288-0 |
01 |
1 |
0710- |
| |
42 |
GASKET; FITTING,CLU BOOSTER
|
1-31829-143-0 |
01 |
1 |
0710- |
| |
43 |
GASKET; UPR VLV,CLU BOOSTER
|
1-31829-060-0 |
02 |
1 |
0710- |
| |
44 |
PISTON; UPR VLV,CLU BOOSTER
|
1-31821-049-0 |
01 |
1 |
0710-1105 |
| |
44 |
PISTON; UPR VLV,CLU BOOSTER
|
1-31821-087-0 |
01 |
1 |
1106- |
| |
45 |
PLATE; END,CLU BOOSTER
|
1-31811-119-0 |
01 |
1 |
0710- |
| |
46 |
NUT; PUSH ROD,CLU BOOSTER
|
1-31829-625-0 |
01 |
1 |
1106- |
| |
46 |
NUT; PUSH ROD,CLU BOOSTER
M10
|
9-09111-410-0 |
02 |
1 |
0710-1105 |
| |
50 |
CLAMP; PISTON GUARD,CLU BOOSTER
|
1-31829-063-0 |
01 |
1 |
0710- |
| |
58 |
WASHER; PISTON,CLU BOOSTER
|
1-31829-294-0 |
01 |
1 |
0710- |
| |
60 |
GASKET; SHELL,CLU BOOSTER
|
1-31829-454-0 |
01 |
1 |
0710- |
| |
62 |
RETAINER; POPPET
|
1-31829-489-0 |
01 |
1 |
0710- |
| |
91 |
GASKET; CLU BOOSTER
|
1-31829-103-0 |
01 |
1 |
0710- |
| |
102 |
PLATE; BOOSTER
|
1-31829-508-0 |
01 |
1 |
0710- |
| |
119 |
SWITCH; CLU BOOSTER
|
1-31824-178-0 |
01 |
1 |
0710- |
| |
120 |
GASKET; SWITCH
|
1-31829-361-0 |
01 |
1 |
0710- |
| |
121 |
GUIDE; ROD
|
1-31824-165-0 |
01 |
1 |
0710- |
| |
122 |
GASKET; ROD
|
1-31829-360-0 |
01 |
1 |
0710- |
| |
123 |
ROD; SWITCH
L=23.2
|
1-31824-167-0 |
01 |
1 |
0710-1105 |
| |
123 |
ROD; SWITCH
L=23.2
|
1-31824-167-0 |
AR |
1 |
1106- |
| |
123 |
ROD; SWITCH
L=24.0
|
1-31824-168-0 |
01 |
1 |
0710-1105 |
| |
123 |
ROD; SWITCH
L=24.0
|
1-31824-168-0 |
AR |
1 |
1106- |
| |
123 |
ROD; SWITCH
L=22.5
|
1-31824-176-0 |
01 |
1 |
0710-1105 |
| |
123 |
ROD; SWITCH
L=22.5
|
1-31824-176-0 |
AR |
1 |
1106- |
| |
123 |
ROD; SWITCH
L=24.5
|
1-31824-189-0 |
01 |
1 |
0710-1105 |
| |
123 |
ROD; SWITCH
L=24.5
|
1-31824-189-0 |
AR |
1 |
1106- |
| |
123 |
ROD; SWITCH
L=25.0
|
1-31824-212-0 |
01 |
1 |
0710-1105 |
| |
123 |
ROD; SWITCH
L=25.0
|
1-31824-212-0 |
AR |
1 |
1106- |
| |
125 |
BRACKET; CLU BOOSTER
|
1-31829-512-0 |
01 |
1 |
0710-1105 |
| |
125 |
BRACKET; CLU BOOSTER
|
1-31829-622-0 |
01 |
1 |
1106- |
| |
127 |
FILTER; POPPET
|
1-31829-488-0 |
01 |
1 |
0710- |
| |
128 |
COLLAR; ROD,CLU BOOSTER
|
1-31829-509-0 |
01 |
1 |
0710-1105 |
| |
129 |
CONNECTOR ASM; CLU BOOSTER
|
1-09656-753-0 |
01 |
1 |
0710- |
