Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#66930) — 173 parça

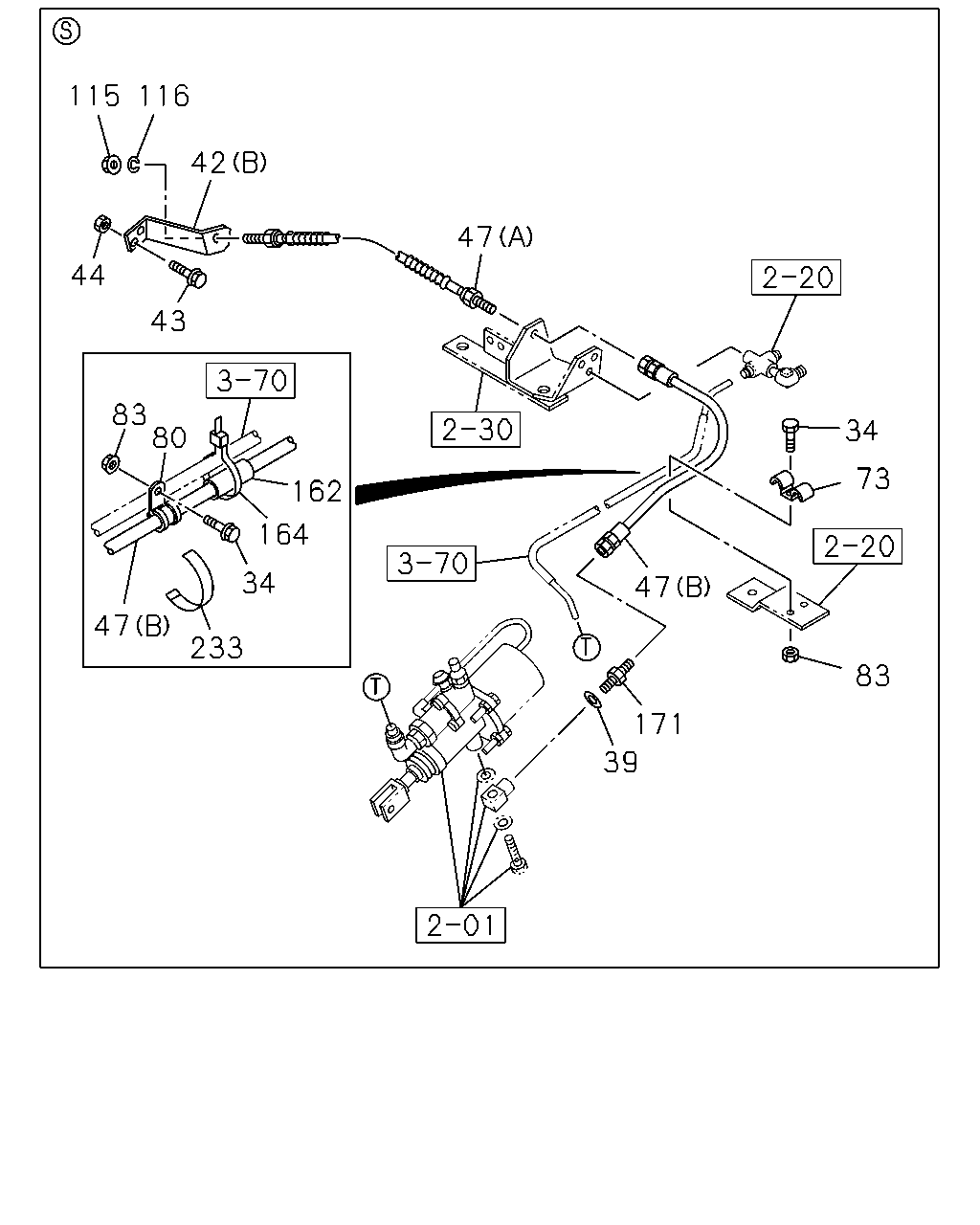

115 116 42 47 44 43 34 73 83 171 39 47 233 34 164 162 80 83 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0710-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	0710-0805
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0806-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	03	1	0710-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X45 FLANGE	0-28050-845-0	01	1	0710-0805
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0710-
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (A)	1-47471-235-0	01	1	0710-
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47478-511-0	01	1	0710-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0710-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0710-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=650	1-09364-694-0	01	1	0710-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	0710-
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0710-
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	0710-
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	02	1	0710-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0710-
162	COVER; RUBBER,FLEX HOSE FULLER M/T<X9B> ID=14 OD=18 L=60	1-09337-030-0	01	1	0710-
164	CLIP; BAND,FLEX HOSE FULLER M/T<X9B> L=250	5-09707-030-1	01	1	0710-
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	0710-
233	BAND; FLEX HOSE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	0710-

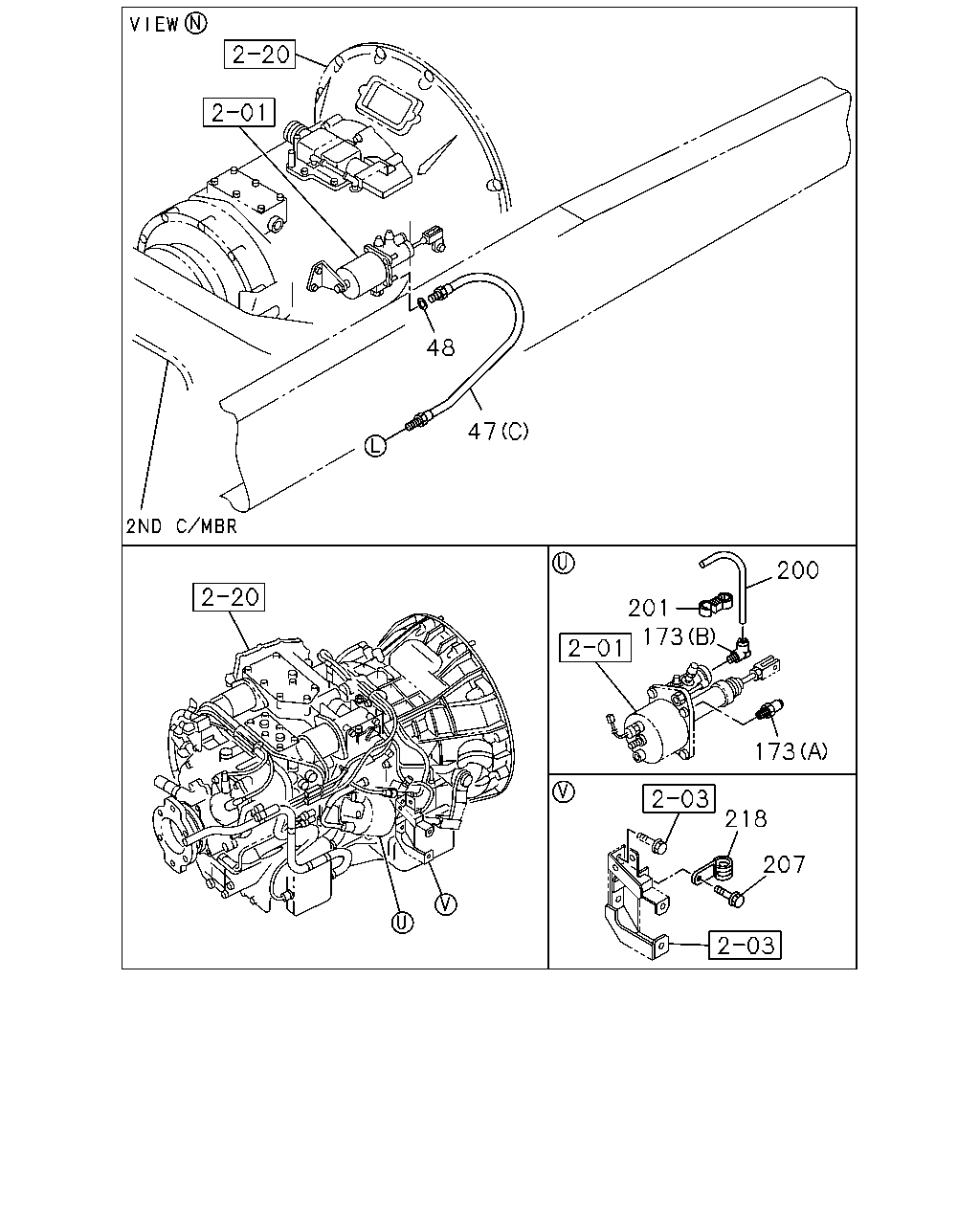

47 48 201 200 173 173 218 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=650	1-09364-694-0	01	1	0710-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	0710-
48	GASKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-
173	CONNECTOR MJX16P M/T(Y3Z) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0710-
173	CONNECTOR MJX16P M/T(Y3Z) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0710-
200	TUBE; NYLON MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0710-
201	CLIP; NYLON TUBE MJX16P M/T(Y3Z) ID=6.35 & 12	1-09709-275-1	01	1	0710-
207	BOLT; CLIP MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	0710-
218	CLIP MJX16P M/T(Y3Z) ID=11 L=20	0-95235-035-0	01	1	0710-

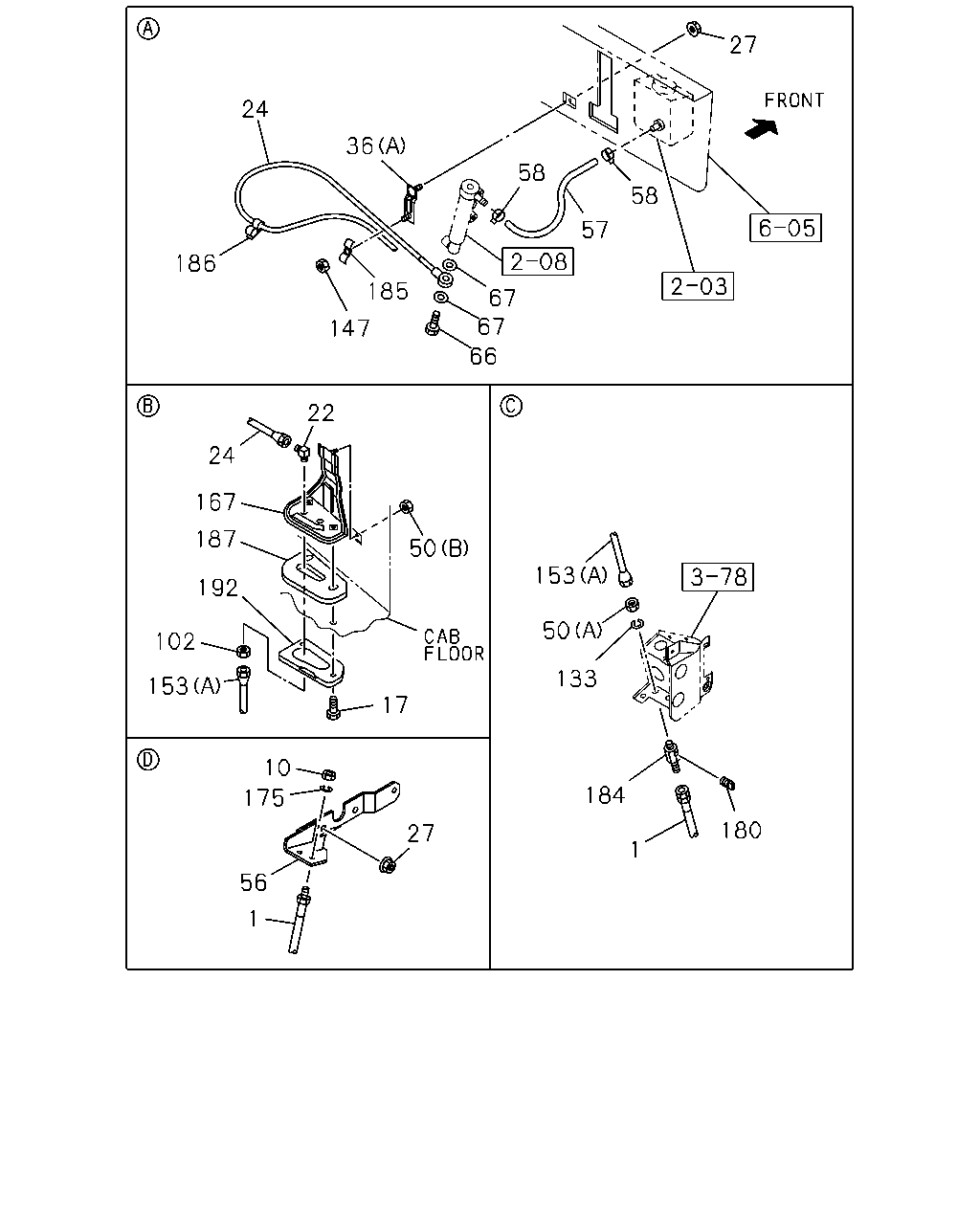

27 24 36 58 58 57 186 185 67 67 147 66 22 24 167 187 50 153 192 50 102 133 153 17 10 184 175 180 27 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0710-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0710-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0710-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0710-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0710-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0710-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=80 H=20	1-82699-304-0	01	1	0710-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47475-427-1	01	1	0710-0805
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E)	1-47475-601-0	01	1	0806-0811
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E)	1-47475-774-0	01	1	0812-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0710-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0710-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0710-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0710-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0710-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0710-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2075 SERVICED BY L=2150	1-47428-770-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537	8-98085-164-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0710-0805
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1731 SERVICED BY L=1800	1-47428-768-0	01	1	0806-
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0710-
167	BRACKET; UNION	1-71117-183-3	01	1	0710-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0710-
180	PLUG; PIPE	9-09204-510-0	01	1	0710-0804
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0710-0804
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0710-
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT(SJA)	8-94107-710-0	02	1	0710-
187	SEAL; BRKT	1-71117-222-0	01	1	0710-
192	PLATE	1-71117-221-0	01	1	0710-

29 26 28 27 30 25 28 29 106 42 44 43 115 116 30 31 36 33 34 34 33 35 117 4 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=16 H=25 L=25	1-09701-162-0	01	1	0710-
25	BRACKET; OIL PIPE	1-46147-101-0	01	1	0710-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0710-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0710-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0710-
30	BOLT; BRKT MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	01	1	0710-
31	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	0710-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=9 L=20	0-95234-835-0	01	1	0710-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0710-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0710-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	0710-0805
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0806-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	03	1	0710-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X45 FLANGE	0-28050-845-0	01	1	0710-0805
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0710-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0710-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0710-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0710-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=80 H=20	1-82699-304-0	01	1	0710-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47475-427-1	01	1	0710-0805
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E)	1-47475-601-0	01	1	0806-0811
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E)	1-47475-774-0	01	1	0812-
37	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X35 FLANGE	0-28650-835-0	01	1	0806-
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	01	1	0710-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (A)	1-47471-235-0	01	1	0710-
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47478-511-0	01	1	0710-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0710-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0710-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0710-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0710-
117	BOLT; CLIP,FLEX HOSE MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	0710-

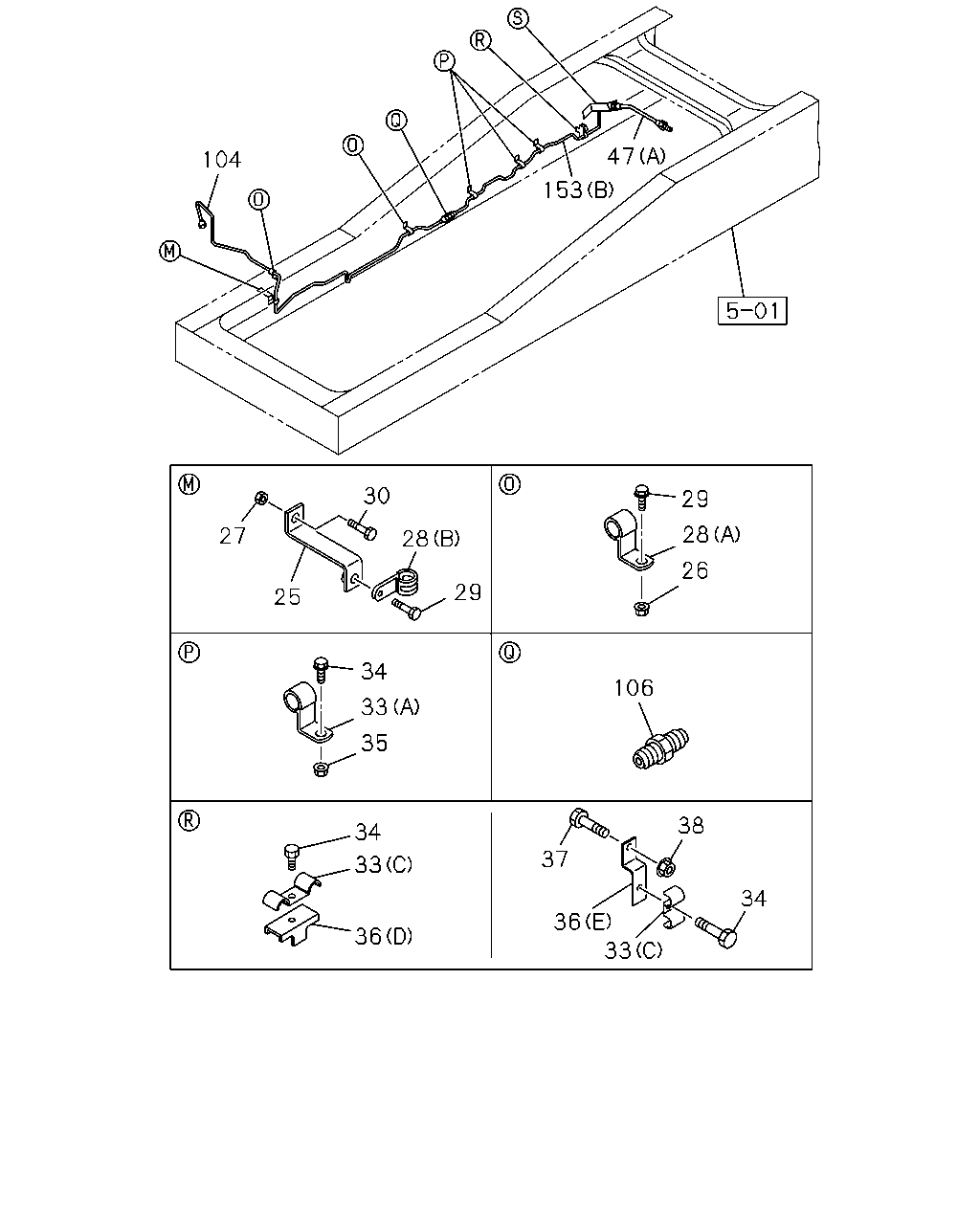

47 104 153 30 29 28 27 28 26 29 25 34 106 33 35 38 34 37 33 34 36 36 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE	1-46147-101-0	01	1	0710-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0710-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0710-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0710-
30	BOLT; BRKT MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	01	1	0710-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=9 L=20	0-95234-835-0	01	1	0710-
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0710-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0710-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	0710-0805
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0806-
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	03	1	0710-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X45 FLANGE	0-28050-845-0	01	1	0710-0805
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0710-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0710-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0710-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0710-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (C) L=80 H=20	1-82699-304-0	01	1	0710-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (D)	1-47475-427-1	01	1	0710-0805
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E)	1-47475-601-0	01	1	0806-0811
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (E)	1-47475-774-0	01	1	0812-
37	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X35 FLANGE	0-28650-835-0	01	1	0806-
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	01	1	0710-
38	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0806-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=650	1-09364-694-0	01	1	0710-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	0710-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2075 SERVICED BY L=2150	1-47428-770-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537	8-98085-164-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0710-0805
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1731 SERVICED BY L=1800	1-47428-768-0	01	1	0806-
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0710-

24 167 153 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0710-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0710-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0710-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2075 SERVICED BY L=2150	1-47428-770-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537	8-98085-164-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0710-0805
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1731 SERVICED BY L=1800	1-47428-768-0	01	1	0806-
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0710-
167	BRACKET; UNION	1-71117-183-3	01	1	0710-

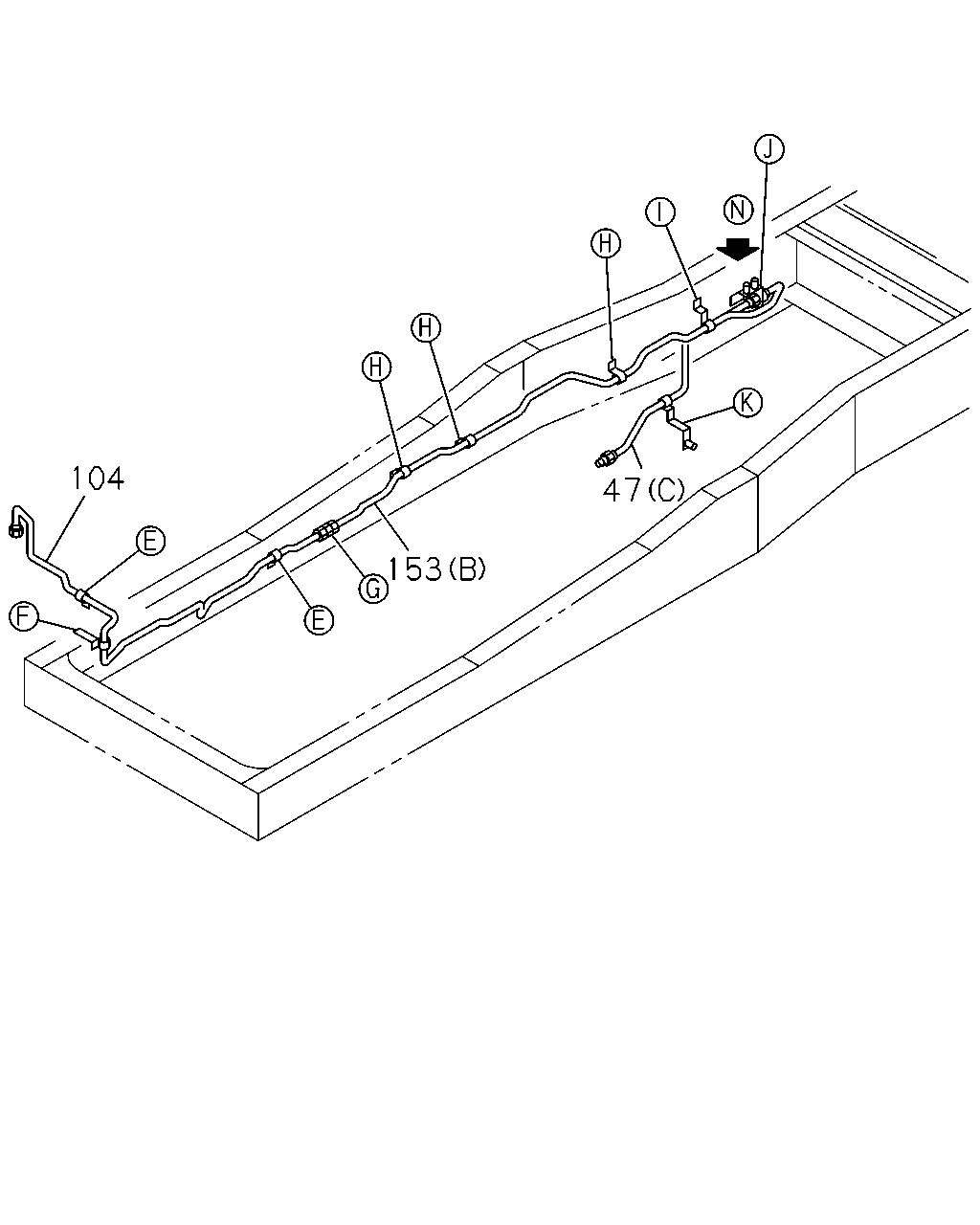

104 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=650	1-09364-694-0	01	1	0710-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	0710-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (B) L=2075 SERVICED BY L=2150	1-47428-770-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537	8-98085-164-0	01	1	0710-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1690 SERVICED BY L=1700	1-47426-391-0	01	1	0710-0805
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1731 SERVICED BY L=1800	1-47428-768-0	01	1	0806-
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
