◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#66929) — 64 parça

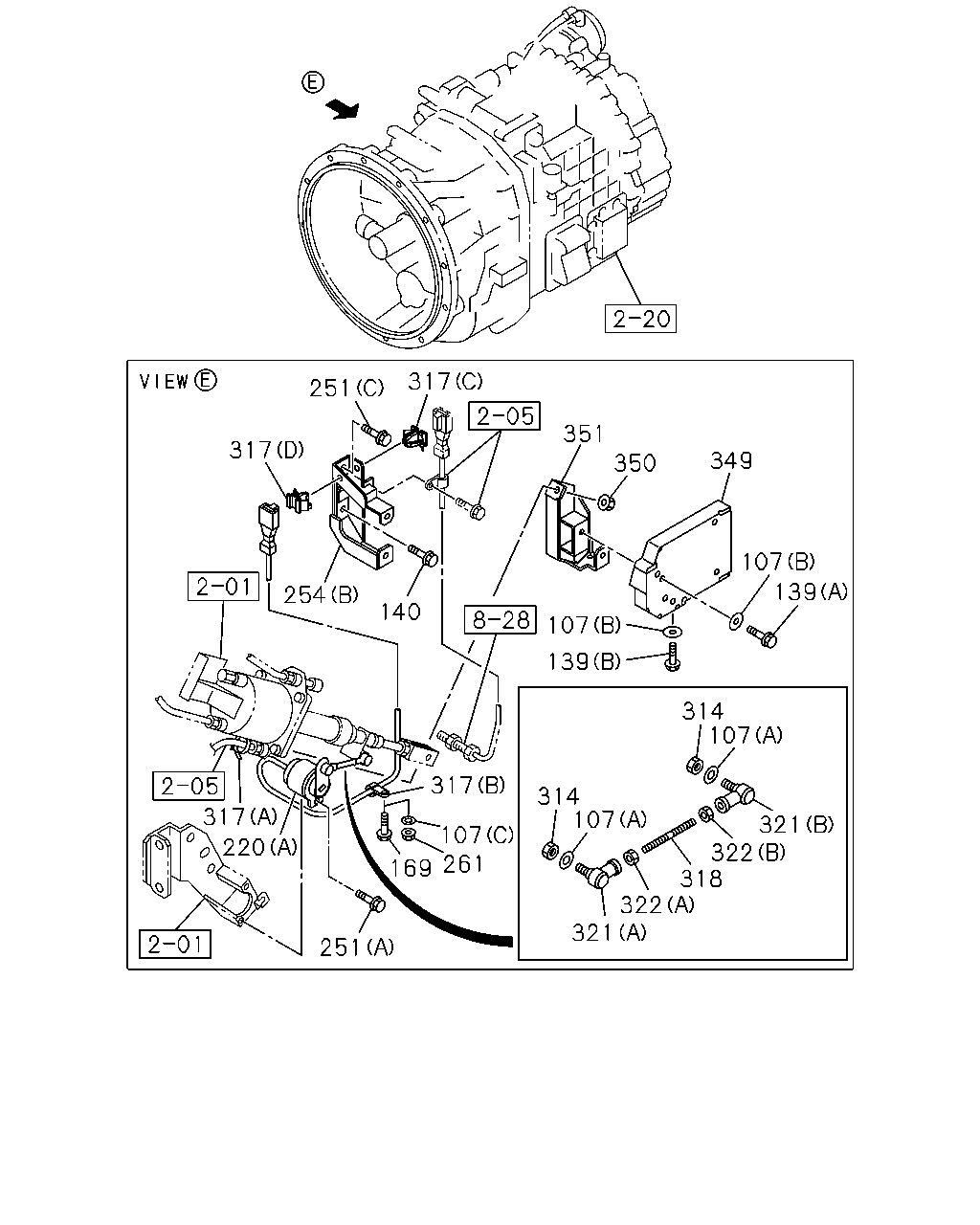

çizim 98302
251 317 351 349 350 107 107 139 139 140 254 317 317 220 251 169 317 107 261 314 107 321 314 107 321 322 318 322
BalonParca AdiParca NoAdetTipApplied Date
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=8.4 OD=16 		0-91610-508-0 01 1 0710-
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=8.4 OD=22 		0-91610-708-0 06 1 0710-
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=5.3 OD=16 		0-91614-705-0 02 1 0710-
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X16 FLANGE 		0-28050-816-0 05 1 0710-
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0710-
140 BOLT; BRKT
MJX16P M/T(Y3Z) M10X30 FLANGE 		0-28751-030-0 01 1 0710-
169 BOLT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-97320-627-0 01 1 0710-0805
169 BOLT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-98009-913-0 01 1 0806-
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-80250-014-0 01 1 0710-
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-81541-121-0 01 1 0710-1502
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		8-98297-150-0 01 1 1503-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) (A) M10X25 FLANGE 		0-28751-025-0 01 1 0710-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0710-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0710-
254 BRACKET; CLU SENSOR
MJX16P M/T(Y3Z) (B) 		1-31349-072-1 01 1 0710-
261 NUT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-208-0 01 1 0710-0811
261 NUT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0812-
314 NUT; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 02 1 0710-
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=32 		0-95235-065-0 01 1 0710-
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 01 1 0710-
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=9 H=6 		1-09709-178-0 01 1 0710-
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-
318 ROD; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		0-84100-506-0 01 1 0710-
321 END; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-09760-103-2 01 1 0710-
321 END; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-09760-104-2 01 1 0710-
322 NUT; ROD END
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5 		0-91110-505-0 01 1 0710-
322 NUT; ROD END
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M5 LH THREAD 		9-09840-277-0 01 1 0710-
349 COVER; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-31349-075-0 01 1 0710-
350 NUT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 01 1 0710-
351 BRACKET; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-31349-079-0 01 1 0710-

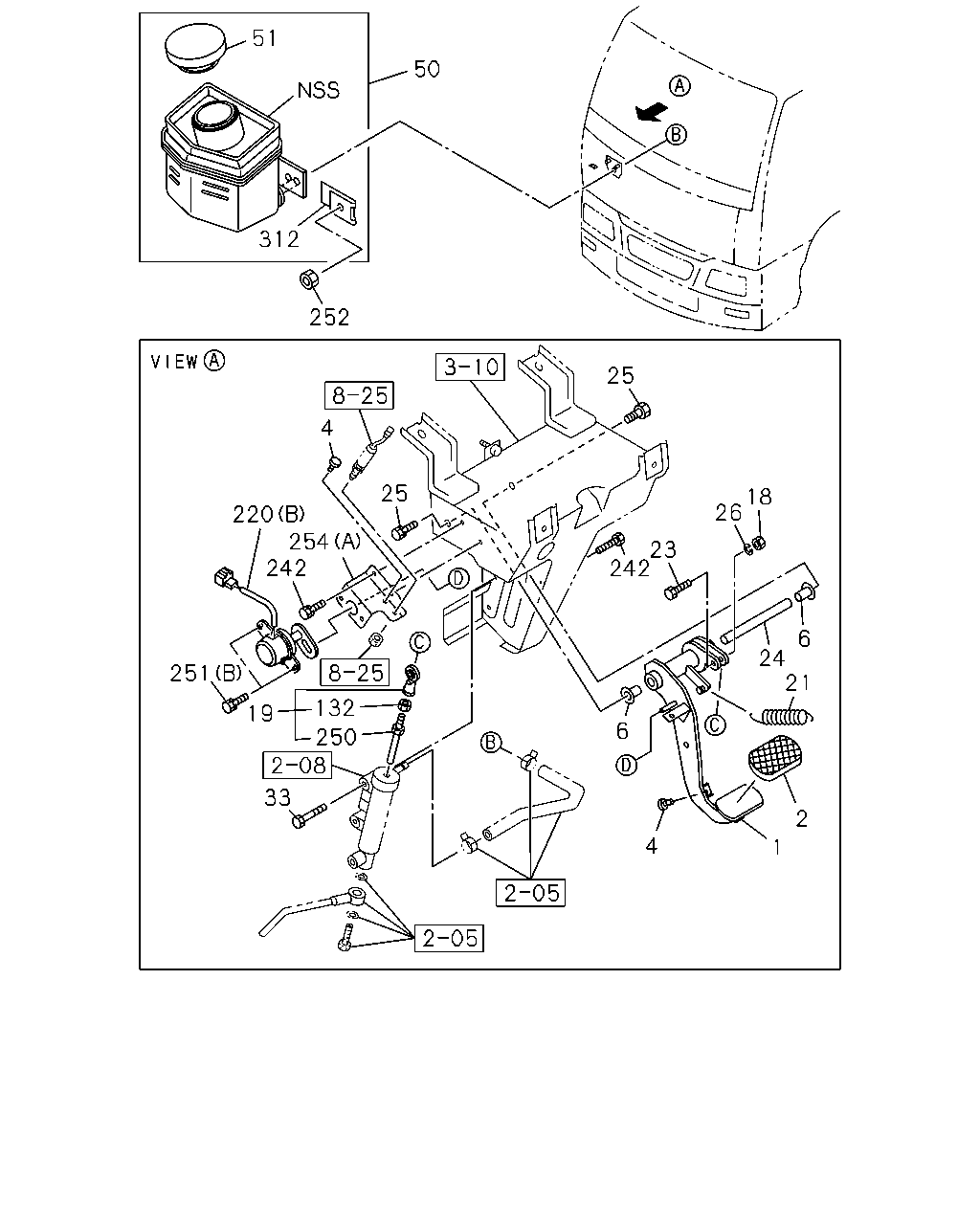

çizim 98527
51 50 312 252 25 18 26 23 242 6 24 21 2 1 4 6 25 4 220 242 254 251 19 33 132 250
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU 1-73907-474-1 01 1 0710-
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0710-
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 0710-
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0710-
18 NUT; PUSH ROD
6WF1 TC-C(1B8) M8 		9-09110-508-0 01 1 0712-
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 0710-0711
18 NUT; PUSH ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 		0-91110-508-0 01 1 0712-
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0710-
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0710-
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0710-
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0710-
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0710-
26 WASHER; LK,PUSH ROD
6WF1 TC-C(1B8) ID=8.2 		9-09150-608-0 01 1 0712-
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 0710-0711
26 WASHER; LK,PUSH ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=8.2 		0-91510-608-0 01 1 0712-
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0710-
50 TANK; OIL,CLU 1-47530-182-0 01 1 0710-
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0710-
132 NUT; LK,PUSH ROD
6WF1 TC-C(1B8) M8 		9-09110-408-0 01 1 0712-
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 0710-0711
132 NUT; LK,PUSH ROD
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 		0-91110-508-0 01 1 0712-
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-80250-014-0 01 1 0710-
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-81541-121-0 01 1 0710-1502
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		8-98297-150-0 01 1 1503-
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 0710-
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0710-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) (A) M10X25 FLANGE 		0-28751-025-0 01 1 0710-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0710-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0710-
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0710-
254 BRACKET; CLU SENSOR
MJX16P M/T(Y3Z) (B) 		1-31349-072-1 01 1 0710-
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0710-
