◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11130 - FVZ(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#66920) — 76 parça

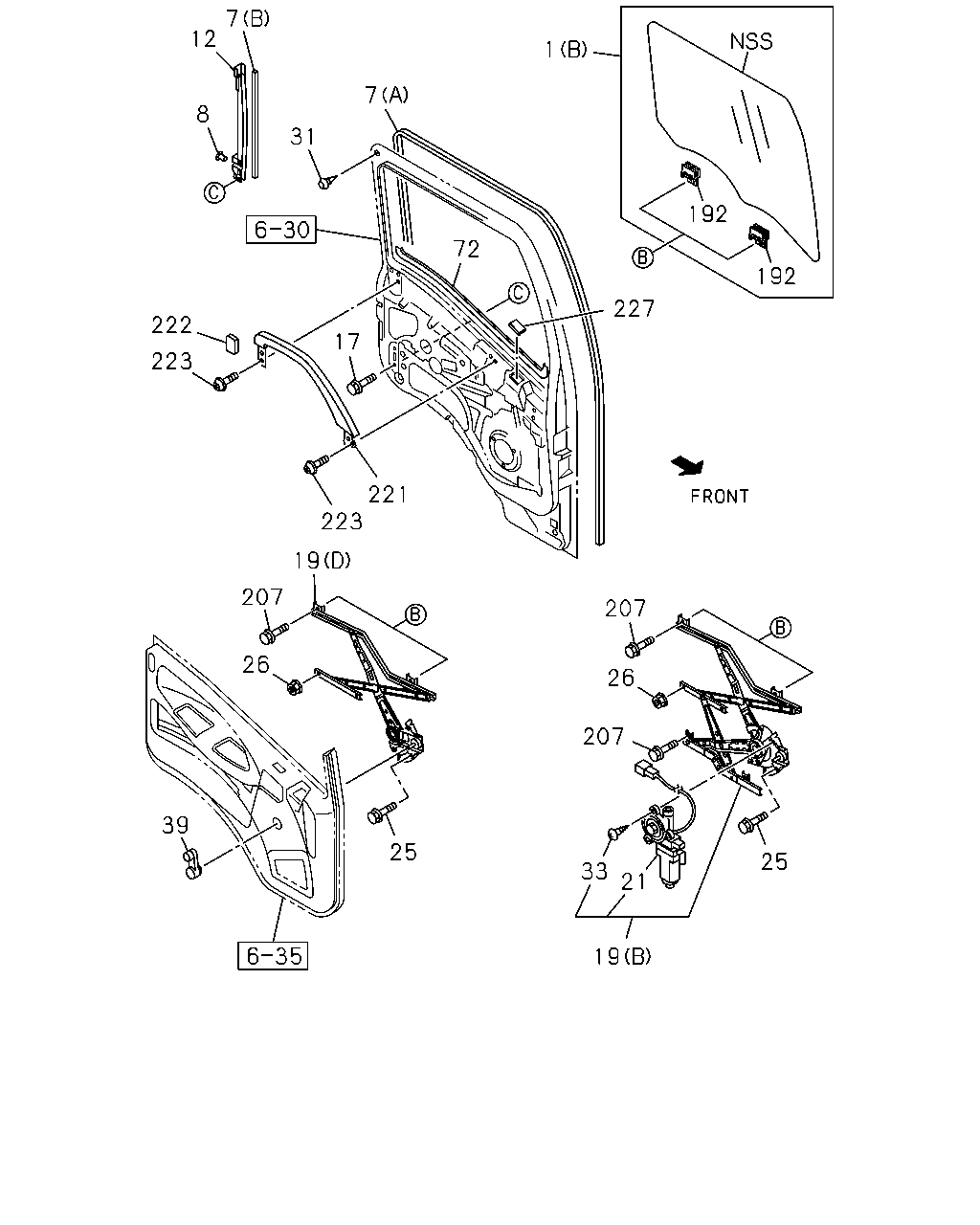

çizim 130952
7 12 1 7 8 31 192 72 192 227 222 17 223 221 223 19 207 207 26 26 207 39 25 25 33 21 19
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
(A) THA 		8-97923-680-3 01 1 0807-
1 GLASS; FRT DOOR
(B) THA 		8-97923-681-3 01 1 0807-
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 0807-
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 0807-
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 0807-
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 0807-
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 0807-1105
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1106-
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 0807-1105
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1106-
17 SCREW; RR CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 0807-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (A) 		8-98029-236-3 01 1 0807-1003
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 0807-1003
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-233-3 01 1 0807-1003
19 REGULATOR; WINDOW,FRT DOOR
(C) 		8-98029-233-3 01 1 1004-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-234-3 01 1 0807-1003
19 REGULATOR; WINDOW,FRT DOOR
(D) 		8-98029-234-3 01 1 1004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 0807-1003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 0807-1003
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		0-28050-610-0 08 1 0807-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		0-91180-106-0 04 1 0807-
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 1207-
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 0807-
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 06 1 0807-1003
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 0807-1003
39 HANDLE; WINDOW REG,FRT DOOR
GRAY 		8-97405-313-3 02 1 1004-
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 0807-
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 0807-
192 HOLDER; DOOR GLASS
THA 		8-97288-022-0 04 1 0807-
207 SCREW; DOOR GLASS
BOLT M6X10 FLANGE THA 		0-28050-610-0 04 1 0807-
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-103-0 01 1 0807-
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-104-0 01 1 0807-
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 0807-
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 0807-
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 0807-1108
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1109-1212
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301-
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 0807-1102
227 RUBBER; SHUTTER
GRAY 		8-97405-321-0 01 1 1103-

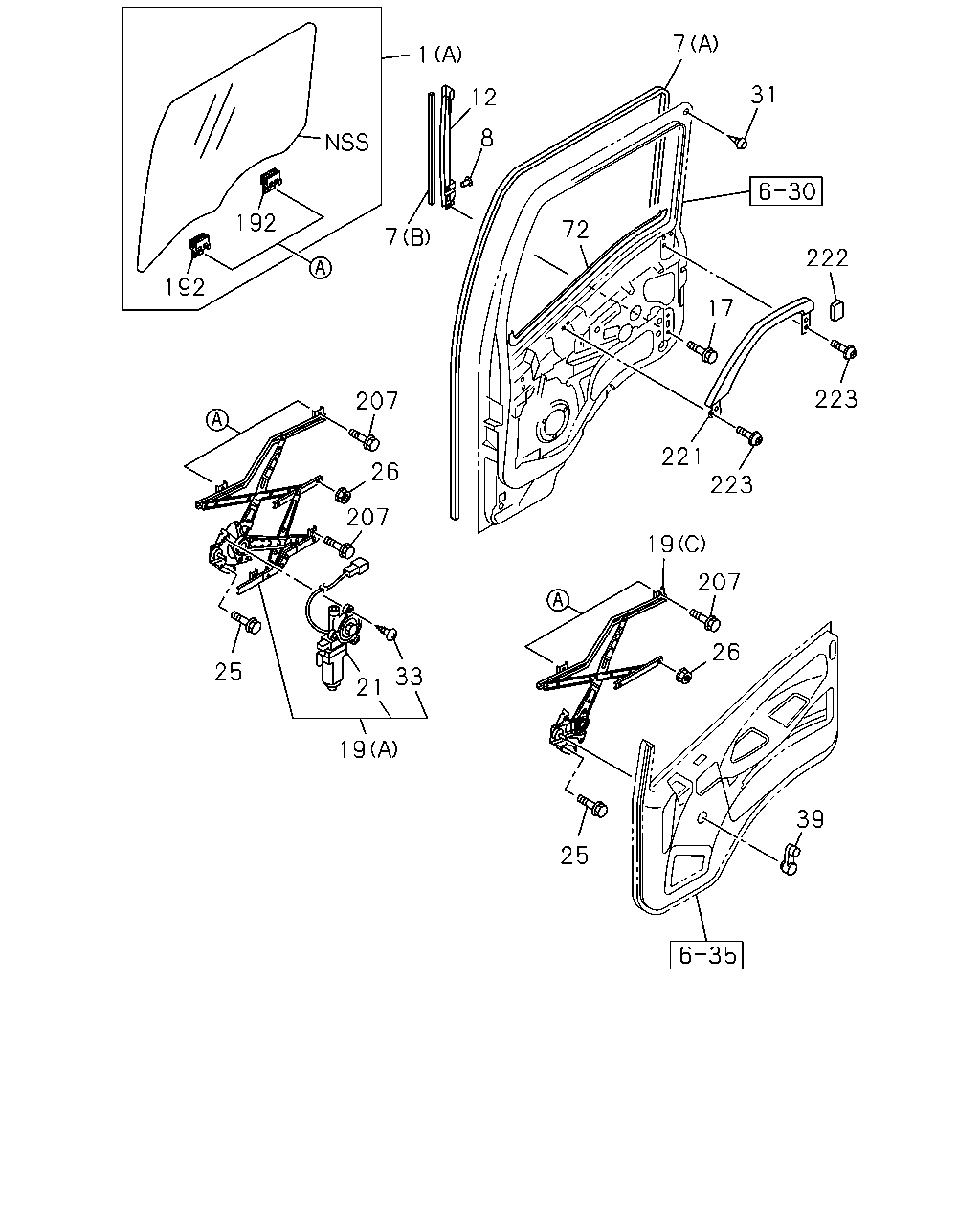

çizim 131018
7 1 31 12 8 192 72 7 222 192 17 223 207 221 26 223 207 19 207 26 25 33 21 19 39 25
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
(A) THA 		8-97923-680-3 01 1 0807-
1 GLASS; FRT DOOR
(B) THA 		8-97923-681-3 01 1 0807-
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 0807-
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 0807-
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 0807-
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 0807-
12 CHANNEL; GLASS RUN,FRT 8-98024-838-3 01 1 0807-1105
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1106-
12 CHANNEL; GLASS RUN,FRT 8-98024-839-3 01 1 0807-1105
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1106-
17 SCREW; RR CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 0807-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (A) 		8-98029-236-3 01 1 0807-1003
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 0807-1003
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-233-3 01 1 0807-1003
19 REGULATOR; WINDOW,FRT DOOR
(C) 		8-98029-233-3 01 1 1004-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-234-3 01 1 0807-1003
19 REGULATOR; WINDOW,FRT DOOR
(D) 		8-98029-234-3 01 1 1004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 0807-1003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 0807-1003
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		0-28050-610-0 08 1 0807-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		0-91180-106-0 04 1 0807-
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 1207-
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 0807-
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 06 1 0807-1003
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 0807-1003
39 HANDLE; WINDOW REG,FRT DOOR
GRAY 		8-97405-313-3 02 1 1004-
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 0807-
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 0807-
192 HOLDER; DOOR GLASS
THA 		8-97288-022-0 04 1 0807-
207 SCREW; DOOR GLASS
BOLT M6X10 FLANGE THA 		0-28050-610-0 04 1 0807-
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-103-0 01 1 0807-
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-104-0 01 1 0807-
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 0807-
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 0807-
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 0807-1108
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1109-1212
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301-
