Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11130 - FVZ(THAI)EURO3
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

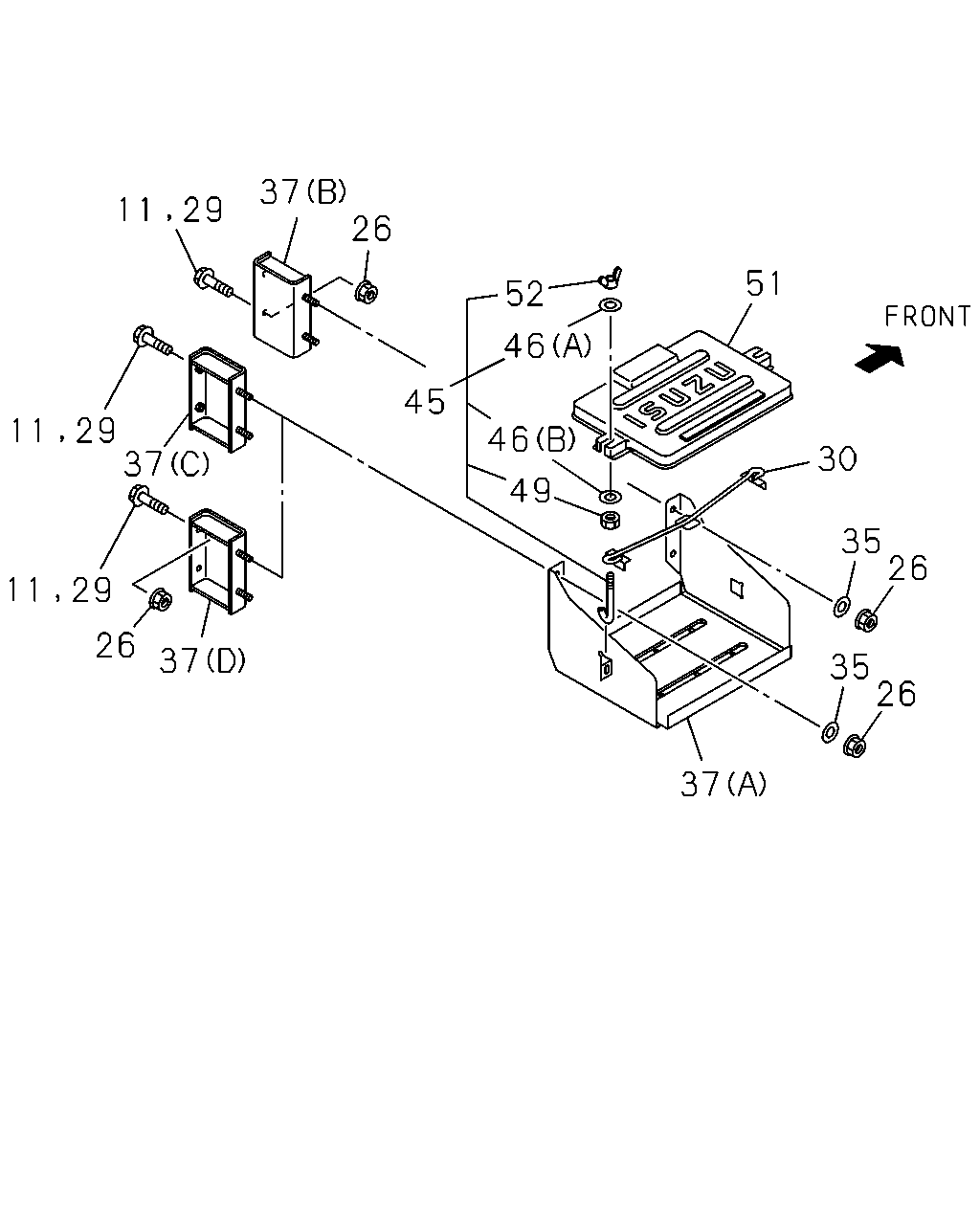

5-20 — BATTERY CARRIER
(#66912) — 24 parça
37
26
29
11
51
52
46
45
29
37
11
46
30
49
35
26
29
11
26
37
35
26
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M10X40 FLANGE THA
0-28651-040-0
04
1
1103-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
0807-1102
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1103-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1103-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
0807-1102
29
BOLT; BRKT TO FRAME
M10X35 FLANGE THA
0-28051-035-0
04
1
0807-0807
29
BOLT; BRKT TO FRAME
M10X40 FLANGE THA
0-28651-040-0
04
1
0808-1102
30
PLATE; BATTERY
THA
8-97910-232-0
01
1
0807-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 THA
0-91614-610-0
04
1
0807-
37
BRACKET; BATTERY
(B) THA
8-97948-024-0
01
1
1211-
37
BRACKET; BATTERY
(C)
8-98070-047-0
01
1
0807-0906
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
0907-1102
37
BRACKET; BATTERY
(D) THA
8-98162-291-0
01
1
1103-
37
BRACKET; BATTERY
(B)
8-98088-828-0
01
1
0807-1102
37
BRACKET; BATTERY
(A) THA
8-97923-653-1
01
1
0807-
37
BRACKET; BATTERY
(B)
8-98088-828-0
01
1
1103-1210
45
ROD; TENSION,BATTERY
THA
8-97915-640-1
02
1
0807-1304
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1305-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 THA
0-91610-608-0
02
1
0807-1304
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 THA
0-91614-608-0
02
1
1305-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
0807-
49
NUT; ROD,BATTERY
M8 THA
0-91110-508-0
02
1
0807-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
0807-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
0807-
