◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#6691) — 42 parça

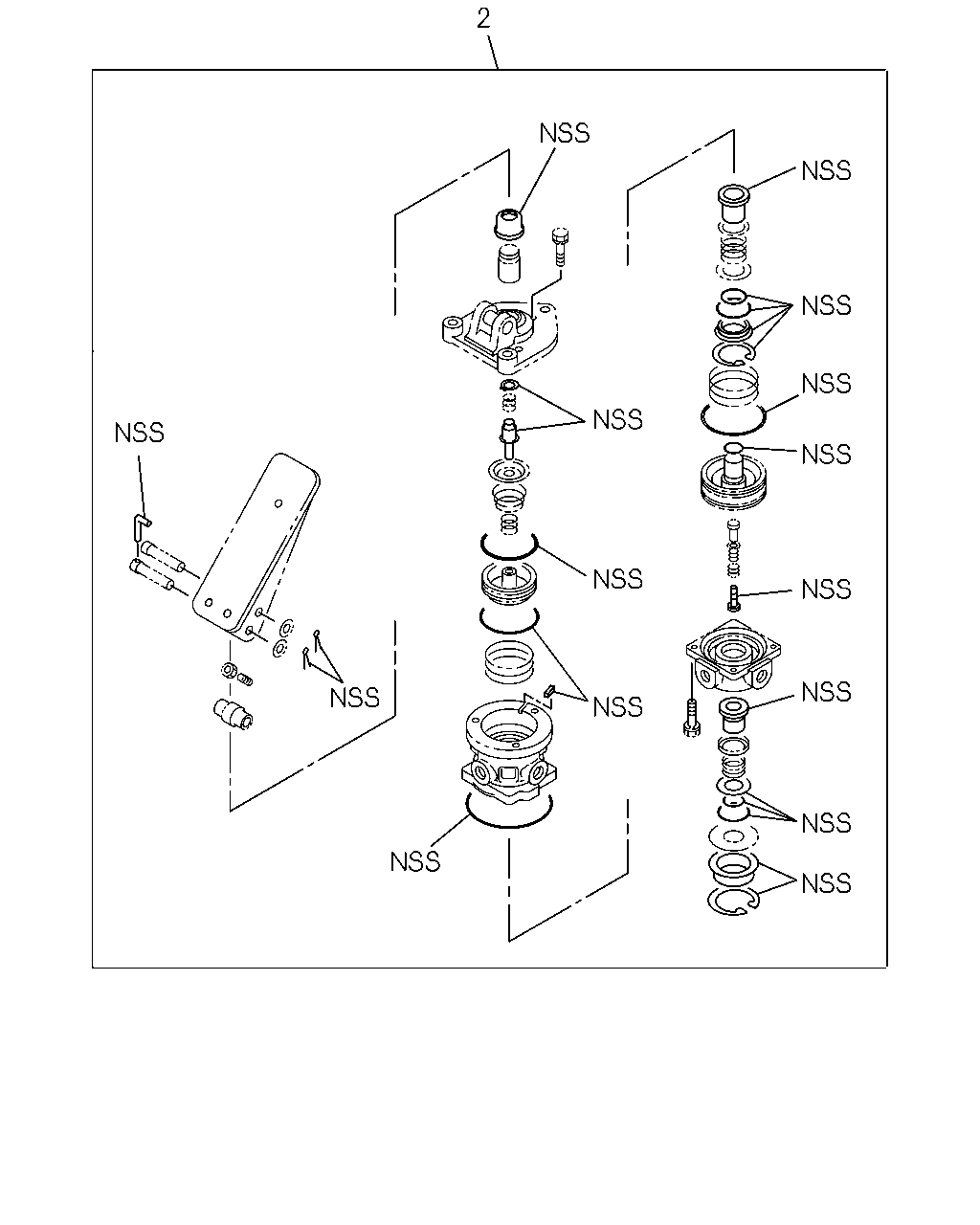

çizim 8083
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 1-85576-182-0 01 1 0011-0201 ● ●
2 REPAIR KIT; BRK VLV 1-85576-285-0 01 1 0202- ● ●

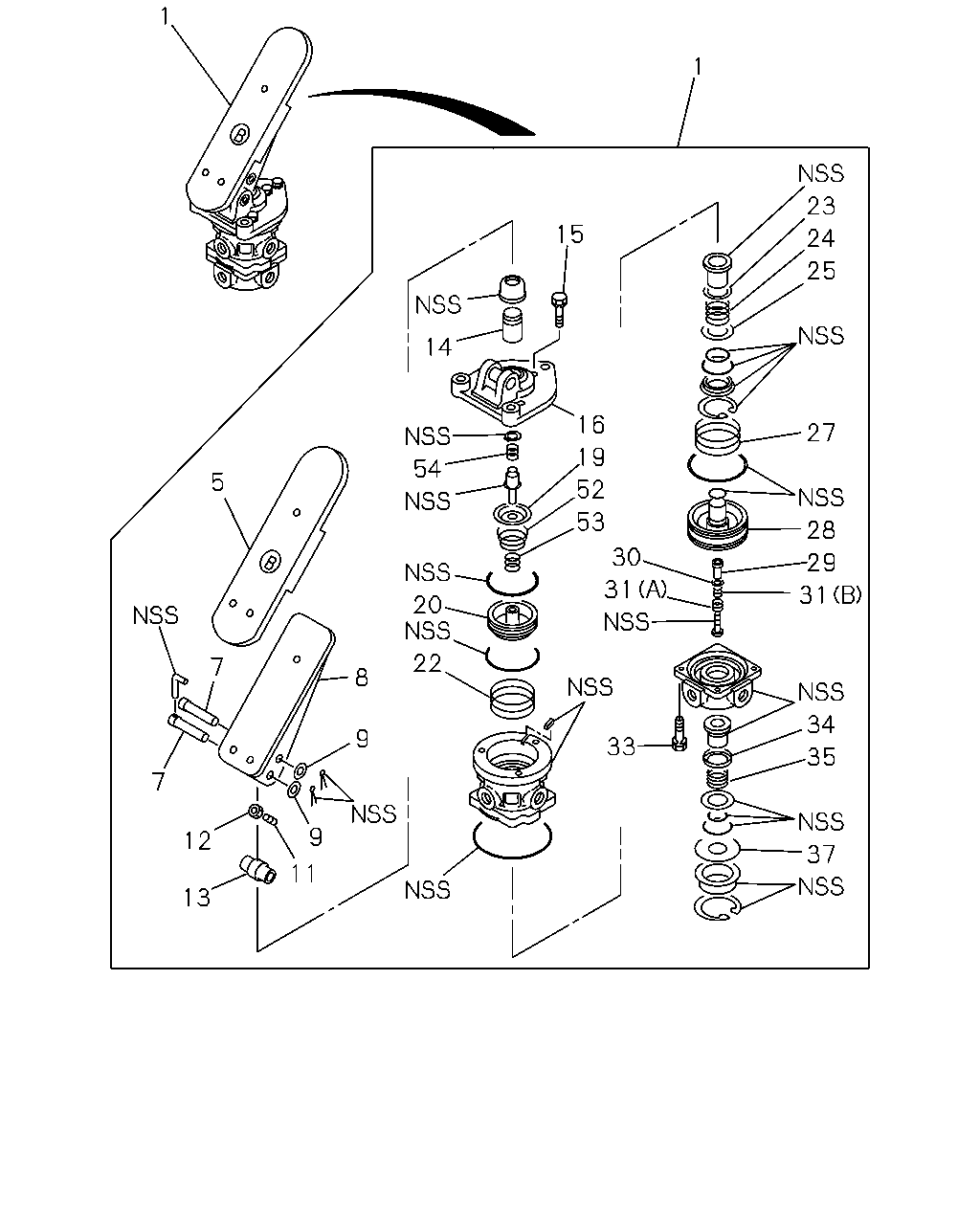

çizim 42396
1 1 23 15 24 25 14 16 27 19 54 5 52 53 28 30 29 31 31 20 22 7 8 34 9 33 35 7 9 12 37 11 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK 1-48100-775-0 01 1 0011-0201 ● ●
1 VALVE; BRK 1-48100-844-0 01 1 0202- ● ●
5 COVER; PEDAL,BRK VLV 1-48119-333-0 01 1 0011-0201 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0202- ● ●
7 PIN; PEDAL,BRK VLV 1-48119-244-0 02 1 0011-0201 ● ●
7 PIN; PEDAL,BRK VLV 1-48119-431-0 02 1 0202- ● ●
8 PEDAL; BRK VLV 1-48119-332-0 01 1 0011-0201 ● ●
8 PEDAL; BRK VLV 1-48119-428-0 01 1 0202- ● ●
9 WASHER; PIN,BRK VLV 1-48119-106-0 02 1 0011-0201 ● ●
11 SCREW; SET,BRK VLV 1-48119-245-0 01 1 0011-0201 ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 0202- ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 0011- ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-243-0 01 1 0011-0201 ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0202- ● ●
14 PLUNGER; BRK VLV 1-48119-383-0 01 1 0011-0201 ● ●
14 PLUNGER; BRK VLV 1-48119-561-0 01 1 0202- ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 0011- ● ●
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 0011-0201 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 0202- ● ●
19 SEAT; SPRING,BRK VLV 1-48123-041-0 01 1 0011- ● ●
20 PISTON; UPR,BRK VLV 1-48119-381-0 01 1 0011-0201 ● ●
20 PISTON; UPR,BRK VLV 1-48119-560-0 01 1 0202- ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48123-071-0 01 1 0011- ● ●
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 0011- ● ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 0011- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 0011- ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-055-0 01 1 0011- ● ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 0011-0201 ● ●
28 PISTON; LWR,BRK VLV 1-48129-313-0 01 1 0202- ● ●
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 0011- ● ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 0011- ● ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 0011- ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 0011- ● ●
33 BOLT; BODY,BRK VLV 1-48119-213-0 04 1 0011- ● ●
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 0011- ● ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 0011- ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 0011- ● ●
52 SPRING; PISTON,OUTER,BRK VLV 1-48123-074-0 01 1 0011- ● ●
53 SPRING; PISTON,INNER,BRK VLV 1-48123-068-0 01 1 0011- ● ●
54 SPRING; PISTON,UPR,BRK VLV 1-48123-067-0 01 1 0011- ● ●
