5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

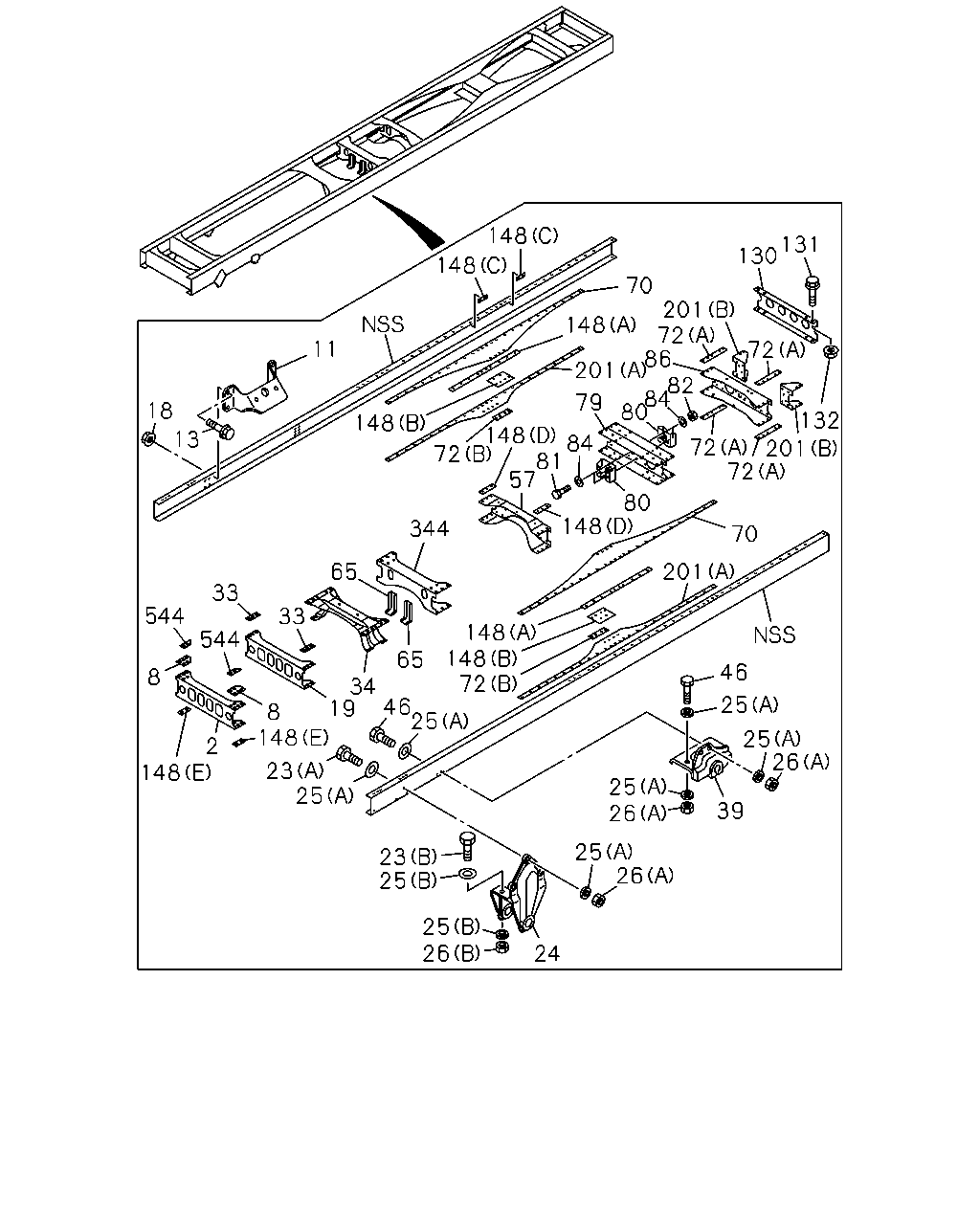

5-01 — FRAME AND OTHER PARTS
(#66909) — 44 parça
148
131
130
148
70
201
72
86
201
82
84
80
148
148
84
72
81
57
80
148
201
148
148
72
148
11
72
79
18
132
72
13
344
70
65
33
33
544
544
65
46
8
34
25
25
8
148
25
26
2
148
23
25
25
26
39
25
26
23
25
25
26
24
19
46
72
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-6
01
1
0807-
8
GUSSET; 1ST C/MBR
THA
8-97611-027-0
02
1
0807-
11
BRACKET; ENG MTG
8-97619-550-0
02
1
0807-
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE IMA
0-28661-240-0
08
1
0807-
18
NUT; BRKT,ENG MTG
M12 FLANGE THA
0-91180-212-0
08
1
0807-
19
MEMBER; CROSS,2ND
8-97610-853-4
01
1
0807-
23
BOLT; BRKT,SPR
(A) M14X50 THA
0-20951-450-0
06
1
0807-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
0807-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
0807-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
0807-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
0807-
25
WASHER; PL,BRKT
(A) ID=15 THA
8-98010-627-1
28
1
0807-
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
0807-
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
0807-
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
0807-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
0807-
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
0807-1205
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
1206-
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
0807-1205
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
1206-
46
BOLT; BRKT FIX
M14X50 THA
0-20951-450-0
08
1
0807-
57
MEMBER; CROSS,RR SUSP FRT
THA
8-97612-103-1
01
1
0807-
65
BRACKET; CENTER BRG
8-97614-126-0
02
1
0807-
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
0807-
72
SPACER; TRUNNION
(A)
8-97612-110-0
04
1
0807-
72
SPACER; TRUNNION
(B) THA
8-97922-399-0
02
1
0807-
79
MEMBER; CROSS,TRUNNION ASM
THA
8-97612-104-0
01
1
0807-
80
BRACKET; C/MBR
THA
1-53363-068-0
02
1
0807-
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
0807-
82
NUT; BRKT
M14 THA
0-91110-514-0
02
1
0807-
84
WASHER; PL,BRKT
ID=15 THA
8-98010-627-1
04
1
0807-
86
MEMBER; CROSS,RR SUSP RR
THA
8-97924-655-0
01
1
0807-
130
MEMBER; CROSS,END
THA
8-97916-031-0
01
1
0807-
131
BOLT; END C/MBR
M12X30 W/LK WASHER THA
0-50541-230-0
04
1
0807-
132
NUT; END C/MBR
M12 THA
0-91110-512-0
04
1
0807-
148
SPACER; C/MBR
(E)
8-97611-039-0
02
1
0807-
148
SPACER; C/MBR
(D) THA
8-97612-109-0
02
1
0807-
148
SPACER; C/MBR
(C)
8-97612-111-0
04
1
0807-
148
SPACER; C/MBR
(A)
8-97612-112-0
02
1
0807-
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
0807-
201
GUSSET; C/MBR
(B) THA
8-97612-108-2
02
1
0807-
201
GUSSET; C/MBR
(A)
8-97618-440-1
02
1
0807-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
0807-
544
PLATE; CAB FRT MTG
8-97615-598-0
02
1
0807-
