◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11130 - FVZ(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#66904) — 35 parça

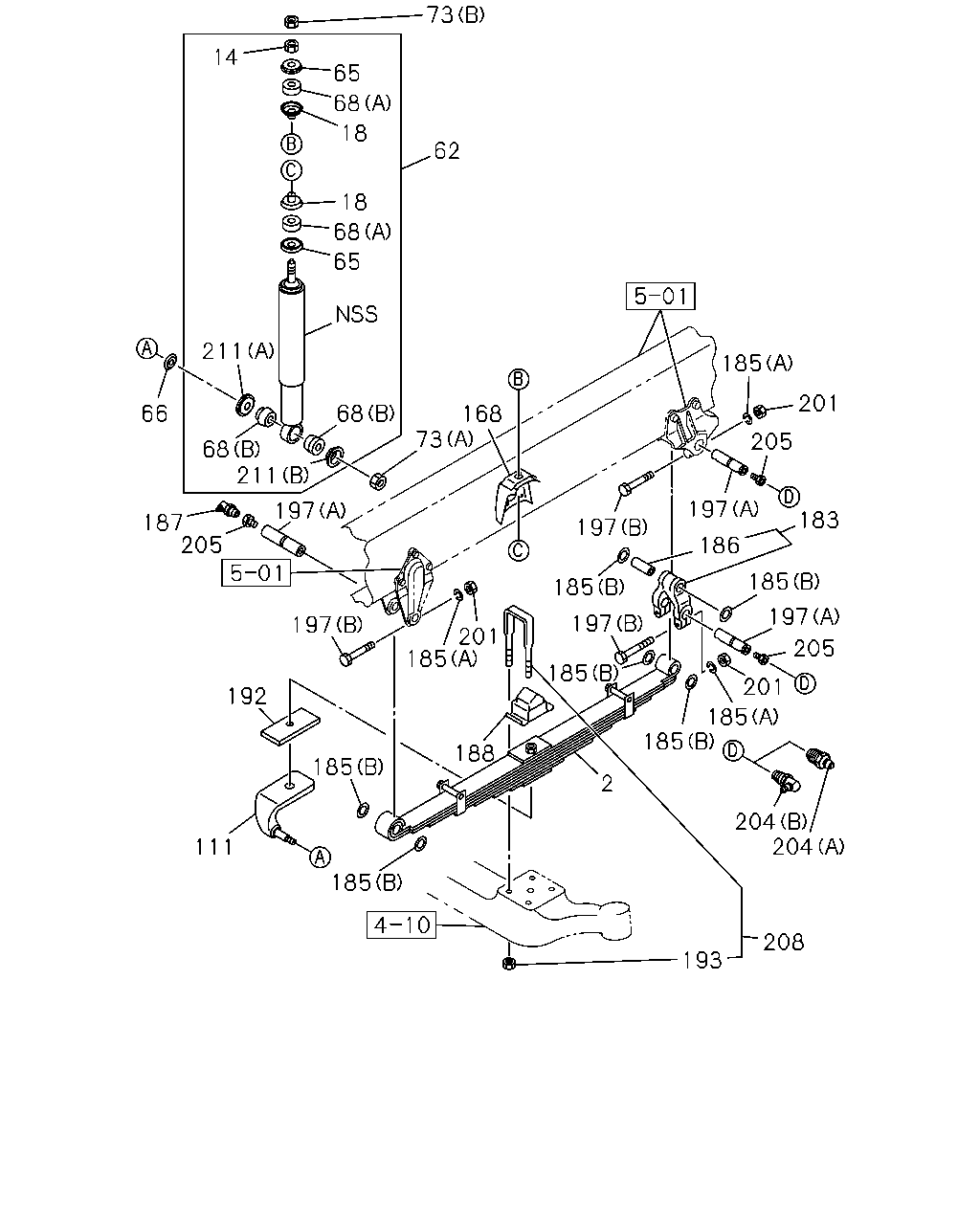

çizim 193563
73 14 65 68 18 62 18 68 65 211 185 201 68 66 168 73 205 68 211 183 197 197 187 205 197 186 185 185 197 197 197 201 185 205 185 201 192 185 185 188 185 2 204 204 111 185 208 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98029-096-0 02 1 0807-
14 NUT; S/ABS,UPR
M14 THA 		9-99111-414-0 02 1 0807-
18 WASHER; CENTERING,S/ABS
ID=20.8 THA 		9-51631-041-0 04 1 0807-
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-233-0 02 1 0807-
65 WASHER; S/ABS
ID=16.5 THA 		9-51631-040-0 04 1 0807-
66 WASHER; LK,S/ABS SETTING
ID=21 THA 		0-91610-520-0 02 1 0807-
68 BUSHING; S/ABS
(B) THA 		9-51631-026-0 04 1 0807-
68 BUSHING; S/ABS
(A) THA 		9-51631-039-0 04 1 0807-
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 0807-
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 0807-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-825-1 01 1 0807-1004
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-193-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-826-1 01 1 0807-1004
111 SUPPORTER; S/ABS,FRT SUSP 8-98121-195-0 01 1 1005-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0807-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0807-
185 WASHER; LK,PIN
(A) ID=12.2 THA 		0-91510-612-0 12 1 0807-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 0807-
186 BUSHING; SHACKLE
OD=38 THA 		1-51351-009-0 02 1 0807-0902
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0807-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 0807-
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 0807-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0807-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 0807-
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 0807-
201 NUT; PIN LK
M12 THA 		0-91110-512-0 12 1 0807-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 0807-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 0807-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0807-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 0807-1206
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-
211 WASHER; BRKT,SHOCK
(A) ID=27 THA 		9-51631-027-0 02 1 0807-
211 WASHER; BRKT,SHOCK
(B) ID=21 THA 		9-51631-028-0 02 1 0807-
