3-20 — AIR TANK
(#6688) — 61 parça
Tümü
A - FTR5MC
B - FTR5MF
◀

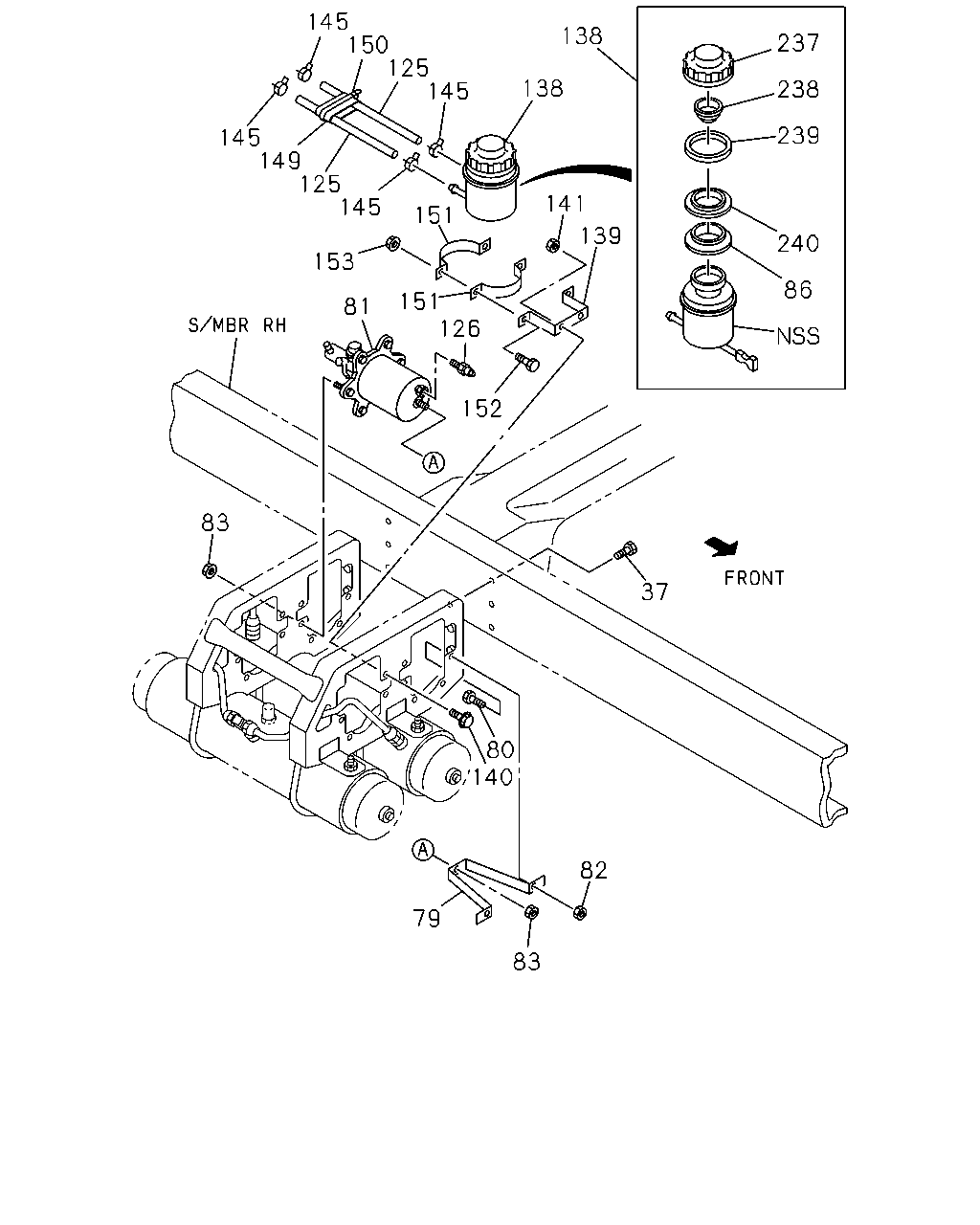

[320A] NO.2 (34 parça)

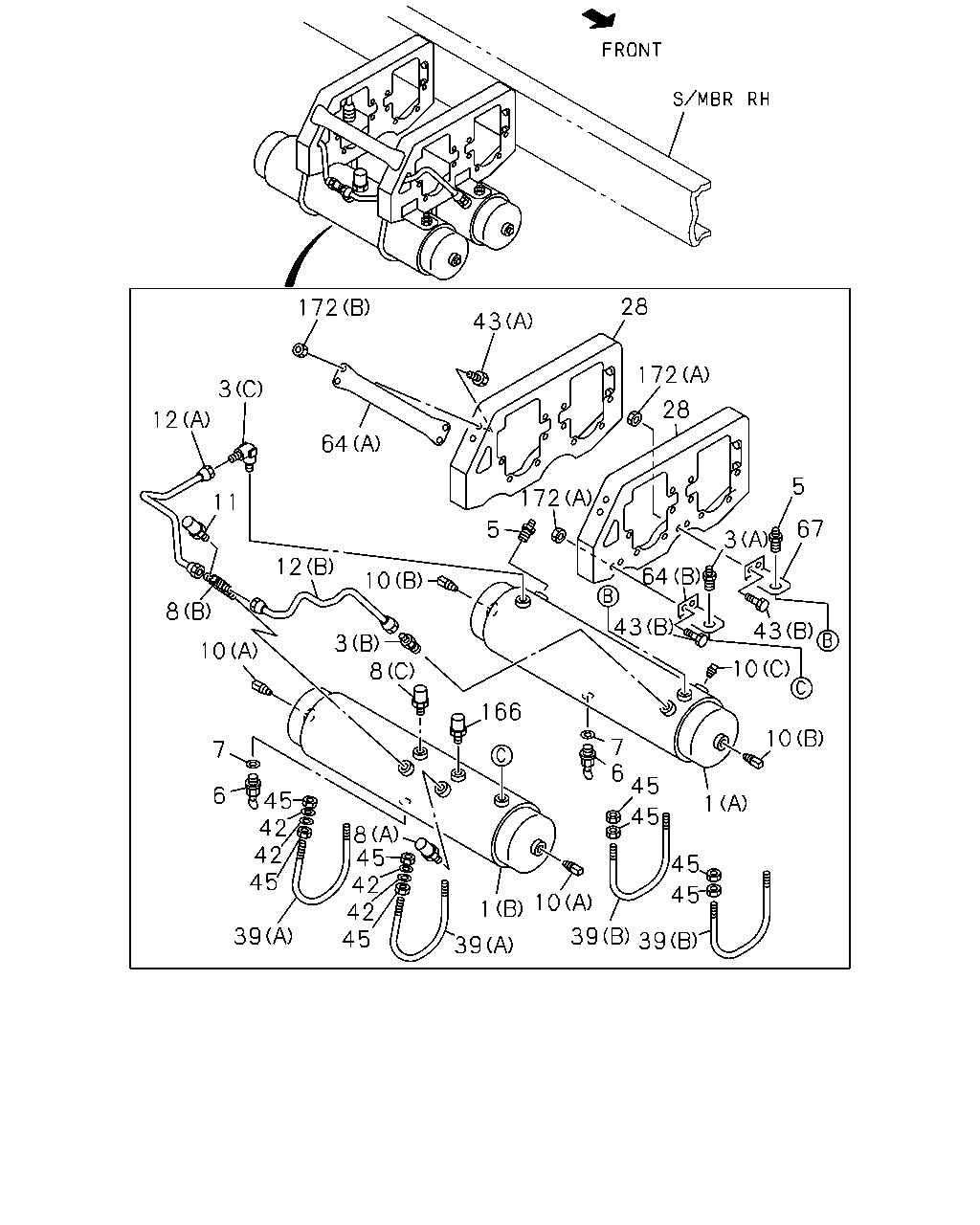

[320A] NO.1 (27 parça)
▶
28
172
43
172
3
28
12
64
172
5
11
67
5
3
64
12
10
43
8
43
3
8
10
10
166
10
7
6
45
7
6
45
42
42
45
1
45
8
45
42
42
45
45
45
10
1
39
39
39
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK ASM; AIR
(B)
1-48370-513-0
01
1
0011-
●
●
1
TANK ASM; AIR
(A)
1-48370-512-2
01
1
0011-
●
●
3
VALVE; CHECK,AIR TANK
(A) M22 & PT3/4 THA
1-48410-136-3
01
1
0011-
●
●
3
VALVE; CHECK,AIR TANK
(B) THA
1-48410-182-3
01
1
0011-
●
●
3
VALVE; CHECK,AIR TANK
(C) M20 & PT3/4 ELBOW THA
1-48410-412-0
01
1
0011-
●
●
5
UNION; AIR TANK
DIN12 & R3/8 STRAIGHT THA
1-09660-965-0
02
1
0011-
●
●
6
COCK; DRAIN,AIR TANK
THA
1-48312-015-0
04
1
0011-
●
●
7
GASKET; DRAIN COCK
ID=14 THA
1-09630-145-0
04
1
0011-
●
●
8
CONNECTOR; AIR TANK
(C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0011-
●
●
8
CONNECTOR; AIR TANK
(A)
1-09650-283-1
01
1
0011-
●
●
8
CONNECTOR; AIR TANK
(B) THA
1-09656-699-0
01
1
0011-
●
●
10
PLUG; AIR TANK
(A) PT3/8 THA
5-09605-005-0
02
1
0011-
●
●
10
PLUG; AIR TANK
(B) THA
8-94403-163-0
03
1
0011-
●
●
10
PLUG; AIR TANK
(C) PT3/4 THA
9-09664-005-0
01
1
0011-
●
●
11
VALVE; SAFETY,AIR TANK
1-48320-012-1
01
1
0011-
●
●
12
PIPE ASM; AIR,AIR TANK TO AIR TANK
(A)
1-47497-011-0
01
1
0011-
●
●
12
PIPE ASM; AIR,AIR TANK TO AIR TANK
(B)
1-47497-012-0
01
1
0011-
●
●
28
BRACKET; AIR TANK
THA
8-97913-537-2
02
1
0011-
●
●
39
U-BOLT; AIR TANK
(A) L=97.5 THA
1-48317-323-1
02
1
0011-
●
●
39
U-BOLT; AIR TANK
(B) L=195 THA
1-48317-367-2
02
1
0011-
●
●
42
WASHER; PL
ID=8.4 OD=18
9-09160-608-0
04
1
0011-0110
●
●
42
WASHER; PL
ID=8.4 OD=18
9-09160-608-0
08
1
0111-
●
●
43
BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE
0-28681-025-0
04
1
0011-0110
●
●
43
BOLT; STAY,AIR TANK,MAIN
M10X25 FLANGE
0-28681-025-0
08
1
0111-
●
●
43
BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE
0-28680-820-0
04
1
0011-
●
●
45
NUT; AIR TANK,MAIN
M8
9-09110-408-0
16
1
0011-0110
●
●
45
NUT; AIR TANK,MAIN
M8
9-09110-408-0
32
1
0111-
●
●
64
STAY; AIR TANK,MAIN
(A)
1-53318-293-1
01
1
0011-
●
●
64
STAY; AIR TANK,MAIN
(B)
8-94301-490-0
01
1
0011-
●
●
67
STAY; SUB TANK
1-48317-349-0
01
1
0011-
●
●
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
530KPA THA
1-48340-054-1
01
1
0011-
●
●
172
NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE
0-91150-210-0
04
1
0011-0110
●
●
172
NUT; STAY,AIR TANK,MAIN
M10 FLANGE
0-91150-210-0
08
1
0111-
●
●
172
NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE
0-91150-108-0
04
1
0011-
●
●
145
150
125
145
138
237
138
238
239
145
149
125
145
141
151
139
240
153
86
151
126
81
152
83
37
80
140
82
79
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
BOLT; AIR TANK
M12X40 FLANGE
0-28681-240-0
06
1
0011-
●
●
79
STAY; AIR MASTER TO BRKT
1-53318-347-0
02
1
0011-
●
●
80
BOLT; BRKT
M10X30 FLANGE
0-28681-030-0
04
1
0011-
●
●
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY
1-47800-663-1
01
1
0011-
●
●
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY
1-47800-664-2
01
1
0011-
●
●
82
NUT; STAY,AIR MASTER BRKT
M10 FLANGE
0-91150-210-0
04
1
0011-
●
●
83
NUT; AIR MASTER
M10 FLANGE
0-91150-210-0
10
1
0011-
●
●
86
SEAL; DUST
1-47529-019-0
01
1
0011-
●
●
125
HOSE; OIL TANK TO AIR MASTER
L=270 SERVICED BY L=1800
1-09360-320-0
02
1
0011-
●
●
126
CONNECTOR; ELBOW
DIN12 & R3/8 STRAIGHT THA
1-09660-965-0
02
1
0011-
●
●
138
TANK ASM; OIL,AIR MASTER
1-47530-170-1
01
1
0011-0011
●
●
138
TANK ASM; OIL,AIR MASTER
1-47530-184-0
01
1
0012-0206
●
●
138
TANK ASM; OIL,AIR MASTER
1-47530-185-0
01
1
0207-
●
●
139
BRACKET; OIL TANK
1-47537-081-2
01
1
0011-
●
●
140
BOLT; OIL TANK TO BRKT
M10X25 FLANGE
0-28681-025-0
02
1
0011-
●
●
141
NUT; OIL TANK TO BRKT
M10 FLANGE
0-91150-210-0
02
1
0011-
●
●
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 THA
1-09704-102-0
04
1
0011-
●
●
149
SLEEVE; RUBBER,HOSE
ID=23 OD=27 L=40
1-09337-015-0
01
1
0011-
●
●
150
CLIP; BAND,RUBBER SLEEVE
L=140
5-09707-031-1
01
1
0011-
●
●
151
BAND; OIL TANK,AIR MASTER
1-47537-056-2
02
1
0011-
●
●
152
BOLT; OIL TANK TO BAND
M8X20 FLANGE
0-28680-820-0
02
1
0011-
●
●
153
NUT; OIL TANK TO BAND
M8
9-09110-408-0
02
1
0011-
●
●
237
CAP; OIL TANK
1-47525-024-0
01
1
0011-0011
●
●
237
CAP; OIL TANK
1-47525-030-0
01
1
0012-
●
●
238
PLATE; BAFFLE
1-47529-022-0
01
1
0011-
●
●
239
FILTER; DUST
1-47529-017-0
01
1
0011-
●
●
240
HOLDER; FILTER
1-47529-018-0
01
1
0011-
●
●
