3-22 — AIR CONTROL PARTS (#66879) — 151 parça

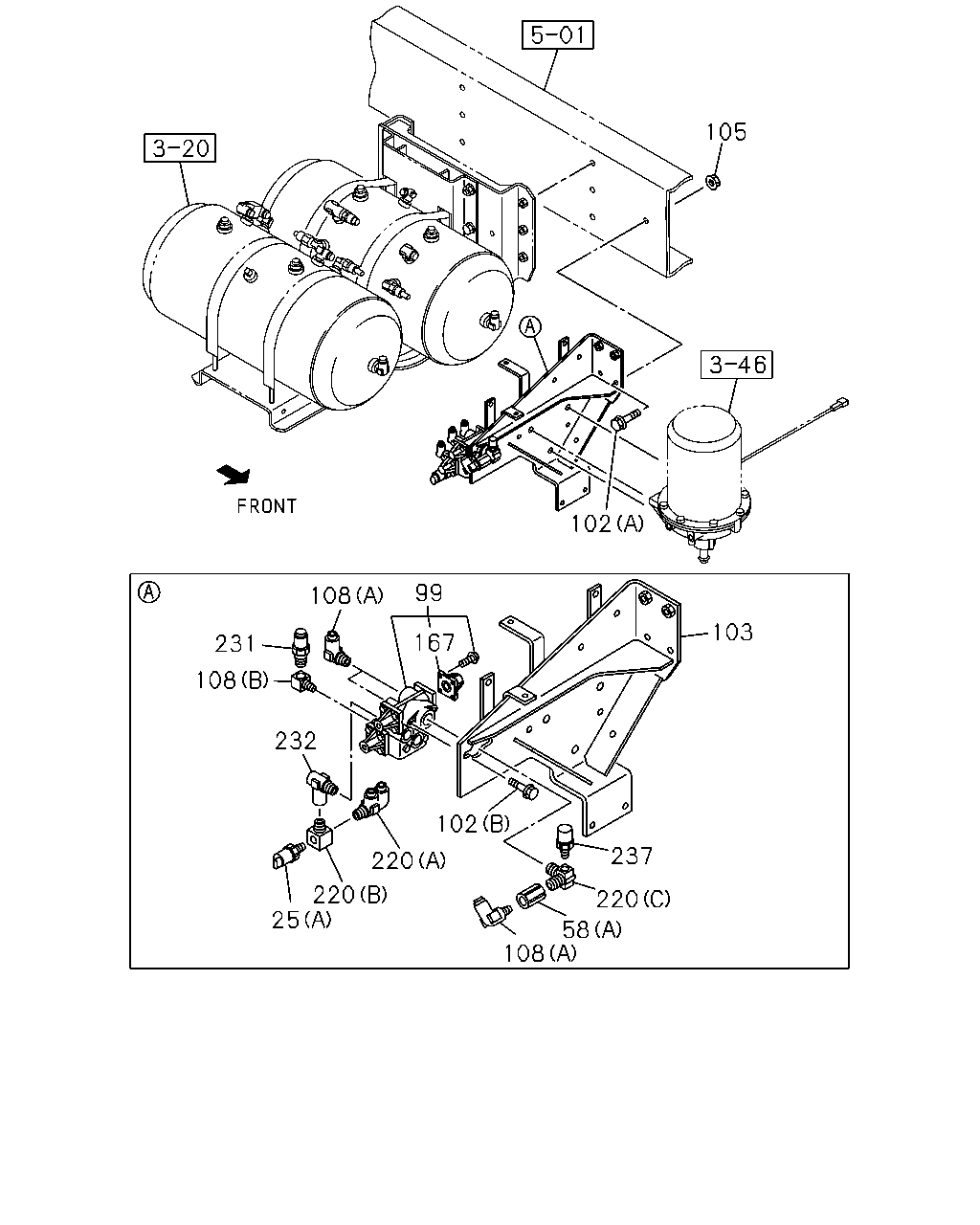

105 102 108 99 167 103 237 220 58 108 102 220 220 25 232 108 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	0807-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0807-
58	ADAPTER (D) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-
58	ADAPTER (E) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-
58	ADAPTER (F) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-
58	ADAPTER (G) THA	8-98031-238-0	01	1	1103-
58	ADAPTER (C)	8-98148-475-0	01	1	1103-
58	ADAPTER (B) INNER PT3/8,OUTER M22 THA	1-09650-494-1	05	1	0807-
58	ADAPTER (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	0807-
99	VALVE; PROTECTION THA	1-48110-288-3	01	1	0807-
102	BOLT; PROTECTION VALVE (C) M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE THA	0-28651-035-0	02	1	0807-
103	BRACKET; PROTECTION VALVE	8-98073-219-1	01	1	0807-0905
103	BRACKET; PROTECTION VALVE	8-98119-704-0	01	1	0906-1102
103	BRACKET; PROTECTION VALVE THA	8-98173-454-0	01	1	1103-
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0807-0905
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0807-0905
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0906-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1112-
108	CONNECTOR; ELBOW (E) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1103-
108	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1103-
108	CONNECTOR; ELBOW (C) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1103-1503
108	CONNECTOR; ELBOW (C) M12 & PT1/4 ELBOW IMA	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0807-1109
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0807-
167	COVER; VALVE THA	1-48119-625-0	04	1	0807-1506
220	CONNECTOR; 3WAY (B) IMA	1-09656-708-0	01	1	0807-1102
220	CONNECTOR; 3WAY (A) DIN8X2 & PT3/8 DOUBLE ELBOW THA	1-09661-025-0	01	1	0807-1102
220	CONNECTOR; 3WAY (C) THA	8-98031-238-0	01	1	0807-1102
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0807-1102
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	0807-
237	VALVE; SAFETY	1-48320-012-2	01	1	0807-

13 54 48 49 158 157 216 54 13 54 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	0807-
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE THA	0-28650-825-0	02	1	0807-
49	NUT; QUICK RELEASE VLV M8 FLANGE THA	0-91180-108-0	02	1	0807-
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	0807-
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0807-
54	CONNECTOR; QUICK RELEASE VLV (C) IMA	1-09661-207-0	01	1	0807-
157	RETAINER; VALVE (A)	1-48213-002-0	03	1	0807-1111
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1112-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0807-
158	SPRING; VALVE (A)	1-47819-089-0	03	1	0807-1111
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1112-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0807-
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0807-1109
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0807-

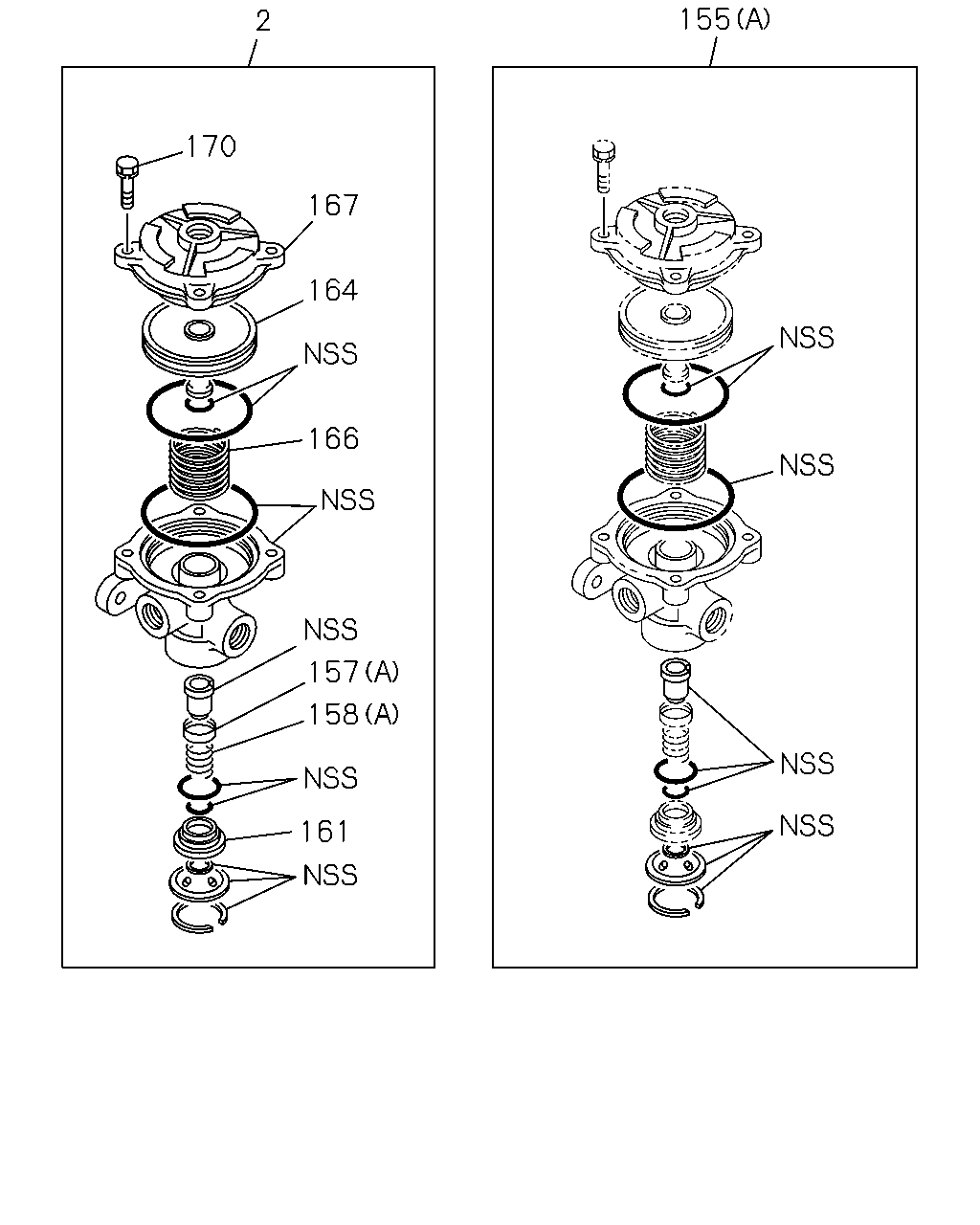

155 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	03	1	0807-1111
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	03	1	0807-1111
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	1112-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0807-
157	RETAINER; VALVE (A)	1-48213-002-0	03	1	0807-1111
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	1112-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0807-
158	SPRING; VALVE (A)	1-47819-089-0	03	1	0807-1111
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1112-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0807-
161	GUIDE; VALVE	1-48129-014-0	03	1	0807-1111
164	PISTON; RELAY VALVE	1-48219-071-0	03	1	0807-1111
166	SPRING; PISTON	1-47819-090-0	03	1	0807-1111
167	COVER; VALVE THA	1-48119-625-0	04	1	0807-1506
170	SCREW; COVER TO BODY	1-48219-039-0	12	1	0807-1111

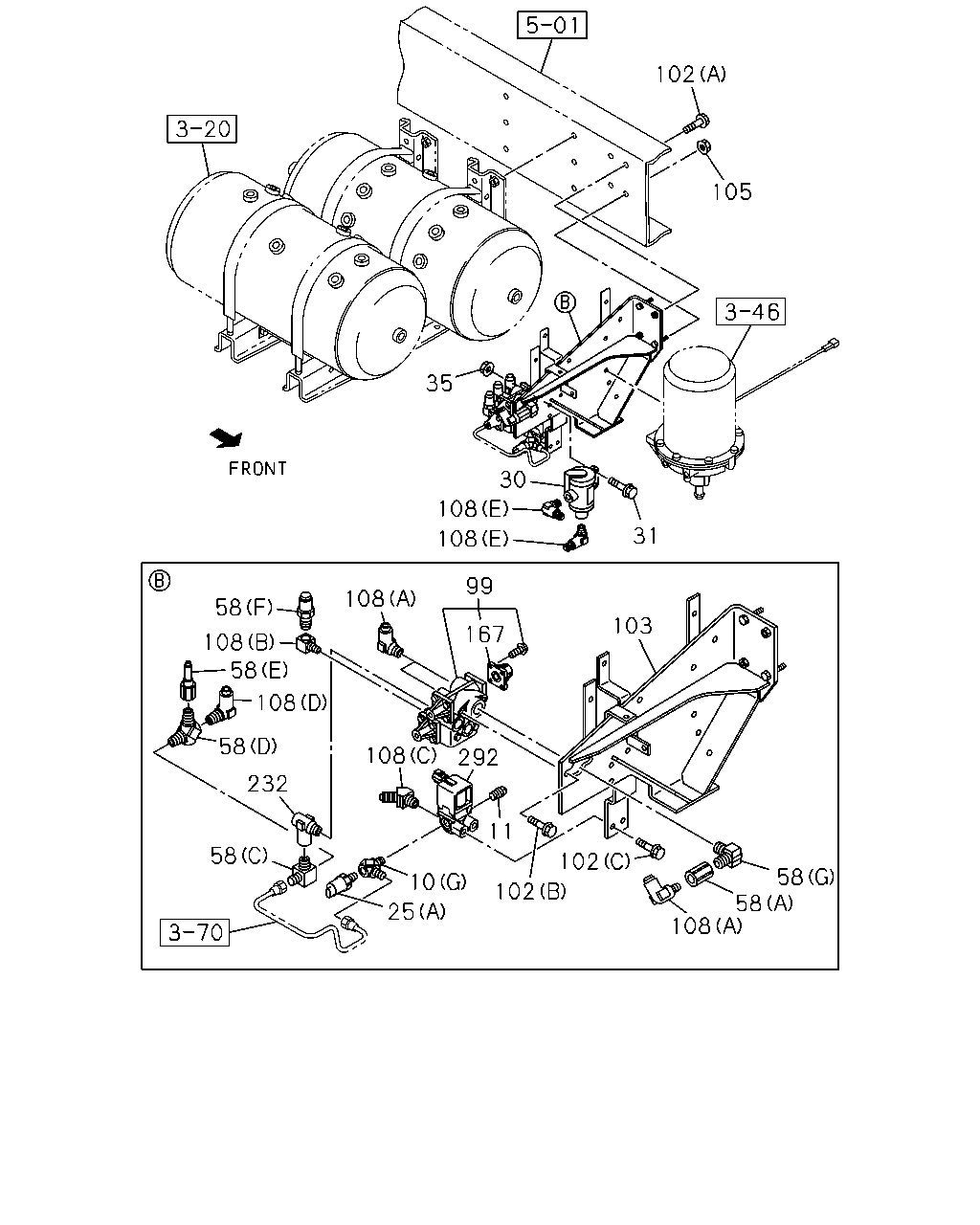

102 105 35 108 30 108 31 103 99 167 108 58 108 58 108 58 232 58 25 10 108 292 11 102 102 108 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR (G) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-
10	CONNECTOR (F) IMA	1-09656-708-0	01	1	0807-
10	CONNECTOR (D) PT1/4 2WAY THA	1-09660-693-0	01	1	0807-
10	CONNECTOR (A) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	02	1	0807-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0807-
10	CONNECTOR (E) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	02	1	0807-
11	PLUG PT1/4 THA	9-99204-513-0	01	1	1103-
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	0807-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0807-
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1103-
31	BOLT; GOV TO FRAME M8X30 FLANGE THA	0-28650-830-0	02	1	1103-
35	NUT; GOV TO FRAME M8 FLANGE THA	0-91180-108-0	02	1	1103-
58	ADAPTER (D) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-
58	ADAPTER (E) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-
58	ADAPTER (F) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-
58	ADAPTER (G) THA	8-98031-238-0	01	1	1103-
58	ADAPTER (C)	8-98148-475-0	01	1	1103-
58	ADAPTER (B) INNER PT3/8,OUTER M22 THA	1-09650-494-1	05	1	0807-
58	ADAPTER (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	0807-
99	VALVE; PROTECTION THA	1-48110-288-3	01	1	0807-
102	BOLT; PROTECTION VALVE (C) M8X20 FLANGE THA	0-28650-820-0	02	1	1103-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE THA	0-28651-035-0	02	1	0807-
103	BRACKET; PROTECTION VALVE	8-98073-219-1	01	1	0807-0905
103	BRACKET; PROTECTION VALVE	8-98119-704-0	01	1	0906-1102
103	BRACKET; PROTECTION VALVE THA	8-98173-454-0	01	1	1103-
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0807-0905
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0807-0905
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0906-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1112-
108	CONNECTOR; ELBOW (E) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1103-
108	CONNECTOR; ELBOW (D) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1103-
108	CONNECTOR; ELBOW (C) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1103-1503
108	CONNECTOR; ELBOW (C) M12 & PT1/4 ELBOW IMA	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0807-1109
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0807-
167	COVER; VALVE THA	1-48119-625-0	04	1	0807-1506
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	0807-
292	VALVE ASM; MAGNETIC	1-82563-871-2	01	1	1103-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1103-

8 73 56 12 2 5 55 52 12 4 12 12 12 52 2 52 5 56 73 12 8 55 12 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	03	1	0807-1111
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0807-1111
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE THA	0-28651-035-0	04	1	0807-
5	NUT M10 FLANGE THA	0-91180-210-0	06	1	0807-1111
5	NUT M10 FLANGE THA	0-91180-210-0	04	1	1112-
8	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	04	1	0807-
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	02	1	0807-1111
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	1112-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0807-1111
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1112-
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	0807-
52	CONNECTOR; RELAY VLV (A) DIN8X2 & R3/8 3WAY THA	1-09660-996-0	01	1	0807-
52	CONNECTOR; RELAY VLV (B) PT3/8 3WAY THA	1-09661-300-0	02	1	0807-1111
52	CONNECTOR; RELAY VLV (B) DIN9 & RC3/8 ELBOW THA	8-98203-578-0	02	1	1112-
55	PLUG; SUPPLY PT3/8 THA	9-09204-517-0	02	1	0807-
56	BRACKET; RELAY VLV	8-98094-850-0	02	1	0807-
73	NUT; BRKT M10 FLANGE THA	0-91180-210-0	04	1	0807-

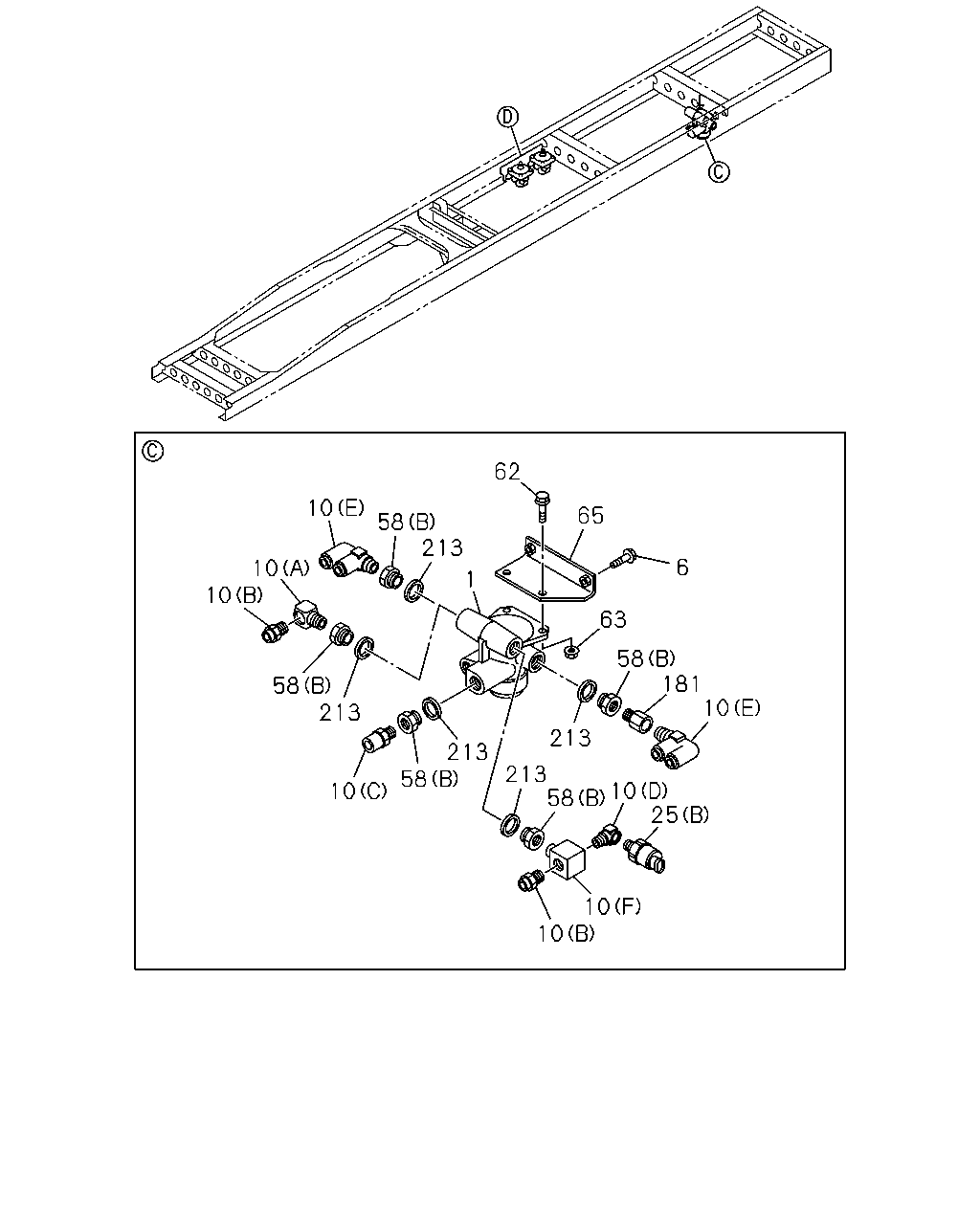

62 10 65 58 213 6 10 10 1 63 58 181 10 58 213 213 213 58 213 10 58 25 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0807-
6	BOLT; VLV M8X35 FLANGE THA	0-28650-835-0	02	1	0807-
10	CONNECTOR (G) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-
10	CONNECTOR (F) IMA	1-09656-708-0	01	1	0807-
10	CONNECTOR (D) PT1/4 2WAY THA	1-09660-693-0	01	1	0807-
10	CONNECTOR (A) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	02	1	0807-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0807-
10	CONNECTOR (E) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	02	1	0807-
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	0807-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0807-
58	ADAPTER (D) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-
58	ADAPTER (E) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-
58	ADAPTER (F) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-
58	ADAPTER (G) THA	8-98031-238-0	01	1	1103-
58	ADAPTER (C)	8-98148-475-0	01	1	1103-
58	ADAPTER (B) INNER PT3/8,OUTER M22 THA	1-09650-494-1	05	1	0807-
58	ADAPTER (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	0807-
62	BOLT; BRKT FIX M8X30 FLANGE THA	0-28650-830-0	02	1	0807-
63	NUT; BRKT FIX M8 FLANGE THA	0-91180-108-0	02	1	0807-
65	BRACKET; RELAY VLV RR THA	1-47471-032-0	01	1	0807-
181	ADAPTER; PRESSURE SW PT3/8 THA	1-09664-210-0	01	1	0807-
213	GASKET ID=22.5 THA	9-09571-422-0	05	1	0807-

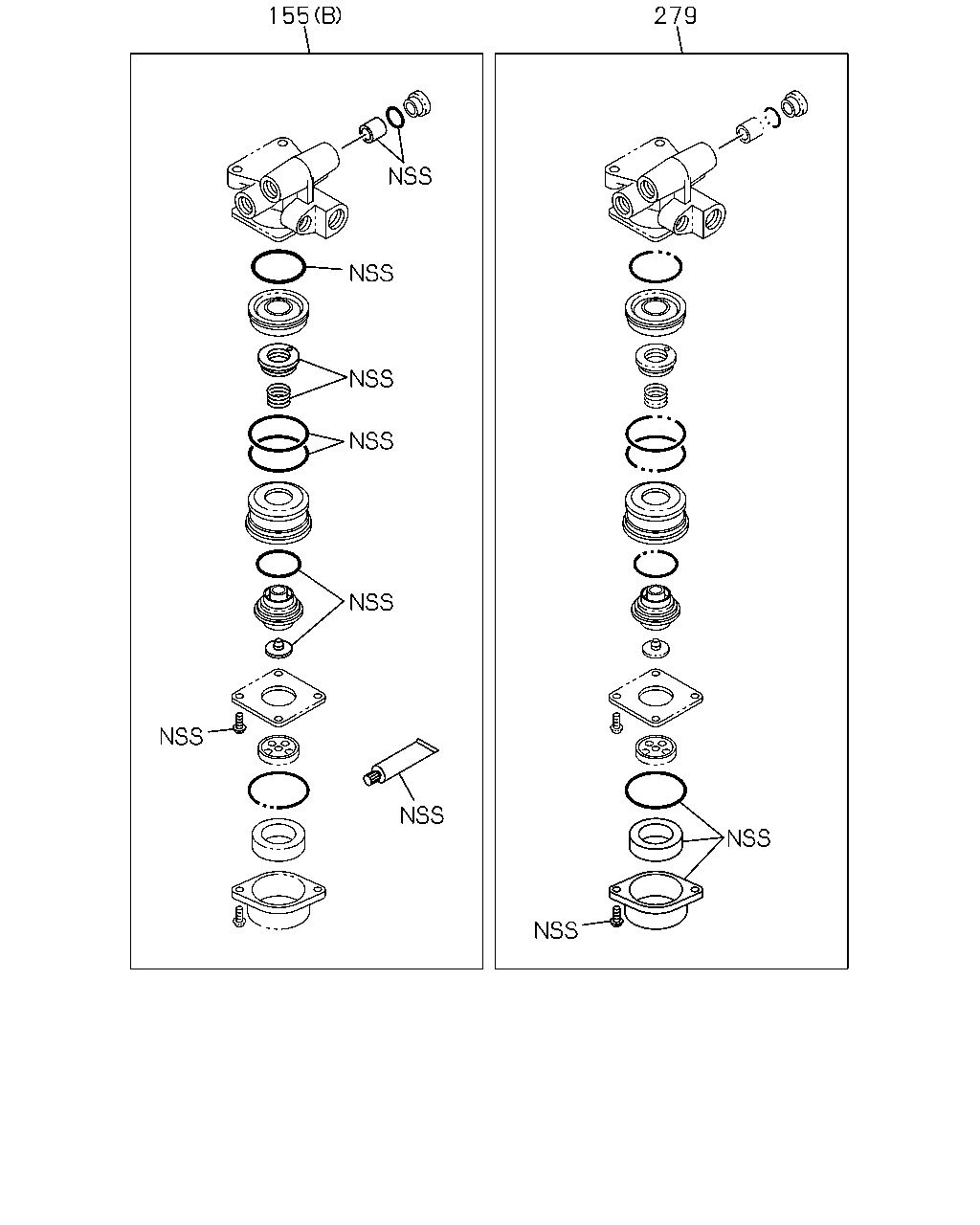

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	03	1	0807-1111
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	1112-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0807-
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	0807-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE THA	1-85576-451-1	01	1	1103-1506
