3-20 — AIR TANK (#66878) — 199 parça

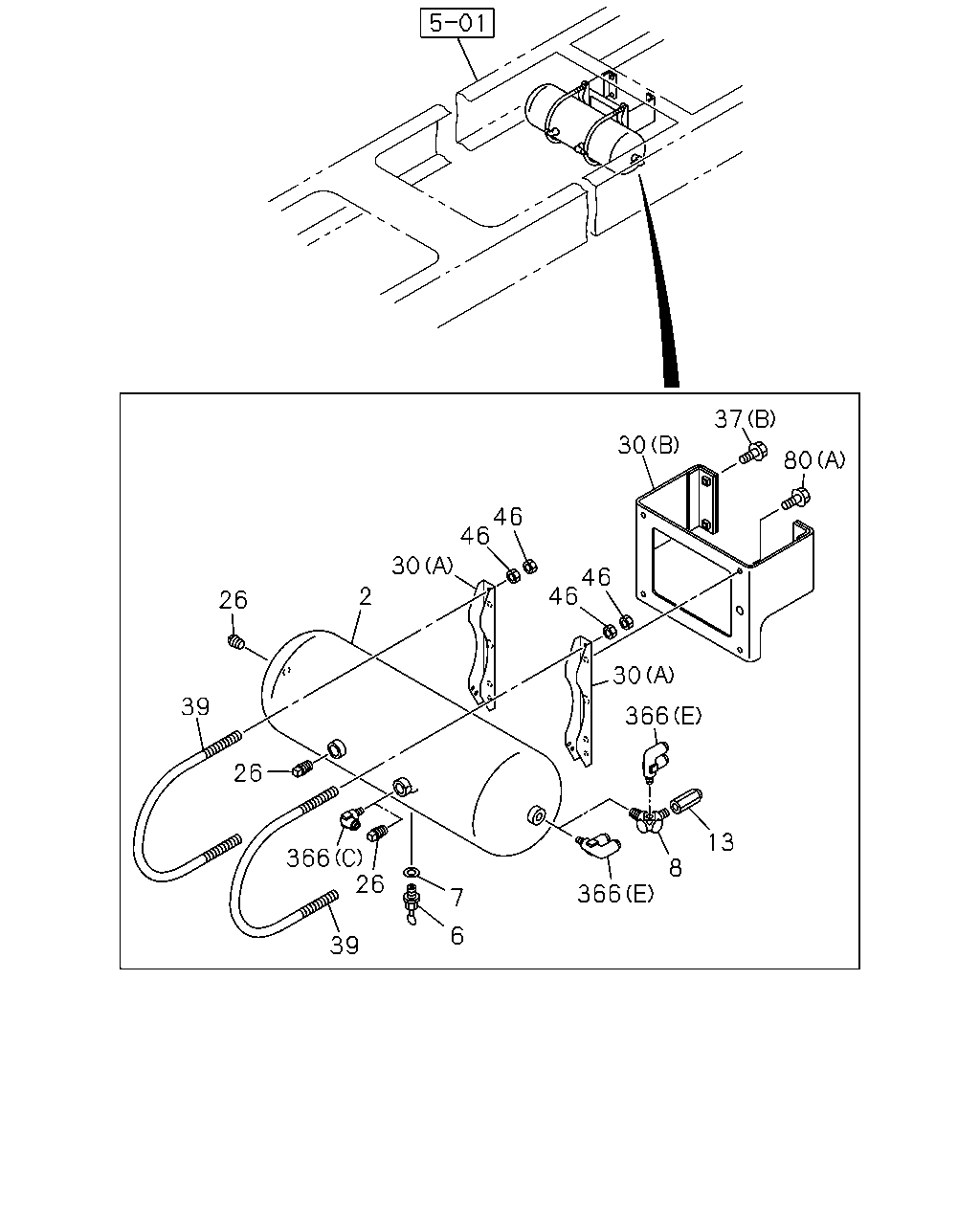

çizim 115371
37 30 80 46 46 30 46 46 2 26 30 39 366 26 13 366 26 8 366 7 6 39
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
THA 		8-98202-947-0 01 1 1204-
2 TANK; AIR 1-48370-477-0 01 1 0807-1206
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 0807-1109
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1110-1112
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1201-1203
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 0807-1109
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1201-1203
8 CONNECTOR; AIR TANK 1-09656-557-1 01 1 1204-1207
8 CONNECTOR; AIR TANK
M16 & R3/8 THA 		8-98204-239-0 01 1 1208-
8 CONNECTOR; AIR TANK
M16 & R3/8 THA 		8-98204-239-0 01 1 1110-1203
8 CONNECTOR; AIR TANK 1-09656-557-1 01 1 0808-1109
13 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT THA 		1-09660-876-0 01 1 0809-
26 PLUG; SUB AIR TANK
PT3/8 THA 		9-09204-517-0 03 1 0809-
26 PLUG; SUB AIR TANK
PT3/8 THA 		9-09204-517-0 02 1 0807-0808
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-287-2 02 1 0807-1306
30 BRACKET; AIR TANK,SUB
(A) THA 		8-97948-143-0 02 1 1307-
30 BRACKET; AIR TANK,SUB
(B) 		8-98040-713-1 01 1 0807-
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 06 1 0807-1102
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1103-
37 BOLT; AIR TANK
(B) M10X45 FLANGE THA 		0-28051-045-0 04 1 0807-
39 U-BOLT; AIR TANK 1-48317-289-0 02 1 0807-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 0807-
80 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 04 1 1103-
80 BOLT; BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 0807-1109
366 CONNECTOR; NYLON TUBE
(E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1204-
366 CONNECTOR; NYLON TUBE
(E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1201-1203
366 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 08 1 0807-0807
366 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 0808-1002
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 0807-1109

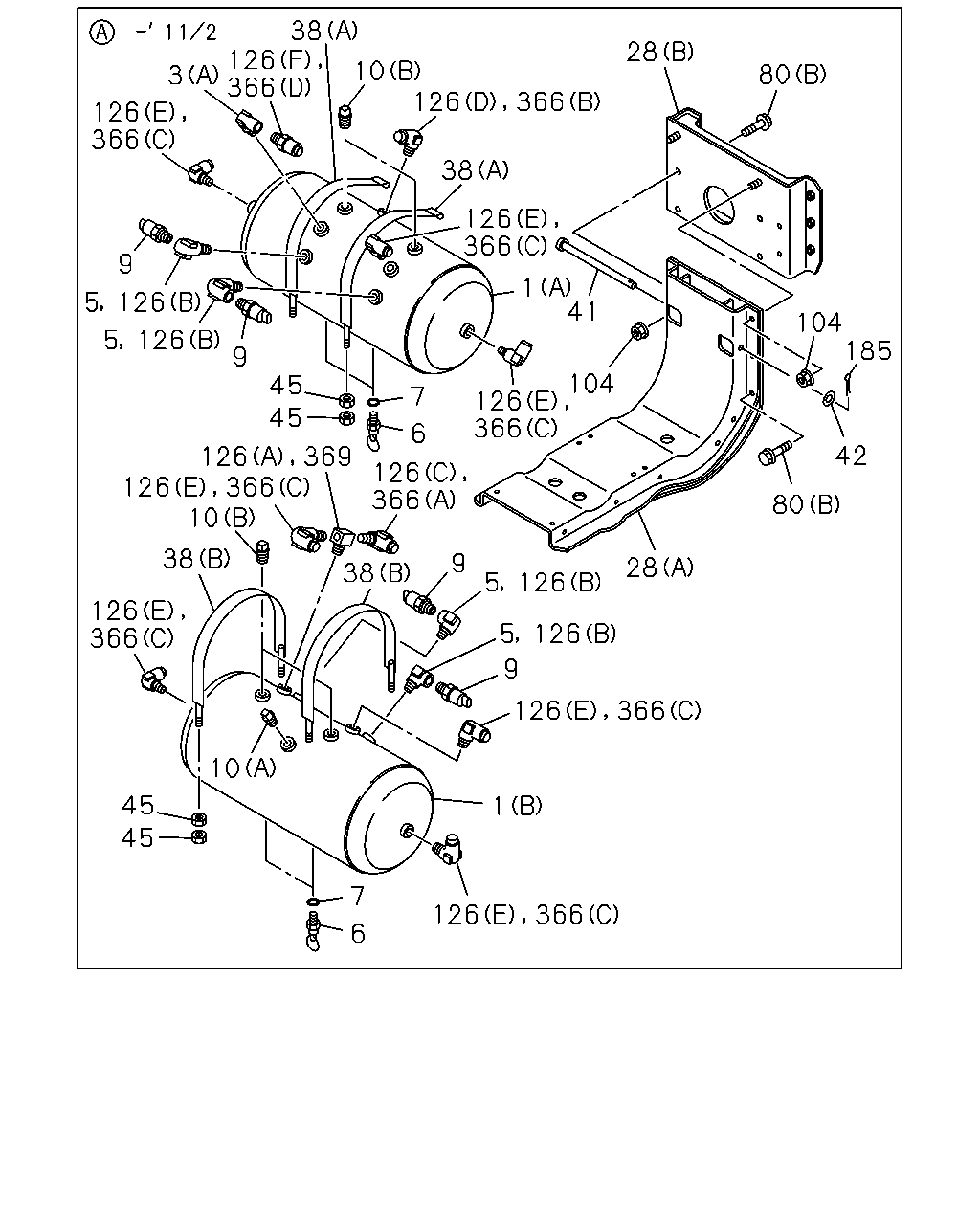

çizim 115443
38 126 366 28 10 80 3 126 366 38 126 366 9 1 41 5 126 104 185 5 126 9 104 126 366 45 45 7 6 42 10 126 366 80 38 9 28 38 5 126 126 366 5 126 9 10 45 45 1 7 6 126 366 369 126 126 366 126 366 366 126
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) THA 		8-98202-945-0 01 1 1204-
1 TANK ASM; AIR
(B) THA 		8-98202-946-0 01 1 1204-
1 TANK ASM; AIR
(A) 		1-48370-181-1 01 1 0807-1203
1 TANK ASM; AIR
(B) 		8-98166-973-0 01 1 1003-1102
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 1103-1203
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 0807-1002
3 VALVE; CHECK,AIR TANK
(A) THA 		1-48320-031-1 01 1 1204-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1204-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1103-1203
3 VALVE; CHECK,AIR TANK
(A) THA 		1-48320-031-1 01 1 0807-1203
5 UNION; AIR TANK
PT1/4 2WAY THA 		1-09660-693-0 04 1 0807-1002
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 0807-1109
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1110-1112
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1201-1203
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 0807-1109
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1201-1203
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA 		8-97609-249-0 04 1 1204-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA 		8-97609-249-0 04 1 0807-1203
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1204-
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 03 1 1204-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 0807-1203
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 0807-1102
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 03 1 1103-1203
28 BRACKET; AIR TANK
(C) 		1-48317-601-5 02 1 1204-
28 BRACKET; AIR TANK
(A) THA 		8-98048-199-0 01 1 0807-1102
28 BRACKET; AIR TANK
(C) 		1-48317-601-5 02 1 1103-1203
28 BRACKET; AIR TANK
(B) THA 		8-98048-200-2 01 1 0807-1102
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 1204-
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 1204-
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 0807-1203
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 0807-1203
41 PIN; BAND FIX
OD=10 L=60 		0-82254-060-0 02 1 1204-
41 PIN; BAND FIX 1-09744-068-0 01 1 0807-1102
41 PIN; BAND FIX
OD=10 L=60 		0-82254-060-0 02 1 1103-1203
42 WASHER; PL
ID=10.5 		0-91614-510-0 02 1 1204-
42 WASHER; PL
ID=10.5 		9-09164-510-0 02 1 0808-0812
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0901-1002
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1003-1102
42 WASHER; PL
ID=10.5 		0-91614-510-0 02 1 1103-1203
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0807-0807
45 NUT; AIR TANK,MAIN
M8 THA 		0-91110-508-0 12 1 1204-
45 NUT; AIR TANK,MAIN
M8 THA 		0-91110-508-0 12 1 0807-1203
80 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 04 1 1103-
80 BOLT; BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 0807-1109
104 NUT; BRKT
M12 FLANGE THA 		0-91180-212-0 02 1 0807-1102
126 CONNECTOR; ELBOW
(G) 		1-09650-283-1 01 1 1204-
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY THA 		1-09660-693-0 04 1 1204-
126 CONNECTOR; ELBOW
(C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1204-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1204-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1204-
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1204-
126 CONNECTOR; ELBOW
(A) IMA 		8-98166-127-0 01 1 1204-
126 CONNECTOR; ELBOW
(G) 		1-09650-283-1 01 1 1103-1203
126 CONNECTOR; ELBOW
(A) IMA 		1-09656-708-0 01 1 1003-1102
126 CONNECTOR; ELBOW
(A) IMA 		8-98166-127-0 01 1 1103-1203
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY THA 		1-09660-693-0 04 1 1003-1203
126 CONNECTOR; ELBOW
(C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1003-1203
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1003-1203
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 1003-1102
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1103-1203
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1003-1203
185 PIN; SNAP
L=32.6 		8-98062-280-0 02 1 1204-
185 PIN; SNAP
L=32.6 		8-98062-280-0 01 1 0807-1102
185 PIN; SNAP
L=32.6 		8-98062-280-0 02 1 1103-1203
366 CONNECTOR; NYLON TUBE
(E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1204-
366 CONNECTOR; NYLON TUBE
(E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1201-1203
366 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 08 1 0807-0807
366 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 0808-1002
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 0807-1109
369 CONNECTOR; 3WAY
IMA 		1-09656-708-0 01 1 0807-1002

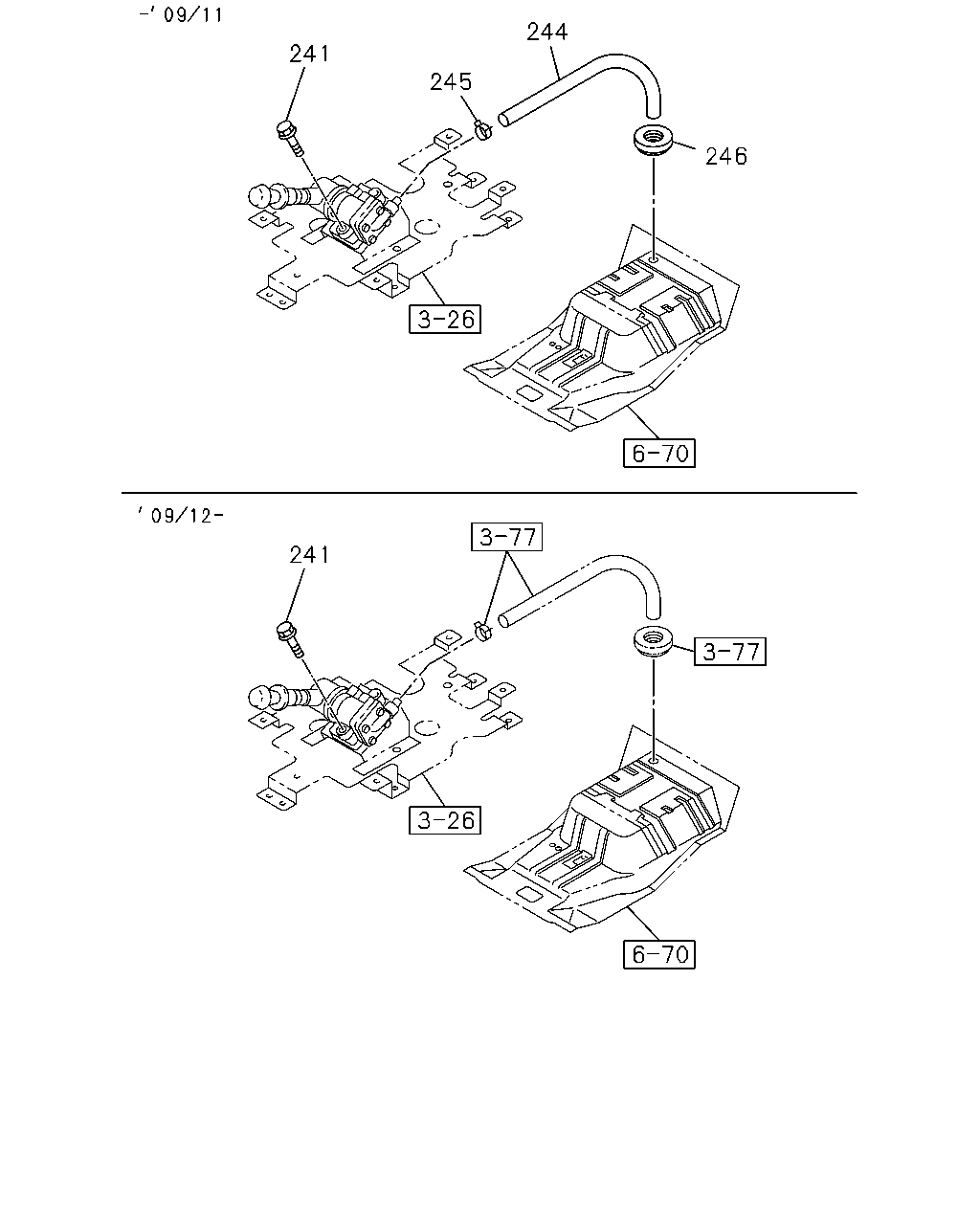

çizim 193499
244 241 245 246 241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X70 FLANGE THA 		0-28050-870-0 02 1 0807-
244 PIPE; VINYL,EXH
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0807-0911
245 CLIP; VINYL PIPE
ID=14 		8-94238-572-0 01 1 0807-0911
246 GROMMET; VINYL PIPE
OD=24 		9-61166-007-0 01 1 0807-0911

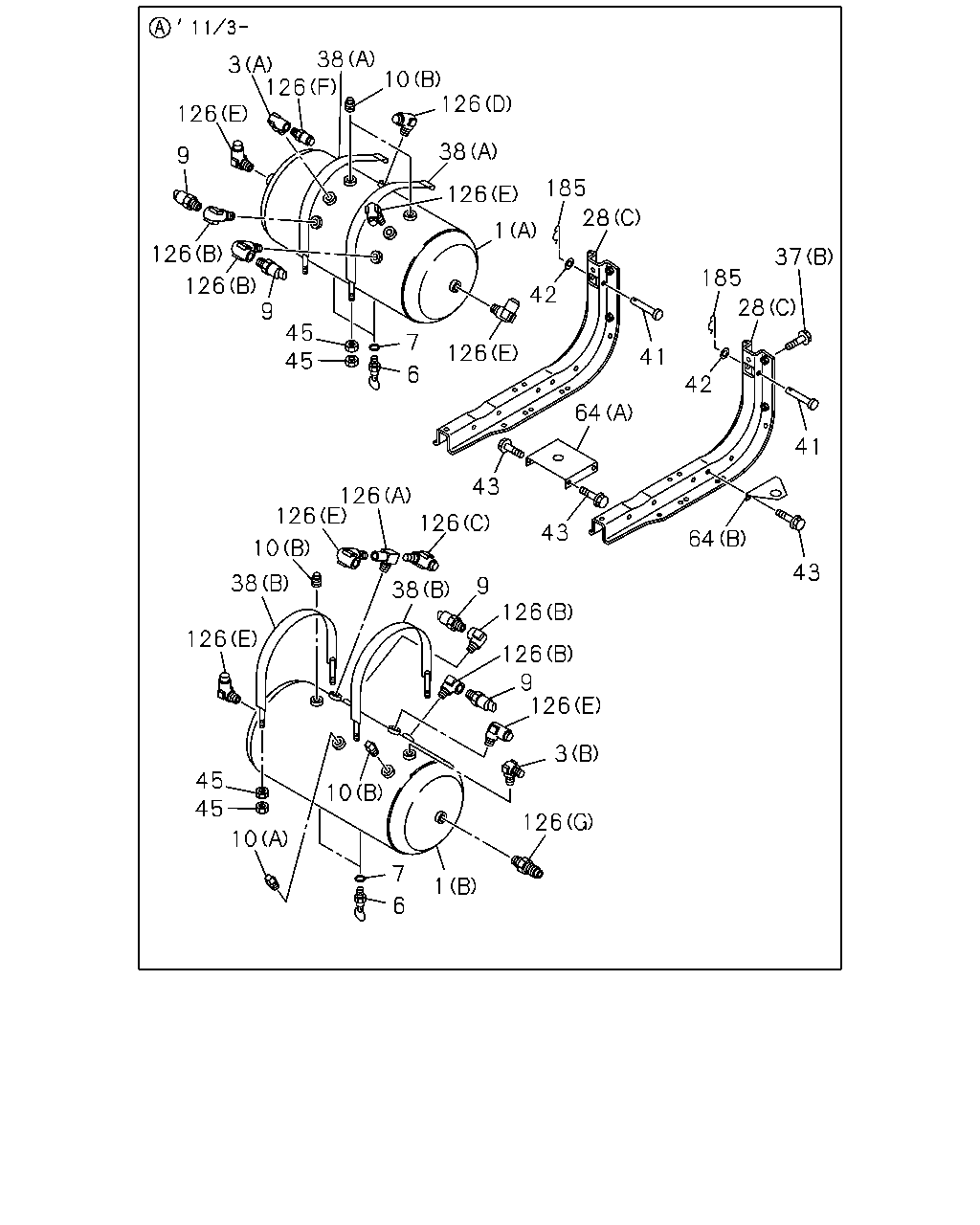

çizim 193546
38 126 3 10 126 126 38 9 185 126 28 126 37 185 126 9 42 28 45 45 7 126 41 6 64 42 41 43 126 126 126 43 64 10 43 38 9 38 126 126 126 9 126 3 10 45 45 126 10 7 1 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) THA 		8-98202-945-0 01 1 1204-
1 TANK ASM; AIR
(B) THA 		8-98202-946-0 01 1 1204-
1 TANK ASM; AIR
(A) 		1-48370-181-1 01 1 0807-1203
1 TANK ASM; AIR
(B) 		8-98166-973-0 01 1 1003-1102
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 1103-1203
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 0807-1002
3 VALVE; CHECK,AIR TANK
(A) THA 		1-48320-031-1 01 1 1204-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1204-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1103-1203
3 VALVE; CHECK,AIR TANK
(A) THA 		1-48320-031-1 01 1 0807-1203
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 0807-1109
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1110-1112
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1201-1203
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 0807-1109
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1201-1203
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA 		8-97609-249-0 04 1 1204-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA 		8-97609-249-0 04 1 0807-1203
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1204-
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 03 1 1204-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 0807-1203
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 0807-1102
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 03 1 1103-1203
28 BRACKET; AIR TANK
(C) 		1-48317-601-5 02 1 1204-
28 BRACKET; AIR TANK
(A) THA 		8-98048-199-0 01 1 0807-1102
28 BRACKET; AIR TANK
(C) 		1-48317-601-5 02 1 1103-1203
28 BRACKET; AIR TANK
(B) THA 		8-98048-200-2 01 1 0807-1102
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 06 1 0807-1102
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1103-
37 BOLT; AIR TANK
(B) M10X45 FLANGE THA 		0-28051-045-0 04 1 0807-
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 1204-
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 1204-
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 0807-1203
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 0807-1203
41 PIN; BAND FIX
OD=10 L=60 		0-82254-060-0 02 1 1204-
41 PIN; BAND FIX 1-09744-068-0 01 1 0807-1102
41 PIN; BAND FIX
OD=10 L=60 		0-82254-060-0 02 1 1103-1203
42 WASHER; PL
ID=10.5 		0-91614-510-0 02 1 1204-
42 WASHER; PL
ID=10.5 		9-09164-510-0 02 1 0808-0812
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0901-1002
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1003-1102
42 WASHER; PL
ID=10.5 		0-91614-510-0 02 1 1103-1203
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0807-0807
43 BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE THA 		0-28650-825-0 06 1 1204-
43 BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE THA 		0-28650-825-0 06 1 1103-1203
45 NUT; AIR TANK,MAIN
M8 THA 		0-91110-508-0 12 1 1204-
45 NUT; AIR TANK,MAIN
M8 THA 		0-91110-508-0 12 1 0807-1203
64 STAY; AIR TANK,MAIN
(A) 		1-48317-607-0 01 1 1204-
64 STAY; AIR TANK,MAIN
(B) 		1-48317-691-0 01 1 1204-
64 STAY; AIR TANK,MAIN
(A) 		1-48317-607-0 01 1 1103-1203
64 STAY; AIR TANK,MAIN
(B) 		1-48317-691-0 01 1 1103-1203
126 CONNECTOR; ELBOW
(G) 		1-09650-283-1 01 1 1204-
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY THA 		1-09660-693-0 04 1 1204-
126 CONNECTOR; ELBOW
(C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1204-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1204-
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1204-
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1204-
126 CONNECTOR; ELBOW
(A) IMA 		8-98166-127-0 01 1 1204-
126 CONNECTOR; ELBOW
(G) 		1-09650-283-1 01 1 1103-1203
126 CONNECTOR; ELBOW
(A) IMA 		1-09656-708-0 01 1 1003-1102
126 CONNECTOR; ELBOW
(A) IMA 		8-98166-127-0 01 1 1103-1203
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY THA 		1-09660-693-0 04 1 1003-1203
126 CONNECTOR; ELBOW
(C) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1003-1203
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1003-1203
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 1003-1102
126 CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1103-1203
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1003-1203
185 PIN; SNAP
L=32.6 		8-98062-280-0 02 1 1204-
185 PIN; SNAP
L=32.6 		8-98062-280-0 01 1 0807-1102
185 PIN; SNAP
L=32.6 		8-98062-280-0 02 1 1103-1203

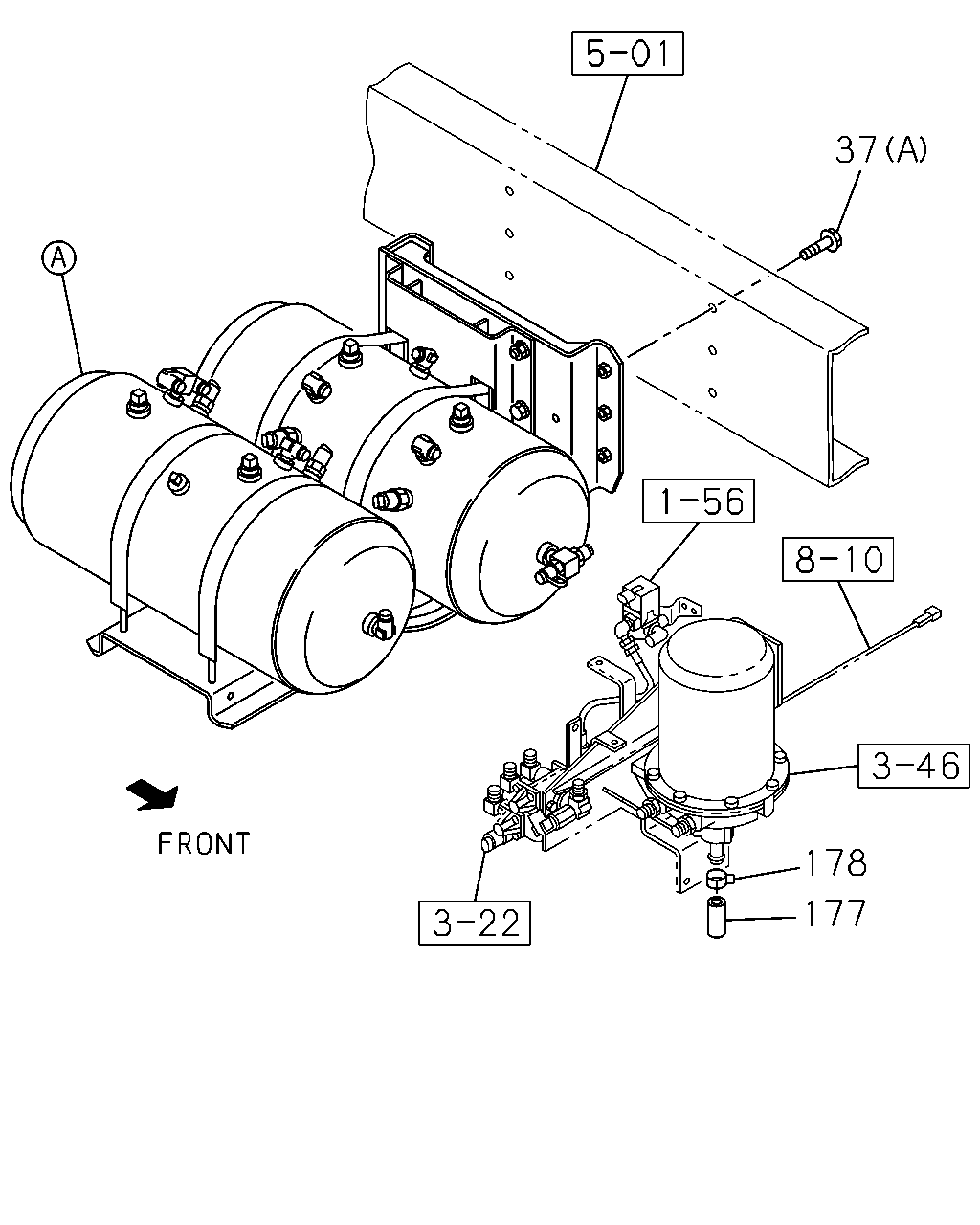

çizim 193547
37 178 177
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 06 1 0807-1102
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1103-
37 BOLT; AIR TANK
(B) M10X45 FLANGE THA 		0-28051-045-0 04 1 0807-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 0807-
178 CLIP; HOSE
ID=22 		8-94382-401-0 01 1 0807-1102
178 CLIP; HOSE
ID=21 THA 		8-94242-034-0 01 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
