◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11130 - FVZ(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#66875) — 178 parça
çizim 115091
346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301
BalonParca AdiParca NoAdetTipApplied Date
297 RING; SNAP
(A) THA 		1-47649-031-0 04 1 0807-1102
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 1103-
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 1103-
297 RING; SNAP
(B) THA 		1-47649-034-1 04 1 0807-1102
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 1103-
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 1103-
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 08 1 0807-1102
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 1103-
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 1103-
311 BOOT; WEDGE
THA 		1-47649-042-0 04 1 0807-1102
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1103-
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1103-
319 RING; DRIVE
THA 		1-47629-200-0 08 1 0807-1102
319 RING; DRIVE
THA 		1-47629-200-0 04 1 1103-
319 RING; DRIVE
THA 		1-47629-200-0 04 1 1103-
327 SPRING; ADJ
THA 		1-47629-196-0 08 1 0807-1102
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 1103-
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 1103-
328 CAGE; SPRING
THA 		1-47629-192-0 08 1 0807-1102
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 1103-
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 1103-
329 SCREW; LOCATING
THA 		1-47619-149-1 08 1 0807-1102
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 1103-
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 1103-
334 SPRING; ROD
THA 		1-47649-041-0 04 1 0807-1102
334 SPRING; ROD
THA 		1-47649-041-0 02 1 1103-
334 SPRING; ROD
THA 		1-47649-041-0 02 1 1103-
335 RETAINER; SPRING
THA 		1-47649-020-0 04 1 0807-1102
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1103-
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1103-
346 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 04 1 0807-1102
346 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 1103-
346 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 1103-
347 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 04 1 0807-1102
347 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 1103-
347 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 1103-
348 CAP; EXPANDER
THA 		1-47649-044-0 04 1 0807-1102
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1103-
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1103-

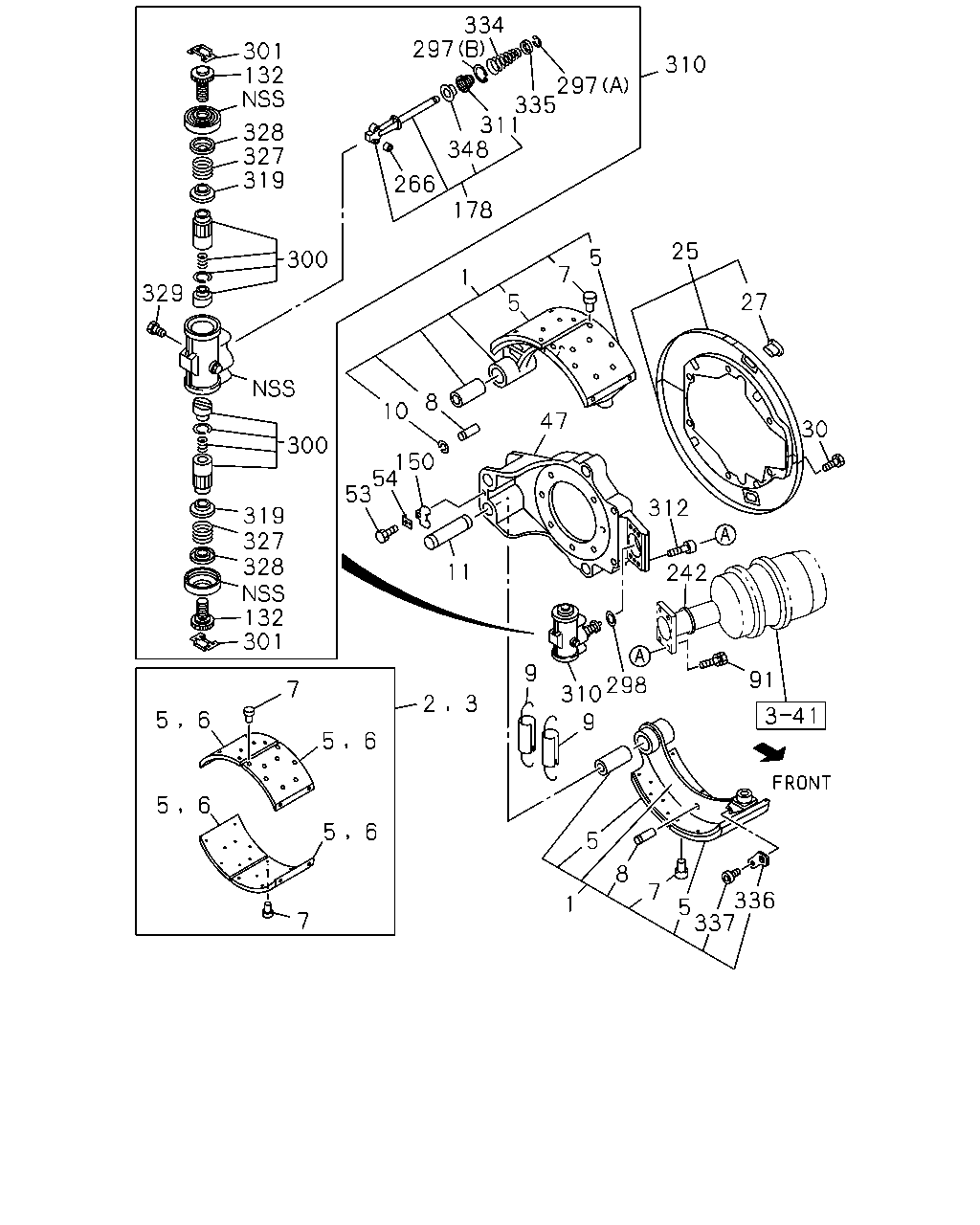

çizim 193543
334 297 301 132 310 297 335 311 348 328 327 319 266 178 25 5 300 7 1 329 27 5 8 10 47 30 300 150 54 53 312 319 327 328 132 11 242 9 91 298 310 9 7 3 2 5 6 5 6 5 6 6 5 5 8 336 5 337 7 1 7
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
LEADING THA 		1-47170-324-0 02 1 0807-1102
1 SHOE; BRK,RR
LEADING THA 		1-47170-324-0 01 1 1103-
1 SHOE; BRK,RR
LEADING THA 		1-47170-324-0 01 1 1103-
1 SHOE; BRK,RR
TRAILING THA 		1-47170-325-0 02 1 0807-1102
1 SHOE; BRK,RR
TRAILING THA 		1-47170-325-0 01 1 1103-
1 SHOE; BRK,RR
TRAILING THA 		1-47170-325-0 01 1 1103-
1 SHOE; BRK,RR
LEADING THA 		1-47170-326-0 02 1 0807-1102
1 SHOE; BRK,RR
LEADING THA 		1-47170-326-0 01 1 1103-
1 SHOE; BRK,RR
LEADING THA 		1-47170-326-0 01 1 1103-
1 SHOE; BRK,RR
TRAILING THA 		1-47170-327-0 02 1 0807-1102
1 SHOE; BRK,RR
TRAILING THA 		1-47170-327-0 01 1 1103-
1 SHOE; BRK,RR
TRAILING THA 		1-47170-327-0 01 1 1103-
2 LINING SET; RR BRK,STANDARD 1-88310-775-1 04 1 0807-1102
2 LINING SET; RR BRK,STANDARD 1-88310-775-1 02 1 1103-
2 LINING SET; RR BRK,STANDARD 1-88310-775-1 02 1 1103-
2 LINING SET; RR BRK,STANDARD
BEST VALUE PARTS 		1-87610-132-0 01 1 0807-
2 LINING SET; RR BRK,STANDARD
BEST VALUE PARTS 		1-87610-132-0 01 1 0807-
3 LINING SET; RR BRK,OVER SIZE 1-88310-776-1 04 1 0807-1102
3 LINING SET; RR BRK,OVER SIZE 1-88310-776-1 02 1 1103-
3 LINING SET; RR BRK,OVER SIZE 1-88310-776-1 02 1 1103-
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-093-0 16 1 0807-1102
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-093-0 08 1 1103-
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-093-0 08 1 1103-
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-094-0 16 1 0807-1102
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-094-0 08 1 1103-
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-094-0 08 1 1103-
7 RIVET; LINING,RR BRK
L=15.5 THA 		1-09732-053-0 AR 1 0807-1102
7 RIVET; LINING,RR BRK
L=15.5 THA 		1-09732-053-0 AR 1 1103-
7 RIVET; LINING,RR BRK
L=15.5 THA 		1-09732-053-0 AR 1 1103-
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING THA 		1-47119-136-0 04 1 0807-1102
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING THA 		1-47119-136-0 02 1 1103-
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING THA 		1-47119-136-0 02 1 1103-
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING THA 		1-47119-172-0 04 1 0807-1102
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING THA 		1-47119-172-0 02 1 1103-
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING THA 		1-47119-172-0 02 1 1103-
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-365-1 04 1 0807-1102
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-365-1 02 1 1103-
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-365-1 02 1 1103-
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 0807-1102
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 1103-
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 1103-
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA 		1-47131-045-0 08 1 0807-1102
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA 		1-47131-045-0 04 1 1103-
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA 		1-47131-045-0 04 1 1103-
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 02 1 0807-1102
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1103-1309
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1103-1309
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310-
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310-
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 02 1 0807-1102
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1103-1309
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1103-1309
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 08 1 0807-1102
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 1103-
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 1103-
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 24 1 0807-1102
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 12 1 1103-
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 12 1 1103-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-472-0 04 1 0807-1102
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-472-0 02 1 1103-1306
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-472-0 02 1 1103-1306
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
THA 		8-98091-253-1 02 1 1307-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
THA 		8-98091-253-1 02 1 1307-
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 04 1 0807-0910
53 BOLT; LOCK PLATE
M10X16 THA 		1-47139-173-0 04 1 0911-1102
53 BOLT; LOCK PLATE
M10X16 THA 		1-47139-173-0 02 1 1103-
53 BOLT; LOCK PLATE
M10X16 THA 		1-47139-173-0 02 1 1103-
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 04 1 0807-1102
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 1103-
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 1103-
91 BOLT; CHAMBER
M10X53 THA 		1-47139-148-0 16 1 0807-1102
91 BOLT; CHAMBER
M10X53 THA 		1-47139-148-0 08 1 1103-
91 BOLT; CHAMBER
M10X53 THA 		1-47139-148-0 08 1 1103-
132 SCREW; ADJ,RR BRK
THA 		1-47623-035-2 08 1 0807-1102
132 SCREW; ADJ,RR BRK
THA 		1-47623-035-2 04 1 1103-
132 SCREW; ADJ,RR BRK
THA 		1-47623-035-2 04 1 1103-
150 PLATE; LK,ANCHOR PIN
THA 		1-47133-010-0 04 1 0807-1102
150 PLATE; LK,ANCHOR PIN
THA 		1-47133-010-0 02 1 1103-
150 PLATE; LK,ANCHOR PIN
THA 		1-47133-010-0 02 1 1103-
178 WEDGE; RR WHEEL CYL
THA 		1-47640-012-0 04 1 0807-1102
178 WEDGE; RR WHEEL CYL
THA 		1-47640-012-0 02 1 1103-
178 WEDGE; RR WHEEL CYL
THA 		1-47640-012-0 02 1 1103-
242 SEAL
THA 		1-47159-186-0 08 1 0807-1102
242 SEAL
THA 		1-47159-186-0 04 1 1103-
242 SEAL
THA 		1-47159-186-0 04 1 1103-
266 ROLLER; WEDGE
THA 		1-47643-007-0 08 1 0807-1102
266 ROLLER; WEDGE
THA 		1-47643-007-0 04 1 1103-
266 ROLLER; WEDGE
THA 		1-47643-007-0 04 1 1103-
297 RING; SNAP
(A) THA 		1-47649-031-0 04 1 0807-1102
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 1103-
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 1103-
297 RING; SNAP
(B) THA 		1-47649-034-1 04 1 0807-1102
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 1103-
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 1103-
298 GASKET
THA 		1-48259-231-0 04 1 0807-1102
298 GASKET
THA 		1-48259-231-0 02 1 1103-
298 GASKET
THA 		1-48259-231-0 02 1 1103-
300 SLEEVE
THA 		1-47629-247-1 08 1 0807-1102
300 SLEEVE
THA 		1-47629-247-1 04 1 1103-
300 SLEEVE
THA 		1-47629-247-1 04 1 1103-
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 08 1 0807-1102
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 1103-
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 1103-
310 EXPANDER
THA 		1-47601-087-0 04 1 0807-1102
310 EXPANDER
THA 		1-47601-087-0 02 1 1103-
310 EXPANDER
THA 		1-47601-087-0 02 1 1103-
311 BOOT; WEDGE
THA 		1-47649-042-0 04 1 0807-1102
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1103-
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1103-
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA 		1-47634-008-0 08 1 0807-1102
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA 		1-47634-008-0 04 1 1103-
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA 		1-47634-008-0 04 1 1103-
319 RING; DRIVE
THA 		1-47629-200-0 08 1 0807-1102
319 RING; DRIVE
THA 		1-47629-200-0 04 1 1103-
319 RING; DRIVE
THA 		1-47629-200-0 04 1 1103-
327 SPRING; ADJ
THA 		1-47629-196-0 08 1 0807-1102
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 1103-
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 1103-
328 CAGE; SPRING
THA 		1-47629-192-0 08 1 0807-1102
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 1103-
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 1103-
329 SCREW; LOCATING
THA 		1-47619-149-1 08 1 0807-1102
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 1103-
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 1103-
334 SPRING; ROD
THA 		1-47649-041-0 04 1 0807-1102
334 SPRING; ROD
THA 		1-47649-041-0 02 1 1103-
334 SPRING; ROD
THA 		1-47649-041-0 02 1 1103-
335 RETAINER; SPRING
THA 		1-47649-020-0 04 1 0807-1102
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1103-
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1103-
336 PLATE; PIVOT
THA 		1-47119-152-0 08 1 0807-1102
336 PLATE; PIVOT
THA 		1-47119-152-0 04 1 1103-
336 PLATE; PIVOT
THA 		1-47119-152-0 04 1 1103-
337 BOLT; PLATE
THA 		1-47119-153-0 08 1 0807-1102
337 BOLT; PLATE
THA 		1-47119-153-0 04 1 1103-
337 BOLT; PLATE
THA 		1-47119-153-0 04 1 1103-
348 CAP; EXPANDER
THA 		1-47649-044-0 04 1 0807-1102
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1103-
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1103-
