1-50 — EXHAUST PIPE AND SILENCER (#66856) — 147 parça

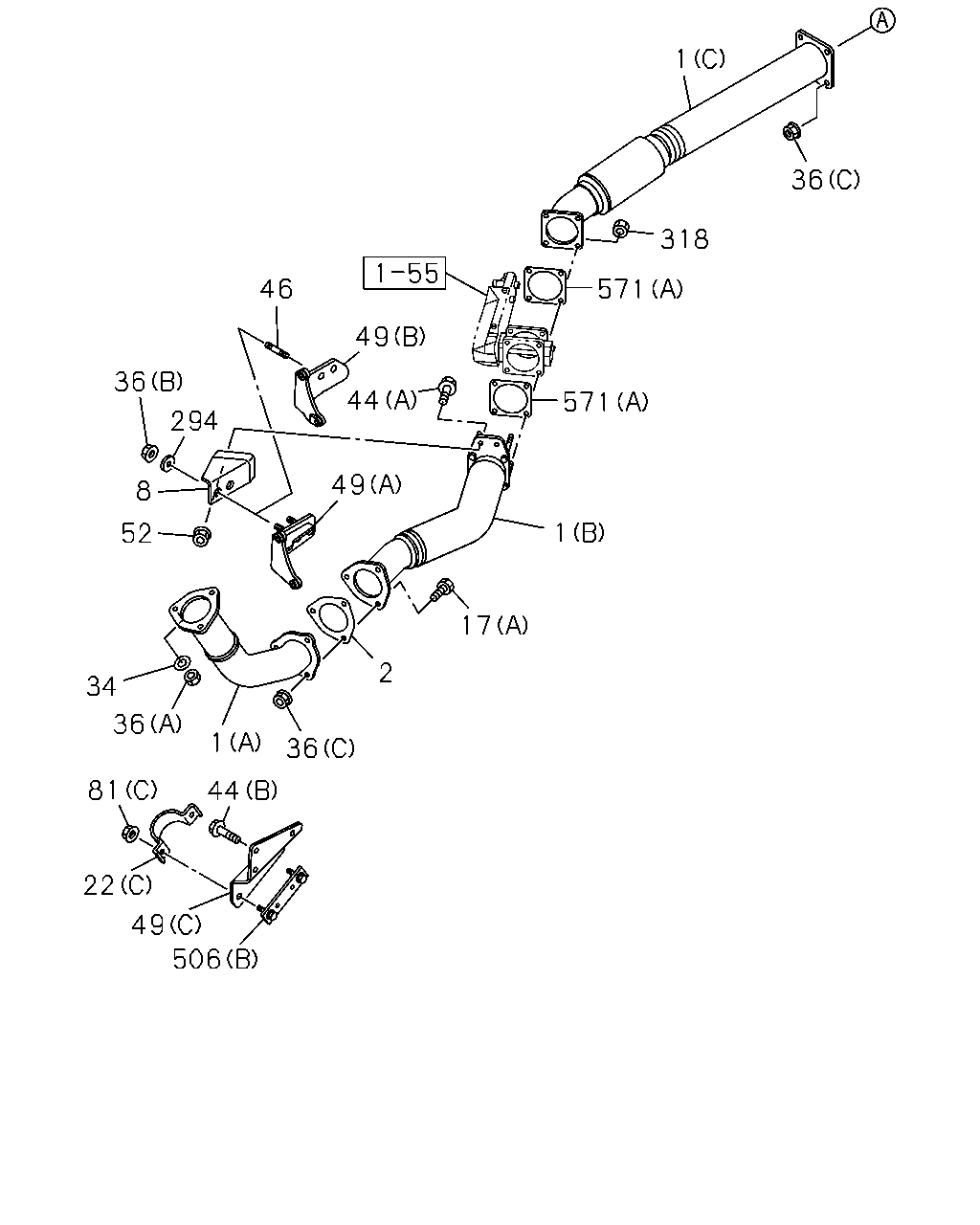

çizim 96540
1 36 318 571 571 1 17 2 36 44 22 49 506 81 1 36 34 52 8 294 36 46 49 44 49
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) 		8-98073-006-3 01 1 1103-
1 PIPE; EXH
(B) THA 		8-97924-536-1 01 1 0807-
1 PIPE; EXH
(A) THA 		8-98090-385-0 01 1 0807-1102
1 PIPE; EXH
(C) THA 		8-98090-386-0 01 1 0807-0808
1 PIPE; EXH
(C) THA 		8-98129-905-0 01 1 0809-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0807-
8 BRACKET; EXH PIPE 8-98070-600-0 01 1 0807-0808
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 0809-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 03 1 1103-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 0807-1102
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 07 1 1204-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
(C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0807-1305
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0807-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0807-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0807-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 07 1 0807-
44 BOLT; BRKT
(B) M10X20 FLANGE THA 		0-28751-020-0 03 1 1305-
44 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-1102
44 BOLT; BRKT
(A) M10X30 FLANGE THA 		0-28651-030-0 02 1 1103-
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0809-
49 BRACKET; EXH PIPE TO TRANS
(C) 		8-97629-970-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98069-944-1 01 1 0807-0808
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98120-497-0 01 1 0809-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0807-
81 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1303-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0807-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0807-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0807-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-1309
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-1302
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-1302
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1303-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0807-
318 NUT; EXH PIPE,FRT
M10 FLANGE THA 		0-91180-210-0 04 1 0807-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0807-1203
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0807-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0807-
çizim 97153
11 128 22 97 415 105 12 571 506 17
BalonParca AdiParca NoAdetTipApplied Date
11 PIPE; EXH,RR
THA 		8-97924-542-0 01 1 0807-0807
11 PIPE; EXH,RR
THA 		8-98130-933-0 01 1 0807-1302
11 PIPE; EXH,RR
THA 		8-97926-595-0 01 1 1303-
12 SILENCER ASM; EXH 8-98090-389-2 01 1 0807-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 03 1 1103-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 0807-1102
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 07 1 1204-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
(C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0807-1305
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0807-
97 WASHER; PL,CLAMP
ID=10.5 OD=26 		9-09160-710-0 01 1 0807-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 0807-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 0807-
128 PIPE; EXH,RR
THA 		8-98060-294-0 01 1 0807-0808
128 PIPE; EXH,RR
THA 		8-98129-906-0 01 1 0809-
415 BOLT; CLAMP
M10X35 FLANGE THA 		0-28651-035-0 01 1 0807-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0807-1203
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0807-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0807-

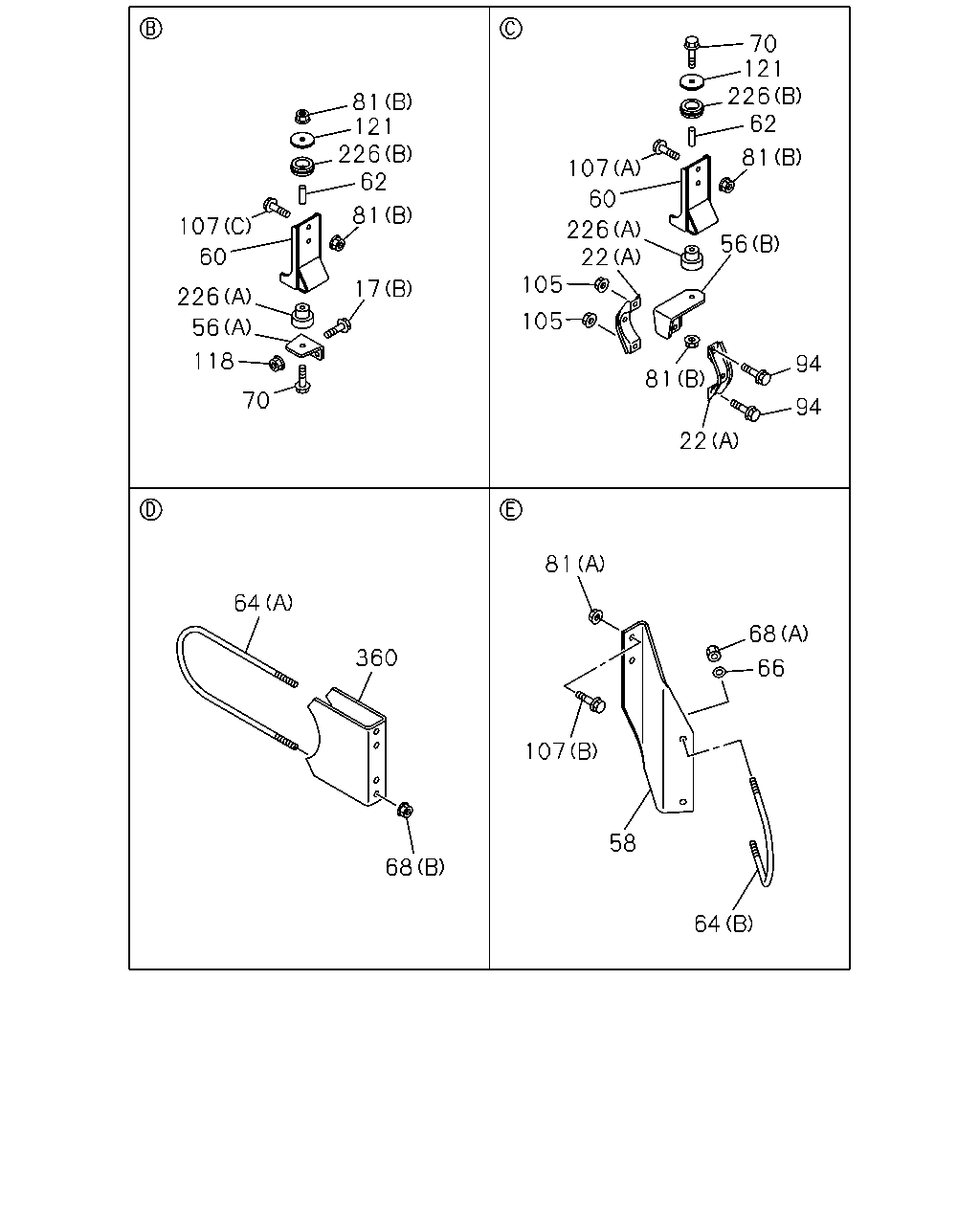

çizim 193534
70 121 226 62 81 121 226 62 81 107 60 81 107 22 2 56 60 105 17 226 105 56 118 94 81 70 94 22 81 64 68 360 66 107 58 68 64
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0807-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 03 1 1103-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 0807-1102
17 BOLT; EXH PIPE
(A) M12X35 FLANGE THA 		0-28051-235-0 07 1 1204-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 1310-
22 CLAMP; EXH PIPE
(C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0807-1305
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0807-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-536-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0807-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98070-639-0 01 1 0807-1305
58 BRACKET; EXH PIPE,RR
THA 		8-97917-748-0 01 1 0807-
60 BRACKET; FRAME TO BRKT 8-98070-628-0 01 1 0807-0808
60 BRACKET; FRAME TO BRKT 8-98070-628-0 01 1 0807-0808
60 BRACKET; FRAME TO BRKT
THA 		8-98132-425-0 01 1 0809-1305
60 BRACKET; FRAME TO BRKT
THA 		8-98132-425-0 01 1 0809-1305
60 BRACKET; FRAME TO BRKT
THA 		8-98132-425-0 01 1 1306-1309
60 BRACKET; FRAME TO BRKT
THA 		8-98132-425-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
THA 		8-98132-425-0 01 1 1310-
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 0807-1305
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 0807-1305
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1306-1309
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1310-
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1310-
64 U-BOLT; EXH PIPE,RR
(A) THA 		1-22113-063-1 02 1 0807-0903
64 U-BOLT; EXH PIPE,RR
(A) THA 		8-97917-676-0 02 1 0904-1304
64 U-BOLT; EXH PIPE,RR
(A) THA 		8-97926-650-0 02 1 1305-
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97917-749-0 01 1 0807-1304
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97926-652-0 01 1 1305-
66 WASHER; LK,U BOLT
ID=8.2 THA 		0-91510-508-0 02 1 0807-
68 NUT; U BOLT
(A) M8 THA 		0-91110-508-0 02 1 0807-
68 NUT; U BOLT
(B) M8 FLANGE THA 		0-91180-108-0 04 1 0807-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 0807-1305
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 0807-1305
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1306-1309
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1310-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1310-
81 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1303-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0807-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0807-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 0807-1305
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1306-1309
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1310-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-1302
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-1302
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1303-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1310-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 0807-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1310-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 0807-1305
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 01 1 0807-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28051-035-0 02 1 0807-0809
107 BOLT; BRKT
(A) M10X40 FLANGE THA 		0-28651-040-0 04 1 0810-
107 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 0807-
107 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28651-035-0 02 1 0807-0809
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 0807-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0807-1305
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0807-1305
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1306-1309
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1310-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0807-1305
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0807-1305
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1306-1309
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1310-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1310-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0807-1305
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0807-1305
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1306-1309
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1310-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1310-
360 PIECE; DIST,EXH PIPE
THA 		8-97917-674-1 02 1 0807-
