Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

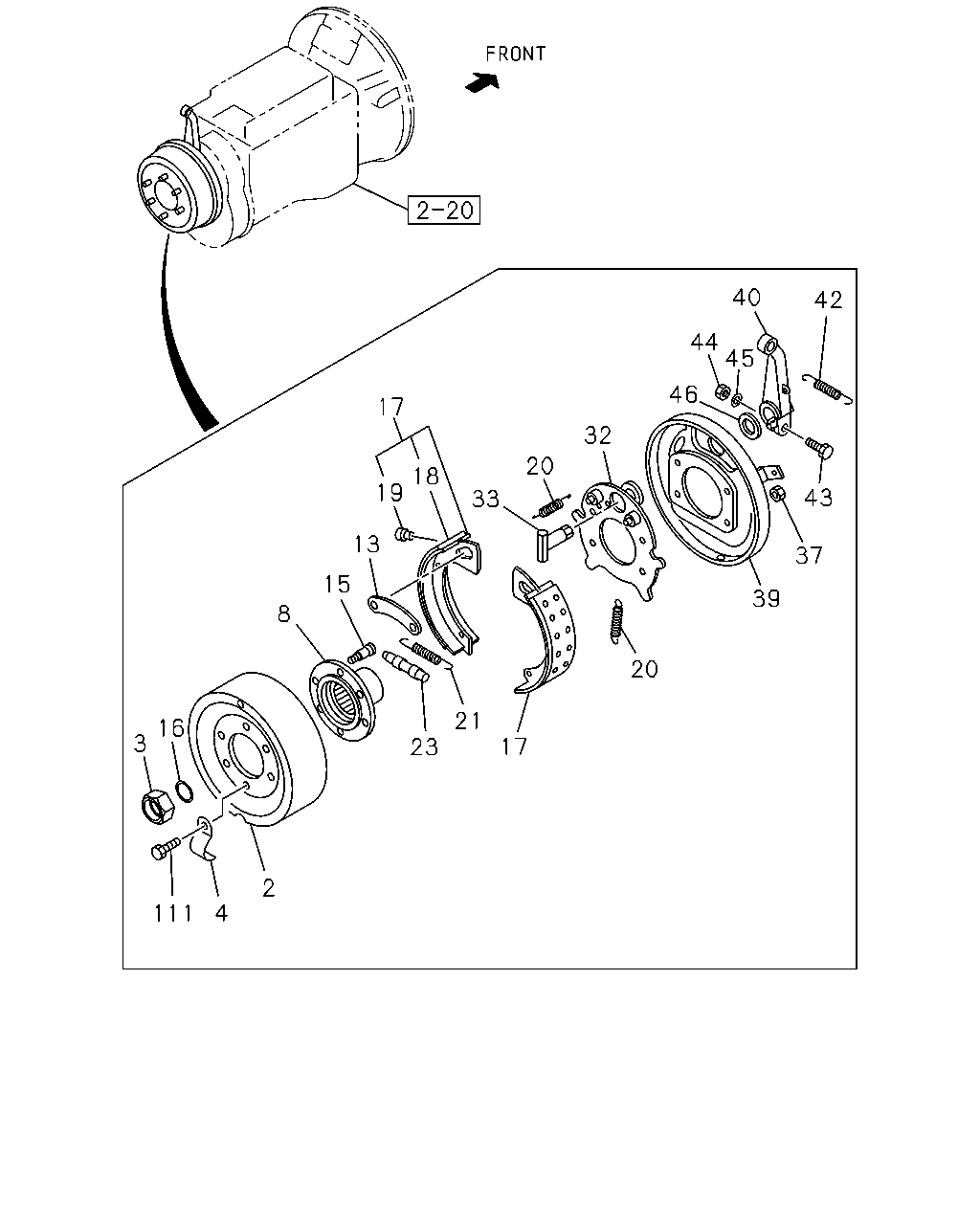

3-08 — PARKING BRAKE
(#6685) — 24 parça
40
42
44
45
46
17
32
20
18
19
43
33
13
37
15
39
8
20
21
16
3
17
23
2
4
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
THA
1-46211-019-0
01
1
0011-
3
NUT; LK
M36 FLANGE
1-09449-063-0
01
1
0011-
4
COVER; ADJ HOLE
1-46219-030-0
02
1
0011-
8
FLANGE; PARKING BRK
1-37243-235-0
01
1
0011-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
0011-
15
BOLT; FLANGE
M16X55
1-46219-039-0
04
1
0011-
16
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5
1-09623-380-0
01
1
0011-
17
SHOE; PARKING BRK
1-46220-022-0
02
1
0011-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
0011-
19
RIVET; LINING,PARKING BRK
1-09732-012-0
32
1
0011-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
0011-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
0011-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
0011-
32
PLATE; SUPPORT,PARKING BRK
1-46213-039-0
01
1
0011-
33
SHAFT; CAM,PARKING BRK
1-46251-006-0
01
1
0011-
37
NUT; SUPPORT PLATE
M14 FLANGE
1-09440-048-0
04
1
0011-
39
COVER; DUST,PARKING BRK
1-46213-038-0
01
1
0011-
40
LEVER; CM/SHF,PARKING BRK
1-46252-013-0
01
1
0011-
42
SPRING; RETURN,LEVER
1-09583-104-0
01
1
0011-
43
BOLT; LEVER TO CM/SHF
0-10811-040-0
01
1
0011-
44
NUT; LEVER TO CM/SHF
M10
9-09111-410-0
01
1
0011-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
9-09150-510-0
01
1
0011-
46
WASHER; LEVER
9-09855-362-0
01
1
0011-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50040-820-0
02
1
0011-
