0-36 — TURBOCHARGER SYSTEM (#66833) — 131 parça

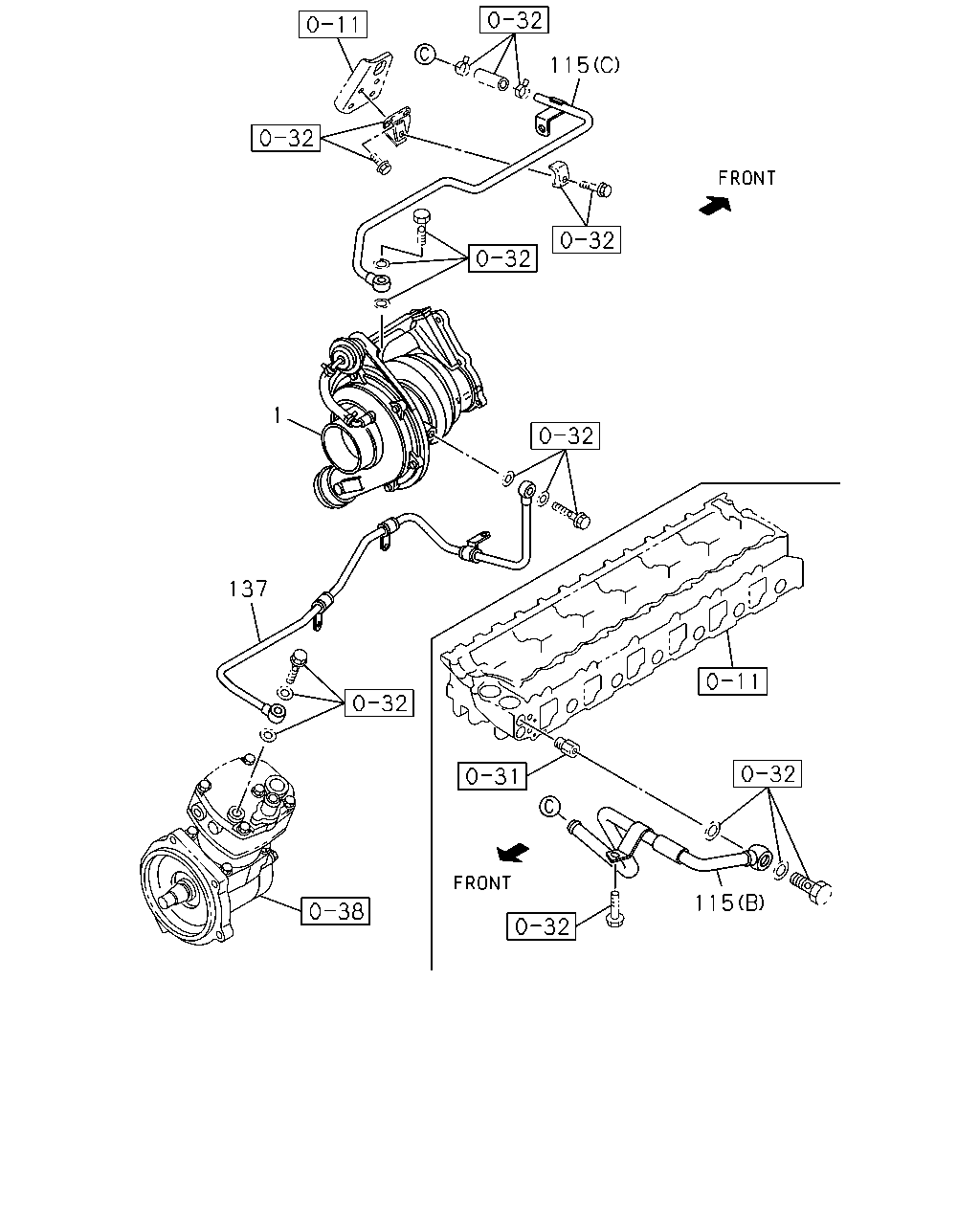

çizim 60694
115 1 137 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0807-1102 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1103- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94395-454-4 01 1 1103- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-2 01 1 0807-1102 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94392-950-0 01 1 1103- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0807-1102 ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-97618-807-0 01 1 1103- ● ●
çizim 193501
2 12 217 275 265 162 17 16 388 212 10 11 212 11 217 275 162 17 122 17 66 12 1 20 20 79 398 79 398 398 398 488 92 28 398 398 92 20 143 98 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0807-1102 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1103- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0807-1102 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1103- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0807-1102 ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1103- ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1103- ● ●
12 STUD; TURBOCHARGER
(C) M10X80 		9-04731-080-0 02 1 1103- ● ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 		8-94476-282-0 02 1 0807-1102 ● ●
12 STUD; TURBOCHARGER
(B) M8X25 		9-04130-825-0 01 1 1103- ● ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0807-1102 ● ●
16 ADAPTER; EXH PIPE
(B) 		8-98069-083-0 01 1 1103- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0807-1102 ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1103- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (A) 		8-98046-167-3 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(G) 		8-97606-675-1 01 1 1103- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (B) 		8-98046-168-1 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-97618-726-2 01 1 1103-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-98251-577-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (C) 		8-98046-169-1 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(I) 		8-97618-734-0 01 1 1103- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (D) 		8-97617-214-2 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (E) 		8-97617-215-0 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (F) 		8-97617-216-0 01 1 0807-1102 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 1103- ● ●
66 STUD; EXH PIPE
M12X30 L=48 		8-98059-951-0 03 1 1103- ● ●
79 CLIP; RUBBER HOSE
ID=58-76 THA 		1-09707-203-0 02 1 0807-0811 ● ●
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902 ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE THA 		0-28650-830-0 03 1 0807-1102 ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 0807- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 01 1 0807- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 1103-1408 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0807-1102 ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1103- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 1103- ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE THA 		0-28051-060-0 01 1 0807-1102 ● ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 05 1 1103- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0807-0910 ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 0911-1102 ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0807- ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0807-1102 ● ●
217 BOLT; BRKT
(C) M12X30 		8-94394-324-0 03 1 1103- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28751-025-0 01 1 0807-1102 ● ●
265 BRACKET; EXH PIPE
(A) 		8-97609-517-1 01 1 0807-1102 ● ●
265 BRACKET; EXH PIPE
(B) 		8-94395-764-2 01 1 1103- ● ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 1103- ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 1103- ● ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0807- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0807- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0807- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0807- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0807- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0807- ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0807-1102 ● ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 1103-1408 ● ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●

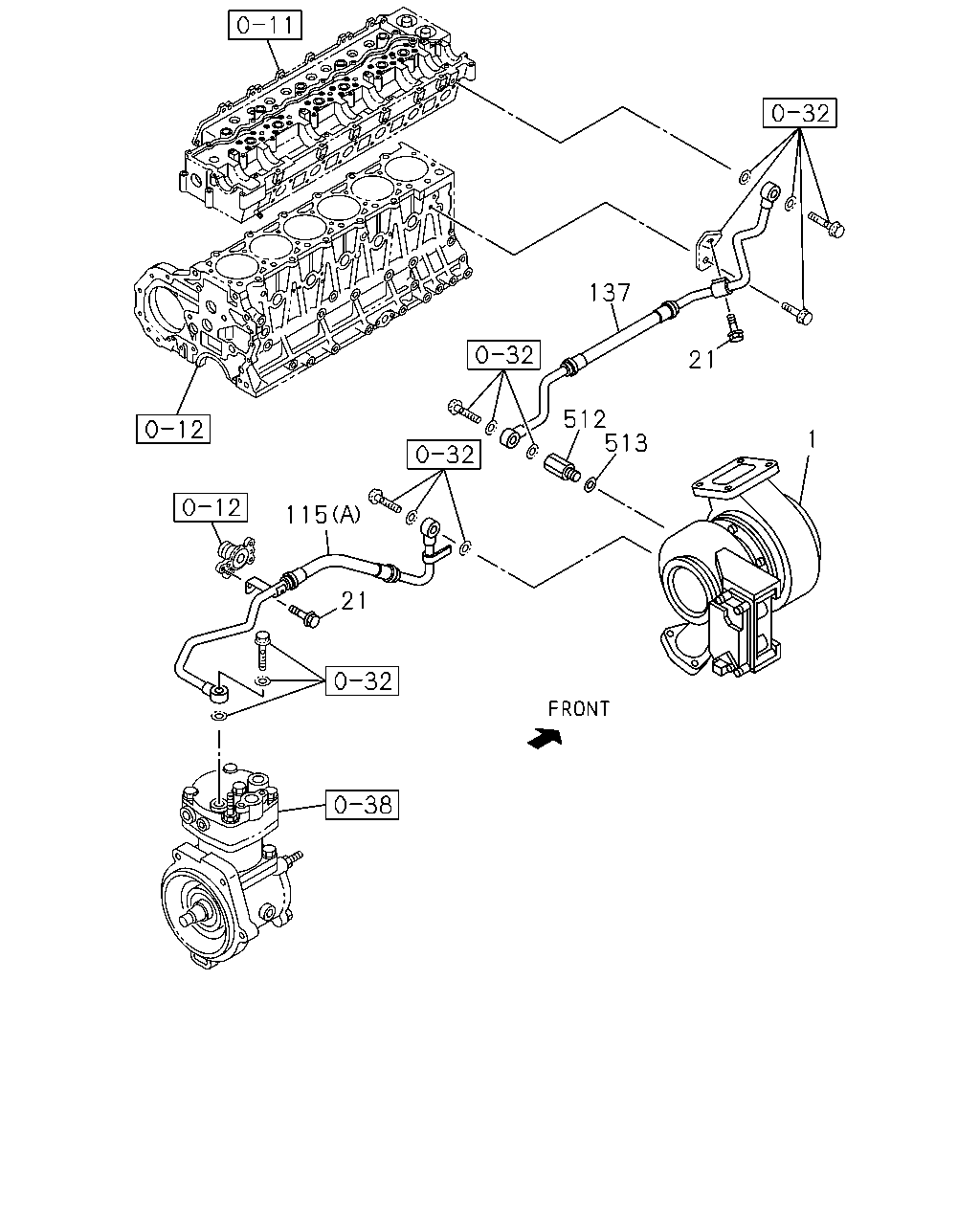

çizim 193515
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0807-1102 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1103- ● ●
21 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0807-1102 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94395-454-4 01 1 1103- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-2 01 1 0807-1102 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94392-950-0 01 1 1103- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0807-1102 ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-97618-807-0 01 1 1103- ● ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0807-1102 ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0807-1102 ● ●

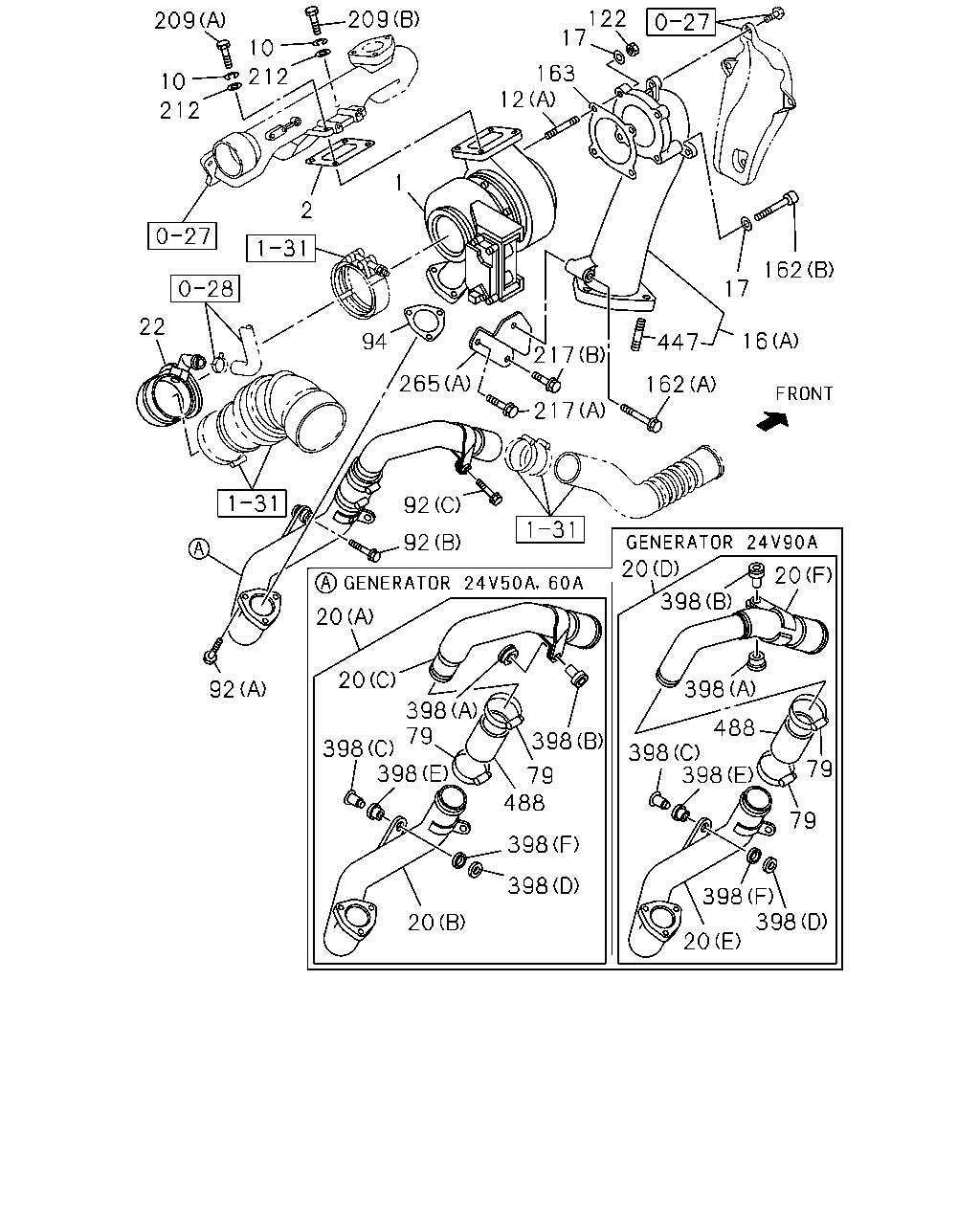

çizim 193516
122 17 209 209 10 163 12 212 10 212 1 2 162 17 22 16 94 447 217 265 162 217 92 92 20 20 398 20 20 398 488 92 398 79 398 398 398 398 398 79 79 488 79 398 398 398 398 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0807-1102 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1103- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0807-1102 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1103- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0807-1102 ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1103- ● ●
12 STUD; TURBOCHARGER
(C) M10X80 		9-04731-080-0 02 1 1103- ● ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 		8-94476-282-0 02 1 0807-1102 ● ●
12 STUD; TURBOCHARGER
(B) M8X25 		9-04130-825-0 01 1 1103- ● ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0807-1102 ● ●
16 ADAPTER; EXH PIPE
(B) 		8-98069-083-0 01 1 1103- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0807-1102 ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1103- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (A) 		8-98046-167-3 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(G) 		8-97606-675-1 01 1 1103- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (B) 		8-98046-168-1 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-97618-726-2 01 1 1103-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-98251-577-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A<KG2>,GENERATOR 24V50A<K89> (C) 		8-98046-169-1 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(I) 		8-97618-734-0 01 1 1103- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (D) 		8-97617-214-2 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (E) 		8-97617-215-0 01 1 0807-1102 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A<K44> (F) 		8-97617-216-0 01 1 0807-1102 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 0807-1102 ● ●
79 CLIP; RUBBER HOSE
ID=58-76 THA 		1-09707-203-0 02 1 0807-0811 ● ●
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902 ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE THA 		0-28650-830-0 03 1 0807-1102 ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 0807- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 01 1 0807- ● ●
94 GASKET; INL PIPE 8-98053-830-0 01 1 0807- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0807-1102 ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1103- ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE THA 		0-28051-060-0 01 1 0807-1102 ● ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 05 1 1103- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0807-0910 ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 0911-1102 ● ●
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-1 01 1 0807-1102 ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0807-1102 ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0807-1102 ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0807- ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 0807-1102 ● ●
217 BOLT; BRKT
(C) M12X30 		8-94394-324-0 03 1 1103- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28751-025-0 01 1 0807-1102 ● ●
265 BRACKET; EXH PIPE
(A) 		8-97609-517-1 01 1 0807-1102 ● ●
265 BRACKET; EXH PIPE
(B) 		8-94395-764-2 01 1 1103- ● ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0807- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0807- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0807- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0807- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0807- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0807- ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0807-1102 ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0807-1102 ● ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 1103-1408 ● ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
