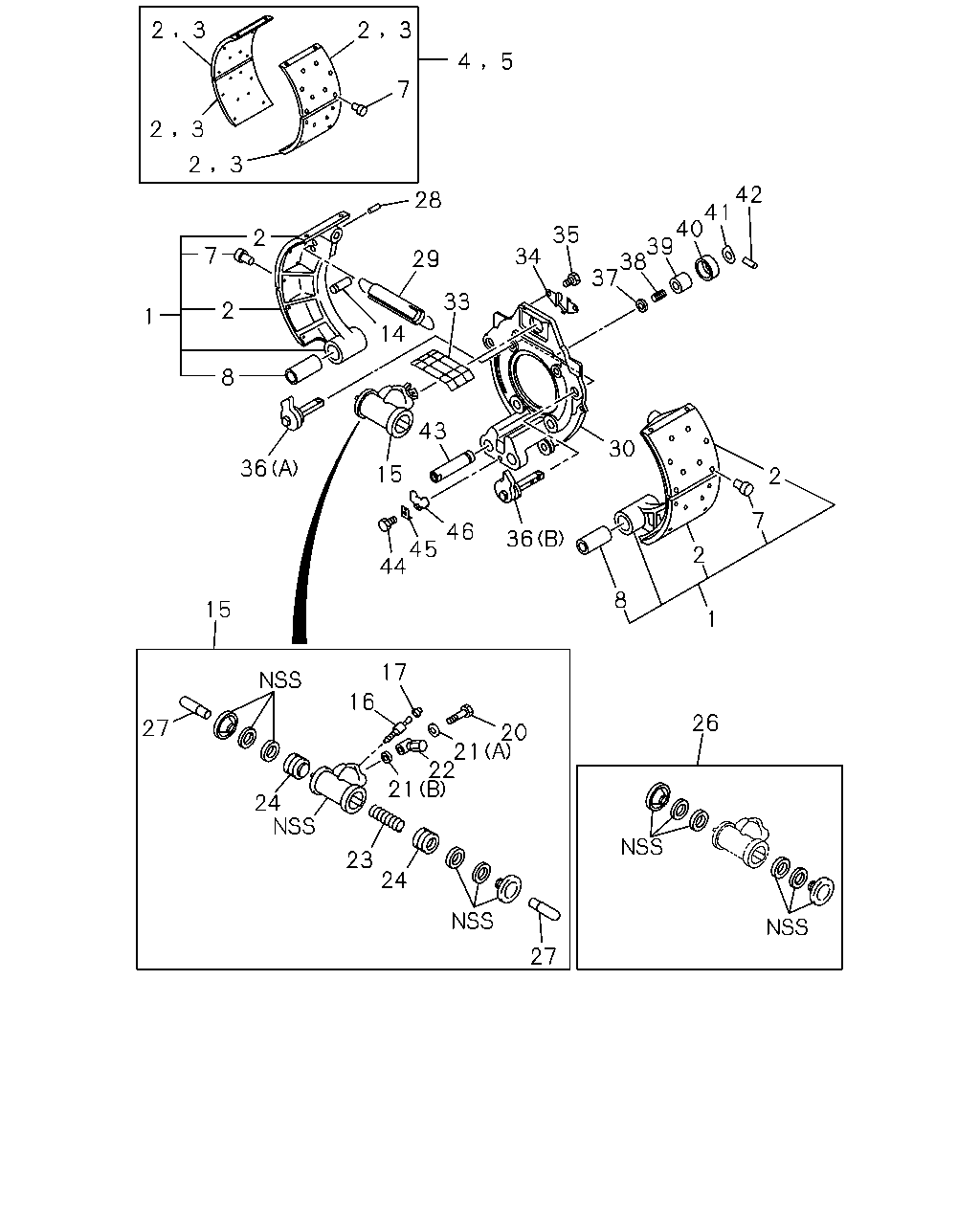

3-01 — FRONT WHEEL BRAKE
(#6683) — 38 parça
Tümü
A - FTR5MC
B - FTR5MF
2
3
2
3
5
4
7
2
3
2
3
42
41
40
39
38
37
28
35
2
7
34
29
33
2
1
14
8
43
30
36
15
2
7
46
45
44
36
2
8
15
1
17
16
26
27
20
21
22
21
24
23
24
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,FRT
THA
1-47120-325-0
04
1
0011-
●
●
2
LINING; FRT BRK SHOE,STANDARD
THA
1-47125-418-0
08
1
0011-
●
●
3
LINING; FRT BRK SHOE,OVER SIZE
THA
1-47125-419-0
08
1
0011-
●
●
4
LINING SET; FRT BRK,STANDARD
THA
1-88310-299-0
02
1
0011-
●
●
5
LINING SET; FRT BRK,OVER SIZE
THA
1-88310-300-0
02
1
0011-
●
●
7
RIVET; LINING,FRT BRK
L=18.5 THA
1-09732-034-0
80
1
0011-
●
●
8
BUSHING; BRK SHOE
THA
1-47112-011-0
04
1
0011-
●
●
14
PIN; SHOE RETURN SPR
L=73.5 THA
1-47119-017-1
04
1
0011-
●
●
15
CYLINDER; WHEEL,FRT BRK
1-47600-690-0
01
1
0011-
●
●
15
CYLINDER; WHEEL,FRT BRK
1-47600-689-0
01
1
0011-
●
●
16
SCREW; BLEEDER,FRT BRK
L=66.5 THA
1-47615-005-0
02
1
0011-
●
●
17
CAP; BLEEDER,FRT WHEEL CYL
OD=12 THA
1-47619-011-0
02
1
0011-
●
●
20
BOLT; JOINT
THA
1-47634-006-0
02
1
0011-
●
●
21
GASKET; UNION BOLT
(A) ID=15.2 THA
1-09630-019-0
02
1
0011-
●
●
21
GASKET; UNION BOLT
(B) ID=12.2 THA
1-09630-020-0
02
1
0011-
●
●
22
JOINT; PIPE
THA
1-47631-057-1
02
1
0011-
●
●
23
SPRING; COIL
THA
9-09940-435-0
02
1
0011-
●
●
24
PISTON; FRT WHEEL CYL
9-47624-211-0
04
1
0011-
●
●
26
CUP SET; FRT WHEEL CYL
ID=33.3
1-87830-525-0
02
1
0011-
●
●
27
ROD; PUSH
THA
1-47621-009-0
04
1
0011-
●
●
28
PIN; SHOE ADJ CAM GUIDE
THA
1-47116-002-0
04
1
0011-
●
●
29
SPRING; RETURN,FRT BRK SHOE
THA
1-09583-269-1
02
1
0011-
●
●
30
BRACKET; ANCHOR,FRT
1-47137-435-0
02
1
0011-
●
●
33
COVER; WHEEL CYL
THA
1-47159-080-0
02
1
0011-
●
●
34
PLATE; DIRECTION,FRT
THA
1-47159-094-0
02
1
0011-
●
●
35
BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER
0-50051-235-0
04
1
0011-
●
●
36
CAM ASM; ADJ
(A) THA
1-47165-058-1
02
1
0011-
●
●
36
CAM ASM; ADJ
(B) THA
1-47165-059-1
02
1
0011-
●
●
37
WASHER; ADJ CAM
THA
1-47169-033-0
04
1
0011-
●
●
38
SPRING; ADJ CAM
THA
1-47169-046-0
04
1
0011-
●
●
39
BOOT; ADJ CAM
THA
1-47169-034-0
04
1
0011-
●
●
40
COVER; BOOT,ADJ CAM
THA
1-47169-031-0
04
1
0011-
●
●
41
INDICATOR
THA
1-47169-032-1
04
1
0011-
●
●
42
PIN; SPINDLE
THA
1-47169-030-0
04
1
0011-
●
●
43
PIN; ANCHOR
L=106.5 THA
1-47131-038-0
04
1
0011-
●
●
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20801-016-0
02
1
0011-
●
●
45
WASHER; LK
THA
1-47133-011-0
02
1
0011-
●
●
46
PLATE; LOCK
THA
1-47133-005-0
02
1
0011-
●
●
