0-28 — VENTILATION SYSTEM (#66827) — 81 parça

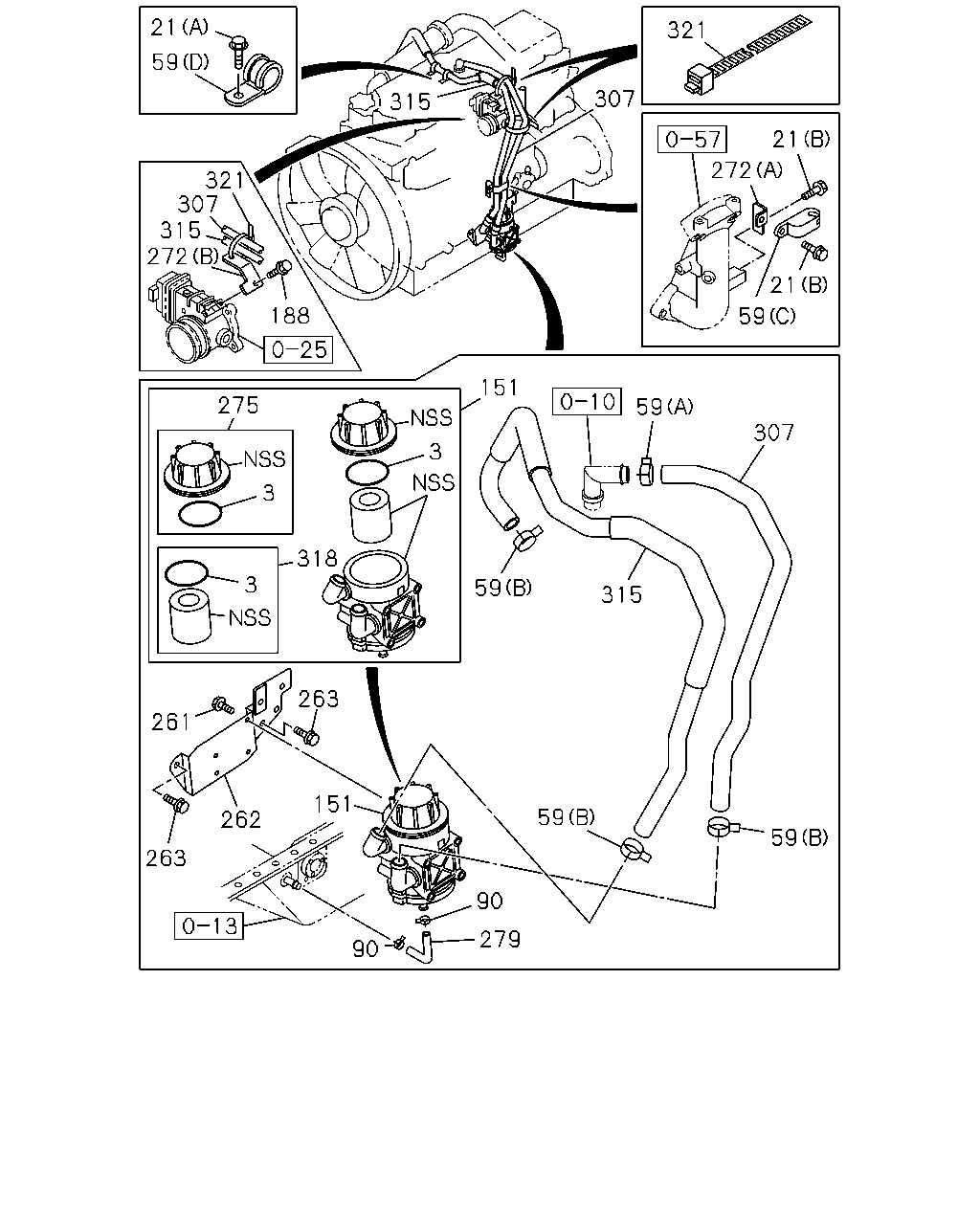

307 315 59 59 59 90 151 262 263 261 263 318 3 3 275 3 151 59 272 21 21 59 321 307 315 321 307 315 188 272 59 21 279 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0807-	●	●
21	BOLT; CLIP (A) M8X12 FLANGE THA	0-28050-812-0	02	1	0807-1003	●	●
21	BOLT; CLIP EXC. VIN MODEL YEAR 2010<VZA> (A) M8X12 FLANGE THA	0-28050-812-0	02	1	1004-1102	●	●
21	BOLT; CLIP (C) M6X12 FLANGE THA	0-28050-612-0	01	1	1103-	●	●
21	BOLT; CLIP (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-1102	●	●
21	BOLT; CLIP (B) M8X16 FLANGE THA	0-28050-816-0	03	1	1103-	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	01	1	1304-	●	●
59	CLIP; HOSE EXC. VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33	1-09700-945-0	02	1	1004-1102	●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0807-1003	●	●
59	CLIP; HOSE VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33	1-09700-945-0	01	1	1004-1102	●	●
59	CLIP; HOSE (E) ID=31 H=30 L=35	1-09700-994-0	02	1	1103-	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0807-1102	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	02	1	1103-	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0807-1102	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	02	1	1103-	●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0807-1102	●	●
59	CLIP; HOSE (A) ID=33.6	8-94362-518-0	01	1	1103-1211	●	●
59	CLIP; HOSE (A) ID=33.6	8-94362-518-0	03	1	1212-	●	●
90	CLIP; RUBBER HOSE ID=28.5	1-09707-150-0	01	1	1103-1303	●	●
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0807-	●	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0807-	●	●
188	BOLT; BRKT M8X30 FLANGE THA	0-28050-830-0	03	1	1103-	●	●
188	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0807-	●	●
261	BOLT; SEPARETOR M8X16 FLANGE THA	0-28050-816-0	04	1	0807-	●	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0807-	●	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE THA	0-28751-025-0	02	1	0807-	●	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0807-	●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0807-1102	●	●
272	BRACKET; PIPE (C)	8-97616-083-0	01	1	1103-	●	●
275	CAP; PCV	8-97606-319-0	01	1	0807-	●	●
279	HOSE; RUBBER,OIL DRAIN L=190	0-02709-190-0	01	1	0807-	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0807-1102	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98167-935-0	01	1	1103-	●	●
315	HOSE; RUBBER VIN MODEL YEAR 2010<VZA>	8-98165-997-0	01	1	1004-1102	●	●
315	HOSE; RUBBER	8-98167-937-1	01	1	1103-	●	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0807-1003	●	●
315	HOSE; RUBBER EXC. VIN MODEL YEAR 2010<VZA>	8-98054-286-1	01	1	1004-1102	●	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0807-	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0807-1102	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	01	1	1103-	●	●

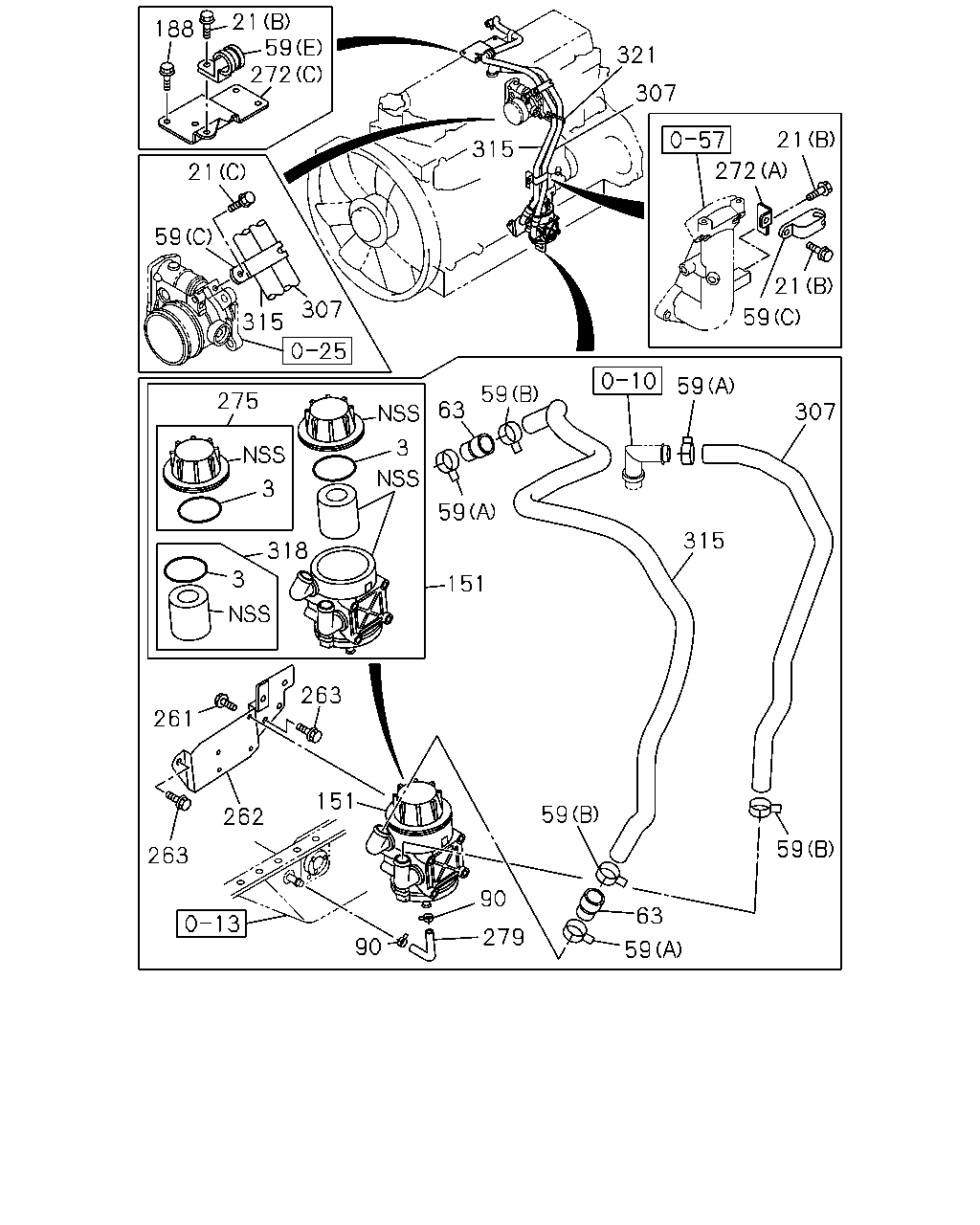

188 21 272 59 21 59 307 315 315 321 307 21 272 21 59 275 3 3 318 3 63 59 59 151 59 307 315 59 59 63 59 90 279 90 151 263 262 261 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0807-	●	●
21	BOLT; CLIP (A) M8X12 FLANGE THA	0-28050-812-0	02	1	0807-1003	●	●
21	BOLT; CLIP EXC. VIN MODEL YEAR 2010<VZA> (A) M8X12 FLANGE THA	0-28050-812-0	02	1	1004-1102	●	●
21	BOLT; CLIP (C) M6X12 FLANGE THA	0-28050-612-0	01	1	1103-	●	●
21	BOLT; CLIP (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-1102	●	●
21	BOLT; CLIP (B) M8X16 FLANGE THA	0-28050-816-0	03	1	1103-	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	01	1	1304-	●	●
59	CLIP; HOSE EXC. VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33	1-09700-945-0	02	1	1004-1102	●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0807-1003	●	●
59	CLIP; HOSE VIN MODEL YEAR 2010<VZA> (D) ID=35 L=33	1-09700-945-0	01	1	1004-1102	●	●
59	CLIP; HOSE (E) ID=31 H=30 L=35	1-09700-994-0	02	1	1103-	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0807-1102	●	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	02	1	1103-	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0807-1102	●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	02	1	1103-	●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0807-1102	●	●
59	CLIP; HOSE (A) ID=33.6	8-94362-518-0	01	1	1103-1211	●	●
59	CLIP; HOSE (A) ID=33.6	8-94362-518-0	03	1	1212-	●	●
63	HOSE; RUBBER,AIR BREATHER	1-09360-925-0	02	1	1212-	●	●
90	CLIP; RUBBER HOSE ID=28.5	1-09707-150-0	01	1	1103-1303	●	●
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0807-	●	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0807-	●	●
188	BOLT; BRKT M8X30 FLANGE THA	0-28050-830-0	03	1	1103-	●	●
188	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0807-	●	●
261	BOLT; SEPARETOR M8X16 FLANGE THA	0-28050-816-0	04	1	0807-	●	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0807-	●	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE THA	0-28751-025-0	02	1	0807-	●	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0807-	●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0807-1102	●	●
272	BRACKET; PIPE (C)	8-97616-083-0	01	1	1103-	●	●
275	CAP; PCV	8-97606-319-0	01	1	0807-	●	●
279	HOSE; RUBBER,OIL DRAIN L=190	0-02709-190-0	01	1	0807-	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0807-1102	●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98167-935-0	01	1	1103-	●	●
315	HOSE; RUBBER VIN MODEL YEAR 2010<VZA>	8-98165-997-0	01	1	1004-1102	●	●
315	HOSE; RUBBER	8-98167-937-1	01	1	1103-	●	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0807-1003	●	●
315	HOSE; RUBBER EXC. VIN MODEL YEAR 2010<VZA>	8-98054-286-1	01	1	1004-1102	●	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0807-	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0807-1102	●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	01	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
