◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11130 - FVZ(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#66819) — 66 parça

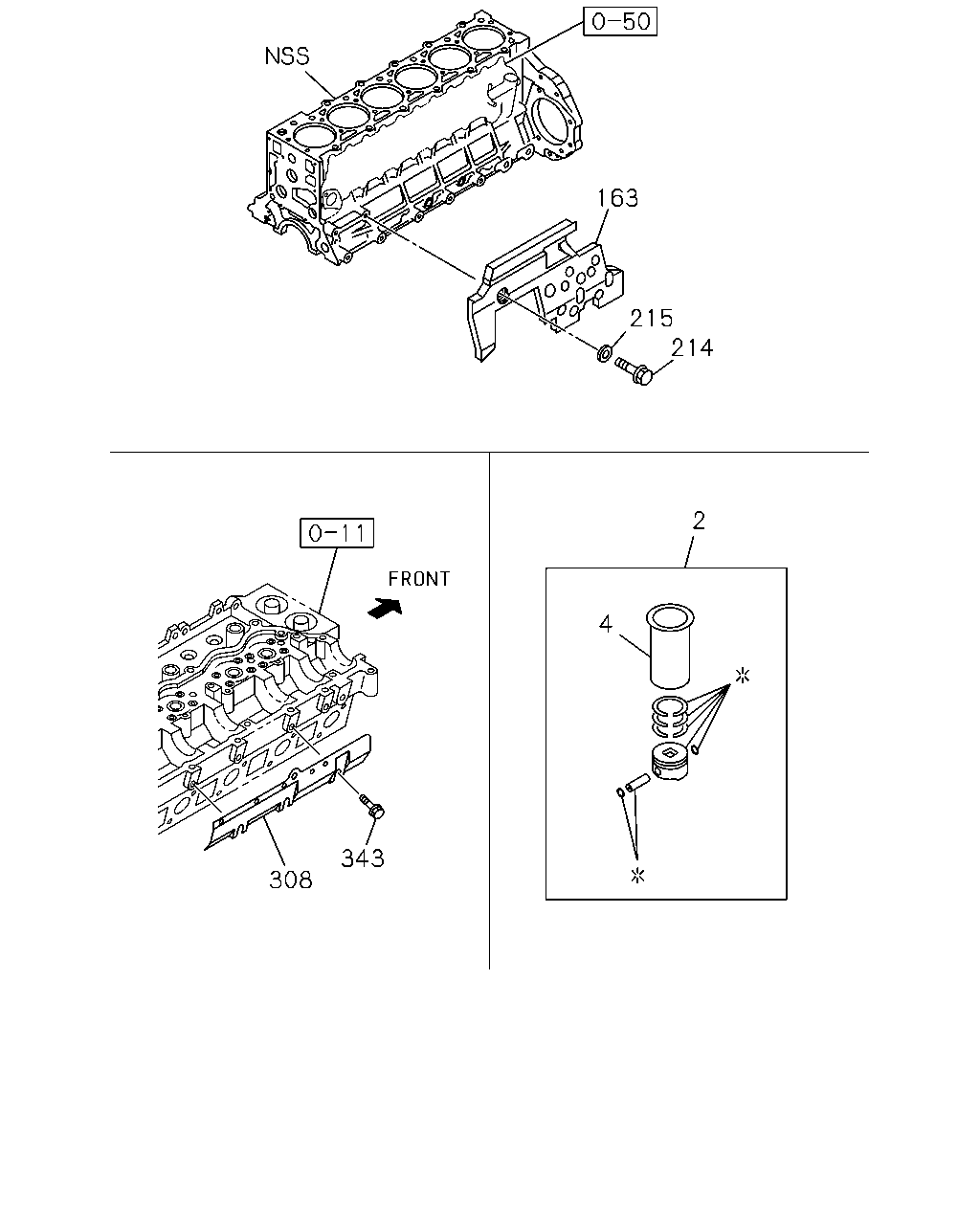

çizim 28490
163 215 214 2 4 343 308
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 06 1 0807- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 06 1 0807- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 0807-1209 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 12 1 1210- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 0807-1209 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 12 1 1210- ● ●
163 COVER ASM; C/BL SKIRT 8-97601-248-0 01 1 0807-0911 ● ●
214 BOLT; NOISE COVER
M10X16 FLANGE THA 		0-28151-016-0 03 1 0807-0911 ● ●
215 WASHER; PL,NOISE COVER
ID=10.5 OD=32 		0-91614-810-0 02 1 0807-0911 ● ●
308 PROTECTOR; HEAT,HD COVER 8-94390-997-0 01 1 1103- ● ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 1103- ● ●

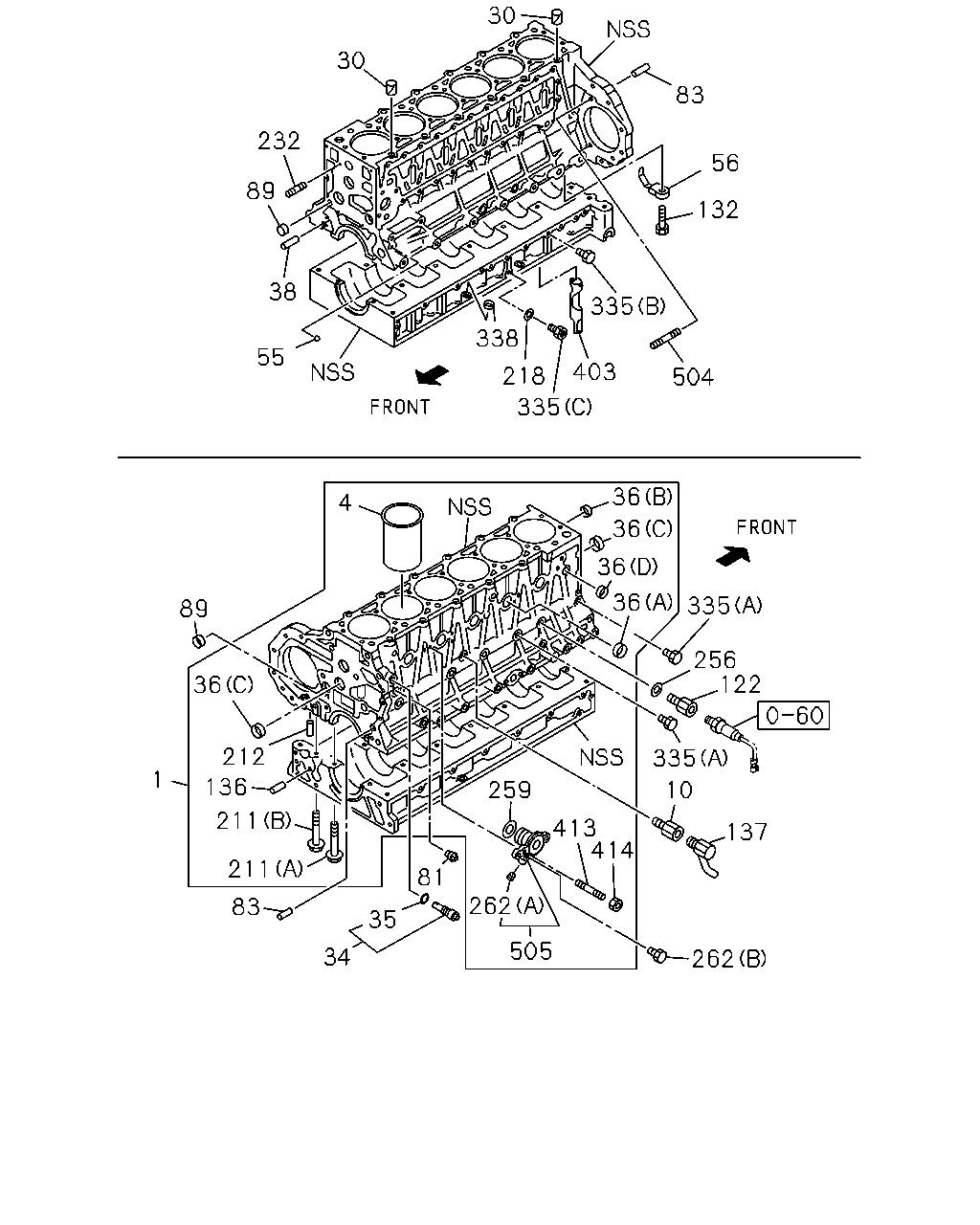

çizim 193507
211 136 36 212 89 1 211 83 34 81 35 262 505 262 414 413 259 335 10 137 122 256 335 36 36 36 36 4 30 232 89 38 55 338 335 403 504 132 56 83 30 218 335
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-97618-664-3 01 1 0807-1209 ● ●
1 BLOCK ASM; CYL 8-98206-967-0 01 1 1210-1303 ● ●
1 BLOCK ASM; CYL 8-98206-966-0 01 1 1304- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 0807-1209 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 12 1 1210- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 0807-1209 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 12 1 1210- ● ●
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 1103- ● ●
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 0807-1007 ● ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 0807- ● ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 0807- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0807- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 0807- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0807- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		8-94399-005-0 01 1 0807- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-97096-824-0 04 1 0807- ● ●
38 PIN; TIMING GEAR CASE
L=22 THA 		8-94483-674-0 02 1 0807- ● ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 0807- ● ●
56 JET; OIL,PISTON COOLING 8-98020-649-0 06 1 0807-1007 ● ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1008- ● ●
81 PLUG; WATER JACKET
PT3/8 		8-94397-338-0 01 1 0807- ● ●
83 PIN; FLYWHEEL HSG
L=22 THA 		8-94483-674-0 02 1 0807- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 0807-0908 ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0909- ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-97603-667-0 01 1 0807- ● ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 0807- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0807-0812 ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ● ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 1103- ● ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 0807-1007 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 0807-0905 ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 0906- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 0807- ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0807-1102 ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 04 1 1103- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 0807-1312 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1401- ● ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 0807- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0807- ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 0807- ● ●
262 PLUG; ADAPTER
(A) 		1-13163-002-0 01 1 1101-1303 ● ●
262 PLUG; ADAPTER
(B) M14 		8-94399-225-0 01 1 1101-1102 ● ●
262 PLUG; ADAPTER
(B) M14X14 THA 		9-09862-156-0 01 1 1103- ● ●
335 PLUG; C/BL,SIDE
(C) M12X10 		5-13265-001-0 01 1 0807- ● ●
335 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 0807- ● ●
335 PLUG; C/BL,SIDE
(B) M8X10 		8-98003-416-0 01 1 0807- ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 0807- ● ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 0807- ● ●
413 STUD; ADAPTER
M8X30 L=41 THA 		0-41010-830-0 02 1 0807- ● ●
414 NUT; ADAPTER
M8 FLANGE THA 		0-91180-208-0 02 1 0807- ● ●
504 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0807- ● ●
505 ADAPTER; WATER FEED 8-97611-854-0 01 1 1210-1303 ● ●
505 ADAPTER; WATER FEED 8-97611-854-0 02 1 1304- ● ●
505 ADAPTER; WATER FEED 8-97607-409-0 01 1 0807-1012 ● ●
505 ADAPTER; WATER FEED 8-98145-412-1 01 1 1101-1303 ● ●
