◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#66805) — 44 parça

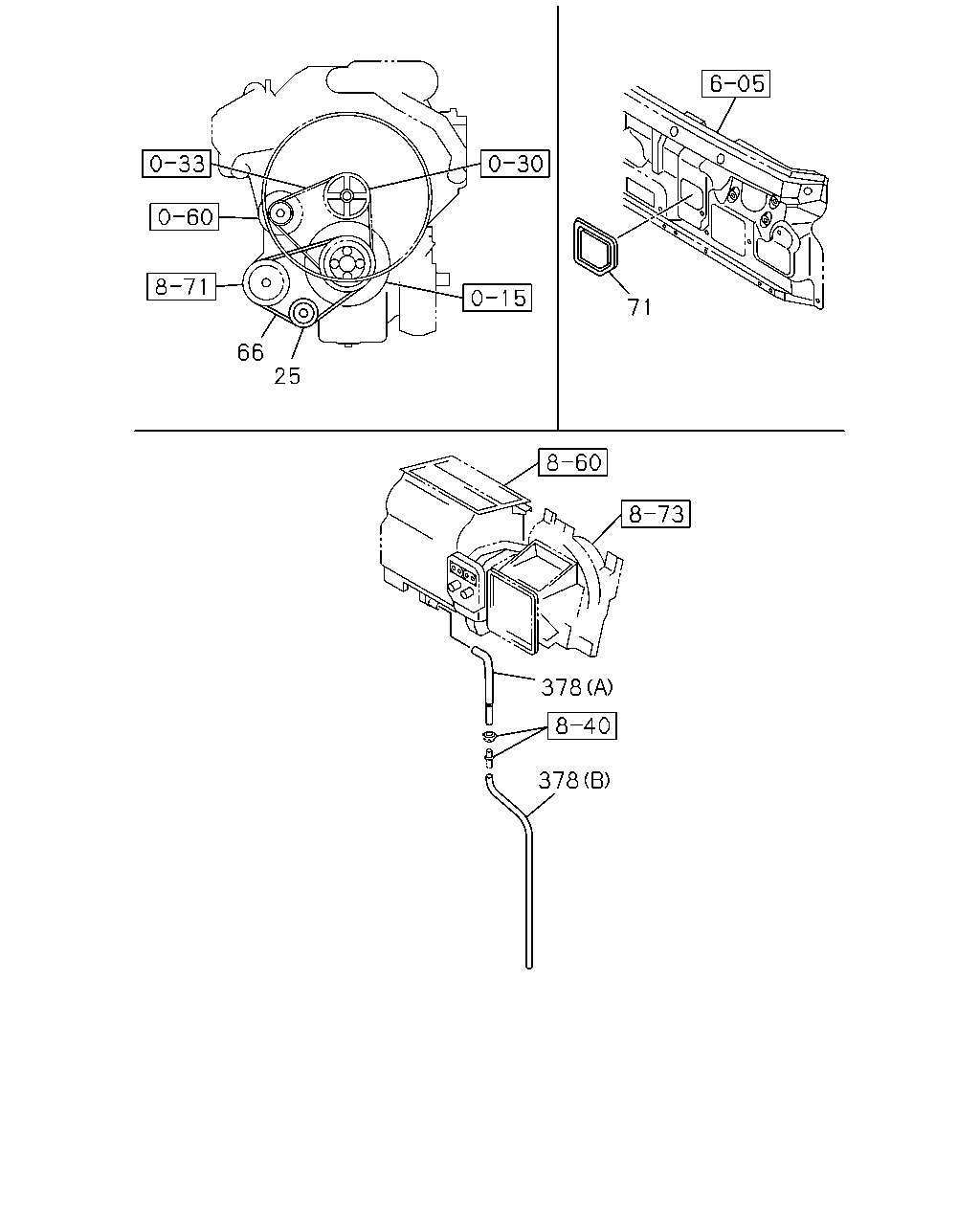

çizim 8765
71 66 25 378 378
BalonParca AdiParca NoAdetTipApplied Date A B
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97605-079-0 01 1 0712- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 0712- ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS 		1-87610-104-0 01 1 0907- ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-104-0 01 1 0907- ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1114 		8-97605-102-0 01 1 0712- ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1114 		8-97605-102-0 01 1 0712- ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-234-1 01 1 0712-0803 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-234-1 01 1 0712-0803 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-234-1 01 1 0804-1301 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98017-234-1 01 1 0804-1301 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 1302- ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98017-234-1 01 1 1302- ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98041-759-0 01 1 0712-1111 ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-759-0 01 1 0712-1111 ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98204-846-0 01 1 1112- ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1112- ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-428-0 01 1 0712-0803 ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-428-0 01 1 0712-0803 ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-428-0 01 1 0804- ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-428-0 01 1 0804- ●

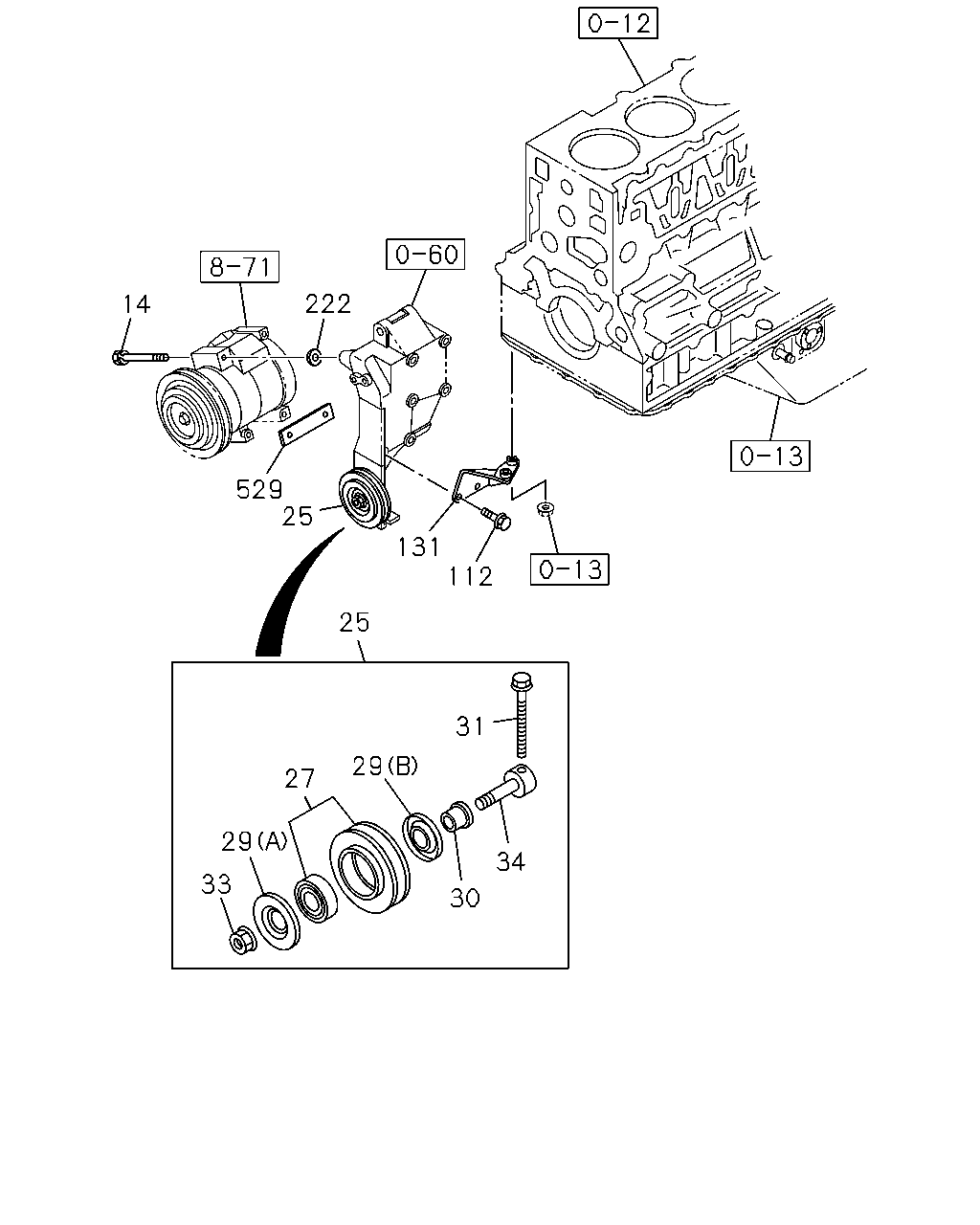

çizim 141331
222 14 529 25 131 112 25 31 29 27 29 34 33 30
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X78 W/LK WASHER 		5-09000-228-1 04 1 0712- ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER 		5-09000-228-1 04 1 0712- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97605-079-0 01 1 0712- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 0712- ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97605-323-0 01 1 0712- ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-323-0 01 1 0712- ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97605-329-0 01 1 0712- ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97605-329-0 01 1 0712- ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97605-330-0 01 1 0712- ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97605-330-0 01 1 0712- ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97605-328-0 01 1 0712- ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-328-0 01 1 0712- ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97605-325-0 01 1 0712- ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-325-0 01 1 0712- ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97605-326-0 01 1 0712- ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-326-0 01 1 0712- ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97605-327-0 01 1 0712- ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-327-0 01 1 0712- ●
112 BOLT; STAY
M8X16 FLANGE 		0-28050-816-0 02 1 0712- ● ●
131 STAY; CMPR BRKT 8-97601-869-1 01 1 0712- ● ●
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=8.2 		8-94312-733-0 02 1 0712- ●
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		8-94312-733-0 02 1 0712- ●
529 SPACER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83573-271-0 01 1 0712- ●
529 SPACER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-271-0 01 1 0712- ●
