27 |

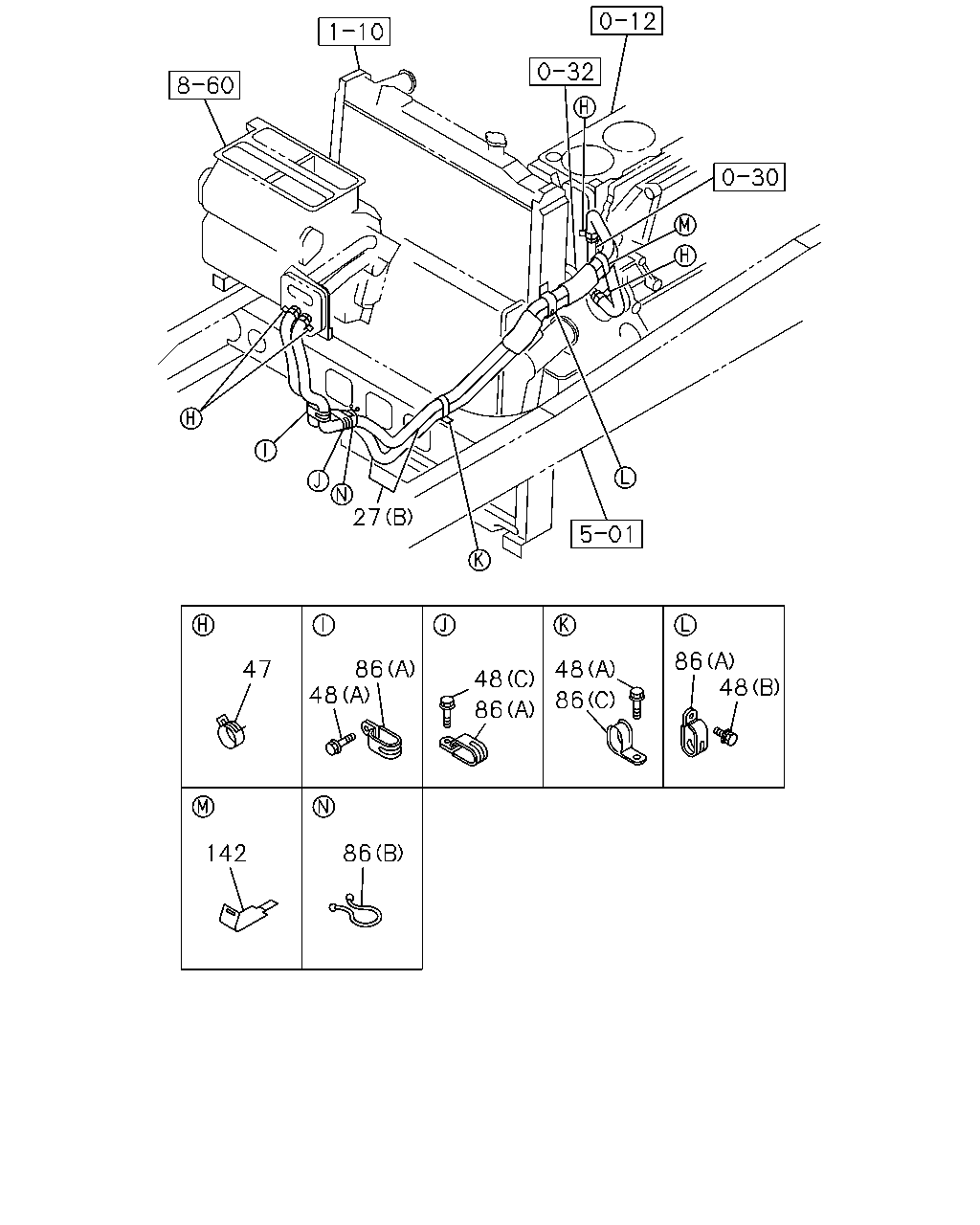

HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
EURO2 SPECIFICATION<NT2>
(B)
|
8-98085-573-0 |
01 |
1 |
0812- |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(A)
|
8-98010-679-3 |
01 |
1 |
0712-0811 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
|
8-98010-679-3 |
01 |
1 |
0712-0811 |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
EURO4 SPECIFICATION<NT4>
(A)
|
8-98010-679-3 |
01 |
1 |
0812-1003 |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
|
8-98010-679-3 |
01 |
1 |
0812-1003 |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
EURO4 SPECIFICATION<NT4>
(A)
|
8-98163-393-0 |
01 |
1 |
1004- |
● |
|
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
|
8-98163-393-0 |
01 |
1 |
1004- |
|
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
ID=22
|
8-97359-141-0 |
04 |
1 |
0712- |
● |
|
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-97359-141-0 |
04 |
1 |
0712- |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(C)
M8X16 FLANGE
|
0-28060-816-0 |
01 |
1 |
0712-0804 |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(C)
M8X16 FLANGE
|
0-28060-816-0 |
01 |
1 |
0712-0804 |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(C)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0805- |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(C)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0805- |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0712- |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0712- |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
0712- |
● |
|
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
0712- |
|
● |
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0712-0910 |
● |
|
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0712-0910 |
|
● |
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
0911- |
● |
|
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
0911- |
|
● |
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(B)
|
8-94463-508-0 |
01 |
1 |
0712-1008 |
● |
|
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
|
8-94463-508-0 |
01 |
1 |
0712-1008 |
|
● |
| |
86 |
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR
CONDITIONER(C68)
(B)
|
8-94463-508-0 |
01 |
1 |
1009- |
● |
|
| |
86 |
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
8-94463-508-0 |
01 |
1 |
1009- |
|
● |
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(C)
|
8-98029-677-0 |
01 |
1 |
0712- |
● |
|
| |
86 |
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(C)
|
8-98029-677-0 |
01 |
1 |
0712- |
|
● |
| |
142 |
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
L=170
|
1-83574-139-0 |
01 |
1 |
0712-1205 |
● |
|
| |
142 |
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
L=170
|
1-83574-139-0 |
01 |
1 |
0712-1205 |
|
● |
| |
142 |
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
L=170
|
8-98166-021-0 |
01 |
1 |
1206- |
● |
|
| |
142 |
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
L=170
|
8-98166-021-0 |
01 |
1 |
1206- |
|
● |
