Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#66802) — 704 parça

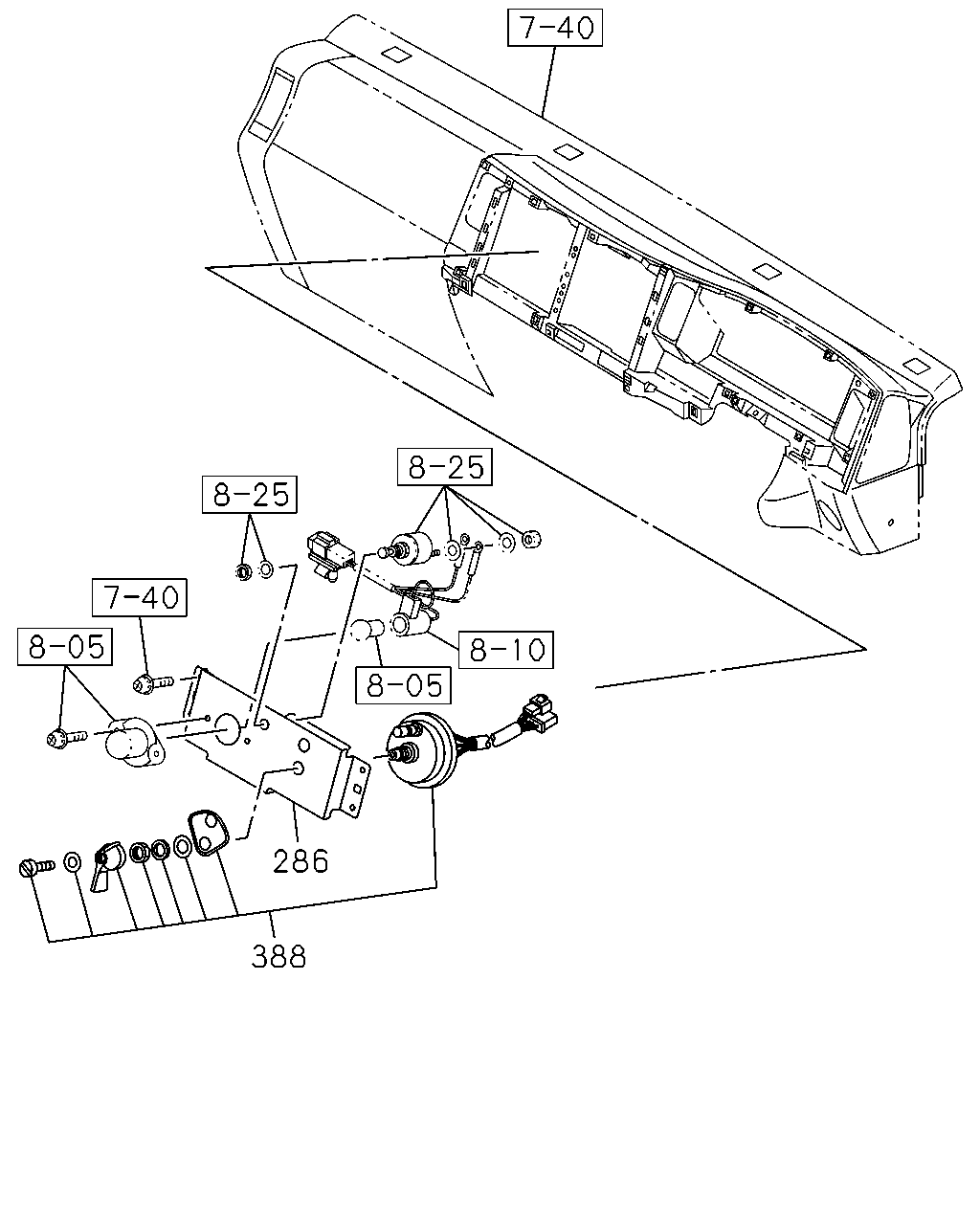

286 388

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	286	BRACKET LAMPS EXP PACKAGE<WL5>	8-97623-460-2	01	1	1003-	●
	388	SWITCH; ROTARY LAMPS EXP PACKAGE<WL5>	1-82430-003-0	01	1	1003-	●

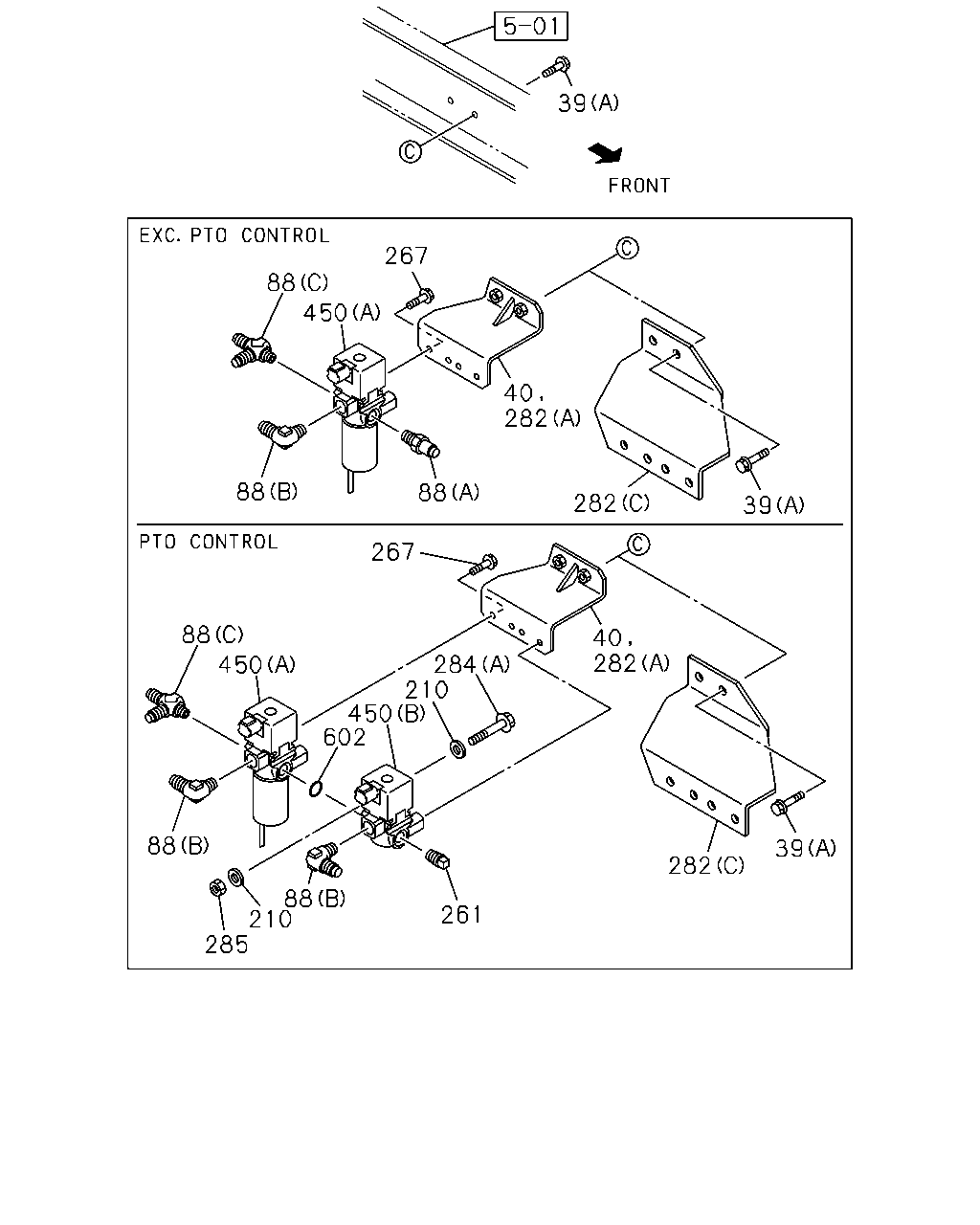

88 267 450 88 282 88 88 39 267 450 88 88 88 88 282 39 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002		●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
39	BOLT; BRKT,MAG VLV REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-0802	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-0808	●	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-0802		●
41	NUT; BRKT,MAG VLV REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE	0-91180-108-0	02	1	1003-1008	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0712-0802		●
88	CONNECTOR; MAG VLV EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	0812-0906	●
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	0907-1503	●
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	8-98299-777-0	02	1	1504-	●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0811	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0811	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-1002	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-1002		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1003-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1003-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0811	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0811		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-1011	●
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-1011	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-1011		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-	●
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-	●
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-		●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0712-0802	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0803-0811	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-1002	●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1003-	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802	●	●
88	CONNECTOR; MAG VLV (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0803-0811	●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002	●
88	CONNECTOR; MAG VLV (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-	●
88	CONNECTOR; MAG VLV (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-		●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0802		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-0811	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-0811		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-		●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0811	●	●
267	BOLT; VLV TO BRKT CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0812-1002	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0812-1002		●
267	BOLT; VLV TO BRKT DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	1003-	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1003-		●
282	BRACKET; MAG VLV (C)	8-98118-340-0	01	1	0804-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0712-0802	●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0803-0803	●	●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0804-0811	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0812-1002	●
282	BRACKET; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	1003-	●
282	BRACKET; MAG VLV (B)	1-47471-374-0	01	1	0712-0802		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0803-0811	●	●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0812-1002	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0812-1002		●
450	VALVE; MAG DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	1003-	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1003-		●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0712-0811	●	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0812-0910	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0812-0910		●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-1002	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-1002		●
450	VALVE; MAG DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	1003-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1003-		●

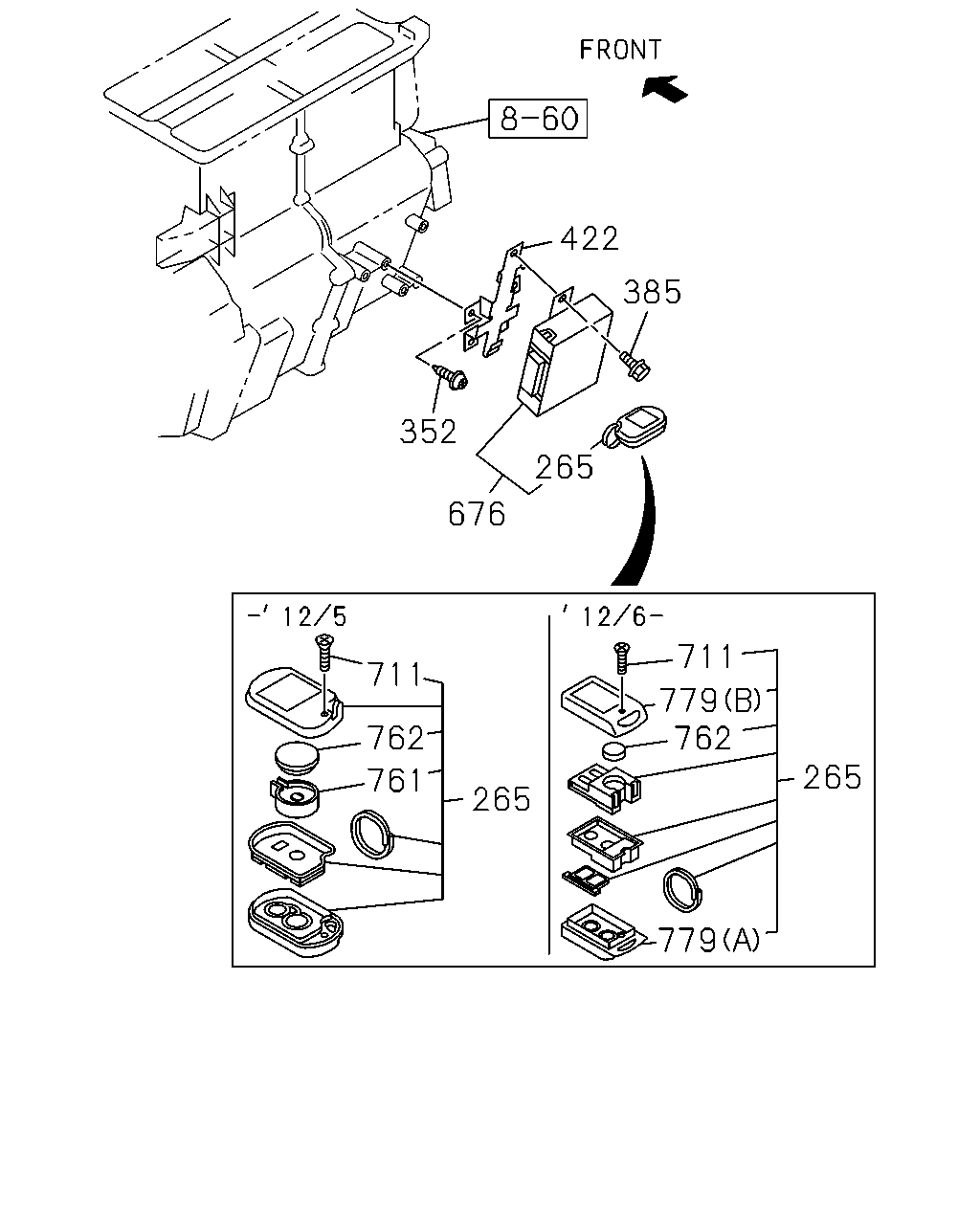

422 385 352 676 265 711 762 761 265 711 779 762 265 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	0712-1012	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0712-1012		●
265	TRANSMITTER ASM; AUTO DOOR LOCK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98180-751-0	02	1	1101-1205	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205		●
265	TRANSMITTER ASM; AUTO DOOR LOCK AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1206-	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-		●
352	SCREW; BRKT ACCESSORY SOCKET<KC5> M3X10	9-93490-310-0	01	1	1003-	●
352	SCREW; BRKT AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0712-	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0712-		●
385	BOLT; CONT UNIT AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0712-	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0712-		●
422	BRACKET; CONT UNIT AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	0712-	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0712-		●
676	CONTROL UNIT; KEYLESS ENTRY AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98017-258-1	01	1	0712-1012	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0712-1012		●
676	CONTROL UNIT; KEYLESS ENTRY AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98181-809-0	01	1	1101-1205	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205		●
676	CONTROL UNIT; KEYLESS ENTRY AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98218-231-0	01	1	1206-	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-		●
711	SCREW; TRANSMITTER AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0907-1205	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0907-1205		●
711	SCREW; TRANSMITTER AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-		●
711	SCREW; TRANSMITTER AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	01	1	0712-0906	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	01	1	0712-0906		●
761	HOLDER; BATTERY AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0907-1012	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0907-1012		●
761	HOLDER; BATTERY AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	01	1	0712-0906	●
761	HOLDER; BATTERY	8-98078-063-0	01	1	0712-0906		●
762	BATTERY AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0907-	●
762	BATTERY	8-98078-061-0	02	1	0907-		●
762	BATTERY AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	01	1	0712-0906	●
762	BATTERY	8-98078-061-0	01	1	0712-0906		●
779	COVER; TRANSMITTER AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF> (A)	8-98218-240-0	02	1	1206-	●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-		●
779	COVER; TRANSMITTER AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) REMOTE CONT DOOR LOCK<6NF> (B)	8-98218-243-0	02	1	1206-	●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-		●

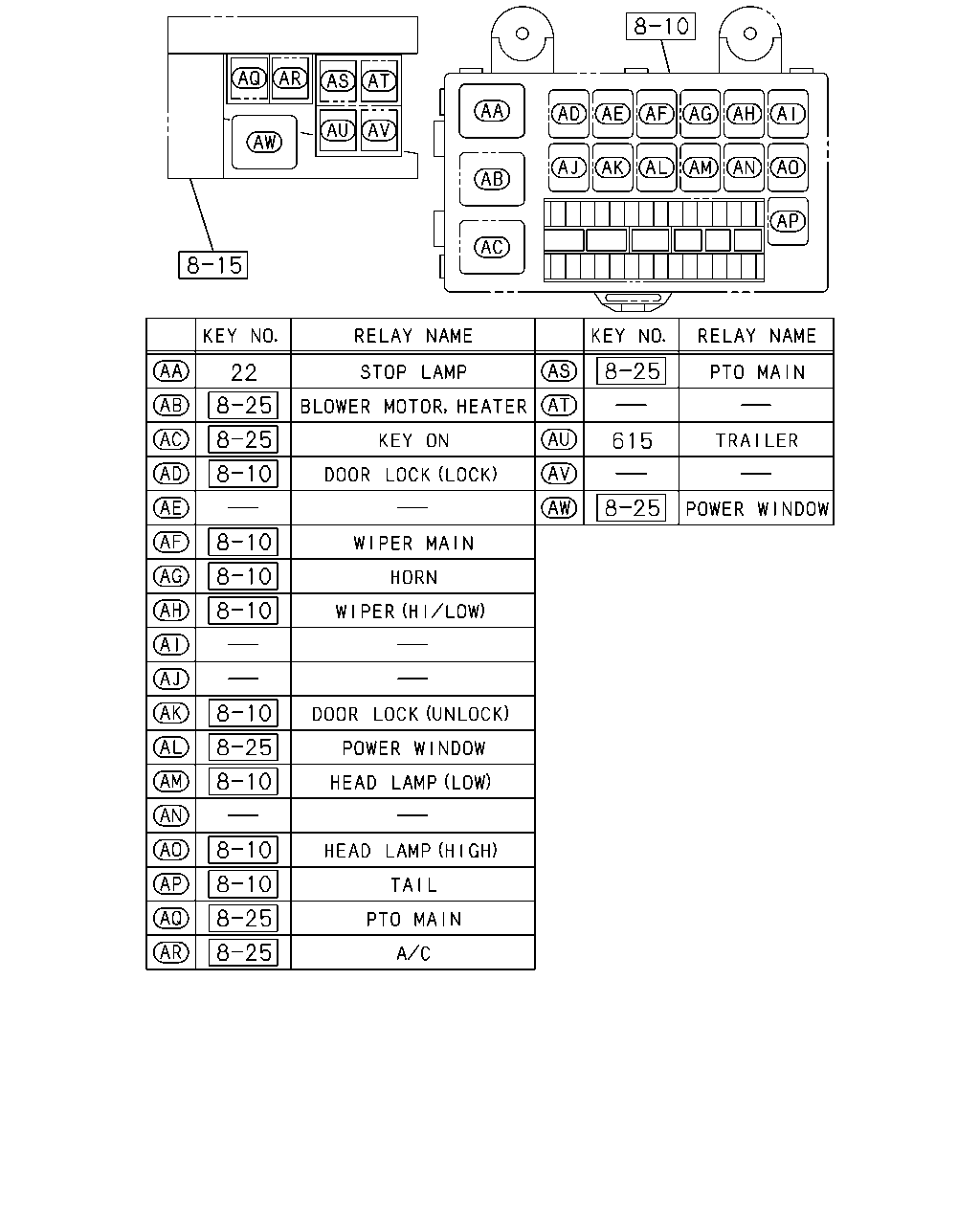

22 615

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●	●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●	●

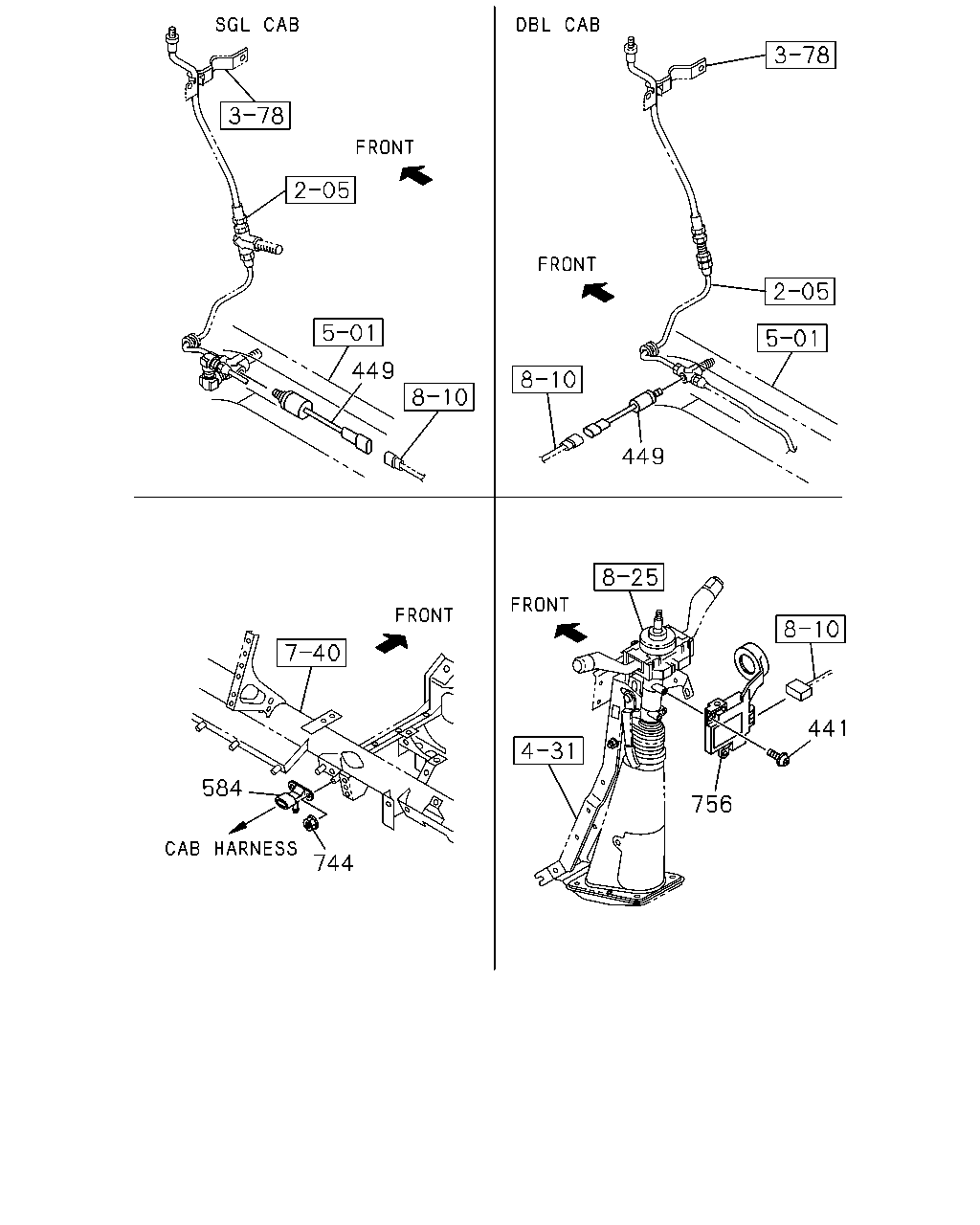

441 756 584 744 449 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
441	SCREW; CONT UNIT AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0712-0712	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0712-0712		●
441	SCREW; CONT UNIT IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0712-	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0712-		●
449	SWITCH; OIL PRESS,CLUTCH	1-82410-143-1	01	1	0712-0802		●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0712-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0712-	●	●
756	CONTROL UNIT; IMMOBILIZER AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC>	8-98073-883-0	01	1	0712-0712	●
756	CONTROL UNIT; IMMOBILIZER	8-98073-883-0	01	1	0712-0712		●
756	CONTROL UNIT; IMMOBILIZER AUSTRALIA EQUIPMENT(B13) IMMOBILIZER SYSTEM<7KC>	8-98097-554-0	01	1	0712-0712	●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0712-0712		●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98097-554-0	01	1	0712-1005	●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0712-1005		●
756	CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM<7KC>	8-98158-127-0	01	1	1006-	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-		●

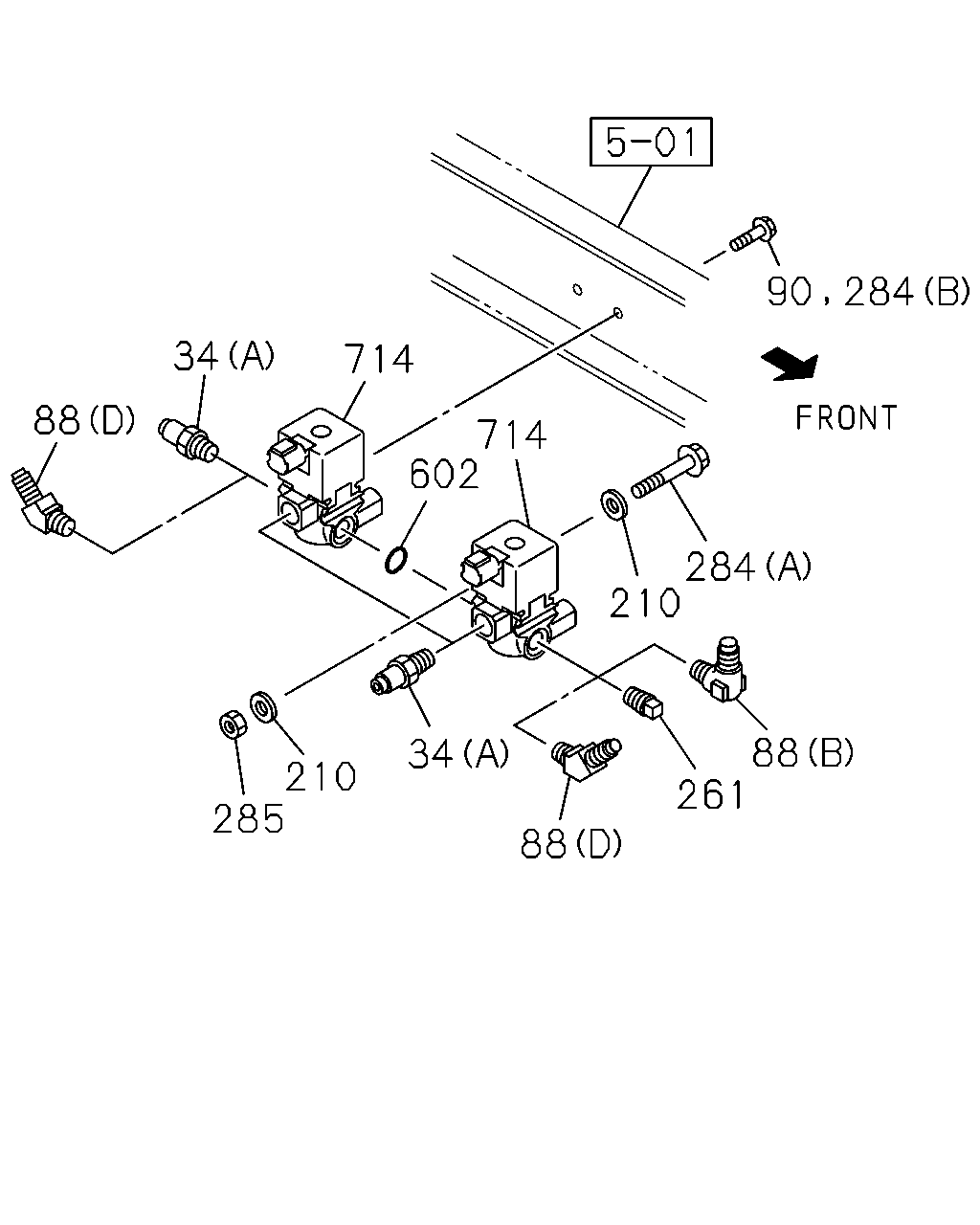

34 88 71 602 714 285 210 34 88 261 210 88 284 90 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1003-1503	●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0812-1002	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0812-1002		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-	●	●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002	●
34	CONNECTOR; MAG VLV,INL PORT EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1003-1011	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1003-1011	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1003-1011		●
34	CONNECTOR; MAG VLV,INL PORT EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1012-	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1012-	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1012-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1012-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002	●
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	04	1	0712-0802	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0803	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0811	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●	●
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0712-0802		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0803-0803	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	04	1	0804-0811	●	●
34	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0812-0906	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0907-	●
88	CONNECTOR; MAG VLV EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	0812-0906	●
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	0907-1503	●
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	8-98299-777-0	02	1	1504-	●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0811	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0811	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-1002	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-1002		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1003-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1003-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0811	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0811		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-1011	●
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-1011	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-1011		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-	●
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-	●
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-		●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0712-0802	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0803-0811	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-1002	●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1003-	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802	●	●
88	CONNECTOR; MAG VLV (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0803-0811	●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002	●
88	CONNECTOR; MAG VLV (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-	●
88	CONNECTOR; MAG VLV (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-		●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0802		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-0811	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-0811		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-		●
90	BOLT; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8X25 FLANGE	0-28650-825-0	02	1	1003-	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0712-0801	●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0712-0801	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0802-0802	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0712-0802	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0803-0811	●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0803-0811	●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0812-0906	●
210	WASHER; PL,BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	1-82569-266-0	02	1	0812-0906	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0812-0906		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0812-0906		●
210	WASHER; PL,BRKT EURO4 SPECIFICATION<NT4>	1-82569-266-0	02	1	0907-1002	●
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82569-266-0	02	1	0907-1002	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0907-1002	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0907-1002		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0907-1002		●
210	WASHER; PL,BRKT EURO4 SPECIFICATION<NT4>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1003-1011		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1003-1011		●
210	WASHER; PL,BRKT EURO4 SPECIFICATION<NT4>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1012-		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1012-		●
261	PLUG; MAG VLV	0-92004-813-0	01	1	1206-1206	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3>	0-92004-813-0	01	1	1206-1206	●
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3>	0-92004-813-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0712-0802	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0803-0803	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0803-0803	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0804-0811	●	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0804-0811	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0812-1002	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1002	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1002	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1003-1205	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0803-0811	●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0803-0811	●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0906	●
284	BOLT; MAG VLV EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0906	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0906		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0906		●
284	BOLT; MAG VLV EURO4 SPECIFICATION<NT4> (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002	●
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002		●
284	BOLT; MAG VLV EURO4 SPECIFICATION<NT4> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011		●
284	BOLT; MAG VLV EURO4 SPECIFICATION<NT4> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-		●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0712-0802	●	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0712-0802	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0803-0811	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0803-0811	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	01	1	0812-0906	●
285	NUT; MAG VLV EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	0812-0906	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0812-0906		●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0812-0906		●
285	NUT; MAG VLV EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	0907-1002	●
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	0907-1002	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	01	1	0907-1002	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0907-1002		●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0907-1002		●
285	NUT; MAG VLV EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1003-1011		●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1003-1011		●
285	NUT; MAG VLV EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1012-		●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1012-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0712-0802	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0803-0811	●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0803-0811	●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0812-0906	●
602	GASKET; MAG VLV EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=16.8	9-09565-117-0	01	1	0812-0906	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0812-0906		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0812-0906		●
602	GASKET; MAG VLV EURO4 SPECIFICATION<NT4> ID=16.8	9-09565-117-0	01	1	0907-1002	●
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> ID=16.8	9-09565-117-0	01	1	0907-1002	●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0907-1002	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0907-1002		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0907-1002		●
602	GASKET; MAG VLV EURO4 SPECIFICATION<NT4> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1003-1011		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1003-1011		●
602	GASKET; MAG VLV EURO4 SPECIFICATION<NT4> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1012-		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1012-		●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	0712-0811	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	1-82563-871-2	02	1	0812-0906	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	0812-0906		●
714	VALVE; MAG,TRANS,LOW TO HIGH EURO4 SPECIFICATION<NT4>	1-82563-871-2	02	1	0907-1002	●
714	VALVE; MAG,TRANS,LOW TO HIGH WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82563-871-2	02	1	0907-1002	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	0907-1002		●
714	VALVE; MAG,TRANS,LOW TO HIGH EURO4 SPECIFICATION<NT4>	1-82563-871-2	02	1	1003-1011	●
714	VALVE; MAG,TRANS,LOW TO HIGH WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3>	1-82563-871-2	02	1	1003-1011	●
714	VALVE; MAG,TRANS,LOW TO HIGH WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82563-871-2	02	1	1003-1011	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	1003-1011		●
714	VALVE; MAG,TRANS,LOW TO HIGH EURO4 SPECIFICATION<NT4>	1-82563-871-2	02	1	1012-	●
714	VALVE; MAG,TRANS,LOW TO HIGH WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82563-871-2	02	1	1012-	●
714	VALVE; MAG,TRANS,LOW TO HIGH WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6>	1-82563-871-2	02	1	1012-	●
714	VALVE; MAG,TRANS,LOW TO HIGH WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3>	1-82563-871-2	02	1	1012-	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	1012-		●

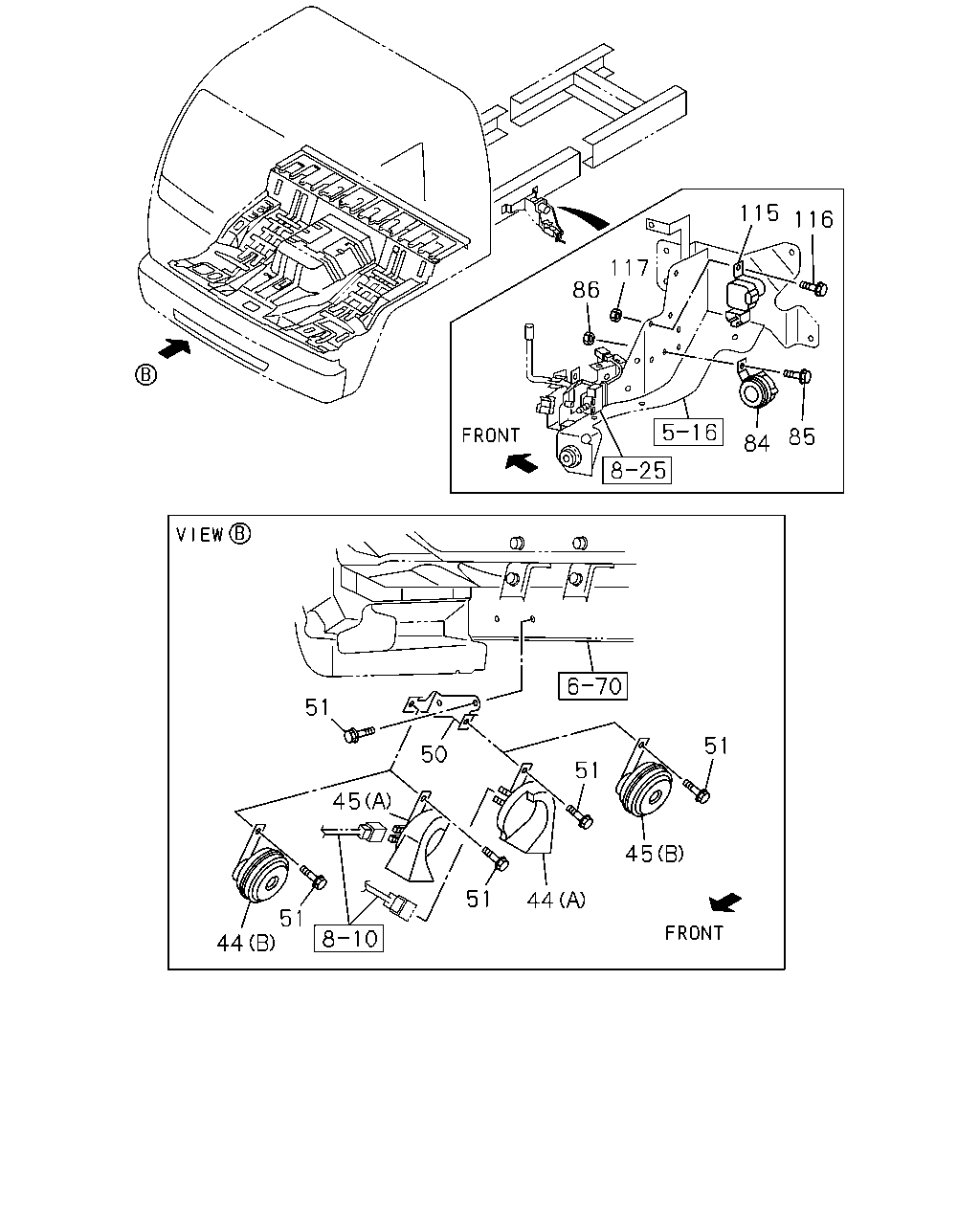

117 86 115 84 85 50 51 51 51 54 44 51 51 44 45 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE ELECTRICAL HORN(WB7) (A)	8-97611-677-2	01	1	0712-	●
44	HORN; HIGH NOTE (A)	8-97611-677-2	01	1	0712-		●
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN(WB7) (B)	8-98022-022-0	01	1	0712-1001	●
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) (B)	8-98022-022-0	01	1	1002-	●
45	HORN; LOW NOTE ELECTRICAL HORN(WB7) (A)	8-97611-676-2	01	1	0712-	●
45	HORN; LOW NOTE (A)	8-97611-676-2	01	1	0712-		●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN(WB7) (B)	8-98022-023-0	01	1	0712-	●
50	BRACKET; HORN	8-97613-300-2	01	1	0712-1002	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1003-	●	●
51	BOLT; HORN TO BRKT EXC. ELECTRICAL HORN(WB7),DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1002-	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0712-1001	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●	●
51	BOLT; HORN TO BRKT ELECTRICAL HORN(WB7),DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-		●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0712-		●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0712-		●
115	RELAY; POWER CAB TILT UNIT 24V NIKKO	8-98005-631-1	01	1	0712-		●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0712-		●

34 36 35 34 261 34 39 33 36 90 89 261 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	1-82563-871-2	01	1	0812-1002	●
33	VALVE; MAG,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM>	1-82563-871-2	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1003-1503	●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0812-1002	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0812-1002		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-	●	●
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROLWITH DPD<8JM> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002	●
34	CONNECTOR; MAG VLV,INL PORT EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1003-1011	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1003-1011	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1003-1011		●
34	CONNECTOR; MAG VLV,INL PORT EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1012-	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1012-	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1012-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1012-		●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002	●
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	04	1	0712-0802	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0803	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0803	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0804-0811	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●	●
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0712-0802		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0803-0803	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	04	1	0804-0811	●	●
34	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0812-0906	●
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0907-	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	8-98034-702-0	01	1	0812-1002	●
35	BRACKET; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM>	8-98034-702-0	01	1	1003-	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M8X20 FLANGE	0-28650-820-0	02	1	0812-1002	●
36	BOLT; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> (A) M8X20 FLANGE	0-28650-820-0	02	1	1003-	●
36	BOLT; MAG VLV,PTO CONT REARWARD INNER SINGLE TIRE<YK3> (A) M8X20 FLANGE	0-28650-820-0	02	1	1003-	●
36	BOLT; MAG VLV,PTO CONT (B) M8X25 FLANGE	0-28650-825-0	02	1	0802-0803	●
36	BOLT; MAG VLV,PTO CONT (B) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002		●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
39	BOLT; BRKT,MAG VLV REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-0802	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-0808	●	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-0802		●
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82563-871-2	02	1	1003-1205	●
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82563-871-2	01	1	1206-	●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0712-0803	●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0804-1002	●	●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	1003-1205	●	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3>	1-82563-871-2	01	1	1003-1205	●
89	VALVE; MAG,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6>	1-82563-871-2	01	1	1003-1205	●
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3>	8-97641-594-0	01	1	1206-	●
89	VALVE; MAG,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3>	8-97641-594-0	01	1	1206-	●
90	BOLT; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8X25 FLANGE	0-28650-825-0	02	1	1003-	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0712-0801	●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0712-0801	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0802-0802	●	●
261	PLUG; MAG VLV	0-92004-813-0	01	1	1206-1206	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3>	0-92004-813-0	01	1	1206-1206	●
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3>	0-92004-813-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0712-0802	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0803-0803	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0803-0803	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0804-0811	●	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0804-0811	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0812-1002	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1002	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1002	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1003-1205	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-	●

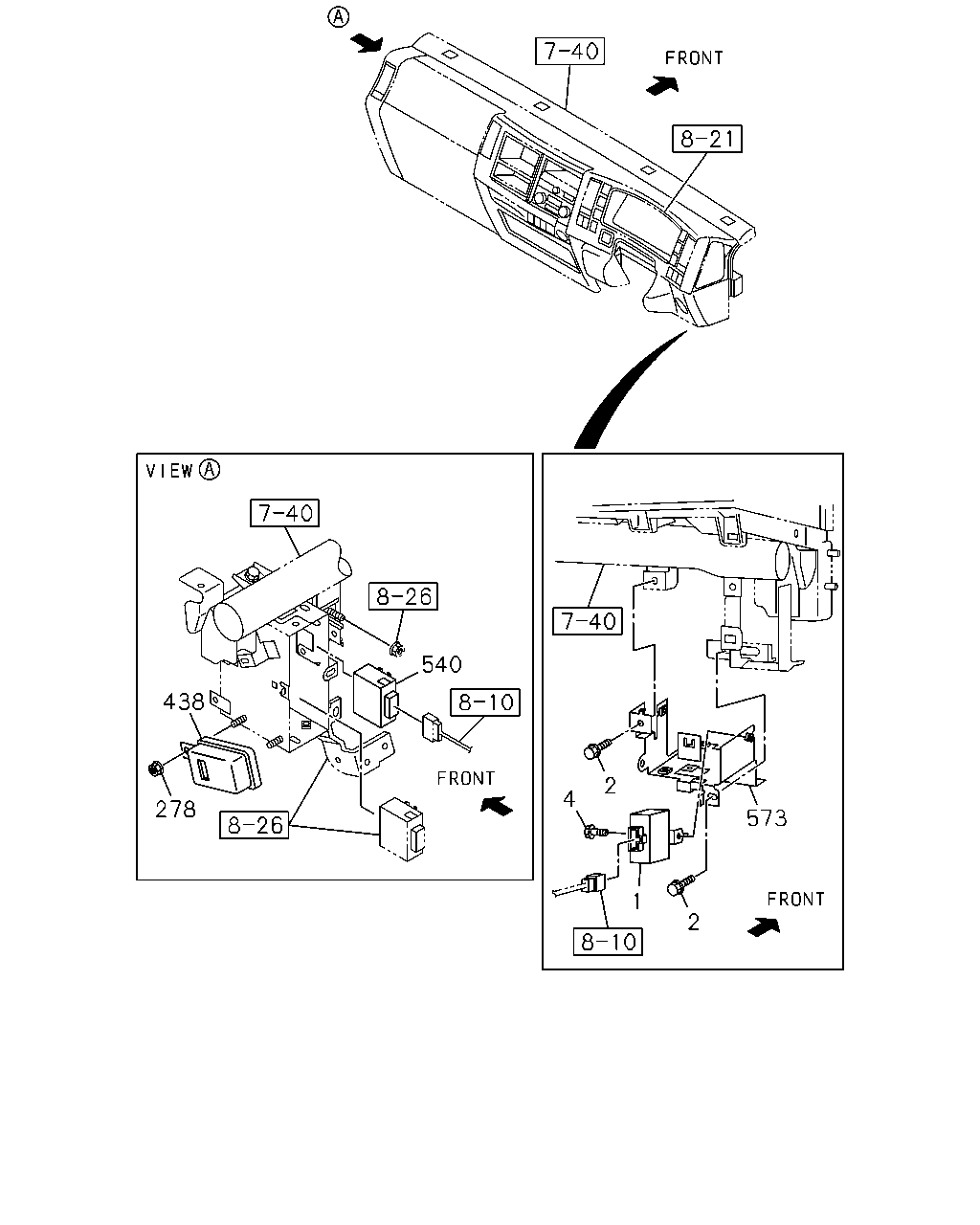

540 278 438 573 2 4 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	0712-1002	●	●
1	UNIT; FLASHER	8-98025-533-1	01	1	1003-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0712-1002	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1003-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0712-1002	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1003-	●	●
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	0712-0906	●	●
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	0907-	●	●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	0712-	●	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0712-1308	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0712-1308		●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-		●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0712-	●	●

39 267 88 88 88 450 40 282 39 40 282 284 267 450 88 450 282 39 261 602 88 210 285 88 210 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1002		●
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
39	BOLT; BRKT,MAG VLV REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6>,CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	1003-		●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-0802	●
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-0808	●	●
39	BOLT; BRKT,MAG VLV (B) M8X30 FLANGE	0-28650-830-0	02	1	0712-0802		●
40	BRACKET; MAG VLV REARWARD INNER SINGLE TIRE<YK3>	8-98034-702-0	01	1	1003-	●
88	CONNECTOR; MAG VLV EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	0812-0906	●
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	0907-1503	●
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (D) M12 & PT1/4 ELBOW	8-98299-777-0	02	1	1504-	●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0811	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0811	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-1002	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0812-1002		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1003-	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1003-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0811	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0803-0811		●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0812-1002		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-1011	●
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-1011	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1003-1011		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-	●
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-	●
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1012-		●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0712-0802	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0803-0811	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0812-1002	●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1003-	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0712-0802	●	●
88	CONNECTOR; MAG VLV (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0803-0811	●	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002	●
88	CONNECTOR; MAG VLV (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0812-1002		●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-	●
88	CONNECTOR; MAG VLV (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1003-		●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0712-0802		●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-0811	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0803-0811		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002	●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1002		●
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<NT4> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
88	CONNECTOR; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-	●
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-		●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1003-		●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0712-0802	●	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0803-0811	●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0803-0811	●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0812-0906	●
210	WASHER; PL,BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	1-82569-266-0	02	1	0812-0906	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0812-0906		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0812-0906		●
210	WASHER; PL,BRKT EURO4 SPECIFICATION<NT4>	1-82569-266-0	02	1	0907-1002	●
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82569-266-0	02	1	0907-1002	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0907-1002	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0907-1002		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0907-1002		●
210	WASHER; PL,BRKT EURO4 SPECIFICATION<NT4>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	1003-1011	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1003-1011		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1003-1011		●
210	WASHER; PL,BRKT EURO4 SPECIFICATION<NT4>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	1012-	●
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1012-		●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1012-		●
261	PLUG; MAG VLV	0-92004-813-0	01	1	1206-1206	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3>	0-92004-813-0	01	1	1206-1206	●
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3>	0-92004-813-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0712-0802	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0803-0803	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0803-0803	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0804-0811	●	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0804-0811	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0812-1002	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1002	●
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0812-1002	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1003-1205	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1003-1205	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1206-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N>,CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1207-	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-0811	●	●
267	BOLT; VLV TO BRKT CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0812-1002	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0812-1002		●
267	BOLT; VLV TO BRKT DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	1003-	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1003-		●
282	BRACKET; MAG VLV (C)	8-98118-340-0	01	1	0804-		●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0712-0802	●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0803-0803	●	●
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0804-0811	●
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0812-1002	●
282	BRACKET; MAG VLV DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	1003-	●
282	BRACKET; MAG VLV (B)	1-47471-374-0	01	1	0712-0802		●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0803-0811	●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0803-0811	●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0906	●
284	BOLT; MAG VLV EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0906	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0906		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0812-0906		●
284	BOLT; MAG VLV EURO4 SPECIFICATION<NT4> (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002	●
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002	●
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0907-1002		●
284	BOLT; MAG VLV EURO4 SPECIFICATION<NT4> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1003-1011		●
284	BOLT; MAG VLV EURO4 SPECIFICATION<NT4> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-		●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-		●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0712-0802	●	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0712-0802	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0803-0811	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0803-0811	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	01	1	0812-0906	●
285	NUT; MAG VLV EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	0812-0906	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0812-0906		●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0812-0906		●
285	NUT; MAG VLV EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	0907-1002	●
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	0907-1002	●
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	01	1	0907-1002	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0907-1002		●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0907-1002		●
285	NUT; MAG VLV EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	01	1	1003-1011	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1003-1011		●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1003-1011		●
285	NUT; MAG VLV EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE	0-91180-106-0	01	1	1012-	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1012-		●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1012-		●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0803-0811	●	●
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0812-1002	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0812-1002		●
450	VALVE; MAG DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	1003-	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1003-		●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0712-0811	●	●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0812-0910	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0812-0910		●
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-1002	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-1002		●
450	VALVE; MAG DOUBLE TIRE REARWARD<SR6> CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	1003-	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1003-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0712-0802	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0803-0811	●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0803-0811	●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0812-0906	●
602	GASKET; MAG VLV EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=16.8	9-09565-117-0	01	1	0812-0906	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0812-0906		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0812-0906		●
602	GASKET; MAG VLV EURO4 SPECIFICATION<NT4> ID=16.8	9-09565-117-0	01	1	0907-1002	●
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> ID=16.8	9-09565-117-0	01	1	0907-1002	●
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0907-1002	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0907-1002		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0907-1002		●
602	GASKET; MAG VLV EURO4 SPECIFICATION<NT4> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	1003-1011	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1003-1011		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1003-1011		●
602	GASKET; MAG VLV EURO4 SPECIFICATION<NT4> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV WHEEL BASE 4100MM(41W) PAKISTAN EQUIPMENT(CK1) DOUBLE TIRE REARWARD<SR6> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	1012-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1012-		●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1012-		●

93 190 94 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
93	NUT; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3	9-99110-403-0	03	1	1003-	●
94	SCREW; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3X10 CK-HEAD	9-93090-310-0	02	1	1003-	●
120	SEAL ACCESSORY SOCKET<KC5> 100X40	1-72498-022-1	01	1	1003-	●
190	WASHER ACCESSORY SOCKET<KC5> ID=3.1	0-91510-503-0	01	1	1003-	●

22 615 367 770 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●	●
367	RELAY; NEUTRAL A/T<X9D> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●	●
624	RELAY; SIDE TURN LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●
770	RELAY; ENG BRK ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0712-1402	●	●
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
