Sayfa 8-27 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶

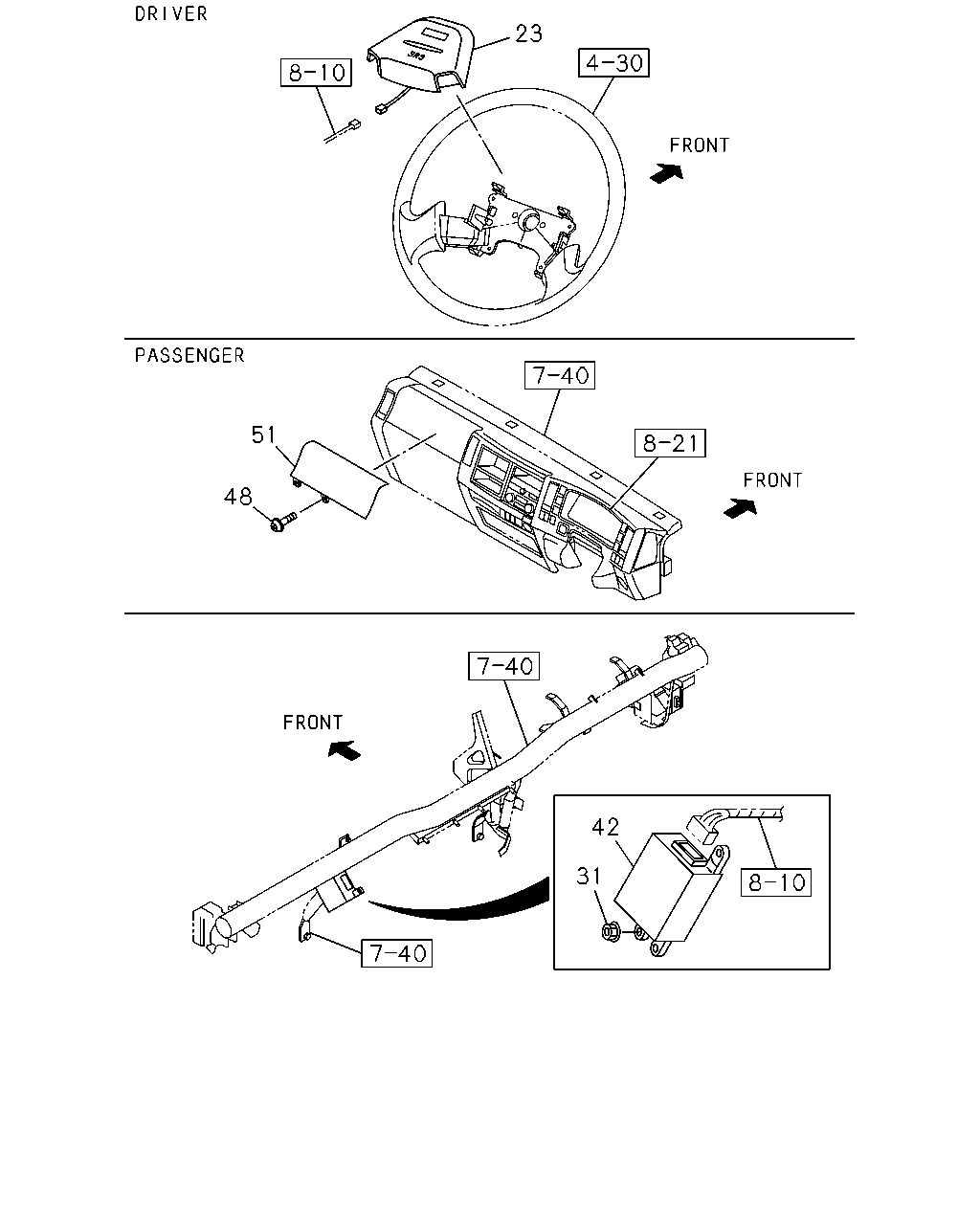

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#66801) — 10 parça

23 51 48 42 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97407-721-1	01	1	0712-1004	●	●
23	AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97418-100-0	01	1	1005-1210	●	●
23	AIR BAG UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97423-999-1	01	1	1211-	●	●
31	NUT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6 FLANGE	0-91180-106-0	03	1	0712-	●	●
42	CONTROL UNIT; SRS AIR BAG DRIVER<AJ3>	8-98094-569-0	01	1	0712-0903	●	●
42	CONTROL UNIT; SRS AIR BAG DRIVER<AJ3>	8-98120-070-2	01	1	0904-	●	●
42	CONTROL UNIT; SRS AIR BAG DRIVER & PASSENGER<AK5>	8-98094-570-0	01	1	0712-0903	●	●
42	CONTROL UNIT; SRS AIR BAG DRIVER & PASSENGER<AK5>	8-98120-071-2	01	1	0904-	●	●
48	BOLT; INST PNL AIR BAG DRIVER & PASSENGER<AK5> M6X16 W/LK&PL WASHER	0-52010-616-0	02	1	0712-	●	●
51	AIR BAG ASM; P/S AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97405-266-4	01	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
