8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#66800) — 116 parça

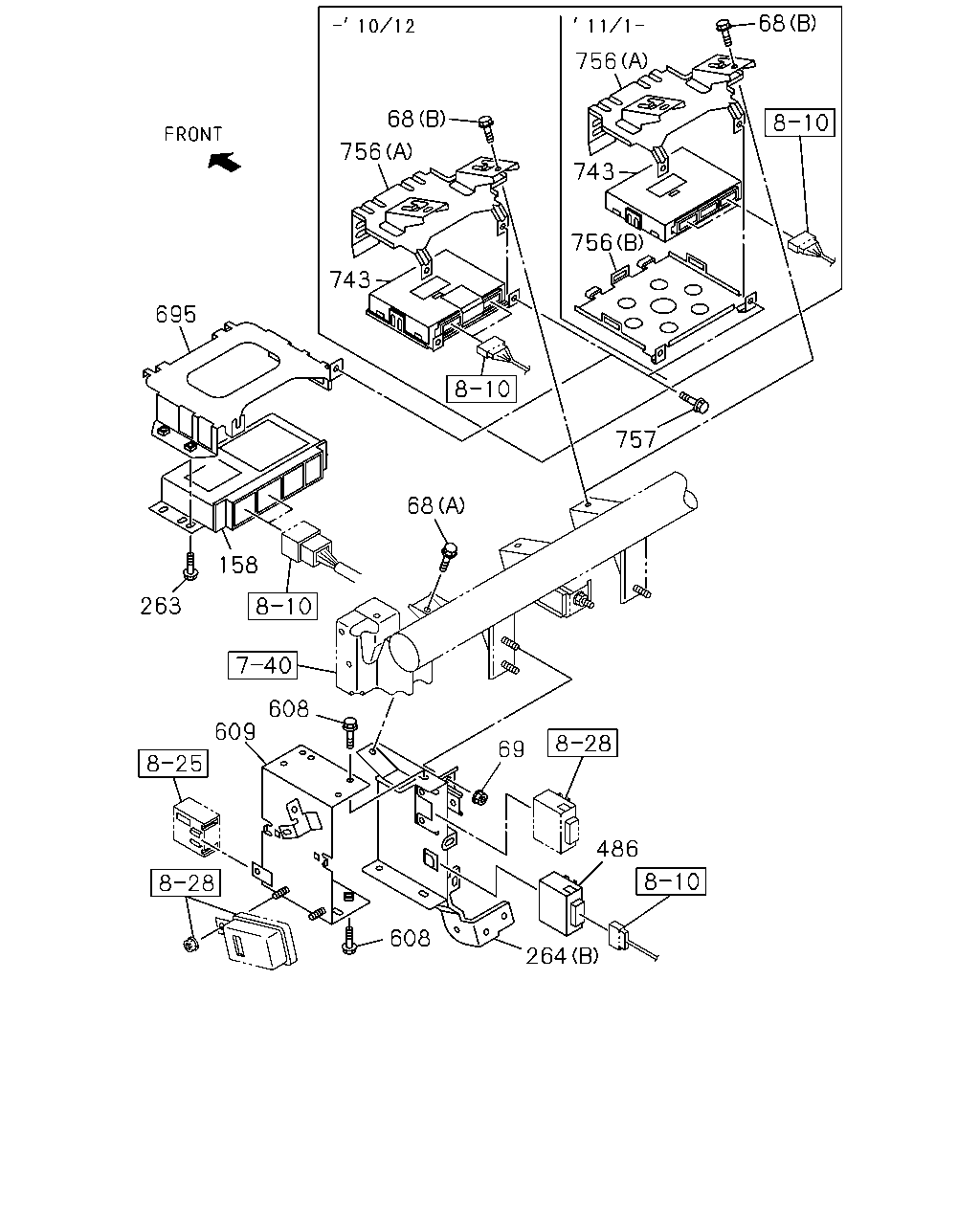

68 756 68 756 743 756 743 695 757 68 158 263 608 609 69 486 608 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
68	BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	0911-1002	●	●
68	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1003-	●
68	BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1003-	●
68	BOLT; BRKT MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1003-		●
68	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-	●	●
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	0712-	●	●
158	CONTROLLER; ABS ANTI LOCK BRAKE<JE5>	1-80119-229-2	01	1	1003-1005	●
158	CONTROLLER; ABS ANTI LOCK BRAKE<JE5> TIRE 12.00R20-18 SPECIAL BLOCK(5L1)	8-98172-350-0	01	1	1006-	●
263	BOLT; CONT UNIT ANTI LOCK BRAKE<JE5> M6X16 FLANGE	0-28650-616-0	04	1	1003-	●
264	BRACKET; CONT UNIT A/T<X9D> (A)	8-98064-901-0	01	1	1003-	●
264	BRACKET; CONT UNIT (B)	8-97609-985-9	01	1	0712-	●	●
486	CONTROL UNIT; MIRROR O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>	8-97610-202-0	01	1	0712-0912	●
608	BOLT; CONT UNIT,AIR SUS M6X16 FLANGE	0-28650-616-0	05	1	0712-1002	●	●
608	BOLT; CONT UNIT,AIR SUS M6X16 FLANGE	0-28650-616-0	05	1	1003-	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS PAKISTAN EQUIPMENT(CK1) LAMPS EXP PACKAGE<WL5>	8-98169-737-0	01	1	1201-1201	●
609	BRACKET ASM; ELEC UNIT,AIR SUS COUNTRY PAKISTAN<CK5> LAMPS EXP PACKAGE<WL5>	8-98169-737-0	01	1	1202-1308	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98169-737-1	01	1	1309-	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98095-337-0	01	1	0712-1002	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98095-337-0	01	1	1003-1112	●	●
609	BRACKET ASM; ELEC UNIT,AIR SUS EXC. PAKISTAN EQUIPMENT(CK1)	8-98095-337-0	01	1	1201-1201	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98095-337-0	01	1	1201-1201		●
609	BRACKET ASM; ELEC UNIT,AIR SUS EXC. COUNTRY PAKISTAN<CK5>	8-98095-337-0	01	1	1202-1308	●
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98095-337-0	01	1	1202-1308		●
695	BRACKET; CONT UNIT,ABS ANTI LOCK BRAKE<JE5>	8-98045-016-1	01	1	1003-	●
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98125-904-0	01	1	0911-1005	●	●
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98155-169-1	01	1	1006-1007	●	●
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98176-213-0	01	1	1008-1012	●	●
743	CONTROL UNIT; BCM MULTI INFORMATION DISPLAY<7NY>	8-98182-026-3	01	1	1101-	●	●
756	BRACKET; ECU,BCM MULTI INFORMATION DISPLAY<7NY> (B)	8-98111-836-1	01	1	1101-	●	●
756	BRACKET; ECU,BCM MULTI INFORMATION DISPLAY<7NY> (A)	8-98056-411-3	01	1	0911-1002	●	●
756	BRACKET; ECU,BCM ANTI LOCK BRAKE<JE5> (A)	8-98056-411-3	01	1	1003-	●
756	BRACKET; ECU,BCM MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> (A)	8-98056-411-3	01	1	1003-	●
756	BRACKET; ECU,BCM MULTI INFORMATION DISPLAY<7NY> (A)	8-98056-411-3	01	1	1003-		●
757	BOLT; BRKT,BCM MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE	0-28650-616-0	02	1	0911-1002	●	●
757	BOLT; BRKT,BCM ANTI LOCK BRAKE<JE5> M6X16 FLANGE	0-28650-616-0	02	1	1003-	●
757	BOLT; BRKT,BCM MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> M6X16 FLANGE	0-28650-616-0	02	1	1003-	●
757	BOLT; BRKT,BCM MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE	0-28650-616-0	02	1	1003-		●

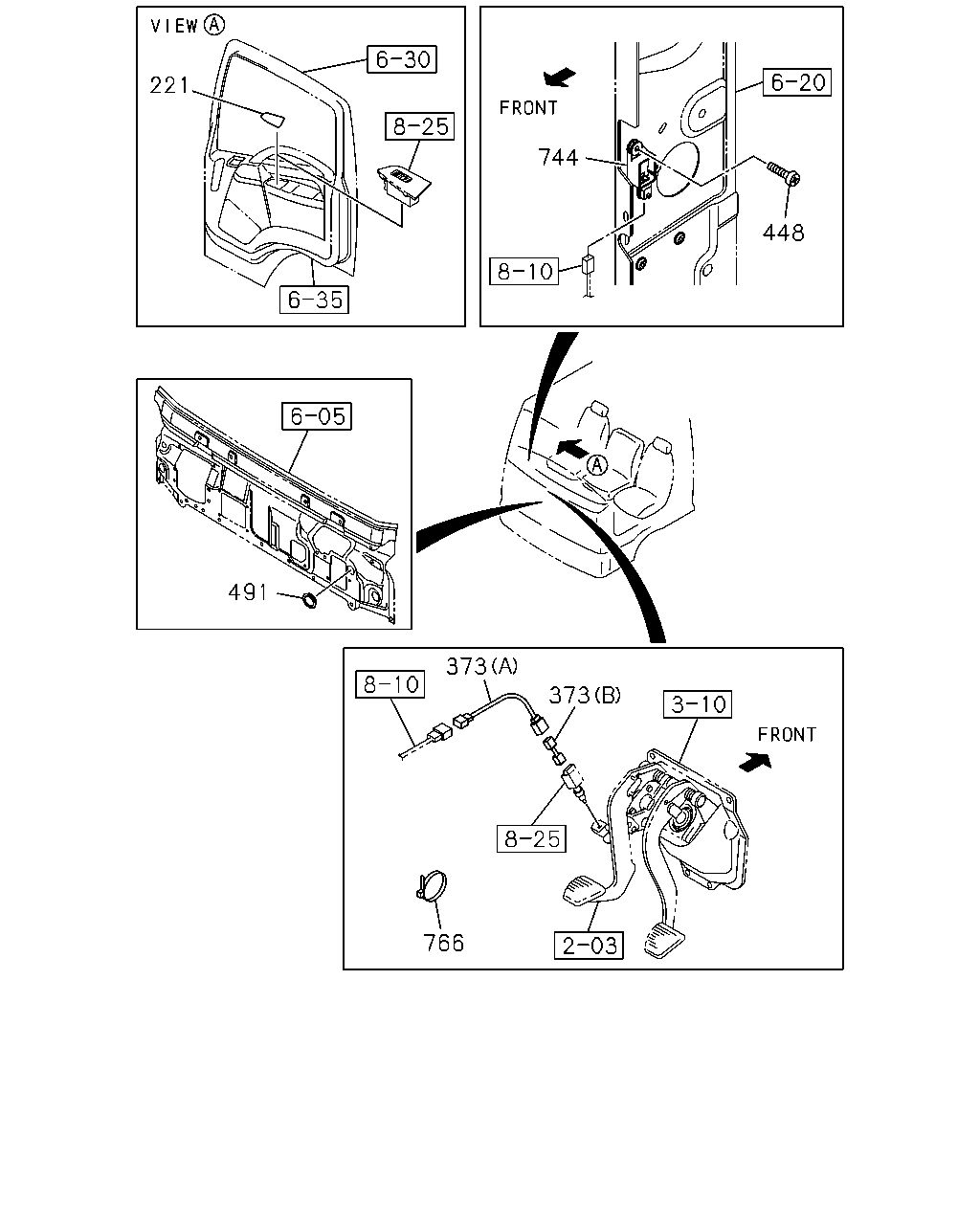

221 744 448 491 373 373 766

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	0712-	●
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	0712-	●
373	HARNESS; CLU SWITCH (B)	8-98105-661-0	01	1	0712-0809	●	●
373	HARNESS; CLU SWITCH (A)	8-98059-419-1	01	1	0712-0801	●	●
373	HARNESS; CLU SWITCH (A)	8-98053-829-3	01	1	0802-	●	●
448	BOLT; SENSOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER	8-97105-796-1	02	1	0712-	●	●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	0712-0804		●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	0805-1002	●	●
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	1003-	●	●
744	SENSOR; AIR BAG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97386-841-2	01	1	0712-	●	●
766	BAND; CLIP L=140	5-09707-031-1	01	1	0712-0908	●	●

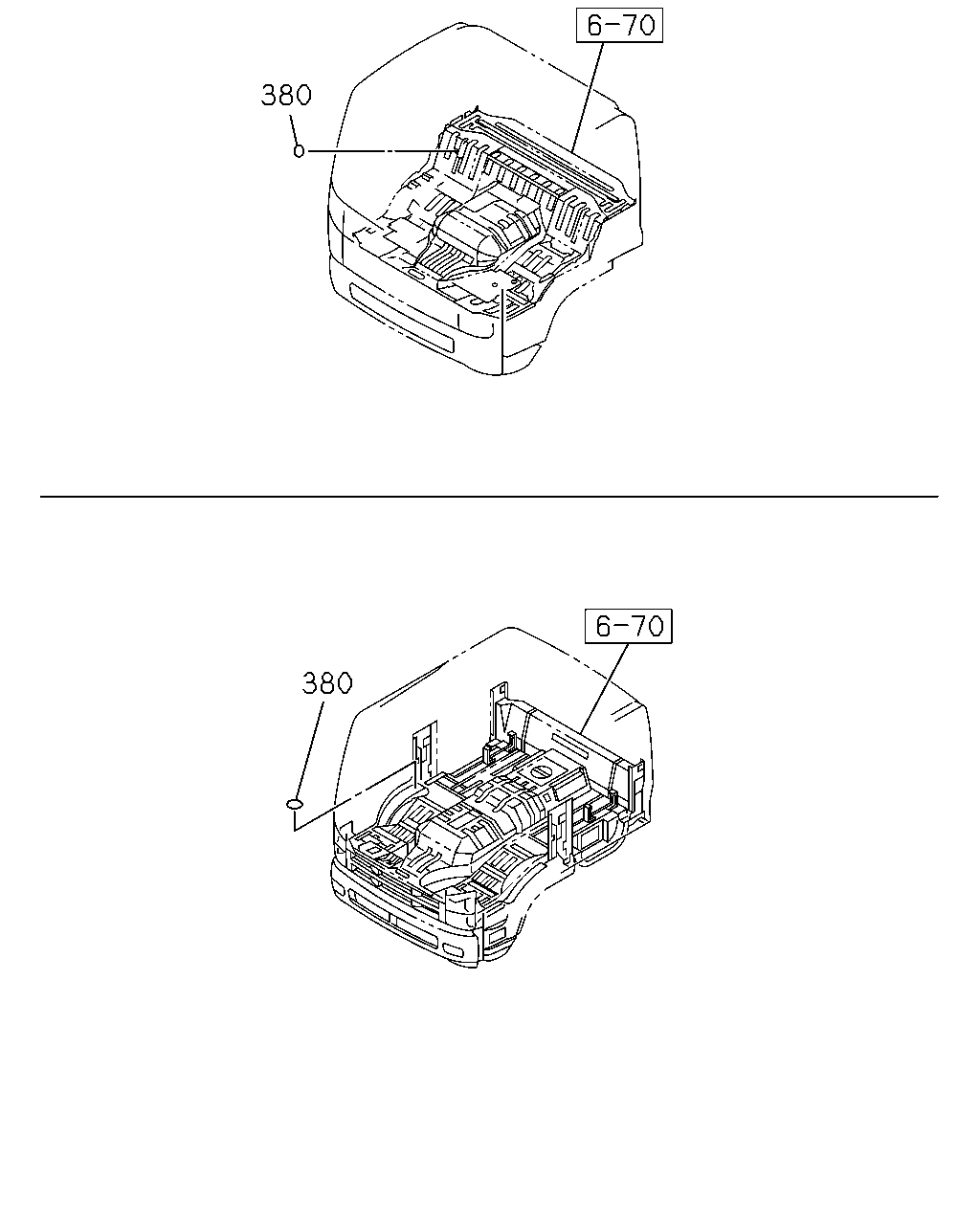

380 380

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	380	SEAL OD=25 BLACK	1-76798-019-0	01	1	0712-1002	●	●
	380	SEAL OD=25 BLACK	1-76798-019-0	01	1	1003-	●	●

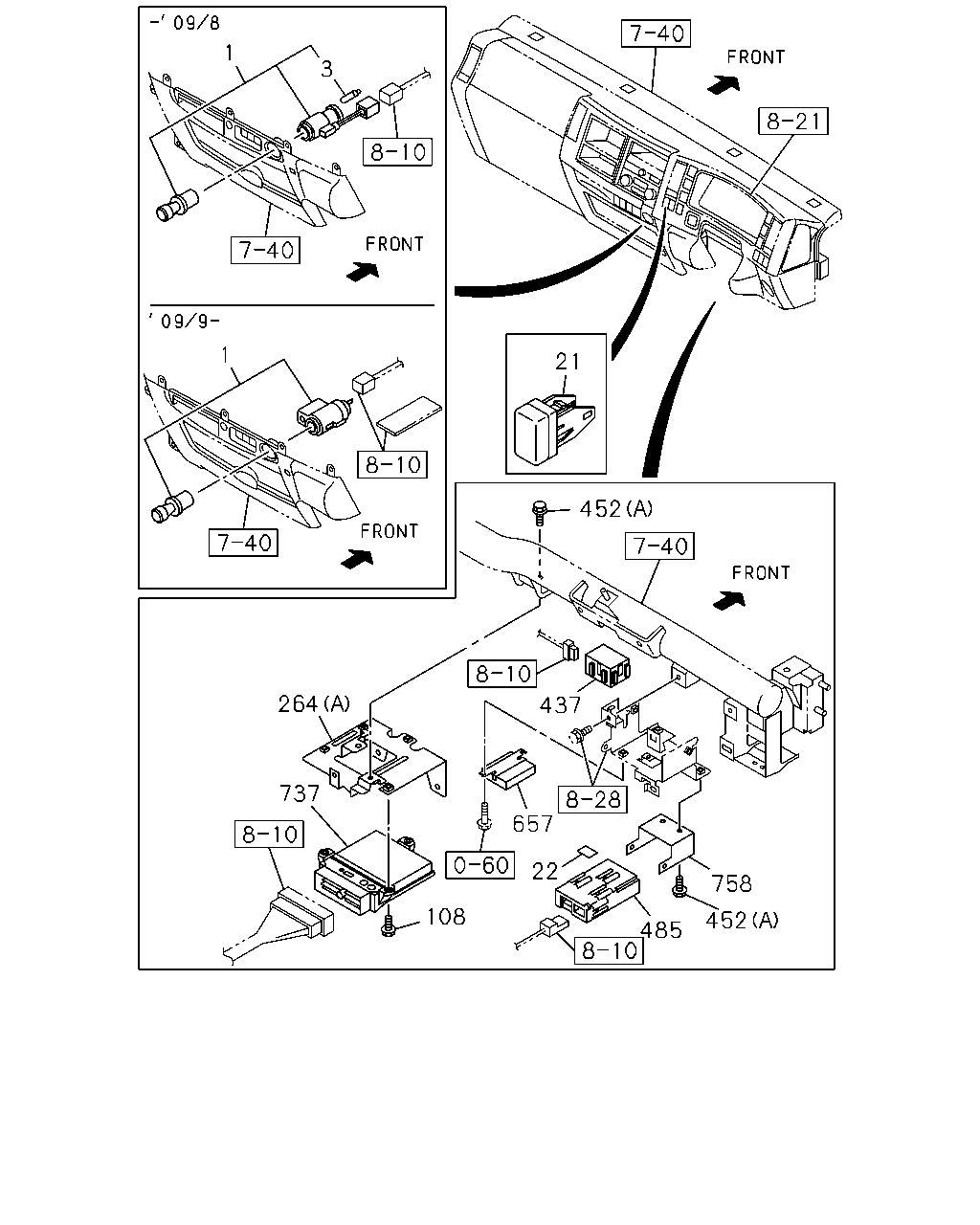

1 3 1 21 437 758 452 485 657 264 737 108 452 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LIGHTER; CIGAR	8-98076-255-0	01	1	0712-0908	●	●
1	LIGHTER; CIGAR	8-98142-962-0	01	1	0909-	●	●
3	BULB; CIGAR LIGHTER 28V 1.8W	8-97173-159-0	01	1	0712-0908	●	●
21	COVER; HOLE EXC. O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>	8-98025-954-1	01	1	0712-0912	●
21	COVER; HOLE	8-98025-954-1	01	1	0712-0912		●
21	COVER; HOLE	8-98025-954-1	01	1	1001-	●	●
22	SEAL; TAPE SPEED LIMITER 100KM(NMU)	1-80199-006-0	01	1	0712-1212	●
22	SEAL; TAPE	1-80199-006-0	01	1	0712-1212		●
22	SEAL; TAPE SPEED LIMITER 100KM(NMU)	8-98166-639-0	01	1	1301-	●
22	SEAL; TAPE	8-98166-639-0	01	1	1301-		●
108	BOLT; TRANS CONT MODULE LCT2000 A/T ALLISON(Y4F) M6X16 FLANGE	0-28650-616-0	03	1	1003-	●
264	BRACKET; CONT UNIT A/T<X9D> (A)	8-98064-901-0	01	1	1003-	●
264	BRACKET; CONT UNIT (B)	8-97609-985-9	01	1	0712-	●	●
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	0712-	●	●
452	BOLT; BRKT SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE	0-28650-616-0	02	1	0712-1002	●
452	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	02	1	0712-1002		●
452	BOLT; BRKT A/T<X9D> (A) M6X16 FLANGE	0-28650-616-0	02	1	1003-	●
452	BOLT; BRKT SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE	0-28650-616-0	02	1	1003-	●
452	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	02	1	1003-		●
452	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0712-		●
485	CONTROL UNIT; SPEED SENSOR SPEED LIMITER 100KM(NMU)	1-80190-059-1	01	1	0712-1008	●
485	CONTROL UNIT; SPEED SENSOR	1-80190-059-1	01	1	0712-1008		●
485	CONTROL UNIT; SPEED SENSOR SPEED LIMITER 100KM(NMU)	8-98140-862-0	01	1	1009-1109	●
485	CONTROL UNIT; SPEED SENSOR	8-98140-862-0	01	1	1009-1109		●
485	CONTROL UNIT; SPEED SENSOR SPEED LIMITER 100KM(NMU)	1-80190-059-1	01	1	1110-	●
485	CONTROL UNIT; SPEED SENSOR	1-80190-059-1	01	1	1110-		●
657	CONTROL UNIT; MIMAMORI	8-98013-144-8	01	1	0907-1401	●	●
657	CONTROL UNIT; MIMAMORI	8-98260-912-0	01	1	1402-	●	●
737	CONTROL UNIT; TRANSMISSION LCT2000 A/T ALLISON(Y4F)	8-98143-054-0	01	1	1003-1106	●
737	CONTROL UNIT; TRANSMISSION LCT2000 A/T ALLISON(Y4F)	8-98178-953-0	01	1	1107-	●
758	BRACKET; ELEC CONT UNIT,SPEED SENSOR SPEED LIMITER 100KM(NMU)	8-98048-743-1	01	1	0712-	●
758	BRACKET; ELEC CONT UNIT,SPEED SENSOR	8-98048-743-1	01	1	0712-		●

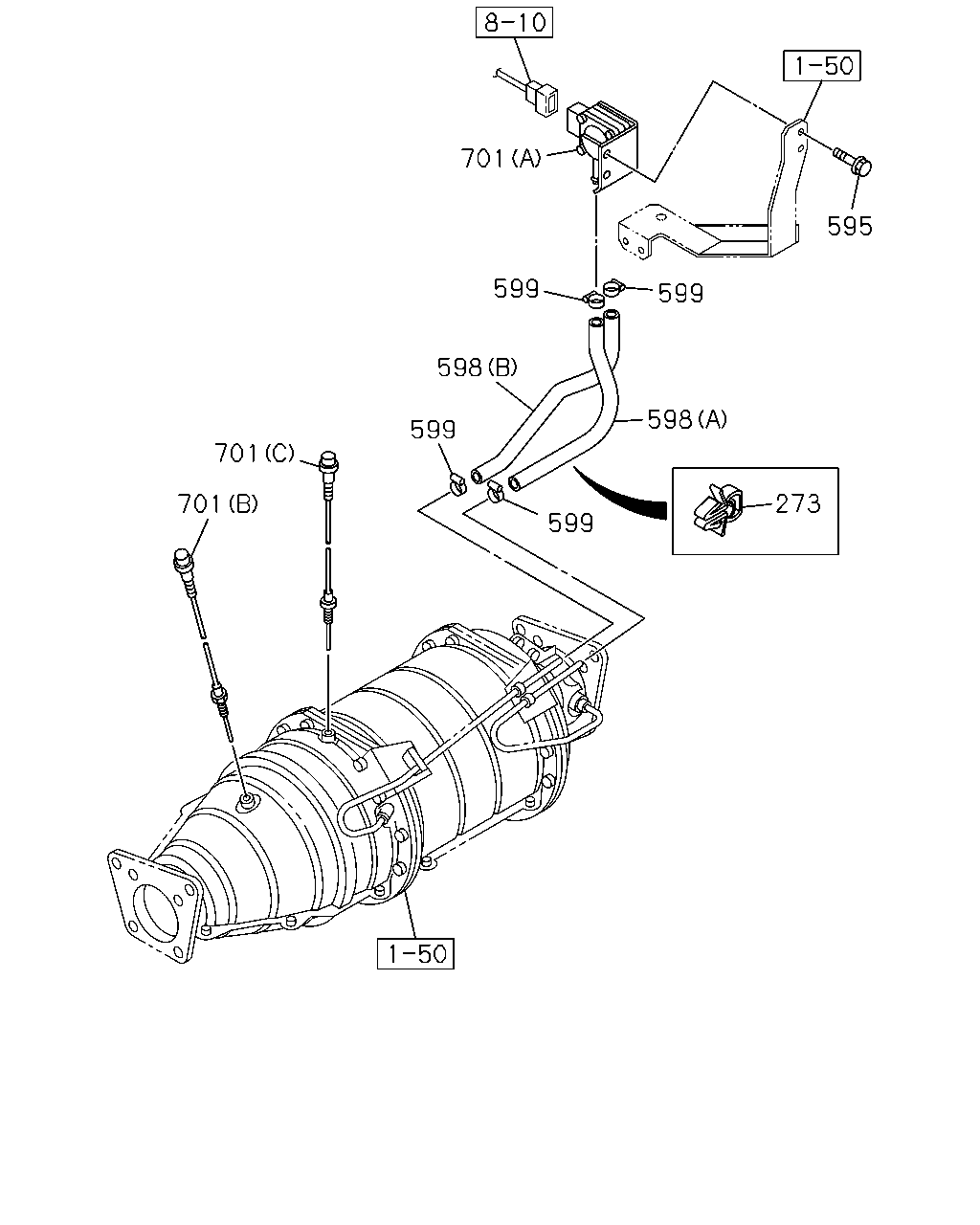

701 595 599 599 598 598 599 701 273 701 599

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
273	CLIP; HARNESS	8-94225-098-0	01	1	0712-0802	●	●
595	BOLT; SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0712-0811	●	●
595	BOLT; SENSOR EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0812-	●
595	BOLT; SENSOR M8X20 FLANGE	0-28650-820-0	02	1	0812-		●
598	HOSE; RUBBER,SENSOR (A)	8-98075-388-0	01	1	0712-0811	●	●
598	HOSE; RUBBER,SENSOR EURO4 SPECIFICATION<NT4> (A)	8-98075-388-0	01	1	0812-	●
598	HOSE; RUBBER,SENSOR (A)	8-98075-388-0	01	1	0812-		●
598	HOSE; RUBBER,SENSOR (B)	8-98075-389-0	01	1	0712-0811	●	●
598	HOSE; RUBBER,SENSOR EURO4 SPECIFICATION<NT4> (B)	8-98075-389-0	01	1	0812-	●
598	HOSE; RUBBER,SENSOR (B)	8-98075-389-0	01	1	0812-		●
599	CLIP; HOSE ID=13	8-97329-627-0	04	1	0712-0811	●	●
599	CLIP; HOSE EURO4 SPECIFICATION<NT4> ID=13	8-97329-627-0	04	1	0812-	●
599	CLIP; HOSE ID=13	8-97329-627-0	04	1	0812-		●
701	SENSOR; DPD (B)	8-97359-987-5	01	1	0712-0811	●	●
701	SENSOR; DPD CATALYSIS CONTROL WITH DPD<8JM> (B)	8-97359-987-5	01	1	0812-	●
701	SENSOR; DPD (B)	8-97359-987-5	01	1	0812-		●
701	SENSOR; DPD (C)	8-97359-989-5	01	1	0712-0811	●	●
701	SENSOR; DPD CATALYSIS CONTROL WITH DPD<8JM> (C)	8-97359-989-5	01	1	0812-	●
701	SENSOR; DPD (C)	8-97359-989-5	01	1	0812-		●
701	SENSOR; DPD (A)	8-97360-368-2	01	1	0712-0811	●	●
701	SENSOR; DPD CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97360-368-2	01	1	0812-	●
701	SENSOR; DPD (A)	8-97360-368-2	01	1	0812-		●

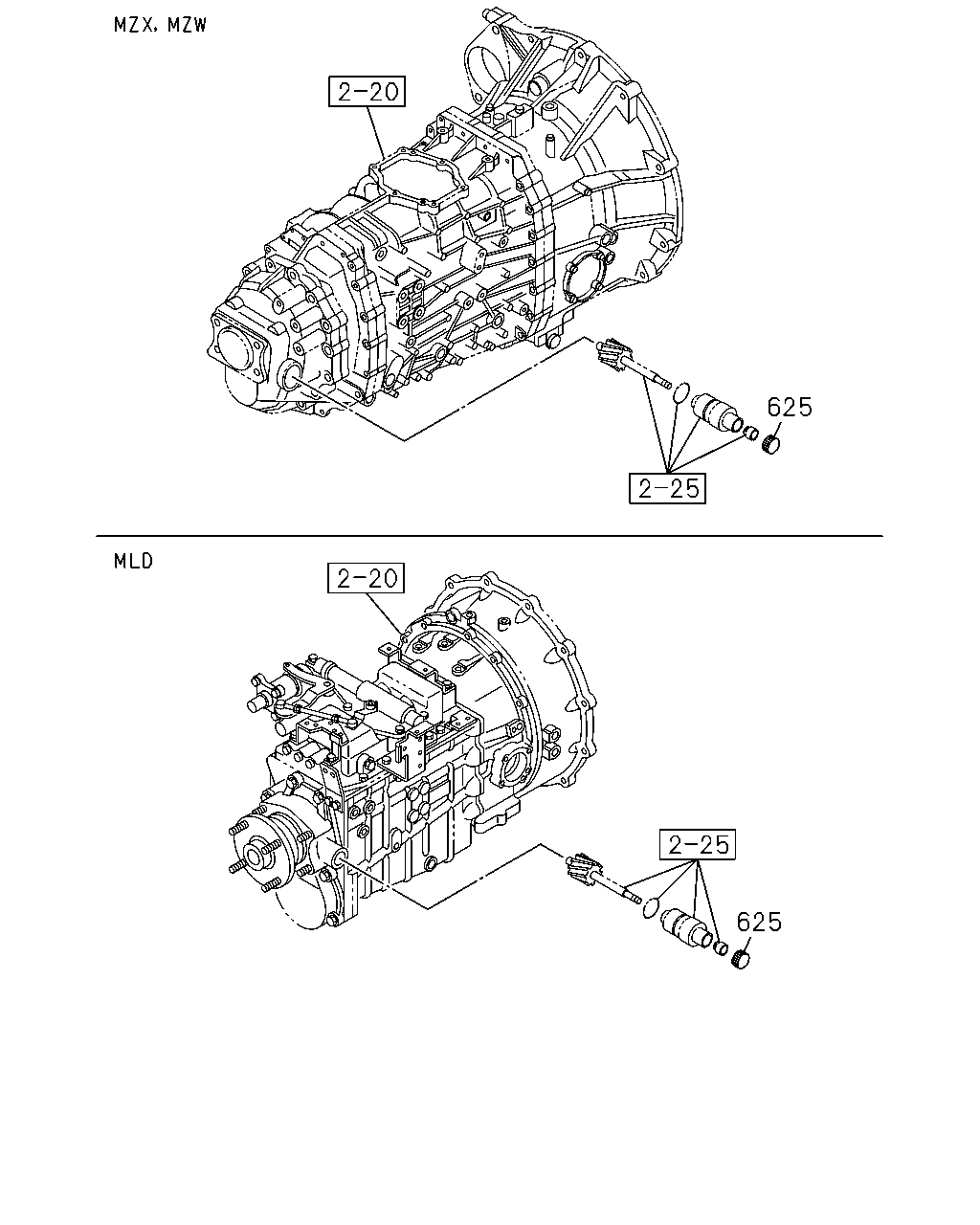

625 625

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
625	CAP; SPEED SENSOR MZX6P M/T(RSW)	1-83129-133-0	01	1	0712-0805	●	●
625	CAP; SPEED SENSOR MZX6P M/T(RSW),MLD6Q M/T(X5J)	1-83129-133-0	01	1	0806-0811	●	●
625	CAP; SPEED SENSOR MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C)	1-83129-133-0	01	1	0812-0906	●	●
625	CAP; SPEED SENSOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C)	1-83129-133-0	01	1	0907-	●	●

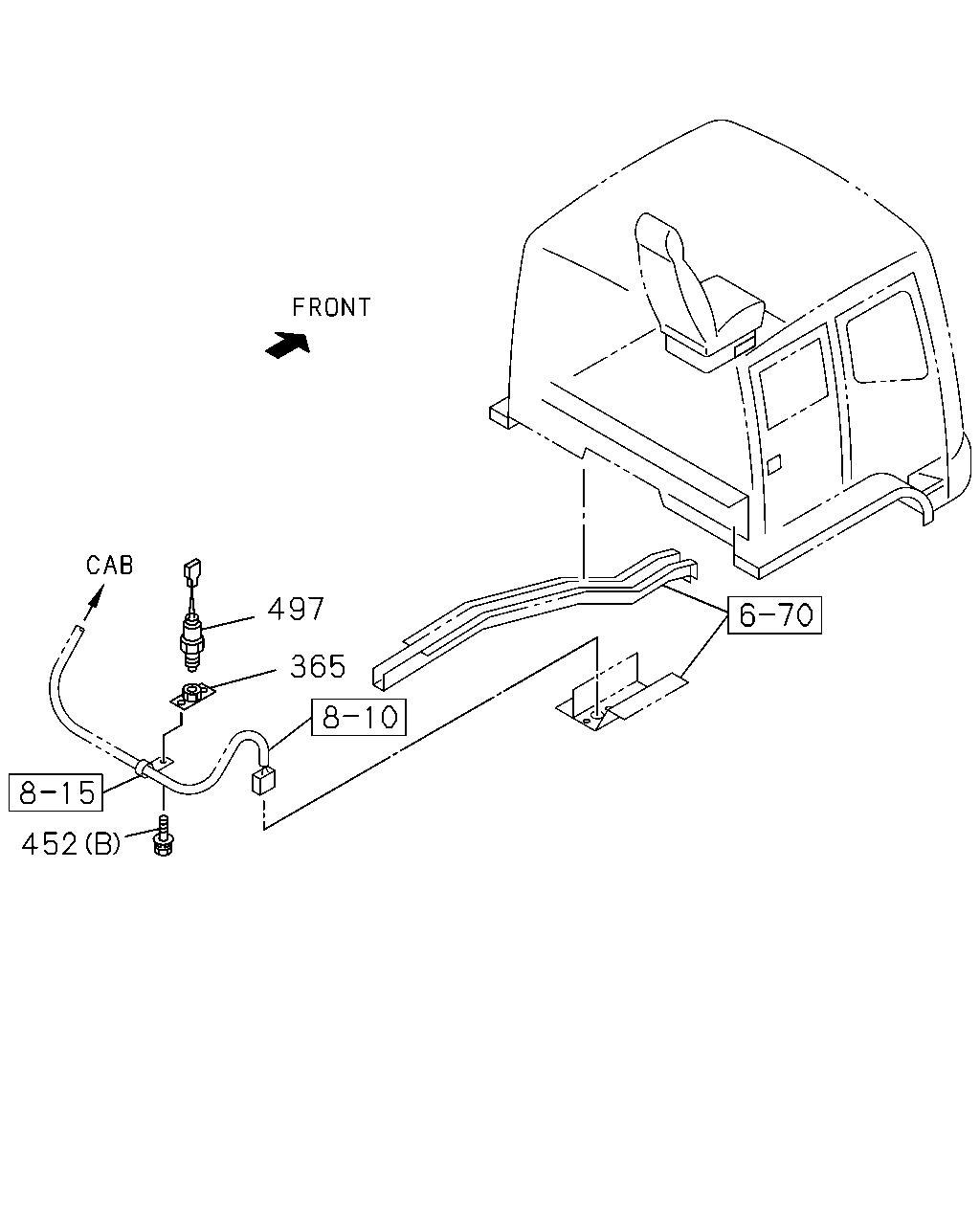

497 365 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
365	PLATE ASM; SW,CAB TILT	1-71998-393-1	01	1	0712-		●
452	BOLT; BRKT SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE	0-28650-616-0	02	1	0712-1002	●
452	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	02	1	0712-1002		●
452	BOLT; BRKT A/T<X9D> (A) M6X16 FLANGE	0-28650-616-0	02	1	1003-	●
452	BOLT; BRKT SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE	0-28650-616-0	02	1	1003-	●
452	BOLT; BRKT (A) M6X16 FLANGE	0-28650-616-0	02	1	1003-		●
452	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0712-		●
497	SWITCH; CAB TILT STAMP NC	1-82380-125-1	01	1	0712-		●
