8-60 — HEATER UNIT; FRONT (#668) — 42 parça

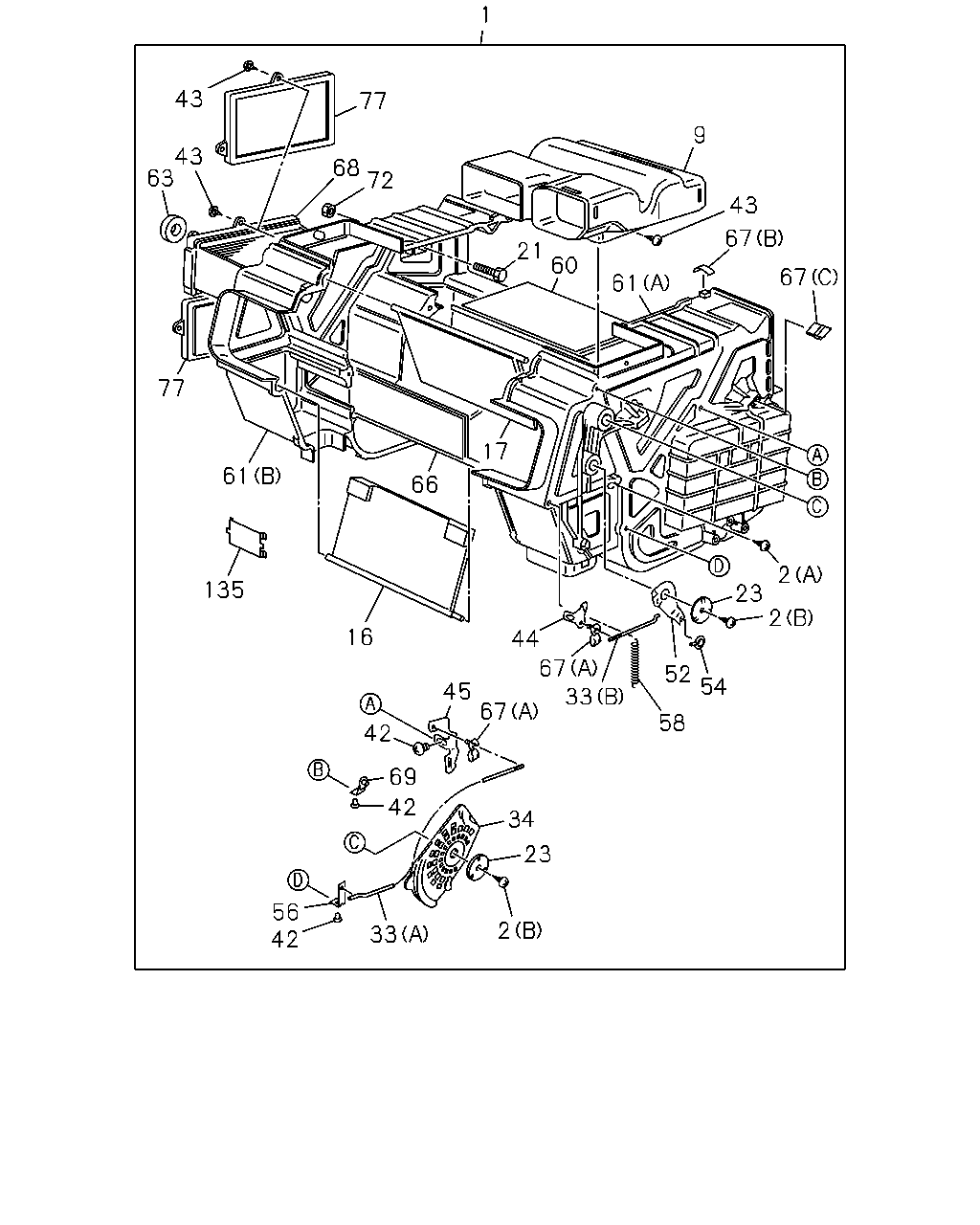

çizim 28262
1 77 68 72 43 43 63 77 61 135 16 66 17 21 60 61 9 43 67 67 2 2 23 44 67 33 52 54 58 67 45 42 69 42 34 23 2 33 56 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83511-102-5 01 1 9202- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83511-104-5 01 1 9202- ● ●
2 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-133-0 02 1 9202- ● ●
2 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 		8-94248-820-0 02 1 9202- ● ●
9 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-106-1 01 1 9202- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-354-1 01 1 9202-9304 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-258-0 01 1 9305- ● ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-353-1 01 1 9202-9304 ● ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-257-0 01 1 9305- ● ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-15619-060-0 03 1 9202- ● ●
23 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94129-950-0 02 1 9202- ● ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A) 		1-83579-355-0 01 1 9202- ● ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-284-0 01 1 9202- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-179-0 01 1 9202- ● ●
42 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		5-83571-160-0 04 1 9202- ● ●
42 SCREW; LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		5-83571-160-0 02 1 9202- ● ●
43 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-807-0 06 1 9202- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-178-2 01 1 9202- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83564-176-0 01 1 9202- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-196-1 01 1 9202- ● ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-136-0 01 1 9202- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83564-194-0 01 1 9407- ● ●
58 SPRING; HTR LEVER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-242-0 01 1 9202- ● ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83579-351-1 01 1 9202-9304 ● ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83564-255-0 01 1 9305- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-220-0 01 1 9202- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-221-0 01 1 9202- ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83579-237-0 02 1 9202-9304 ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83579-557-0 02 1 9305- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83579-352-1 01 1 9202-9304 ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83564-256-0 01 1 9305- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A) 		1-83574-143-0 02 1 9202- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (C) 		1-83574-149-0 02 1 9202- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83574-148-0 09 1 9202- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83574-143-0 01 1 9202- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83574-149-0 01 1 9202- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83562-038-0 01 1 9202- ● ●
69 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-195-0 01 1 9202- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-88410-525-0 03 1 9202- ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83579-197-0 01 1 9202- ● ●
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-285-0 01 1 9202- ● ●
135 COVER; HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-244-0 01 1 9202- ● ●
