Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#66799) — 220 parça

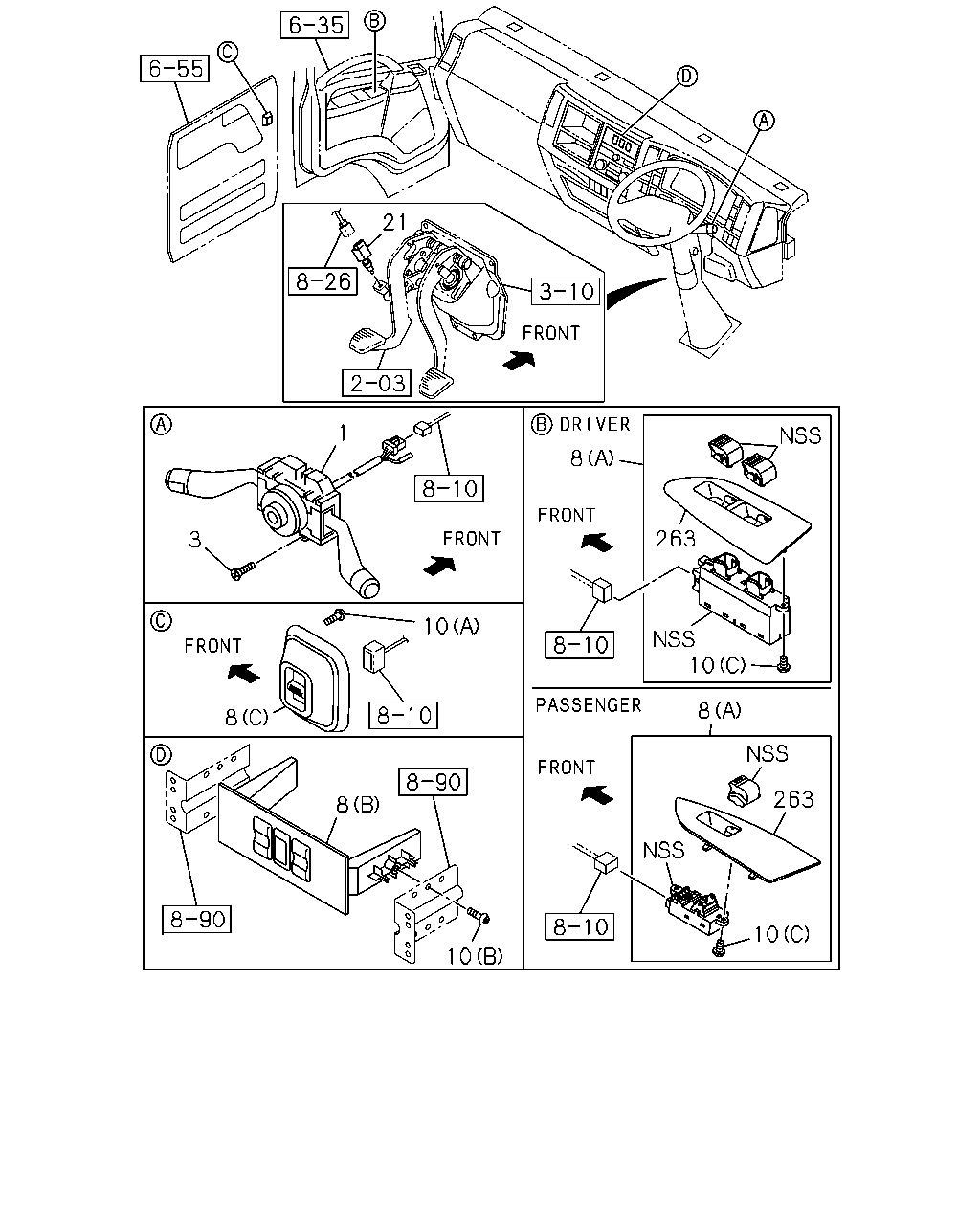

21 1 8 263 3 10 10 8 8 263 8 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98146-619-0	01	1	0911-1210	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30>	8-98146-619-0	01	1	0911-1210		●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98217-821-0	01	1	1211-1310	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30>	8-98217-821-0	01	1	1211-1310		●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> AUTO CRUISE<K30>	8-98243-692-0	01	1	1311-	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30>	8-98243-692-0	01	1	1311-		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98024-269-1	01	1	0911-1310	●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98024-269-1	01	1	0911-1310		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE<K30> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98243-705-0	01	1	1311-	●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98243-705-0	01	1	1311-		●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98064-764-1	01	1	0712-0905	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-764-1	01	1	0712-0905		●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98146-618-0	01	1	0906-0910	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98146-618-0	01	1	0906-0910		●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98146-618-0	01	1	0911-1210	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30>	8-98146-618-0	01	1	0911-1210		●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98217-820-0	01	1	1211-1310	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30>	8-98217-820-0	01	1	1211-1310		●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE<K30>	8-98243-691-0	01	1	1311-	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30>	8-98243-691-0	01	1	1311-		●
1	SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98064-894-2	01	1	0712-0910	●
1	SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>,AUTO CRUISE<K30>	8-98064-894-2	01	1	0911-1310	●
1	SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>,AUTO CRUISE<K30>	8-98243-706-0	01	1	1311-	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-302-1	01	1	0712-0910	●
1	SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-302-1	01	1	0712-0910		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO CRUISE<K30>	8-98060-302-1	01	1	0911-1310	●
1	SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO CRUISE<K30>	8-98060-302-1	01	1	0911-1310		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO CRUISE<K30>	8-98243-704-0	01	1	1311-	●
1	SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO CRUISE<K30>	8-98243-704-0	01	1	1311-		●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0712-1002	●	●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1003-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER	8-97387-034-2	01	1	0712-	●
8	SWITCH; POWER WINDOW (A) PASSENGER	8-97387-034-2	01	1	0712-		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER	8-98003-785-1	01	1	0712-0809	●
8	SWITCH; POWER WINDOW (A) DRIVER	8-98003-785-1	01	1	0712-0809		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER	8-98129-844-0	01	1	0810-1001	●
8	SWITCH; POWER WINDOW (A) DRIVER	8-98129-844-0	01	1	0810-1001		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER	8-98159-543-0	01	1	1002-	●
8	SWITCH; POWER WINDOW (A) DRIVER	8-98159-543-0	01	1	1002-		●
8	SWITCH; POWER WINDOW (B)	8-97386-987-2	01	1	0712-		●
8	SWITCH; POWER WINDOW (C) REAR	8-97387-035-0	02	1	0712-		●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	0712-	●
10	SCREW; POWER WINDOW SW (C)	8-98153-865-0	03	1	0712-		●
10	SCREW; POWER WINDOW SW (B) M5X10 TAPPING	0-71240-510-0	02	1	0712-0904		●
10	SCREW; POWER WINDOW SW (B) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	0905-		●
10	SCREW; POWER WINDOW SW (A) M4X14 TAPPING	0-74360-414-0	04	1	0712-		●
21	SWITCH; CLU PTO CONTROL<SV6>	8-94337-761-0	01	1	0712-0911	●	●
21	SWITCH; CLU PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C>	8-94337-761-0	01	1	0912-	●	●
21	SWITCH; CLU EXC. PTO CONTROL<SV6>	8-97358-248-0	01	1	0712-0911	●	●
21	SWITCH; CLU MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6>	8-97358-248-0	01	1	0912-	●	●
263	COVER; SW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98153-841-0	01	1	0712-	●
263	COVER; SW PASSENGER	8-98153-841-0	01	1	0712-		●
263	COVER; SW POWER WINDOW FRT DOOR<A32> DRIVER	8-98153-836-0	01	1	0712-	●
263	COVER; SW DRIVER	8-98153-836-0	01	1	0712-		●

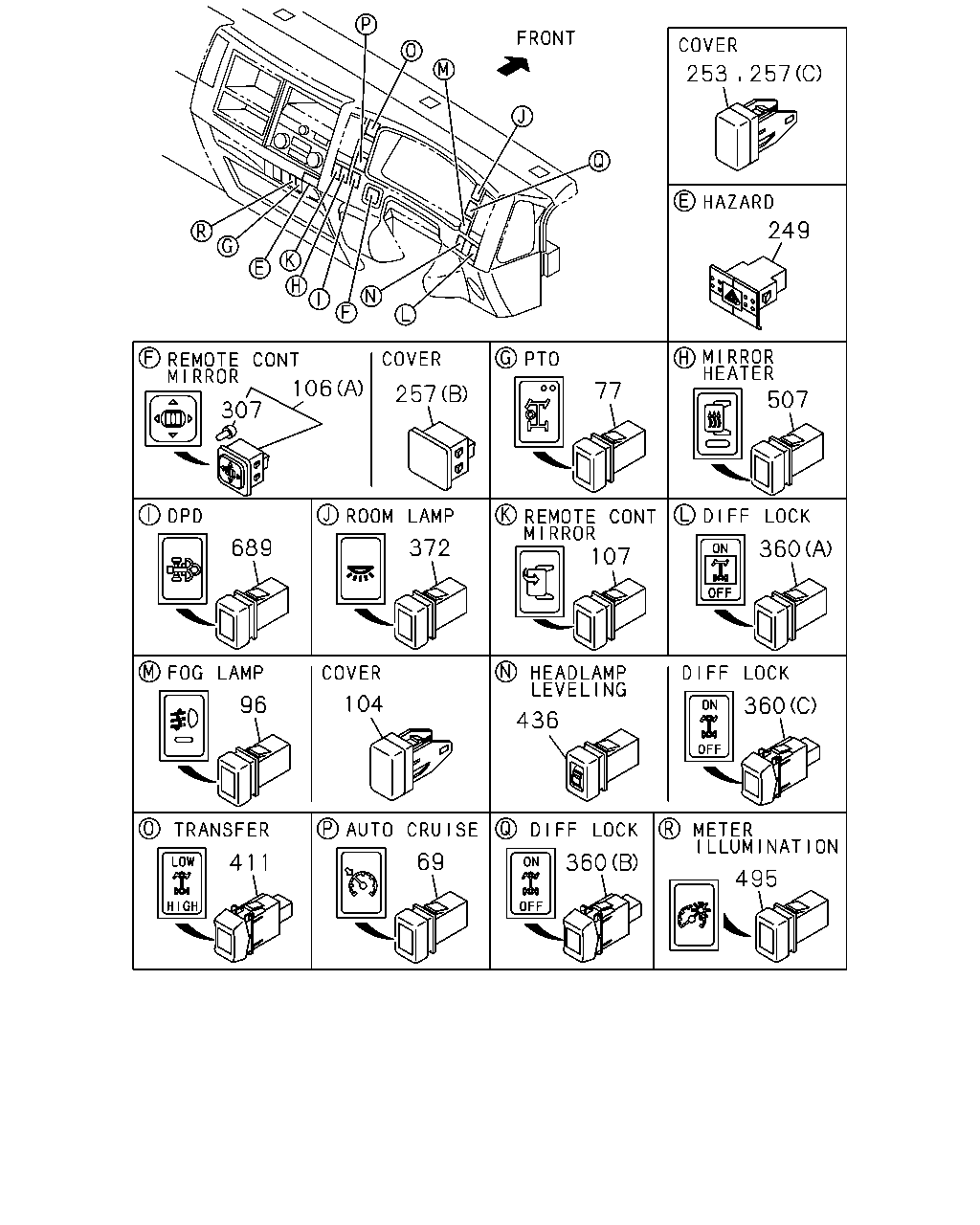

253 257 249 507 106 77 257 307 107 689 372 360 104 96 360 436 69 411 360 495

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	SWITCH; AUTO CRUISE AUTO CRUISE<K30>	8-98011-344-1	01	1	0911-	●	●
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97615-488-2	01	1	0712-	●	●
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	1003-	●
104	COVER; SW HOLE,FOG LAMP	8-98025-954-1	01	1	0712-1002	●	●
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	1003-	●
104	COVER; SW HOLE,FOG LAMP	8-98025-954-1	01	1	1003-		●
106	SWITCH; REMOTE CONT MIRROR AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0712-	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0712-		●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97173-294-1	01	1	0712-	●
107	SWITCH; REMOTE CONT,MIRROR O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>	8-98011-343-1	01	1	0712-0912	●
249	SWITCH; HAZARD	8-97386-922-1	01	1	0712-	●	●
253	COVER; SW HOLE	8-98025-954-1	01	1	0712-0910	●	●
253	COVER; SW HOLE	8-98025-954-1	01	1	0712-0910	●	●
253	COVER; SW HOLE	8-98025-954-1	01	1	0712-0910	●	●
253	COVER; SW HOLE	8-98025-954-1	01	1	0911-1002	●	●
253	COVER; SW HOLE	8-98025-954-1	01	1	0911-1002	●	●
253	COVER; SW HOLE EXC. AUTO CRUISE<K30>	8-98025-954-1	01	1	0911-1002	●	●
253	COVER; SW HOLE EXC. AUTO CRUISE<K30>	8-98025-954-1	01	1	1003-	●	●
253	COVER; SW HOLE EXC. DIFF LOCK<C3N>	8-98025-954-1	01	1	1003-	●
253	COVER; SW HOLE EXC. LAMPS EXP PACKAGE<WL5>	8-98025-954-1	01	1	1003-	●
253	COVER; SW HOLE	8-98025-954-1	01	1	1003-		●
253	COVER; SW HOLE	8-98025-954-1	01	1	1003-		●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) (B)	8-98029-914-1	01	1	0712-	●
257	COVER; HOLE,SW EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	8-98029-914-1	01	1	0712-	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0712-		●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-97619-254-1	02	1	0712-	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-97619-254-1	02	1	0712-		●
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0712-0812	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	04	1	0901-0901	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	05	1	0902-	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	02	1	0712-0812	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0901-0901	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0901-0901	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0901-0901	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-0901	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0901-0901	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0901-0901	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0902-1002	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0902-1002	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0902-1002	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0902-1002	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0902-1002	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	1003-	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1003-	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1003-	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	1003-	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ,REARWARD INNER SINGLE TIRE<YK3> (C)	8-98025-954-1	01	1	1003-	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1003-		●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0712-0811	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0712-0811	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0712-0811	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0712-0811	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0812-0812	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0812-0812	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0812-0812	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0812-0812	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0812-0812	●
257	COVER; HOLE,SW EXC. REMOTE CONT DOOR LOCK<6NF> (D)	8-98029-917-0	01	1	0901-	●
307	BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) 24V	8-98226-896-0	01	1	0907-	●
307	BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) 28V 40MA	8-97116-331-0	01	1	0712-0906	●
360	SWITCH ASM; DIFF LK DIFF LOCK<C3N> (B)	8-97613-963-2	01	1	1003-	●
360	SWITCH ASM; DIFF LK REARWARD INNER SINGLE TIRE<YK3> (C)	8-97616-567-2	01	1	1003-	●
360	SWITCH ASM; DIFF LK (A)	8-97613-965-1	01	1	0712-	●	●
372	SWITCH; ROOM LAMP FLUORESCENT LAMP<6UC>	8-97386-917-2	01	1	0712-	●
372	SWITCH; ROOM LAMP	8-97386-917-2	01	1	0712-		●
411	SWITCH; TRANSFER	8-97613-967-1	01	1	0712-	●	●
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-97386-981-2	01	1	0712-	●	●
495	SWITCH; METER,ILLUMINATION LAMPS EXP PACKAGE<WL5>	8-97614-232-1	01	1	1003-	●
507	SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97386-924-3	01	1	0712-	●	●
689	SWITCH; DPD	8-97386-921-1	01	1	0712-0811	●	●
689	SWITCH; DPD CATALYSIS CONTROL WITH DPD<8JM>	8-97386-921-2	01	1	0812-	●
689	SWITCH; DPD	8-97386-921-2	01	1	0812-		●

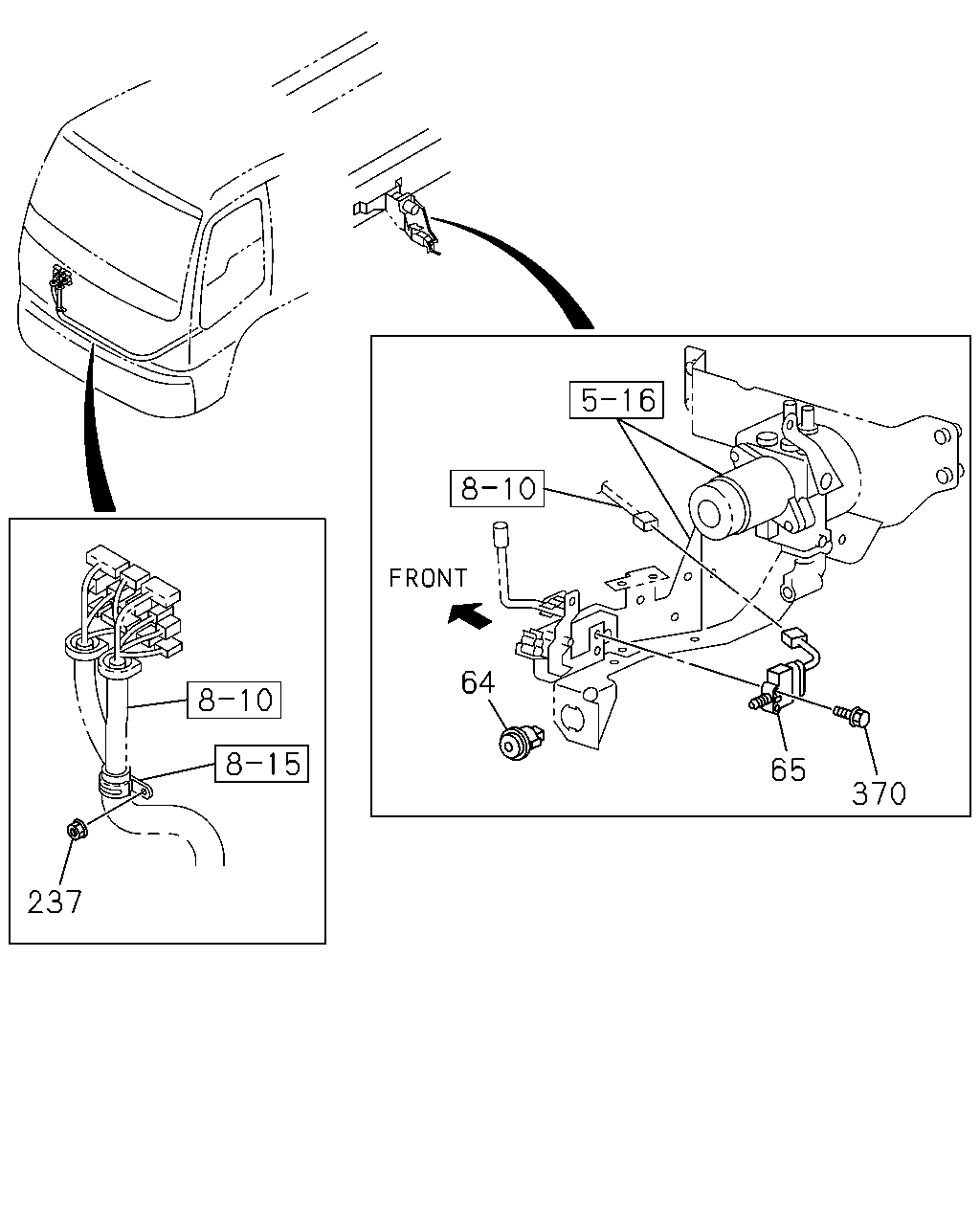

64 65 370 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SWITCH; CAB TILT MAIN	1-82380-173-2	01	1	0712-		●
65	SWITCH; CAB TILT LK STAMP NO	1-82380-172-1	01	1	0712-		●
237	NUT M8 FLANGE	0-91180-108-0	01	1	0712-	●	●
370	BOLT; SW M6X30 FLANGE	0-28650-630-0	02	1	0712-		●

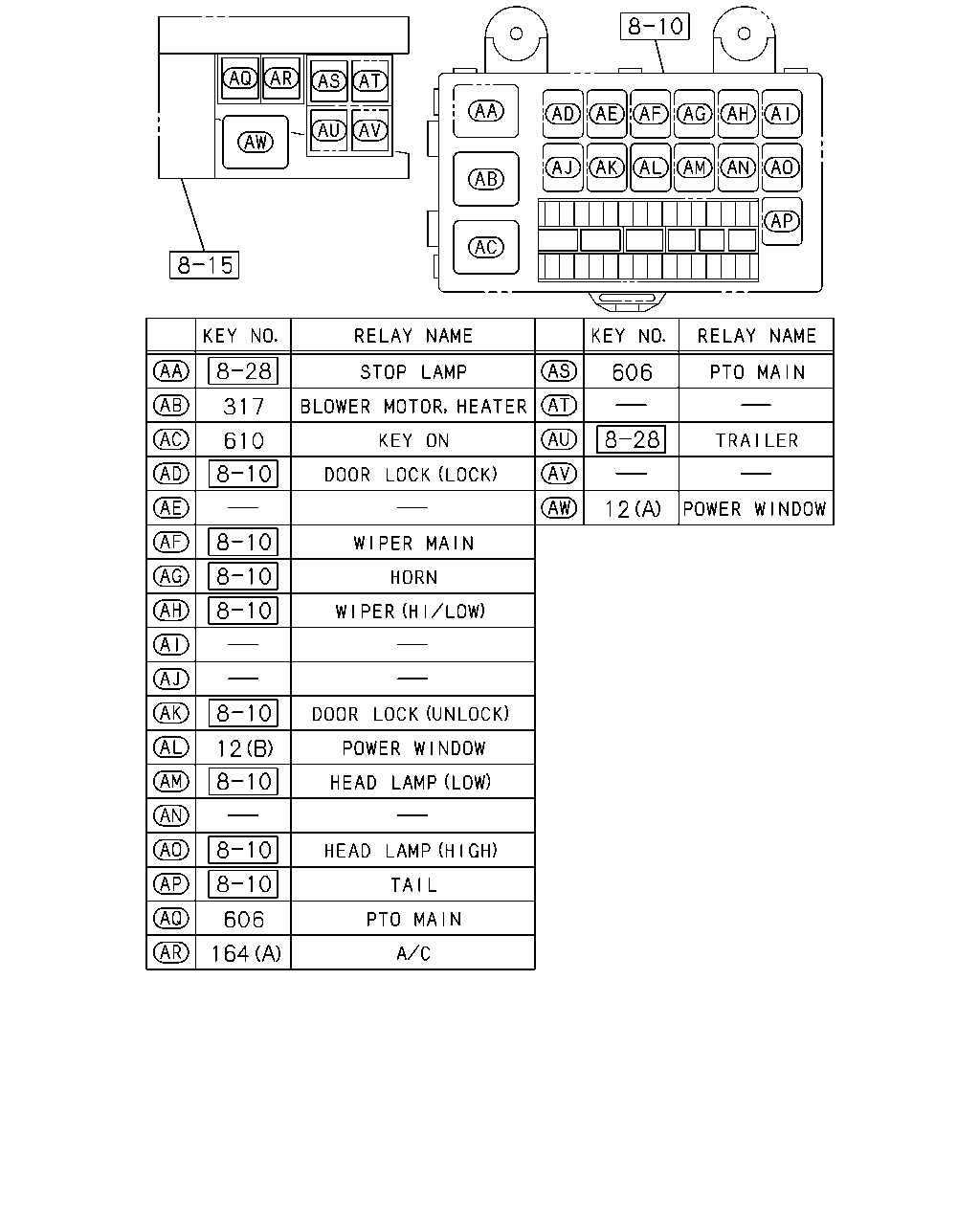

606 317 610 12 12 606 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-		●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●
12	RELAY; POWER WINDOW (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-		●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-		●
164	RELAY; A/C COMPRESSOR (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-0712	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-		●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-0806	●	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-		●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●	●

164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-		●
164	RELAY; A/C COMPRESSOR (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-0712	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-		●

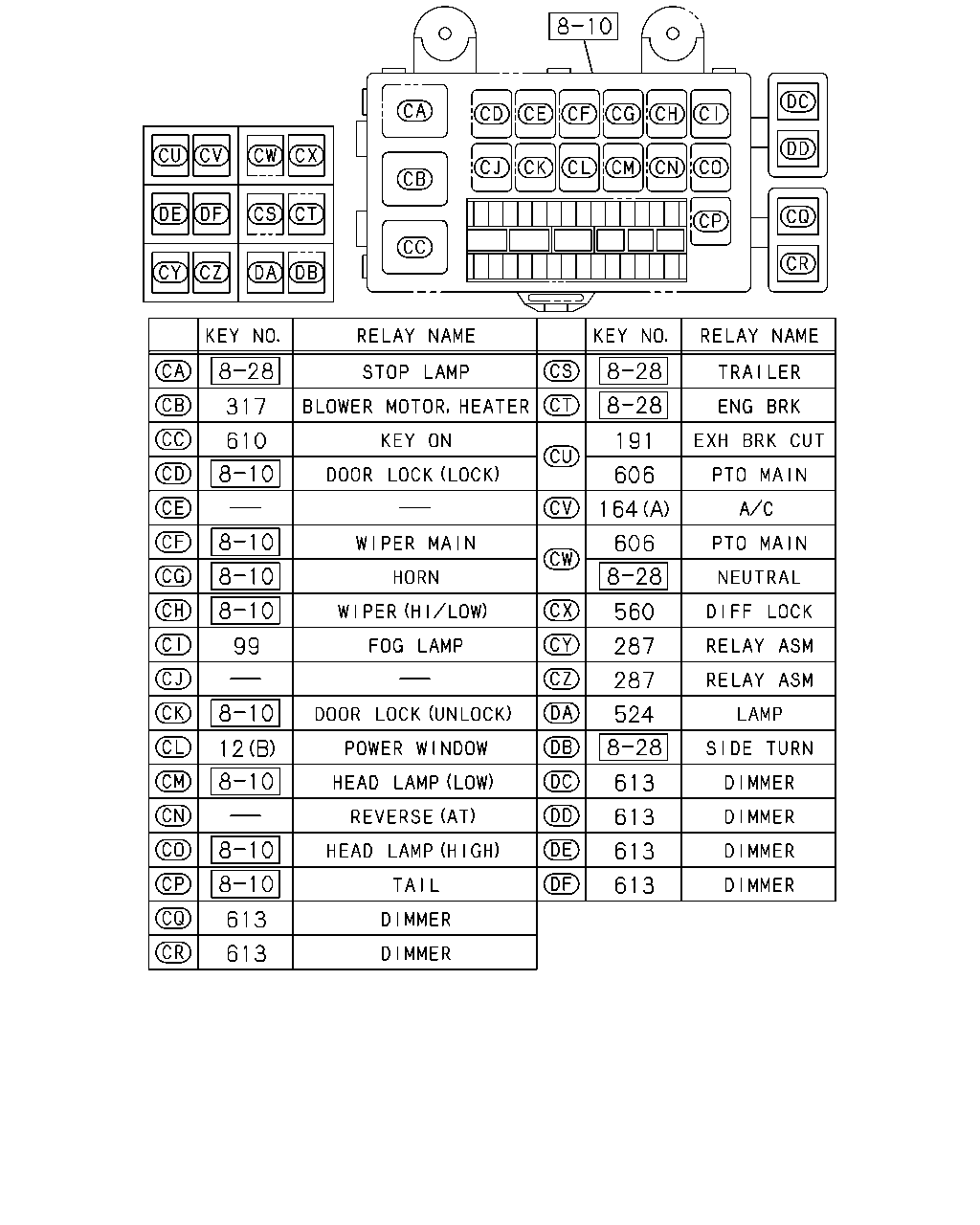

317 610 191 606 164 606 560 99 287 287 524 12 613 613 613 613 613 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-		●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●
12	RELAY; POWER WINDOW (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-		●
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-		●
164	RELAY; A/C COMPRESSOR (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-0712	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-		●
191	RELAY; EXH BRK CUT A/T<X9D> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●
287	RELAY ASM LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	02	1	1003-	●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-0806	●	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-		●
524	RELAY; LAMP LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●
560	RELAY; DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0712-	●	●
613	RELAY; DIMMER LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1003-	●
613	RELAY; DIMMER LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	05	1	1003-	●

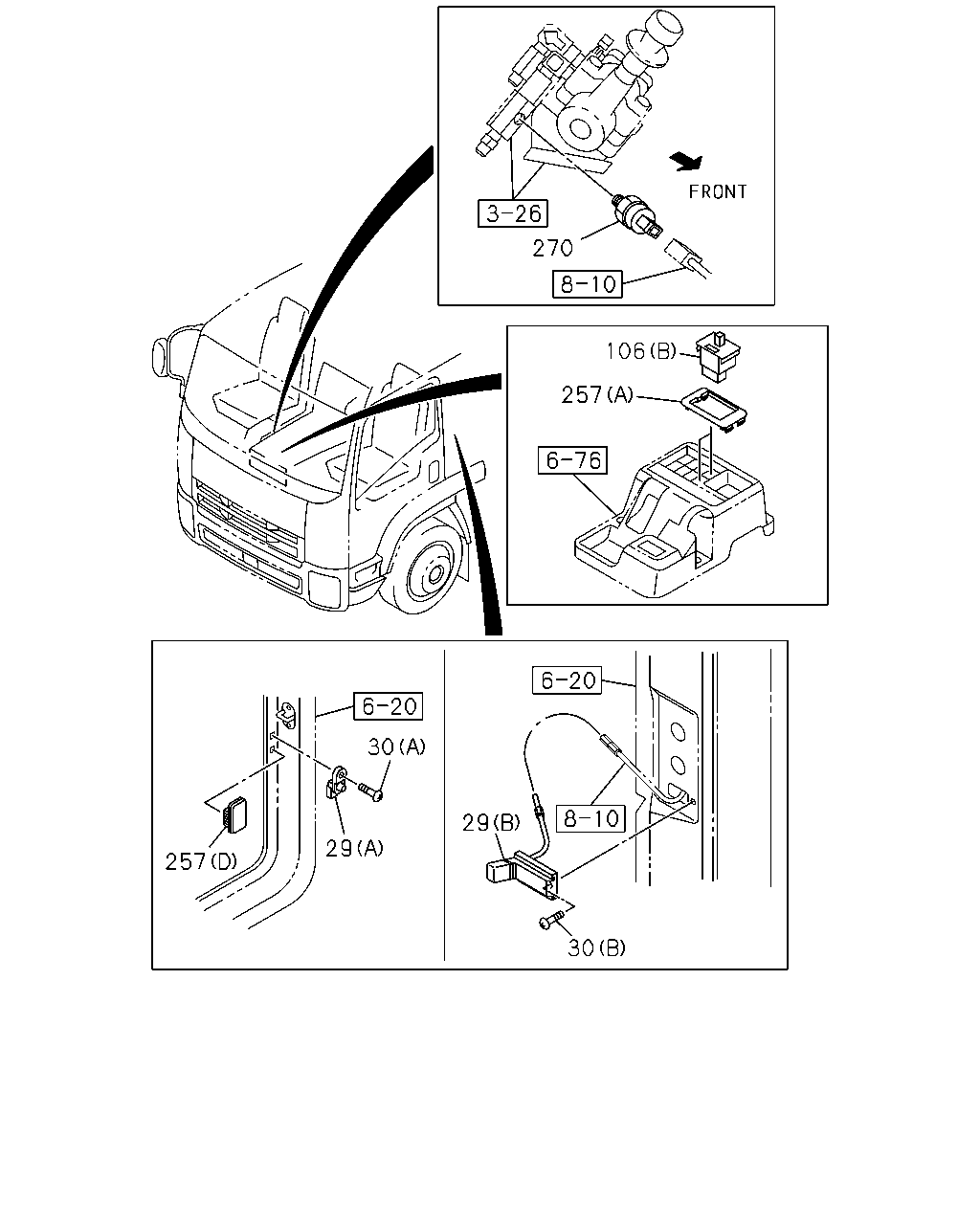

270 106 257 30 29 29 257 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	02	1	0712-	●
29	SWITCH; DOOR EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	01	1	0712-	●
29	SWITCH; DOOR (B) FRONT	8-97855-032-3	02	1	0712-		●
29	SWITCH; DOOR (B) REAR	8-98054-195-0	02	1	0712-		●
30	SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> (A) M5X18	8-98047-201-0	02	1	0712-	●
30	SCREW; DOOR SW EXC. REMOTE CONT DOOR LOCK<6NF> (A) M5X18	8-98047-201-0	01	1	0712-	●
30	SCREW; DOOR SW (B) M5X11	1-09981-536-1	04	1	0712-		●
106	SWITCH; REMOTE CONT MIRROR AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0712-	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	1-82350-223-0	02	1	0712-		●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97173-294-1	01	1	0712-	●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) (B)	8-98029-914-1	01	1	0712-	●
257	COVER; HOLE,SW EXC. AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)	8-98029-914-1	01	1	0712-	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0712-		●
257	COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-97619-254-1	02	1	0712-	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-97619-254-1	02	1	0712-		●
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0712-0812	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	04	1	0901-0901	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	05	1	0902-	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	02	1	0712-0812	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0901-0901	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0901-0901	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0901-0901	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0901-0901	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0901-0901	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0901-0901	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0902-1002	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0902-1002	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0902-1002	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0902-1002	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0902-1002	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	1003-	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1003-	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	1003-	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	1003-	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ,REARWARD INNER SINGLE TIRE<YK3> (C)	8-98025-954-1	01	1	1003-	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1003-		●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0712-0811	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0712-0811	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0712-0811	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0712-0811	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98025-954-1	01	1	0812-0812	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0812-0812	●	●
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0812-0812	●	●
257	COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (C)	8-98025-954-1	01	1	0812-0812	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (C)	8-98025-954-1	01	1	0812-0812	●
257	COVER; HOLE,SW EXC. REMOTE CONT DOOR LOCK<6NF> (D)	8-98029-917-0	01	1	0901-	●
270	SWITCH; PRESS,WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 2.0	8-98010-856-2	01	1	0712-	●
270	SWITCH; PRESS,WHEEL PARKING STAMP 2.0	8-98010-856-2	01	1	0712-		●

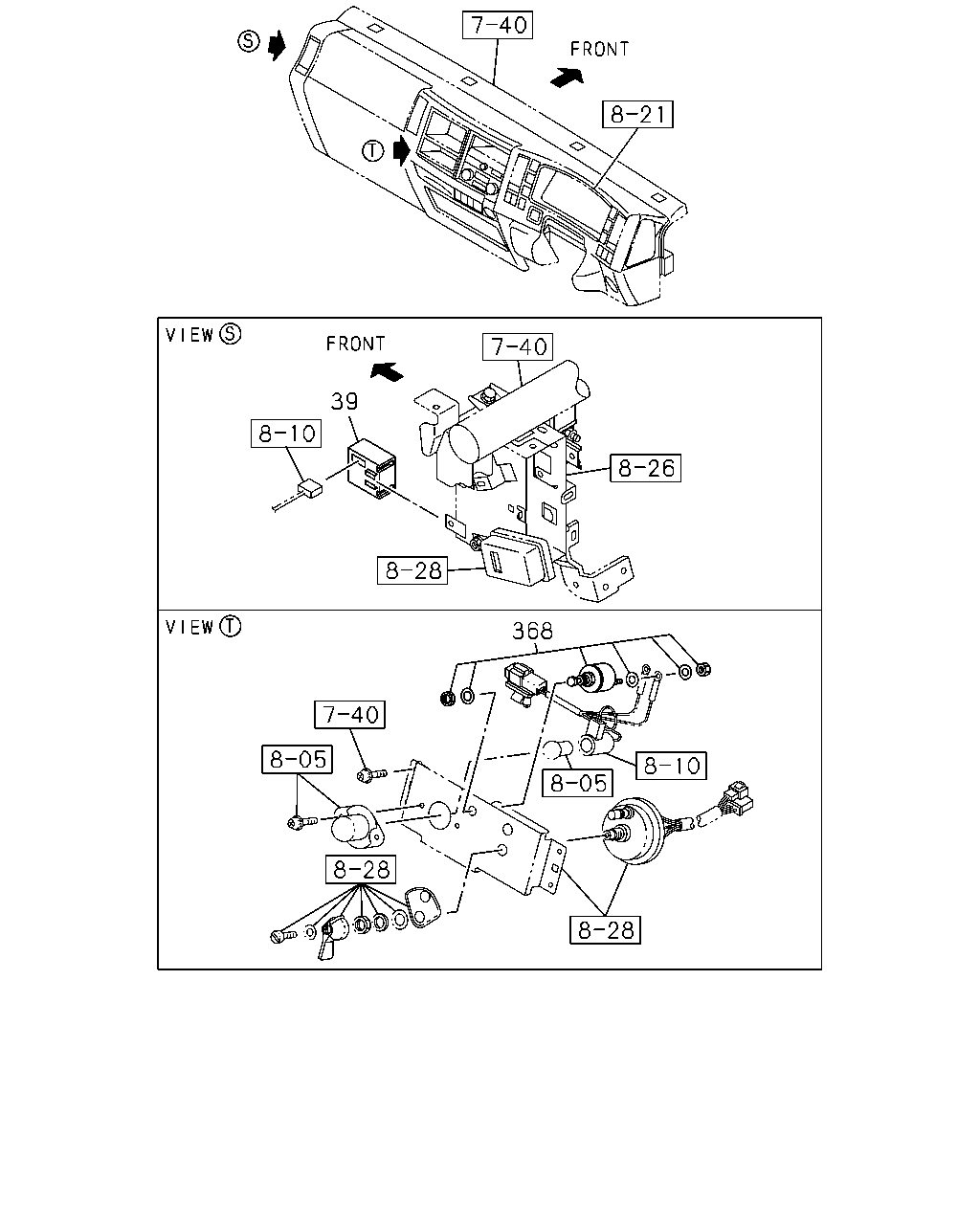

39 368

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	39	RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0712-	●
	368	SWITCH; LAMP USER EXP GOVERNMENT<D6M>	9-82750-469-0	01	1	1003-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
