◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#66796) — 1269 parça

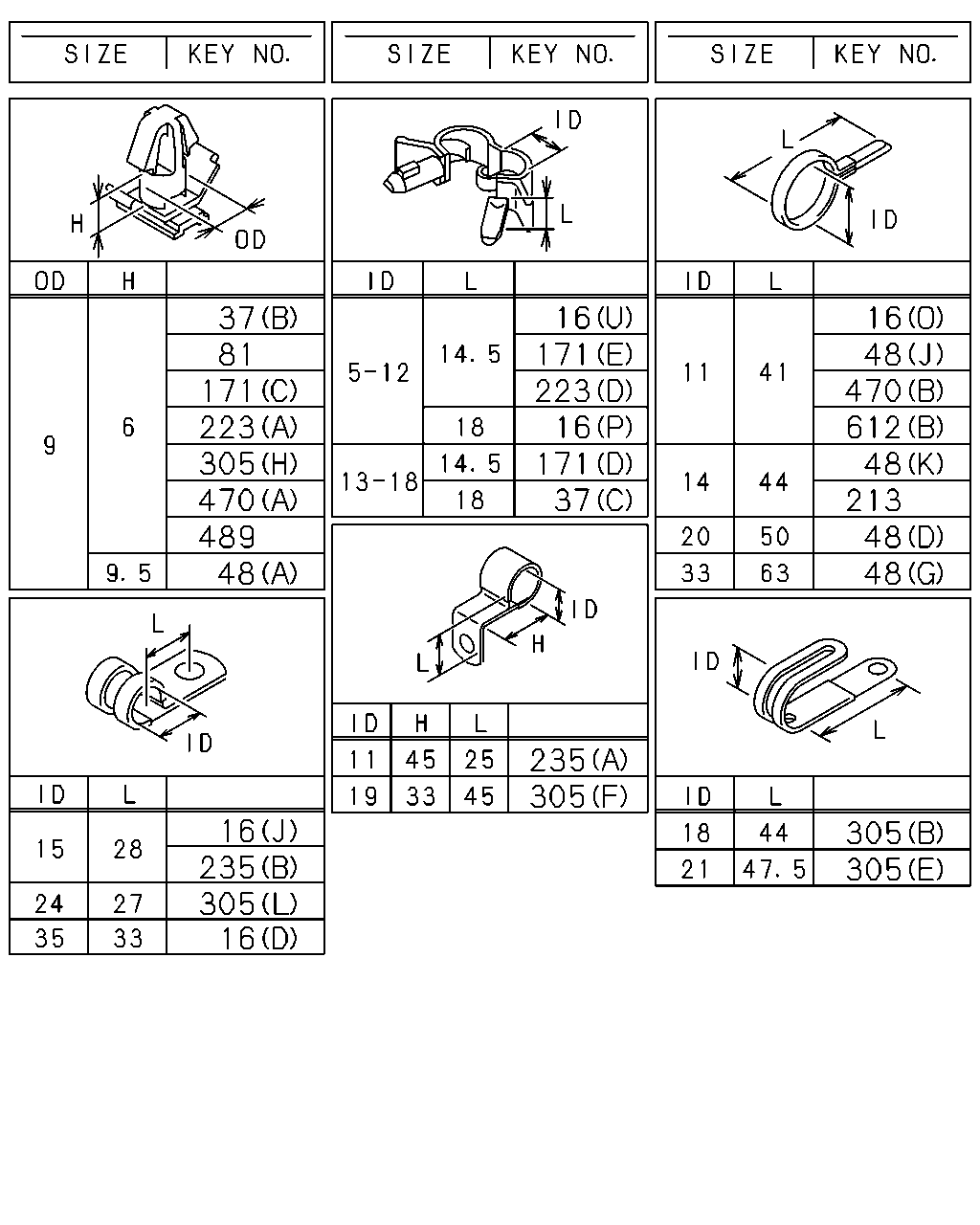

çizim 136704
37 81 171 223 305 470 489 48 16 171 223 16 171 37 16 48 470 612 48 213 48 48 235 305 16 235 305 16 305 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (W) ID=11X2 L=16 		0-95325-025-0 01 1 1502- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (U) ID=5-12 L=14.5 		1-09987-221-0 04 1 1502- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> (S) ID=11 L=20 		0-95235-035-0 01 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (T) ID=19 L=20 		0-95235-836-0 01 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (U) ID=5-12 L=14.5 		1-09987-221-0 02 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (V) L=140 		5-09707-031-1 01 1 1003-1501 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (V) L=140 		5-09707-031-1 01 1 1502- ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (S) ID=11 L=20 		0-95235-035-0 02 1 1003-1501 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (S) ID=11 L=20 		0-95235-035-0 02 1 1003-1501 ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (S) ID=11 L=20 		0-95235-035-0 02 1 1502- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> (S) ID=11 L=20 		0-95235-035-0 02 1 1502- ●
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 0811- ●
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0806- ●
16 CLIP; HARNESS
(N) ID=16 L=28 		0-95235-556-0 02 1 0804- ●
16 CLIP; HARNESS
(O) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (O) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(I) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0712-0805 ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0806- ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0804-0804 ●
16 CLIP; HARNESS
(P) ID=5-12 L=18 		1-09709-287-0 01 1 0805-0811 ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 0712-0911 ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 0912- ● ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0803- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(D) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (K) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
REARWARD INNER SINGLE TIRE<YK3> (J) ID=11 L=41 		1-09700-403-0 03 1 1003-1009 ●
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (J) ID=11 L=41 		1-09700-403-0 03 1 1010- ●
48 CLIP; FRAME HARNESS
REARWARD INNER SINGLE TIRE<YK3> (J) ID=11 L=41 		1-09700-403-0 03 1 1010- ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (I) ID=19 L=32 		0-95235-866-0 02 1 1003- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) (D) ID=20 L=50 		9-09917-430-0 09 1 1003- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0806-0811 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0812-0905 ●
48 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 03 1 0806-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 15 1 0812-0902 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 15 1 0812-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 15 1 0903-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=14 L=44 		9-09917-427-0 13 1 1008- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0804-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0805- ●
48 CLIP; FRAME HARNESS
(F) ID=16 L=28 		0-95235-556-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0805-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 1008- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0712-1002 ● ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> (A) OD=9 H=9.5 		1-09709-179-0 01 1 1003-1009 ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1003-1009 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0712-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0805-0805 ●
48 CLIP; FRAME HARNESS
(H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0806-0902 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0903-1002 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1003-1004 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> (E) L=250 		5-09707-030-1 01 1 1005-1009 ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1005-1009 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (E) L=250 		5-09707-030-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 15 1 0712-0811 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 12 1 0812-1002 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (D) ID=20 L=50 		9-09917-430-0 12 1 1003-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (K) ID=14 L=44 		9-09917-427-0 10 1 1008- ●
81 CLIP; HARNESS
MZX6P M/T(RSW) OD=9 H=6 		1-09709-178-0 01 1 0712-0804 ● ●
81 CLIP; HARNESS
MZX6P M/T(RSW) OD=9 H=6 		1-09709-178-0 01 1 0805-0805 ●
81 CLIP; HARNESS
MZX6P M/T(RSW),MLD6Q M/T(X5J) OD=9 H=6 		1-09709-178-0 01 1 0806-0811 ●
81 CLIP; HARNESS
MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) OD=9 H=6 		1-09709-178-0 01 1 0812-0901 ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (A) ID=11 L=28 		0-95235-055-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (A) ID=11 L=28 		0-95235-055-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) ID=16 L=28 		0-95235-556-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) ID=16 L=28 		0-95235-556-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 02 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 02 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0806-0809 ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0712- ● ●
223 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> (E) ID=10 & 12 		1-09709-278-1 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 0808-1002 ● ●
223 CLIP; AIR TANK HARNESS
EXC. ANTI LOCK BRAKE<JE5> (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0903- ● ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) OD=9 H=6 		1-09709-178-0 01 1 0903- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0903- ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1002 ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1002 ●
223 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0712-0902 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 04 1 0712-0807 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 0808- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) ID=11 H=45 L=25 		1-09700-866-0 01 1 1003- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) ID=15 L=28 		1-09701-216-0 01 1 1003- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0812- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0812- ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0812- ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0812- ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0811 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0811 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (E) ID=21 L=47.5 		8-94178-108-0 01 1 0812-1002 ● ●
305 CLIP; ENG HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 01 1 0812-1002 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (E) ID=21 L=47.5 		8-94178-108-0 01 1 1003- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (E) ID=21 L=47.5 		8-94178-108-0 01 1 1003- ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=11 L=45 		8-94296-897-1 01 1 0812- ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 0812- ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 0812- ● ●
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 0812- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (J) ID=16 L=28 		0-95235-556-0 02 1 0812- ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 0802-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 0812- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0812-1310 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 0812-1310 ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=100 		8-94443-021-1 02 1 1311- ●
470 CLIP; HARNESS,LICENSE LAMP
PINTLE HOOK<PP7> (B) ID=11 L=41 		1-09700-403-0 01 1 0903- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0712-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND<CX6> (A) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) (A) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
489 CLIP; HARNESS,OIL PRESS SW
MZX6P M/T(RSW) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 0903-1002 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 1003- ●
612 CLIP; HARNESS DPD
(D) ID=4.76 & 12 		1-09709-306-0 01 1 0806-0806 ●
612 CLIP; HARNESS DPD
(E) ID=6.35 & 10.0 		1-09709-274-1 01 1 0806-0811 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0804-0804 ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0805-0901 ● ●
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (C) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0811 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0811 ●
612 CLIP; HARNESS DPD
WHEEL BASE 3600MM(36W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 01 1 0812-0901 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0812-0901 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0812-0901 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0902-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0902-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0903-1002 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 1003- ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) (A) L=135 		1-09987-143-1 02 1 0712-0811 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 02 1 0812-0902 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 03 1 0903- ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0712-0804 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 02 1 0805-0811 ●

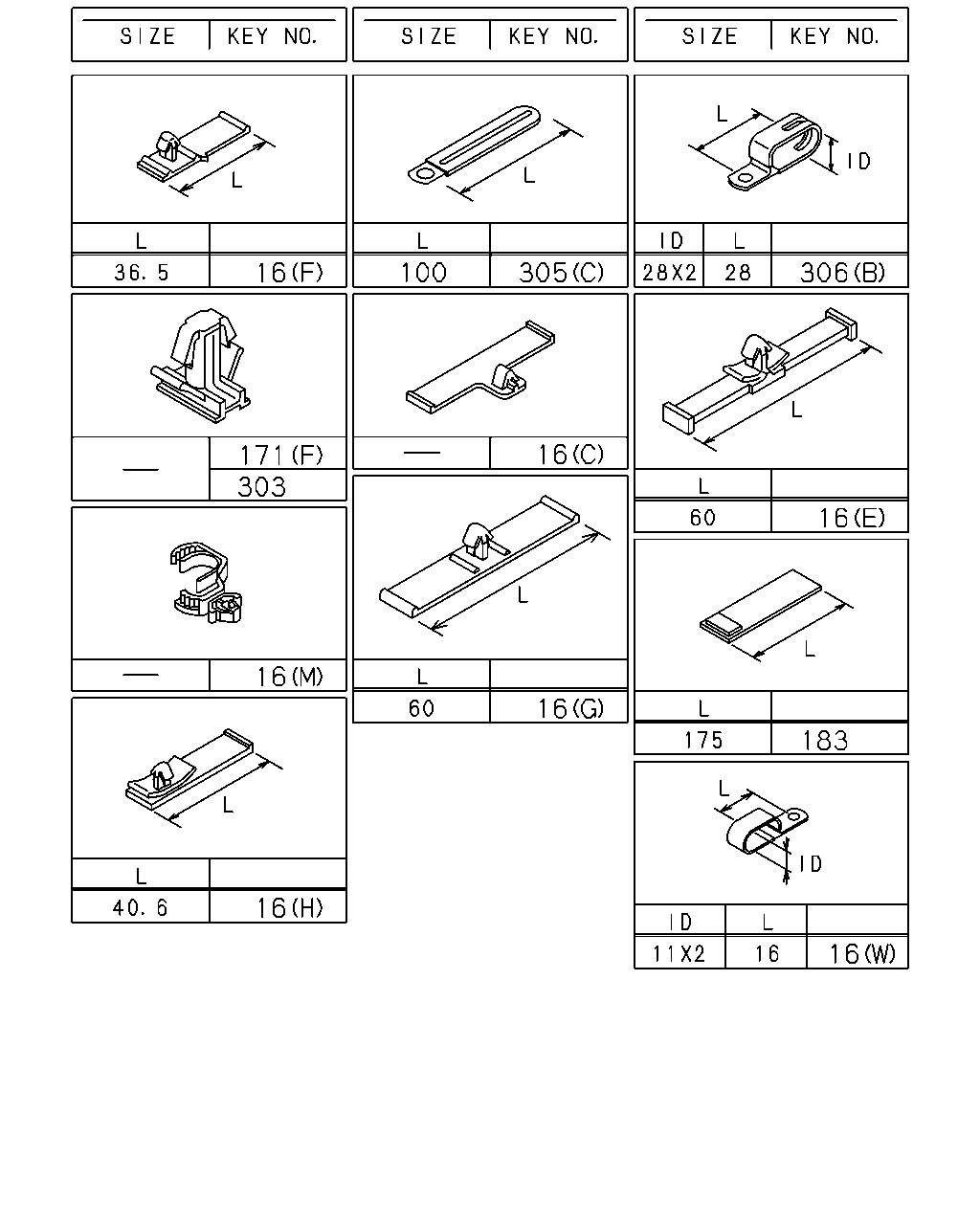

çizim 136841
16 171 303 16 16 305 16 16 306 16 183 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (W) ID=11X2 L=16 		0-95325-025-0 01 1 1502- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (U) ID=5-12 L=14.5 		1-09987-221-0 04 1 1502- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> (S) ID=11 L=20 		0-95235-035-0 01 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (T) ID=19 L=20 		0-95235-836-0 01 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (U) ID=5-12 L=14.5 		1-09987-221-0 02 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (V) L=140 		5-09707-031-1 01 1 1003-1501 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (V) L=140 		5-09707-031-1 01 1 1502- ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (S) ID=11 L=20 		0-95235-035-0 02 1 1003-1501 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (S) ID=11 L=20 		0-95235-035-0 02 1 1003-1501 ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (S) ID=11 L=20 		0-95235-035-0 02 1 1502- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> (S) ID=11 L=20 		0-95235-035-0 02 1 1502- ●
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 0811- ●
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0806- ●
16 CLIP; HARNESS
(N) ID=16 L=28 		0-95235-556-0 02 1 0804- ●
16 CLIP; HARNESS
(O) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (O) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(I) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0712-0805 ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0806- ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0804-0804 ●
16 CLIP; HARNESS
(P) ID=5-12 L=18 		1-09709-287-0 01 1 0805-0811 ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 0712-0911 ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 0912- ● ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0803- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (A) ID=11 L=28 		0-95235-055-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (A) ID=11 L=28 		0-95235-055-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) ID=16 L=28 		0-95235-556-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) ID=16 L=28 		0-95235-556-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 02 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 02 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0806-0809 ● ●
183 CLIP; CONNECTOR
L=175 		1-09707-178-0 01 1 0712-0803 ● ●
303 CLIP; HARNESS POWER TILT RELAY
OD=8.95 H=6.25 		8-97375-754-0 01 1 0712- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0812- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0812- ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0812- ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0812- ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0811 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0811 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (E) ID=21 L=47.5 		8-94178-108-0 01 1 0812-1002 ● ●
305 CLIP; ENG HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 01 1 0812-1002 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (E) ID=21 L=47.5 		8-94178-108-0 01 1 1003- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (E) ID=21 L=47.5 		8-94178-108-0 01 1 1003- ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=11 L=45 		8-94296-897-1 01 1 0812- ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 0812- ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 0812- ● ●
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 0812- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (J) ID=16 L=28 		0-95235-556-0 02 1 0812- ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 0802-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 0812- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0812-1310 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 0812-1310 ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=100 		8-94443-021-1 02 1 1311- ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ● ●

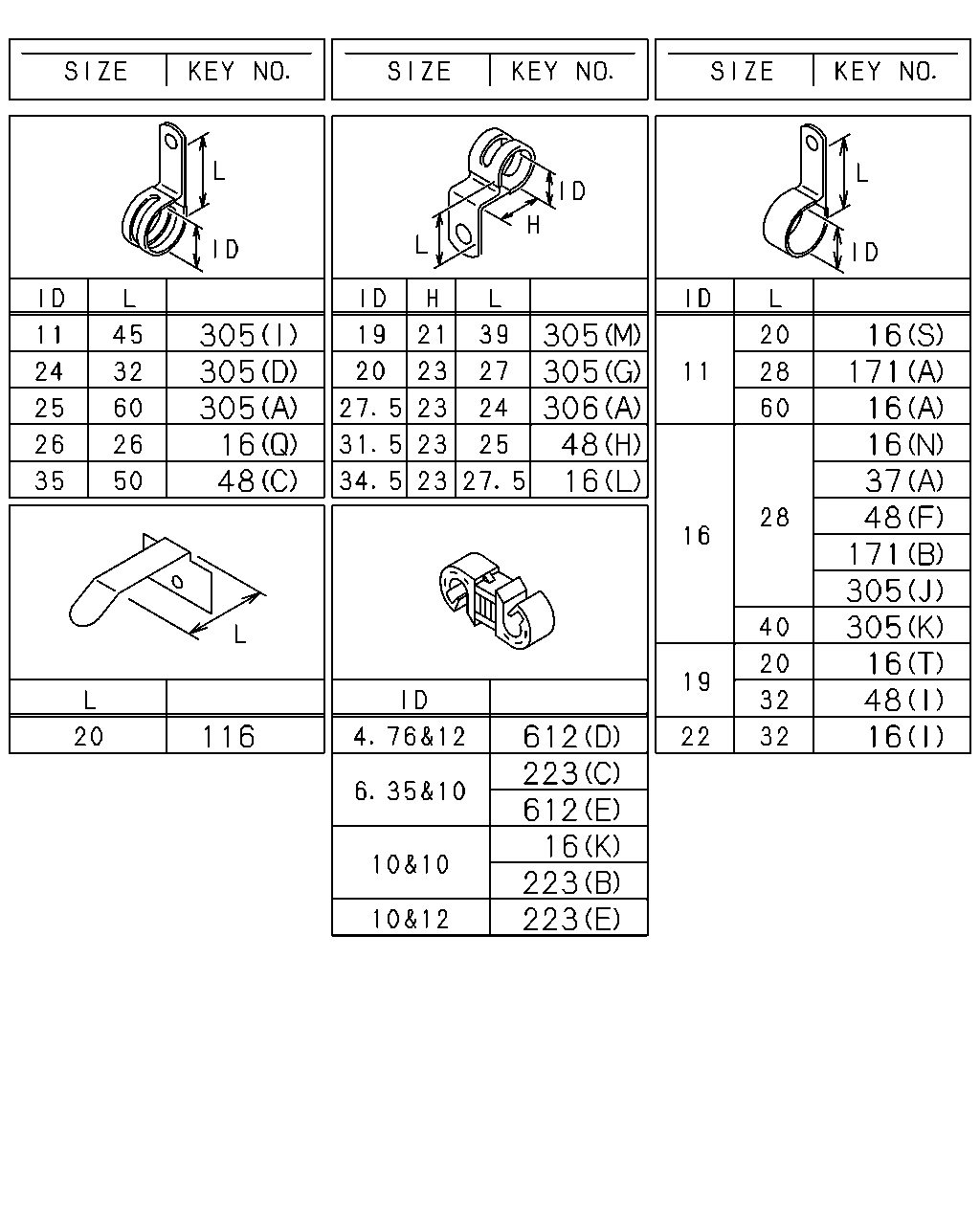

çizim 136932
305 305 305 16 48 305 305 306 48 16 16 171 16 16 37 48 171 305 305 16 48 16 116 612 223 612 16 223 223
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (W) ID=11X2 L=16 		0-95325-025-0 01 1 1502- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (U) ID=5-12 L=14.5 		1-09987-221-0 04 1 1502- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> (S) ID=11 L=20 		0-95235-035-0 01 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (T) ID=19 L=20 		0-95235-836-0 01 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (U) ID=5-12 L=14.5 		1-09987-221-0 02 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (V) L=140 		5-09707-031-1 01 1 1003-1501 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (V) L=140 		5-09707-031-1 01 1 1502- ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (S) ID=11 L=20 		0-95235-035-0 02 1 1003-1501 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (S) ID=11 L=20 		0-95235-035-0 02 1 1003-1501 ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (S) ID=11 L=20 		0-95235-035-0 02 1 1502- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> (S) ID=11 L=20 		0-95235-035-0 02 1 1502- ●
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 0811- ●
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0806- ●
16 CLIP; HARNESS
(N) ID=16 L=28 		0-95235-556-0 02 1 0804- ●
16 CLIP; HARNESS
(O) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (O) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●

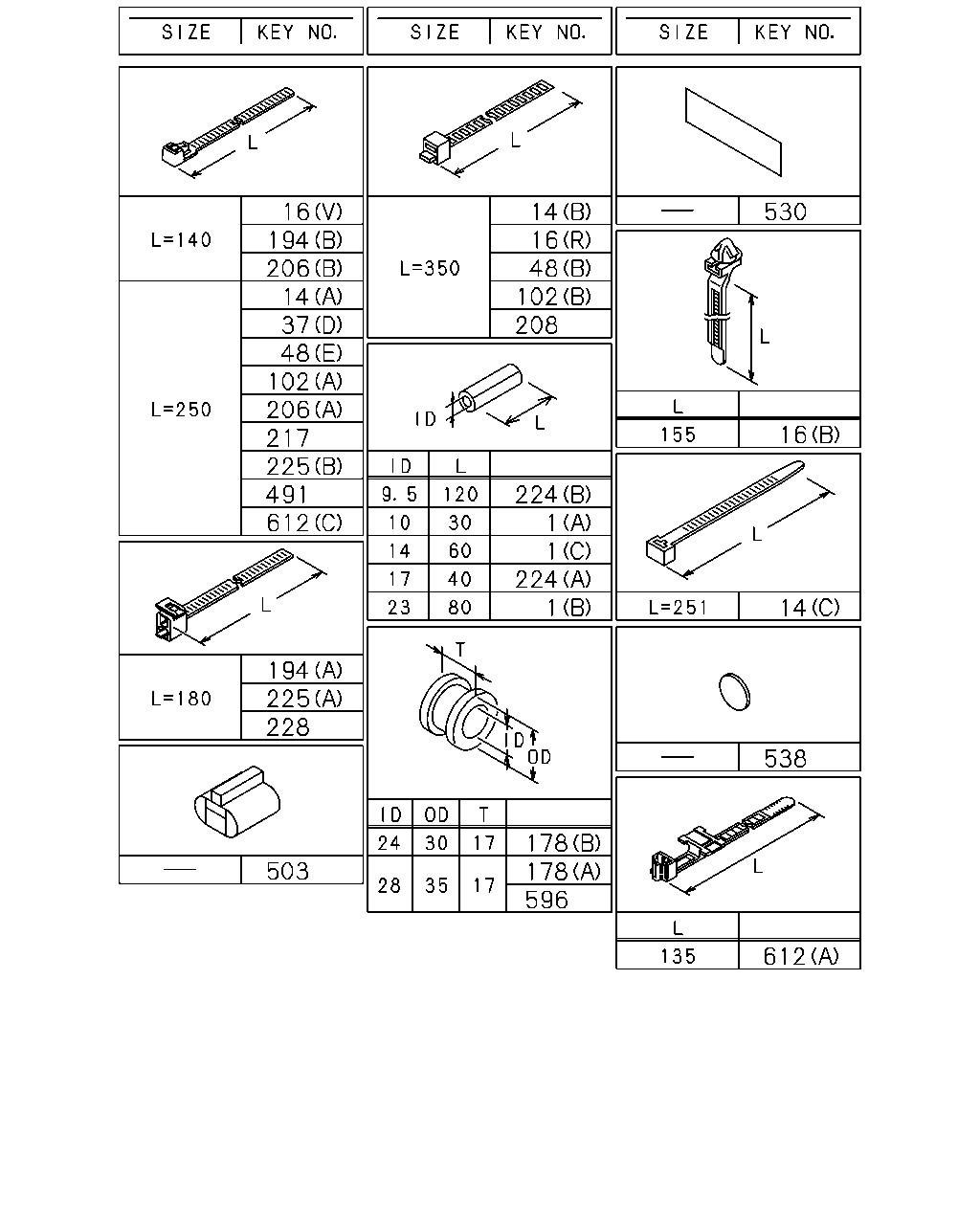

16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(I) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0712-0805 ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0806- ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0804-0804 ●
16 CLIP; HARNESS
(P) ID=5-12 L=18 		1-09709-287-0 01 1 0805-0811 ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 0712-0911 ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 0912- ● ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0803- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(D) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (K) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
REARWARD INNER SINGLE TIRE<YK3> (J) ID=11 L=41 		1-09700-403-0 03 1 1003-1009 ●
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (J) ID=11 L=41 		1-09700-403-0 03 1 1010- ●
48 CLIP; FRAME HARNESS
REARWARD INNER SINGLE TIRE<YK3> (J) ID=11 L=41 		1-09700-403-0 03 1 1010- ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (I) ID=19 L=32 		0-95235-866-0 02 1 1003- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) (D) ID=20 L=50 		9-09917-430-0 09 1 1003- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0806-0811 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0812-0905 ●
48 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 03 1 0806-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 15 1 0812-0902 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 15 1 0812-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 15 1 0903-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=14 L=44 		9-09917-427-0 13 1 1008- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0804-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0805- ●
48 CLIP; FRAME HARNESS
(F) ID=16 L=28 		0-95235-556-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0805-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 1008- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0712-1002 ● ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> (A) OD=9 H=9.5 		1-09709-179-0 01 1 1003-1009 ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1003-1009 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0712-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0805-0805 ●
48 CLIP; FRAME HARNESS
(H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0806-0902 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0903-1002 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1003-1004 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> (E) L=250 		5-09707-030-1 01 1 1005-1009 ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1005-1009 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (E) L=250 		5-09707-030-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 15 1 0712-0811 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 12 1 0812-1002 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (D) ID=20 L=50 		9-09917-430-0 12 1 1003-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (K) ID=14 L=44 		9-09917-427-0 10 1 1008- ●
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 02 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712-1201 ● ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1202- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (A) ID=11 L=28 		0-95235-055-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (A) ID=11 L=28 		0-95235-055-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) ID=16 L=28 		0-95235-556-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) ID=16 L=28 		0-95235-556-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 02 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 02 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806-0811 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0806-0809 ● ●
223 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> (E) ID=10 & 12 		1-09709-278-1 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 0808-1002 ● ●
223 CLIP; AIR TANK HARNESS
EXC. ANTI LOCK BRAKE<JE5> (C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (A) OD=9 H=6 		1-09709-178-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0903- ● ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) OD=9 H=6 		1-09709-178-0 01 1 0903- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0903- ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1002 ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1002 ●
223 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1003- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0712-0902 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 04 1 0712-0807 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 0808- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0812- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0812- ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0812- ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0812- ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0811 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0811 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (E) ID=21 L=47.5 		8-94178-108-0 01 1 0812-1002 ● ●
305 CLIP; ENG HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 01 1 0812-1002 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (E) ID=21 L=47.5 		8-94178-108-0 01 1 1003- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (E) ID=21 L=47.5 		8-94178-108-0 01 1 1003- ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=11 L=45 		8-94296-897-1 01 1 0812- ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 0812- ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 0812- ● ●
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 0812- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (J) ID=16 L=28 		0-95235-556-0 02 1 0812- ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 0802-0811 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 0812- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 0712-0811 ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0812-1310 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 0812-1310 ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) L=100 		8-94443-021-1 02 1 1311- ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 0903-1002 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 1003- ●
612 CLIP; HARNESS DPD
(D) ID=4.76 & 12 		1-09709-306-0 01 1 0806-0806 ●
612 CLIP; HARNESS DPD
(E) ID=6.35 & 10.0 		1-09709-274-1 01 1 0806-0811 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0804-0804 ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0805-0901 ● ●
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (C) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0811 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0811 ●
612 CLIP; HARNESS DPD
WHEEL BASE 3600MM(36W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 01 1 0812-0901 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0812-0901 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0812-0901 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0902-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0902-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0903-1002 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 1003- ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) (A) L=135 		1-09987-143-1 02 1 0712-0811 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 02 1 0812-0902 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 03 1 0903- ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0712-0804 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 02 1 0805-0811 ●
çizim 137744
308 308 308 308 308 308 137 137 137 137 59 59 59 59 59 59 59 59
BalonParca AdiParca NoAdetTipApplied Date A B
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (H) 		8-98152-282-0 01 1 1003-1009 ●
59 BRACKET; FRAME HARNESS
USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (H) 		8-98152-282-0 01 1 1010- ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (H) 		8-98152-282-0 01 1 1010- ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (F) 		8-98118-500-0 01 1 0812- ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (G) 		8-98126-562-0 01 1 0812-0906 ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (G) 		8-98152-281-0 01 1 0907-1002 ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (G) 		8-98152-281-0 01 1 1003-1009 ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (G) 		8-98152-281-0 01 1 1010- ●
59 BRACKET; FRAME HARNESS
(F) 		8-98118-500-0 02 1 0804- ●
59 BRACKET; FRAME HARNESS
(A) L=75 		1-47478-323-0 01 1 0805- ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) (B) 		8-97627-325-0 01 1 0806-0811 ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97627-325-0 01 1 0806-0811 ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (B) 		8-97627-325-0 01 1 0812- ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97627-325-0 01 1 0812- ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97628-013-0 01 1 0806-1011 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97628-013-0 01 1 1012- ●
59 BRACKET; FRAME HARNESS
(A) L=95 		1-82699-085-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 0712-0804 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW) (B) 		8-97609-264-2 01 1 0805-0906 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 0907-1002 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (B) 		8-97609-264-2 01 1 1003-1011 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 1003-1011 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (B) 		8-97609-264-2 01 1 1012- ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97609-264-2 01 1 1012- ●
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-98071-896-0 01 1 0712-0803 ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-98071-896-0 01 1 0804-0811 ●
59 BRACKET; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) 		8-98071-896-0 01 1 0812- ●
59 BRACKET; FRAME HARNESS
(E) 		8-97616-305-0 01 1 0712-1502 ● ●
59 BRACKET; FRAME HARNESS
(I) 		8-98254-592-0 01 1 1503- ● ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (D) 		8-98244-722-0 01 1 1502- ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (C) 		8-97609-797-1 02 1 1003- ●
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 0712- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97614-728-1 01 1 0712- ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (A) 		8-97601-310-0 02 1 0812-1010 ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (E) 		8-98032-178-0 01 1 0812- ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) 		8-98075-824-0 01 1 0812- ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0712-0811 ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (A) 		8-97601-310-0 03 1 0812-1010 ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0812-1010 ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0712-0811 ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) 		8-97614-078-0 01 1 0812- ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0812- ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0712-0811 ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) 		8-98021-291-2 01 1 0812- ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0812- ●
308 BRACKET; CLIP,ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-98021-692-1 01 1 0712-0811 ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-98021-692-1 01 1 0812- ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (D) 		8-98021-692-1 01 1 0812- ●
çizim 137879
127 38 386 139 184 524 23 219 294 525 552 294 47
BalonParca AdiParca NoAdetTipApplied Date A B
23 NUT; FLOOR STAY
M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (E) M8X16 FLANGE 		0-28050-816-0 02 1 1003-1501 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (E) M8X16 FLANGE 		0-28050-816-0 02 1 1003-1501 ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (E) M8X16 FLANGE 		0-28050-816-0 02 1 1502- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> (E) M8X16 FLANGE 		0-28050-816-0 02 1 1502- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0808-1002 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1003-1501 ●
38 BOLT; CLIP,HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1003-1501 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1502- ●
38 BOLT; CLIP,HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1502- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1502- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0808-0811 ●
38 BOLT; CLIP,HARNESS
EURO4 SPECIFICATION<NT4> (D) M8X30 FLANGE 		0-28650-830-0 01 1 0812-1002 ●
38 BOLT; CLIP,HARNESS
EURO4 SPECIFICATION<NT4> (D) M8X30 FLANGE 		0-28650-830-0 01 1 1003- ●
38 BOLT; CLIP,HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M8X30 FLANGE 		0-28650-830-0 01 1 1003- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0805-1002 ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1003- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1003- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0804 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-1004 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-1004 ●
38 BOLT; CLIP,HARNESS
SEAT ASM - WITH CENTER SEAT<7BC> (B) M8X25 FLANGE 		0-28650-825-0 01 1 1005- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1005- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0805- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0712-1201 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
127 SCREW; FACIA HARNESS CLIP
EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0712- ●
139 BOLT; BRKT
FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (H) M8X10 FLANGE 		0-28050-810-0 01 1 1411- ●
139 BOLT; BRKT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (H) M8X10 FLANGE 		0-28050-810-0 02 1 1003- ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0804-0804 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0804-0804 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0807 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0807 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0808-1002 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0808-1002 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1003-1501 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1003-1501 ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1003-1501 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1502- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1502- ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1502- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0803 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0803 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ● ●
139 BOLT; BRKT
MZX6P M/T(RSW) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0805-0901 ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0805-0901 ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0902- ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0803 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0803 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0804-0804 ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0808- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0808- ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0805-0807 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0805-0807 ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0808-1002 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1003-1501 ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 1003-1501 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1502- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1502- ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 1502- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0804 ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ● ●
139 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0712- ● ●
219 NUT
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1003-1004 ●
219 NUT
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1003-1004 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 1005-1501 ●
219 NUT
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1005-1501 ●
219 NUT
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1005-1501 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 1502- ●
219 NUT
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1502- ●
219 NUT
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1502- ●
219 NUT
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> M8 FLANGE 		0-91180-108-0 01 1 1502- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0712-0804 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0805- ●
294 NUT
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (A) M8 FLANGE 		0-91180-108-0 04 1 1502- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0903- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0806-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0903- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0804 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0805-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0805-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0902 ●
294 NUT
EURO4 SPECIFICATION<NT4> (A) M8 FLANGE 		0-91180-108-0 02 1 0903-1002 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 1003-1004 ●
294 NUT
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (A) M8 FLANGE 		0-91180-108-0 02 1 1003-1004 ●
294 NUT
EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (A) M8 FLANGE 		0-91180-108-0 02 1 1003-1004 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 1005- ●
294 NUT
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (A) M8 FLANGE 		0-91180-108-0 02 1 1005- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0805 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0805 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0806-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0810 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0810 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0811-0811 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0811-0811 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0811-0811 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0812- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0812- ●
294 NUT
EURO4 SPECIFICATION<NT4> (A) M8 FLANGE 		0-91180-108-0 01 1 0812- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0712-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0804-0906 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0712-0811 ● ●
525 NUT; CLIP
EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0812- ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0812- ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0805-0811 ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0712-0805 ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0806-0811 ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0806-0811 ●
552 NUT; BRKT,HARNESS
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 01 1 0812- ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
çizim 137981
53 53 53 246 59 53 335 53 53 69 53 7 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0712- ● ●
53 BRACKET; HARNESS
FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (K) 		1-82699-239-0 01 1 1411- ●
53 BRACKET; HARNESS
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (I) 		8-97212-532-0 01 1 1003- ●
53 BRACKET; HARNESS
LCT2000 A/T ALLISON(Y4F) (J) 		1-82698-296-0 02 1 1003- ●
53 BRACKET; HARNESS
(H) 		8-98127-093-0 01 1 0811- ●
53 BRACKET; HARNESS
(C) L=65 		1-47479-064-0 01 1 0806-0811 ●
53 BRACKET; HARNESS
(G) L=95 		1-82699-085-0 01 1 0806-0811 ●
53 BRACKET; HARNESS
(G) L=95 		1-82699-085-0 01 1 0812-0902 ● ●
53 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (G) L=95 		1-82699-085-0 01 1 0903-1002 ●
53 BRACKET; HARNESS
(G) L=95 		1-82699-085-0 01 1 0903-1002 ●
53 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (G) L=95 		1-82699-085-0 01 1 1003-1004 ●
53 BRACKET; HARNESS
(G) L=95 		1-82699-085-0 01 1 1003-1004 ●
53 BRACKET; HARNESS
(G) L=95 		1-82699-085-0 01 1 1005- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) 		8-98084-590-0 01 1 0801-0803 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) 		8-98084-590-0 01 1 0801-0803 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) 		8-98084-590-0 01 1 0804- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-98084-590-0 01 1 0804- ●
53 BRACKET; HARNESS
WHEEL BASE 4200MM(42W) (A) 		8-97620-485-0 01 1 0712-0804 ●
53 BRACKET; HARNESS
WHEEL BASE 4200MM(42W) (A) 		8-97620-485-0 01 1 0805-0811 ●
53 BRACKET; HARNESS
(A) 		8-97620-485-0 01 1 0805-0811 ●
53 BRACKET; HARNESS
WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97620-485-0 01 1 0812-0902 ●
53 BRACKET; HARNESS
(A) 		8-97620-485-0 01 1 0812-0902 ●
53 BRACKET; HARNESS
WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98107-613-0 01 1 0903- ●
53 BRACKET; HARNESS
(A) 		8-98107-613-0 01 1 0903- ●
53 BRACKET; HARNESS
EXC. IMMOBILIZER SYSTEM<7KC> (B) 		8-98074-502-0 01 1 0712-0807 ●
53 BRACKET; HARNESS
MZX6P M/T(RSW) (C) L=55 		1-47475-304-0 01 1 0712-0712 ● ●
53 BRACKET; HARNESS
(D) 		8-98049-871-0 01 1 0712-0804 ●
53 BRACKET; HARNESS
(C) L=65 		1-47479-064-0 02 1 0805-0811 ●
53 BRACKET; HARNESS
WHEEL BASE 3600MM(36W) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98049-871-0 01 1 0812-0901 ●
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (H) 		8-98152-282-0 01 1 1003-1009 ●
59 BRACKET; FRAME HARNESS
USER EXP GOVERNMENT<D6M> EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (H) 		8-98152-282-0 01 1 1010- ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> REARWARD INNER SINGLE TIRE<YK3> (H) 		8-98152-282-0 01 1 1010- ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (F) 		8-98118-500-0 01 1 0812- ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (G) 		8-98126-562-0 01 1 0812-0906 ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> (G) 		8-98152-281-0 01 1 0907-1002 ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (G) 		8-98152-281-0 01 1 1003-1009 ●
59 BRACKET; FRAME HARNESS
EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (G) 		8-98152-281-0 01 1 1010- ●
59 BRACKET; FRAME HARNESS
(F) 		8-98118-500-0 02 1 0804- ●
59 BRACKET; FRAME HARNESS
(A) L=75 		1-47478-323-0 01 1 0805- ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) (B) 		8-97627-325-0 01 1 0806-0811 ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97627-325-0 01 1 0806-0811 ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (B) 		8-97627-325-0 01 1 0812- ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97627-325-0 01 1 0812- ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97628-013-0 01 1 0806-1011 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97628-013-0 01 1 1012- ●
59 BRACKET; FRAME HARNESS
(A) L=95 		1-82699-085-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 0712-0804 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW) (B) 		8-97609-264-2 01 1 0805-0906 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 0907-1002 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (B) 		8-97609-264-2 01 1 1003-1011 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 1003-1011 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (B) 		8-97609-264-2 01 1 1012- ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97609-264-2 01 1 1012- ●
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-98071-896-0 01 1 0712-0803 ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-98071-896-0 01 1 0804-0811 ●
59 BRACKET; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (D) 		8-98071-896-0 01 1 0812- ●
59 BRACKET; FRAME HARNESS
(E) 		8-97616-305-0 01 1 0712-1502 ● ●
59 BRACKET; FRAME HARNESS
(I) 		8-98254-592-0 01 1 1503- ● ●
69 BRACKET; CLIP
MZX6P M/T(RSW) L=55 		1-47475-304-0 01 1 0712-0804 ● ●
69 BRACKET; CLIP
MZX6P M/T(RSW) L=55 		1-47475-304-0 01 1 0805-0805 ●
69 BRACKET; CLIP
MZX6P M/T(RSW),MLD6Q M/T(X5J) L=55 		1-47475-304-0 01 1 0806-0811 ●
69 BRACKET; CLIP
MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) L=55 		1-47475-304-0 01 1 0812-0901 ●
246 BRACKET; CLIP,SPD SENSOR
L=95 		1-82699-085-0 01 1 0712- ● ●
335 BRACKET; CONNECTOR
(A) L=65 		1-47479-064-0 01 1 0805-0811 ●
335 BRACKET; CONNECTOR
EURO4 SPECIFICATION<NT4> (A) L=65 		1-47479-064-1 01 1 0812- ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 0712- ● ●
çizim 193403
304 139 304 139 304 38 304 313 516 304 38 139 150 242 313 38 139 150 242 313 38 139 150 242 313 242 139 139 516 358 377 38 386
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (E) M8X16 FLANGE 		0-28050-816-0 02 1 1003-1501 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (E) M8X16 FLANGE 		0-28050-816-0 02 1 1003-1501 ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (E) M8X16 FLANGE 		0-28050-816-0 02 1 1502- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> (E) M8X16 FLANGE 		0-28050-816-0 02 1 1502- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0808-1002 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1003-1501 ●
38 BOLT; CLIP,HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1003-1501 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1502- ●
38 BOLT; CLIP,HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1502- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1502- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0808-0811 ●
38 BOLT; CLIP,HARNESS
EURO4 SPECIFICATION<NT4> (D) M8X30 FLANGE 		0-28650-830-0 01 1 0812-1002 ●
38 BOLT; CLIP,HARNESS
EURO4 SPECIFICATION<NT4> (D) M8X30 FLANGE 		0-28650-830-0 01 1 1003- ●
38 BOLT; CLIP,HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M8X30 FLANGE 		0-28650-830-0 01 1 1003- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0805-1002 ●
38 BOLT; CLIP,HARNESS
LCT2000 A/T ALLISON(Y4F) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1003- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1003- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0804 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-1004 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-1004 ●
38 BOLT; CLIP,HARNESS
SEAT ASM - WITH CENTER SEAT<7BC> (B) M8X25 FLANGE 		0-28650-825-0 01 1 1005- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1005- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0805- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0712-1201 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
139 BOLT; BRKT
FINAL GEAR 39/7 15.5"(W3K) ANTI LOCK BRAKE<JE5> (H) M8X10 FLANGE 		0-28050-810-0 01 1 1411- ●
139 BOLT; BRKT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ANTI LOCK BRAKE<JE5> (H) M8X10 FLANGE 		0-28050-810-0 02 1 1003- ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0804-0804 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0804-0804 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0807 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0807 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0808-1002 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0808-1002 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1003-1501 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1003-1501 ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1003-1501 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1502- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1502- ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1502- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0803 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0803 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ● ●
139 BOLT; BRKT
MZX6P M/T(RSW) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0805-0901 ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0805-0901 ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0902- ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0803 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0803 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0804-0804 ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0808- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0808- ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0805-0807 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0805-0807 ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0808-1002 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1003-1501 ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 1003-1501 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1502- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (F) M8X25 FLANGE 		0-28650-825-0 02 1 1502- ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 1502- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0804 ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ● ●
139 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ● ●
150 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0805-0902 ●
150 BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ●
150 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ● ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0805-0902 ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0903- ● ●
242 BOLT; BRKT,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0811- ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0806- ●
242 BOLT; BRKT,HARNESS
WHEEL BASE 4200MM(42W) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0804 ●
242 BOLT; BRKT,HARNESS
WHEEL BASE 4200MM(42W) (A) M8X35 FLANGE 		0-28650-835-0 01 1 0805-0811 ●
242 BOLT; BRKT,HARNESS
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0805-0811 ●
242 BOLT; BRKT,HARNESS
WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (A) M8X35 FLANGE 		0-28650-835-0 01 1 0812- ●
242 BOLT; BRKT,HARNESS
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0812- ●
242 BOLT; BRKT,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0811 ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE 		0-28050-812-0 06 1 0812- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE 		0-28050-816-0 05 1 0812- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE 		0-28050-820-0 04 1 0812- ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0712-0811 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE 		0-28050-812-0 03 1 0812- ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0812- ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0712-0811 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28050-820-0 01 1 0812- ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0812- ●
304 BOLT; ENG HARNESS CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0811 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0812- ● ●
304 BOLT; ENG HARNESS CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 03 1 0712-0811 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 03 1 0812- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0712-0811 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE 		0-28050-612-0 01 1 0812- ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0812- ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0712-0811 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (D) M8X10 FLANGE 		0-28050-810-0 01 1 0812-1010 ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0812-1010 ●
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0806-0902 ●
313 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (D) M8X20 FLANGE 		0-28650-820-0 01 1 0903-1002 ●
313 BOLT; BRKT
EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (D) M8X20 FLANGE 		0-28650-820-0 01 1 1003-1004 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0712 ●
313 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0807 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-0805 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-0805 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-0805 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0806-0807 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0806-0807 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0808-0808 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0808-0808 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0902 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0902 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0902 ●
313 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE 		0-28650-830-0 01 1 0903-1002 ●
313 BOLT; BRKT
EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (C) M8X30 FLANGE 		0-28650-830-0 01 1 1003-1004 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0805 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0806-0807 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0806-0807 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0808 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0808 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0808 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0809- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0809- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0712 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0804 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0902 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0902 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 0903- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0712- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0712-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
516 BOLT; HARNESS
MLD6Q M/T(X5J) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0806-0811 ● ●
516 BOLT; HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0812- ●
516 BOLT; HARNESS
MLD6Q M/T(X5J) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0812- ●
516 BOLT; HARNESS
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0712- ● ●
çizim 193424
16 194 206 14 37 48 102 206 217 225 491 612 14 16 48 102 208 530 16 224 1 1 224 1 14 194 225 228 538 178 178 596 503 612
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0712-0811 ● ●
1 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0812- ●
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0812- ●
1 SLEEVE; RUBBER
POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=10 OD=14 L=30 		9-09956-682-0 04 1 0712-0811 ● ●
1 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=10 OD=14 L=30 		9-09956-682-0 04 1 0812- ● ●
1 SLEEVE; RUBBER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0712-0811 ● ●
1 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0812- ● ●
1 SLEEVE; RUBBER
EURO2 SPECIFICATION<NT2> (A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0812- ●
1 SLEEVE; RUBBER
EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0812- ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (A) L=250 		8-98216-430-0 01 1 1312- ●
14 CLIP; BAND,HARNESS
DIFF LOCK<C3N> (A) L=250 		5-09707-030-1 01 1 1003- ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> LCT2000 A/T ALLISON(Y4F) (A) L=250 		5-09707-030-1 09 1 1003-1205 ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> LCT2000 A/T ALLISON(Y4F) (A) L=250 		8-98216-430-0 09 1 1206- ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (C) L=251 		8-97619-917-0 01 1 0910- ●
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 0910- ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 08 1 0812-1205 ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> (A) L=250 		8-98216-430-0 08 1 1206-1311 ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> (A) L=250 		8-98216-430-0 08 1 1312- ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 15 1 0712-0811 ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 15 1 0812-0909 ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 13 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		8-98216-430-0 13 1 1206- ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 14 1 0801-0811 ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 14 1 0812-0909 ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 14 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		8-98216-430-0 14 1 1206- ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 13 1 0712-0712 ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0712- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (W) ID=11X2 L=16 		0-95325-025-0 01 1 1502- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (U) ID=5-12 L=14.5 		1-09987-221-0 04 1 1502- ●
16 CLIP; HARNESS
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI LOCK BRAKE<JE5> (S) ID=11 L=20 		0-95235-035-0 01 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (T) ID=19 L=20 		0-95235-836-0 01 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (U) ID=5-12 L=14.5 		1-09987-221-0 02 1 1003- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (V) L=140 		5-09707-031-1 01 1 1003-1501 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (V) L=140 		5-09707-031-1 01 1 1502- ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (S) ID=11 L=20 		0-95235-035-0 02 1 1003-1501 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (S) ID=11 L=20 		0-95235-035-0 02 1 1003-1501 ●
16 CLIP; HARNESS
LCT2000 A/T ALLISON(Y4F) (S) ID=11 L=20 		0-95235-035-0 02 1 1502- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> (S) ID=11 L=20 		0-95235-035-0 02 1 1502- ●
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 0811- ●
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0806- ●
16 CLIP; HARNESS
(N) ID=16 L=28 		0-95235-556-0 02 1 0804- ●
16 CLIP; HARNESS
(O) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
16 CLIP; HARNESS
EURO4 SPECIFICATION<NT4> (O) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(I) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0712-0805 ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0806- ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0804-0804 ●
16 CLIP; HARNESS
(P) ID=5-12 L=18 		1-09709-287-0 01 1 0805-0811 ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 0712-0911 ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 0912- ● ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0803- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(D) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (K) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
REARWARD INNER SINGLE TIRE<YK3> (J) ID=11 L=41 		1-09700-403-0 03 1 1003-1009 ●
48 CLIP; FRAME HARNESS
USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (J) ID=11 L=41 		1-09700-403-0 03 1 1010- ●
48 CLIP; FRAME HARNESS
REARWARD INNER SINGLE TIRE<YK3> (J) ID=11 L=41 		1-09700-403-0 03 1 1010- ●
48 CLIP; FRAME HARNESS
LCT2000 A/T ALLISON(Y4F) (I) ID=19 L=32 		0-95235-866-0 02 1 1003- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) (D) ID=20 L=50 		9-09917-430-0 09 1 1003- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0806-0811 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0812-0905 ●
48 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 03 1 0806-0811 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 15 1 0812-0902 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 15 1 0812-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 15 1 0903-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (K) ID=14 L=44 		9-09917-427-0 13 1 1008- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0804-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0805- ●
48 CLIP; FRAME HARNESS
(F) ID=16 L=28 		0-95235-556-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0805-1007 ●
48 CLIP; FRAME HARNESS
(K) ID=14 L=44 		9-09917-427-0 01 1 1008- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0712-1002 ● ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> (A) OD=9 H=9.5 		1-09709-179-0 01 1 1003-1009 ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1003-1009 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0712-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0805-0805 ●
48 CLIP; FRAME HARNESS
(H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0806-0902 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> (H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0903-1002 ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1003-1004 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> (E) L=250 		5-09707-030-1 01 1 1005-1009 ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1005-1009 ●
48 CLIP; FRAME HARNESS
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (E) L=250 		5-09707-030-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (D) ID=20 L=50 		9-09917-430-0 15 1 0712-0811 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> (D) ID=20 L=50 		9-09917-430-0 12 1 0812-1002 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (D) ID=20 L=50 		9-09917-430-0 12 1 1003-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3600MM(36W) EURO2 SPECIFICATION<NT2> DOUBLE TIRE REARWARD<SR6> (K) ID=14 L=44 		9-09917-427-0 10 1 1008- ●
102 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0806-0902 ● ●
102 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 0712-0911 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712-0804 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712-0804 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0805-0906 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0805-0906 ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0907-1002 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0907-1002 ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1003- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1003- ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1003- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0712-0905 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0906- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0811 ●
178 GROMMET; HARNESS
EURO2 SPECIFICATION<NT2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0812-0812 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0812-0812 ●
178 GROMMET; HARNESS
WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0901-0905 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0901-0905 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906- ● ●
178 GROMMET; HARNESS
WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906- ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0712-1002 ● ●
194 CLIP; BAND
DOUBLE TIRE REARWARD<SR6> (A) L=180 		1-09707-162-1 01 1 1003-1009 ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 1003-1009 ●
194 CLIP; BAND
DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) L=180 		1-09707-162-1 01 1 1010- ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 1010- ●
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0712-0804 ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 0805- ●
206 CLIP; FUEL TANK HARNESS
(A) L=250 		5-09707-030-1 01 1 0712-0901 ●
206 CLIP; FUEL TANK HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0804 ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=250 		5-09707-030-1 02 1 0805- ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0804-0804 ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0805-0807 ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0808- ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0712- ● ●
224 SLEEVE; RUBBER,HARNESS
DOUBLE TIRE REARWARD<SR6> (B) ID=9.5 OD=14.5 L=120 		9-09913-202-1 01 1 1005-1010 ●
224 SLEEVE; RUBBER,HARNESS
(B) ID=9.5 OD=14.5 L=120 		9-09913-202-1 01 1 1005-1010 ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0806-0902 ● ●
224 SLEEVE; RUBBER,HARNESS
EURO4 SPECIFICATION<NT4> (A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0903-1002 ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0903-1002 ●
224 SLEEVE; RUBBER,HARNESS
EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1003-1004 ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1003-1004 ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1005- ●
225 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> (B) L=250 		5-09707-030-1 01 1 1003- ●
225 CLIP; AIR TANK HARNESS
ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<NT2> (A) L=180 		1-09707-162-1 04 1 1003- ●
225 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (B) L=250 		5-09707-030-1 03 1 0812-1002 ●
225 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 03 1 1003- ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0712-0807 ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 04 1 0808- ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0712-0807 ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0808-0910 ●
225 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> (B) L=250 		5-09707-030-1 02 1 0911-1002 ●
225 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> DOUBLE TIRE REARWARD<SR6> (B) L=250 		5-09707-030-1 02 1 1003- ●
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0712-0807 ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 06 1 1003-1204 ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 04 1 1205- ●
503 CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-82690-668-0 01 1 0712-0811 ● ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-82690-668-0 01 1 0812- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0712-1305 ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
EXC. REMOTE CONT DOOR LOCK<6NF> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
MIR O/S RR VIEW FLAT(YS1) 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0712-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0909- ● ●
596 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0811 ● ●
596 GROMMET
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> ID=28 OD=35 T=17 		9-09956-256-2 01 1 0812- ●
596 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0812- ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 0903-1002 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 1003- ●
612 CLIP; HARNESS DPD
(D) ID=4.76 & 12 		1-09709-306-0 01 1 0806-0806 ●
612 CLIP; HARNESS DPD
(E) ID=6.35 & 10.0 		1-09709-274-1 01 1 0806-0811 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION<NT4> (B) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0804-0804 ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0805-0901 ● ●
612 CLIP; HARNESS DPD
EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (C) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0902- ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0811 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0811 ●
612 CLIP; HARNESS DPD
WHEEL BASE 3600MM(36W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 01 1 0812-0901 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0812-0901 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0812-0901 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0902-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0902-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0903-1002 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 1003- ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) (A) L=135 		1-09987-143-1 02 1 0712-0811 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 02 1 0812-0902 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 03 1 0903- ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0712-0804 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 02 1 0805-0811 ●
çizim 460120
312 312 428 312 324 428 335 334 324 428 428 428 428
BalonParca AdiParca NoAdetTipApplied Date A B
312 BRACKET; CLIP HARNESS
A/T<X9D> (C) 		8-98157-586-0 01 1 1003- ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0712-1002 ● ●
312 BRACKET; CLIP HARNESS
EXC. A/T<X9D> (B) L=55 		1-47475-304-0 01 1 1003- ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1003- ●
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 0712- ● ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (B) 		8-98209-753-0 01 1 1502- ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> DOUBLE TIRE REARWARD<SR6> (B) 		8-98209-754-0 01 1 1502- ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (A) 		8-98009-387-0 01 1 1003- ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> REARWARD INNER SINGLE TIRE<YK3> (A) 		8-98009-388-0 01 1 1003- ●
334 BRACKET
L=120 H=35 		1-82698-088-0 01 1 0712-0804 ●
335 BRACKET; CONNECTOR
(A) L=65 		1-47479-064-0 01 1 0805-0811 ●
335 BRACKET; CONNECTOR
EURO4 SPECIFICATION<NT4> (A) L=65 		1-47479-064-1 01 1 0812- ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 0712- ● ●
428 BRACKET
(E) 		8-98118-501-0 01 1 0804- ●
428 BRACKET
(F) 		1-47477-868-0 01 1 0805- ●
428 BRACKET
(A) L=95 		1-82699-085-0 02 1 0712-0902 ●
428 BRACKET
(B) 		1-47475-519-0 01 1 0712-0805 ● ●
428 BRACKET
(B) 		1-47475-519-0 01 1 0806- ●
428 BRACKET
(C) 		8-98049-870-2 01 1 0712- ● ●
428 BRACKET
(D) 		8-98090-953-0 01 1 0712-0803 ● ●
428 BRACKET
(D) 		8-98090-953-1 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
