Isuzu WW
▶
TRUCKS
▶
FTS
▶
11128 - FTS(RHD)EURO2/4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶

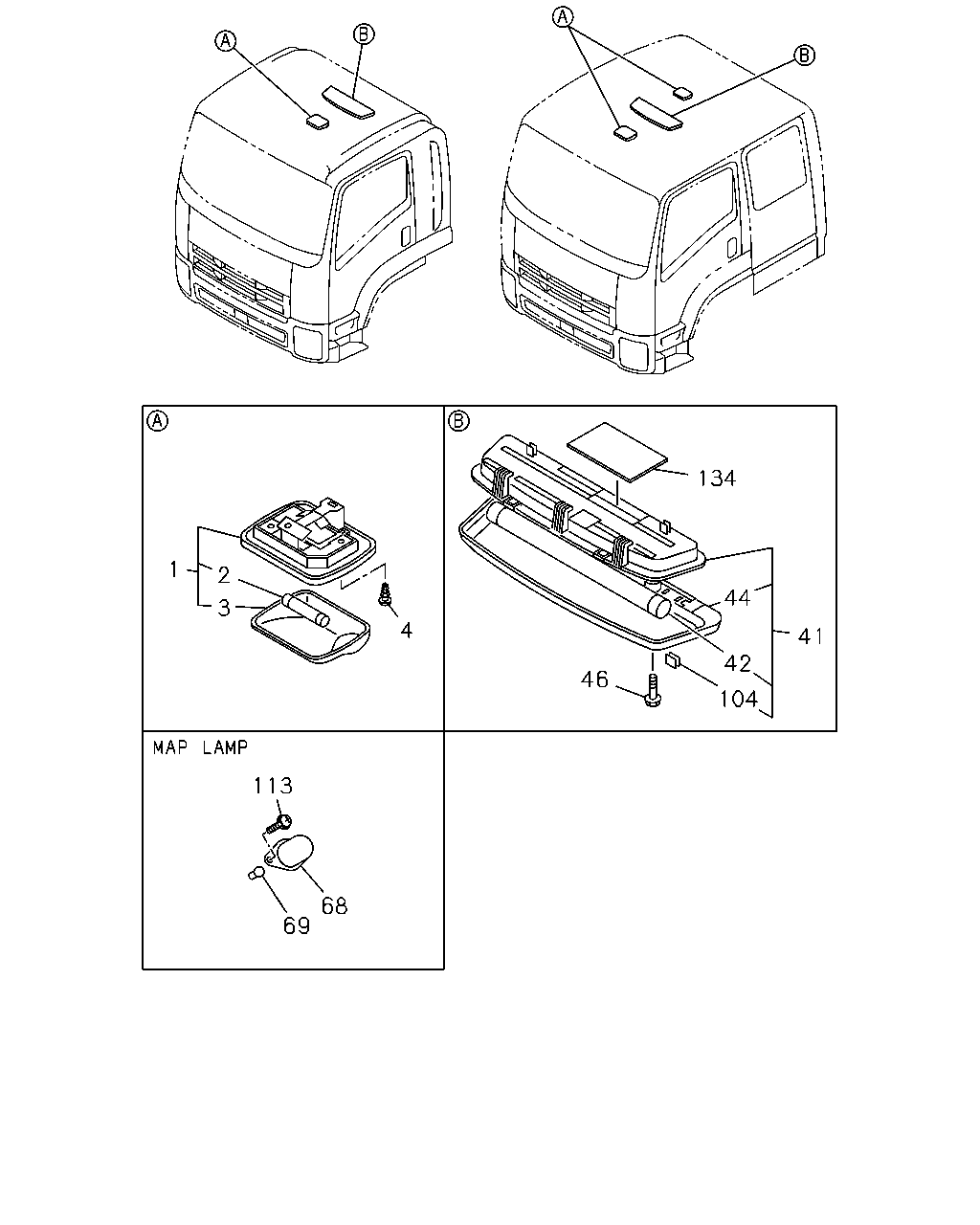

8-05 — INTERIOR LAMP
(#66794) — 23 parça
Tümü
A - FGS5MS
B - FGS5WS
134
1
2
44
3
4
41
42
46
104
113
68
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; ROOM
8-98013-421-3
01
1
0712-
●
●
1
LAMP ASM; ROOM
8-98013-421-3
01
1
0712-
●
2
BULB; ROOM LAMP
24V 10W
5-82194-030-0
01
1
0712-
●
●
2
BULB; ROOM LAMP
24V 10W
5-82194-030-0
01
1
0712-
●
3
LENS; ROOM LAMP
8-98047-272-0
01
1
0712-
●
●
3
LENS; ROOM LAMP
8-98047-272-0
01
1
0712-
●
4
SCREW; ROOM LAMP
M5X14 W/WASHER
8-98075-766-0
02
1
0712-
●
●
4
SCREW; ROOM LAMP
M5X14 W/WASHER
8-98075-766-0
02
1
0712-
●
41
LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC>
8-97387-587-1
01
1
0712-
●
41
LAMP ASM; FLUORESCENT
8-97387-587-1
01
1
0712-
●
42
LAMP; FLUORESCENT
FLUORESCENT LAMP<6UC> FL20SD
8-98056-311-0
01
1
0712-
●
42
LAMP; FLUORESCENT
FL20SD
8-98056-311-0
01
1
0712-
●
44
LENS; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC>
8-98056-315-0
01
1
0712-
●
44
LENS; FLUORESCENT LAMP
8-98056-315-0
01
1
0712-
●
46
SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> BOLT M6X12 FLANGE
0-28060-612-0
02
1
0712-
●
46
SCREW; FLUORESCENT LAMP
BOLT M6X12 FLANGE
0-28060-612-0
02
1
0712-
●
68
BRACKET; MAP LAMP
USER EXP GOVERNMENT<D6M>
1-82147-002-0
01
1
1003-
●
69
BULB; MAP LAMP
USER EXP GOVERNMENT<D6M> 24V 6W
9-82691-306-0
01
1
1003-
●
104
CLIP; LAMP
FLUORESCENT LAMP<6UC>
8-98056-322-0
02
1
0712-
●
104
CLIP; LAMP
8-98056-322-0
02
1
0712-
●
113
SCREW; LAMP
USER EXP GOVERNMENT<D6M> M5X16 W/LK&PL WASHER
8-94279-400-0
02
1
1003-
●
134
SEAL; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC>
8-98076-275-0
01
1
0910-
●
134
SEAL; FLUORESCENT LAMP
8-98076-275-0
01
1
0910-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
