Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#66792) — 379 parça

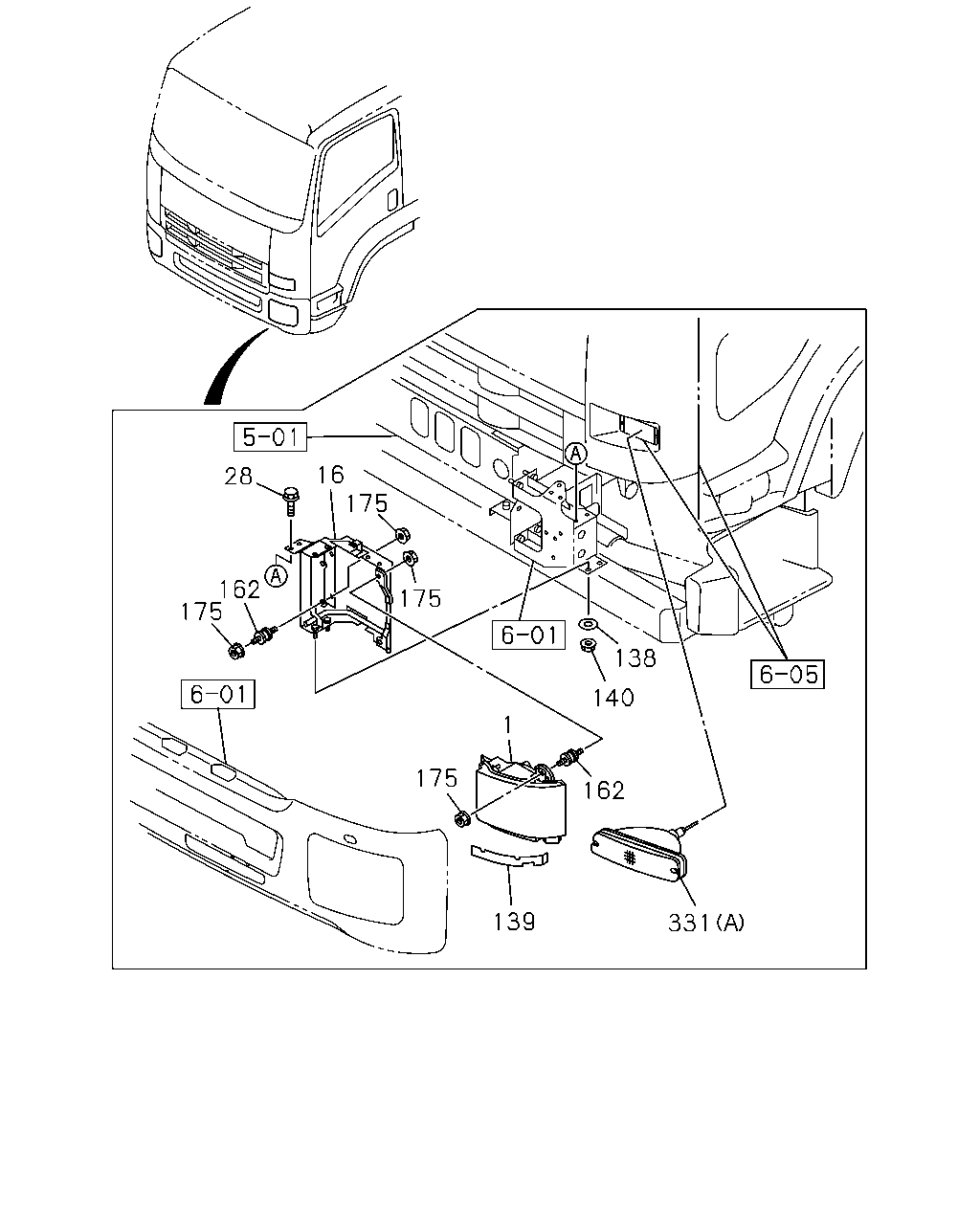

16 175 28 162 175 175 138 140 1 175 162 139 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98098-477-1	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-591-0	01	1	1209-1301	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-634-0	01	1	1302-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98241-319-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98098-478-1	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-592-0	01	1	1209-1301	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-635-0	01	1	1302-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98241-320-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1109-1208	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-599-0	01	1	1209-1301	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-640-0	01	1	1302-1305	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1109-1208	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-600-0	01	1	1209-1301	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-641-0	01	1	1302-1305	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1306-	●
16	BRACKET; HEADLAMP	8-98086-431-1	01	1	0712-1002	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98086-431-1	01	1	1003-	●
16	BRACKET; HEADLAMP	8-98086-431-1	01	1	1003-		●
16	BRACKET; HEADLAMP	8-98086-432-1	01	1	0712-1002	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98086-432-1	01	1	1003-	●
16	BRACKET; HEADLAMP	8-98086-432-1	01	1	1003-		●
28	BOLT; HEADLAMP REINFORCEMENT BUMPER<VG7> M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	1003-1005	●
28	BOLT; HEADLAMP REINFORCEMENT BUMPER<VG7> M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1006-	●
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	0712-1002	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	04	1	1003-	●
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	1003-		●
138	WASHER; LK BRKT HD LAMP ID=10.5 OD=26	0-91614-710-0	04	1	0712-1002	●	●
138	WASHER; LK BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=26	0-91614-710-0	04	1	1003-	●
138	WASHER; LK BRKT HD LAMP ID=10.5 OD=26	0-91614-710-0	04	1	1003-		●
139	COVER; HEADLAMP	8-98054-342-0	02	1	0712-1002	●	●
139	COVER; HEADLAMP BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	8-98054-342-0	02	1	1003-	●
139	COVER; HEADLAMP	8-98054-342-0	02	1	1003-		●
140	NUT M10 FLANGE	0-91180-210-0	08	1	0712-1002	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	08	1	1003-	●
140	NUT M10 FLANGE	0-91180-210-0	08	1	1003-		●
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	0712-1002	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	1003-	●
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	1003-		●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	0712-1002	●	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	16	1	1003-	●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	1003-		●
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (B)	8-98155-458-0	01	1	1003-	●
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (B)	8-98155-459-0	01	1	1003-	●
331	LAMP; TURN SIGNAL (A)	8-98079-896-0	01	1	0712-1002	●	●
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (A)	8-98079-896-0	01	1	1003-	●
331	LAMP; TURN SIGNAL (A)	8-98079-896-0	01	1	1003-		●
331	LAMP; TURN SIGNAL (A)	8-98079-895-0	01	1	0712-1002	●	●
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (A)	8-98079-895-0	01	1	1003-	●
331	LAMP; TURN SIGNAL (A)	8-98079-895-0	01	1	1003-		●

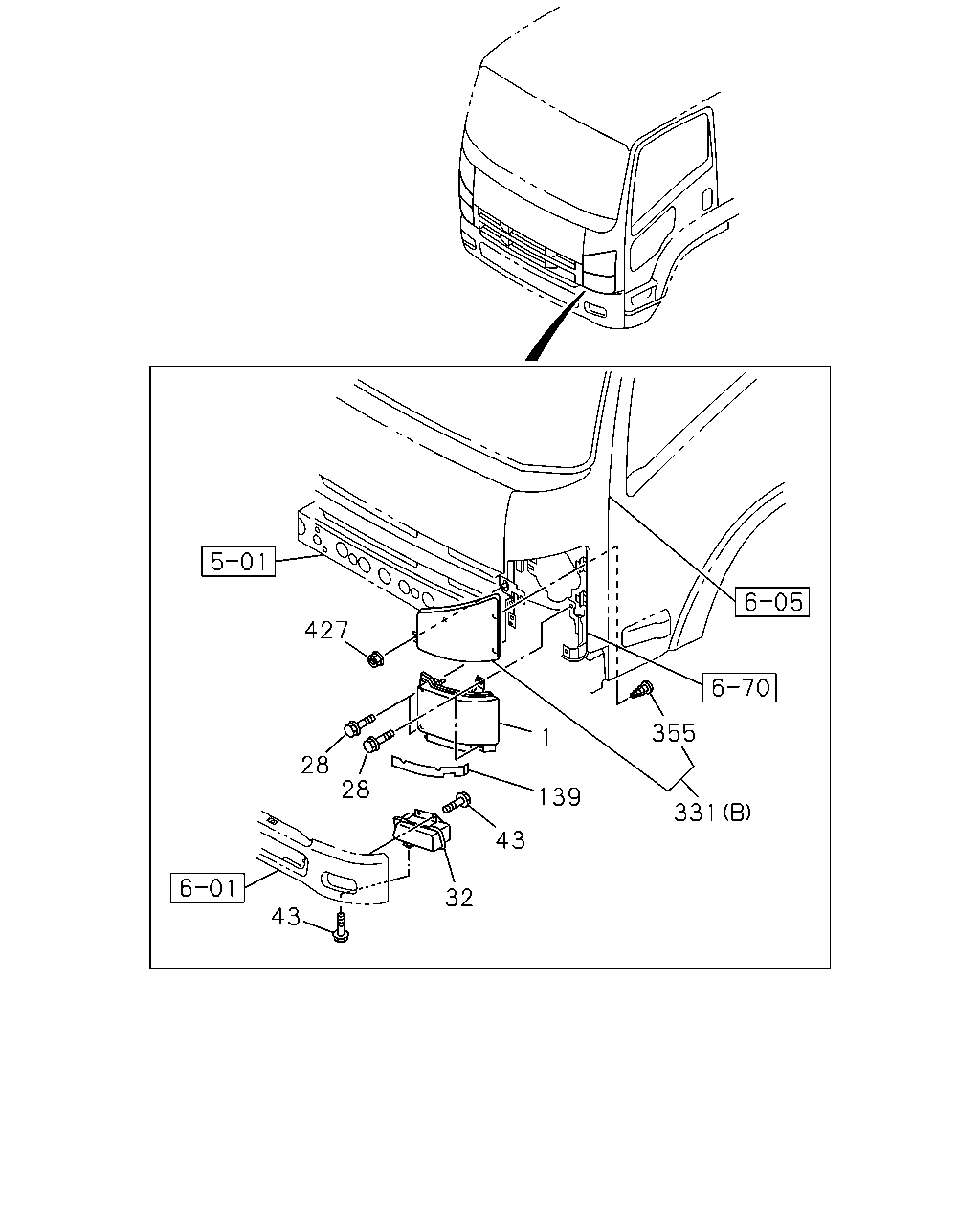

427 355 1 28 28 139 331 43 32 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98098-477-1	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-591-0	01	1	1209-1301	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-634-0	01	1	1302-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98241-319-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98098-478-1	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-592-0	01	1	1209-1301	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-635-0	01	1	1302-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98241-320-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1109-1208	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-599-0	01	1	1209-1301	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-640-0	01	1	1302-1305	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1109-1208	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-600-0	01	1	1209-1301	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-641-0	01	1	1302-1305	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1306-	●
28	BOLT; HEADLAMP REINFORCEMENT BUMPER<VG7> M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	1003-1005	●
28	BOLT; HEADLAMP REINFORCEMENT BUMPER<VG7> M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1006-	●
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	0712-1002	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	04	1	1003-	●
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	1003-		●
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98149-143-1	01	1	1003-1301	●
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98232-058-1	01	1	1302-	●
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98149-144-1	01	1	1003-1301	●
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98232-059-1	01	1	1302-	●
43	BOLT; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1003-	●
139	COVER; HEADLAMP	8-98054-342-0	02	1	0712-1002	●	●
139	COVER; HEADLAMP BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	8-98054-342-0	02	1	1003-	●
139	COVER; HEADLAMP	8-98054-342-0	02	1	1003-		●
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (B)	8-98155-458-0	01	1	1003-	●
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (B)	8-98155-459-0	01	1	1003-	●
331	LAMP; TURN SIGNAL (A)	8-98079-896-0	01	1	0712-1002	●	●
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (A)	8-98079-896-0	01	1	1003-	●
331	LAMP; TURN SIGNAL (A)	8-98079-896-0	01	1	1003-		●
331	LAMP; TURN SIGNAL (A)	8-98079-895-0	01	1	0712-1002	●	●
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (A)	8-98079-895-0	01	1	1003-	●
331	LAMP; TURN SIGNAL (A)	8-98079-895-0	01	1	1003-		●
355	SCREW; TURN SIGNAL REINFORCEMENT BUMPER<VG7>	8-98051-428-0	04	1	1003-	●
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0712-	●	●

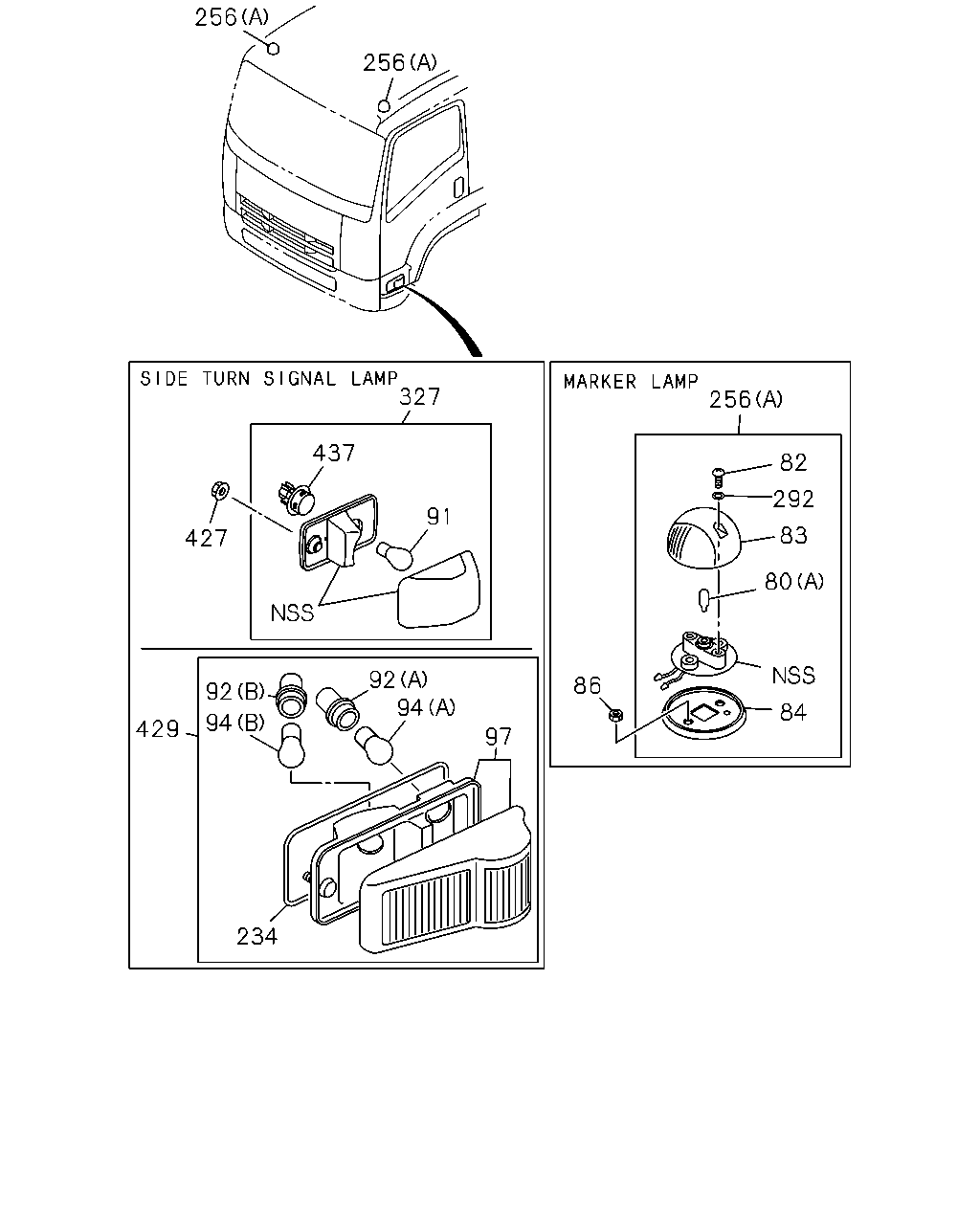

256 256 327 256 437 82 292 91 83 427 80 92 94 86 92 84 94 429 97 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	BULB; MARKER LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 6W	9-82691-306-0	02	1	1003-	●
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	0712-	●
80	BULB; MARKER LAMP (A) 24V 5W	8-94135-397-0	02	1	0712-		●
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	0712-	●
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	0712-		●
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	8-98057-958-0	02	1	0712-	●
83	LENS; MARKER LAMP	8-98057-958-0	02	1	0712-		●
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82216-021-0	02	1	0712-0906	●
84	GASKET; MARKER LAMP	1-82216-021-0	02	1	0712-0906		●
86	NUT; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> M6 FLANGE	0-91180-106-0	04	1	0712-	●
86	NUT; MARKER LAMP M6 FLANGE	0-91180-106-0	04	1	0712-		●
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	0712-1002	●	●
91	BULB; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> 24V 21W	8-98051-495-0	02	1	1003-	●
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1003-		●
92	SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (B)	8-97172-959-0	02	1	1003-	●
92	SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (A)	8-98051-390-0	02	1	1003-	●
94	BULB; SIDE COMB LAMP CORNERING LAMP<T87> (A) 24V 21W	8-98051-495-0	02	1	1003-	●
94	BULB; SIDE COMB LAMP CORNERING LAMP<T87> (B) 24V 21W	8-98051-496-0	02	1	1003-	●
97	LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-419-0	01	1	1003-	●
97	LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-420-0	01	1	1003-	●
234	GASKET; SIDE COMB LAMP CORNERING LAMP<T87>	8-98051-432-0	02	1	1003-	●
256	LAMP; MARKER LAMPS EXP PACKAGE<WL5> (B)	1-82210-240-1	02	1	1003-	●
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	8-98097-467-3	01	1	0712-	●
256	LAMP; MARKER (A)	8-98097-467-3	01	1	0712-		●
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	8-98097-466-3	01	1	0712-	●
256	LAMP; MARKER (A)	8-98097-466-3	01	1	0712-		●
292	WASHER; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	0712-	●
292	WASHER; MARKER LAMP	1-82219-012-0	04	1	0712-		●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	0712-1002	●	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-181-3	01	1	1003-	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1003-		●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	0712-1002	●	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-180-4	01	1	1003-	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1003-		●
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0712-	●	●
429	LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-776-2	01	1	1003-	●
429	LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-777-2	01	1	1003-	●
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	0712-1002	●	●
437	SOCKET; SIDE,TURN EXC. CORNERING LAMP<T87>	8-98051-390-0	02	1	1003-	●
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1003-		●

49 47 44 32 36 15 448 331 124 125 127 129 331 431 357 399 355 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BULB; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 24V 70W	1-82194-106-0	02	1	1003-	●
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98149-143-1	01	1	1003-1301	●
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98232-058-1	01	1	1302-	●
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98149-144-1	01	1	1003-1301	●
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98232-059-1	01	1	1302-	●
36	CORD; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	1-82118-015-0	01	1	1003-	●
36	CORD; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	1-82118-016-0	01	1	1003-	●
44	NUT; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> M6	8-98217-430-0	02	1	1205-	●
47	WASHER; PL,FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98217-429-0	02	1	1205-	●
49	BRACKET; LAMP REINFORCEMENT BUMPER<VG7> (B)	8-98164-818-0	01	1	1003-	●
49	BRACKET; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A)	8-98051-435-0	01	1	1003-	●
49	BRACKET; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A)	8-98051-436-0	01	1	1003-	●
124	BULB; FRT TURN SIGNAL 24V 21W	8-98051-496-0	02	1	0712-1002	●	●
124	BULB; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB> 24V 21W	8-98051-496-0	02	1	1003-	●
124	BULB; FRT TURN SIGNAL 24V 21W	8-98051-496-0	02	1	1003-		●
125	GASKET; FRT TURN SIGNAL	8-94334-881-0	02	1	0712-1002	●	●
125	GASKET; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	8-94334-881-0	02	1	1003-	●
125	GASKET; FRT TURN SIGNAL	8-94334-881-0	02	1	1003-		●
127	LENS; FRT TURN SIGNAL	8-94117-030-0	01	1	0712-1002	●	●
127	LENS; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	8-94117-030-0	01	1	1003-	●
127	LENS; FRT TURN SIGNAL	8-94117-030-0	01	1	1003-		●
127	LENS; FRT TURN SIGNAL	8-94112-723-0	01	1	0712-1002	●	●
127	LENS; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	8-94112-723-0	01	1	1003-	●
127	LENS; FRT TURN SIGNAL	8-94112-723-0	01	1	1003-		●
129	SCREW; FRT TURN SIGNAL	0-91190-435-0	04	1	0712-1002	●	●
129	SCREW; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	0-91190-435-0	04	1	1003-	●
129	SCREW; FRT TURN SIGNAL	0-91190-435-0	04	1	1003-		●
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (B)	8-98155-458-0	01	1	1003-	●
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (B)	8-98155-459-0	01	1	1003-	●
331	LAMP; TURN SIGNAL (A)	8-98079-896-0	01	1	0712-1002	●	●
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (A)	8-98079-896-0	01	1	1003-	●
331	LAMP; TURN SIGNAL (A)	8-98079-896-0	01	1	1003-		●
331	LAMP; TURN SIGNAL (A)	8-98079-895-0	01	1	0712-1002	●	●
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (A)	8-98079-895-0	01	1	1003-	●
331	LAMP; TURN SIGNAL (A)	8-98079-895-0	01	1	1003-		●
355	SCREW; TURN SIGNAL REINFORCEMENT BUMPER<VG7>	8-98051-428-0	04	1	1003-	●
357	BULB; TURN SIGNAL REINFORCEMENT BUMPER<VG7> 24V 21W AMBER	8-97323-806-0	02	1	1003-	●
399	SOCKET; TURN SIGNAL REINFORCEMENT BUMPER<VG7>	8-98051-387-0	02	1	1003-	●
431	CAP; TURN SIGNAL,LAMP REINFORCEMENT BUMPER<VG7>	8-97378-874-0	02	1	1003-	●
432	FASTENER; TURN SIGNAL,LAMP REINFORCEMENT BUMPER<VG7>	8-98051-431-0	04	1	1003-	●
448	CAP ASM; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-97378-874-0	02	1	1003-	●

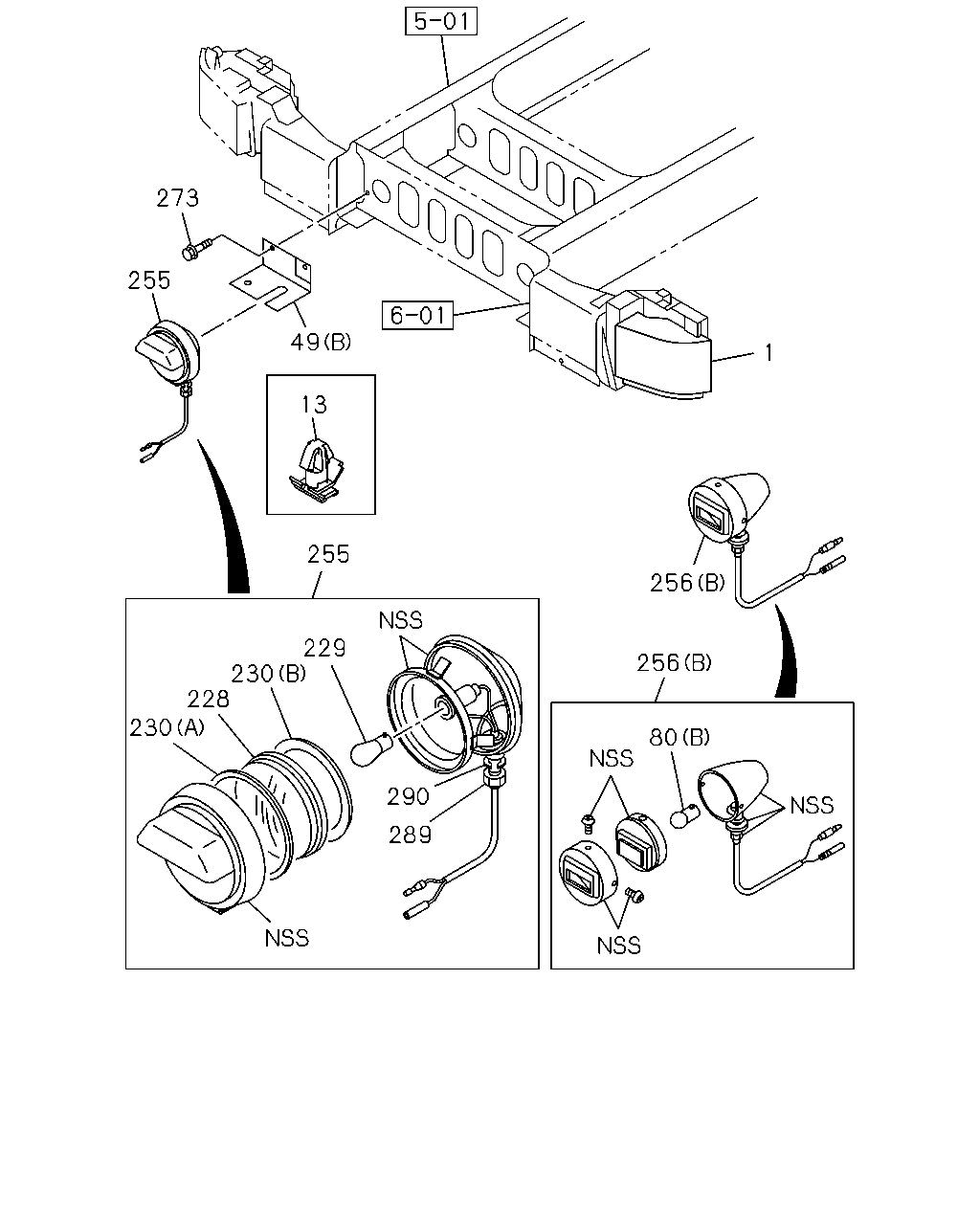

273 255 49 1 13 255 256 229 230 228 230 256 80 290 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98098-477-1	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-591-0	01	1	1209-1301	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-634-0	01	1	1302-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98241-319-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98098-478-1	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-592-0	01	1	1209-1301	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-635-0	01	1	1302-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98241-320-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1109-1208	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-599-0	01	1	1209-1301	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-640-0	01	1	1302-1305	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1109-1208	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-600-0	01	1	1209-1301	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-641-0	01	1	1302-1305	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1306-	●
13	CLIP; HEADLAMP LAMPS EXP PACKAGE<WL5> OD=9 H=6	1-09709-178-0	03	1	1003-	●
49	BRACKET; LAMP REINFORCEMENT BUMPER<VG7> (B)	8-98164-818-0	01	1	1003-	●
49	BRACKET; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A)	8-98051-435-0	01	1	1003-	●
49	BRACKET; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A)	8-98051-436-0	01	1	1003-	●
80	BULB; MARKER LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 6W	9-82691-306-0	02	1	1003-	●
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	0712-	●
80	BULB; MARKER LAMP (A) 24V 5W	8-94135-397-0	02	1	0712-		●
228	LENS; DRIVING LAMP LAMPS EXP PACKAGE<WL5>	9-82611-231-0	01	1	1003-	●
229	BULB; DRIVING LAMP LAMPS EXP PACKAGE<WL5> 24V 25W	9-82691-347-0	01	1	1003-	●
230	GASKET; DRIVING LAMP LAMPS EXP PACKAGE<WL5> (A)	9-82611-752-0	01	1	1003-	●
230	GASKET; DRIVING LAMP LAMPS EXP PACKAGE<WL5> (B)	9-82611-753-0	01	1	1003-	●
255	LAMP; DRIVING LAMPS EXP PACKAGE<WL5>	1-82210-239-1	01	1	1003-	●
256	LAMP; MARKER LAMPS EXP PACKAGE<WL5> (B)	1-82210-240-1	02	1	1003-	●
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	8-98097-467-3	01	1	0712-	●
256	LAMP; MARKER (A)	8-98097-467-3	01	1	0712-		●
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	8-98097-466-3	01	1	0712-	●
256	LAMP; MARKER (A)	8-98097-466-3	01	1	0712-		●
273	BOLT; BRKT REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	02	1	1003-	●
289	NUT; DRIVING LAMP LAMPS EXP PACKAGE<WL5> M12	9-99110-412-0	01	1	1003-	●
290	WASHER; DRIVING LAMP LAMPS EXP PACKAGE<WL5> ID=12.2	9-09150-612-0	01	1	1003-	●

5 5 408 420 4 338 339 20 382 457 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305		●
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98098-477-1	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-591-0	01	1	1209-1301	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-634-0	01	1	1302-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98241-319-0	01	1	1306-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98098-478-1	01	1	1109-1208	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-592-0	01	1	1209-1301	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98225-635-0	01	1	1302-1305	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98241-320-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1109-1208	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-599-0	01	1	1209-1301	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-640-0	01	1	1302-1305	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	0712-1108	●	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1109-1208	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-600-0	01	1	1209-1301	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-641-0	01	1	1302-1305	●
1	LAMP ASM; HEAD REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1306-	●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-566-0	01	1	1109-	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-566-0	01	1	1109-		●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-567-0	01	1	1109-	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-567-0	01	1	1109-		●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-564-0	01	1	1109-	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-564-0	01	1	1109-		●
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-565-0	01	1	1109-	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-565-0	01	1	1109-		●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-399-0	01	1	0712-1108	●	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98051-399-0	01	1	1109-1301	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98226-181-0	01	1	1302-	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-398-0	01	1	0712-1108	●	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98051-398-0	01	1	1109-1301	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> REINFORCEMENT BUMPER<VG7>	8-98226-180-0	01	1	1302-	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-401-0	01	1	0712-1108	●	●
4	HEADLAMP UNIT REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-401-0	01	1	1109-1301	●
4	HEADLAMP UNIT REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-183-0	01	1	1302-	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-400-0	01	1	0712-1108	●	●
4	HEADLAMP UNIT REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-400-0	01	1	1109-1301	●
4	HEADLAMP UNIT REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-182-0	01	1	1302-	●
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	0712-	●	●
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	0712-	●	●
20	SCREW; HEADLAMP	8-97378-871-0	06	1	0712-	●	●
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	0712-	●	●
338	LEVELING; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1109-1208	●
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1109-1208		●
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1209-	●	●
339	GASKET; LEVELING BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1109-1208	●
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1109-1208		●
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1209-	●	●
382	PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	0712-1208	●	●
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1209-	●	●
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0712-	●	●
420	SPRING; BULB,HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98218-601-0	02	1	1209-1301	●
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1209-1301		●
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1302-	●	●
420	SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	0712-1208	●	●
420	SPRING; BULB,HEADLAMP REINFORCEMENT BUMPER<VG7>	8-97378-875-0	02	1	1209-1301	●
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1306-	●	●

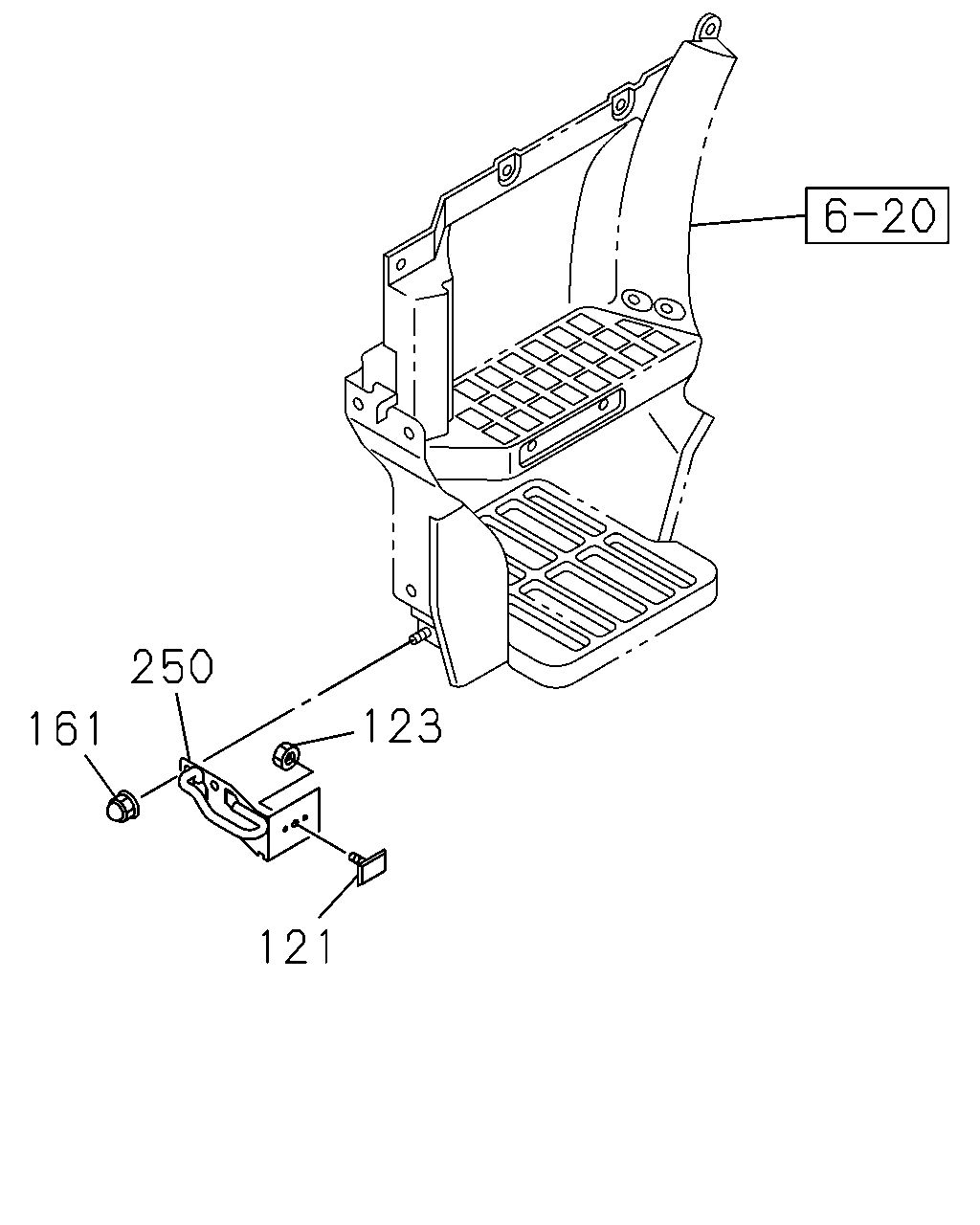

250 123 161 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
121	REFLECTOR; REFLEX	1-82290-066-0	02	1	0712-	●	●
123	NUT; REFLECTOR M6 FLANGE	0-91180-106-0	02	1	0712-	●	●
161	NUT; BRKT M8 CAP NUT FLANGE	8-97372-242-0	04	1	0712-1312	●	●
161	NUT; BRKT M8 CAP NUT FLANGE	8-98261-347-0	04	1	1401-	●	●
250	BRACKET ASM	8-98070-243-1	01	1	0712-	●	●
250	BRACKET ASM	8-98070-242-1	01	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
