◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#66790) — 59 parça

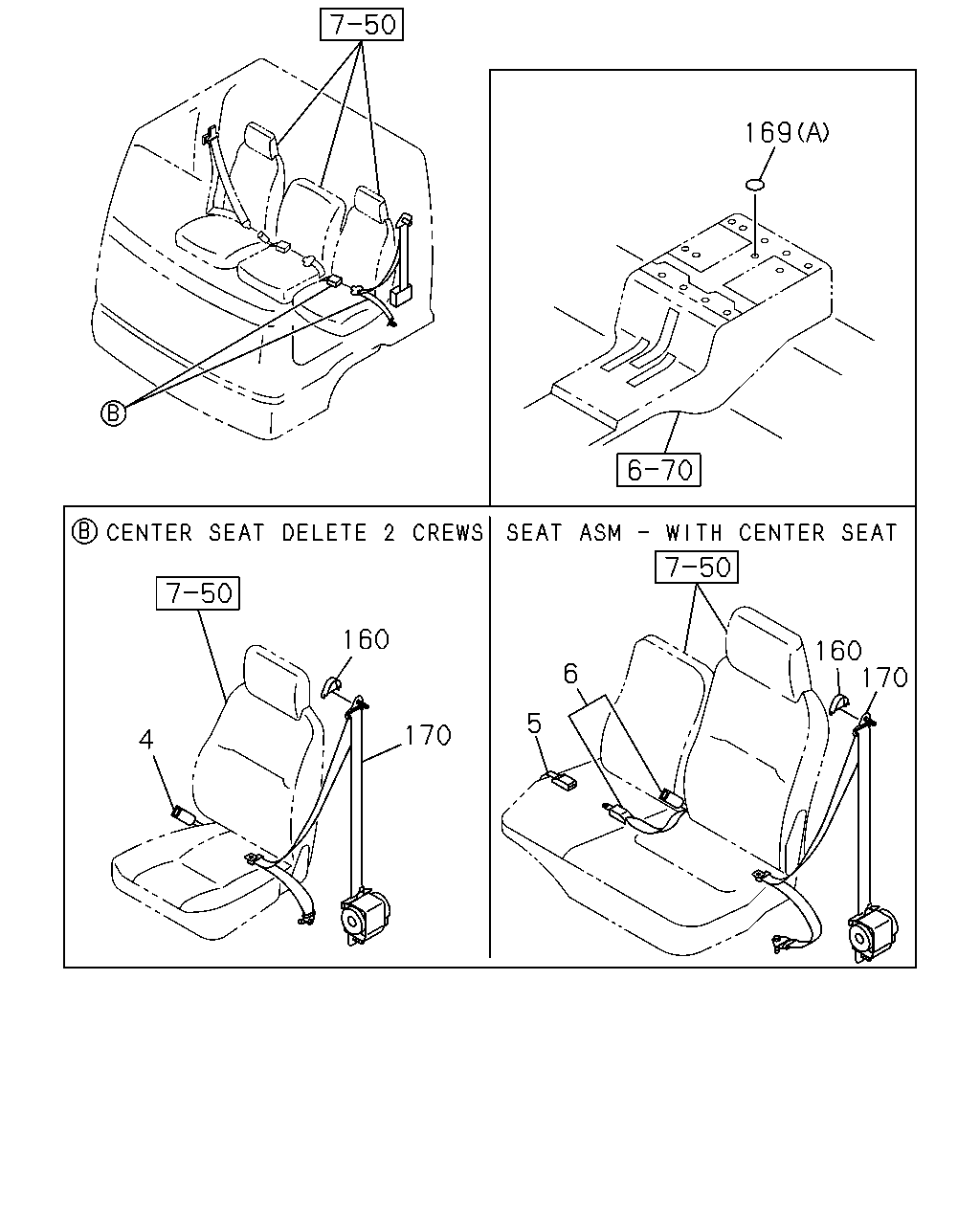

çizim 135847
169 160 160 170 6 5 170 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97407-376-1 01 1 0712- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 0712- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 0712- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 0712-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97409-768-3 01 1 0712-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1210- ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1210- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1105- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712-1104 ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712-1104 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1105- ● ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0712-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0712-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1202- ●
169 SEAL
BODY COLOR ARC WHITE(729) (B) OD=36 		8-94271-620-1 02 1 0712-0905 ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 		8-94271-620-1 02 1 0906- ●
169 SEAL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0712-0905 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORCARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BOD Y COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906-0906 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97407-771-5 01 1 0712-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97423-521-2 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-394-0 01 1 1408- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97407-770-4 01 1 0712-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97423-516-1 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-435-0 01 1 1408- ● ●
çizim 135874
160 18 19 160 20 20 18 19 21 12 21 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 0712- ●
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 0712- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97407-379-0 02 1 0712- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-770-2 01 1 0712-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-709-1 01 1 1210- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-771-2 01 1 0712-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-710-1 01 1 1210- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-380-0 01 1 0712- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-381-1 01 1 0712- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1105- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712-1104 ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712-1104 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1105- ● ●

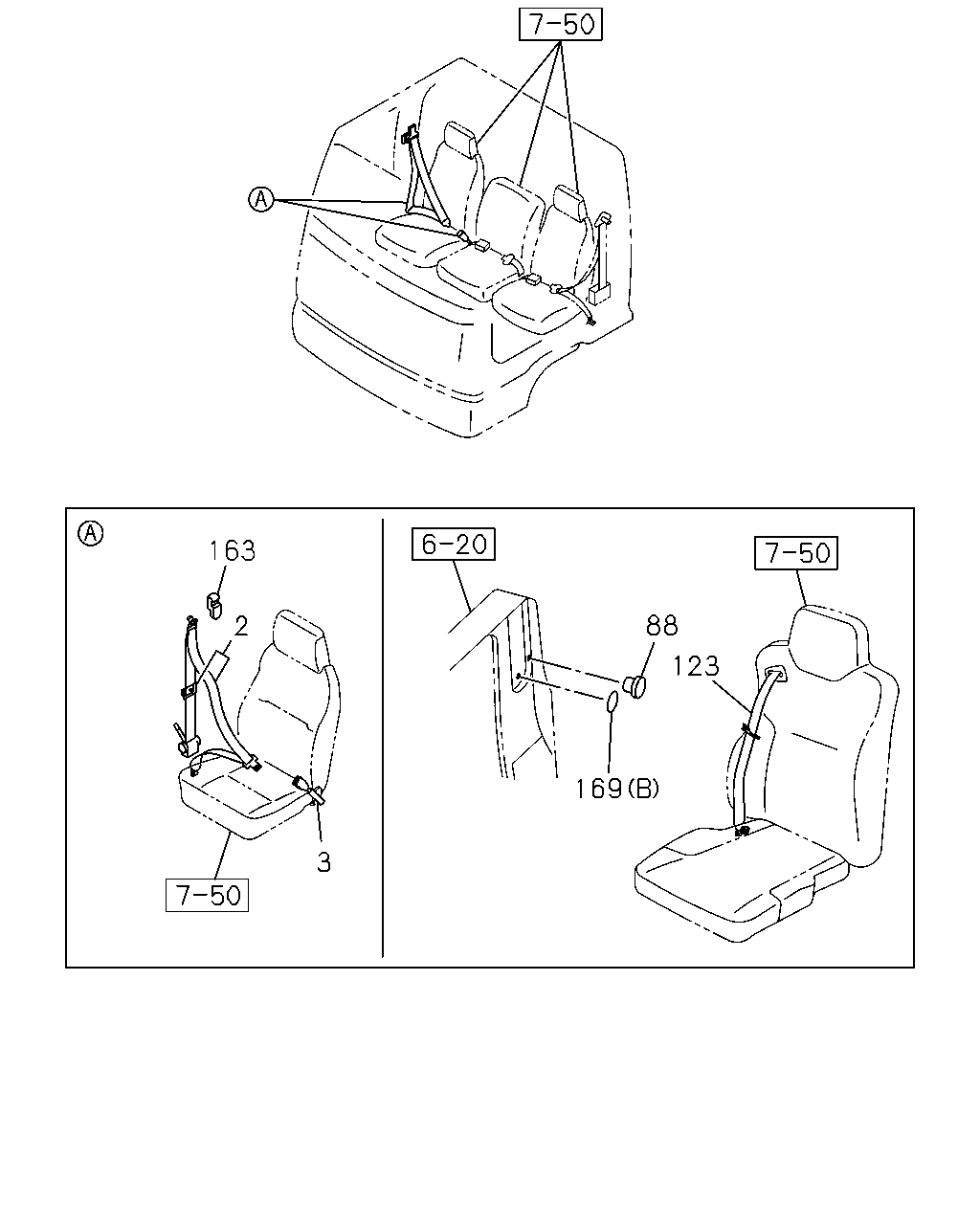

çizim 193398
163 88 2 123 169 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97407-771-5 01 1 0712-1209 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97423-521-2 01 1 1210-1407 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97428-394-0 01 1 1408- ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97407-770-4 01 1 0712-1209 ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97423-516-1 01 1 1210-1407 ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97428-435-0 01 1 1408- ●
3 BELT; SEAT,BUCKLE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97407-375-4 01 1 0712- ●
88 PLUG; HOLE
DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY 		8-97411-466-0 01 1 0712- ●
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 0712-1508 ●
123 BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 0712-1508 ●
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 0712-1508 ●
123 BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 0712-1508 ●
163 COVER; ADJUSTER
EXC. DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97405-991-0 01 1 0712- ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0712-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0712-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1202- ●
169 SEAL
BODY COLOR ARC WHITE(729) (B) OD=36 		8-94271-620-1 02 1 0712-0905 ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 		8-94271-620-1 02 1 0906- ●
169 SEAL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0712-0905 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORCARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BOD Y COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906-0906 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906- ●
