Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#66788) — 649 parça

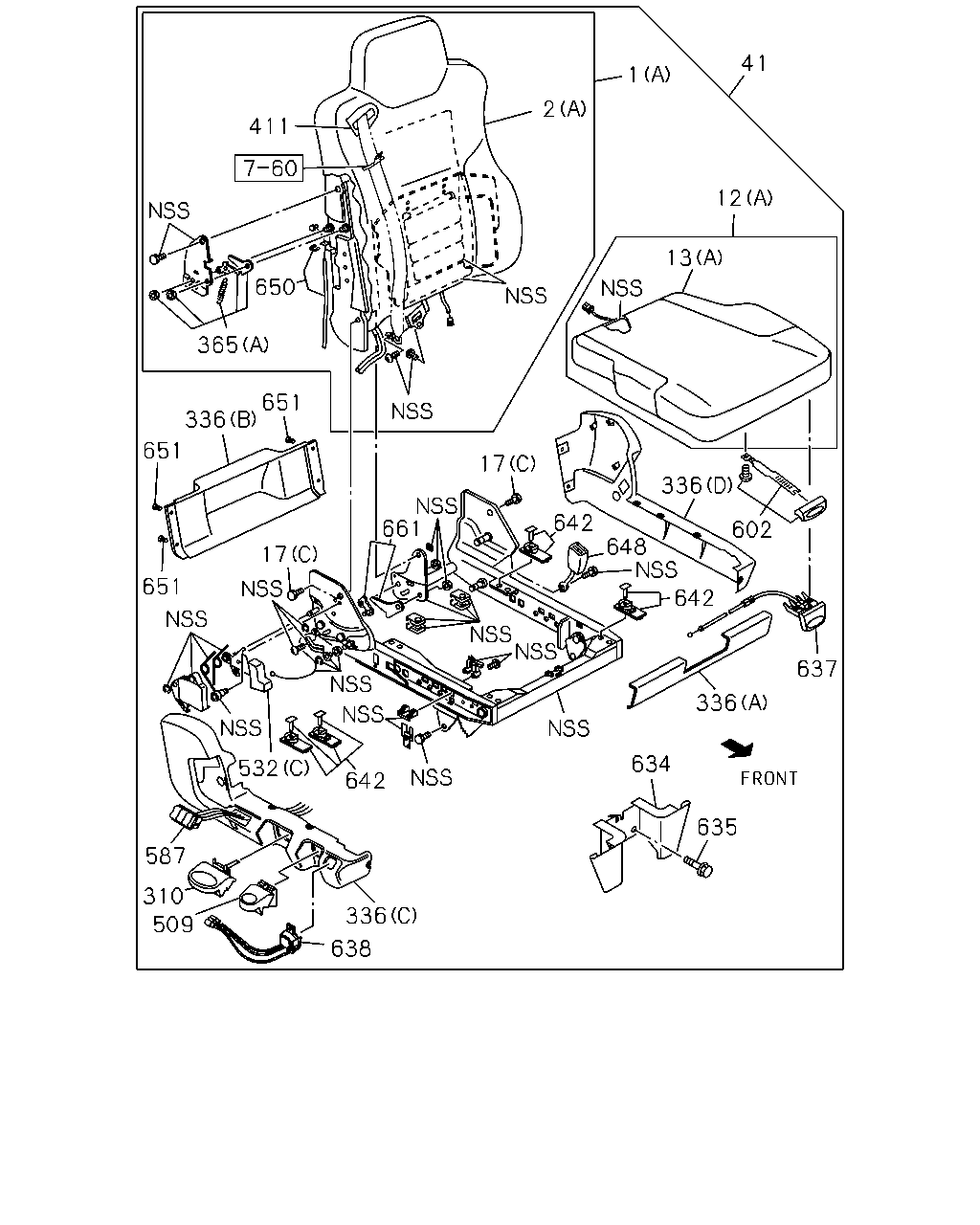

41 1 2 12 13 411 650 365 651 336 651 651 17 661 17 642 336 602 642 648 637 336 634 635 638 336 642 532 587 310 509

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-201-0	01	1	1001-1009	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-112-2	01	1	0712-0902	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	0903-1009	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-1508	●
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-1508		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-1508	●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-1508		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	0712-1002	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97409-955-5	01	1	1003-	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-206-0	01	1	1001-1009	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-113-1	01	1	0712-0902	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	0903-1009	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-966-0	01	1	0712-1212	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0712-1212		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-353-0	01	1	1301-1508	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1301-1508		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	0712-1002	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-910-2	01	1	1003-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97409-958-0	01	1	0712-0902	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-211-1	01	1	0903-0912	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-211-1	01	1	1001-1009	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-397-2	01	1	1010-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-120-0	01	1	0712-0902	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-212-1	01	1	0903-0912	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1010-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	0712-1508	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0712-1508		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-123-2	01	1	0712-	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97409-954-2	01	1	0712-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-111-0	01	1	0712-0902	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-215-0	01	1	0903-0912	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-215-0	01	1	1001-1009	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-401-2	01	1	1010-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-121-0	01	1	0712-0902	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-216-0	01	1	0903-0912	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1010-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	0712-1508	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0712-1508		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	0712-1002	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-909-1	01	1	1003-	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	0907-1508	●
17	BOLT; RECLINING (C)	8-98097-974-0	02	1	0907-1508		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	0712-	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0712-	●	●

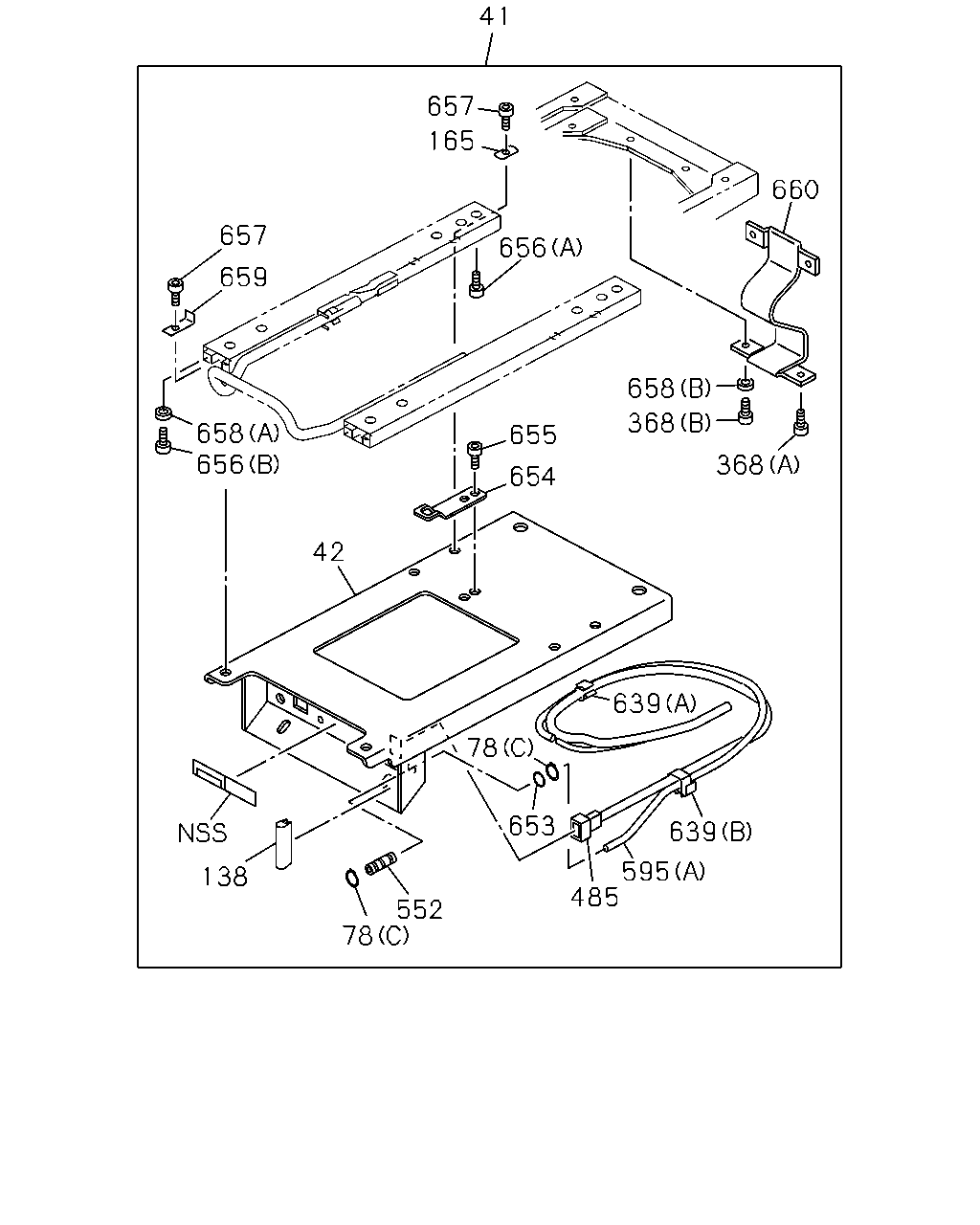

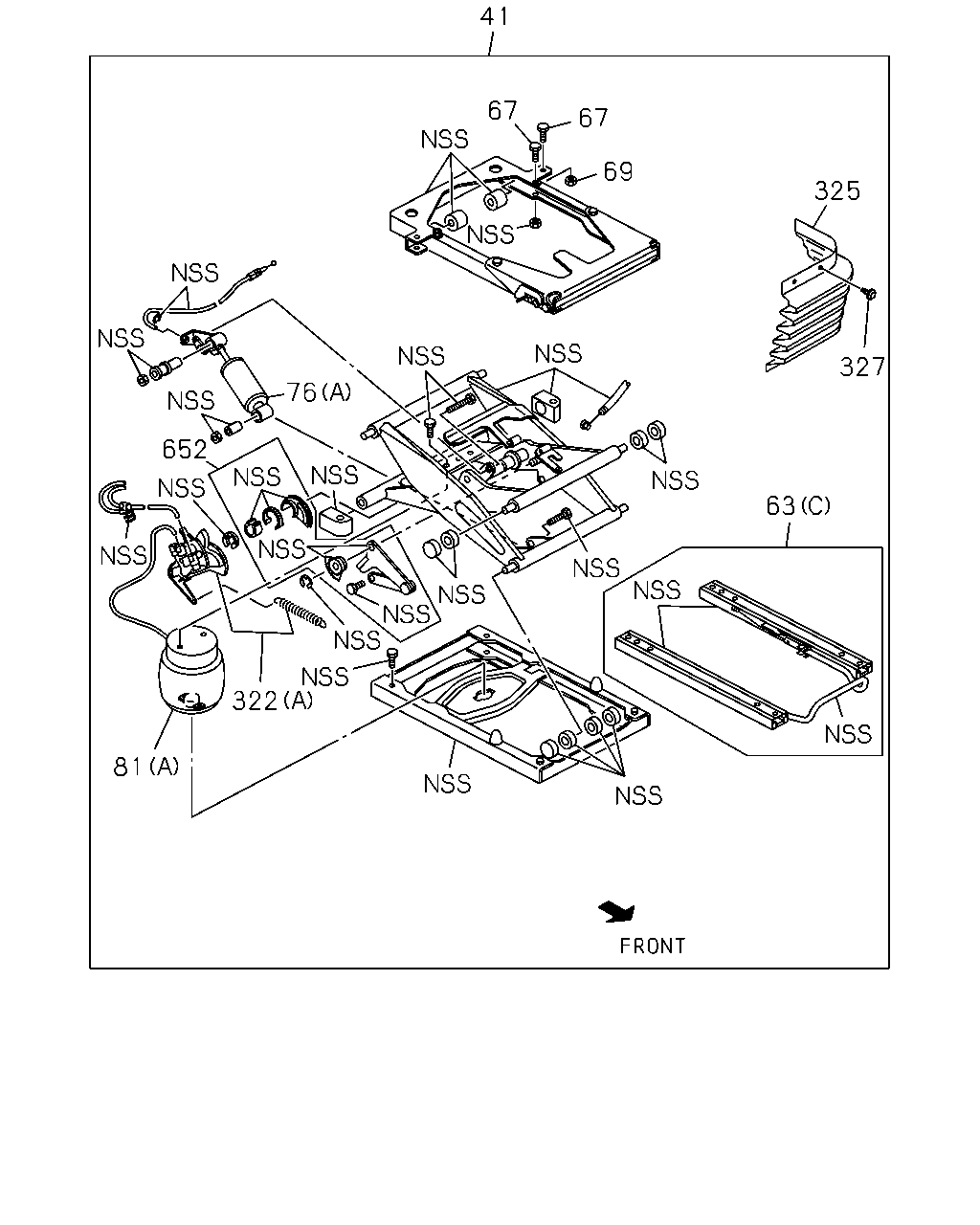

41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-1508	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-1508		●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-992-0	01	1	0712-1508	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	0712-1508		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (D)	8-98097-978-0	01	1	0712-1508	●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	0712-1508		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-984-0	01	1	0712-1508	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	0712-1508		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-995-0	01	1	0712-1508	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	0712-1508		●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98097-996-0	01	1	0712-1508	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	0712-1508		●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	0907-1508	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	0907-1508		●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1105-1109		●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	0712-1104	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	0712-1104		●
365	LOCK ASM; SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1110-	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1110-		●
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-967-0	01	1	0712-1508	●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	0712-1508		●
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-988-0	01	1	0712-1508	●
509	LEVER; DAMPER	8-98097-988-0	01	1	0712-1508		●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	0712-	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	0712-	●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-982-0	01	1	0712-1508	●
532	LEVER ASM; TILT (C)	8-98097-982-0	01	1	0712-1508		●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-986-0	01	1	0712-1508	●
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	0712-1508		●
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-008-0	01	1	0712-1508	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	0712-1508		●
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98088-279-0	01	1	0712-	●
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	0712-		●
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT<SJA> M6X16	0-52000-616-0	02	1	0712-	●
635	BOLT; COVER M6X16	0-52000-616-0	02	1	0712-		●
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-989-0	01	1	0712-1508	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	0712-1508		●
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-994-0	01	1	0712-1508	●
638	VALVE; LOWERING	8-98097-994-0	01	1	0712-1508		●
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT<SJA>	8-98192-932-0	04	1	0907-1508	●
642	SLIDER; CUSHION	8-98192-932-0	04	1	0907-1508		●
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-976-0	01	1	0907-1508	●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	0907-1508		●
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-973-0	01	1	0907-1212	●
650	CABLE	8-98097-973-0	01	1	0907-1212		●
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98232-354-0	01	1	1301-1508	●
650	CABLE	8-98232-354-0	01	1	1301-1508		●
651	RIVET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98194-075-0	04	1	0907-1508	●
651	RIVET	8-98194-075-0	04	1	0907-1508		●
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98097-980-0	01	1	0907-1508	●
661	LOCK ASM; RECLINING	8-98097-980-0	01	1	0907-1508		●

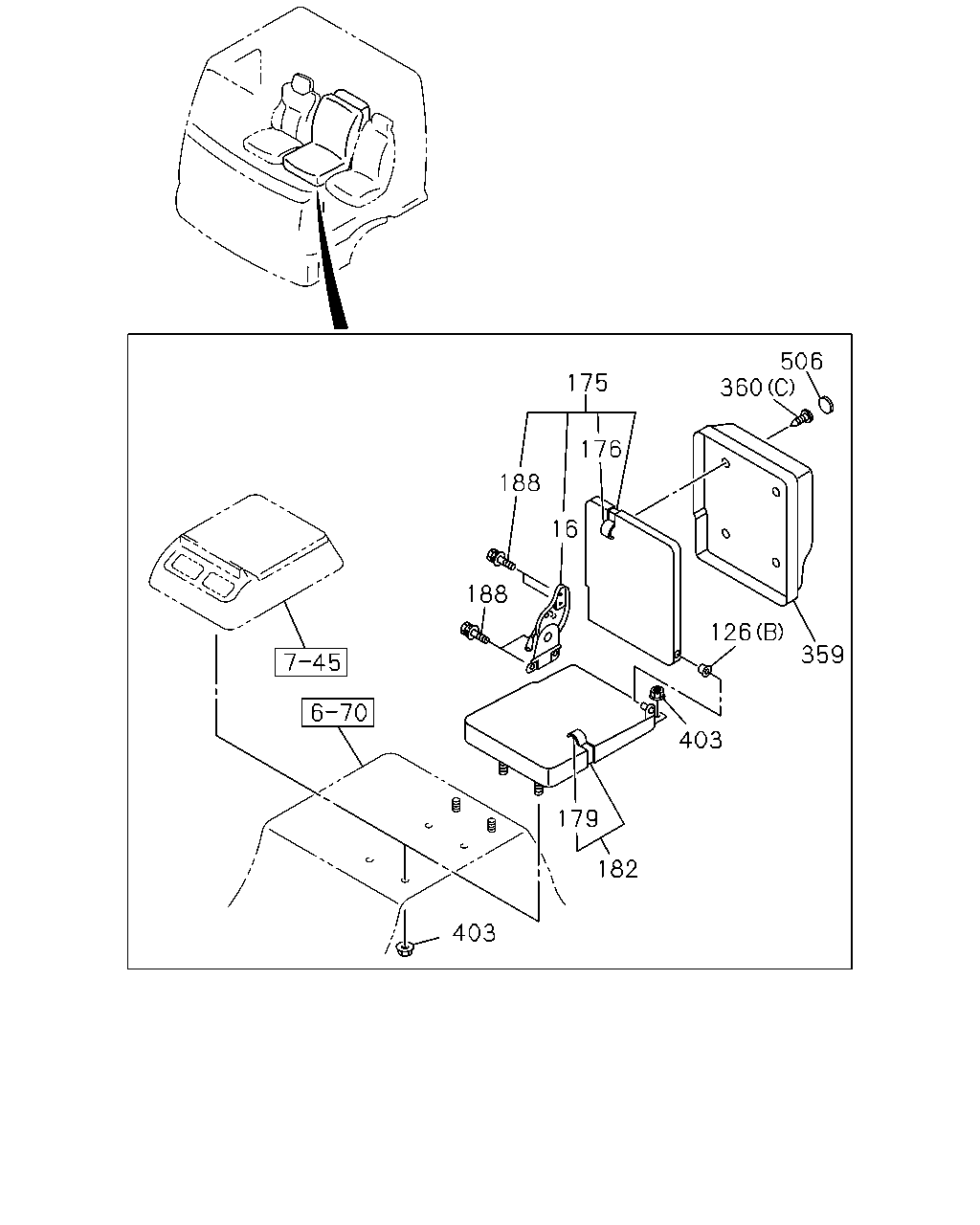

175 360 506 16 188 176 126 359 403 182 179 403 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-75418-062-1	01	1	1105-1109	●
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	1105-1109		●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	0712-1104	●
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0712-1104		●
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1105-1109	●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1110-	●
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	1110-		●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	0712-	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0712-1104	●
126	BUSHING; HINGE,RECLINING (B)	8-97854-900-0	01	1	0712-1104		●
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (A)	8-97854-900-0	01	1	1110-	●
126	BUSHING; HINGE,RECLINING (A)	8-97854-900-0	01	1	1110-		●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	0712-	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-984-0	01	1	0712-0902	●
175	BACK ASM; PASSENGER CENTER SEAT DARK GRAY	8-97409-984-0	01	1	0712-0902		●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-233-0	01	1	0903-1009	●
175	BACK ASM; PASSENGER CENTER SEAT DARK GRAY	8-97416-233-0	01	1	0903-1009		●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1010-	●
175	BACK ASM; PASSENGER CENTER SEAT DARK GRAY	8-97421-434-1	01	1	1010-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	0712-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-985-0	01	1	0712-0902	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DARK GRAY	8-97409-985-0	01	1	0712-0902		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-234-0	01	1	0903-1009	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DARK GRAY	8-97416-234-0	01	1	0903-1009		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1010-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DARK GRAY	8-97421-435-1	01	1	1010-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-974-1	01	1	1007-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-974-0	01	1	0712-0909	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-983-0	01	1	0712-0902	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DARK GRAY	8-97409-983-0	01	1	0712-0902		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-237-0	01	1	0903-1009	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DARK GRAY	8-97416-237-0	01	1	0903-1009		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-432-1	01	1	1010-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DARK GRAY	8-97421-432-1	01	1	1010-		●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-973-3	01	1	0712-	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97409-982-0	01	1	0712-0902	●
182	CUSHION ASM; CENTER SEAT DARK GRAY	8-97409-982-0	01	1	0712-0902		●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-235-0	01	1	0903-1009	●
182	CUSHION ASM; CENTER SEAT DARK GRAY	8-97416-235-0	01	1	0903-1009		●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-430-3	01	1	1010-	●
182	CUSHION ASM; CENTER SEAT DARK GRAY	8-97421-430-3	01	1	1010-		●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE	1-75198-053-0	04	1	1105-1109	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	1105-1109		●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	0712-1104	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0712-1104		●
188	BOLT; BACK TO CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1105-1109	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1110-	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	1110-		●

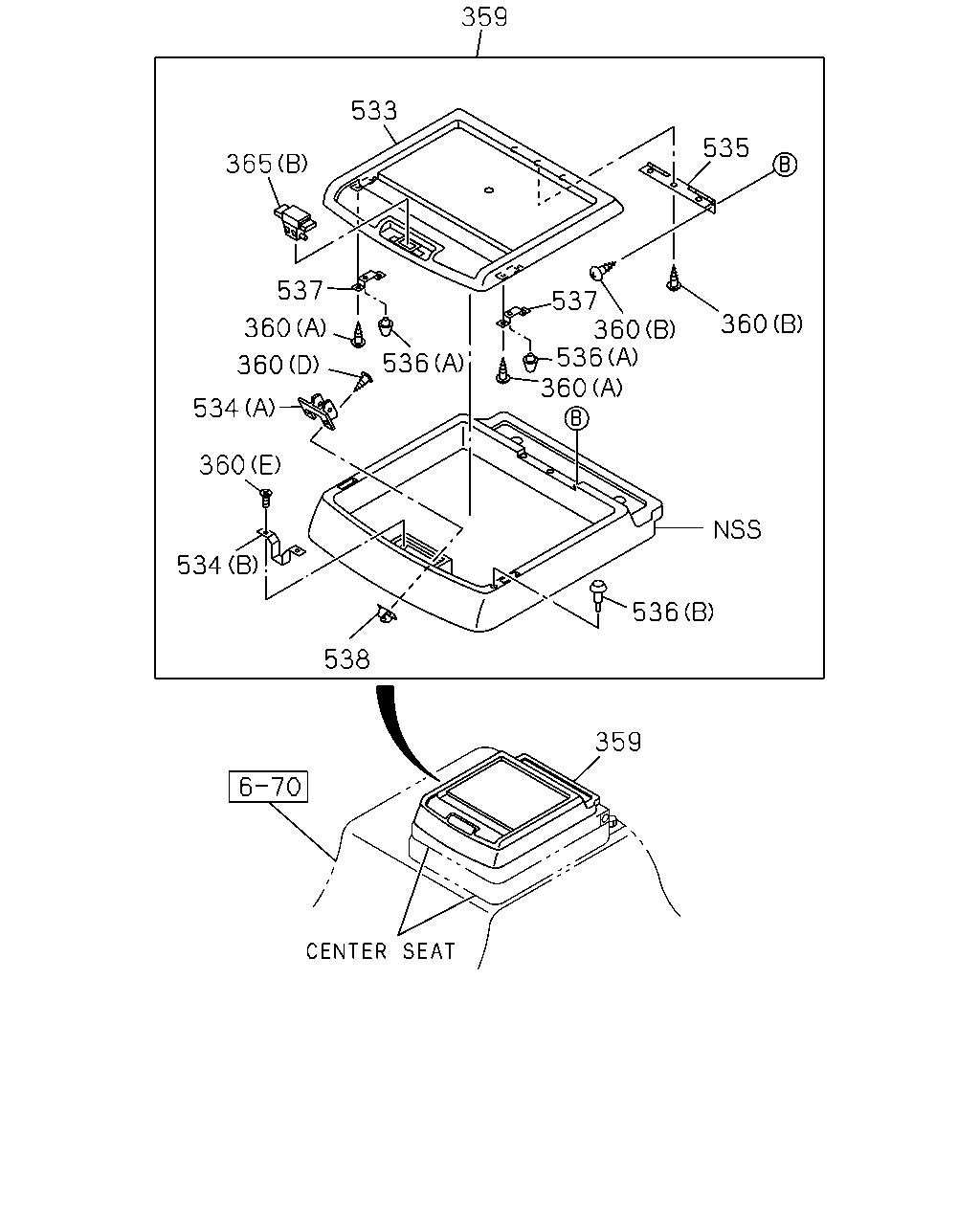

359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-977-1	01	1	0712-0902	●
359	BOX; PARCEL GRAY	8-97409-977-1	01	1	0712-0902		●
359	BOX; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-1	01	1	0712-0902	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0903-1006	●
359	BOX; PARCEL GRAY	8-97409-977-2	01	1	0903-1006		●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-	●
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1007-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0712-1009	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0712-1009		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104		●
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0712-1104	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0712-1104		●
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	1110-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0712-1110	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0712-1110		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●
360	SCREW; PARCEL (C) M5	8-98062-663-0	04	1	1111-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0712-1009	●
360	SCREW; PARCEL (D) M5X20	9-09829-324-1	02	1	0712-1009		●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	0712-	●
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	0712-		●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-980-0	04	1	0712-0902	●
506	CAP; PARCEL BOX GRAY	8-97409-980-0	04	1	0712-0902		●
506	CAP; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-0	04	1	0712-0902	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	0903-1006	●
506	CAP; PARCEL BOX GRAY	8-97409-980-1	04	1	0903-1006		●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-	●
506	CAP; PARCEL BOX GRAY	8-97409-980-1	02	1	1007-		●

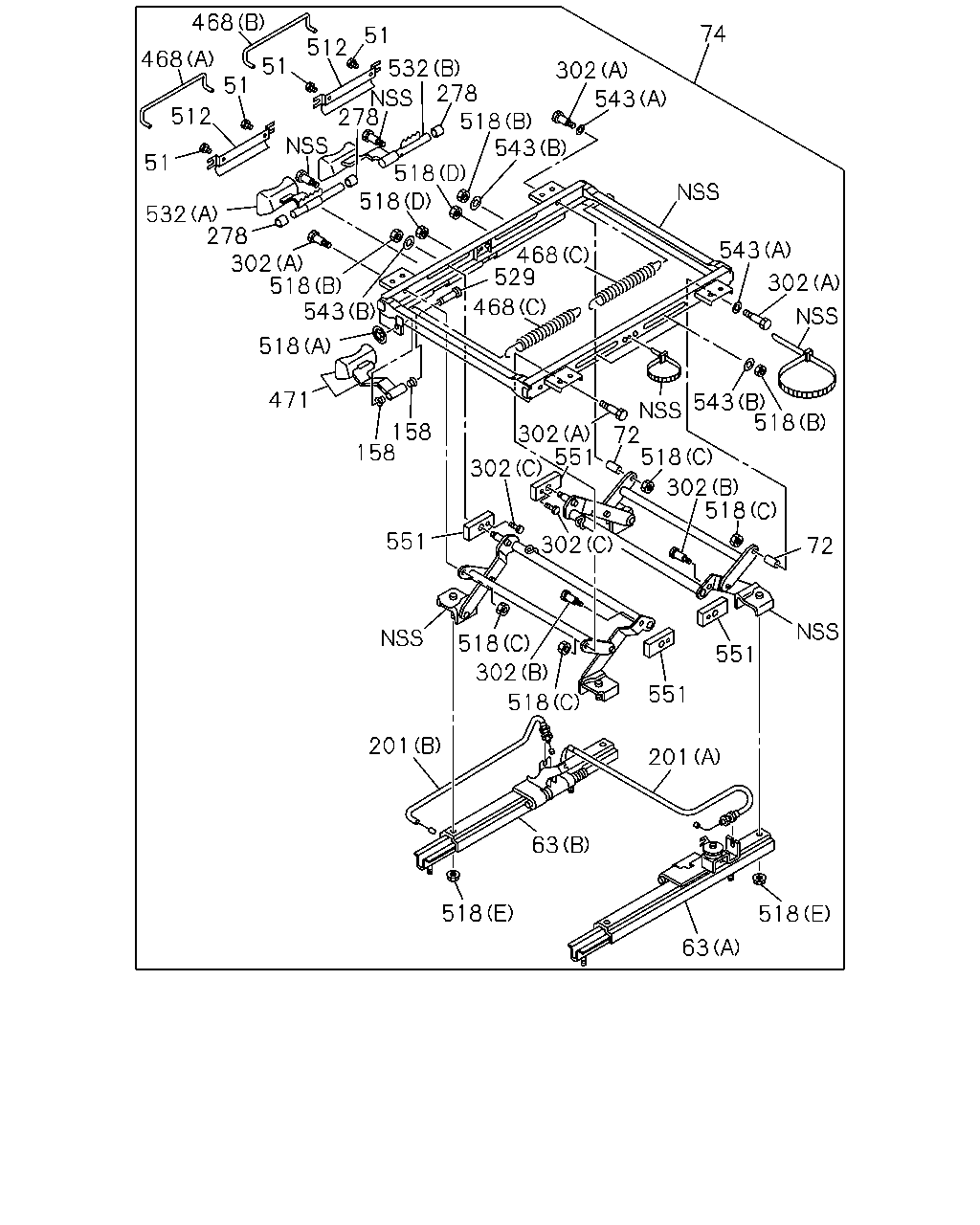

518 63 201 518 551 201 518 63 302 518 551 302 302 518 72 302 158 158 471 518 543 518 302 278 532 51 512 51 51 512 51 468 468 518 518 518 468 468 529 543 543 302 74 543 543 551 302 72 302 518 532 278 278 551 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	0712-	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-199-1	01	1	0712-	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-323-0	01	1	0712-	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	0712-1508	●
63	ADJUSTER; SEAT SLIDE (C)	8-98098-005-0	01	1	0712-1508		●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	0712-1502	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	0712-1502	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-	●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	0712-	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	0712-	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	0712-	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	0712-	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	0712-	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	0712-1502	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	0712-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0712-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0712-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0712-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0712-	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	0712-	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-243-1	02	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	0712-	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	0712-	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	0712-	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	0712-	●
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-982-0	01	1	0712-1508	●
532	LEVER ASM; TILT (C)	8-98097-982-0	01	1	0712-1508		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	0712-1502	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	0712-	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	0712-	●

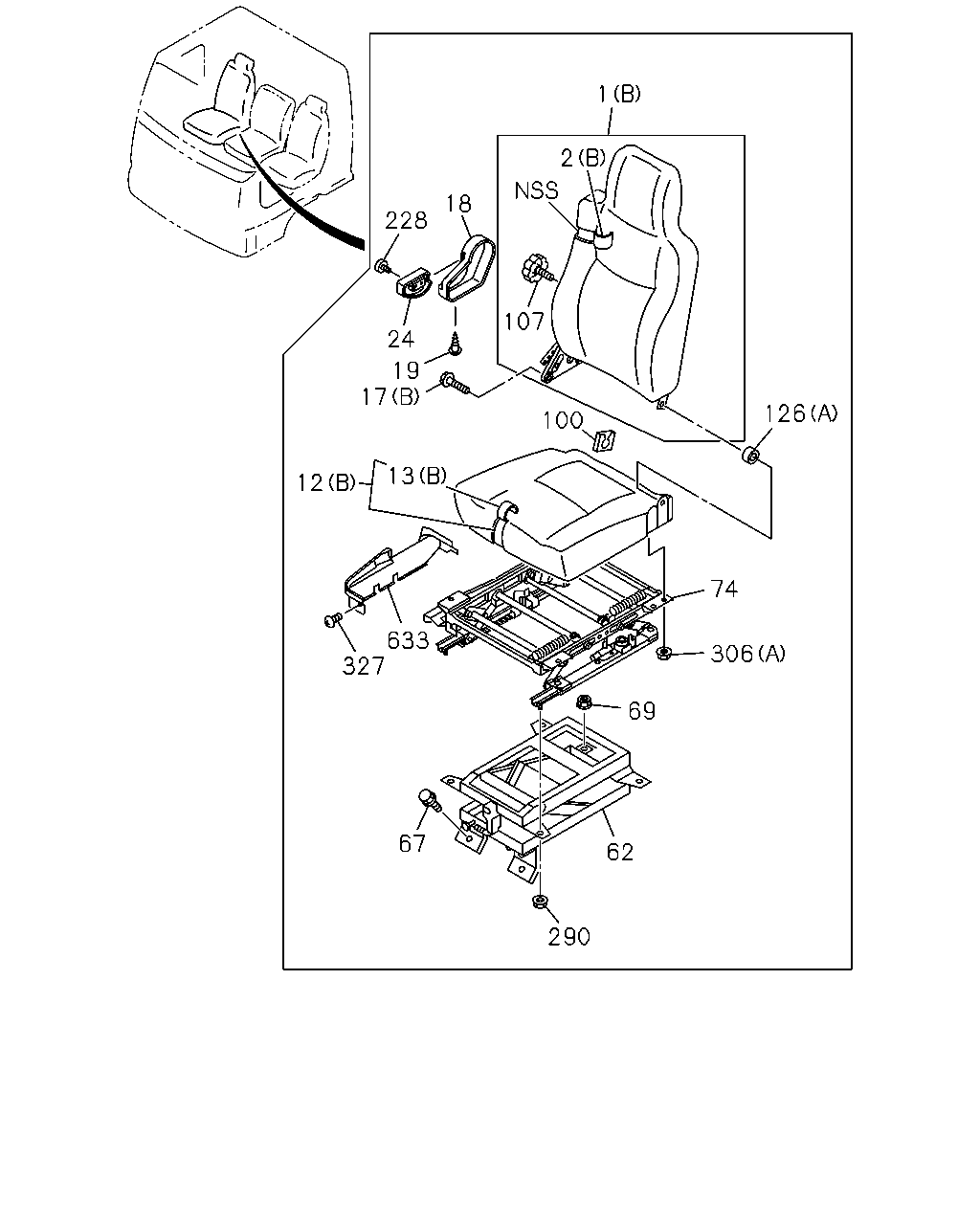

1 126 74 306 69 62 290 67 633 327 13 12 17 19 107 100 2 18 228 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-201-0	01	1	1001-1009	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-112-2	01	1	0712-0902	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	0903-1009	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-1508	●
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-1508		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-1508	●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-1508		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	0712-1002	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97409-955-5	01	1	1003-	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-206-0	01	1	1001-1009	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-113-1	01	1	0712-0902	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	0903-1009	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-966-0	01	1	0712-1212	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0712-1212		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-353-0	01	1	1301-1508	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1301-1508		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	0712-1002	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-910-2	01	1	1003-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97409-958-0	01	1	0712-0902	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-211-1	01	1	0903-0912	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-211-1	01	1	1001-1009	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-397-2	01	1	1010-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-120-0	01	1	0712-0902	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-212-1	01	1	0903-0912	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1010-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	0712-1508	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0712-1508		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-123-2	01	1	0712-	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97409-954-2	01	1	0712-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-111-0	01	1	0712-0902	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-215-0	01	1	0903-0912	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-215-0	01	1	1001-1009	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-401-2	01	1	1010-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-121-0	01	1	0712-0902	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-216-0	01	1	0903-0912	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1010-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	0712-1508	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0712-1508		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	0712-1002	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-909-1	01	1	1003-	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	0907-1508	●
17	BOLT; RECLINING (C)	8-98097-974-0	02	1	0907-1508		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	0712-	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0712-	●	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	0712-	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	0712-	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	0712-	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	0712-1403	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0712-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0712-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	0712-1502	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-	●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1110-	●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	0712-	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	0712-	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0712-1104	●
126	BUSHING; HINGE,RECLINING (B)	8-97854-900-0	01	1	0712-1104		●
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (A)	8-97854-900-0	01	1	1110-	●
126	BUSHING; HINGE,RECLINING (A)	8-97854-900-0	01	1	1110-		●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	0712-	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	0712-	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0712-	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0712-	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-004-0	01	1	0712-1508	●
327	CLIP; COVER	8-98098-004-0	01	1	0712-1508		●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DELUXE CAB(W14)	1-09987-273-0	01	1	0712-	●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-956-0	01	1	0712-	●

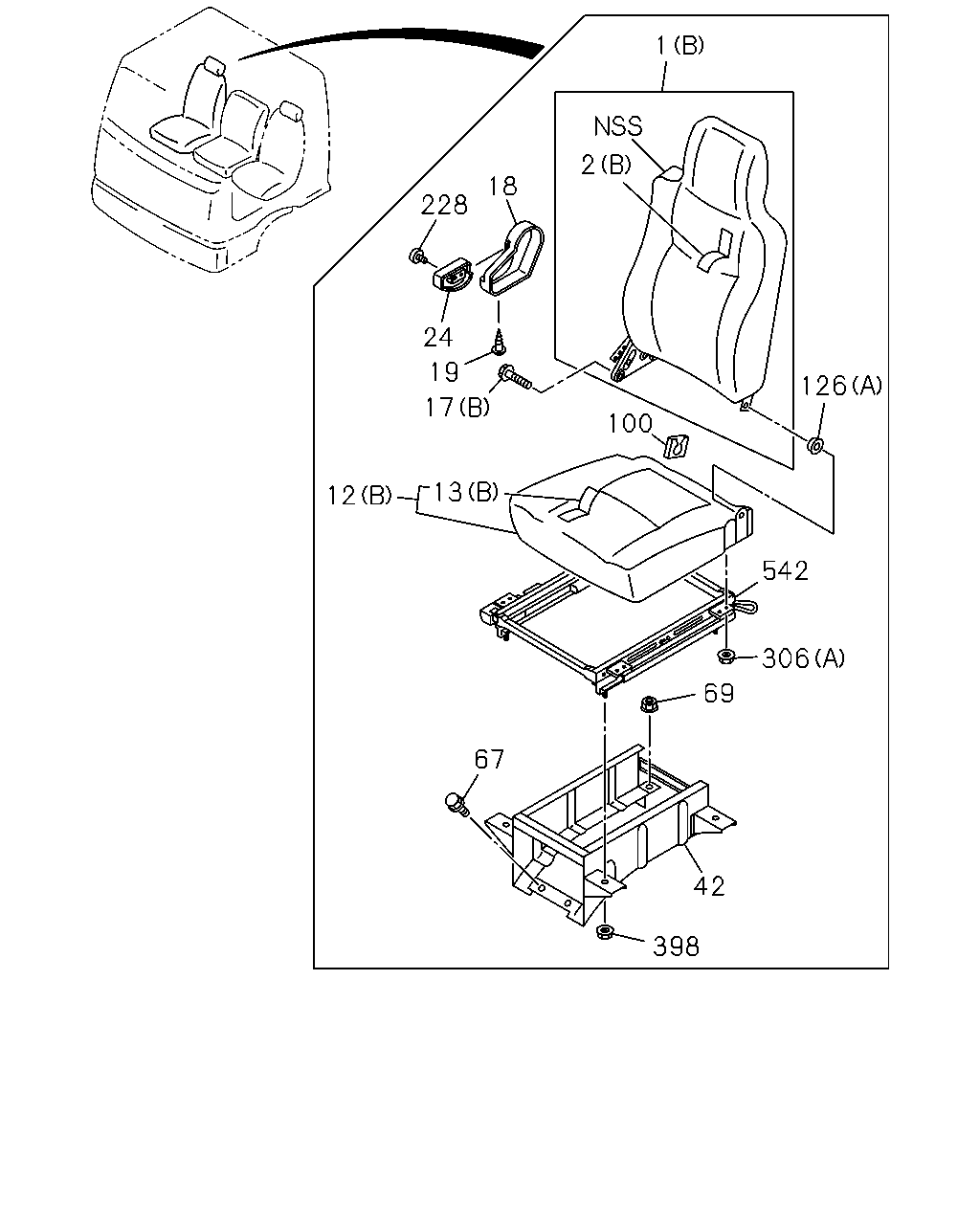

69 306 542 42 398 67 13 12 100 17 19 24 228 18 2 1 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-201-0	01	1	1001-1009	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-112-2	01	1	0712-0902	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	0903-1009	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-	●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-1508	●
1	BACK ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0712-1508		●
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-1508	●
1	BACK ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	0712-1508		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	0712-1002	●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97409-955-5	01	1	1003-	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-206-0	01	1	1001-1009	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97414-113-1	01	1	0712-0902	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	0903-1009	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-966-0	01	1	0712-1212	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98097-966-0	01	1	0712-1212		●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98232-353-0	01	1	1301-1508	●
2	COVER; TRIM,FRT SEAT,BACK (A)	8-98232-353-0	01	1	1301-1508		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	0712-1002	●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-910-2	01	1	1003-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97409-958-0	01	1	0712-0902	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-211-1	01	1	0903-0912	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-211-1	01	1	1001-1009	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-397-2	01	1	1010-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-120-0	01	1	0712-0902	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-212-1	01	1	0903-0912	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1010-	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-006-0	01	1	0712-1508	●
12	CUSHION; SEAT,FRT (A)	8-98098-006-0	01	1	0712-1508		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-123-2	01	1	0712-	●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97409-954-2	01	1	0712-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-111-0	01	1	0712-0902	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-215-0	01	1	0903-0912	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-215-0	01	1	1001-1009	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97421-401-2	01	1	1010-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97414-121-0	01	1	0712-0902	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY	8-97416-216-0	01	1	0903-0912	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1010-	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-007-0	01	1	0712-1508	●
13	COVER; TRIM,FRT SEAT,CUSHION (A)	8-98098-007-0	01	1	0712-1508		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	0712-1002	●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83> (B) DARK GRAY	8-97411-909-1	01	1	1003-	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	0907-1508	●
17	BOLT; RECLINING (C)	8-98097-974-0	02	1	0907-1508		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	0712-	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0712-	●	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	0712-	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	0712-	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	0712-	●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-346-0	01	1	0907-1508	●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	0907-1508		●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0712-	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0712-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0712-	●	●
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1110-	●
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	0712-	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0712-1104	●
126	BUSHING; HINGE,RECLINING (B)	8-97854-900-0	01	1	0712-1104		●
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1105-1109	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (A)	8-97854-900-0	01	1	1110-	●
126	BUSHING; HINGE,RECLINING (A)	8-97854-900-0	01	1	1110-		●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	0712-	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0712-	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0712-	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0712-	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	0712-1502	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1503-	●

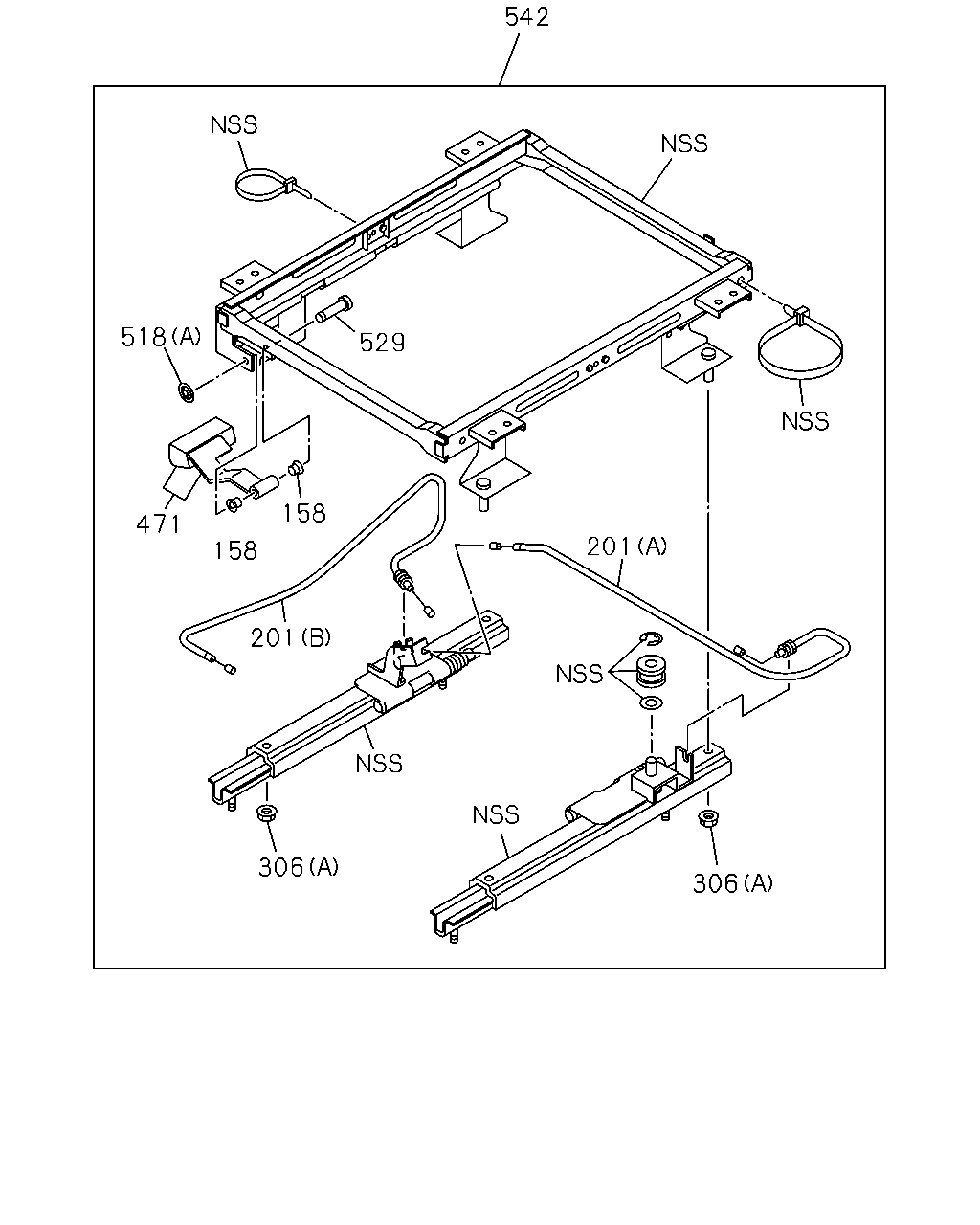

542 529 518 158 158 471 201 306 201 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	0712-	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	0712-	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	0712-	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0712-	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0712-	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	0712-	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	0712-	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	0712-	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	0712-1502	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1503-	●

165 657 656 655 654 658 368 368 660 42 138 78 485 639 595 653 78 552 41 657 659 658 656

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-1508	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-1508		●
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-346-0	01	1	0907-1508	●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	0907-1508		●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0712-	●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	0907-1508	●
78	RING; SNAP (C)	8-98101-900-0	02	1	0907-1508		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0712-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0712-	●
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-351-0	01	1	0907-1508	●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	0907-1508		●
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-086-0	04	1	0907-1508	●
165	WASHER; PL	1-75590-086-0	04	1	0907-1508		●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-353-0	03	1	0907-1508	●
368	BOLT; SEAT (A)	8-98106-353-0	03	1	0907-1508		●
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-358-0	01	1	0907-1508	●
368	BOLT; SEAT (B)	8-98106-358-0	01	1	0907-1508		●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	0907-1508	●
485	HARNESS; FRT SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	0907-1508		●
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	0907-1508	●
485	HARNESS; FRT SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	0907-1508		●
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-902-0	01	1	0907-1508	●
552	CONNECTOR	8-98101-902-0	01	1	0907-1508		●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	0907-1508	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	0907-1508		●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98041-300-0	01	1	0712-	●
595	TUBE; NYLON (B)	8-98041-300-0	01	1	0712-		●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-349-0	01	1	0907-1508	●
639	CLIP; SEAT (A)	8-98106-349-0	01	1	0907-1508		●
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-350-0	01	1	0907-1508	●
639	CLIP; SEAT (B)	8-98106-350-0	01	1	0907-1508		●
653	GASKET DRIVER ISRINGHAUSEN SEAT<SJA>	8-98101-901-0	01	1	0907-1508	●
653	GASKET	8-98101-901-0	01	1	0907-1508		●
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-352-0	01	1	0907-1508	●
654	HOOK; STOPPER	8-98106-352-0	01	1	0907-1508		●
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-353-0	02	1	0907-1508	●
655	BOLT; HOOK	8-98106-353-0	02	1	0907-1508		●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	1-75590-085-0	04	1	0907-1508	●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	0907-1508		●
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-354-0	02	1	0907-1508	●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	0907-1508		●
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT<SJA>	1-75590-085-0	06	1	0907-1508	●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	0907-1508		●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-355-0	02	1	0907-1508	●
658	SPACER; BOLT (A)	8-98106-355-0	02	1	0907-1508		●
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98106-359-0	01	1	0907-1508	●
658	SPACER; BOLT (B)	8-98106-359-0	01	1	0907-1508		●
659	STOPPER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-356-0	02	1	0907-1508	●
659	STOPPER	8-98106-356-0	02	1	0907-1508		●
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98106-357-0	01	1	0907-1508	●
660	BELT; TETHER	8-98106-357-0	01	1	0907-1508		●

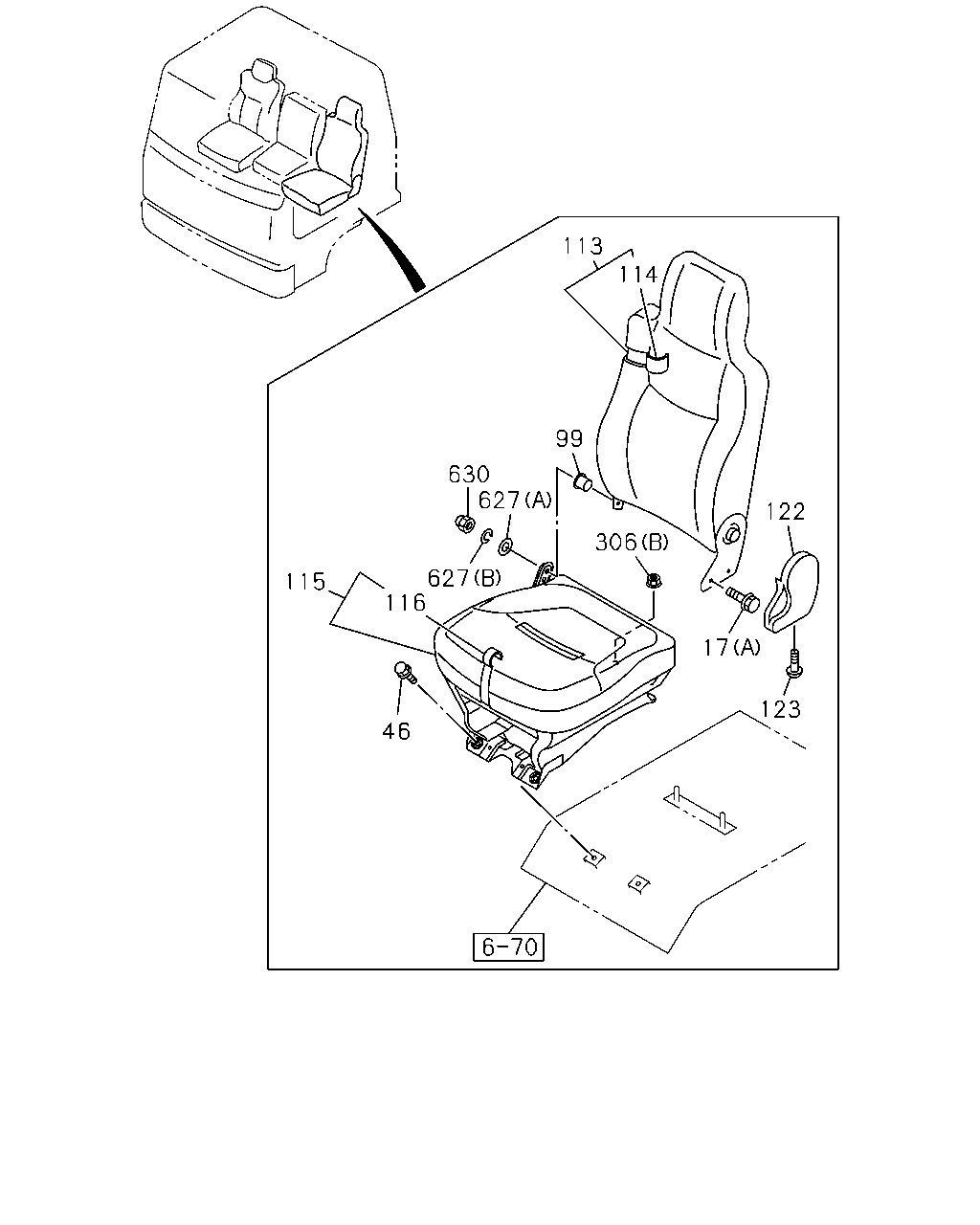

113 114 99 630 306 122 17 123 627 115 46 116 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98097-974-0	02	1	0907-1508	●
17	BOLT; RECLINING (C)	8-98097-974-0	02	1	0907-1508		●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	0712-	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0712-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0712-	●	●
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0712-1009	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-	●	●
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-966-1	01	1	0712-	●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97409-969-0	01	1	0712-0902	●
113	BACK ASM; SEAT DARK GRAY	8-97409-969-0	01	1	0712-0902		●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-221-0	01	1	0903-1009	●
113	BACK ASM; SEAT DARK GRAY	8-97416-221-0	01	1	0903-1009		●
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-422-0	01	1	1010-	●
113	BACK ASM; SEAT DARK GRAY	8-97421-422-0	01	1	1010-		●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97411-914-0	01	1	0712-0902	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97411-914-0	01	1	0712-0902		●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97416-223-0	01	1	0903-1009	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97416-223-0	01	1	0903-1009		●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-424-0	01	1	1010-	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-424-0	01	1	1010-		●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-916-0	01	1	0712-	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-965-1	01	1	0712-	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97409-968-0	01	1	0712-0902	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97409-968-0	01	1	0712-0902		●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-225-0	01	1	0903-1009	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-225-0	01	1	0903-1009		●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-418-1	01	1	1010-	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-418-1	01	1	1010-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97411-913-0	01	1	0712-0902	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97411-913-0	01	1	0712-0902		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97416-227-0	01	1	0903-1009	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97416-227-0	01	1	0903-1009		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-420-0	01	1	1010-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-420-0	01	1	1010-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-915-0	01	1	0712-	●
122	COVER; ADJ,RECLINING SEAT CLOTH<7FL> GRAY	8-97409-967-0	01	1	0712-0902	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	0712-0902		●
122	COVER; ADJ,RECLINING VINYL SEAT<A83> GRAY	8-97409-967-0	01	1	0712-0902	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	0903-	●	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	0712-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0712-	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	0712-	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0712-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0712-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	0712-	●	●

41 67 67 69 325 327 63 322 81 652 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508	●
41	SEAT ASM; DRIVER DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	0907-1212		●
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-1508	●
41	SEAT ASM; DRIVER EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-0	01	1	1301-1508		●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-199-1	01	1	0712-	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-323-0	01	1	0712-	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98098-005-0	01	1	0712-1508	●
63	ADJUSTER; SEAT SLIDE (C)	8-98098-005-0	01	1	0712-1508		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0712-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0712-	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0712-	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	0712-1508	●
76	DAMPER; AIR SUSP (A)	8-98097-999-0	01	1	0712-1508		●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0712-1312	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	0712-1508	●
81	SPRING; AIR (A)	8-98098-000-0	01	1	0712-1508		●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	0712-	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	0712-1508	●
322	VALVE; AIR SPRING (A)	8-98098-001-0	01	1	0712-1508		●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-003-0	01	1	0712-1508	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	0712-1508		●
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-004-0	01	1	0712-1508	●
327	CLIP; COVER	8-98098-004-0	01	1	0712-1508		●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DELUXE CAB(W14)	1-09987-273-0	01	1	0712-	●
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98098-002-0	01	1	0907-1508	●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	0907-1508		●

359 533 365 537 360 360 534 360 534 538 536 360 360 536 360 536 535 359 537

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-977-1	01	1	0712-0902	●
359	BOX; PARCEL GRAY	8-97409-977-1	01	1	0712-0902		●
359	BOX; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-1	01	1	0712-0902	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0903-1006	●
359	BOX; PARCEL GRAY	8-97409-977-2	01	1	0903-1006		●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-	●
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1007-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0712-1009	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0712-1009		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104		●
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-	●
360	SCREW; PARCEL (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0712-1104	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0712-1104		●
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-	●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	1110-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0712-1110	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0712-1110		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●
360	SCREW; PARCEL (C) M5	8-98062-663-0	04	1	1111-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0712-1009	●
360	SCREW; PARCEL (D) M5X20	9-09829-324-1	02	1	0712-1009		●
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-972-0	01	1	0907-1508	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	0907-1508		●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1105-1109		●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	0712-1104	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	0712-1104		●
365	LOCK ASM; SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1105-1109	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1110-	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1110-		●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY	8-97409-979-0	01	1	0712-0902	●
533	LID; PARCEL BOX GRAY	8-97409-979-0	01	1	0712-0902		●
533	LID; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-0	01	1	0712-0902	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	0903-1006	●
533	LID; PARCEL BOX GRAY	8-97409-979-1	01	1	0903-1006		●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-	●
533	LID; PARCEL BOX GRAY	8-97417-263-0	01	1	1007-		●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	0712-1009	●
534	STRIKER; PARCEL BOX (A)	1-72538-181-0	01	1	0712-1009		●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1010-1104	●
534	STRIKER; PARCEL BOX (B)	1-72538-190-0	01	1	1010-1104		●
534	STRIKER; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1105-1109	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1110-	●
534	STRIKER; PARCEL BOX (B)	1-72538-190-0	01	1	1110-		●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72447-391-1	01	1	1105-1109	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	1105-1109		●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	0712-1104	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0712-1104		●
535	HINGE; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1105-1109	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1110-	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	1110-		●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	0712-1009	●
536	RUBBER; CUSHION (A)	5-09983-002-1	02	1	0712-1009		●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1010-1104	●
536	RUBBER; CUSHION (B)	1-72538-187-0	02	1	1010-1104		●
536	RUBBER; CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1105-1109	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1110-	●
536	RUBBER; CUSHION (B)	1-72538-187-0	02	1	1110-		●
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	0712-1009	●
537	BRACKET; RUBBER	1-72548-057-1	02	1	0712-1009		●
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	0712-1009	●
538	GROMMET; SCREW	1-09983-165-0	02	1	0712-1009		●

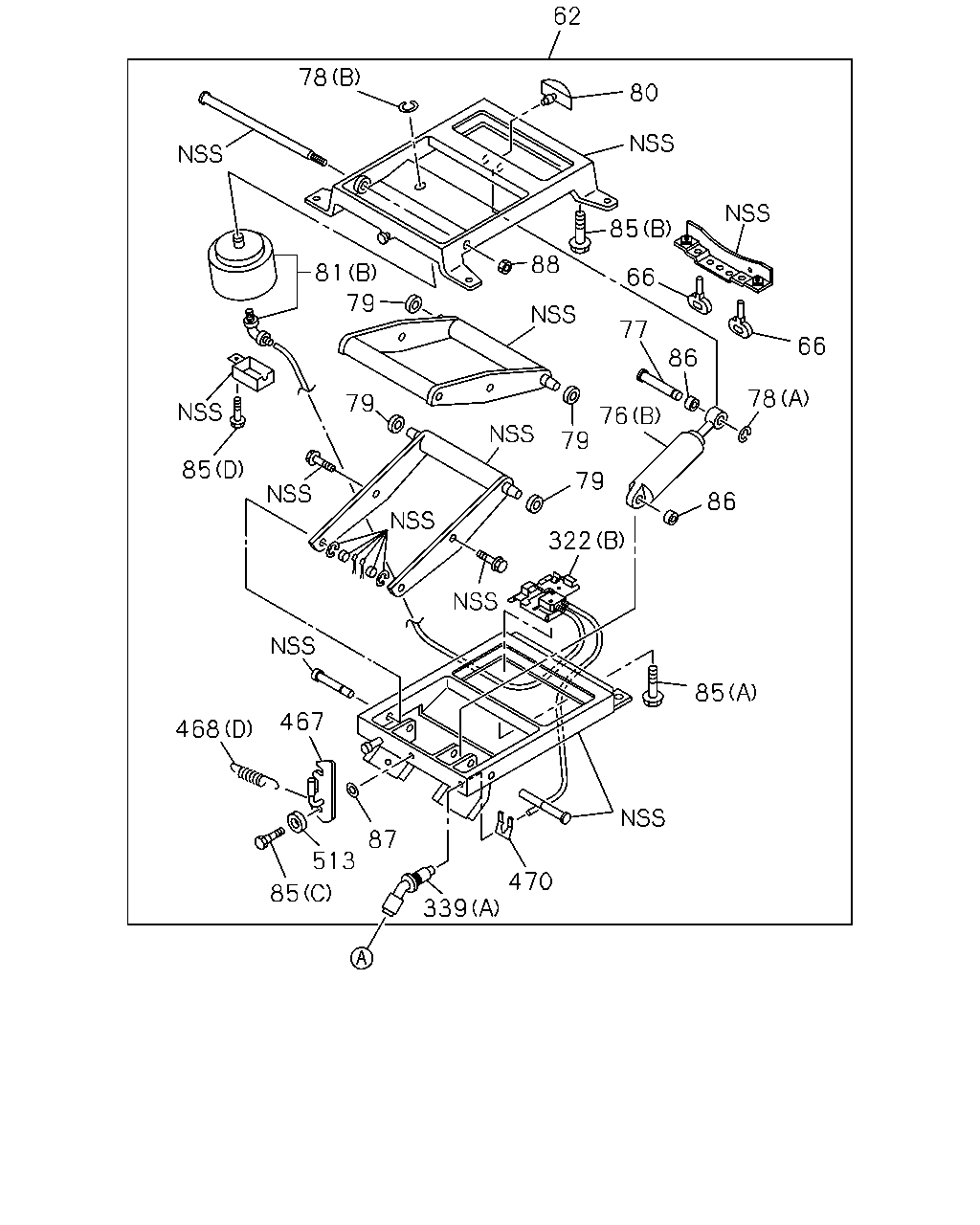

470 87 513 85 467 468 339 85 86 322 85 79 79 77 76 79 79 78 66 86 66 85 88 80 62 78 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	0712-1403	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0712-	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0712-	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98097-999-0	01	1	0712-1508	●
76	DAMPER; AIR SUSP (A)	8-98097-999-0	01	1	0712-1508		●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0712-	●
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> (C)	8-98101-900-0	02	1	0907-1508	●
78	RING; SNAP (C)	8-98101-900-0	02	1	0907-1508		●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0712-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0712-	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0712-1403	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	0712-	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0712-1312	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-000-0	01	1	0712-1508	●
81	SPRING; AIR (A)	8-98098-000-0	01	1	0712-1508		●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0712-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0712-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0712-1312	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0712-	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0712-	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0712-	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	0712-	●
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98098-001-0	01	1	0712-1508	●
322	VALVE; AIR SPRING (A)	8-98098-001-0	01	1	0712-1508		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0712-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	0712-	●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0712-		●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0712-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0712-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0712-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0712-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0712-	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0712-	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0712-	●

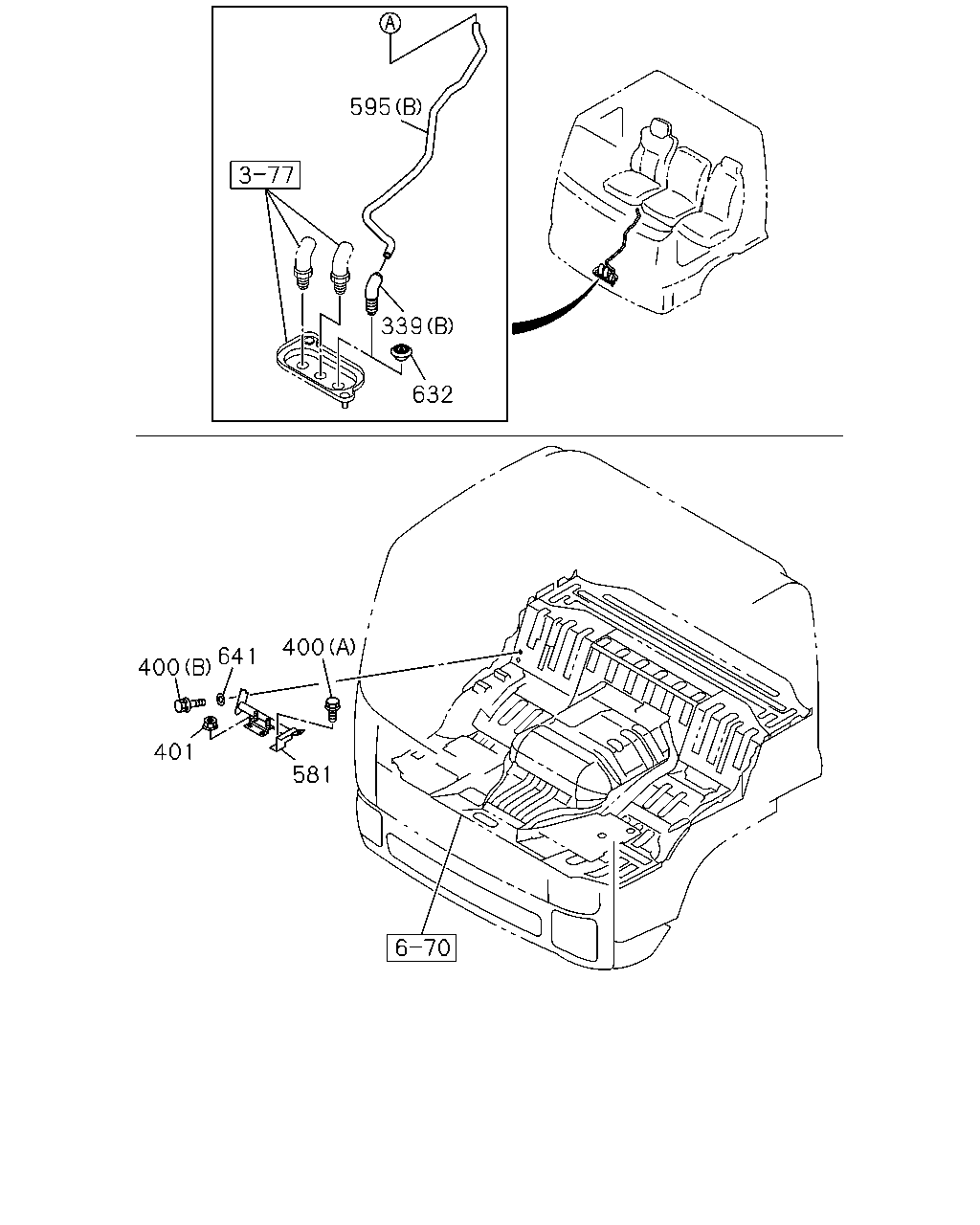

581 400 641 400 401 632 339 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0712-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	0712-	●
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	0712-		●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98098-996-0	02	1	0712-	●
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	0712-		●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE	0-91180-110-0	02	1	0712-	●
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	0712-		●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-97589-693-3	01	1	0712-	●
581	PIPE; SEAT	8-98051-068-3	01	1	0712-		●
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98106-348-0	01	1	0907-1508	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	0907-1508		●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98041-300-0	01	1	0712-	●
595	TUBE; NYLON (B)	8-98041-300-0	01	1	0712-		●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	0712-	●
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98099-007-0	02	1	0712-	●
641	WASHER; SUPPORT	8-98099-007-0	02	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
