◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#66782) — 603 parça

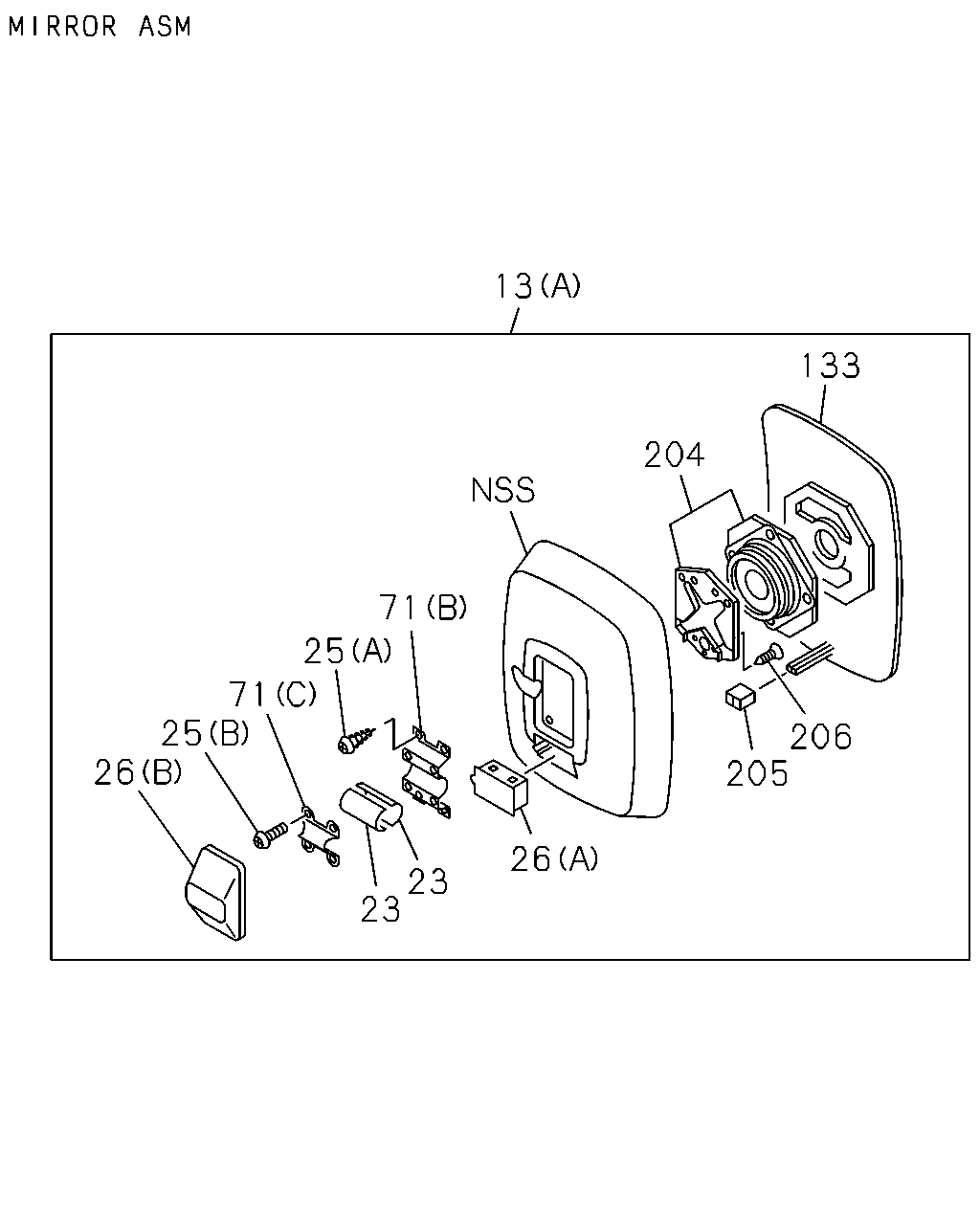

çizim 132664
13 133 204 71 25 71 25 26 206 205 26 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB), MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-992-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-992-1 01 1 1001- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB), MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-991-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-991-1 01 1 1001- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71707-101-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71707-100-1 01 1 0712-0912 ●
23 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		1-71797-883-0 04 1 0712-0912 ●
25 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M5X14 		1-71797-881-0 08 1 0712-0912 ●
25 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M6X10 		1-71797-882-0 08 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98031-806-0 01 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-806-0 01 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-806-0 01 1 1001- ● ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98031-805-0 01 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-805-0 01 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-805-0 01 1 1001- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71797-879-0 02 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71797-880-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 1001-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (I) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98040-022-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-021-0 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98040-543-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71797-877-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		1-71797-878-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
133 LENS; MIRROR,OUTSIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		1-71797-953-0 01 1 0712-0912 ●
133 LENS; MIRROR,OUTSIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		1-71797-952-0 01 1 0712-0912 ●
204 MOTOR KIT; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		1-71707-144-0 02 1 0712-0912 ●
205 CONNECTOR KIT; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		1-71797-955-0 02 1 0712-0912 ●
206 SCREW; MOTOR,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98134-316-0 04 1 0907-0912 ●

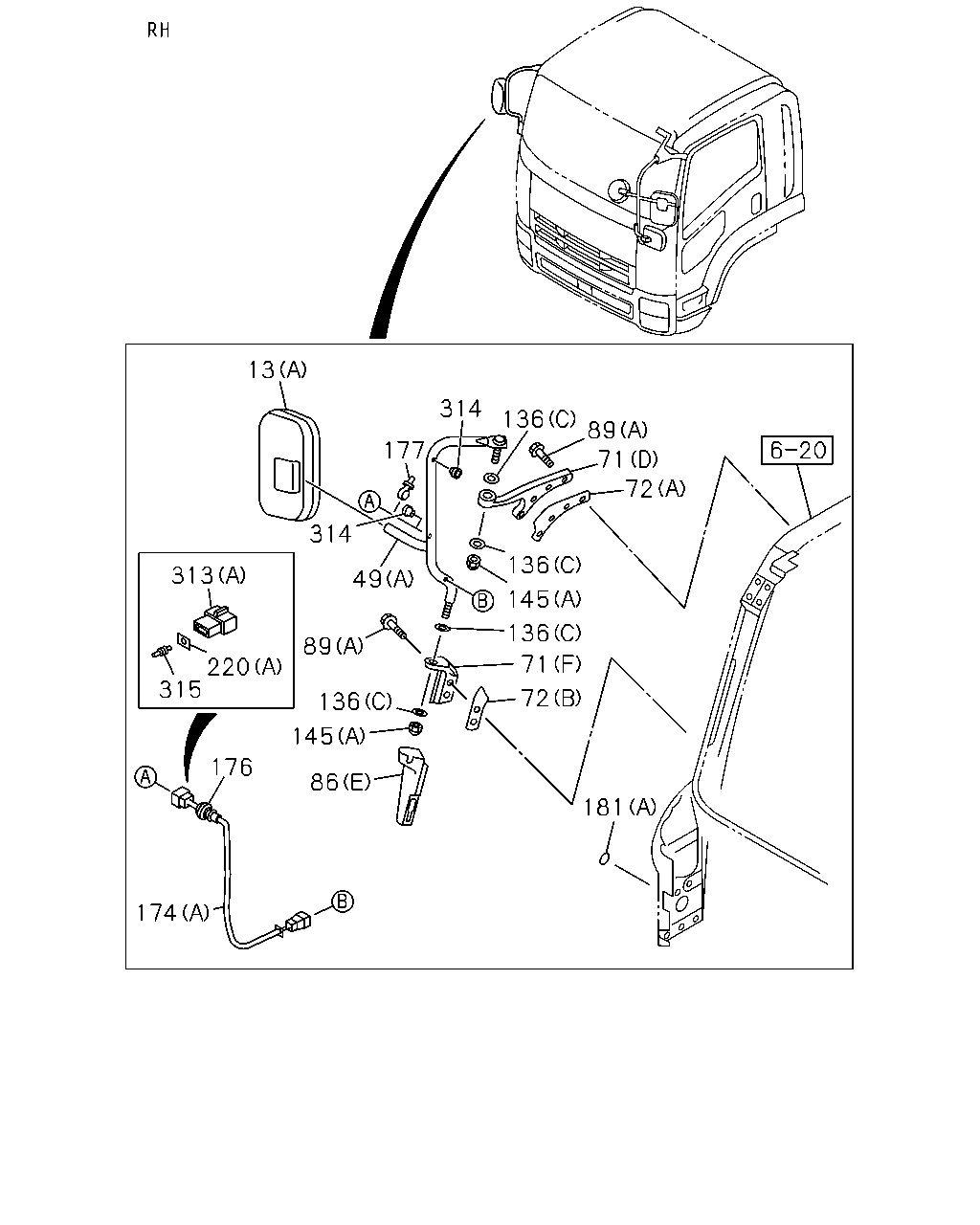

çizim 132786
13 314 136 89 71 177 72 314 136 313 49 145 136 89 71 220 315 72 136 145 176 86 181 174
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB), MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-992-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-992-1 01 1 1001- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB), MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-991-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-991-1 01 1 1001- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71707-101-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71707-100-1 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-779-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-779-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-778-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-778-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98060-216-1 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98060-216-1 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98060-215-1 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98060-215-1 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-194-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98083-831-1 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98091-456-0 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 1001-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (I) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98040-022-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-021-0 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98040-543-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71797-877-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		1-71797-878-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
72 SHEET
EXC. AUSTRALIA EQUIPMENT(B13) (H) 		8-98116-604-0 01 1 1203- ●
72 SHEET
EXC. AUSTRALIA EQUIPMENT(B13) (H) 		8-98116-605-0 01 1 1203- ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98101-865-0 01 1 0808-0912 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-865-0 01 1 1001-1202 ● ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) (H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98040-535-0 01 1 0712-0912 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-537-1 01 1 0712-0912 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98040-351-0 01 1 0712-0912 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98040-353-1 01 1 0712-0912 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
(H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98101-864-0 01 1 0808-0912 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-864-0 01 1 1001-1202 ● ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) (H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98031-797-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-797-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-797-0 01 1 1001- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98031-796-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-796-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-796-0 01 1 1001- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (F) 		8-98060-245-1 01 1 0712- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (G) 		8-98064-776-0 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98040-545-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-546-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98040-542-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK 		1-71737-649-1 01 1 0712-0812 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK 		1-71737-649-1 01 1 0901-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98031-803-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 1001- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98031-802-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 1001- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M8X23 		8-97310-216-1 08 1 0808-0912 ●
89 SCREW; BRKT,OUTSIDE MIRROR
(B) M8X23 		8-97310-216-1 08 1 0808-0912 ●
89 SCREW; BRKT,OUTSIDE MIRROR
(B) M8X23 		8-97310-216-1 08 1 1001- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M8X26 W/PL WASHER 		8-98067-249-2 10 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=10 		1-09985-180-0 01 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1001- ● ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M10 CAP NUT 		1-09984-134-0 03 1 0712-0912 ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M8 CAP NUT 		8-98059-914-0 10 1 0712-0912 ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 0712-0912 ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 1001- ● ●
174 HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98137-139-0 02 1 0902-0912 ●
174 HARNESS; MIRROR
(C) 		8-98137-139-0 02 1 0902-0912 ●
174 HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13) (C) 		8-98137-139-0 02 1 1001- ●
174 HARNESS; MIRROR
(C) 		8-98137-139-0 02 1 1001- ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98047-367-0 01 1 0712-0912 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98047-368-2 01 1 0712-0912 ●
176 GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		1-82699-906-0 01 1 0712-0912 ●
176 GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-82699-906-0 01 1 0712-0912 ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) L=140 		5-09707-031-1 02 1 0712-0901 ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) L=140 		5-09707-031-1 02 1 0902-0912 ●
177 CLIP; HARNESS
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> L=140 		5-09707-031-1 02 1 0902-0912 ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0902-0912 ●
177 CLIP; HARNESS
AUSTRALIA EQUIPMENT(B13) L=140 		5-09707-031-1 02 1 1001- ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1001- ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> L=140 		5-09707-031-1 01 1 0712-0912 ●
181 SEAL; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) OD=25 BLACK 		1-76798-019-0 01 1 0809-0912 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809-0912 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1001- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0712- ● ●
220 HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-375-0 02 1 0902-0912 ●
220 HOLDER; CONNECTOR
(B) 		8-94479-375-0 02 1 0902-0912 ●
220 HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13) (B) 		8-94479-375-0 02 1 1001- ●
220 HOLDER; CONNECTOR
(B) 		8-94479-375-0 02 1 1001- ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-94447-536-0 01 1 0712-0912 ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-536-0 01 1 0712-0912 ●
313 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-370-0 02 1 0902-0912 ●
313 CONNECTOR; MIRROR
(B) 		8-94479-370-0 02 1 0902-0912 ●
313 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) (B) 		8-94479-370-0 02 1 1001- ●
313 CONNECTOR; MIRROR
(B) 		8-94479-370-0 02 1 1001- ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-94447-532-0 01 1 0712-0912 ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-532-0 01 1 0712-0912 ●
314 BUFFER; STOPPER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-94314-317-0 01 1 0712-0912 ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		1-82691-026-0 01 1 0712-0912 ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-82691-026-0 01 1 0712-0912 ●

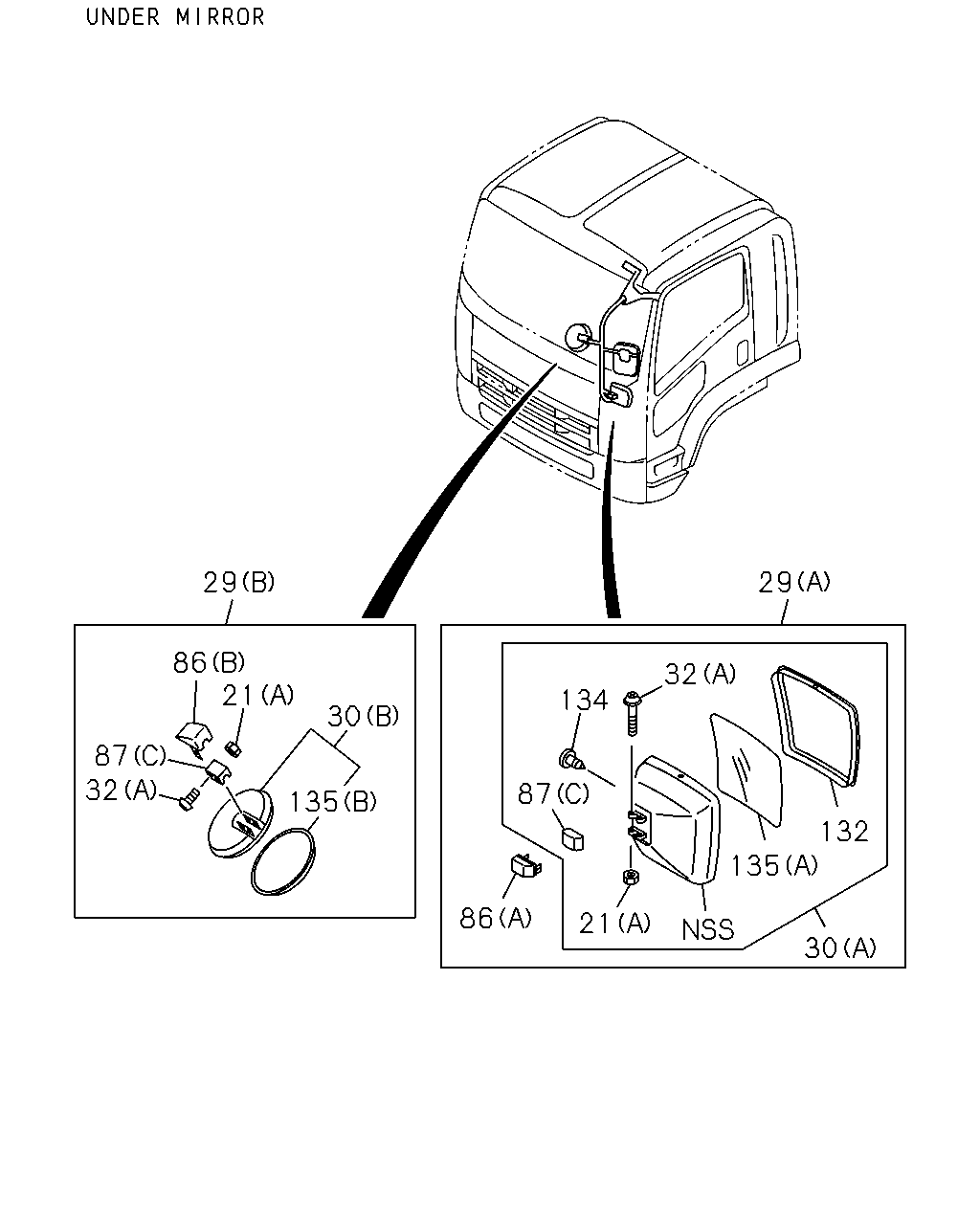

çizim 133069
29 29 86 21 32 134 30 87 32 87 135 132 135 86 21 30
BalonParca AdiParca NoAdetTipApplied Date A B
21 NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M5 		1-09984-124-0 02 1 0712-0912 ●
21 NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5 		1-09984-124-0 02 1 0712-0912 ●
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) M10 CAP NUT 		1-09984-134-0 02 1 0712- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-421-1 01 1 0712-0912 ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-422-0 01 1 0712-0812 ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71798-422-0 01 1 0901-0912 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-591-1 01 1 0712-0812 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71798-591-1 01 1 0901-0912 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-592-1 01 1 0712-0912 ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98055-994-0 01 1 0712-1504 ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M5X40 W/PL WASHER 		1-71737-797-0 02 1 0712-0912 ●
32 SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER 		1-71737-797-0 02 1 0712-0912 ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) M8X26 W/PL WASHER 		8-98067-249-2 04 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98040-545-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-546-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98040-542-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK 		1-71737-649-1 01 1 0712-0812 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK 		1-71737-649-1 01 1 0901-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98031-803-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 1001- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98031-802-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 1001- ● ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		1-71737-646-2 01 1 0712-0912 ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) 		1-71737-646-2 01 1 0712-0912 ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98063-786-0 02 1 0712-0912 ●
87 SPACER
(A) 		8-98063-786-0 02 1 0712-0912 ●
87 SPACER
(A) 		8-98063-786-0 02 1 1001- ● ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98063-789-0 02 1 0712-0912 ●
87 SPACER
(B) 		8-98063-789-0 02 1 0712-0912 ●
87 SPACER
(B) 		8-98063-789-0 02 1 1001- ● ●
132 RING; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-71737-935-0 01 1 0712-0912 ●
134 CLIP; MIRROR LENS
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-71737-936-0 01 1 0712-0912 ●
135 LENS; MIRROR,SIDE UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71737-929-0 01 1 0712-0912 ●
135 LENS; MIRROR,SIDE UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-838-0 01 1 0712-0812 ●
135 LENS; MIRROR,SIDE UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71798-838-0 01 1 0901-0912 ●

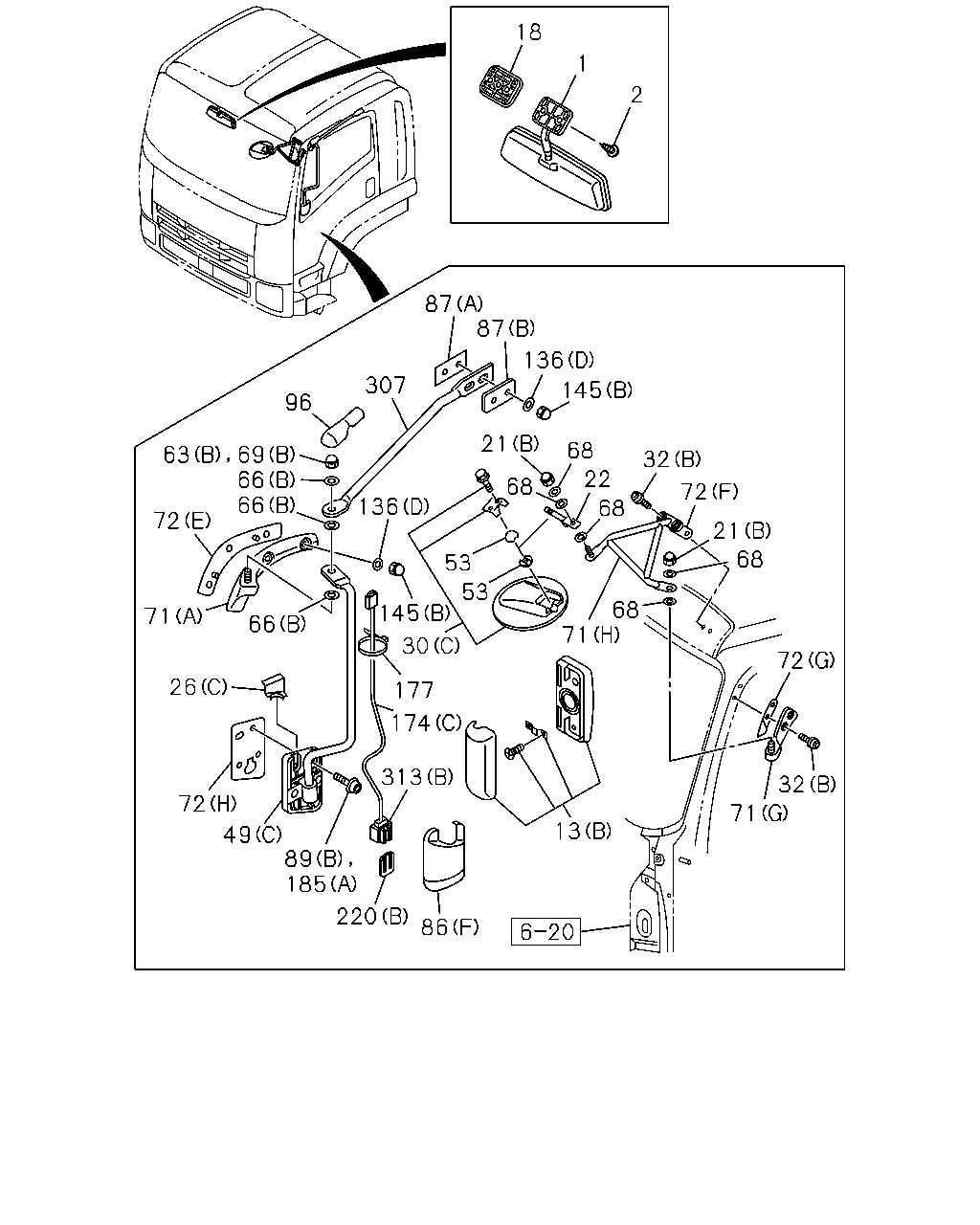

çizim 193394
18 1 2 87 87 136 145 21 68 32 22 68 72 21 68 72 32 71 13 71 68 68 53 53 145 30 177 74 313 86 220 185 89 49 72 26 71 66 72 63 69 96 66 66 136 307
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0712-0802 ● ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0803- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0712- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB), MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-992-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-992-1 01 1 1001- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB), MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-991-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-991-1 01 1 1001- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71707-101-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71707-100-1 01 1 0712-0912 ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0712- ● ●
21 NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M5 		1-09984-124-0 02 1 0712-0912 ●
21 NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5 		1-09984-124-0 02 1 0712-0912 ●
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) M10 CAP NUT 		1-09984-134-0 02 1 0712- ● ●
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 0712- ● ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98031-806-0 01 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-806-0 01 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-806-0 01 1 1001- ● ●
26 COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98031-805-0 01 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-805-0 01 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-805-0 01 1 1001- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71797-879-0 02 1 0712-0912 ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71797-880-0 02 1 0712-0912 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-591-1 01 1 0712-0812 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71798-591-1 01 1 0901-0912 ●
30 MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-592-1 01 1 0712-0912 ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98055-994-0 01 1 0712-1504 ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M5X40 W/PL WASHER 		1-71737-797-0 02 1 0712-0912 ●
32 SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER 		1-71737-797-0 02 1 0712-0912 ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) M8X26 W/PL WASHER 		8-98067-249-2 04 1 0712- ● ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-779-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-779-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-778-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-778-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98060-216-1 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98060-216-1 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98060-215-1 01 1 0712-0912 ●

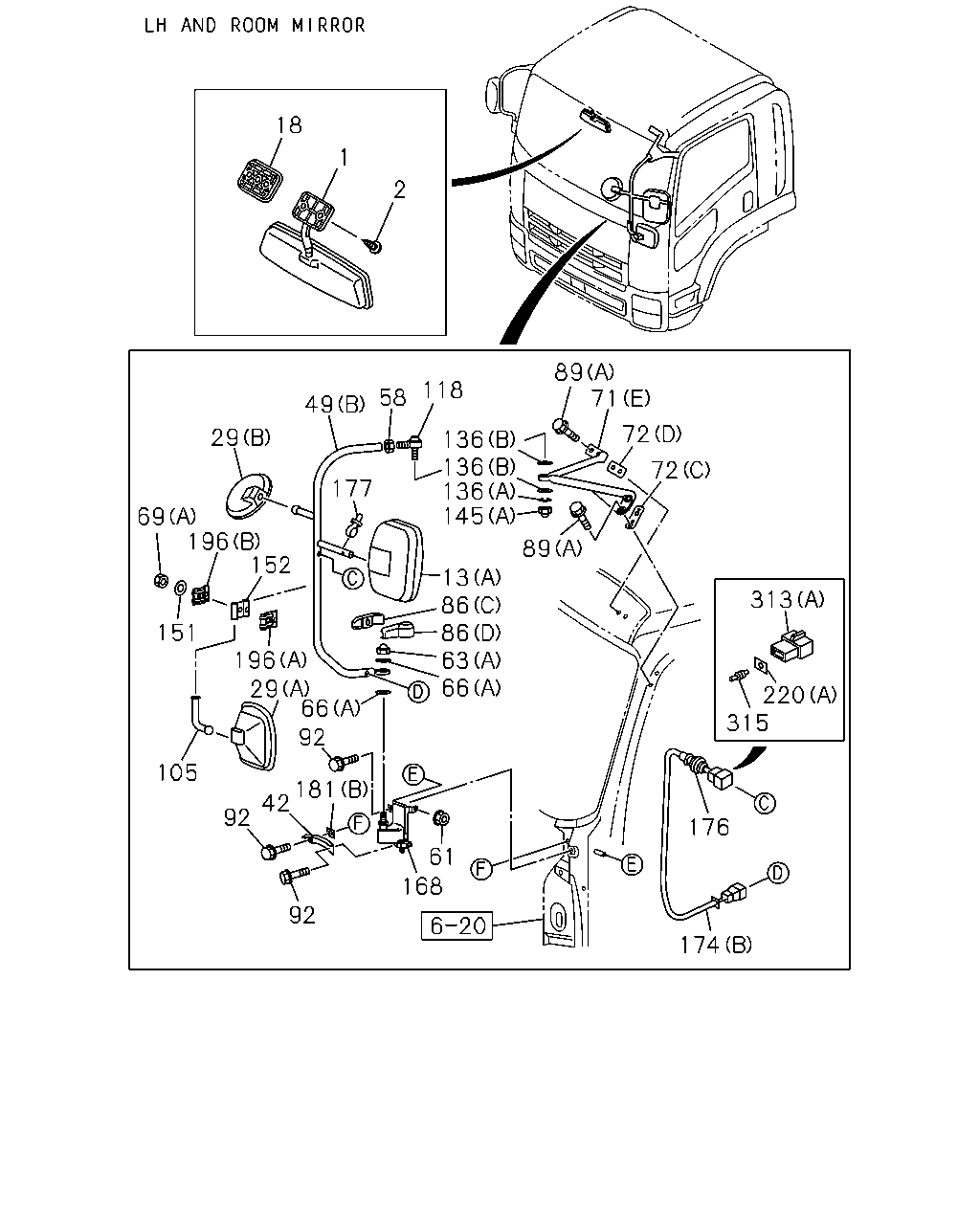

49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98060-215-1 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-194-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98083-831-1 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98091-456-0 01 1 0712-0912 ●
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 0712- ● ●
63 NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M10 CAP NUT 		1-09984-134-0 02 1 0808-0912 ●
63 NUT; STAY
(B) M10 CAP NUT 		1-09984-134-0 02 1 0808-0912 ●
63 NUT; STAY
(B) M10 CAP NUT 		1-09984-134-0 02 1 1001- ● ●
63 NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M14 CAP NUT 		8-98041-311-1 01 1 0712-0912 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=14.5 OD=30 		9-09851-946-0 02 1 0712-0912 ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712-0912 ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712-0912 ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1001- ● ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 05 1 0712-0805 ● ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0806- ● ●
69 NUT; CAP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT 		1-09984-134-0 01 1 0712-0912 ●
69 NUT; CAP
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ●
69 NUT; CAP
(B) M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 1001-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (I) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98040-022-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-021-0 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98040-543-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71797-877-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		1-71797-878-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
72 SHEET
EXC. AUSTRALIA EQUIPMENT(B13) (H) 		8-98116-604-0 01 1 1203- ●
72 SHEET
EXC. AUSTRALIA EQUIPMENT(B13) (H) 		8-98116-605-0 01 1 1203- ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98101-865-0 01 1 0808-0912 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-865-0 01 1 1001-1202 ● ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) (H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98040-535-0 01 1 0712-0912 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-537-1 01 1 0712-0912 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98040-351-0 01 1 0712-0912 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98040-353-1 01 1 0712-0912 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
(H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98101-864-0 01 1 0808-0912 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-864-0 01 1 1001-1202 ● ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) (H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98031-797-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-797-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-797-0 01 1 1001- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98031-796-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-796-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-796-0 01 1 1001- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (F) 		8-98060-245-1 01 1 0712- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (G) 		8-98064-776-0 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98040-545-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-546-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98040-542-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK 		1-71737-649-1 01 1 0712-0812 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK 		1-71737-649-1 01 1 0901-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98031-803-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 1001- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98031-802-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 1001- ● ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		1-71737-646-2 01 1 0712-0912 ●
87 SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) 		1-71737-646-2 01 1 0712-0912 ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98063-786-0 02 1 0712-0912 ●
87 SPACER
(A) 		8-98063-786-0 02 1 0712-0912 ●
87 SPACER
(A) 		8-98063-786-0 02 1 1001- ● ●
87 SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98063-789-0 02 1 0712-0912 ●
87 SPACER
(B) 		8-98063-789-0 02 1 0712-0912 ●
87 SPACER
(B) 		8-98063-789-0 02 1 1001- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M8X23 		8-97310-216-1 08 1 0808-0912 ●
89 SCREW; BRKT,OUTSIDE MIRROR
(B) M8X23 		8-97310-216-1 08 1 0808-0912 ●
89 SCREW; BRKT,OUTSIDE MIRROR
(B) M8X23 		8-97310-216-1 08 1 1001- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M8X26 W/PL WASHER 		8-98067-249-2 10 1 0712-0912 ●
96 CAP; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98080-173-0 02 1 0712-0912 ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0712-0912 ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1001- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=10 		1-09985-180-0 01 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1001- ● ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M10 CAP NUT 		1-09984-134-0 03 1 0712-0912 ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M8 CAP NUT 		8-98059-914-0 10 1 0712-0912 ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 0712-0912 ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 1001- ● ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) L=140 		5-09707-031-1 02 1 0712-0901 ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) L=140 		5-09707-031-1 02 1 0902-0912 ●
177 CLIP; HARNESS
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> L=140 		5-09707-031-1 02 1 0902-0912 ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0902-0912 ●
177 CLIP; HARNESS
AUSTRALIA EQUIPMENT(B13) L=140 		5-09707-031-1 02 1 1001- ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1001- ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> L=140 		5-09707-031-1 01 1 0712-0912 ●
185 BOLT; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0801-0912 ●
185 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0801-0912 ●
185 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1001-1202 ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
185 BOLT; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M8X23 		8-97310-216-1 08 1 0712-0807 ●
185 BOLT; BRKT
(A) M8X23 		8-97310-216-1 08 1 0712-0807 ●
220 HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-375-0 02 1 0902-0912 ●
220 HOLDER; CONNECTOR
(B) 		8-94479-375-0 02 1 0902-0912 ●
220 HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13) (B) 		8-94479-375-0 02 1 1001- ●
220 HOLDER; CONNECTOR
(B) 		8-94479-375-0 02 1 1001- ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-94447-536-0 01 1 0712-0912 ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-536-0 01 1 0712-0912 ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98063-785-2 01 1 0712-0912 ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0712-0912 ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1001- ● ●
307 STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98063-784-2 01 1 0712-0912 ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0712-0912 ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1001- ● ●
313 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-370-0 02 1 0902-0912 ●
313 CONNECTOR; MIRROR
(B) 		8-94479-370-0 02 1 0902-0912 ●
313 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) (B) 		8-94479-370-0 02 1 1001- ●
313 CONNECTOR; MIRROR
(B) 		8-94479-370-0 02 1 1001- ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-94447-532-0 01 1 0712-0912 ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-532-0 01 1 0712-0912 ●

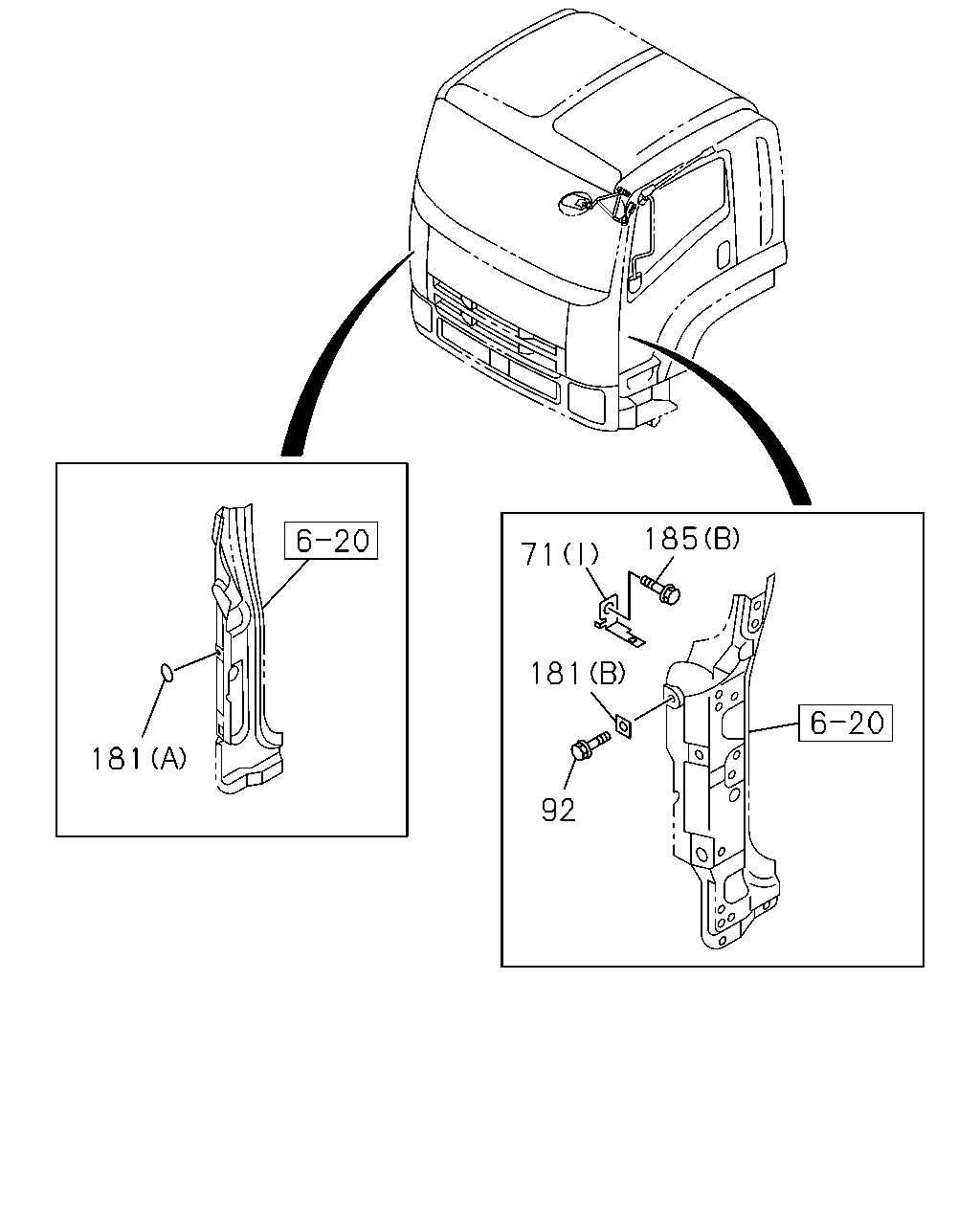

çizim 193397
185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 1001-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (I) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98040-022-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-021-0 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98040-543-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71797-877-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		1-71797-878-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
92 BOLT; STAY BRKT,MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE 		8-98076-109-0 01 1 0712-0912 ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0712-0912 ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1001- ● ●
92 BOLT; STAY BRKT,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE 		8-98076-109-0 04 1 0712-0912 ●
181 SEAL; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) OD=25 BLACK 		1-76798-019-0 01 1 0809-0912 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809-0912 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1001- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0712- ● ●
185 BOLT; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0801-0912 ●
185 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0801-0912 ●
185 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1001-1202 ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
185 BOLT; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M8X23 		8-97310-216-1 08 1 0712-0807 ●
185 BOLT; BRKT
(A) M8X23 		8-97310-216-1 08 1 0712-0807 ●
çizim 193401
18 1 2 89 71 118 58 49 72 29 136 136 136 145 72 177 69 196 152 89 13 86 86 63 66 313 151 196 29 66 92 220 315 105 181 42 92 176 61 168 92 174
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0712-0802 ● ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0803- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0712- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB), MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-992-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-992-1 01 1 1001- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB), MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-991-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. MIR O/S RR VIEW FLAT(YS1) (B) 		8-98055-991-1 01 1 1001- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71707-101-1 01 1 0712-0912 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		1-71707-100-1 01 1 0712-0912 ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0712- ● ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-421-1 01 1 0712-0912 ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-422-0 01 1 0712-0812 ●
29 MIRROR ASM; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71798-422-0 01 1 0901-0912 ●
42 ATTACHMENT; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98070-643-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-779-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-779-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-778-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-778-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98060-216-1 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98060-216-1 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98060-215-1 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98060-215-1 01 1 1001-1202 ●
49 STAY; MIRROR SIDE
EXC. AUSTRALIA EQUIPMENT(B13) (C) 		8-98166-194-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98083-831-1 01 1 0712-0912 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98091-456-0 01 1 0712-0912 ●
58 NUT; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> M12 		8-98061-883-0 01 1 0712-0912 ●
61 NUT; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8 FLANGE 		0-91180-108-0 01 1 0712-0912 ●
63 NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M10 CAP NUT 		1-09984-134-0 02 1 0808-0912 ●
63 NUT; STAY
(B) M10 CAP NUT 		1-09984-134-0 02 1 0808-0912 ●
63 NUT; STAY
(B) M10 CAP NUT 		1-09984-134-0 02 1 1001- ● ●
63 NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M14 CAP NUT 		8-98041-311-1 01 1 0712-0912 ●
66 WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=14.5 OD=30 		9-09851-946-0 02 1 0712-0912 ●
66 WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712-0912 ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712-0912 ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1001- ● ●
69 NUT; CAP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT 		1-09984-134-0 01 1 0712-0912 ●
69 NUT; CAP
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ●
69 NUT; CAP
(B) M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 0801-0912 ●
71 BRACKET; OUTSIDE MIRROR
(I) 		8-98039-277-2 02 1 1001-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (I) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98040-022-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-021-0 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98040-543-1 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		1-71797-877-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		1-71797-878-0 02 1 0712-0912 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
72 SHEET
EXC. AUSTRALIA EQUIPMENT(B13) (H) 		8-98116-604-0 01 1 1203- ●
72 SHEET
EXC. AUSTRALIA EQUIPMENT(B13) (H) 		8-98116-605-0 01 1 1203- ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98101-865-0 01 1 0808-0912 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-865-0 01 1 1001-1202 ● ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) (H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98040-535-0 01 1 0712-0912 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-537-1 01 1 0712-0912 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98040-351-0 01 1 0712-0912 ●
72 SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98040-353-1 01 1 0712-0912 ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
(H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (H) 		8-98101-864-0 01 1 0808-0912 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0808-0912 ●
72 SHEET
(H) 		8-98101-864-0 01 1 1001-1202 ● ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) (H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98031-797-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-797-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-797-0 01 1 1001- ● ●
72 SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98031-796-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-796-0 01 1 0712-0912 ●
72 SHEET
(E) 		8-98031-796-0 01 1 1001- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (F) 		8-98060-245-1 01 1 0712- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (G) 		8-98064-776-0 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98040-545-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98040-546-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (E) 		8-98040-542-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK 		1-71737-649-1 01 1 0712-0812 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLACK 		1-71737-649-1 01 1 0901-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98031-803-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 1001- ● ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (F) 		8-98031-802-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0712-0912 ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 1001- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M8X23 		8-97310-216-1 08 1 0808-0912 ●
89 SCREW; BRKT,OUTSIDE MIRROR
(B) M8X23 		8-97310-216-1 08 1 0808-0912 ●
89 SCREW; BRKT,OUTSIDE MIRROR
(B) M8X23 		8-97310-216-1 08 1 1001- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M8X26 W/PL WASHER 		8-98067-249-2 10 1 0712-0912 ●
92 BOLT; STAY BRKT,MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE 		8-98076-109-0 01 1 0712-0912 ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0712-0912 ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1001- ● ●
92 BOLT; STAY BRKT,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) M8X16 FLANGE 		8-98076-109-0 04 1 0712-0912 ●
105 STAY; SUB UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98041-571-2 01 1 0712-0912 ●
118 JOINT ASM; BALL
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-71798-356-2 01 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ID=10 		1-09985-180-0 01 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712-0912 ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1001- ● ●
145 NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M10 CAP NUT 		1-09984-134-0 03 1 0712-0912 ●
145 NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) M8 CAP NUT 		8-98059-914-0 10 1 0712-0912 ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 0712-0912 ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 1001- ● ●
151 WASHER; PL,MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=10.5 T=2.0 		1-09985-183-0 01 1 0712-0912 ●
152 SHEET; MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-71798-445-1 02 1 0712-0912 ●
168 POWER UNIT; MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-97612-287-2 01 1 0712-0912 ●
174 HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98137-139-0 02 1 0902-0912 ●
174 HARNESS; MIRROR
(C) 		8-98137-139-0 02 1 0902-0912 ●
174 HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13) (C) 		8-98137-139-0 02 1 1001- ●
174 HARNESS; MIRROR
(C) 		8-98137-139-0 02 1 1001- ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98047-367-0 01 1 0712-0912 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98047-368-2 01 1 0712-0912 ●
176 GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		1-82699-906-0 01 1 0712-0912 ●
176 GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-82699-906-0 01 1 0712-0912 ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) L=140 		5-09707-031-1 02 1 0712-0901 ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) L=140 		5-09707-031-1 02 1 0902-0912 ●
177 CLIP; HARNESS
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> L=140 		5-09707-031-1 02 1 0902-0912 ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0902-0912 ●
177 CLIP; HARNESS
AUSTRALIA EQUIPMENT(B13) L=140 		5-09707-031-1 02 1 1001- ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1001- ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> L=140 		5-09707-031-1 01 1 0712-0912 ●
181 SEAL; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) OD=25 BLACK 		1-76798-019-0 01 1 0809-0912 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809-0912 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1001- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0712- ● ●
196 HOLDER; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-442-2 01 1 0712-0912 ●
196 HOLDER; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-444-2 01 1 0712-0912 ●
220 HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-375-0 02 1 0902-0912 ●
220 HOLDER; CONNECTOR
(B) 		8-94479-375-0 02 1 0902-0912 ●
220 HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13) (B) 		8-94479-375-0 02 1 1001- ●
220 HOLDER; CONNECTOR
(B) 		8-94479-375-0 02 1 1001- ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-94447-536-0 01 1 0712-0912 ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-536-0 01 1 0712-0912 ●
313 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-370-0 02 1 0902-0912 ●
313 CONNECTOR; MIRROR
(B) 		8-94479-370-0 02 1 0902-0912 ●
313 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) (B) 		8-94479-370-0 02 1 1001- ●
313 CONNECTOR; MIRROR
(B) 		8-94479-370-0 02 1 1001- ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-94447-532-0 01 1 0712-0912 ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-532-0 01 1 0712-0912 ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		1-82691-026-0 01 1 0712-0912 ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-82691-026-0 01 1 0712-0912 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
