2-30 — GEAR SHIFTER AND QUADRANT BOX (#6678) — 89 parça

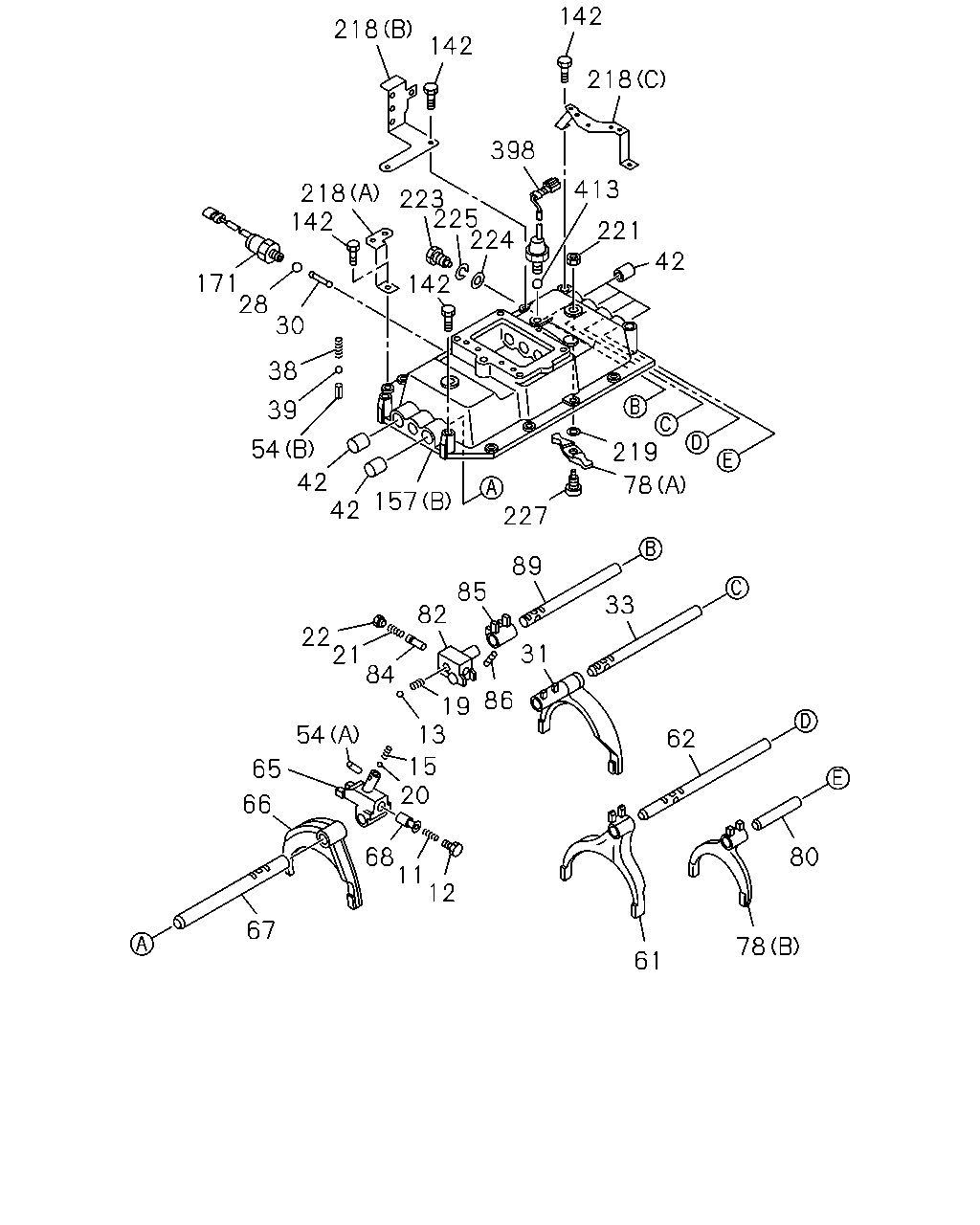

142 218 142 218 398 413 218 142 223 225 224 221 42 171 28 30 142 38 39 219 54 42 42 78 227 157 89 85 82 33 22 21 84 31 86 19 13 54 62 15 20 65 66 80 68 11 12 67 78 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0011-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0011-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0011-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0011-
19	SPRING; COIL COMP	1-09580-441-0	01	1	0011-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0011-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0011-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0011-
28	BALL; INTER LK	9-00097-501-0	04	1	0011-
30	PIN; INTER LK	9-33534-003-0	03	1	0011-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0011-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0011-
38	SPRING; DETENT	1-09580-419-0	04	1	0011-
39	BALL; DETENT	1-09843-012-0	04	1	0011-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0011-
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-006-0	01	1	0011-0201
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-014-0	03	1	0011-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0011-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0011-
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-513-0	01	1	0011-
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	0011-
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	0011-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0011-
78	ARM; SHIFT,REV (A)	1-33511-082-0	01	1	0011-
78	ARM; SHIFT,REV (B)	1-33511-234-1	01	1	0011-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0011-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0011-
84	SLEEVE; REV	1-33516-025-0	01	1	0011-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0011-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	0011-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0011-
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0011-
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	0011-
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0011-
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	0011-
157	BOX; QUAD,TRANS (A)	1-33541-478-0	01	1	0011-
157	BOX; QUAD,TRANS (B)	1-33541-480-0	01	1	0011-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0011-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0011-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0011-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0011-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0011-
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0011-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0011-
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0011-
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0011-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0011-
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0011-
413	BALL; BACK SW	9-00097-013-0	01	1	0011-

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	0011-
	383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	0011-

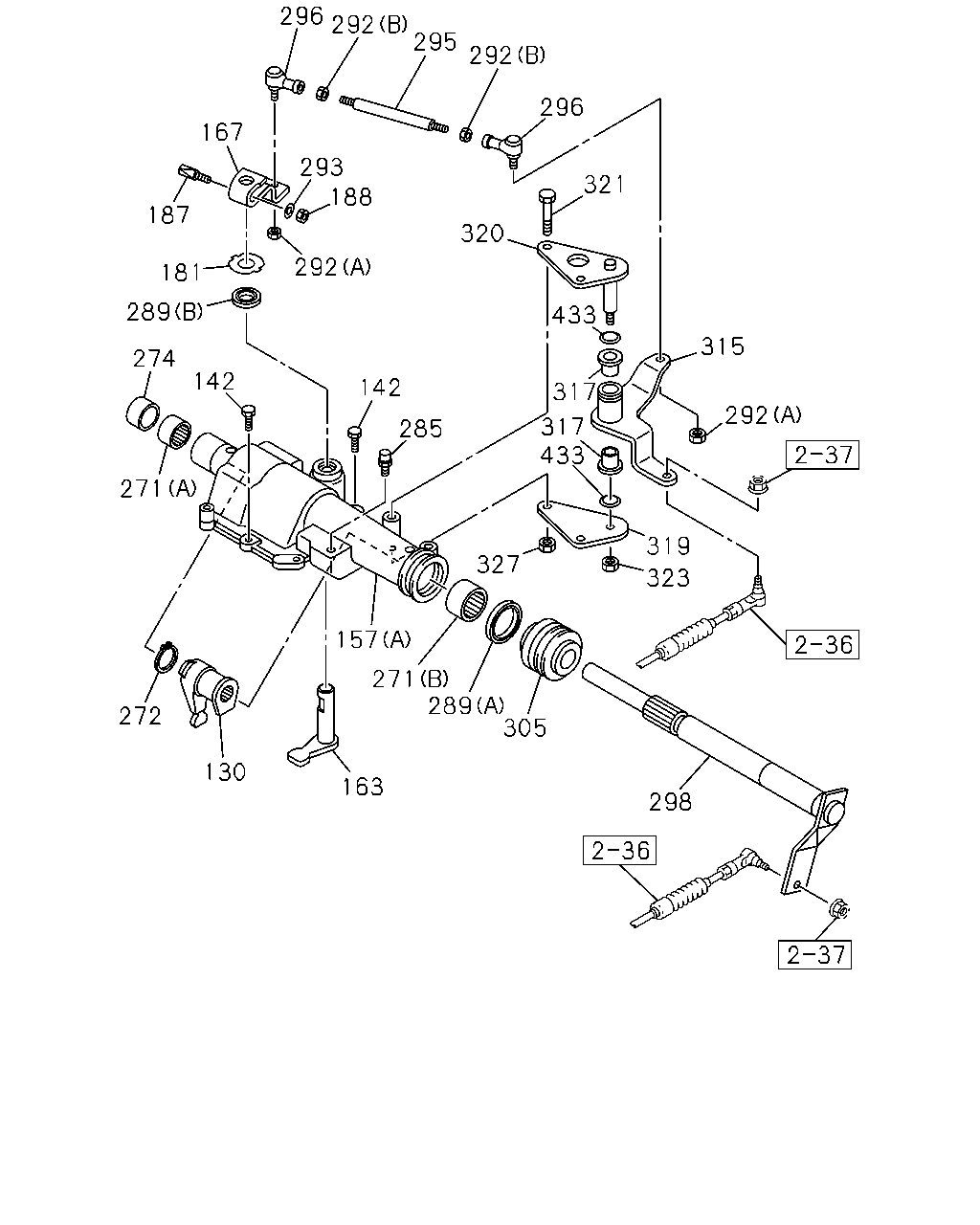

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 317 433 285 271 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0011-
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0011-
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	0011-
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0011-
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	0011-
157	BOX; QUAD,TRANS (A)	1-33541-478-0	01	1	0011-
157	BOX; QUAD,TRANS (B)	1-33541-480-0	01	1	0011-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0011-
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	0011-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0011-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0011-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0011-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0011-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0011-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0011-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0011-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0011-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0011-0307
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=41	1-09625-647-0	01	1	0308-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0011-
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0011-
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0011-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0011-
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0011-
296	ROD END L=48	1-09760-038-1	02	1	0011-0309
296	ROD END L=45.5	1-09760-118-1	02	1	0310-
298	SHAFT; SHIFT LEVER	1-33522-166-0	01	1	0011-0307
298	SHAFT; SHIFT LEVER	1-33522-187-0	01	1	0308-
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	0011-
315	LEVER; SELECT	1-33651-702-0	01	1	0011-
317	BUSHING; LEVER	1-09330-119-0	02	1	0011-
319	BRACKET; SELECT LEVER	1-33657-515-0	01	1	0011-
320	SHAFT; LEVER	1-33619-474-0	01	1	0011-
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0011-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0011-
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0011-
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	0011-
433	GASKET; BUSHING	1-09623-594-0	02	1	0011-
