◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#66779) — 115 parça

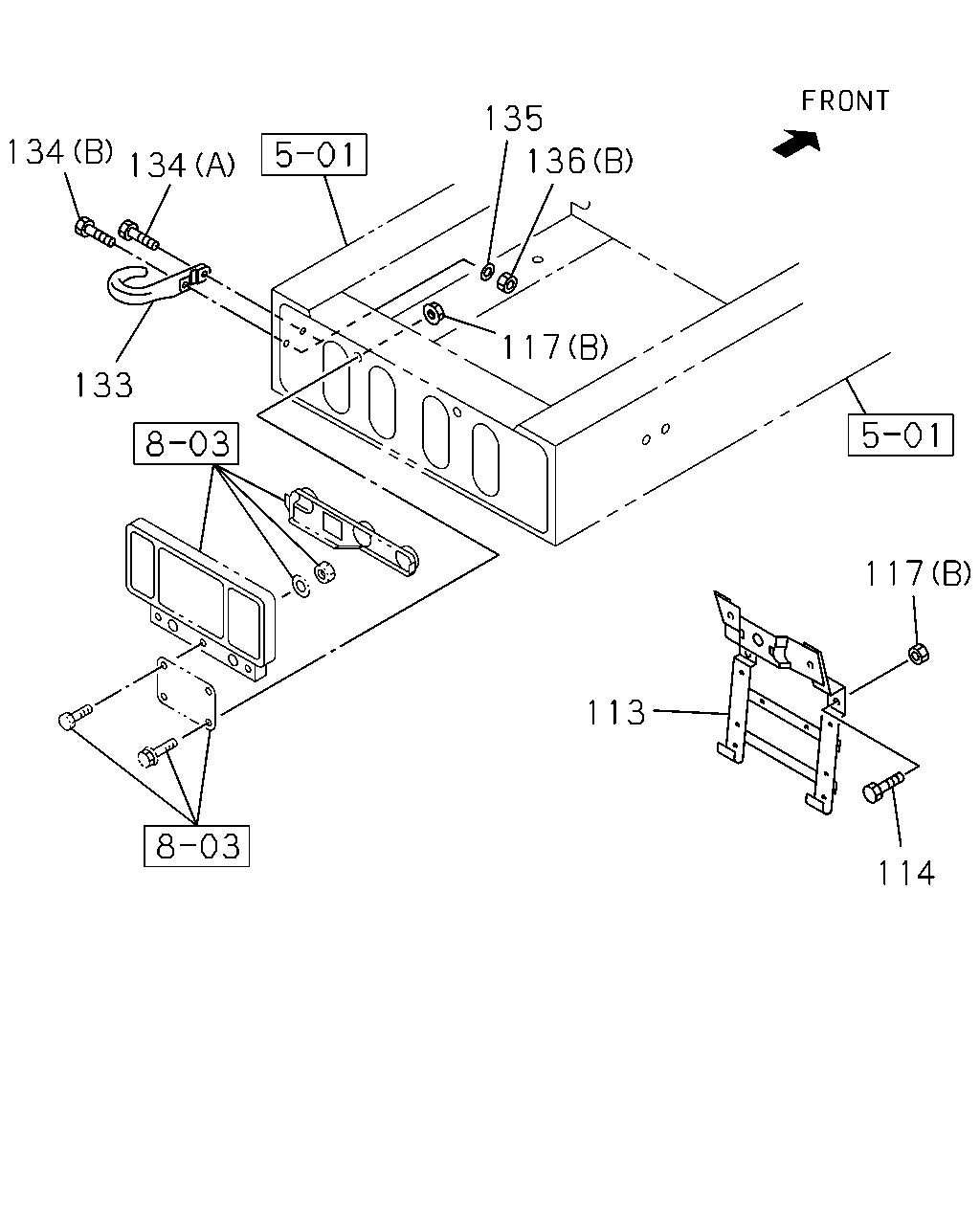

çizim 132156
135 136 134 134 117 133 117 113 114
BalonParca AdiParca NoAdetTipApplied Date A B
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 0712-1205 ● ●
113 BRACKET; LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND<CX6> 		1-53485-074-0 01 1 1206- ●
113 BRACKET; LICENSE PLATE
EXC. AUSTRALIA EQUIPMENT(B13) 		1-53485-074-0 01 1 1206- ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0712-1205 ● ●
114 BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND<CX6> M8X25 FLANGE 		0-28650-825-0 02 1 1206- ●
114 BOLT; BRKT,LICENSE PLATE
EXC. AUSTRALIA EQUIPMENT(B13) M8X25 FLANGE 		0-28650-825-0 02 1 1206- ●
117 NUT; BRKT
PINTLE HOOK<PP7> (A) M12 FLANGE 		0-91180-212-0 02 1 0712-1205 ●
117 NUT; BRKT
PINTLE HOOK<PP7> EXC. AUSTRALIA EQUIPMENT(B13) (A) M12 FLANGE 		0-91180-212-0 02 1 1206- ●
117 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-1205 ● ●
117 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1206- ● ●
117 NUT; BRKT
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND<CX6> (B) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
117 NUT; BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (B) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
133 HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> 		1-57181-027-1 02 1 0712-0803 ●
133 HOOK
REAR DOUBLE HOOK<PM1> 		1-57181-027-1 02 1 0712-0803 ●
133 HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> 		1-57181-027-1 02 1 0804- ●
133 HOOK 1-57181-027-1 02 1 0804- ●
133 HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> 		1-57181-027-1 01 1 0712-0803 ●
133 HOOK
EXC. REAR DOUBLE HOOK<PM1> 		1-57181-027-1 01 1 0712-0803 ●
133 HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> 		1-57181-027-1 01 1 0804- ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M16X50 		0-20851-650-0 02 1 0712-0803 ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> (A) M16X50 		0-20851-650-0 02 1 0712-0803 ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M16X50 		0-20851-650-0 02 1 0804- ●
134 BOLT; HOOK
(A) M16X50 		0-20851-650-0 02 1 0804- ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16X60 		0-20851-660-0 02 1 0712-0803 ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> (B) M16X60 		0-20851-660-0 02 1 0712-0803 ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16X60 		0-20851-660-0 02 1 0804- ●
134 BOLT; HOOK
(B) M16X60 		0-20851-660-0 02 1 0804- ●
134 BOLT; HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M16X50 		0-20851-650-0 01 1 0712-0803 ●
134 BOLT; HOOK
EXC. REAR DOUBLE HOOK<PM1> (A) M16X50 		0-20851-650-0 01 1 0712-0803 ●
134 BOLT; HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M16X50 		0-20851-650-0 01 1 0804- ●
134 BOLT; HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16X60 		0-20851-660-0 01 1 0712-0803 ●
134 BOLT; HOOK
EXC. REAR DOUBLE HOOK<PM1> (B) M16X60 		0-20851-660-0 01 1 0712-0803 ●
134 BOLT; HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16X60 		0-20851-660-0 01 1 0804- ●
135 WASHER; LK,HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=16.2 		0-91510-816-0 04 1 0712-0803 ●
135 WASHER; LK,HOOK
REAR DOUBLE HOOK<PM1> ID=16.2 		0-91510-816-0 04 1 0712-0803 ●
135 WASHER; LK,HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=16.2 		0-91510-816-0 04 1 0804- ●
135 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 04 1 0804- ●
135 WASHER; LK,HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> ID=16.2 		0-91510-816-0 02 1 0712-0803 ●
135 WASHER; LK,HOOK
EXC. REAR DOUBLE HOOK<PM1> ID=16.2 		0-91510-816-0 02 1 0712-0803 ●
135 WASHER; LK,HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> ID=16.2 		0-91510-816-0 02 1 0804- ●
136 NUT; HOOK
PINTLE HOOK<PP7> (A) 		1-09420-006-0 01 1 0712- ●
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16 		0-91110-516-0 04 1 0712-0803 ●
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> (B) M16 		0-91110-516-0 04 1 0712-0803 ●
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16 		0-91110-516-0 04 1 0804- ●
136 NUT; HOOK
(B) M16 		0-91110-516-0 04 1 0804- ●
136 NUT; HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16 		0-91110-516-0 02 1 0712-0803 ●
136 NUT; HOOK
EXC. REAR DOUBLE HOOK<PM1> (B) M16 		0-91110-516-0 02 1 0712-0803 ●
136 NUT; HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16 		0-91110-516-0 02 1 0804- ●

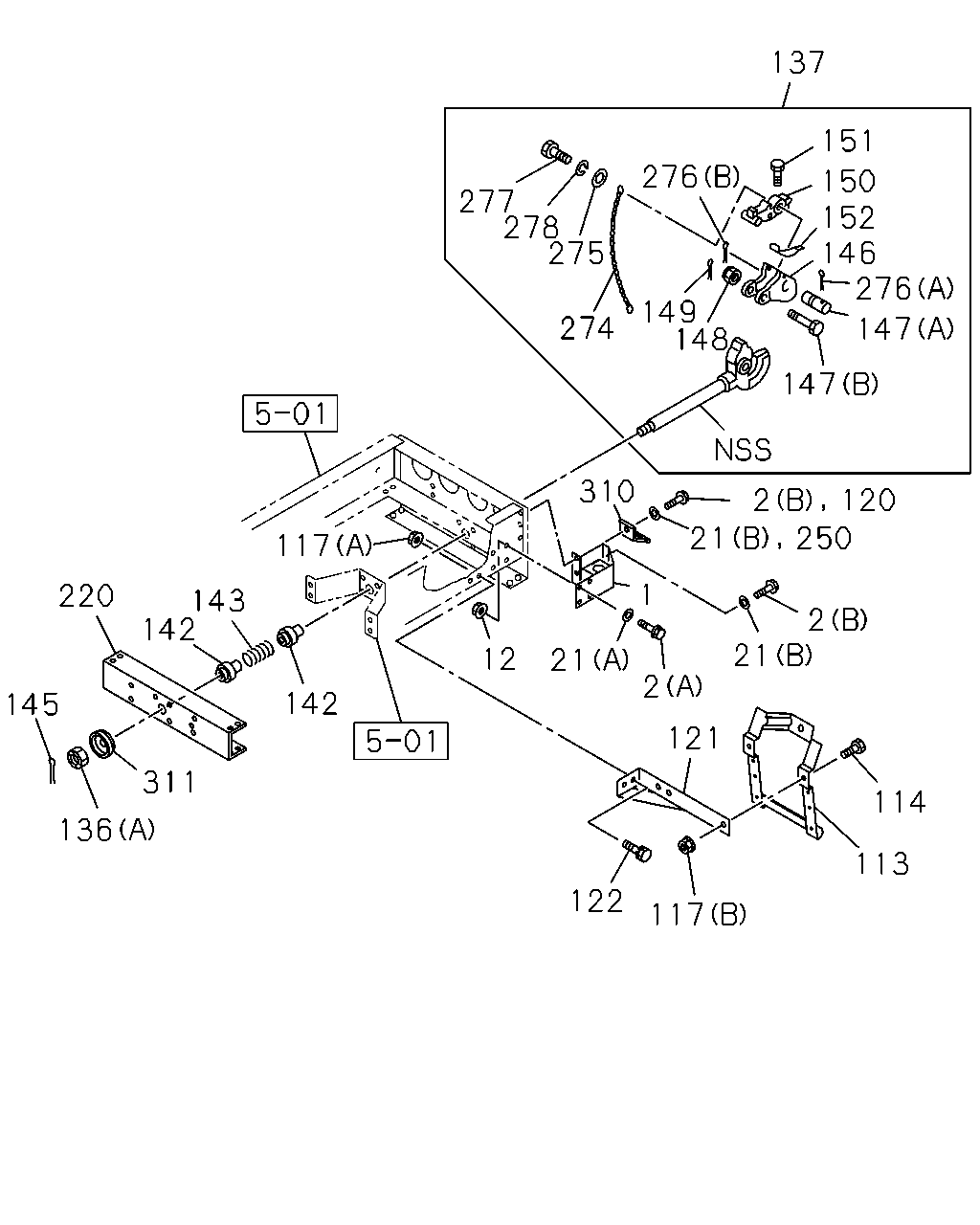

çizim 193383
137 151 276 150 152 146 276 277 278 275 149 148 274 147 147 117 310 2 120 1 220 143 142 2 21 12 21 2 142 145 121 311 114 136 113 122 117 21 250
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER; RR
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> 		1-71220-043-2 02 1 1003- ●
2 BOLT; BACK BAR
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> (A) M14X40 		0-20851-440-0 08 1 1003- ●
2 BOLT; BACK BAR
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> (B) M16X40 		0-20851-640-0 02 1 1003- ●
2 BOLT; BACK BAR
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. RR HOOK TWO EYE<VR7> (B) M16X40 		0-20851-640-0 04 1 1003- ●
12 NUT; BRKT
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> M14 		0-91110-514-0 04 1 1003- ●
21 WASHER; LK,BUMPER
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> (A) ID=14.2 		0-91510-814-0 08 1 1003- ●
21 WASHER; LK,BUMPER
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> (B) ID=16.2 		0-91510-816-0 02 1 1003- ●
21 WASHER; LK,BUMPER
PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. RR HOOK TWO EYE<VR7> (B) ID=16.2 		0-91510-816-0 04 1 1003- ●
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 0712-1205 ● ●
113 BRACKET; LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND<CX6> 		1-53485-074-0 01 1 1206- ●
113 BRACKET; LICENSE PLATE
EXC. AUSTRALIA EQUIPMENT(B13) 		1-53485-074-0 01 1 1206- ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0712-1205 ● ●
114 BOLT; BRKT,LICENSE PLATE
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND<CX6> M8X25 FLANGE 		0-28650-825-0 02 1 1206- ●
114 BOLT; BRKT,LICENSE PLATE
EXC. AUSTRALIA EQUIPMENT(B13) M8X25 FLANGE 		0-28650-825-0 02 1 1206- ●
117 NUT; BRKT
PINTLE HOOK<PP7> (A) M12 FLANGE 		0-91180-212-0 02 1 0712-1205 ●
117 NUT; BRKT
PINTLE HOOK<PP7> EXC. AUSTRALIA EQUIPMENT(B13) (A) M12 FLANGE 		0-91180-212-0 02 1 1206- ●
117 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-1205 ● ●
117 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1206- ● ●
117 NUT; BRKT
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND<CX6> (B) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
117 NUT; BRKT
EXC. AUSTRALIA EQUIPMENT(B13) (B) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
120 BOLT
RR HOOK TWO EYE<VR7> M16X40 		0-20851-640-0 02 1 1003- ●
121 STAY; RR LICENSE PLATE BRKT
PINTLE HOOK<PP7> 		1-53485-002-1 01 1 0712-1111 ●
121 STAY; RR LICENSE PLATE BRKT
PINTLE HOOK<PP7> 		8-98179-582-0 01 1 1112-1205 ●
121 STAY; RR LICENSE PLATE BRKT
PINTLE HOOK<PP7> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98179-582-0 01 1 1206- ●
122 BOLT; STAY TO FRAME
PINTLE HOOK<PP7> M12X30 FLANGE 		0-28651-230-0 02 1 0712-1205 ●
122 BOLT; STAY TO FRAME
PINTLE HOOK<PP7> EXC. AUSTRALIA EQUIPMENT(B13) M12X30 FLANGE 		0-28651-230-0 02 1 1206- ●
136 NUT; HOOK
PINTLE HOOK<PP7> (A) 		1-09420-006-0 01 1 0712- ●
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16 		0-91110-516-0 04 1 0712-0803 ●
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> (B) M16 		0-91110-516-0 04 1 0712-0803 ●
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16 		0-91110-516-0 04 1 0804- ●
136 NUT; HOOK
(B) M16 		0-91110-516-0 04 1 0804- ●
136 NUT; HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16 		0-91110-516-0 02 1 0712-0803 ●
136 NUT; HOOK
EXC. REAR DOUBLE HOOK<PM1> (B) M16 		0-91110-516-0 02 1 0712-0803 ●
136 NUT; HOOK
EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16 		0-91110-516-0 02 1 0804- ●
137 HOOK ASM; PINTLE
PINTLE HOOK<PP7> 		1-57180-053-2 01 1 0712- ●
142 GUIDE; HOOK SPR
PINTLE HOOK<PP7> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		9-53522-001-0 02 1 0712-1501 ●
142 GUIDE; HOOK SPR
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) PINTLE HOOK<PP7> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,ANTI LOCK BRAKE<JE5> 		9-53522-001-0 02 1 1502- ●
143 SPRING; COIL,PINTLE HOOK
PINTLE HOOK<PP7> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		9-09940-078-0 01 1 0712-1501 ●
143 SPRING; COIL,PINTLE HOOK
LCT2000 A/T ALLISON(Y4F) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		9-09940-078-0 01 1 1502- ●
143 SPRING; COIL,PINTLE HOOK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,ANTI LOCK BRAKE<JE5> 		9-09940-078-0 01 1 1502- ●
143 SPRING; COIL,PINTLE HOOK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,ANTI LOCK BRAKE<JE5> 		9-09940-078-0 01 1 1502- ●
143 SPRING; COIL,PINTLE HOOK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,ANTI LOCK BRAKE<JE5> 		9-09940-078-0 01 1 1502- ●
145 PIN; SPLIT,PINTLE HOOK
PINTLE HOOK<PP7> OD=5.7 L=65 		0-81126-065-0 01 1 0712- ●
146 LEVER; LK,PINTLE HOOK
PINTLE HOOK<PP7> 		9-53514-001-0 01 1 0712- ●
147 PIN; LK LEVER
PINTLE HOOK<PP7> (A) 		9-53516-002-0 01 1 0712- ●
147 PIN; LK LEVER
PINTLE HOOK<PP7> (B) 		9-53516-008-0 01 1 0712- ●
148 NUT; LK PIN
PINTLE HOOK<PP7> M24 SLOTTED 		1-09442-020-0 01 1 0712-0805 ●
148 NUT; LK PIN
PINTLE HOOK<PP7> M24 		1-09442-032-0 01 1 0806- ●
149 PIN; SPLIT,PINTLE HOOK
PINTLE HOOK<PP7> OD=2.8 L=45 		0-81123-045-0 01 1 0712- ●
150 RATCHET; LK LEVER,PINTLE HOOK
PINTLE HOOK<PP7> 		9-53515-001-0 01 1 0712- ●
151 BOLT; PINTLE HOOK
PINTLE HOOK<PP7> M8X32 W/LK WASHER 		0-50040-832-0 01 1 0712-0906 ●
151 BOLT; PINTLE HOOK
PINTLE HOOK<PP7> M8X32 W/LK WASHER 		0-50540-832-0 01 1 0907- ●
152 SPRING; RATCHET,PINTLE HOOK
PINTLE HOOK<PP7> 		9-53515-002-0 01 1 0712- ●
220 MEMBER; PINTLE HOOK
PINTLE HOOK<PP7> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97618-610-0 01 1 0712-1501 ●
220 MEMBER; PINTLE HOOK
LCT2000 A/T ALLISON(Y4F) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-97618-610-0 01 1 1502- ●
220 MEMBER; PINTLE HOOK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> REARWARD INNER SINGLE TIRE<YK3> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,ANTI LOCK BRAKE<JE5> 		8-97618-610-0 01 1 1502- ●
220 MEMBER; PINTLE HOOK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) WHEEL BASE 4200MM(42W) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,ANTI LOCK BRAKE<JE5> 		8-97618-610-0 01 1 1502- ●
220 MEMBER; PINTLE HOOK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION<NT2> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>,ANTI LOCK BRAKE<JE5> 		8-97618-610-0 01 1 1502- ●
250 WASHER; LK,BRKT TRAILER SAFETY CHAIN
RR HOOK TWO EYE<VR7> ID=16.2 		0-91510-816-0 02 1 1003- ●
274 CHAIN; PINTLE HOOK
PINTLE HOOK<PP7> 		9-09954-001-0 01 1 0712- ●
275 WASHER; PL,CHAIN
PINTLE HOOK<PP7> ID=6.4 		0-91610-606-0 01 1 0712- ●
276 PIN; SPLIT,CHAIN
PINTLE HOOK<PP7> (B) 		1-57186-011-0 01 1 0712- ●
276 PIN; SPLIT,CHAIN
PINTLE HOOK<PP7> (A) 		9-08113-015-0 01 1 0712- ●
277 SCREW; CHAIN
PINTLE HOOK<PP7> M6X12 		9-03490-612-0 01 1 0712- ●
278 WASHER; LK,CHAIN
PINTLE HOOK<PP7> ID=6.1 		0-91510-506-0 01 1 0712- ●
310 EYE; PLATE
RR HOOK TWO EYE<VR7> 		1-57184-001-0 02 1 1003- ●
311 PLATE; ADJUSTING
PINTLE HOOK<PP7> 		1-57184-008-0 01 1 0712- ●
