◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#66773) — 97 parça

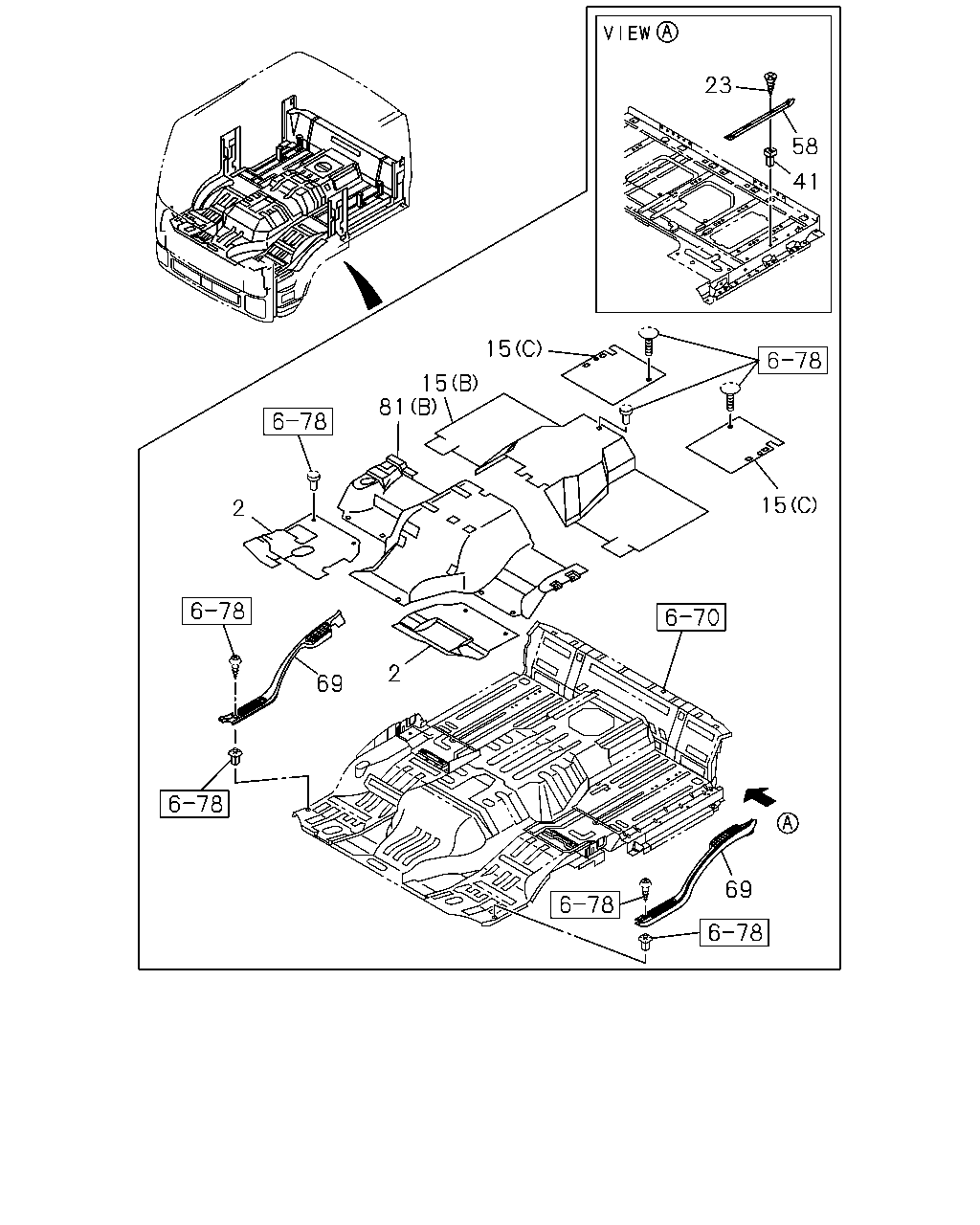

çizim 132413
23 58 41 15 15 81 15 2 2 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-746-5 01 1 0712-1003 ●
2 MAT; FLOOR
GRAY 		8-97407-746-5 01 1 0712-1003 ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-746-5 01 1 1004- ●
2 MAT; FLOOR
GRAY 		8-97407-746-5 01 1 1004- ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 0712-1003 ●
2 MAT; FLOOR
GRAY 		8-97407-747-2 01 1 0712-1003 ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 1004- ●
2 MAT; FLOOR
GRAY 		8-97407-747-2 01 1 1004- ●
2 MAT; FLOOR
EXC. FLOOR COVER<6WX> GRAY 		8-97407-750-4 01 1 0712-1003 ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-750-4 01 1 1004-1005 ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-947-0 01 1 1006- ●
2 MAT; FLOOR
EXC. FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 0712-1003 ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 1004-1005 ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-949-0 01 1 1006- ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY 		8-97418-951-0 01 1 1004-1005 ●
15 MAT; FLOOR REAR
VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY 		8-97418-951-0 01 1 1006- ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY 		8-97407-404-1 01 1 0712- ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY 		8-97407-397-0 01 1 0712-1003 ●
15 MAT; FLOOR REAR
EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY 		8-97407-397-0 01 1 1004-1005 ●
15 MAT; FLOOR REAR
(B) GRAY 		8-97411-643-1 01 1 0712- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97411-642-1 01 1 0712- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97411-641-1 01 1 0712- ●
23 SCREW; SILL PLATE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0712- ●
41 GROMMET; SCREW,SILL PLATE
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0712- ●
58 PLATE; GUARD,RR FLOOR MAT
GRAY 		8-97405-981-1 02 1 0712- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-413-1 01 1 0712- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-412-1 01 1 0712- ● ●
81 MAT; FLOOR,CENTER
LCT2000 A/T ALLISON(Y4F) FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97414-070-1 01 1 1003-1003 ●
81 MAT; FLOOR,CENTER
LCT2000 A/T ALLISON(Y4F) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97414-070-2 01 1 1004- ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT<SJA> FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY 		8-97411-646-3 01 1 0712-1003 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY 		8-97411-646-3 01 1 1004- ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY 		8-97411-636-2 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-406-3 01 1 0712-0906 ●
81 MAT; FLOOR,CENTER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-406-3 01 1 0907-1003 ●
81 MAT; FLOOR,CENTER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-406-3 01 1 1004-1005 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-406-3 01 1 1006- ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLOOR COVER<6WX> (A) GRAY 		8-97411-637-2 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT<SJA> FLOOR COVER<6WX> (A) GRAY 		8-97411-647-3 01 1 0712-1003 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97411-647-3 01 1 1004- ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,FLOOR COVER<6WX> (A) GRAY 		8-97407-391-6 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER<6WX> (A) GRAY 		8-97407-391-6 01 1 0802-1003 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY 		8-97407-391-6 01 1 1004-1005 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY 		8-97418-941-0 01 1 1006- ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-410-3 01 1 0712-1003 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-410-3 01 1 1004- ●
81 MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA>,FLOOR COVER<6WX> (A) GRAY 		8-97407-388-6 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY 		8-97407-388-6 01 1 0802-1003 ●
81 MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY 		8-97407-388-6 01 1 1004-1005 ●
81 MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY 		8-97418-940-0 01 1 1006- ●
81 MAT; FLOOR,CENTER
(B) GRAY 		8-97411-645-1 01 1 0712- ●

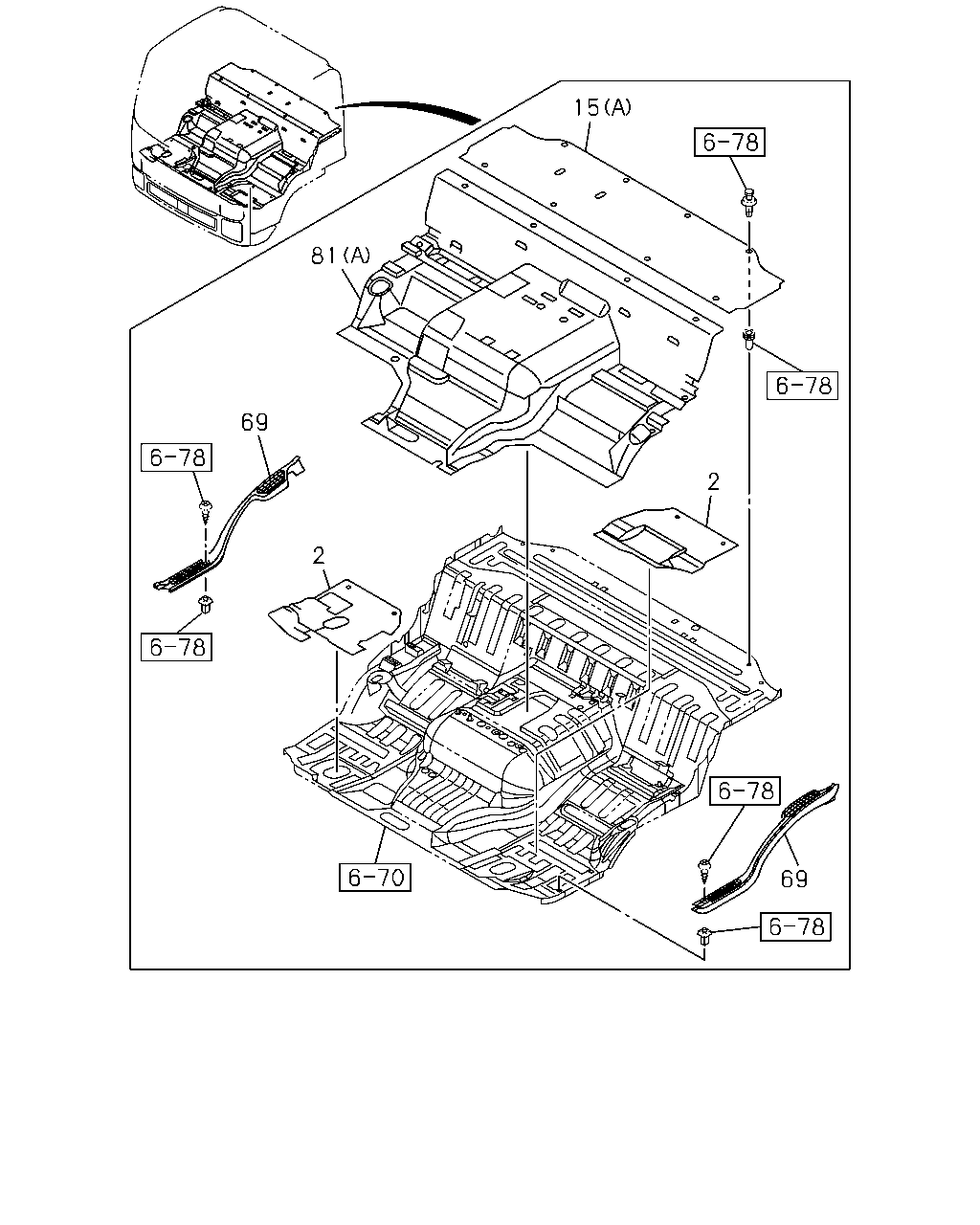

çizim 193392
15 81 2 2 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-746-5 01 1 0712-1003 ●
2 MAT; FLOOR
GRAY 		8-97407-746-5 01 1 0712-1003 ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-746-5 01 1 1004- ●
2 MAT; FLOOR
GRAY 		8-97407-746-5 01 1 1004- ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 0712-1003 ●
2 MAT; FLOOR
GRAY 		8-97407-747-2 01 1 0712-1003 ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 1004- ●
2 MAT; FLOOR
GRAY 		8-97407-747-2 01 1 1004- ●
2 MAT; FLOOR
EXC. FLOOR COVER<6WX> GRAY 		8-97407-750-4 01 1 0712-1003 ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-750-4 01 1 1004-1005 ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-947-0 01 1 1006- ●
2 MAT; FLOOR
EXC. FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 0712-1003 ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 1004-1005 ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-949-0 01 1 1006- ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY 		8-97418-951-0 01 1 1004-1005 ●
15 MAT; FLOOR REAR
VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> (A) DARK GRAY 		8-97418-951-0 01 1 1006- ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> (A) GRAY 		8-97407-404-1 01 1 0712- ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY 		8-97407-397-0 01 1 0712-1003 ●
15 MAT; FLOOR REAR
EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> (A) GRAY 		8-97407-397-0 01 1 1004-1005 ●
15 MAT; FLOOR REAR
(B) GRAY 		8-97411-643-1 01 1 0712- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97411-642-1 01 1 0712- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97411-641-1 01 1 0712- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-413-1 01 1 0712- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-412-1 01 1 0712- ● ●
81 MAT; FLOOR,CENTER
LCT2000 A/T ALLISON(Y4F) FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97414-070-1 01 1 1003-1003 ●
81 MAT; FLOOR,CENTER
LCT2000 A/T ALLISON(Y4F) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97414-070-2 01 1 1004- ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT<SJA> FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY 		8-97411-646-3 01 1 0712-1003 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY 		8-97411-646-3 01 1 1004- ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY 		8-97411-636-2 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-406-3 01 1 0712-0906 ●
81 MAT; FLOOR,CENTER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-406-3 01 1 0907-1003 ●
81 MAT; FLOOR,CENTER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J), MLD6WM/T(Y2C) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-406-3 01 1 1004-1005 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> MANUAL TRANSMISSION<X9C> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-406-3 01 1 1006- ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT<SJA> EXC. FLOOR COVER<6WX> (A) GRAY 		8-97411-637-2 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT<SJA> FLOOR COVER<6WX> (A) GRAY 		8-97411-647-3 01 1 0712-1003 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97411-647-3 01 1 1004- ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. DRIVER ISRINGHAUSEN SEAT<SJA>,FLOOR COVER<6WX> (A) GRAY 		8-97407-391-6 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER<6WX> (A) GRAY 		8-97407-391-6 01 1 0802-1003 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY 		8-97407-391-6 01 1 1004-1005 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY 		8-97418-941-0 01 1 1006- ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-410-3 01 1 0712-1003 ●
81 MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> EXC. DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97407-410-3 01 1 1004- ●
81 MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA>,FLOOR COVER<6WX> (A) GRAY 		8-97407-388-6 01 1 0712-0801 ●
81 MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER<6WX> (A) GRAY 		8-97407-388-6 01 1 0802-1003 ●
81 MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) GRAY 		8-97407-388-6 01 1 1004-1005 ●
81 MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> (A) DARK GRAY 		8-97418-940-0 01 1 1006- ●
81 MAT; FLOOR,CENTER
(B) GRAY 		8-97411-645-1 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
