Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶

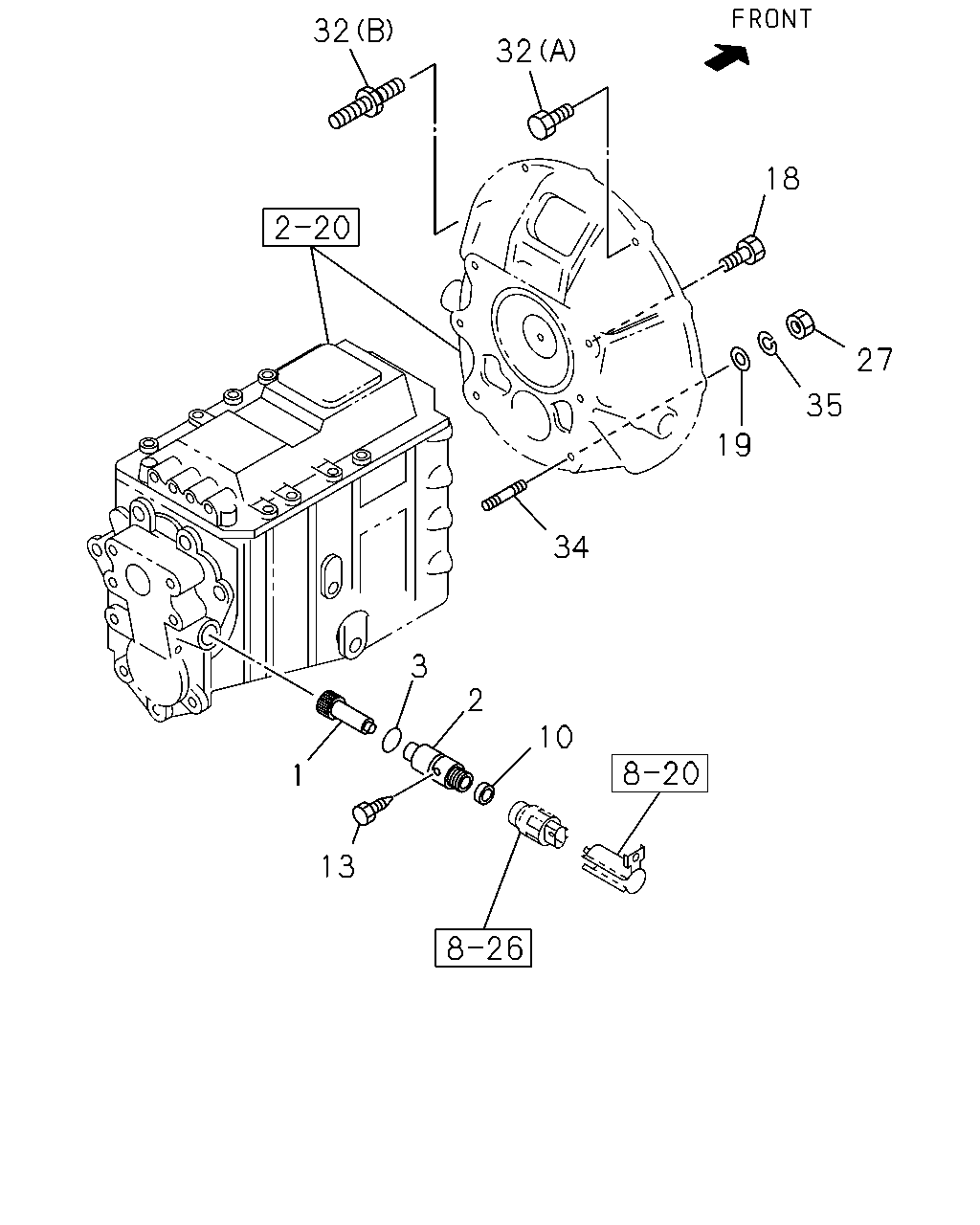

2-25 — SPEEDOMETER DRIVEN GEAR
(#6676) — 12 parça
32
32
18
27
35
19
34
3
2
10
1
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=15
1-33372-133-5
01
1
0011-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-058-3
01
1
0011-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
0011-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0011-
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
0011-
18
BOLT; CLU HSG TO TRANS
M16X40 W/LK&PL WASHER
0-50151-640-0
06
1
0011-
19
WASHER; PL,CLU HSG TO TRANS
ID=17
9-09160-516-0
02
1
0011-
27
NUT; CLU HSG TO TRANS
M16
9-99110-516-0
02
1
0011-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE
0-28781-030-0
10
1
0011-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X20,M10X26 L=56
1-09049-014-1
02
1
0011-
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
0011-
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
9-09150-516-0
02
1
0011-
