Sayfa 6-04 - Isuzu EPC

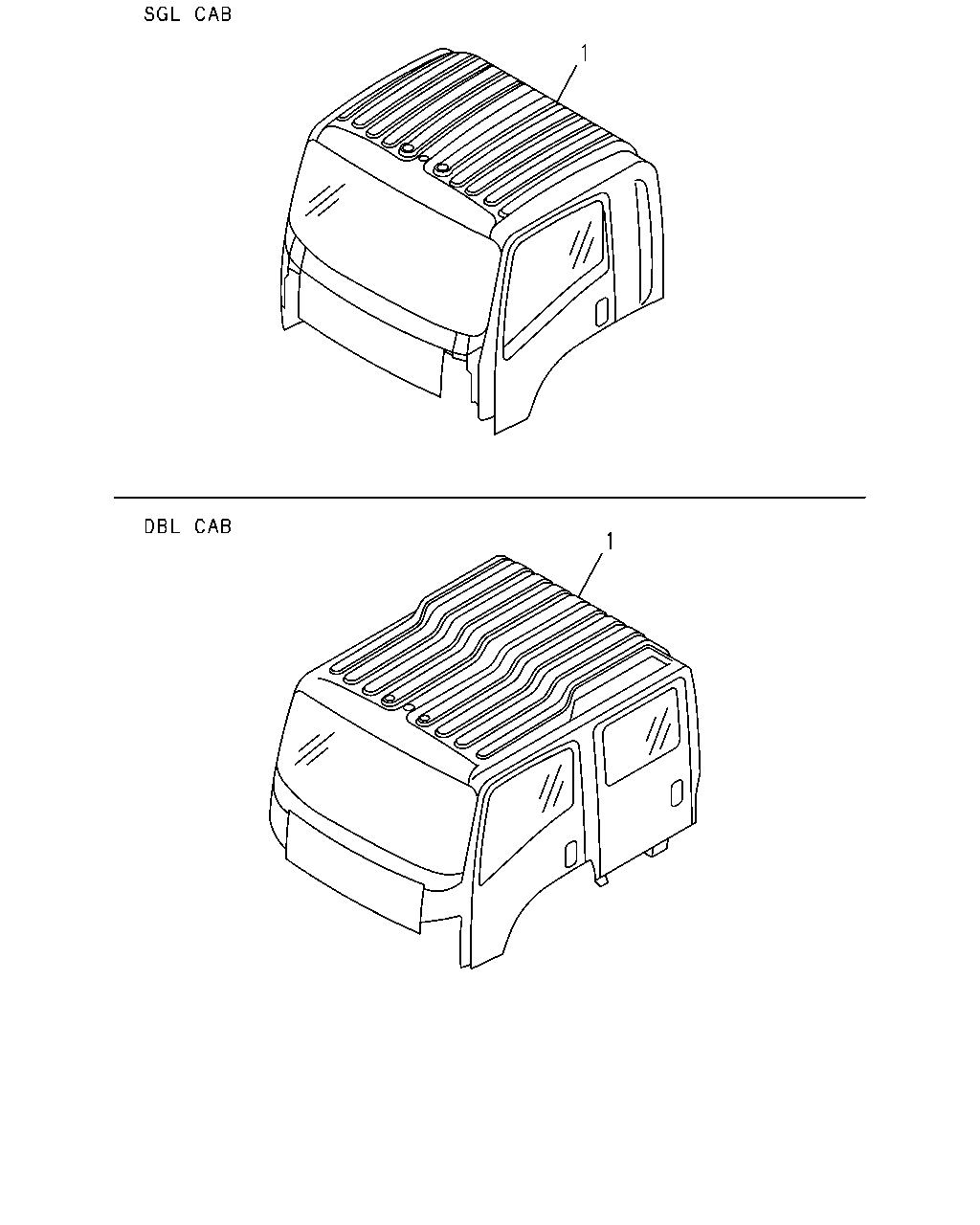

6-04 — CAB ASM (#66756) — 4 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT DOOR<A32> INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> LAMPS TWO ROOF MARKER<TEC> MANUAL TRANSMISSION<X9C> EXC. COUNTRY NEW ZEALAND<CX6>,MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB),MIRROR O/S UNDER VIEW<RR9> ,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-61087-476-0	01	1	0712-	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) POWER WINDOW FRT&REAR DOOR<A31> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR O/S UNDER VIEW<RR9>	1-61087-353-0	01	1	0712-		●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) MANUAL TRANSMISSION<X9C> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB),NEW ZEALAND EQUIPMENT(E13),3- SPEAKER SYSTEM FRT<NNR>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,FLUORESCENT LAMP<6UC>,IMMOBILIZER SYSTEM<7KC>,ASH TRAY PASSENGER DOOR<8LX>	1-61088-224-0	01	1	1003-	●
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB),3-SPEAKER SYSTEM FRT<NNR>,FUE L TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,MANUAL TRANSMISSION<X9C>,FLUORESCENT LAMP<6UC>,IMMOBILIZER SYSTEM<7KC> ,ASH TRAY PASSENGER DOOR<8LX>	1-61088-225-0	01	1	1003-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
