◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#66753) — 41 parça

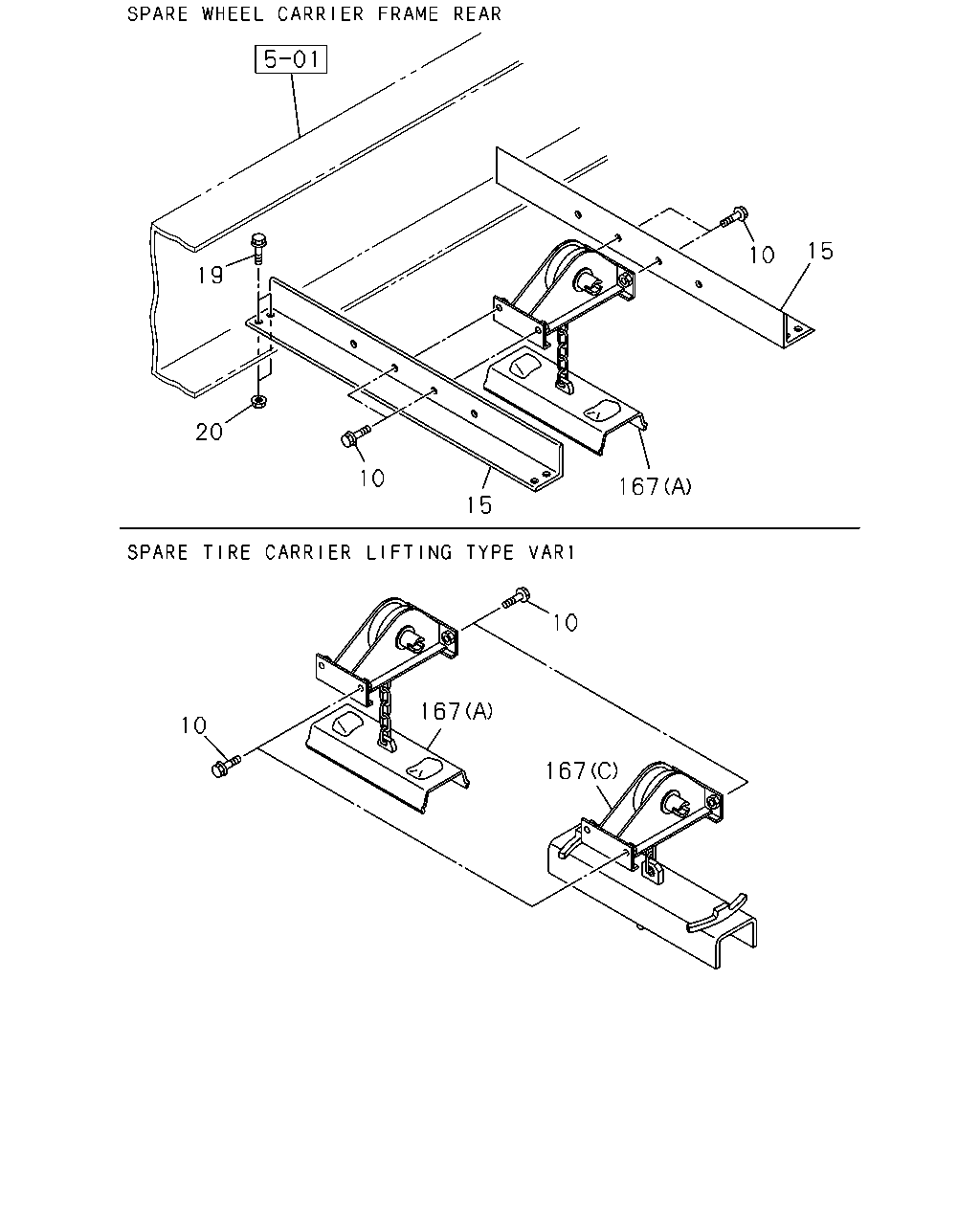

çizim 125835
15 10 19 20 10 167 15 10 167 10 167
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28651-230-0 04 1 0712-0808 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809-1002 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1003- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1003- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-394-0 02 1 0712- ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0712- ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0712- ● ●
167 HANGER; TIRE
WHEEL 10STUD 8.50VX20 138-13(FJC) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-210-4 01 1 1003- ●
167 HANGER; TIRE
WHEEL 10STUD 8.50VX20 138-13(FJC) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98138-284-2 01 1 1003- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-2 01 1 0712-1002 ● ●
167 HANGER; TIRE
WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-3 01 1 1003-1011 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-3 01 1 1003-1011 ●
167 HANGER; TIRE
WHEEL 8STUD 6.50TX20 152-11(Q50),WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-3 01 1 1012- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-3 01 1 1012- ●

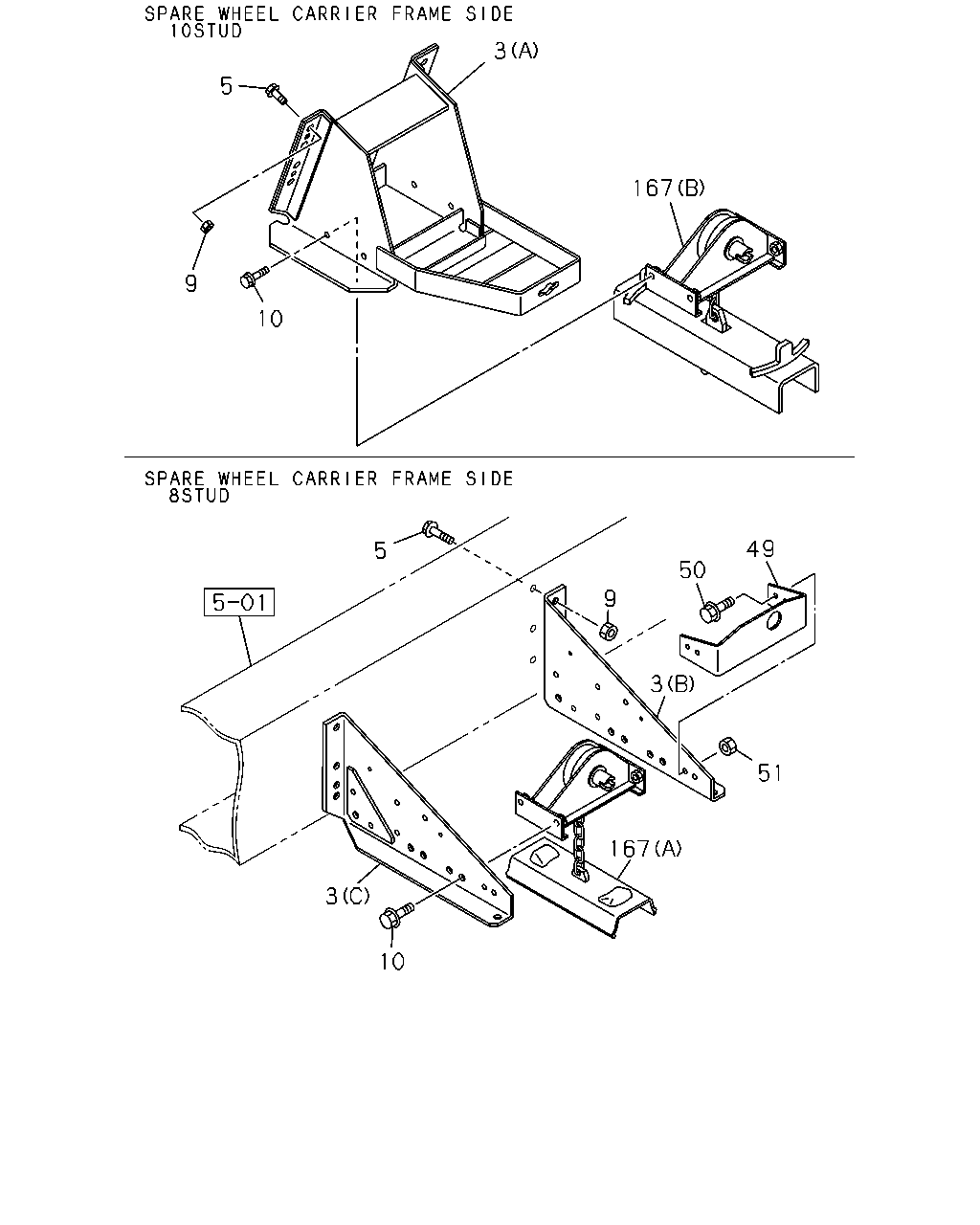

çizim 126178
3 5 167 9 10 49 5 50 9 3 51 167 3 10
BalonParca AdiParca NoAdetTipApplied Date A B
3 BRACKET; TIRE CARRIER,FRT
WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> (C) 		8-98106-691-0 01 1 1010-1011 ●
3 BRACKET; TIRE CARRIER,FRT
WHEEL 8STUD 6.50TX20 152-11(Q50),WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> (C) 		8-98106-691-0 01 1 1012- ●
3 BRACKET; TIRE CARRIER,FRT
WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98179-687-0 01 1 1010-1011 ●
3 BRACKET; TIRE CARRIER,FRT
WHEEL 8STUD 6.50TX20 152-11(Q50),WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98179-687-0 01 1 1012- ●
3 BRACKET; TIRE CARRIER,FRT
WHEEL 10STUD 8.50VX20 138-13(FJC) SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-98101-541-3 01 1 1003- ●
5 BOLT; BRKT TO FRAME
WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28051-245-0 06 1 1010-1011 ●
5 BOLT; BRKT TO FRAME
WHEEL 8STUD 6.50TX20 152-11(Q50),WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28051-245-0 06 1 1012- ●
5 BOLT; BRKT TO FRAME
WHEEL 10STUD 8.50VX20 138-13(FJC) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28051-245-0 05 1 1003- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 1003- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28651-230-0 04 1 0712-0808 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809-1002 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1003- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1003- ●
49 STAY; TIRE CARRIER
WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-466-1 01 1 1010-1011 ●
49 STAY; TIRE CARRIER
WHEEL 8STUD 6.50TX20 152-11(Q50),WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-466-1 01 1 1012- ●
50 BOLT; BRKT TO STAY
WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28650-830-0 04 1 1010-1011 ●
50 BOLT; BRKT TO STAY
WHEEL 8STUD 6.50TX20 152-11(Q50),WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28650-830-0 04 1 1012- ●
51 NUT; BRKT TO STAY
WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		0-91110-508-0 04 1 1010-1011 ●
51 NUT; BRKT TO STAY
WHEEL 8STUD 6.50TX20 152-11(Q50),WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		0-91110-508-0 04 1 1012-1203 ●
51 NUT; BRKT TO STAY
WHEEL 8STUD 6.50TX20 152-11(Q50),WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 1204- ●
167 HANGER; TIRE
WHEEL 10STUD 8.50VX20 138-13(FJC) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-210-4 01 1 1003- ●
167 HANGER; TIRE
WHEEL 10STUD 8.50VX20 138-13(FJC) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98138-284-2 01 1 1003- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-2 01 1 0712-1002 ● ●
167 HANGER; TIRE
WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-3 01 1 1003-1011 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-3 01 1 1003-1011 ●
167 HANGER; TIRE
WHEEL 8STUD 6.50TX20 152-11(Q50),WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-3 01 1 1012- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-3 01 1 1012- ●
